Model Whirlpool RBD275PDB4 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

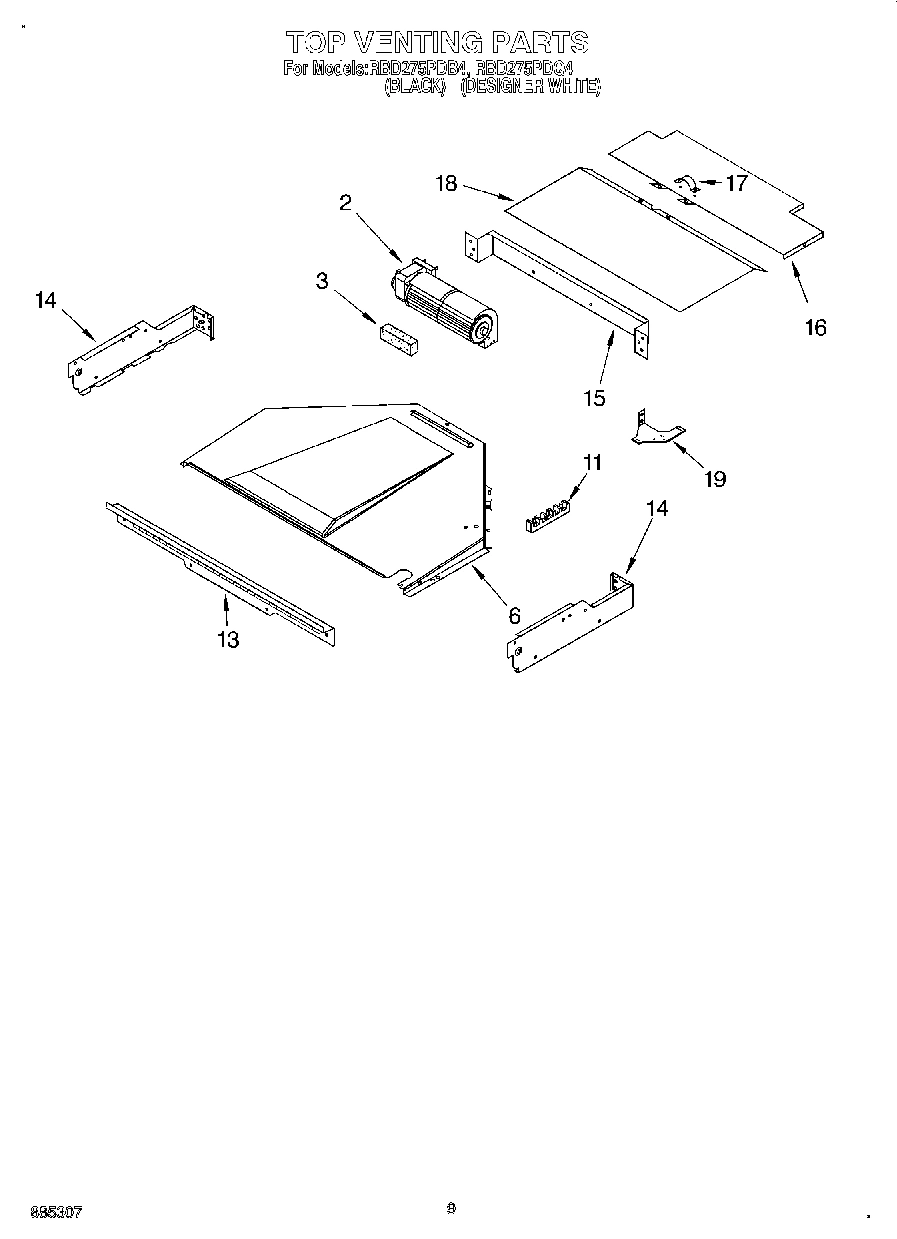

07 - TOP VENTING, OPTIONAL

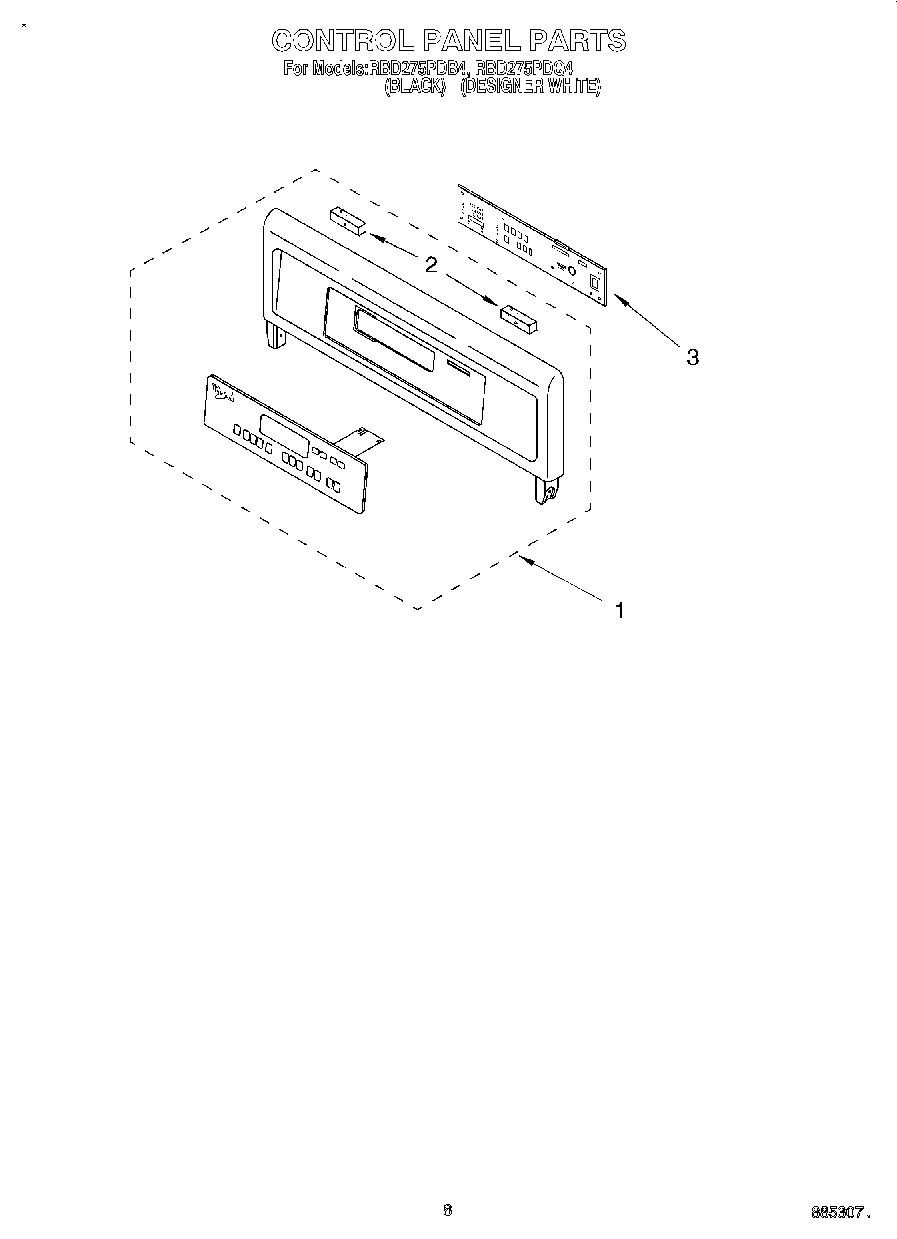

06 - CONTROL PANEL, LITERATURE

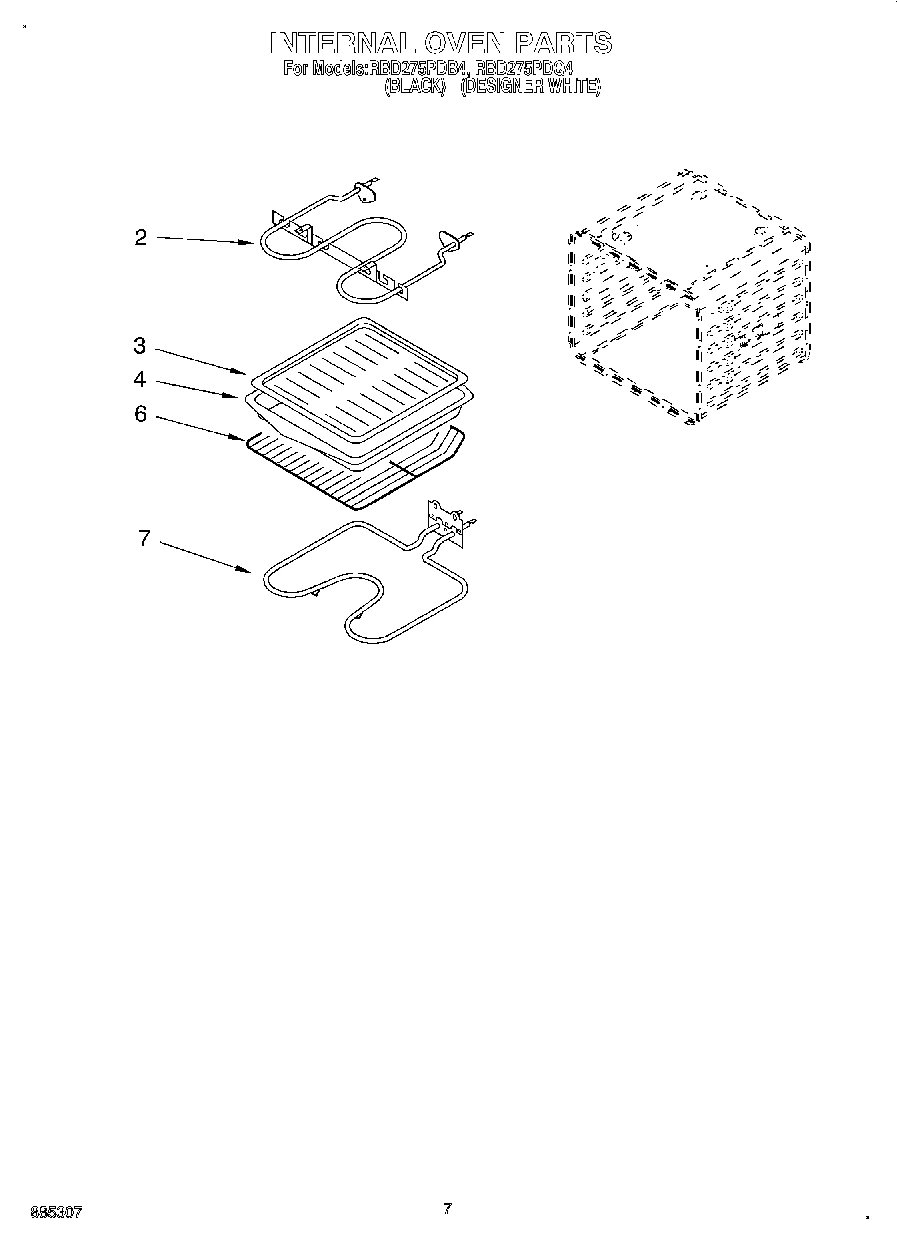

05 - INTERNAL OVEN

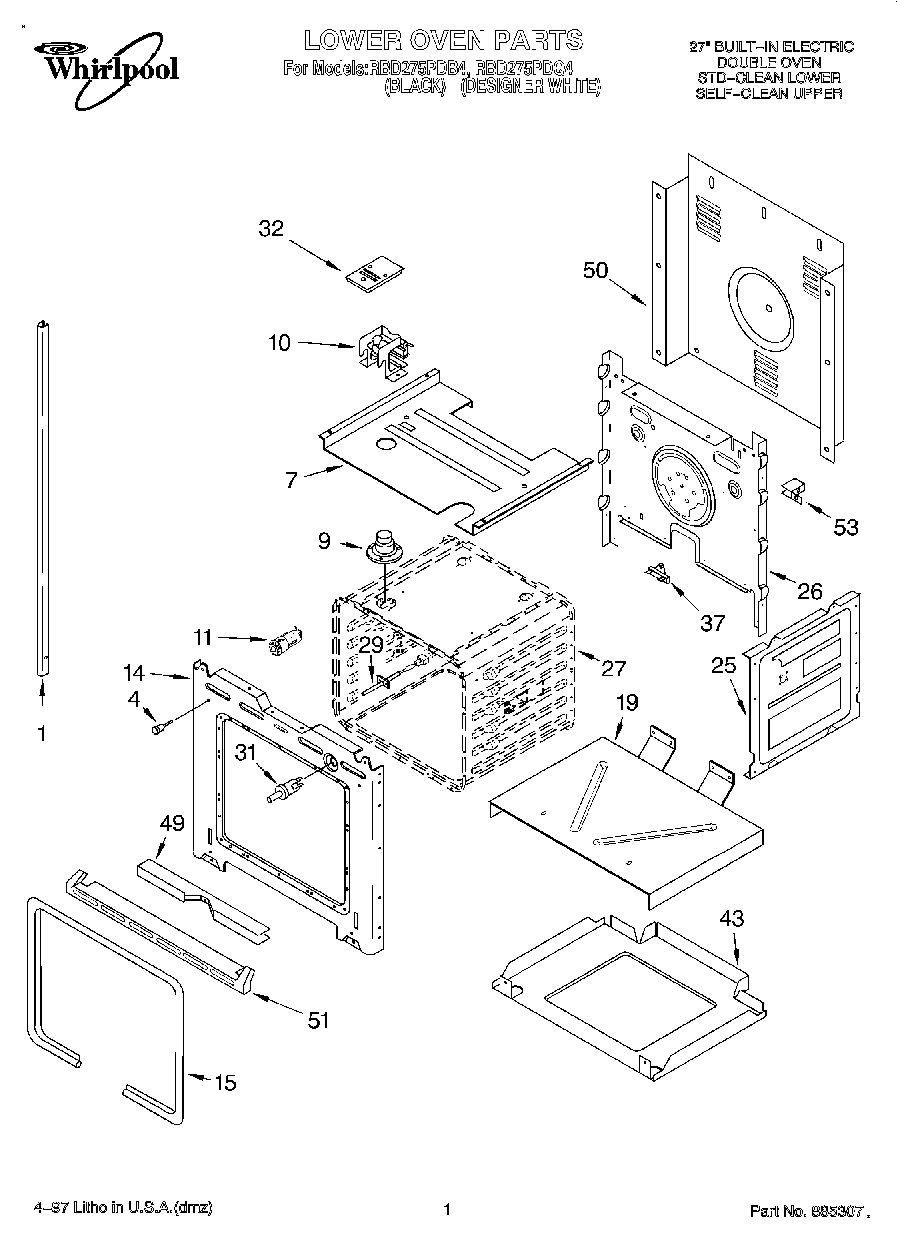

01 - LOWER OVEN

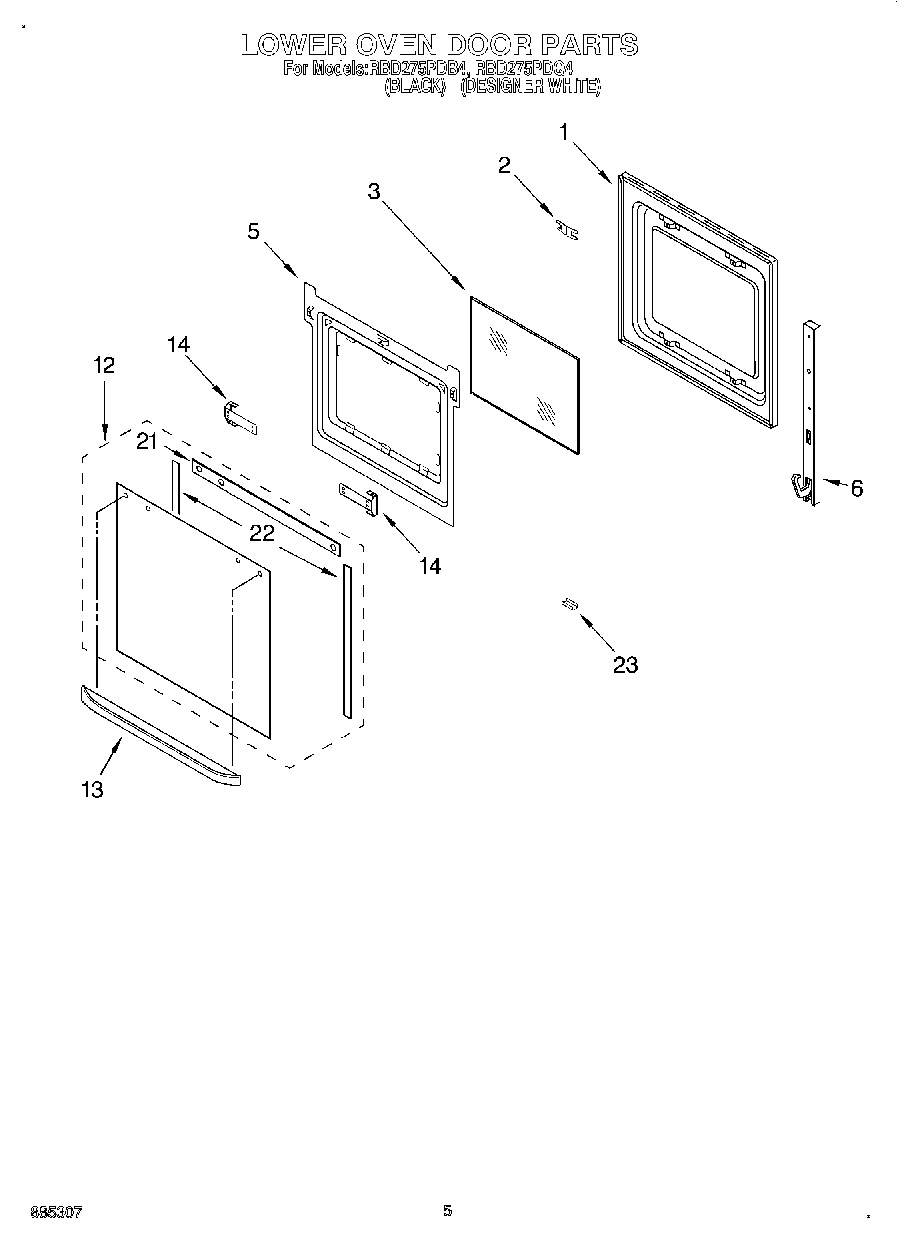

03 - LOWER OVEN DOOR

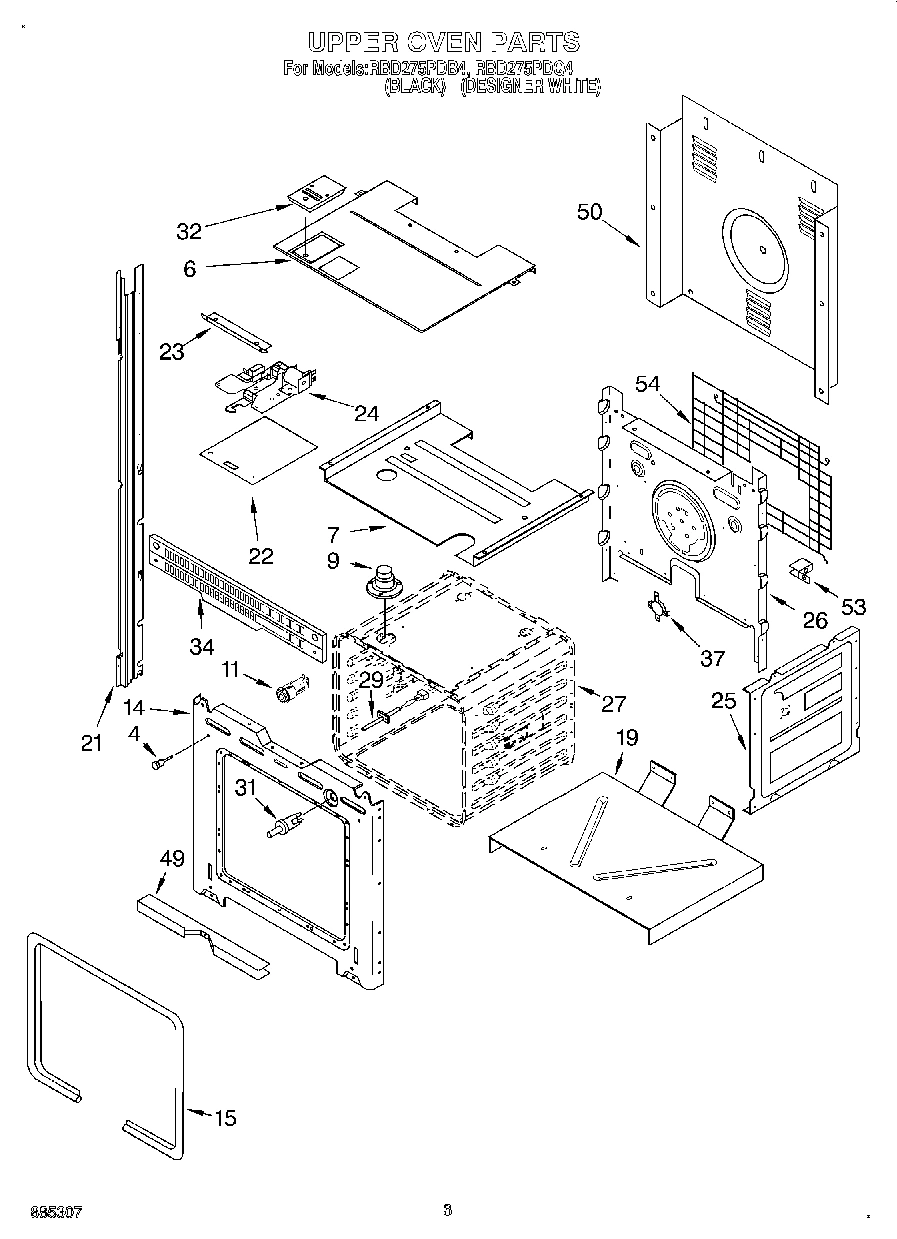

02 - UPPER OVEN

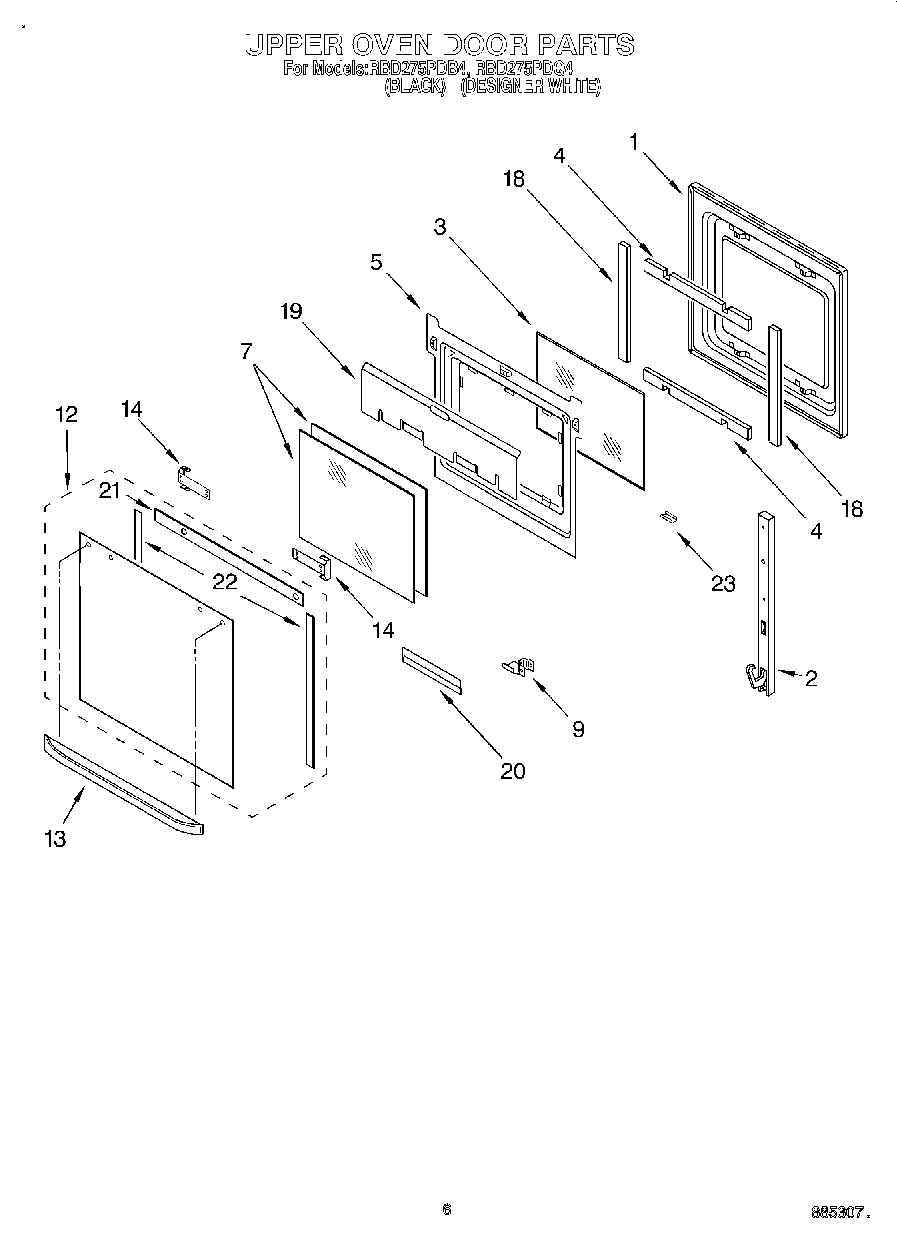

04 - UPPER OVEN DOOR
Common parts from model Whirlpool RBD275PDB4 BUILT-IN ELECTRIC DOUBLE OVEN
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (Black WPL 4451304 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (White WPL 4451305 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
3
Screw WPL 4449899 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Hinge, Door WPL 4451171 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451050 Contact Us For Availability
10
Extension, Bracket WPL 4454827 Contact Us For Availability
12
Door Glass, Outer (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450690 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Gasket, Door WPL 4450492 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Screw WPL 4450289 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451168 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119937A Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119938A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449049 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
