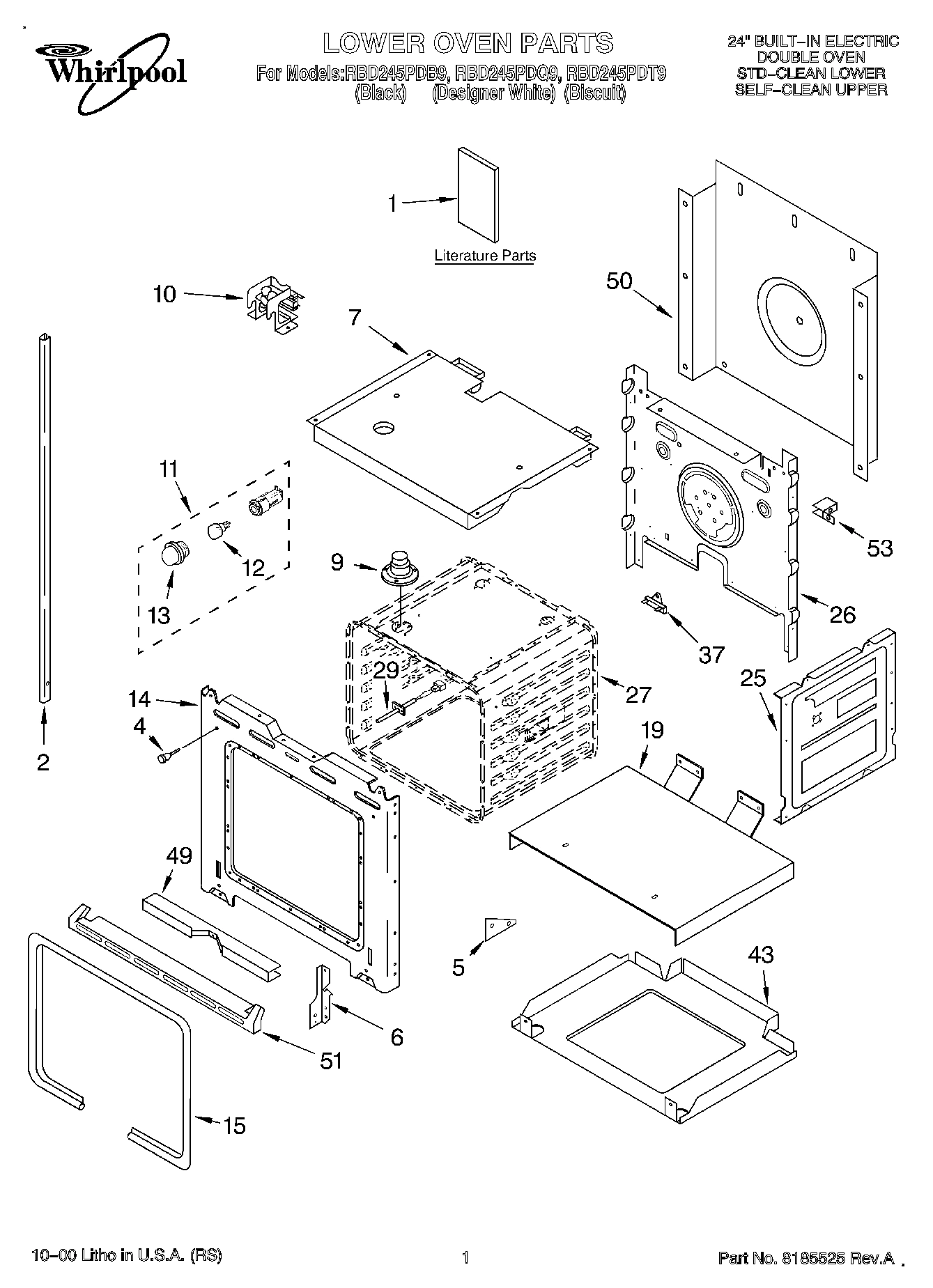

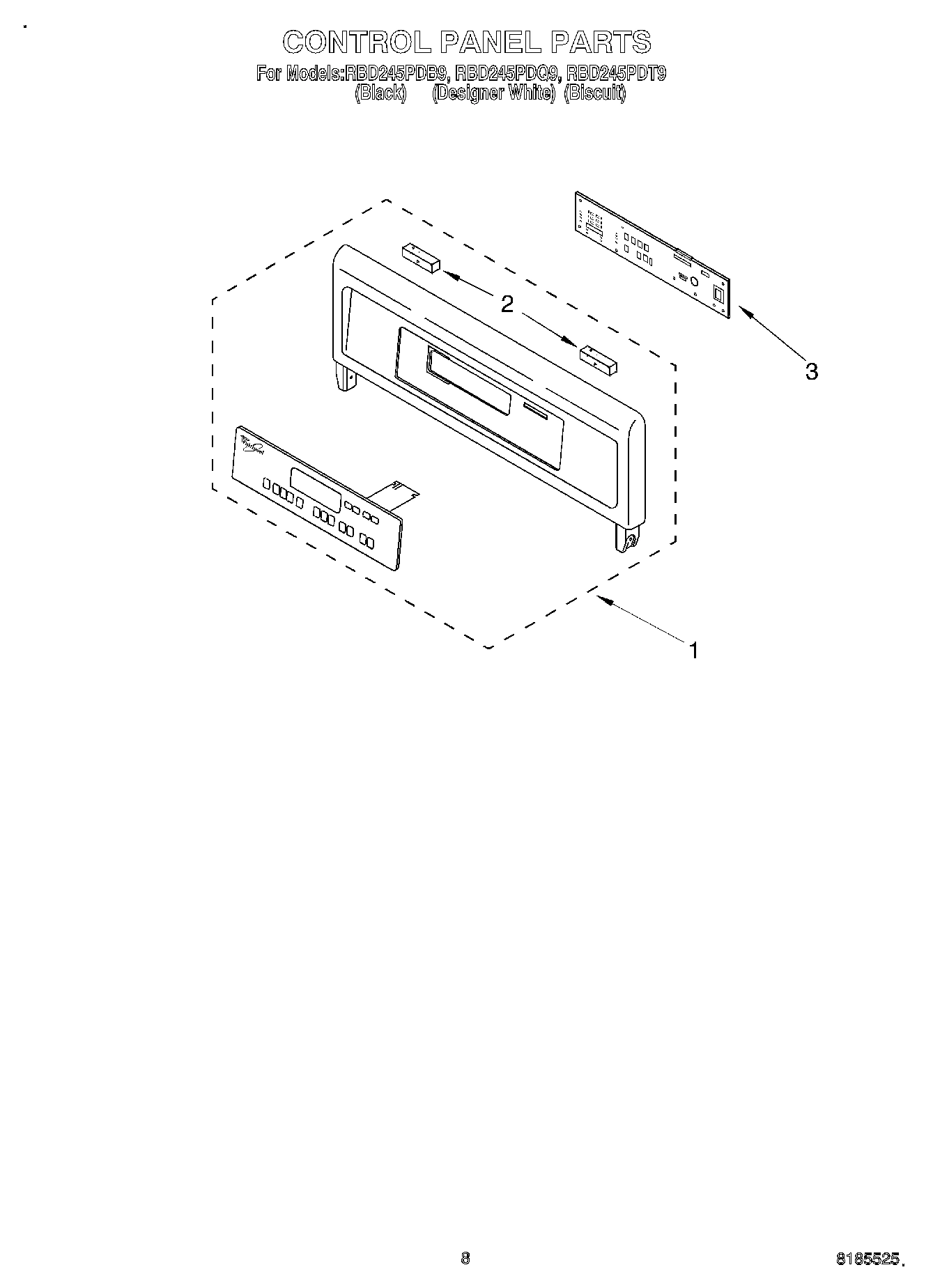

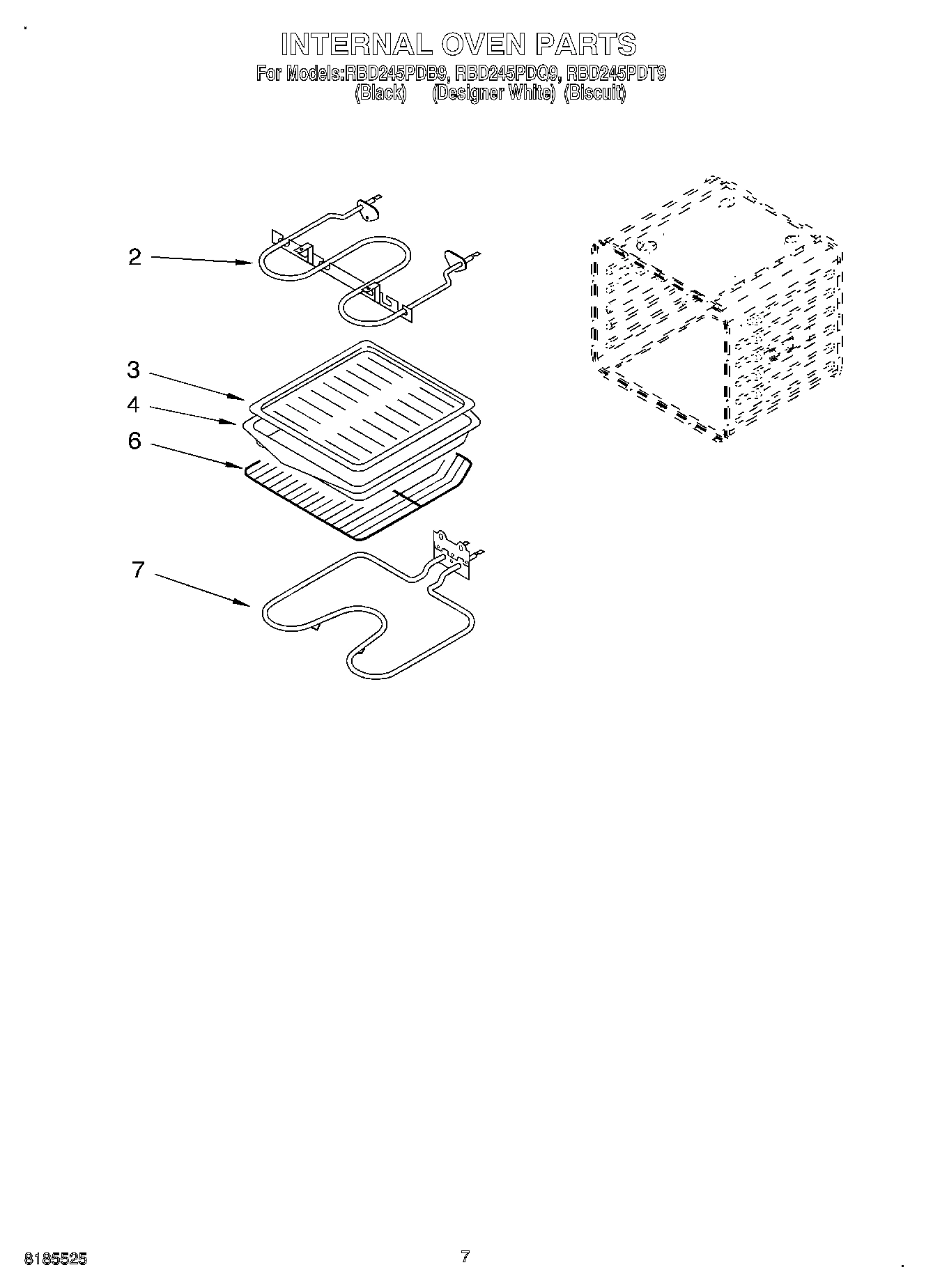

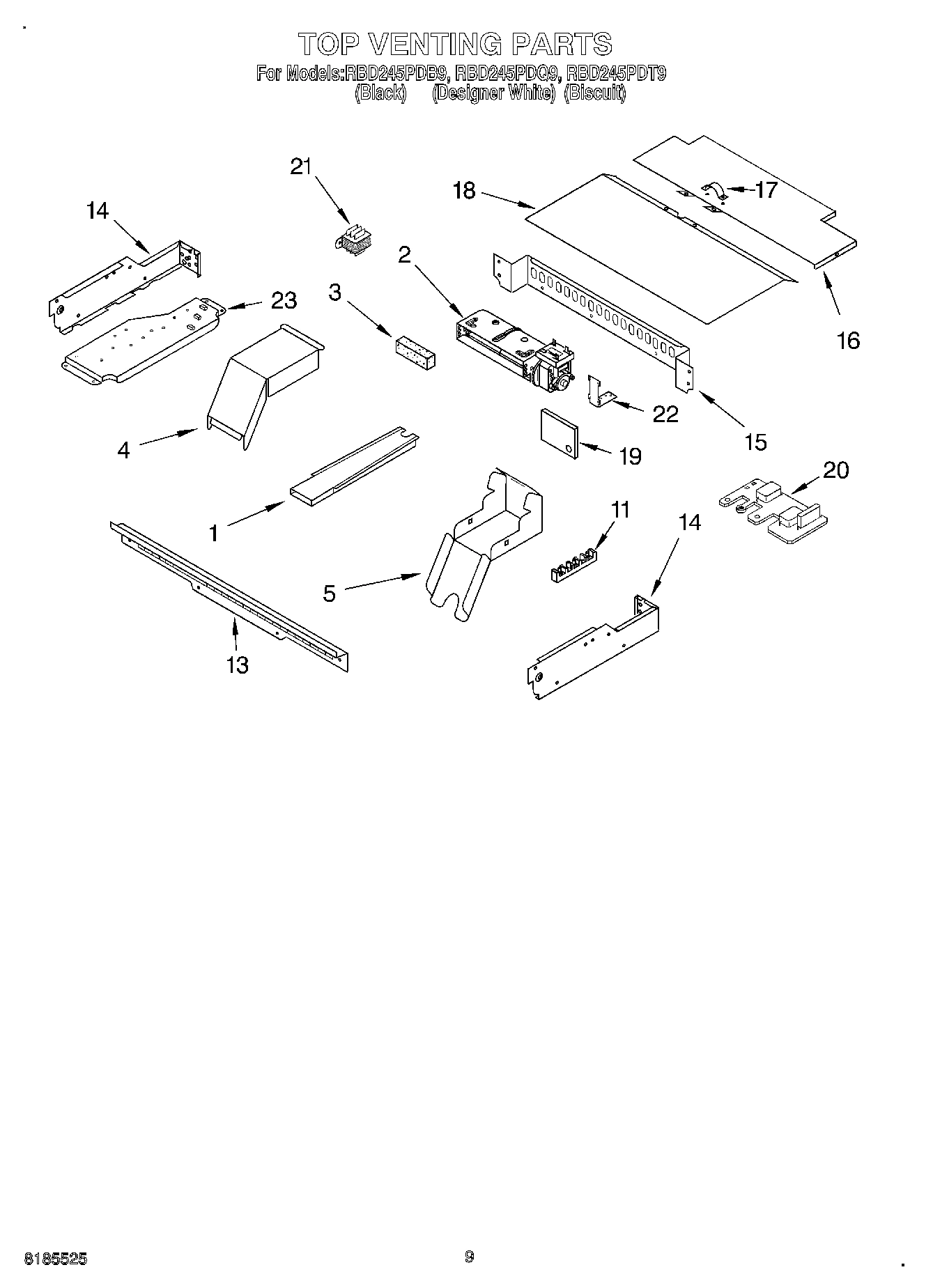

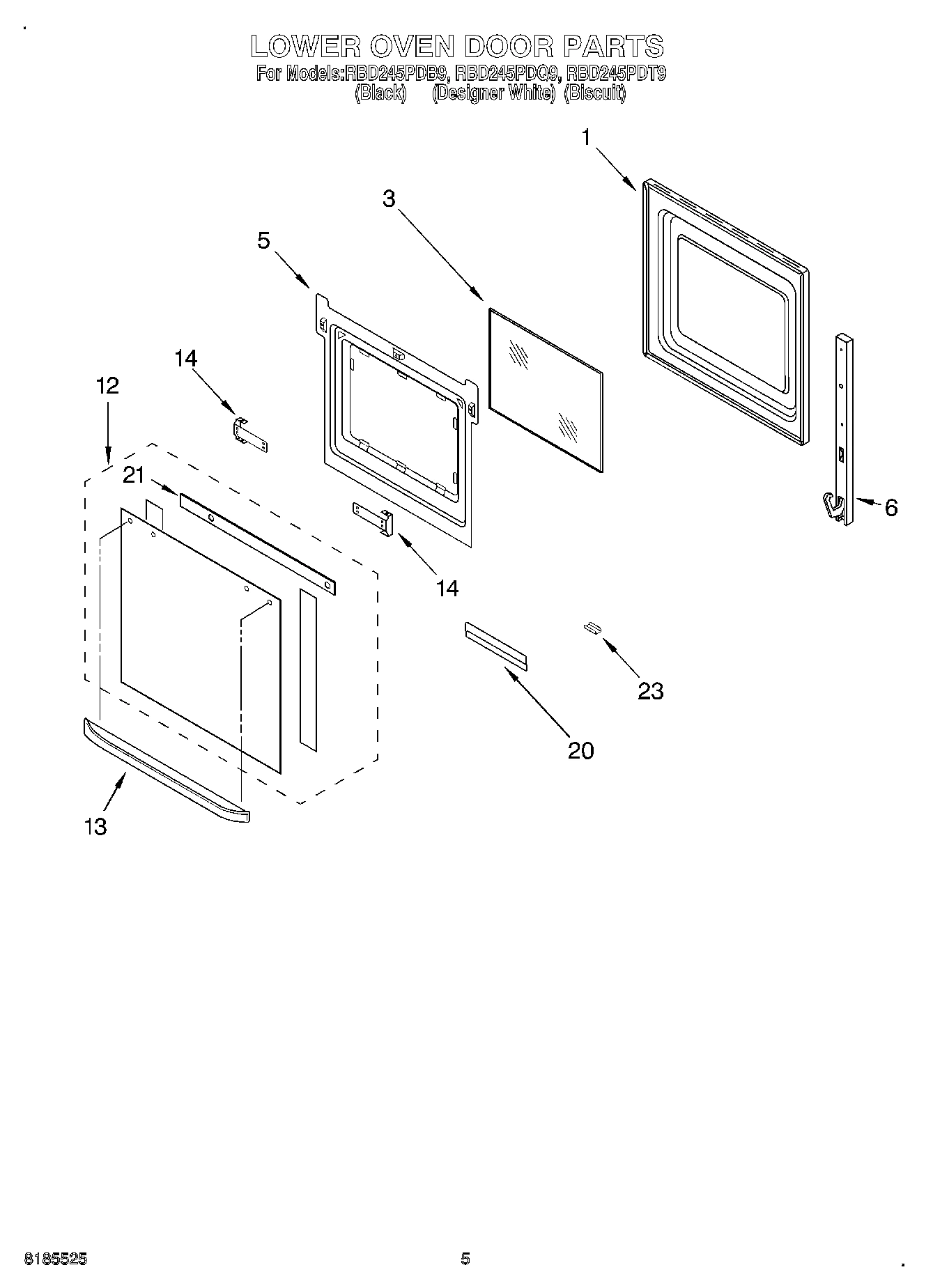

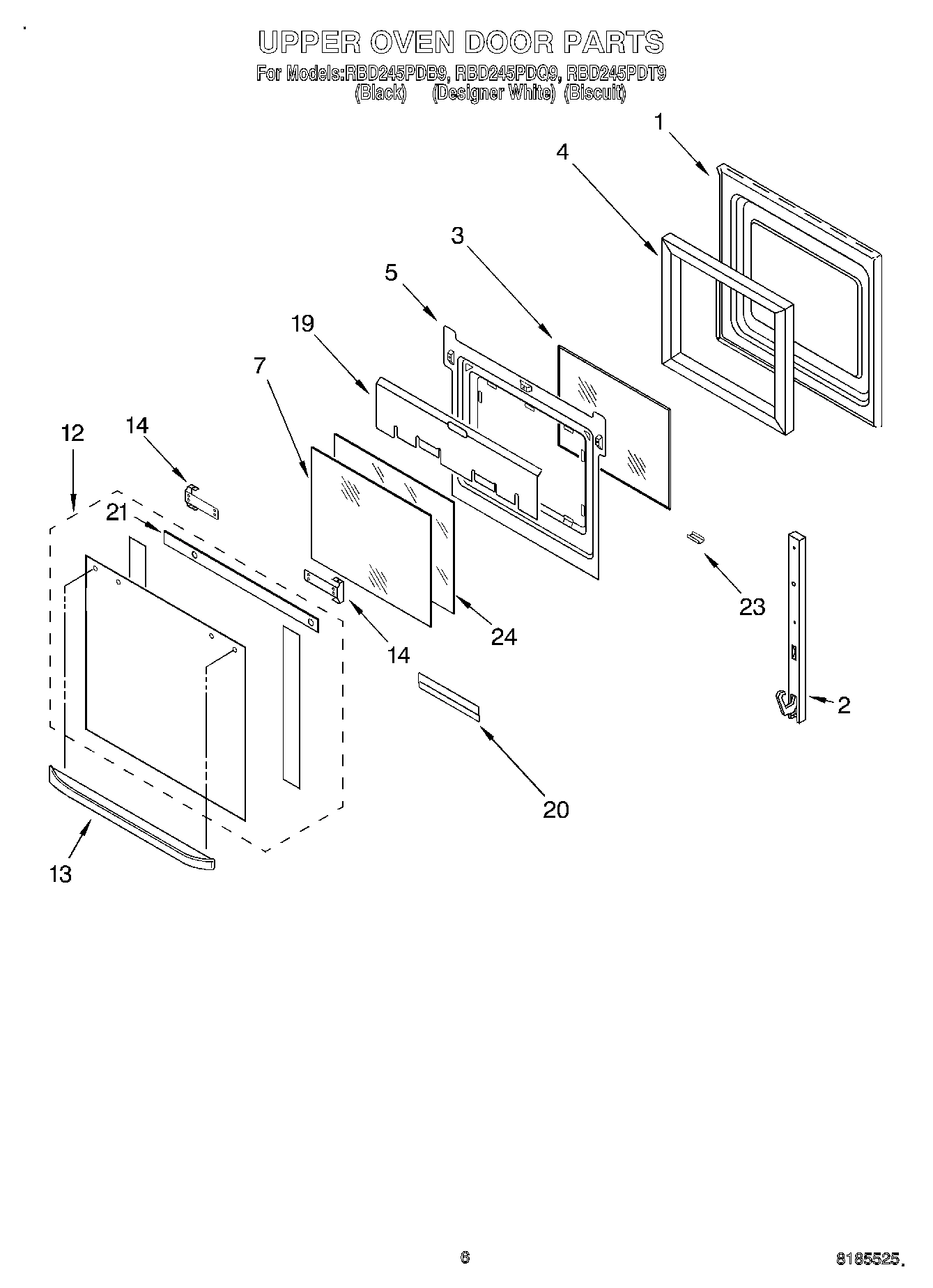

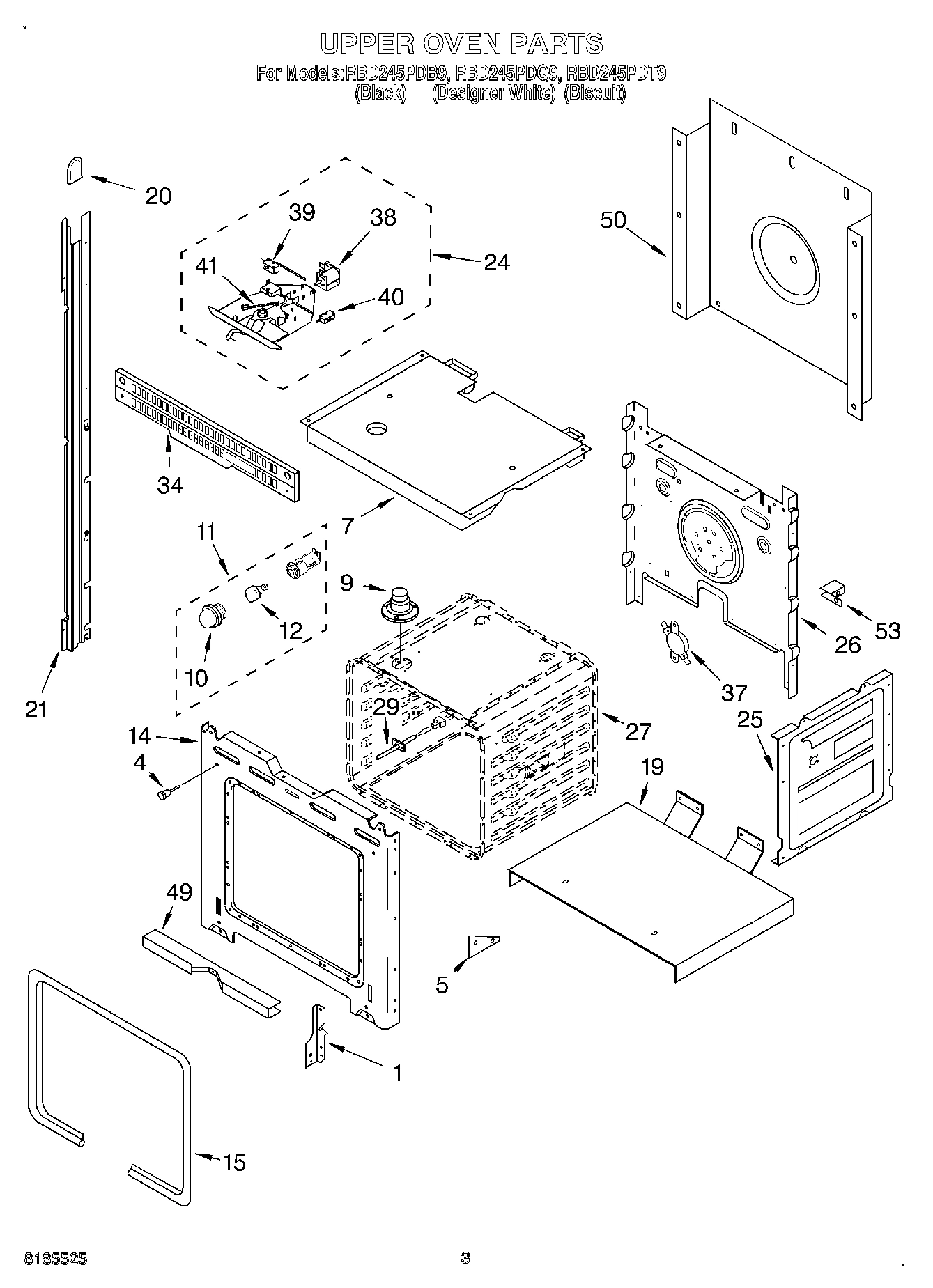

Model Whirlpool RBD245PDT9 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

1

WP8303698 Whirlpool Door Liner Backorder WPL WP8303698 $184.15

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300427 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300428 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300516 Contact Us For Availability

2

WP3400015 Whirlpool Screw Backorder WPL WP3400015 $2.51

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $68.54

2

Blower WPL 4455334 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (Biscuit) WPL 4452123 Contact Us For Availability

2

Gasket, Control Panel WPL 4451032 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $75.57

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Screw WPL 4449899 Contact Us For Availability

3

Insulator, Membrane Switch WPL 3192690 Contact Us For Availability

3

Microcomputer WPL 4451991 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $29.15

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

6

Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability

6

Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability

6

Hinge, Door WPL 4454945 Contact Us For Availability

7

4455863 Whirlpool Oven Top Assembly Backorder WPL 4455863 $42.57

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

7

Glass, Inner WPL 4449251 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

10

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

11

Screw WPL 3400080 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $28.53

Door Glass Assy (Black Model) WPL 4452059 Contact Us For Availability

Door Glass Assy (White Model) WPL 4452060 Contact Us For Availability

Door Glass Assy (Biscuit Model) WPL 8300527 Contact Us For Availability

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $40.10

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

Lens, Light WPL 4452165 Contact Us For Availability

Door Handle (Black Model) WPL 4448402 Contact Us For Availability

Door Handle (White Model) WPL 4448403 Contact Us For Availability

Door Handle (Biscuit Model) WPL 8300512 Contact Us For Availability

9760754 Whirlpool Oven Front Frame Backorder WPL 9760754 $41.82

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

W10203263 Whirlpool Door Gasket Backorder WPL W10203263 $57.41

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $62.73

15

Back, Control WPL 4452244 Contact Us For Availability

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $27.52

18

Cover, Top Front WPL 4452365 Contact Us For Availability

19

4451476 Whirlpool Support Backorder WPL 4451476 $37.02

19

Plate, Fan WPL 4454943 Contact Us For Availability

20

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $58.95

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Retainer, Glass WPL 4451669 Contact Us For Availability

21

Seal, Door Top WPL 4451672 Contact Us For Availability

21

Transformer, Single Control WPL 4451891 Contact Us For Availability

22

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit, Double WPL 4450953 Contact Us For Availability

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Plate, Mounting WPL 4451789 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire STD (Main) WPL 4455632 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

24

Latch Assembly WPL 4451896 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $46.23

27

Liner, Oven (Not a Serviceable Part) WPL ARI119787A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $17.04

39

Switch, Micro WPL 4452312 Contact Us For Availability

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $54.86

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability

Trim, Bottom (Biscuit Model) WPL 8300528 Contact Us For Availability

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $69.97

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $69.97

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
