Model Whirlpool RBD245PDB7 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

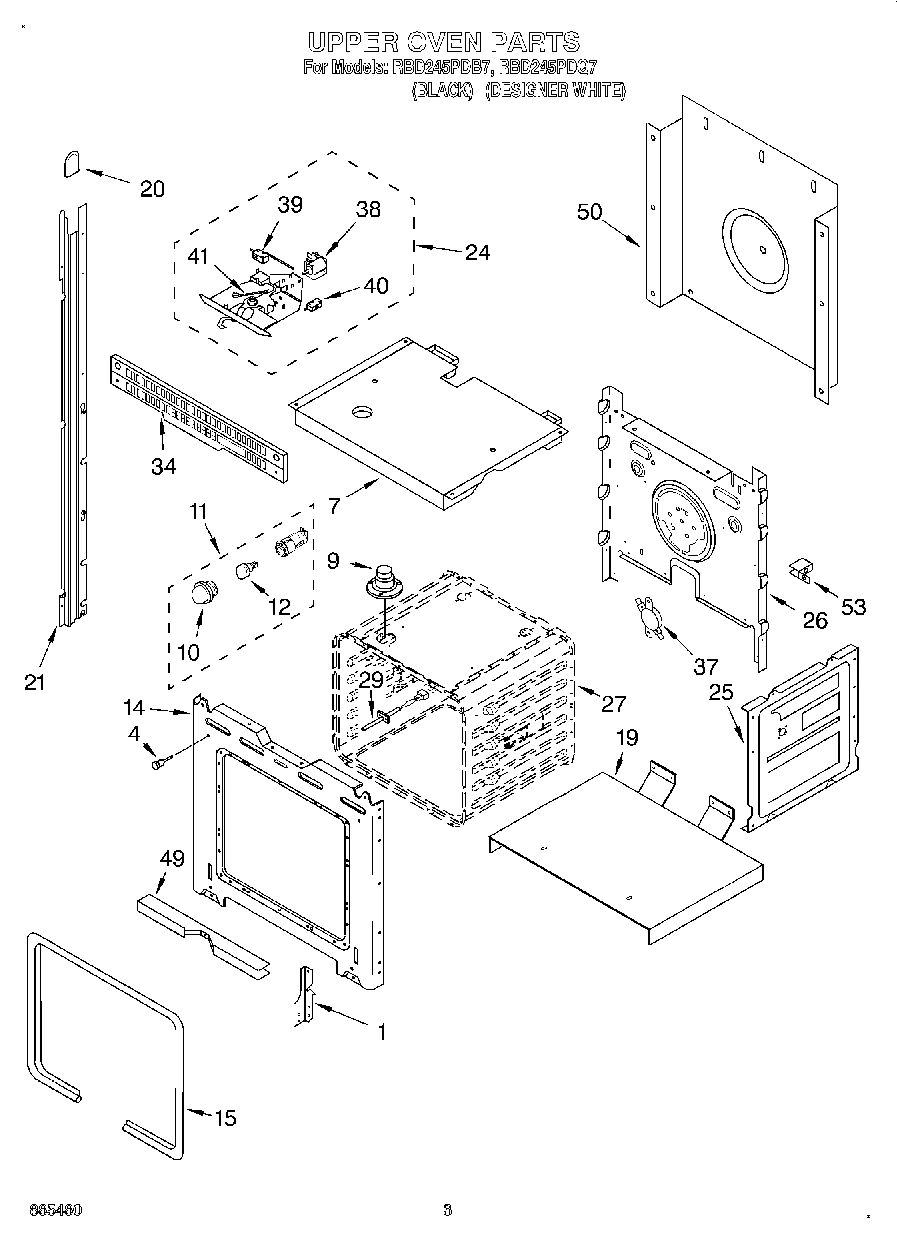

02 - UPPER OVEN

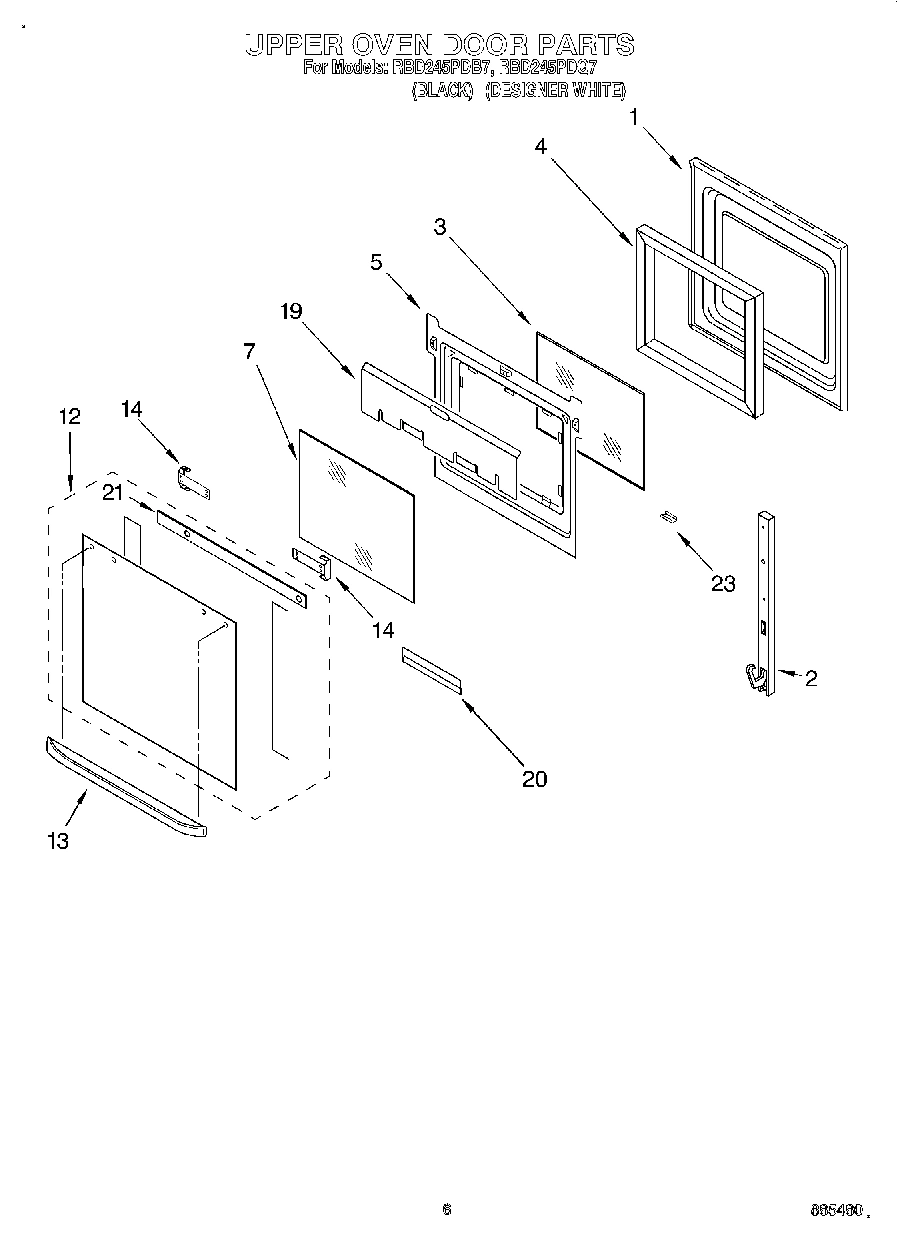

04 - UPPER OVEN DOOR

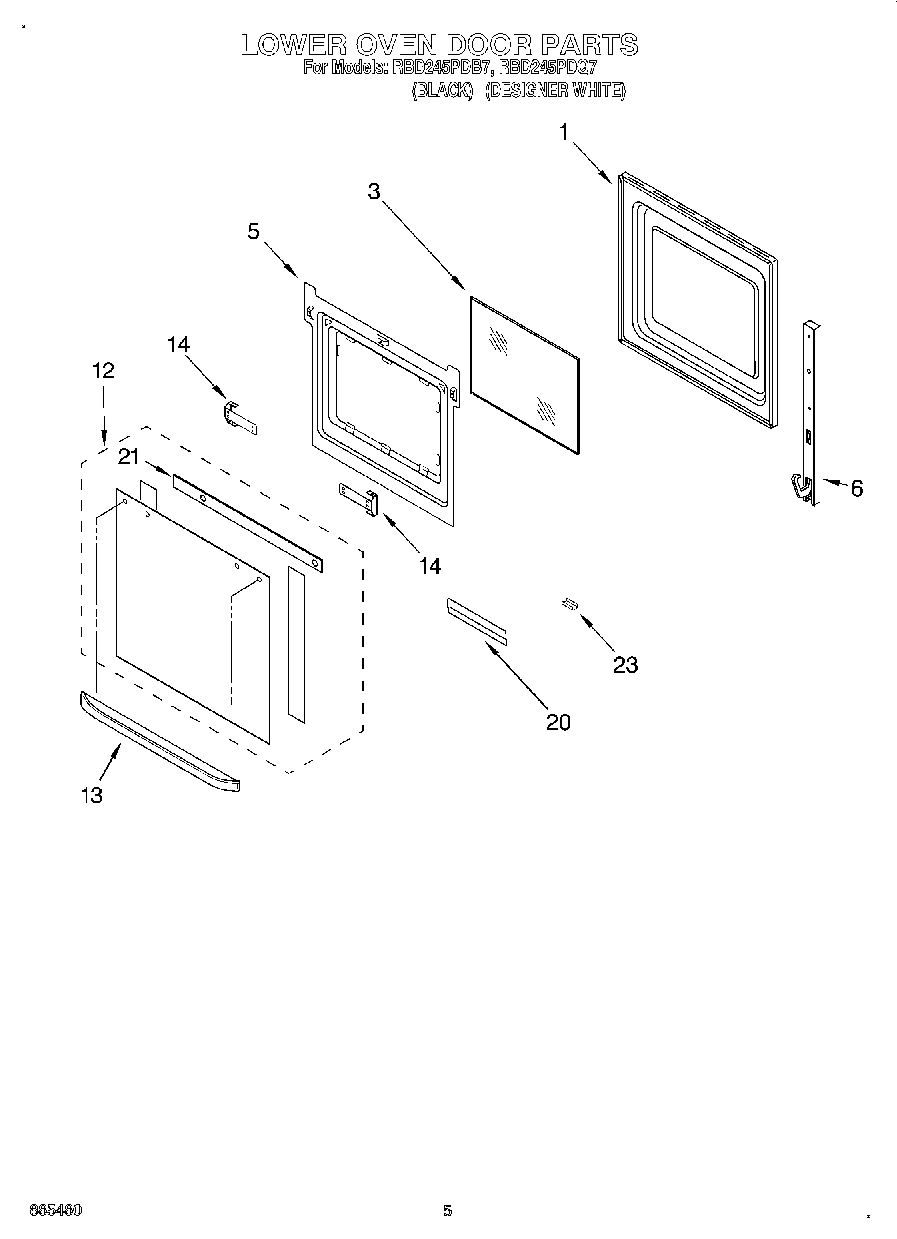

03 - LOWER OVEN DOOR

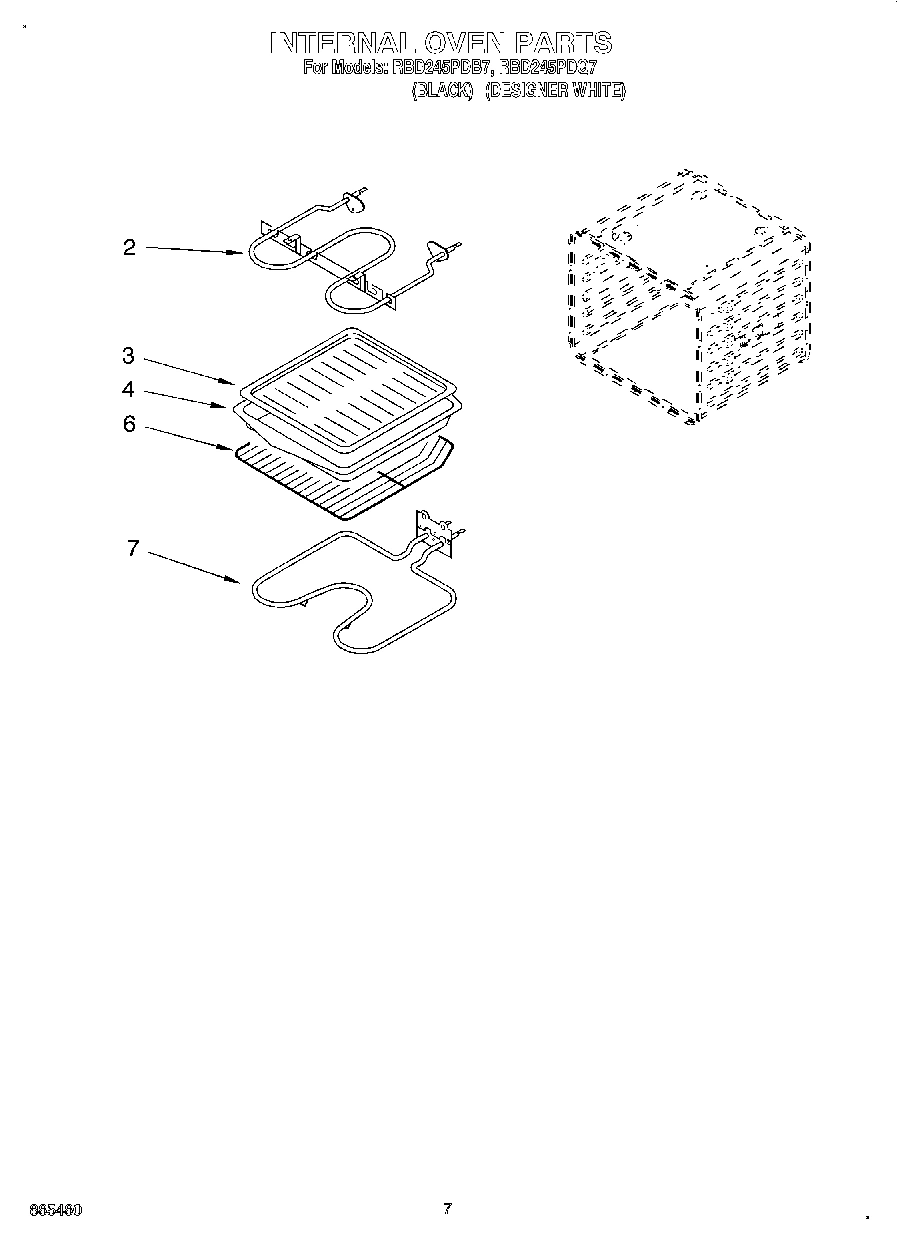

05 - INTERNAL OVEN

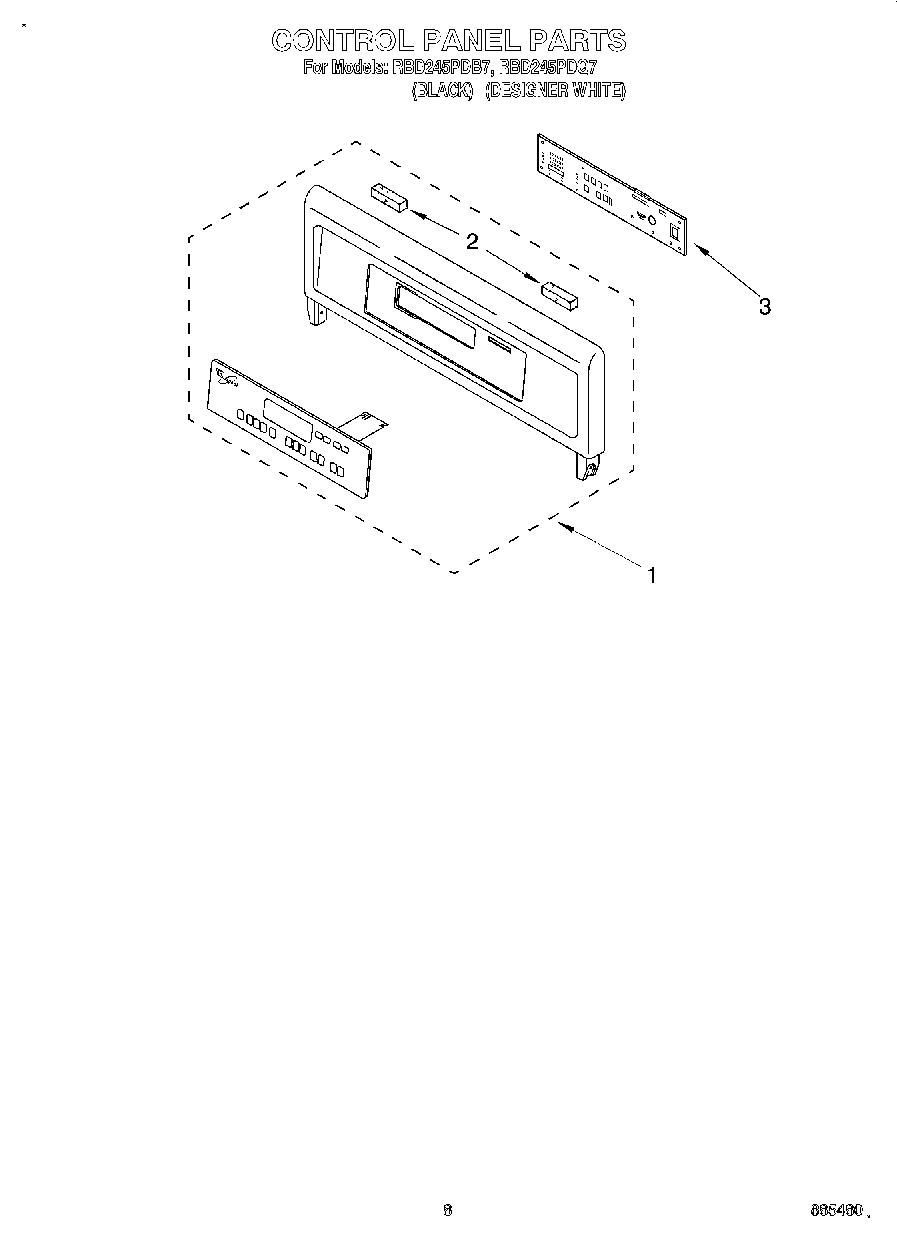

06 - CONTROL PANEL

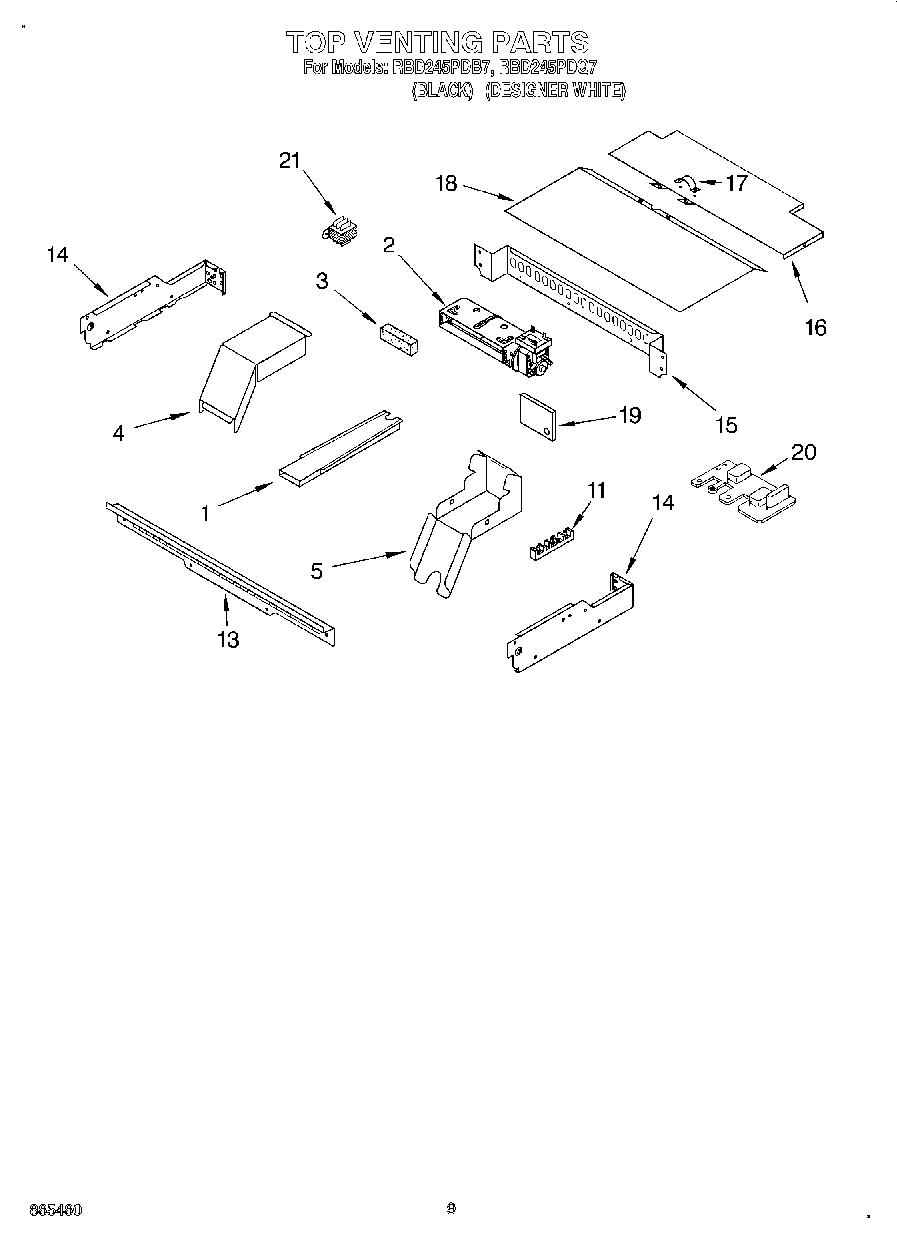

07 - TOP VENTING, OPTIONAL

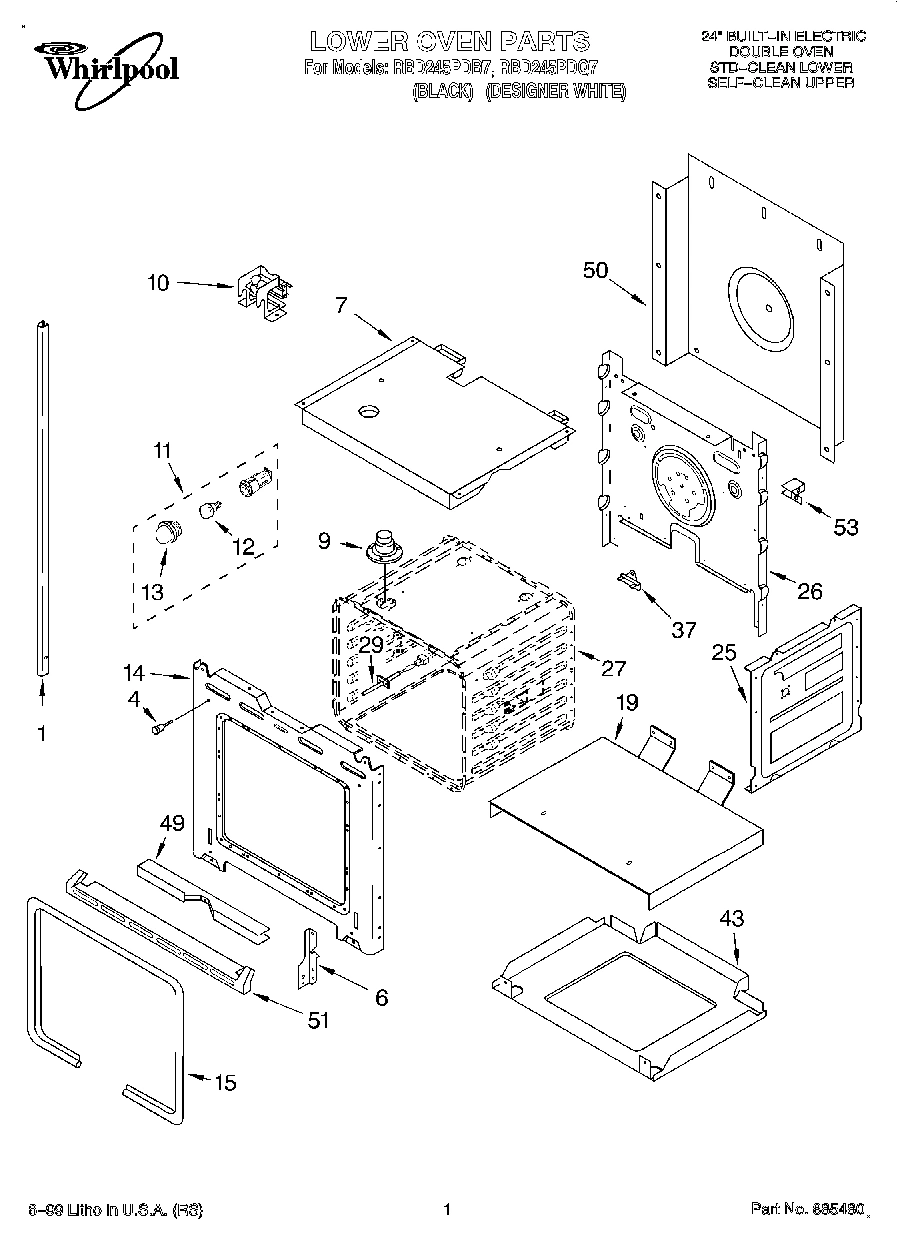

01 - LOWER OVEN
Common parts from model Whirlpool RBD245PDB7 BUILT-IN ELECTRIC DOUBLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450409 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet WPL LIT4451887 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451965 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451966 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
3
Screw WPL 4449899 Contact Us For Availability
3
Microcomputer WPL 4451856 Contact Us For Availability
6
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
6
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
7
Glass, Inner WPL 4449251 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451664 Contact Us For Availability
13
Lens, Light WPL 4452165 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
18
Cover, Top Front WPL 4450552 Contact Us For Availability
19
Plate, Fan WPL 4454943 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Retainer, Glass WPL 4451669 Contact Us For Availability
21
Conduit, Double WPL 4450953 Contact Us For Availability
21
Seal, Door Top WPL 4451672 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Harness, Wire STD (Main) WPL 4451871 Contact Us For Availability
21
Transformer, Single Control WPL 4451891 Contact Us For Availability
21
Spacer, Harness WPL 4452222 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Latch Assembly WPL 4451896 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119685A Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
× ![]()
