Model Whirlpool RBD245PDB3 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

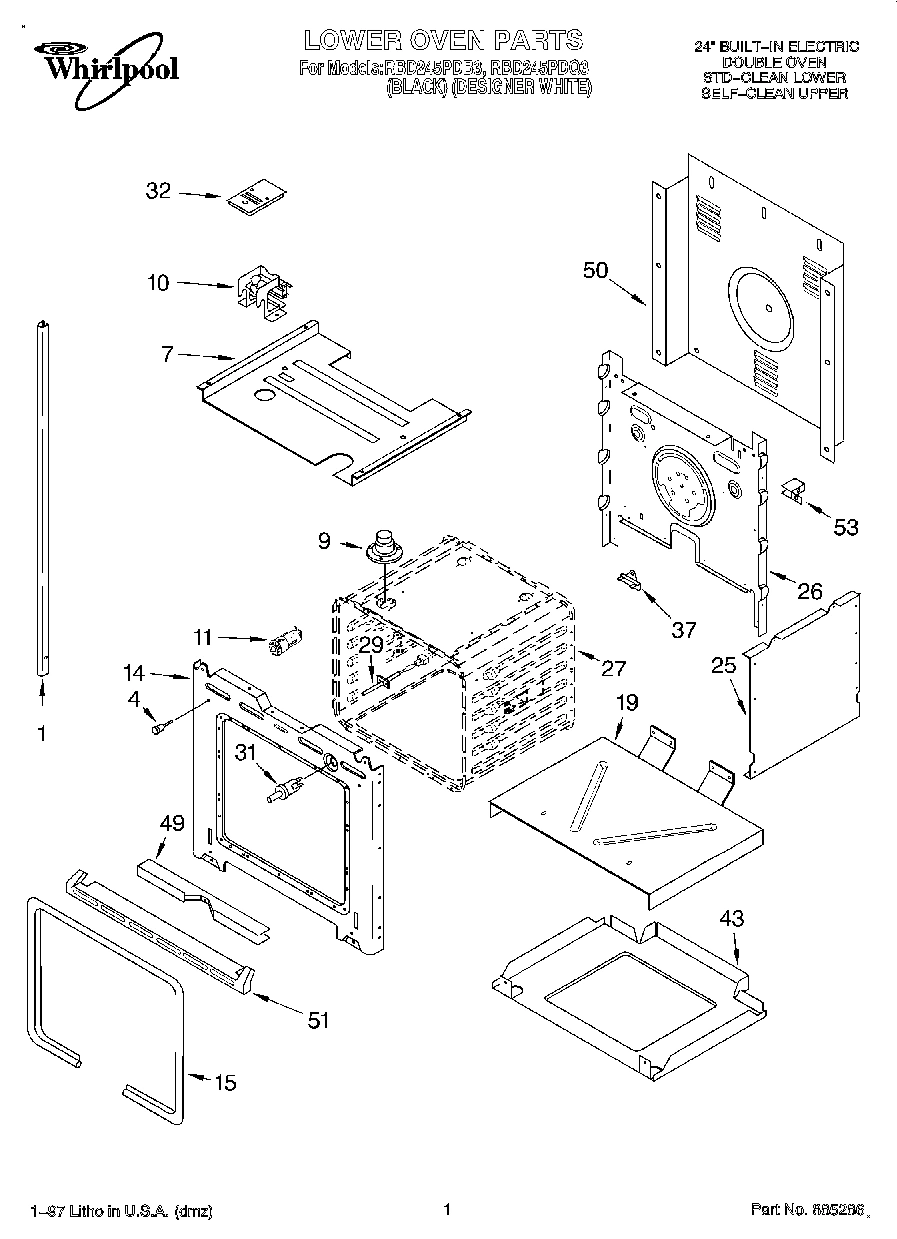

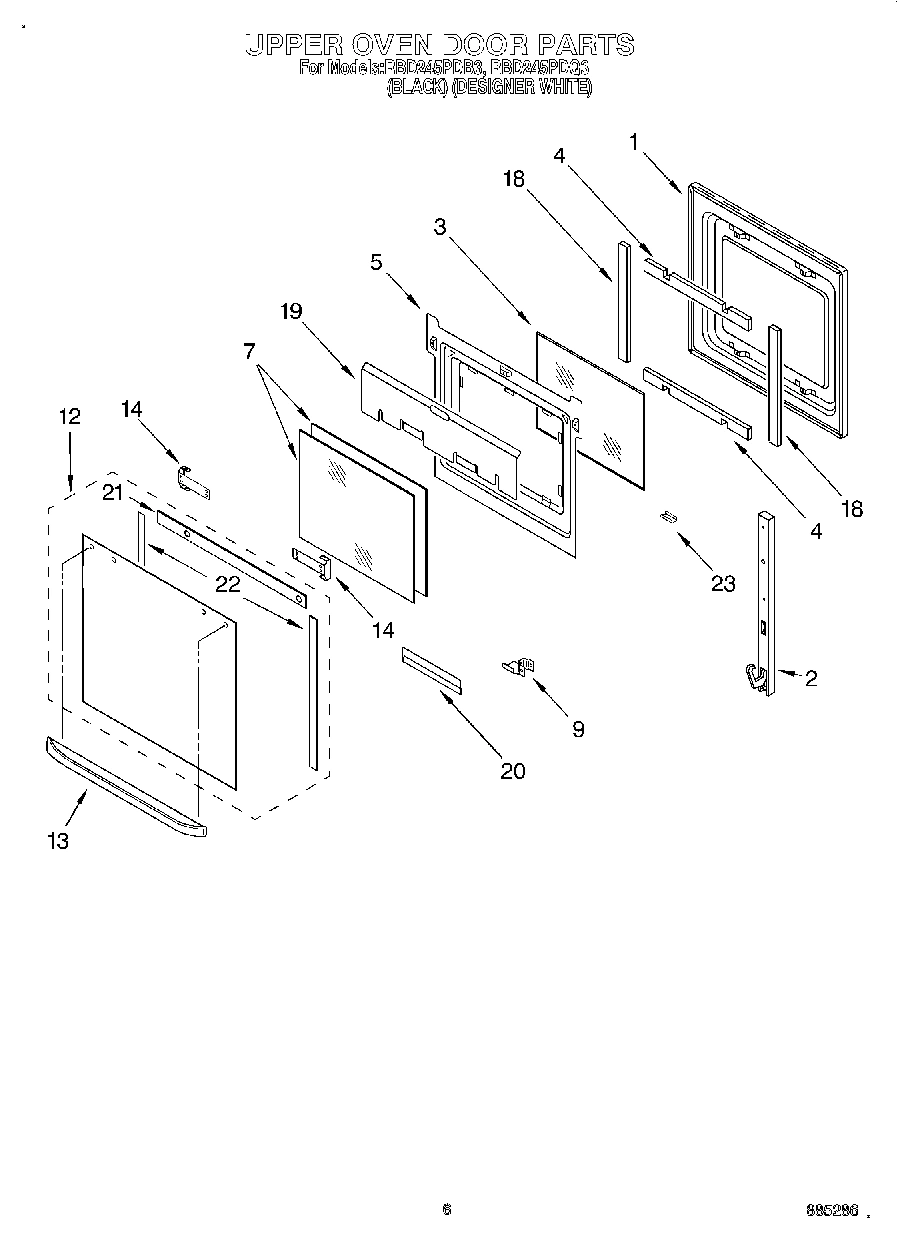

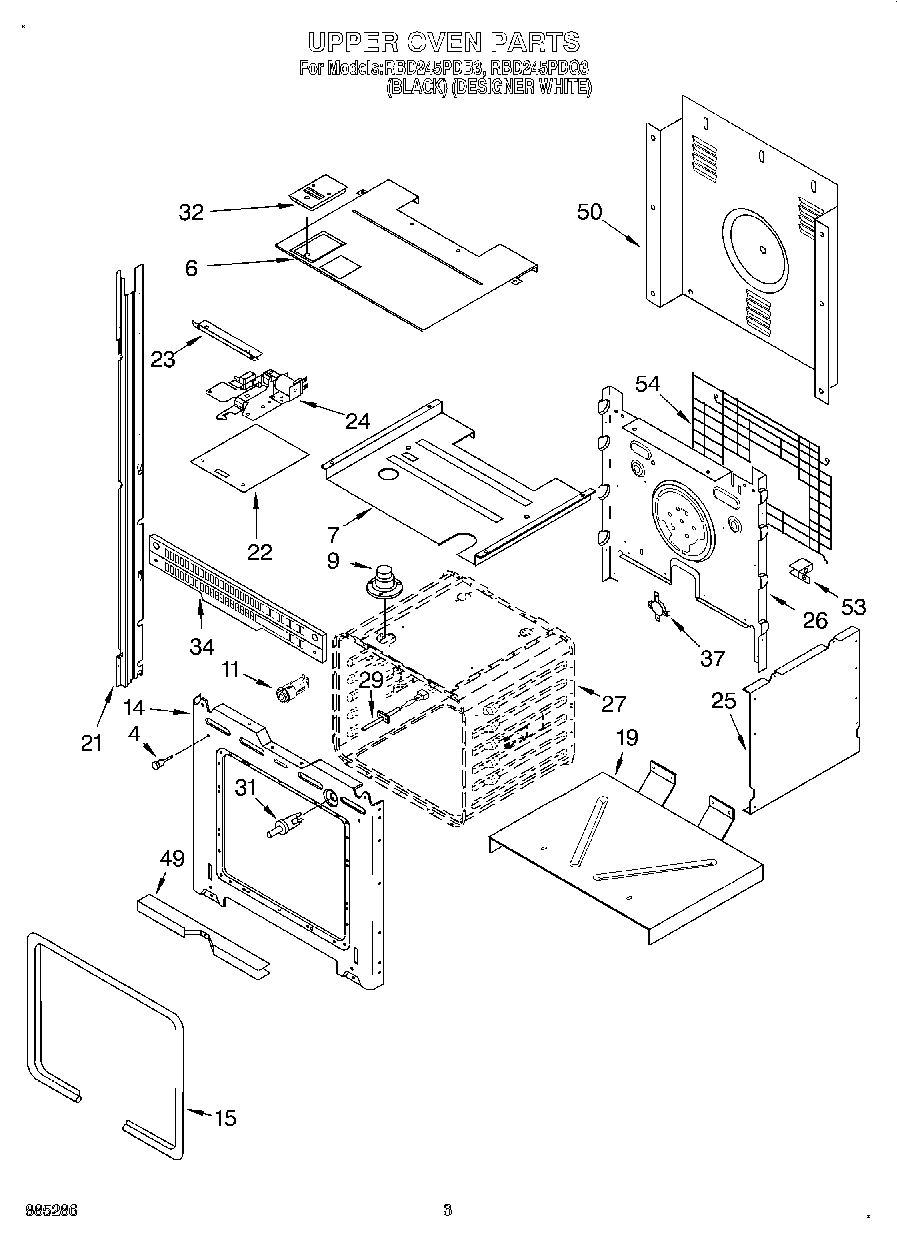

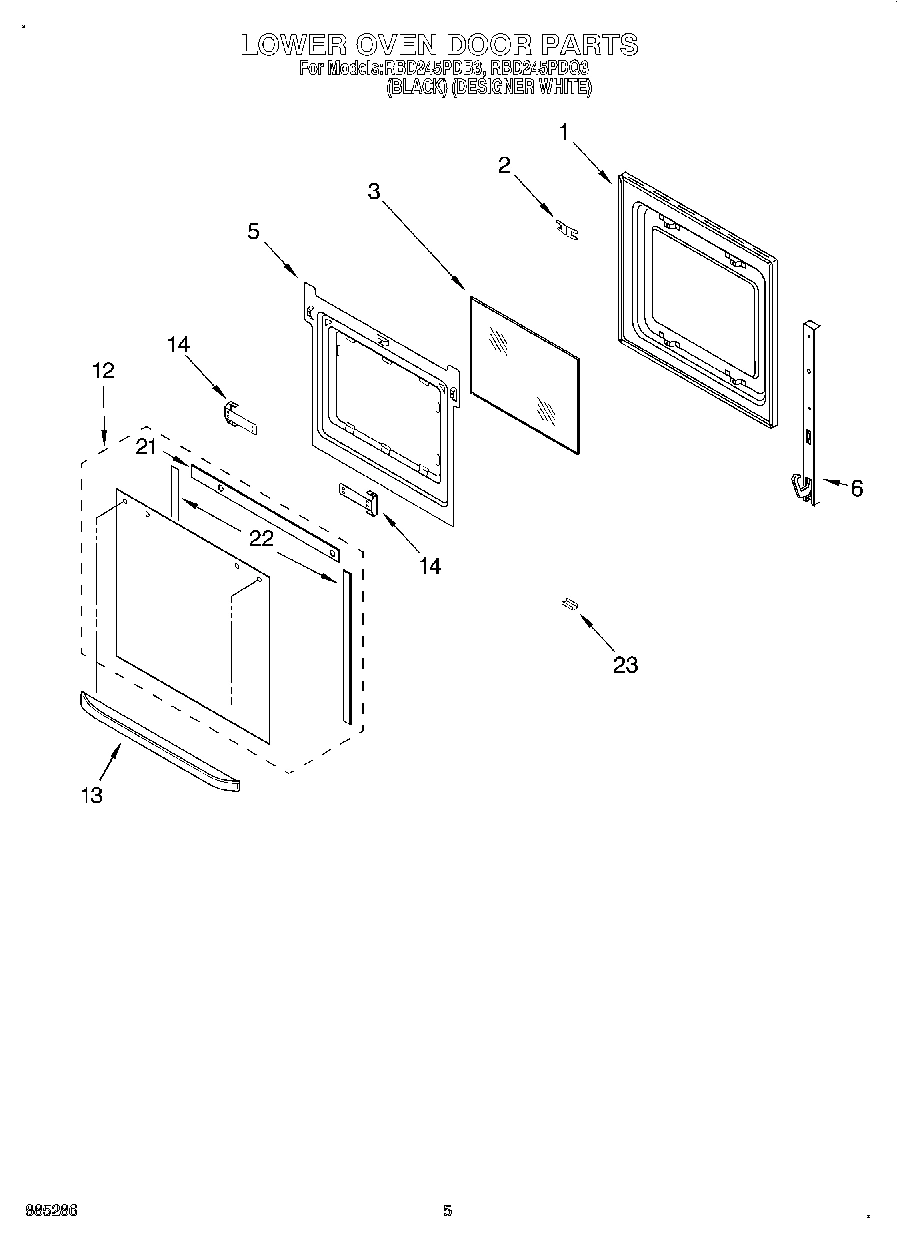

1

Liner, Door WPL 4450427 Contact Us For Availability

1

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

1

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

1

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

4450935 Whirlpool Oven Door Plug Backorder WPL 4450935 $9.39

2

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $68.54

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $75.57

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

Insulation, Top and Bottom Door WPL 4448678 Contact Us For Availability

5

Retainer, Glass WPL 4450421 Contact Us For Availability

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

6

Divider, Vent WPL 4451037 Contact Us For Availability

6

Hinge, Door WPL 4451171 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

7

Glass, Inner (2) WPL 4449251 Contact Us For Availability

7

Partition WPL 4451164 Contact Us For Availability

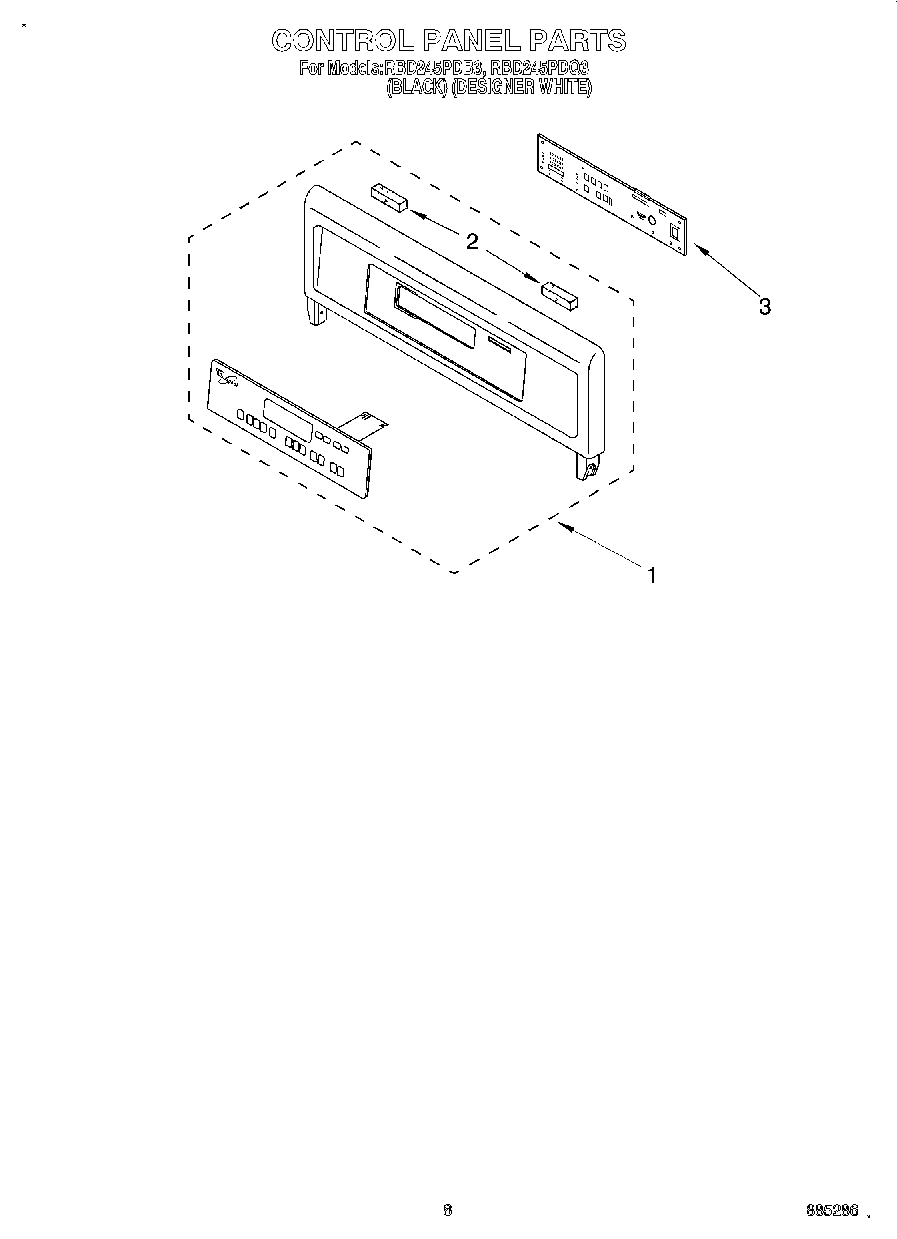

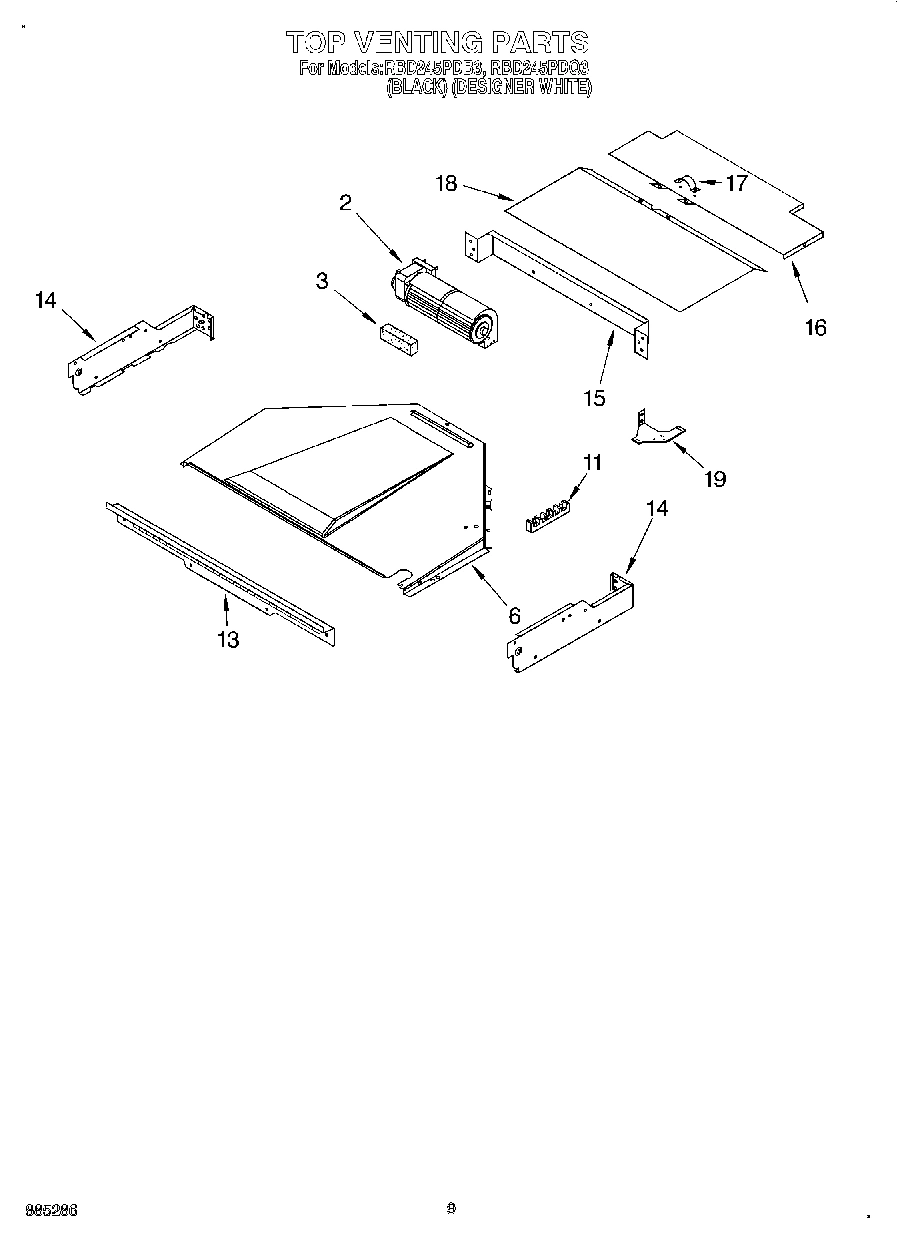

9

Tube, Vent WPL 4449009 Contact Us For Availability

9

Retainer, Glass WPL 4450470 Contact Us For Availability

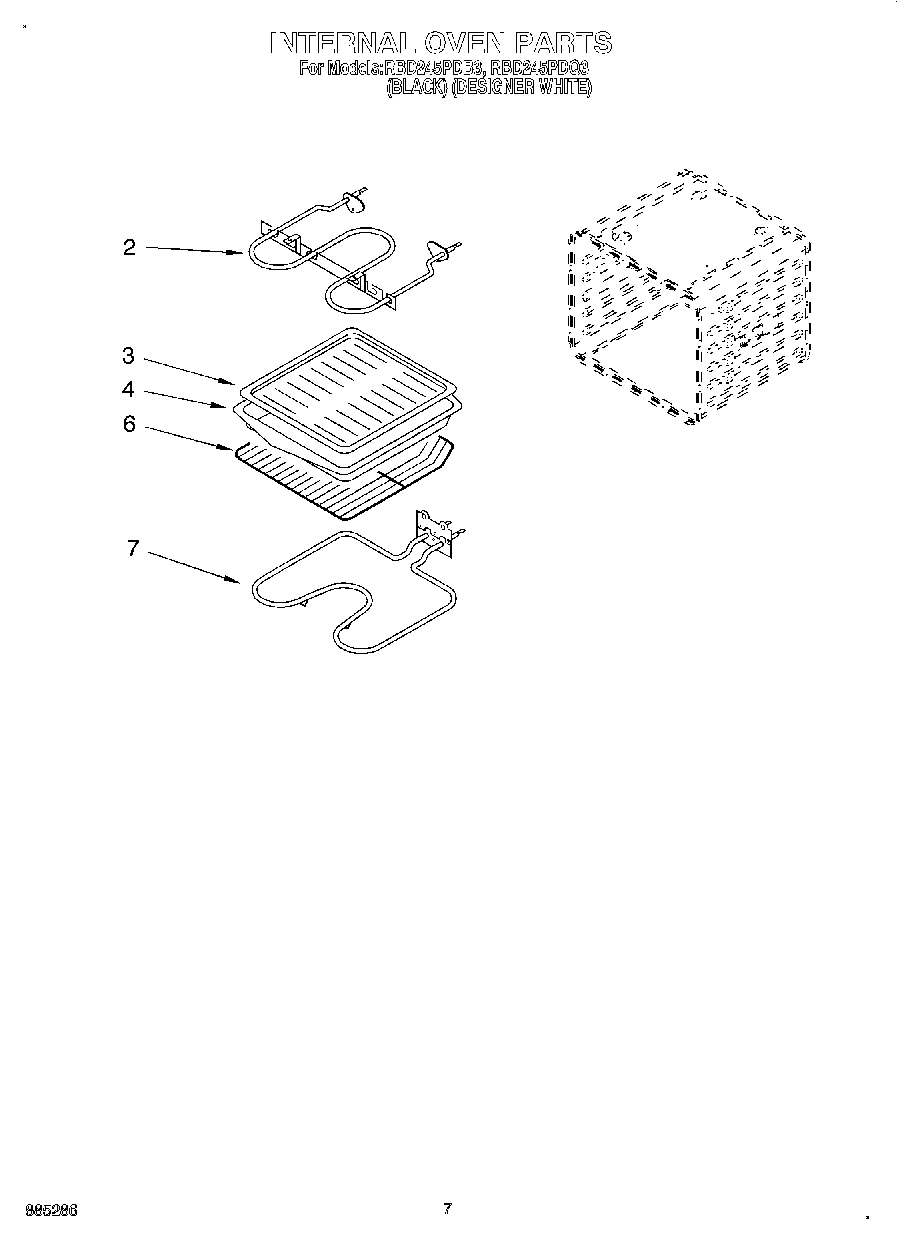

10

Fan & Bracket Assy WPL 4451050 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

12

Door Glass, Outer (Black Model) WPL 4450687 Contact Us For Availability

12

Door Glass, Outer (White Model) WPL 4450688 Contact Us For Availability

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $40.10

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448402 Contact Us For Availability

Door Handle (White Model) WPL 4448403 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4450415 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

W10203263 Whirlpool Door Gasket Backorder WPL W10203263 $57.41

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $62.73

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $27.52

18

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4451476 Whirlpool Support Backorder WPL 4451476 $37.02

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Conduit, Double WPL 4450953 Contact Us For Availability

Harness, Wire STD (Main) WPL 4451162 Contact Us For Availability

Harness, Wire (Latch) WPL 4454709 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 814387 WPL 814387 Contact Us For Availability

Shield, Heat WPL 4450360 Contact Us For Availability

20

Retainer, Glass WPL 4449031 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $90.90

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $90.99

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4450835 Contact Us For Availability

22

Shield, Latch WPL 4451036 Contact Us For Availability

22

Seal, Side WPL 4450838 Contact Us For Availability

23

Deflector, Latch WPL 4450051 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Latch Assy WPL 4454710 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $46.23

27

Liner, Oven (Not a Serviceable Part) WPL ARI119680A Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI119679A Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

31

Switch, Door WPL 4450819 Contact Us For Availability

32

Vent Box Assy WPL 4449369 Contact Us For Availability

34

Vent, Center WPL 4449046 Contact Us For Availability

37

WP4450934 Whirlpool Thermostat Assembly In Stock WPL WP4450934 $81.16

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $17.04

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $54.86

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

Cover, Back WPL 4450544 Contact Us For Availability

51

Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability

51

Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability

53

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $69.97

53

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $69.97

53

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

54

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

54

Spacer, Harness WPL 4451002 Contact Us For Availability
