Model Whirlpool RB770PXYQ3 – Common Parts & Diagrams
06 - COMPONENT SHELF AND LATCH
07 - UNIT

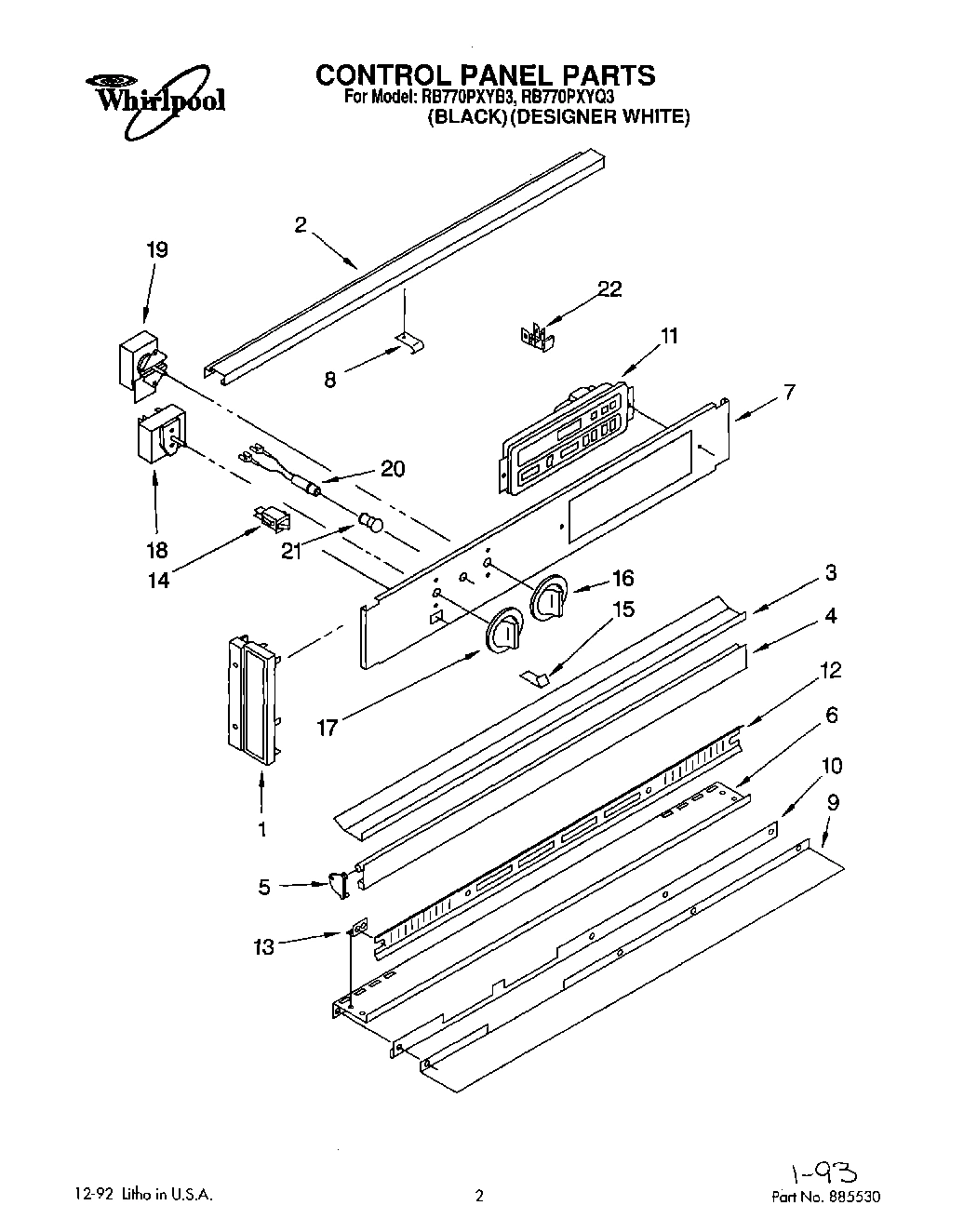

01 - CONTROL PANEL, LIT/OPTIONAL

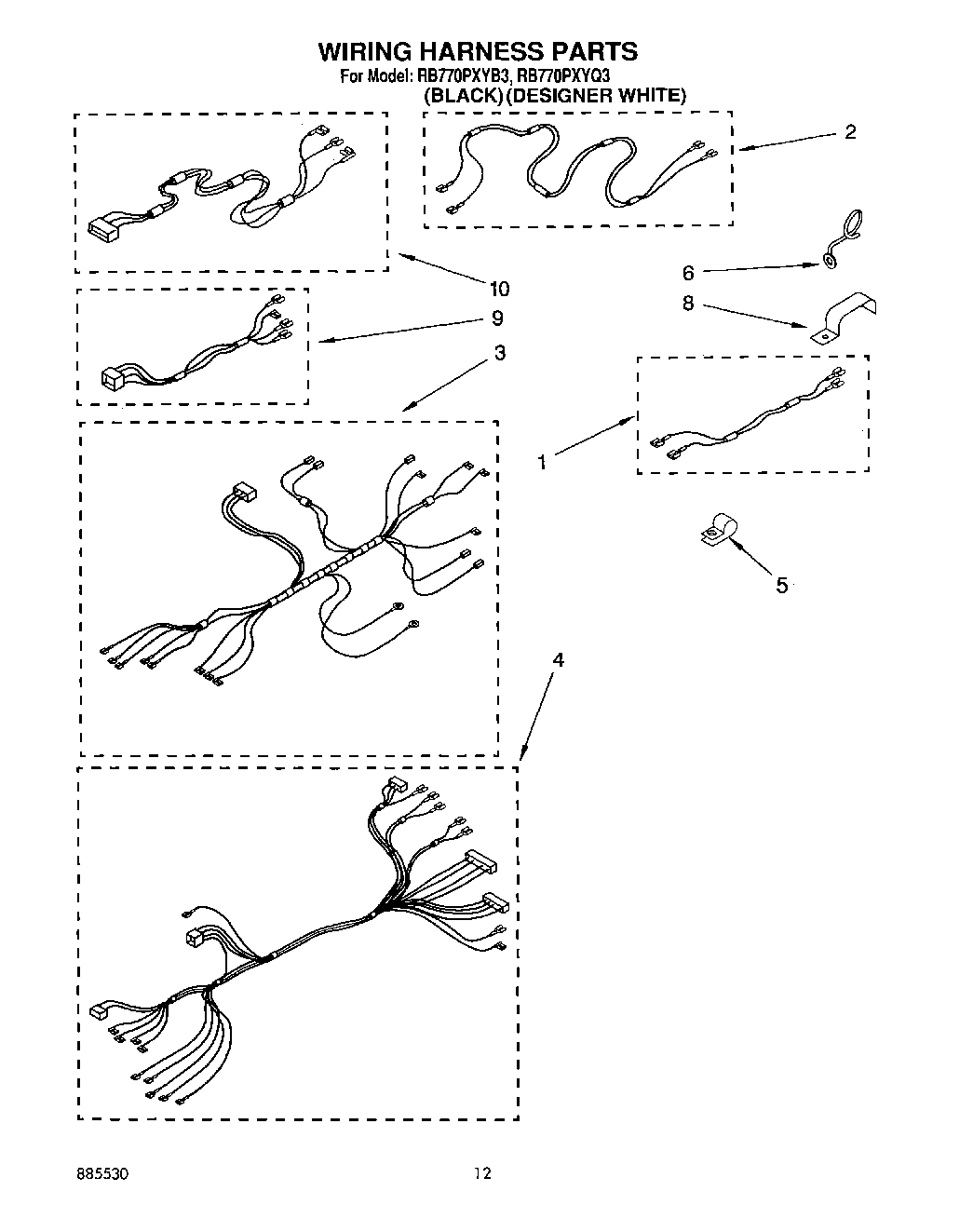

08 - WIRING HARNESS

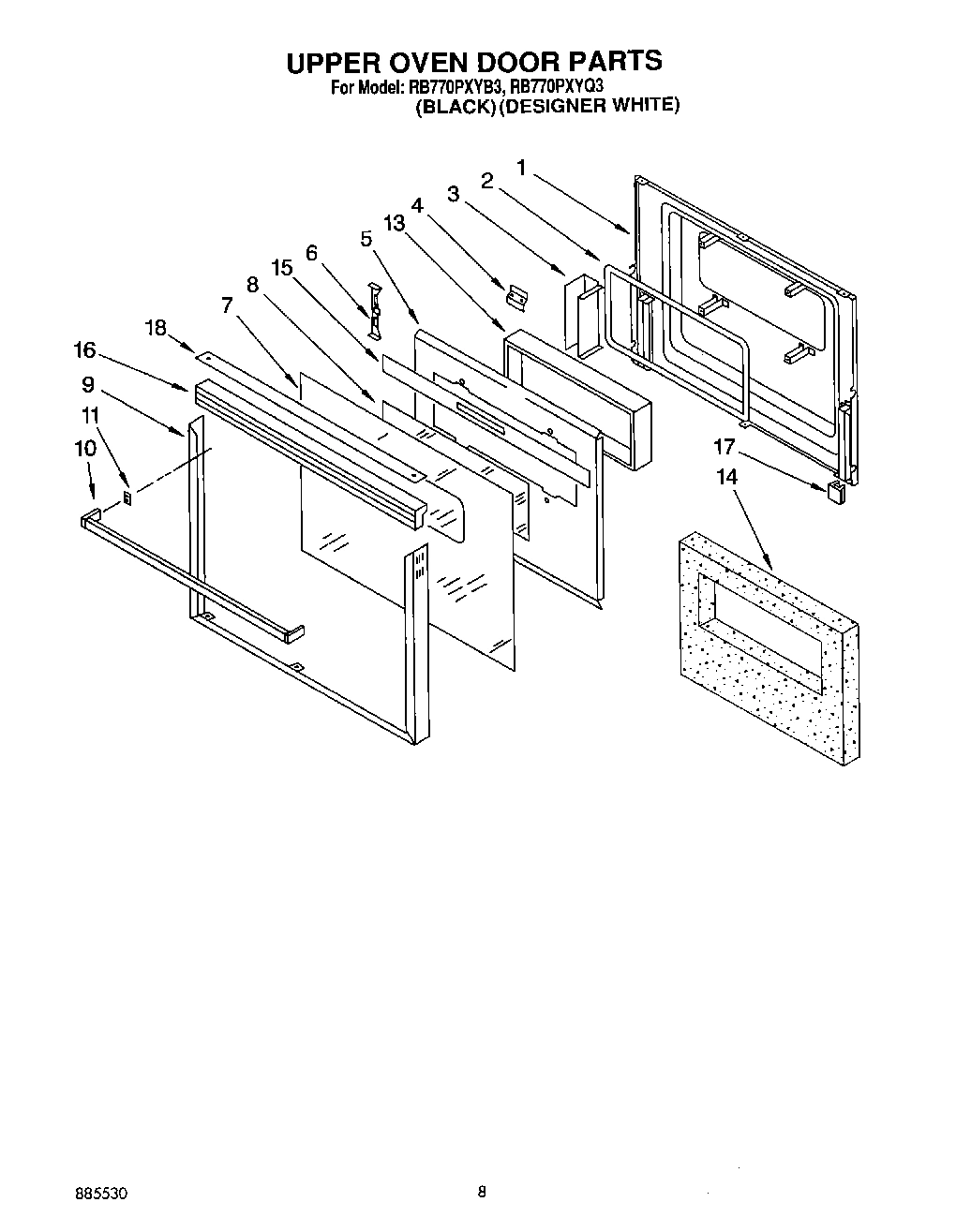

04 - UPPER OVEN DOOR

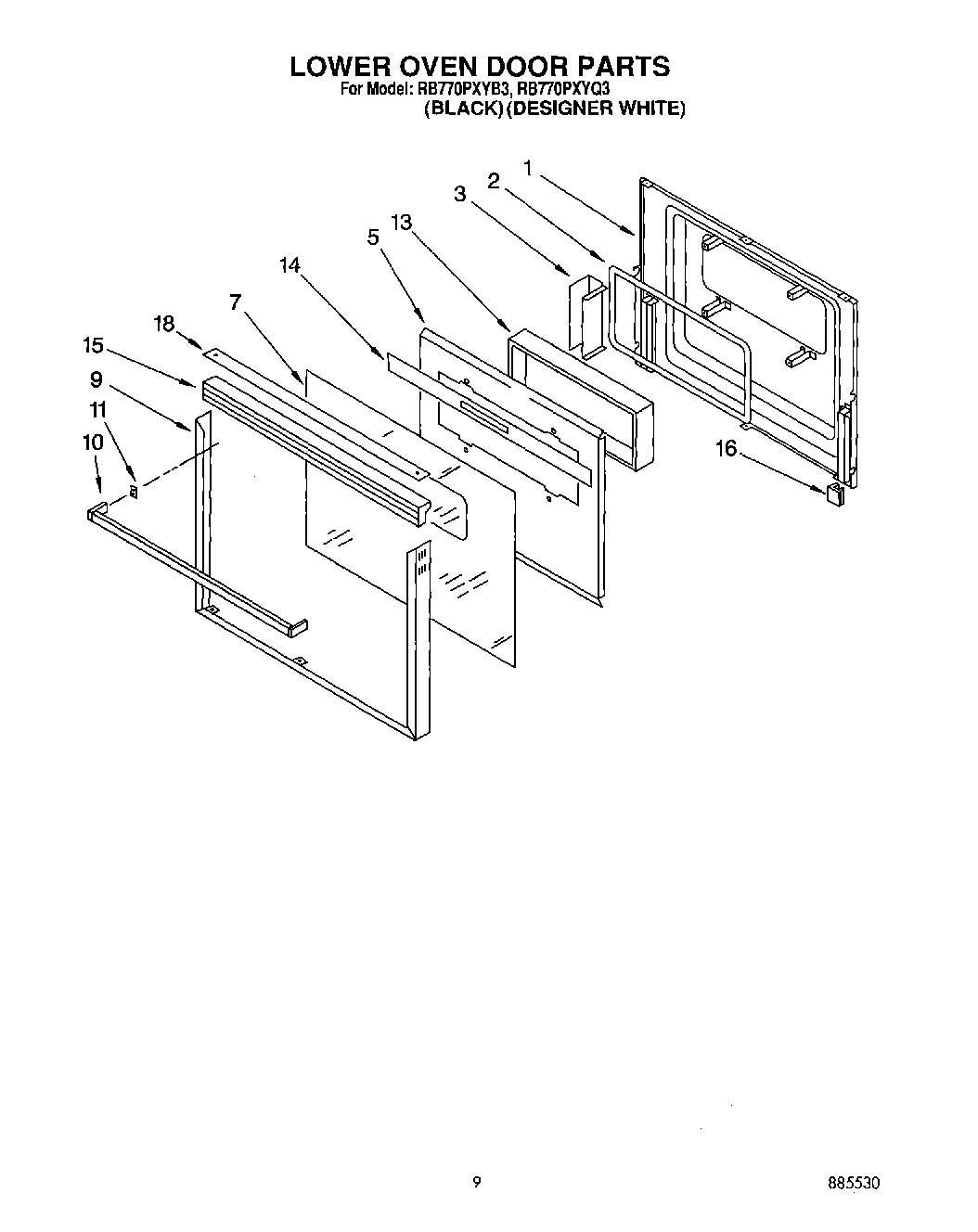

05 - LOWER OVEN DOOR

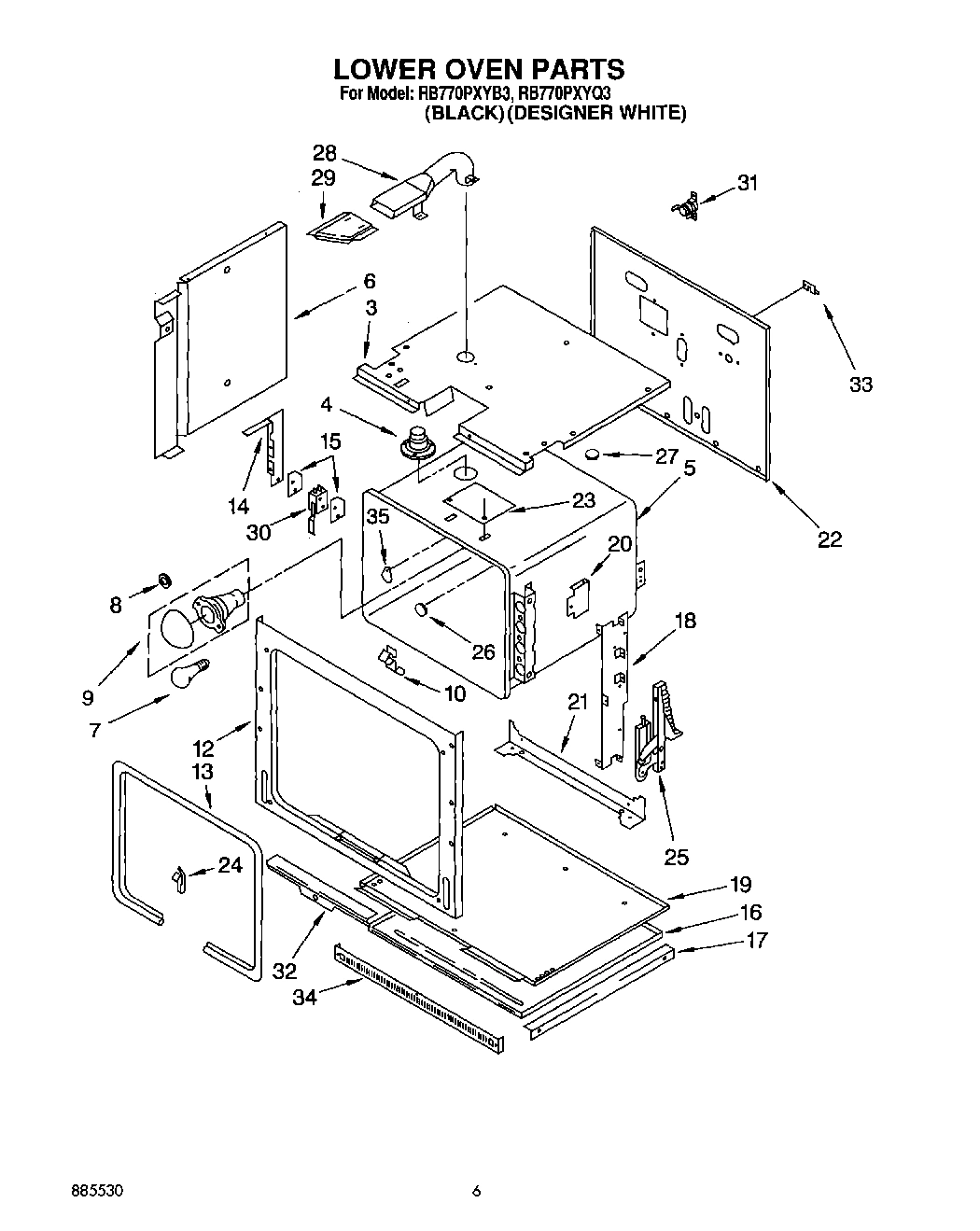

03 - LOWER OVEN

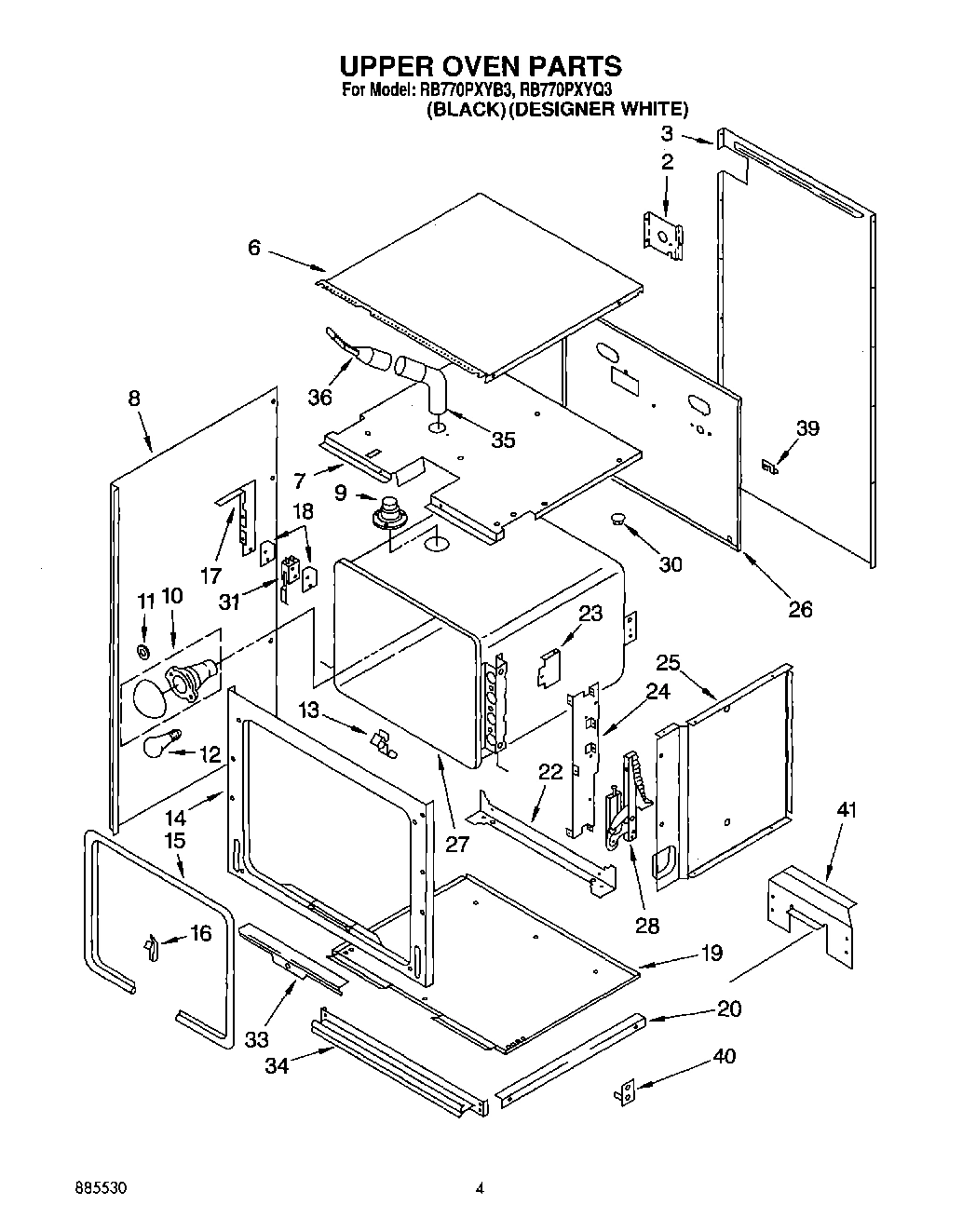

02 - UPPER OVEN
Common parts from model Whirlpool RB770PXYQ3
Brochure WPL LIT3181454 Contact Us For Availability
Use & Car WPL LIT3182871 Contact Us For Availability
WPL LIT3183636 WPL LIT3183636 Contact Us For Availability
WPL LIT3184643 WPL LIT3184643 Contact Us For Availability
WPL LIT885530 WPL LIT885530 Contact Us For Availability
1
End Cap (Left Hand) WPL 3183630 Contact Us For Availability
1
End Cap (Right Hand) WPL 3183631 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3184705 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Screw WPL 4170323 Contact Us For Availability
1
Liner, Door WPL 3177600 Contact Us For Availability
2
Retainer (2) WPL 3182950 Contact Us For Availability
2
Trim, Top WPL 3184641 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183573 Contact Us For Availability
3
Trim, Center (White Model) WPL 3183575 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3184715 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3183501 Contact Us For Availability
4
Door, Vent (White Model) WPL 3183503 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3184706 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Tube, Vent WPL 3181700 Contact Us For Availability
5
Rack, Offset WPL 3185307 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model R WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model) WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Clamp (3/4 I.D.) WPL 3184792 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
6
Rack, Oven (2) WPL 3185308 Contact Us For Availability
6
Trim, Bottom (Black Model) WPL 3184408 Contact Us For Availability
6
Trim, Bottom (White Model) WPL 3184409 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Cabinet, Top WPL 3178138 Contact Us For Availability
7
Control Panel (Black Model) WPL 3184650 Contact Us For Availability
7
Control Panel (White Model) WPL 3184651 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3179498 Contact Us For Availability
7
Glass, Door (White Model) WPL 3179500 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
8
Screw (5) WPL 254217 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Side, Cabinet WPL 3177440 Contact Us For Availability
9
Screw (2) WPL 3184042 Contact Us For Availability
9
Screw (3) WPL 3185383 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184588 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184589 Contact Us For Availability
9
Wiring Harness (Latch Assembly) WPL 3184691 Contact Us For Availability
9
Frame, Door WPL 3180607 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Shim WPL 3184224 Contact Us For Availability
10
Wiring, Harness (Latch Assembly Lower) WPL 3184692 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3179481 Contact Us For Availability
10
Handle, Door (White Model) WPL 3179483 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3182391 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3182392 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Frame, Front WPL 3177688 Contact Us For Availability
12
Screw (8) WPL 3179776 Contact Us For Availability
13
Extenstion, Shelf WPL 3178132 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Shield, Door WPL 3181348 Contact Us For Availability
14
Frame, Front WPL 3177689 Contact Us For Availability
15
Switch, Latch WPL 3178187 Contact Us For Availability
15
Stiffener Bracket WPL 3183493 Contact Us For Availability
15
Screw WPL 4159465 Contact Us For Availability
15
Trim, Door (Black Model) WPL 3179476 Contact Us For Availability
15
Trim, Door (White Model) WPL 3179478 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Switch, Selector WPL 3183583 Contact Us For Availability
18
Cap, Top (White Model Only) WPL 3181364 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Screw (2) WPL 3178002 Contact Us For Availability
19
Thermostat WPL 3183572 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Light, Indicator WPL 314031 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Screw (4) WPL 309133 Contact Us For Availability
21
Lens, Light WPL 313101 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Screw WPL 3148443 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
26
Button, Plug WPL 3185085 Contact Us For Availability
27
Liner, Oven WPL 3177493 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent Male WPL 3179945 Contact Us For Availability
29
Tube, Vent Female WPL 3181964 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Thermostat WPL 3149653 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Trim, Lower Vent (Black Model) WPL 3177783 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3177785 Contact Us For Availability
34
Vent, Middle Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black) WPL 3182117 Contact Us For Availability
34
Vent, Middle Trim (Brushed Chrome) WPL 3182119 Contact Us For Availability
34
Vent, Middle Trim (Screw (2)) WPL 4168863 Contact Us For Availability
35
Plate, Cover WPL 3184208 Contact Us For Availability
35
Tube, Vent (Upper Female) WPL 3179922 Contact Us For Availability
35
Screw WPL 4173231 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3184652 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Screw (2) WPL 4173601 Contact Us For Availability
40
Insert, Middle Trim WPL 3182286 Contact Us For Availability
41
Insulation, Wrap WPL 3177862 Contact Us For Availability
41
Insulation, Back WPL 3177872 Contact Us For Availability
41
Bracket, Control WPL 3183752 Contact Us For Availability
× ![]()
