Model Whirlpool RB770PXXW3 – Common Parts & Diagrams

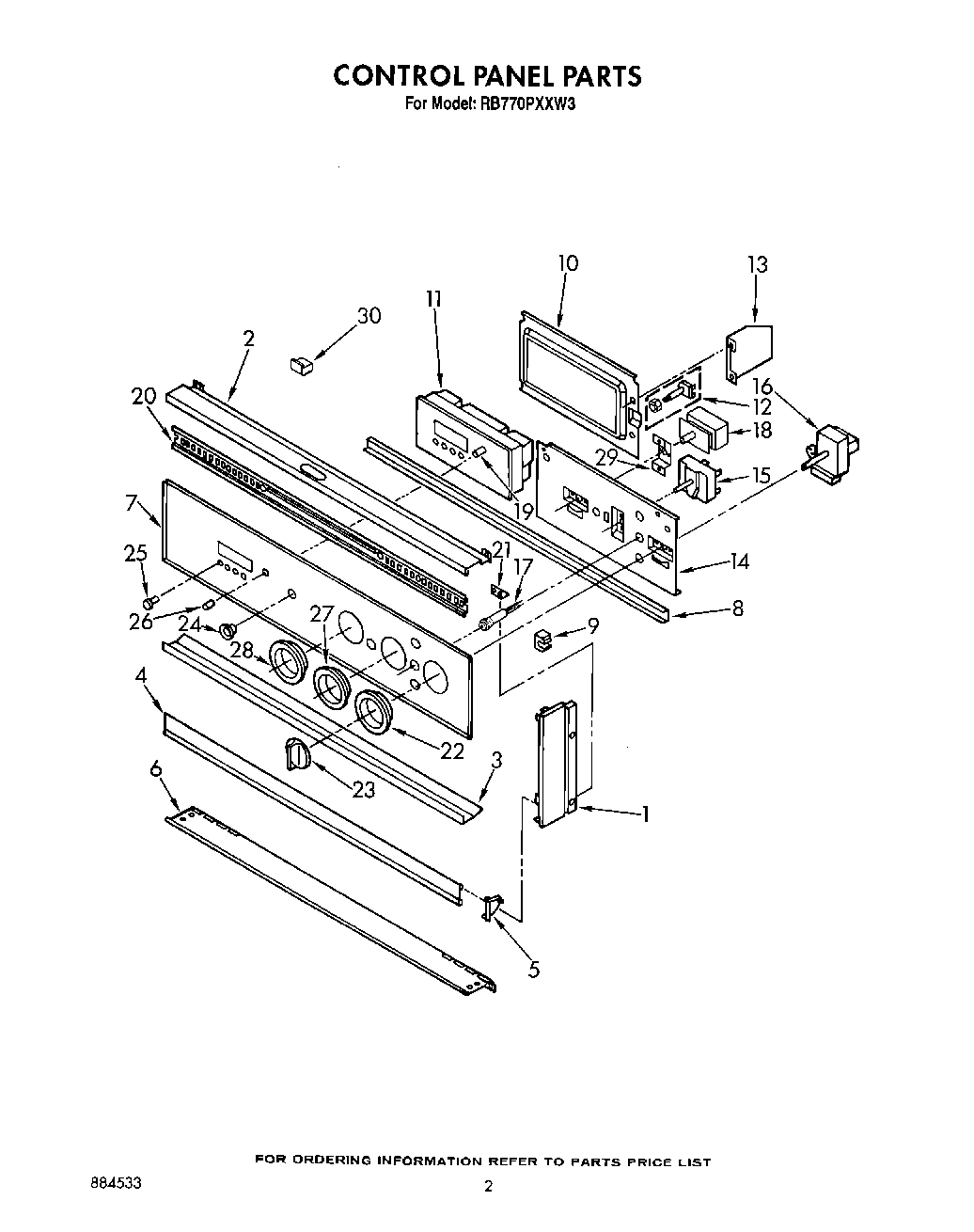

02 - CONTROL PANEL, LIT/OPTIONAL

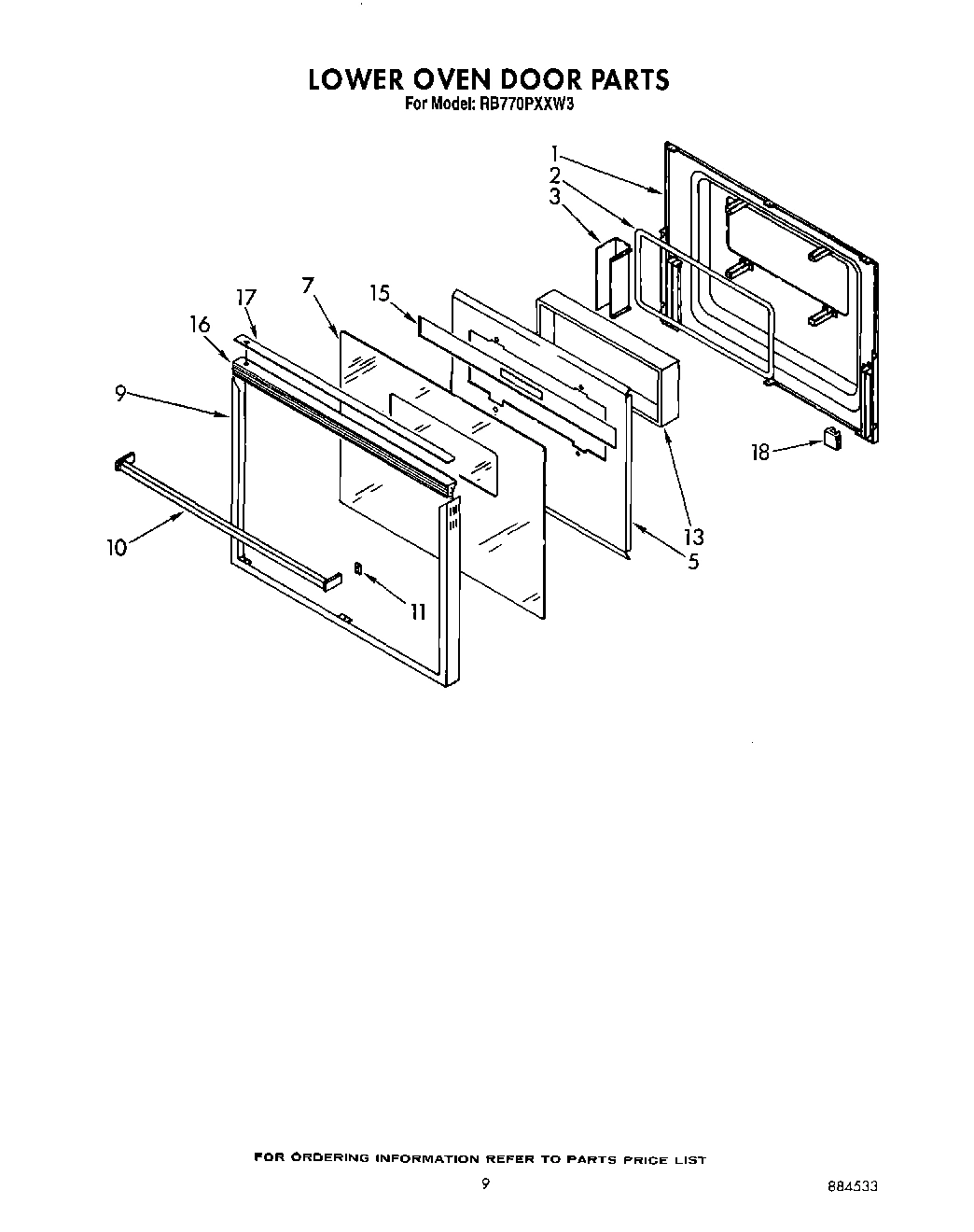

06 - LOWER OVEN DOOR

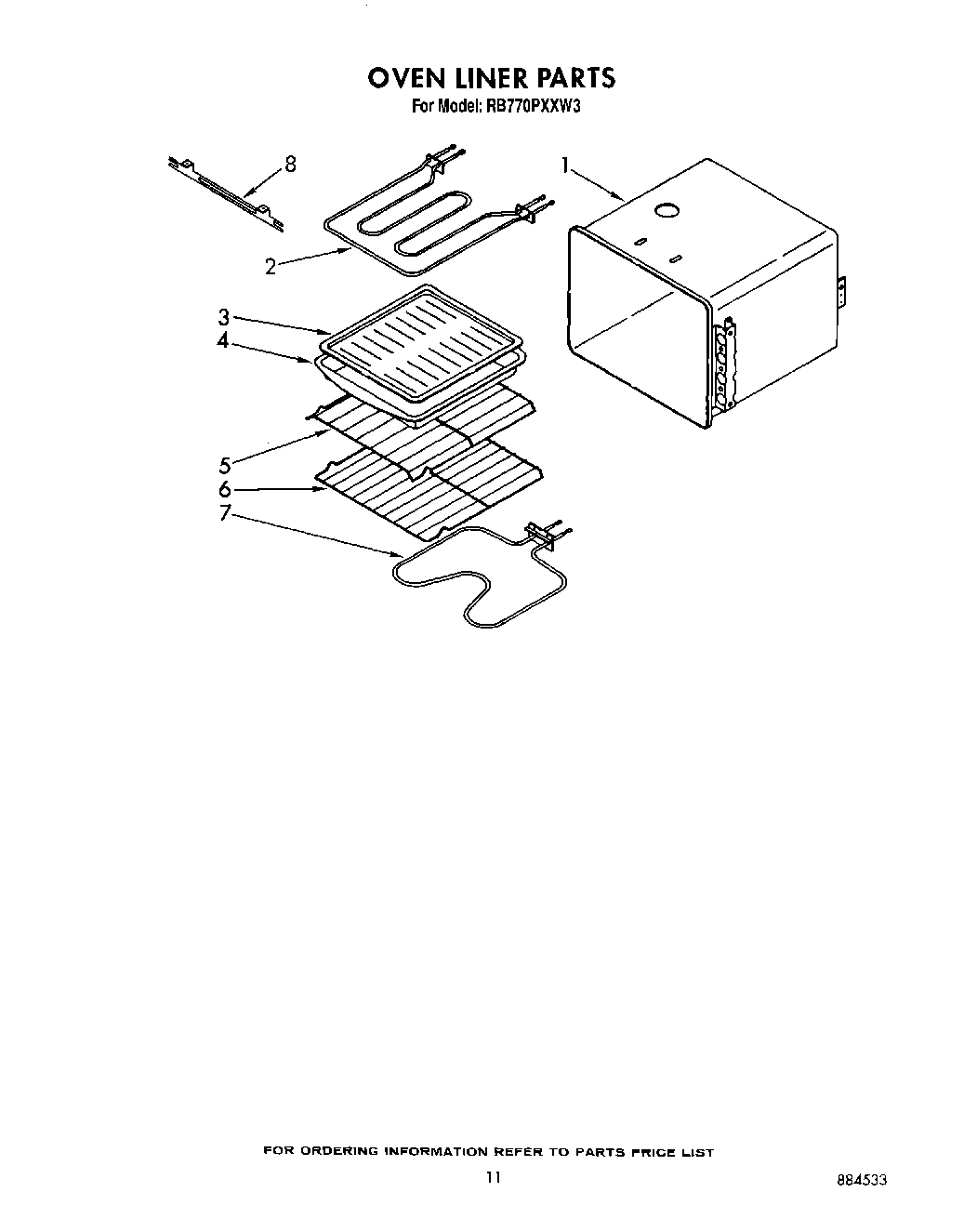

08 - OVEN LINER

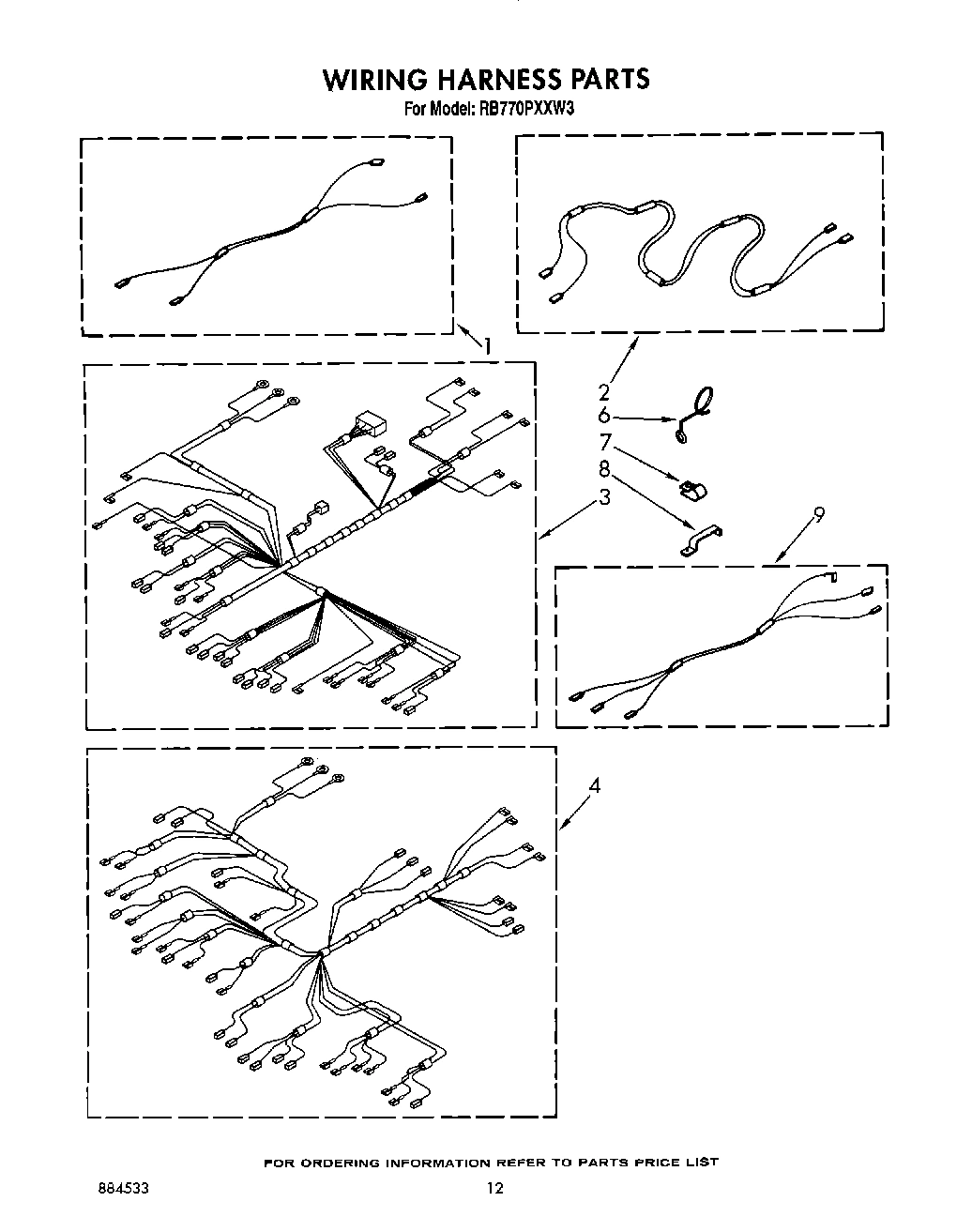

09 - WIRING HARNESS

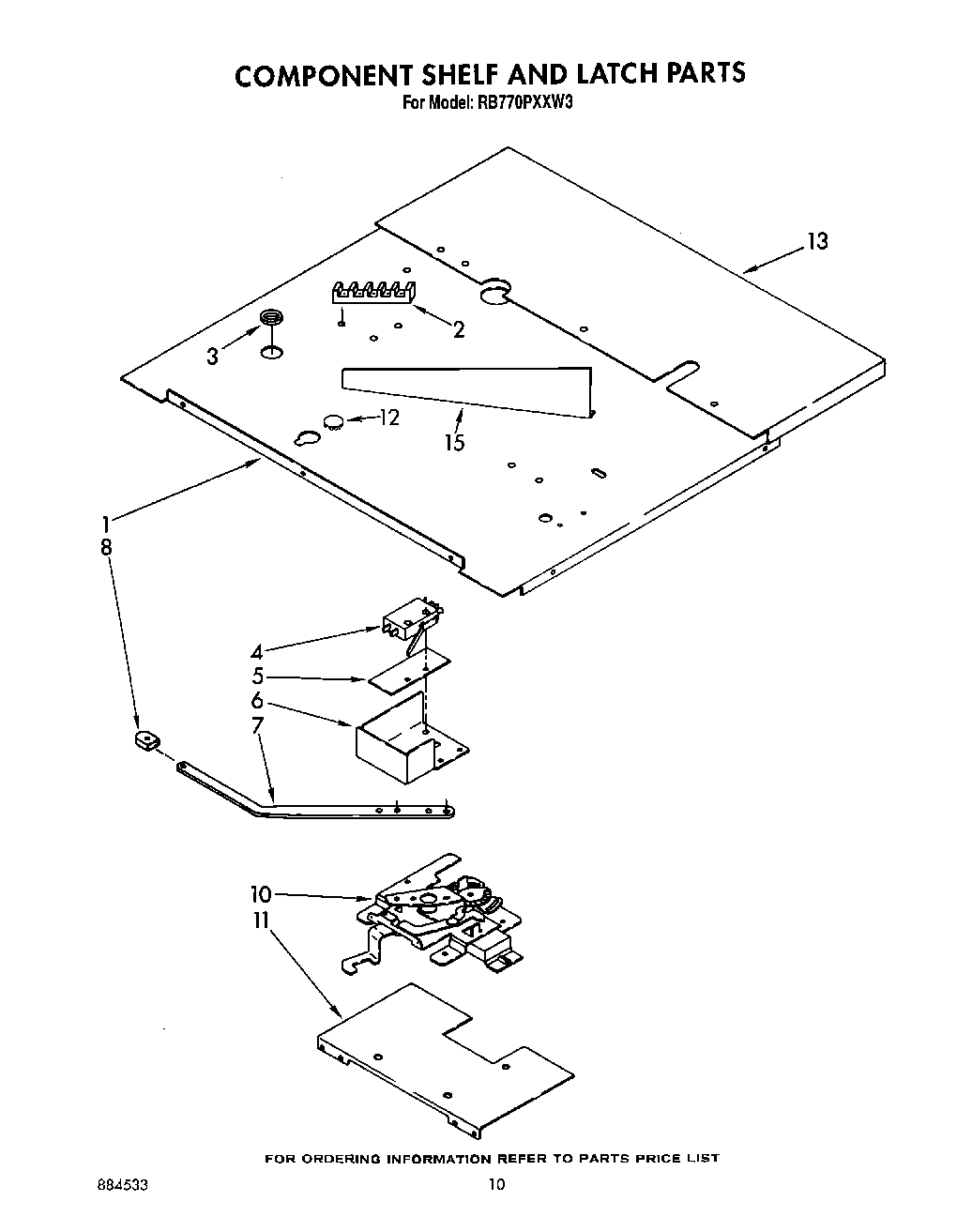

07 - COMPONENT SHELF AND LATCH

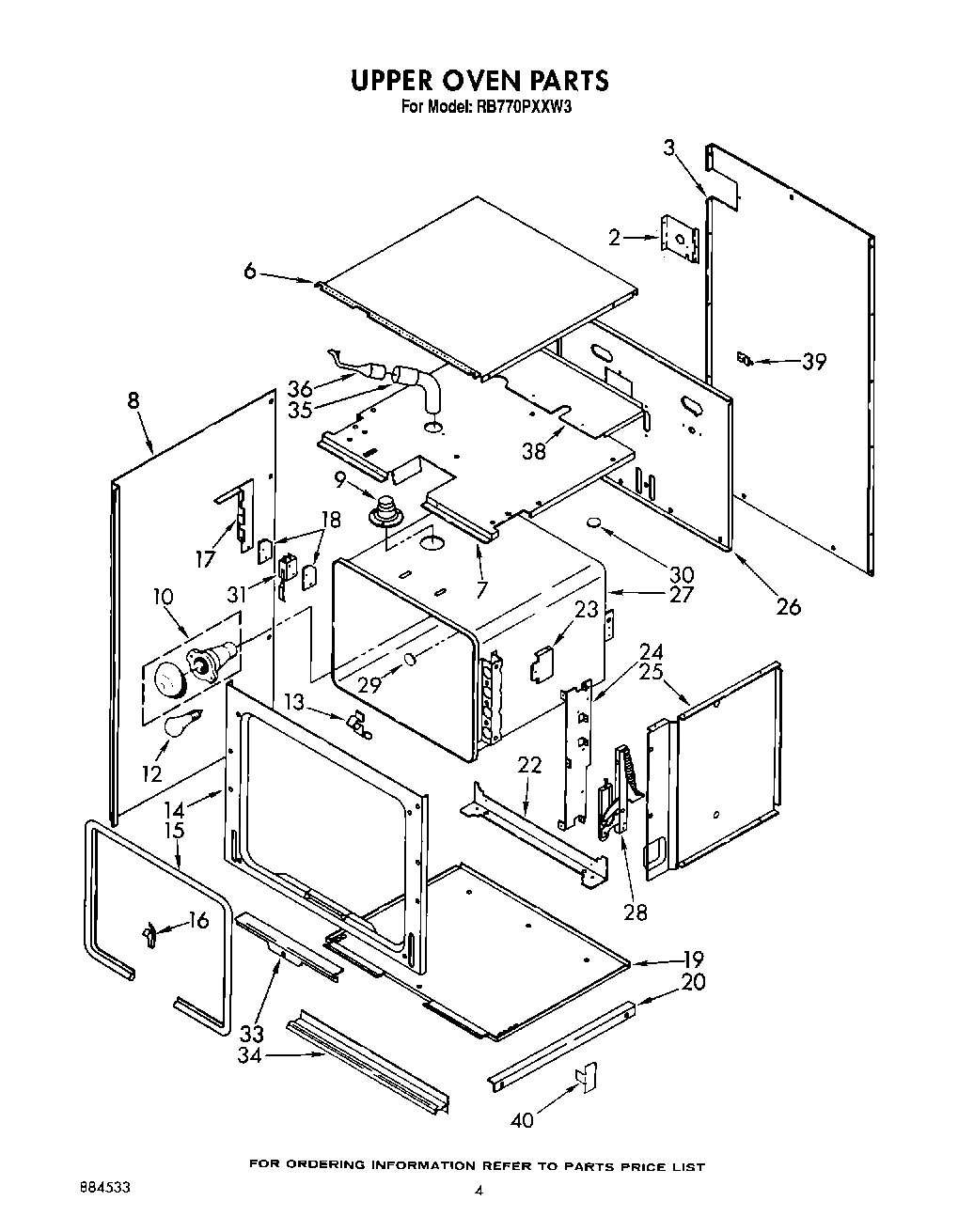

03 - UPPER OVEN

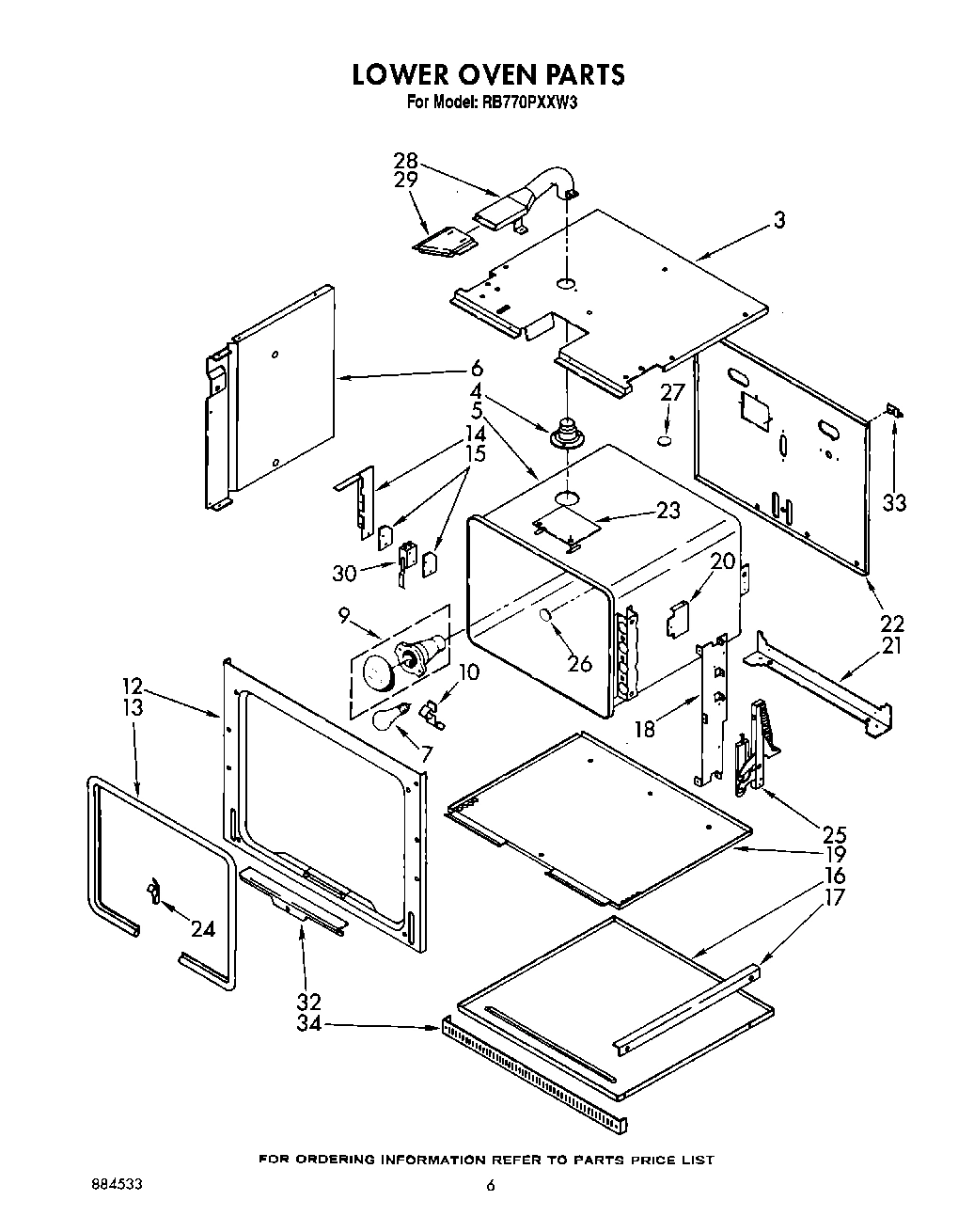

04 - LOWER OVEN

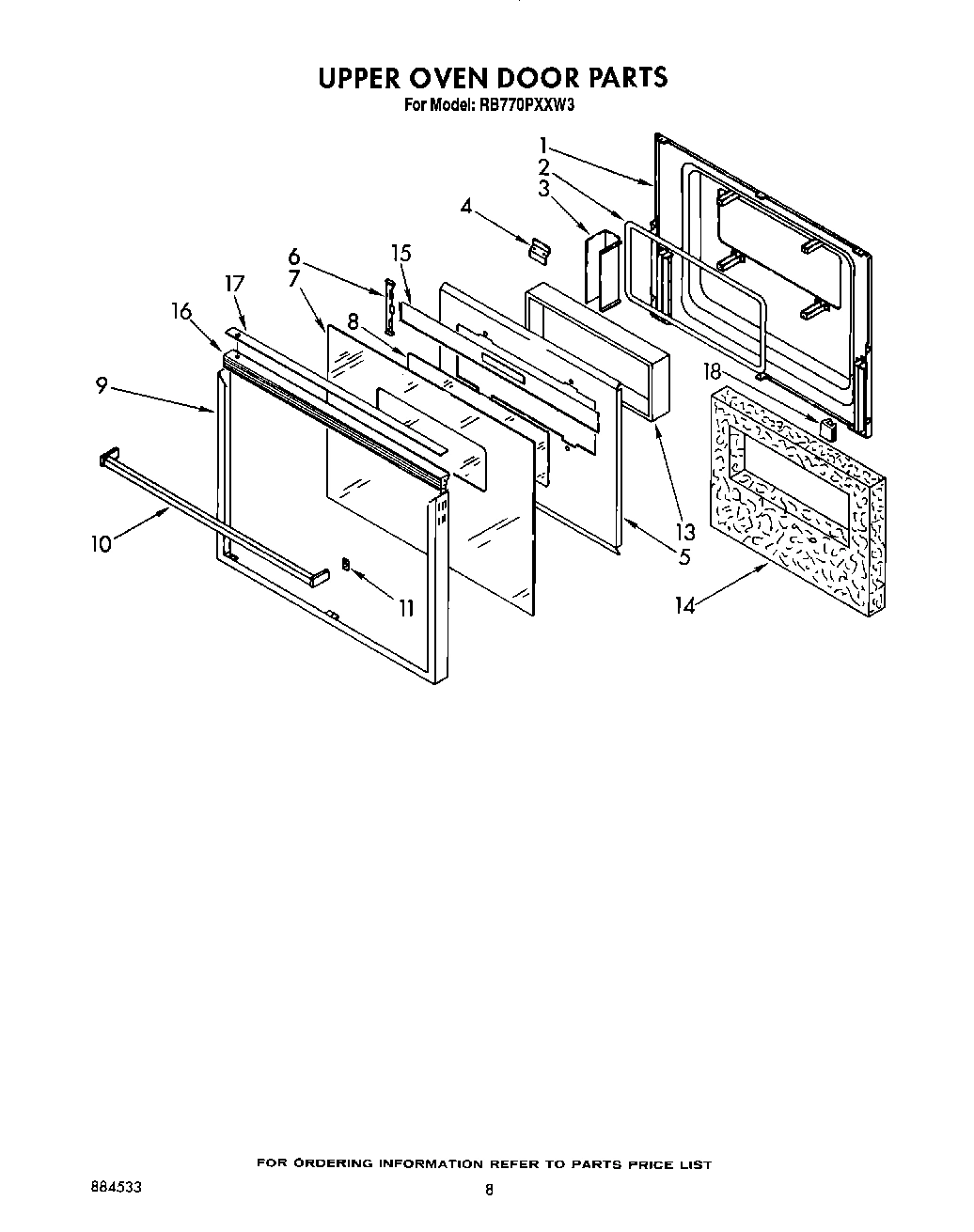

05 - UPPER OVEN DOOR
Common parts from model Whirlpool RB770PXXW3
1
Liner, Door WPL 3177600 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
1
Shelf, Component WPL 3178089 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3185130 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3185171 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Top, Module WPL 3177436 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3185198 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Tube, Vent WPL 3181700 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
End Trim (Vent Door) (Left Hand) WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) (Right Hand) WPL 3148472 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Liner, Oven WPL 3180828 Contact Us For Availability
5
Rack, Offset WPL 3180865 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Trim, Bottom WPL 3181518 Contact Us For Availability
6
Screw (4) WPL 342043 Contact Us For Availability
6
Rack, Oven WPL 3180864 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Cabinet, Top WPL 3178138 Contact Us For Availability
6
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
7
Glass, Control Panel WPL 3179444 Contact Us For Availability
7
Glass, Door WPL 3179500 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw (2) WPL 4159187 Contact Us For Availability
8
Rail, Mounting (Components) WPL 3180289 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Knob, Latch Handle WPL 3183293 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Side, Cabinet WPL 3177440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Retainer, Glass WPL 3180440 Contact Us For Availability
9
Frame, Door WPL 3180607 Contact Us For Availability
9
Wiring Harness (Latch Assembly) WPL 3180731 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
10
Plate, Mounting (Timer) WPL 3180293 Contact Us For Availability
10
Handle, Door WPL 3179483 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Timer WPL 3149807 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Switch, Oven Light WPL 3148465 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Frame, Front WPL 3177688 Contact Us For Availability
12
Screw (8) WPL 3179776 Contact Us For Availability
13
Washer, Lock (2) WPL 312796 Contact Us For Availability
13
Shield, Heat WPL 3180542 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Screw (6) WPL 4170323 Contact Us For Availability
13
Seal, Door WPL 3179813 Contact Us For Availability
14
Plate Mounting (Components) WPL 3180294 Contact Us For Availability
14
Frame, Front WPL 3177689 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Switch, Selector WPL 3178237 Contact Us For Availability
15
Shield, Door WPL 3181348 Contact Us For Availability
15
Baffle, Air WPL 3180693 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
16
Thermostat, Upper Oven WPL 3178275 Contact Us For Availability
16
Trim, Top WPL 3179478 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
17
Light, Indicator WPL 4168598 Contact Us For Availability
17
Screw (2) WPL 4168863 Contact Us For Availability
17
Cap, Top WPL 3181364 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
18
Screw (2) WPL 3178002 Contact Us For Availability
18
Thermostat, Lower Oven WPL 3178283 Contact Us For Availability
18
Bumper, Door Glass WPL 3181701 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
19
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Insert, Vent WPL 3179916 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
21
Bracket, Mounting WPL 3181279 Contact Us For Availability
21
Support, Oven WPL 3177434 Contact Us For Availability
22
Escutcheon, Oven Thermostat (Upper) WPL 3181510 Contact Us For Availability
22
Back, Module WPL 3177556 Contact Us For Availability
23
Knob, Control (3) WPL 3150372 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Bezel Switch WPL 3149170 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
25
Button, Set (4) WPL 3149177 Contact Us For Availability
25
Screw (4) WPL 3179795 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
26
Knob, Bit Generator WPL 3149176 Contact Us For Availability
26
Button, Plug WPL 3185108 Contact Us For Availability
27
Escutcheon, Selector Switch WPL 3181508 Contact Us For Availability
27
Button, Plug WPL 3185109 Contact Us For Availability
28
Screw, WPL 254225 Contact Us For Availability
28
Ecsutcheon, Oven Thermostat (Lower) WPL 3181509 Contact Us For Availability
28
Tube, Vent Male WPL 3179945 Contact Us For Availability
29
Bracket, Mounting (Lower Thermostat) WPL 3181764 Contact Us For Availability
29
Tube, Vent Female WPL 3181964 Contact Us For Availability
30
Screw (4) WPL 309133 Contact Us For Availability
30
Support, Glass (2) WPL 3181831 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Vent, Middle Trim WPL 3182119 Contact Us For Availability
34
Insulation, Wrap WPL 3177862 Contact Us For Availability
34
Insulation, Back WPL 3177872 Contact Us For Availability
34
Trim, Lower Vent WPL 3177789 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
38
Extension, Shelf WPL 3178132 Contact Us For Availability
40
Screw (4) WPL 3179847 Contact Us For Availability
40
Insert, Vent Trim WPL 3182286 Contact Us For Availability
× ![]()
