Model Whirlpool RB700PXS0 – Common Parts & Diagrams
04 - OVEN, LIT/OPTIONAL
02 - CONTROL PANEL

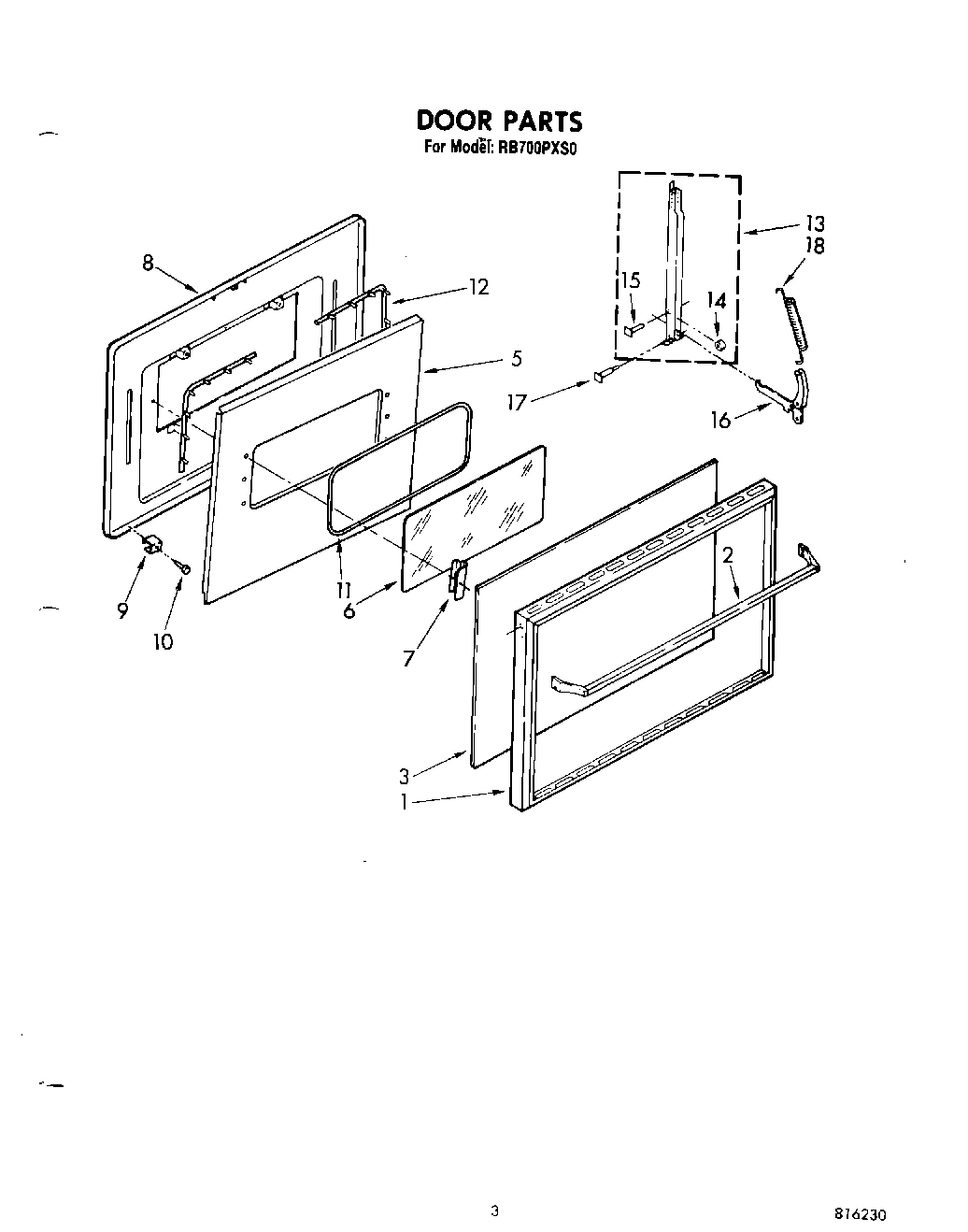

03 - DOOR
Common parts from model Whirlpool RB700PXS0
WPL LIT877952 WPL LIT877952 Contact Us For Availability
1
Oven (27`` Pyro) WPL 816228 Contact Us For Availability
1
Frame, Oven Door WPL 877887 Contact Us For Availability
2
Cup, Light WPL 877802 Contact Us For Availability
2
Handle, Oven Door WPL 877888 Contact Us For Availability
2
Screw, 6-32 x 1/2 (4) WPL 877889 Contact Us For Availability
3
Glass, Outer WPL 877890 Contact Us For Availability
5
Lens, Light WPL 877804 Contact Us For Availability
5
Panel, Air Wash WPL 877895 Contact Us For Availability
6
Retainer, Lens WPL 877805 Contact Us For Availability
6
Glass, Inner WPL 877893 Contact Us For Availability
7
Bracket, Thermo Bulb WPL 865959 Contact Us For Availability
7
Retainer, Glass WPL 877894 Contact Us For Availability
8
Screw, 10-24 x 1/2 (7) WPL 681151 Contact Us For Availability
8
Liner, Oven Door WPL 816229 Contact Us For Availability
9
Unit, Broiler (208V) WPL 261968 Contact Us For Availability
9
Unit, Broil ((240V)) WPL 865638 Contact Us For Availability
9
Spacer, Door (4) WPL 877613 Contact Us For Availability
10
Hanger, Broil Unit WPL 866429 Contact Us For Availability
10
Bumper (4) WPL 866444 Contact Us For Availability
11
Unit Bake (Screw, 10-24 x 1/2 (2)) WPL 486146 Contact Us For Availability
11
Unit, Bake (Alternate (208V)) WPL 261967 Contact Us For Availability
11
Seal, Inner WPL 877892 Contact Us For Availability
12
Gasket, Oven Door (Right Side) WPL 866427 Contact Us For Availability
12
Gasket, Oven Door (Left Side) WPL 866428 Contact Us For Availability
13
Channel, Assembly (2) WPL 865972 Contact Us For Availability
14
Switch, Cycling WPL 241679 Contact Us For Availability
14
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
15
Rivet (2) WPL 241423 Contact Us For Availability
16
Arm, Hinge WPL 865640 Contact Us For Availability
17
Pin, Hinge WPL 877884 Contact Us For Availability
18
Casing, Back WPL 868975 Contact Us For Availability
18
Screw, 10-24 x 1/2 (2) WPL 868430 Contact Us For Availability
18
Spring, Door WPL 241314 Contact Us For Availability
18
Washer (2) WPL 816058 Contact Us For Availability
19
Casing, Bottom WPL 868096 Contact Us For Availability
20
Support, Bottom Casing (2) WPL 868977 Contact Us For Availability
22
Trim, Oven Front (2) WPL 866383 Contact Us For Availability
23
Casing, Side (2) WPL 868978 Contact Us For Availability
23
Support, Control Bracket (2) WPL 866395 Contact Us For Availability
24
Plate, Conduit WPL 868868 Contact Us For Availability
24
Bracket, Control WPL 816222 Contact Us For Availability
25
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
25
Nut, Hex (10-32) (3) WPL 487836 Contact Us For Availability
25
Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability
25
Thermostat, Oven WPL 816070 Contact Us For Availability
26
Switch, Oven Light WPL 866138 Contact Us For Availability
26
Nut, 3/8-27 WPL 98754 Contact Us For Availability
27
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
27
Switch, Oven Selector WPL 816225 Contact Us For Availability
28
Indicator, Light (Clean) WPL 868172 Contact Us For Availability
29
Timer, (Digital) WPL 816221 Contact Us For Availability
32
Panel, Glass (Control) WPL 816226 Contact Us For Availability
32
Tape, Foam (16``) WPL 866454 Contact Us For Availability
33
Cover, Access WPL 868524 Contact Us For Availability
33
Base, Control Panel WPL 816063 Contact Us For Availability
34
Rack, Oven Regular WPL 834731 Contact Us For Availability
34
Screw, 10-24 x 1/2 (5) WPL 816065 Contact Us For Availability
34
Top, Control Panel WPL 816227 Contact Us For Availability
35
Rack, Oven (Offset) WPL 834732 Contact Us For Availability
35
End Cap (R.H.) WPL 868995 Contact Us For Availability
35
End Cap (L.H.) WPL 868996 Contact Us For Availability
36
Bezel, Switch WPL 866053 Contact Us For Availability
37
Pan, Broiler WPL 866218 Contact Us For Availability
37
Knob, Thermostat WPL 868997 Contact Us For Availability
38
Washer WPL 486608 Contact Us For Availability
38
Casing, Fan WPL 816223 Contact Us For Availability
38
Knob, Selector WPL 868998 Contact Us For Availability
39
Shield, Control Panel WPL ARI119646A Contact Us For Availability
40
Housing, Control WPL 866411 Contact Us For Availability
41
Top, Casing WPL 868102 Contact Us For Availability
42
FOIL, ALUMI WPL 241430 Contact Us For Availability
42
WPL 242820 WPL 242820 Contact Us For Availability
42
WPL 242821 WPL 242821 Contact Us For Availability
42
WPL 242822 WPL 242822 Contact Us For Availability
42
WPL 242823 WPL 242823 Contact Us For Availability
42
WPL 242824 WPL 242824 Contact Us For Availability
42
WPL 242825 WPL 242825 Contact Us For Availability
42
WPL 242826 WPL 242826 Contact Us For Availability
42
WPL 242827 WPL 242827 Contact Us For Availability
42
WPL 242828 WPL 242828 Contact Us For Availability
42
WPL 242829 WPL 242829 Contact Us For Availability
42
WPL 242830 WPL 242830 Contact Us For Availability
42
WPL 242832 WPL 242832 Contact Us For Availability
42
WPL 261582 WPL 261582 Contact Us For Availability
42
WPL 261810 WPL 261810 Contact Us For Availability
42
WPL 816224 WPL 816224 Contact Us For Availability
42
WPL 877978 WPL 877978 Contact Us For Availability
44
Bumper, Stem (2) WPL 834956 Contact Us For Availability
× ![]()
