Model Whirlpool RB276PXV2 – Common Parts & Diagrams

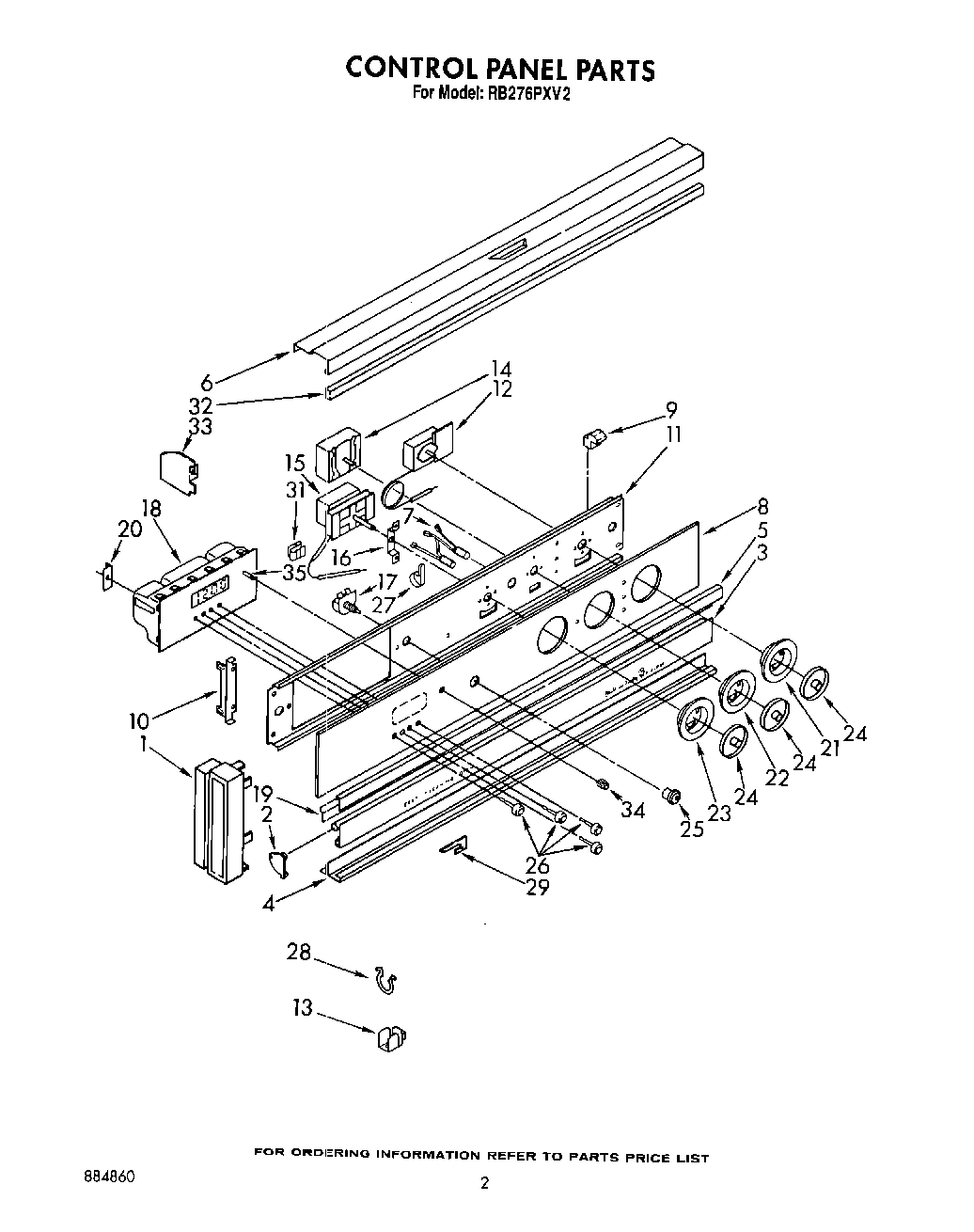

02 - CONTROL PANEL, LIT/OPTIONAL

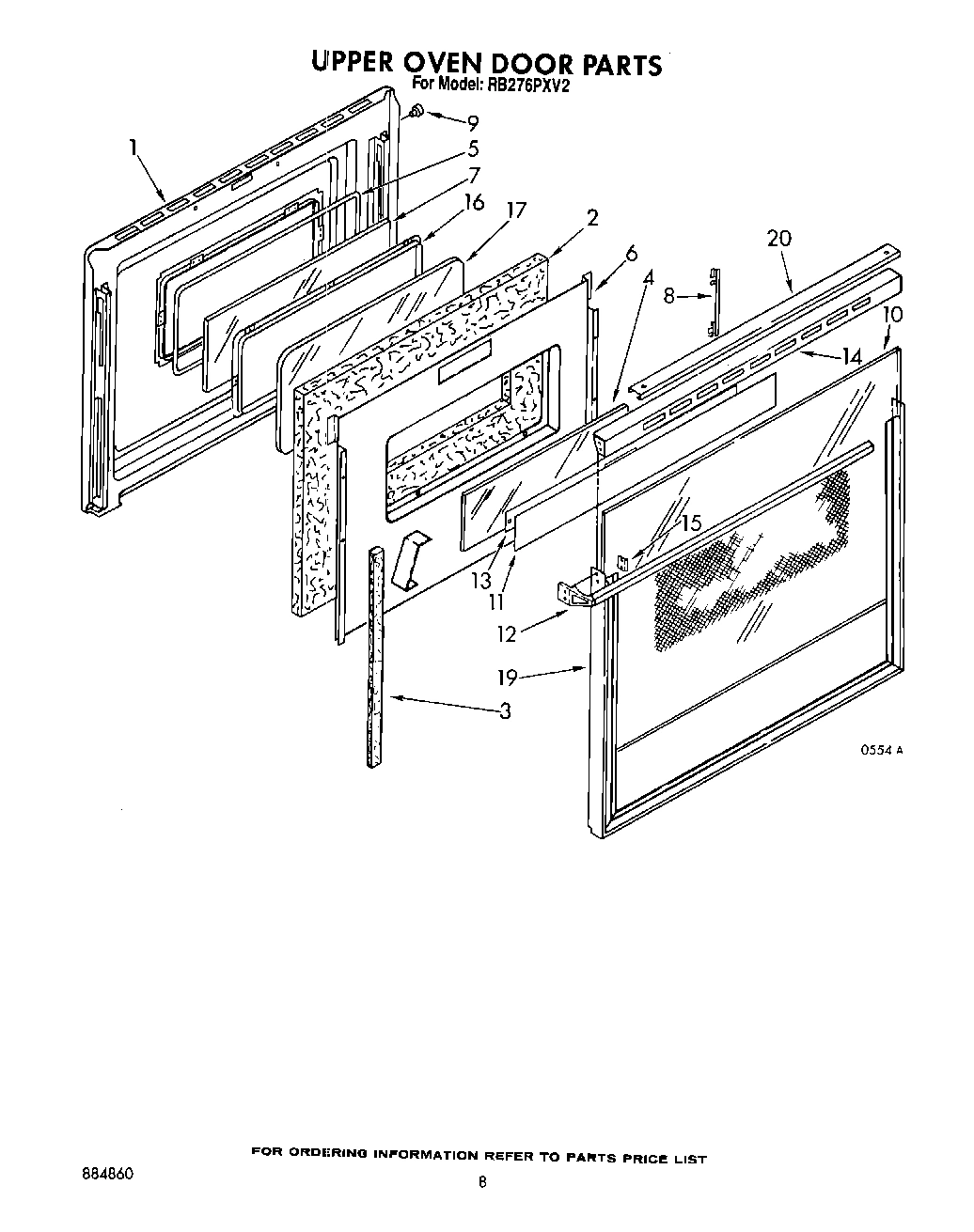

05 - UPPER OVEN DOOR
06 - LOWER OVEN DOOR

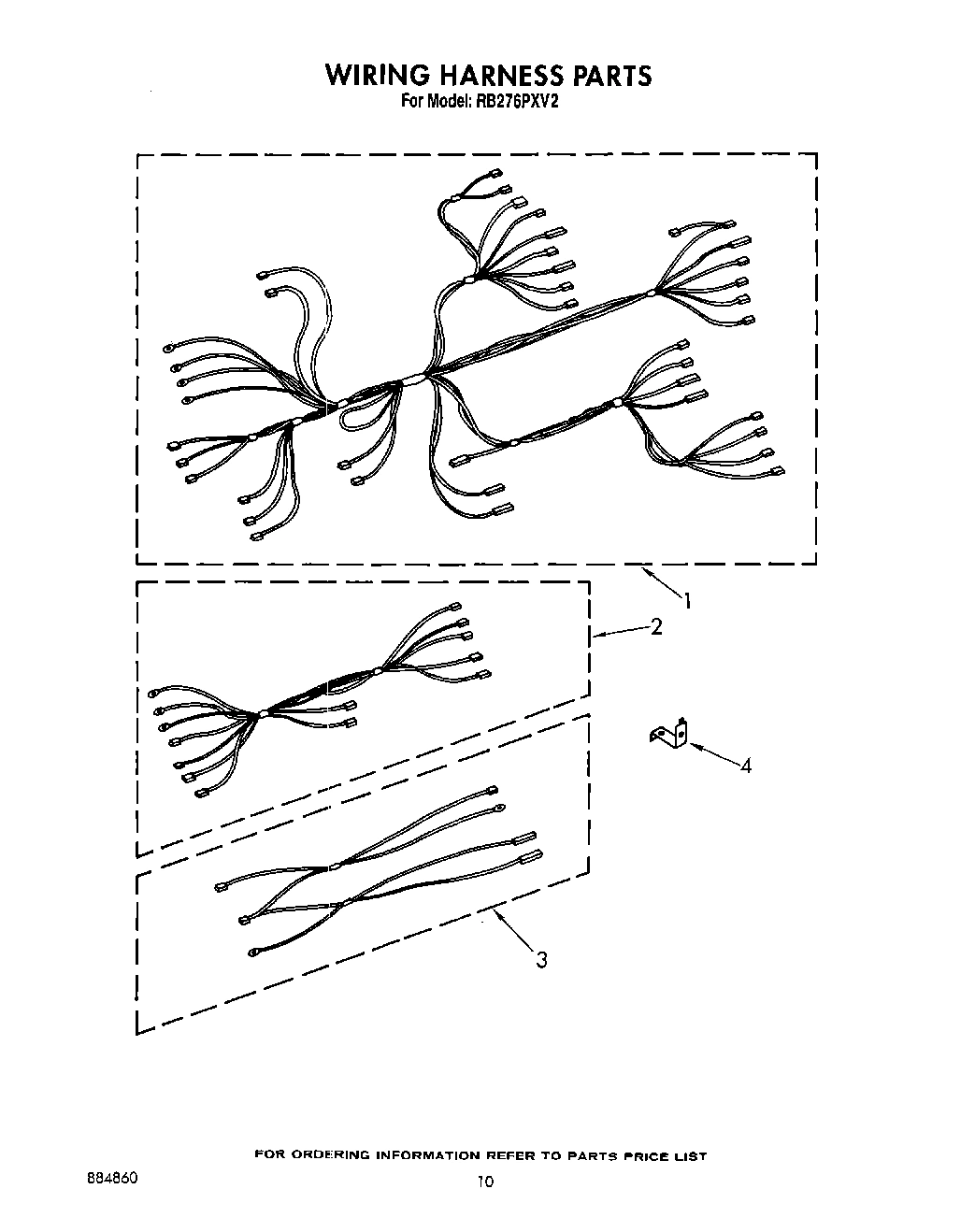

07 - WIRING HARNESS, OPTIONAL

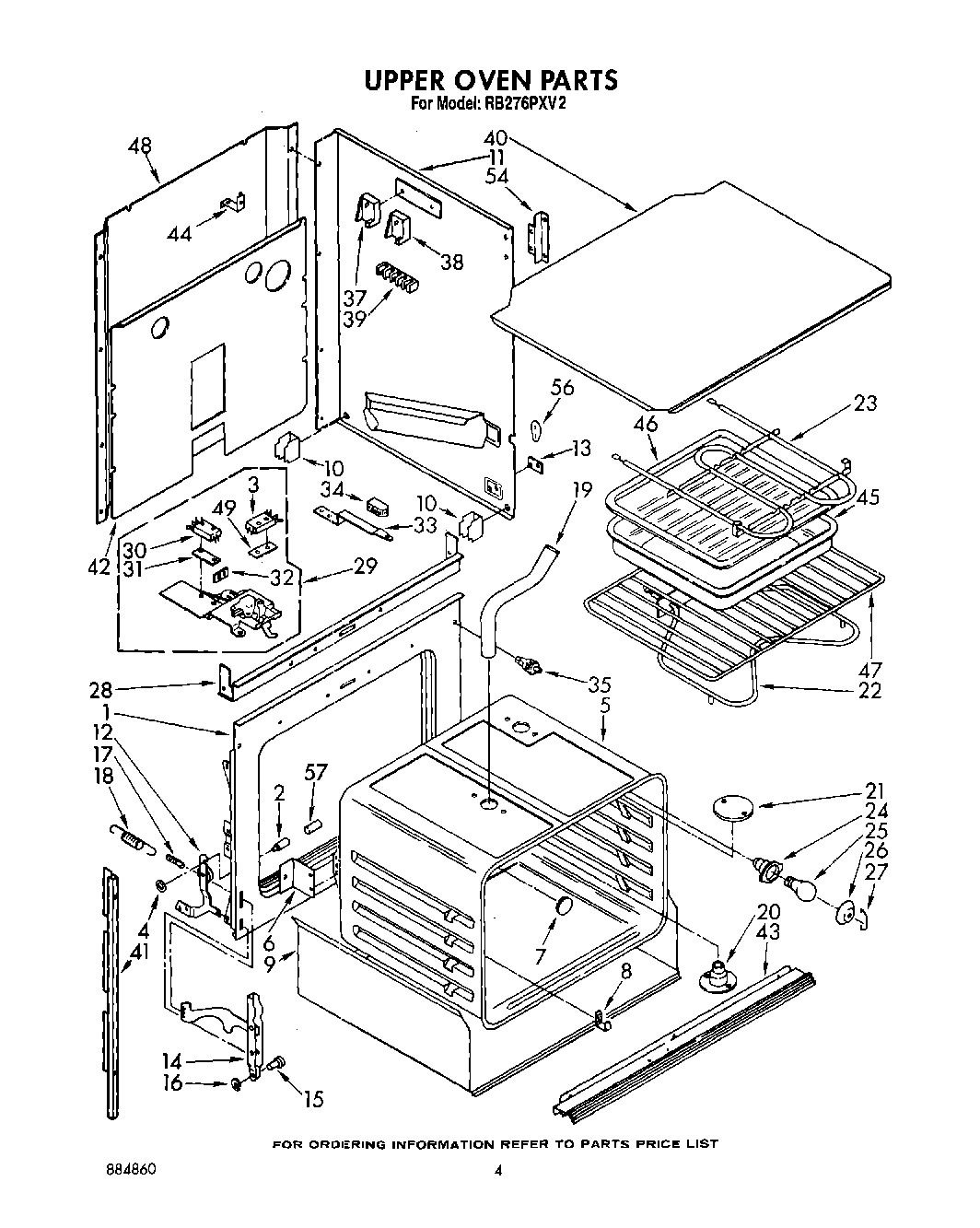

03 - UPPER OVEN

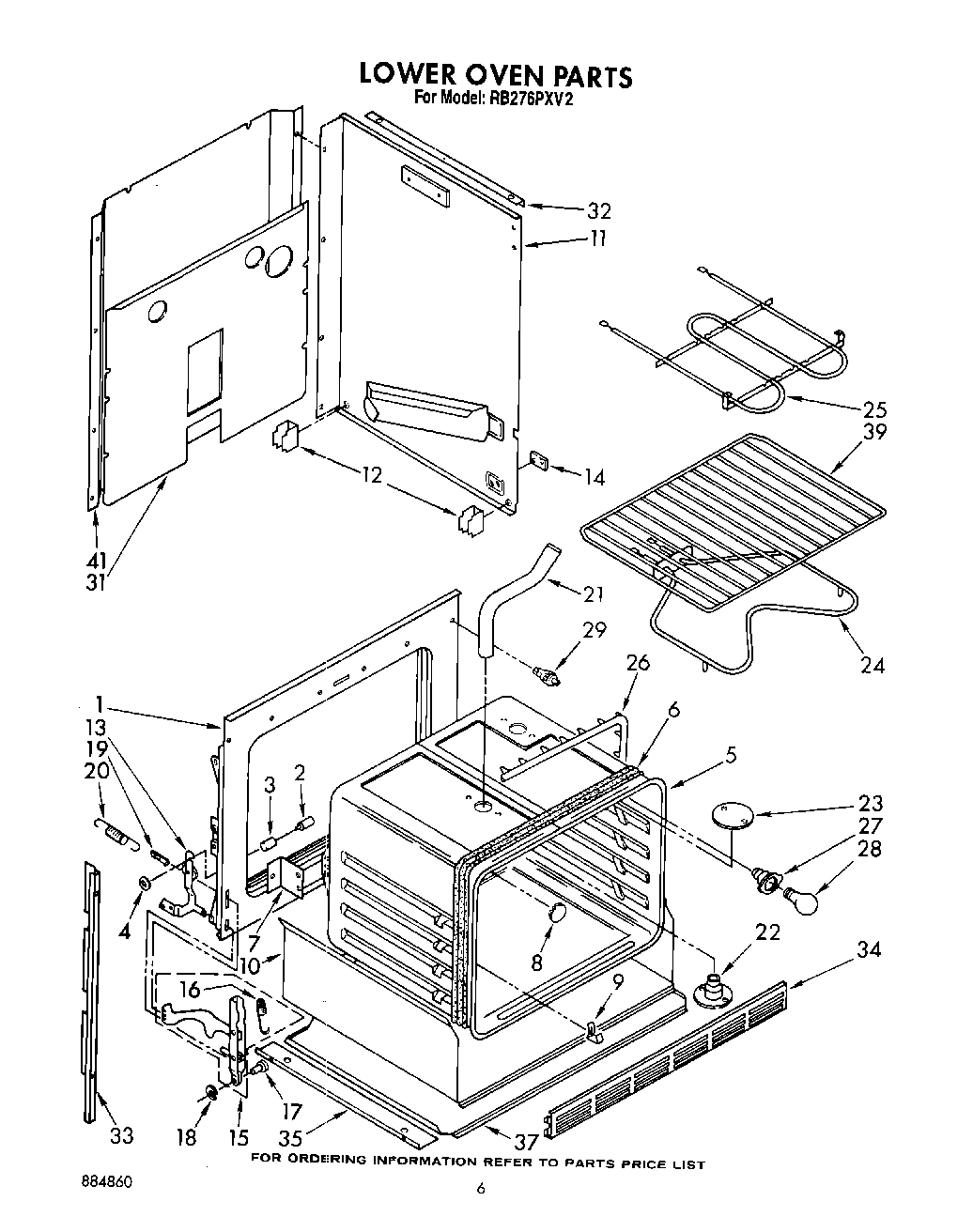

04 - LOWER OVEN
Common parts from model Whirlpool RB276PXV2
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
1
Frame, Front WPL 3172204 Contact Us For Availability
1
Frame, Front WPL 3172196 Contact Us For Availability
2
Seal, Pano Glass WPL 3148183 Contact Us For Availability
2
Harness, Wire (Lower Oven) WPL 3148824 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Glass, Inner 30`` WPL 3148179 Contact Us For Availability
3
Wiring Harness Lower Oven Light WPL 311471 Contact Us For Availability
3
Switch, Safety WPL 3148669 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
4
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
4
Rotisserie (Top Oven Only) WPL 261881 Contact Us For Availability
4
Stand Off WPL 311582 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Insulation, Door WPL 3147951 Contact Us For Availability
5
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
5
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
6
Heat Seal WPL 309107 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Frame, Door 30`` WPL 3148235 Contact Us For Availability
8
Plug Button WPL 257314 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Glass, Outer WPL 3149049 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability
10
Insulation Tray WPL 310770 Contact Us For Availability
11
Bracket, Control WPL 313863 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Top, Door Frame WPL 3149355 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
12
Thermostat, Oven Upper WPL 3148934 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
13
Adapter, Terminal WPL 3147832 Contact Us For Availability
13
Screw, WPL 254225 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
13
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
13
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
14
Selector Switch WPL 661450 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
14
Channel Arm (2) WPL 329713 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Thermostat, Oven Lower WPL 311479 Contact Us For Availability
15
Channel Arm (2) WPL 329714 Contact Us For Availability
16
Screw (4) WPL 311491 Contact Us For Availability
16
Bracket, Thermostat WPL 311492 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
17
Lockwasher WPL 312796 Contact Us For Availability
17
Switch, Oven Light WPL 3148465 Contact Us For Availability
17
Handle, Oven Door WPL 3149354 Contact Us For Availability
18
Timer, Digital WPL 3149807 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Bracket, Timer WPL 313864 Contact Us For Availability
20
Cap, Top WPL 3181363 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
21
Escutcheon, Thermostat WPL 3149172 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
23
Escutcheon, Thermostat (Lower Oven) WPL 3149173 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
24
Knob, Control (3) WPL 3150372 Contact Us For Availability
25
Bezel Switch (1) WPL 3149170 Contact Us For Availability
25
Screw (2) WPL 3150532 Contact Us For Availability
26
Set, Button (4) WPL 3149177 Contact Us For Availability
26
Cover, Light WPL 308039 Contact Us For Availability
26
Seal, Door WPL 3148284 Contact Us For Availability
27
Strain Relief (3) WPL 308609 Contact Us For Availability
27
Socket, Oven Light WPL 660556 Contact Us For Availability
27
Retainer, Light WPL 308038 Contact Us For Availability
27
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
28
Baffle, Top Insulation WPL 310693 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
29
Shield, Air WPL 3149142 Contact Us For Availability
29
Latch Assembly WPL 3171148 Contact Us For Availability
30
Safety Switch WPL 308185 Contact Us For Availability
30
Screw (2) WPL 98106 Contact Us For Availability
31
Clip, Tube (Thermostat) WPL 313570 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
31
Panel, Back WPL 3149542 Contact Us For Availability
32
Seal, Backguard WPL 311263 Contact Us For Availability
32
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Screw, 8A x 5/16 (2) WPL 98520 Contact Us For Availability
33
Bracket, Timer WPL 314129 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
33
Side Trim (Left Side) WPL 310685 Contact Us For Availability
33
Side Trim (Right Side) WPL 310689 Contact Us For Availability
34
Knob, Timer WPL 3149176 Contact Us For Availability
34
Screw, 80 x 5/16 WPL 246135 Contact Us For Availability
34
Knob, Latch Handle WPL 311253 Contact Us For Availability
34
Grill, Bottom WPL 3149359 Contact Us For Availability
35
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
37
Switch, Broil WPL 314209 Contact Us For Availability
37
Cover, Bottom WPL 310458 Contact Us For Availability
38
screw WPL 314215 Contact Us For Availability
38
Switch, Bake WPL 314210 Contact Us For Availability
39
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
41
WPL 310686 WPL 310686 Contact Us For Availability
41
WPL 310690 WPL 310690 Contact Us For Availability
41
Insulation, Wrap WPL 310433 Contact Us For Availability
41
Insulation, Oven WPL 310434 Contact Us For Availability
41
Cover, Rea WPL 311013 Contact Us For Availability
43
WPL 307831 WPL 307831 Contact Us For Availability
43
WPL 3171868 WPL 3171868 Contact Us For Availability
44
WPL 309102 WPL 309102 Contact Us For Availability
47
WPL 308172 WPL 308172 Contact Us For Availability
48
WPL 311011 WPL 311011 Contact Us For Availability
49
WPL 3147864 WPL 3147864 Contact Us For Availability
54
WPL 310719 WPL 310719 Contact Us For Availability
56
WPL 311982 WPL 311982 Contact Us For Availability
57
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
