Model Whirlpool RB270PXYB0 – Common Parts & Diagrams
05 - UPPER OVEN DOOR
04 - LOWER OVEN DOOR, OPTIONAL

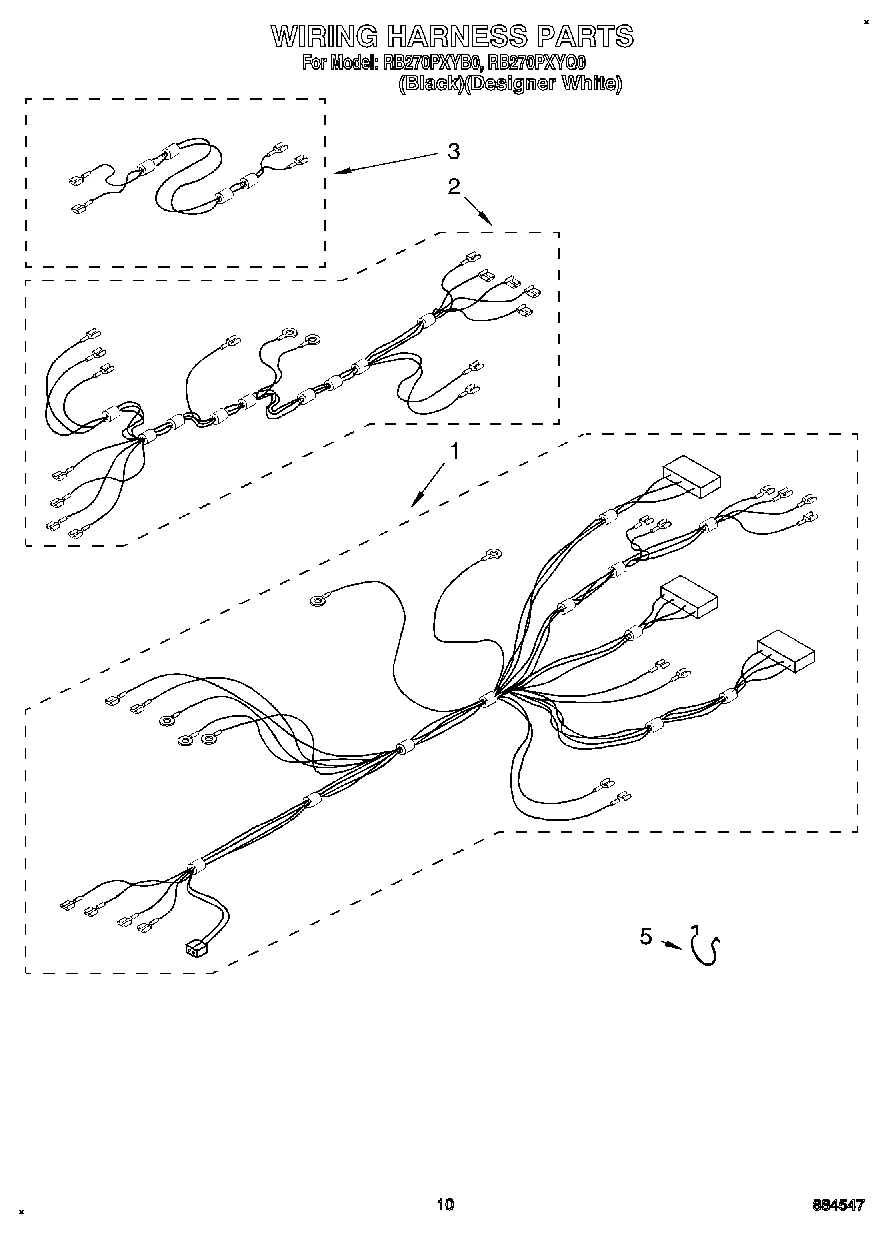

06 - WIRING HARNESS

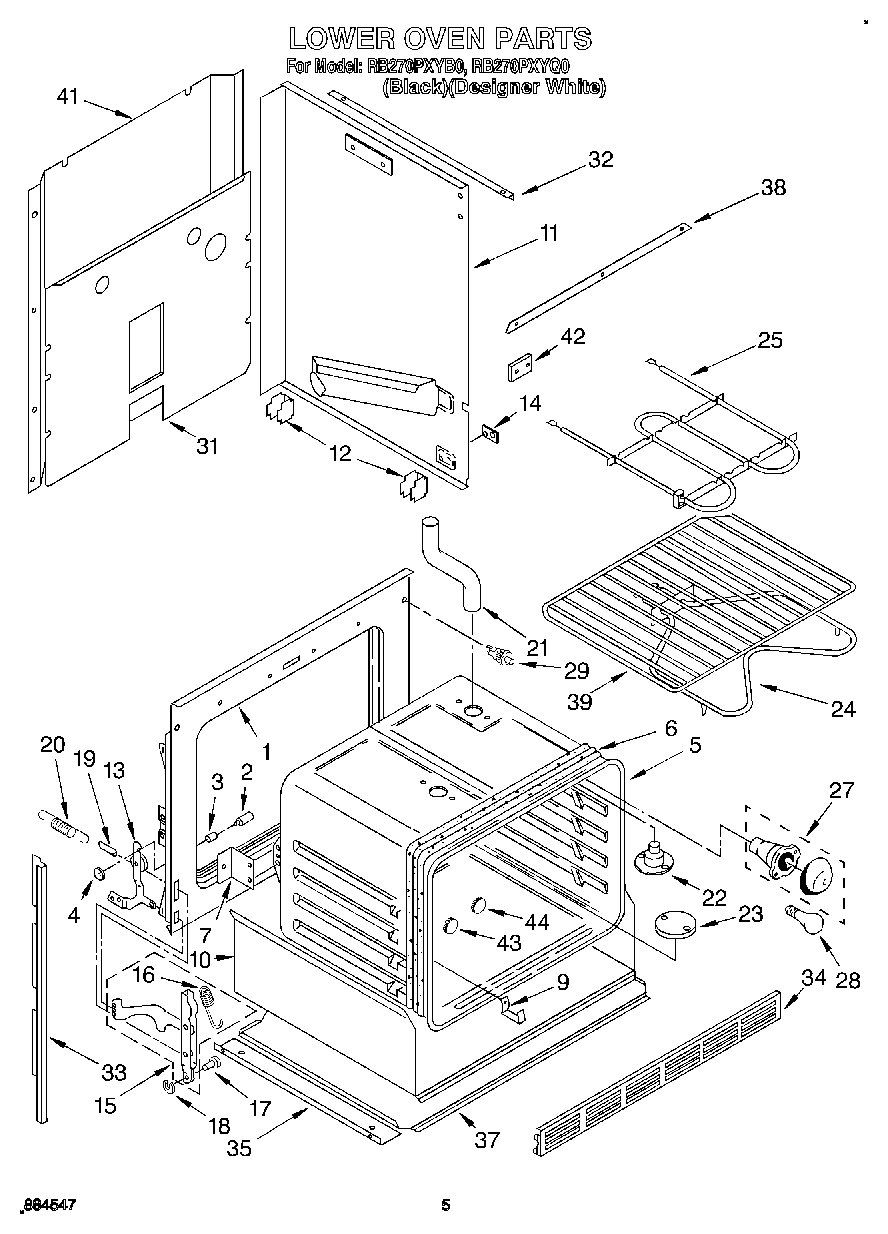

03 - LOWER OVEN

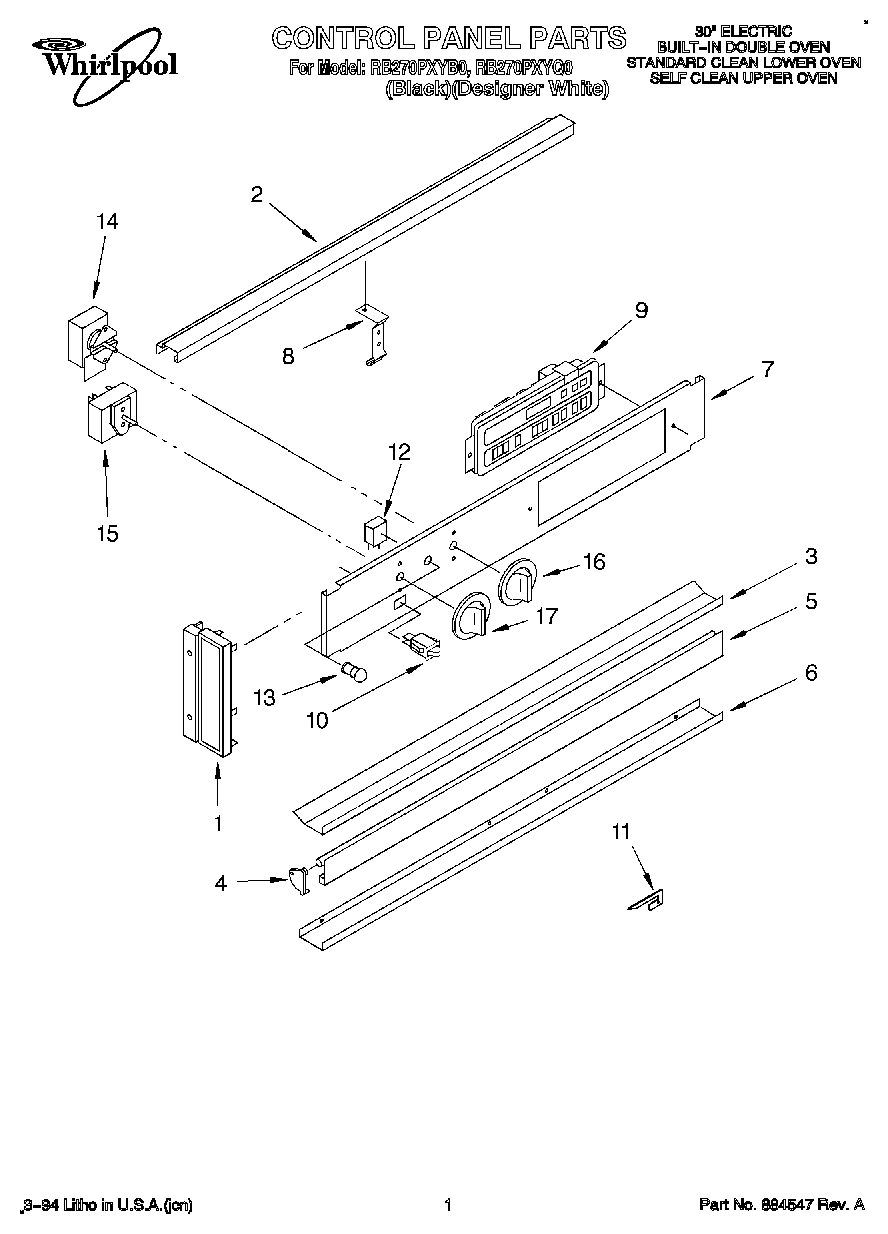

01 - CONTROL PANEL, LITERATURE

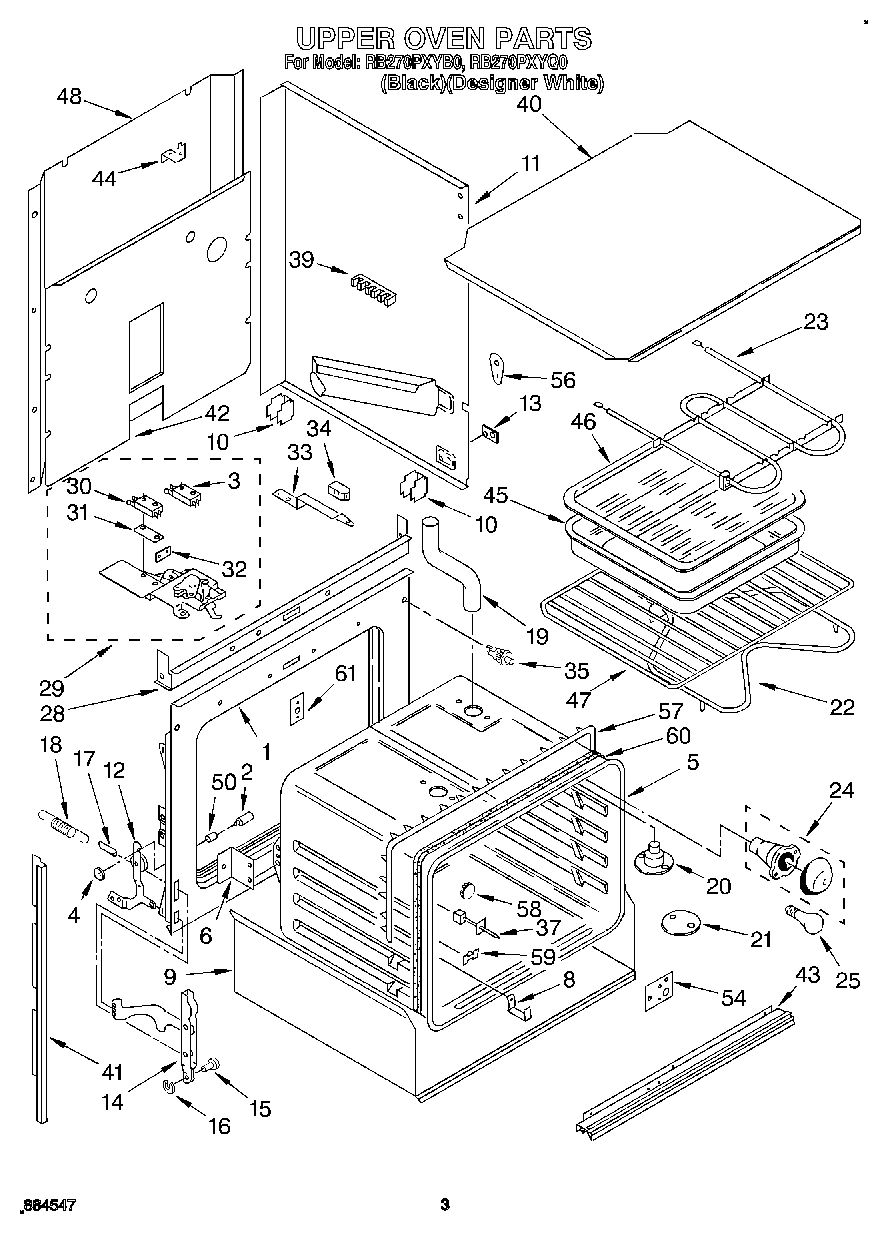

02 - UPPER OVEN
Common parts from model Whirlpool RB270PXYB0
Use & Care Guide WPL LIT3182871 Contact Us For Availability
Installation Instructions WPL LIT3183635 Contact Us For Availability
Tech Sheet WPL LIT3184116 Contact Us For Availability
Repair Parts List WPL LIT884547 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Harness, Wire (Main) WPL 3183289 Contact Us For Availability
1
Frame, Front WPL 3172196 Contact Us For Availability
1
End Cap (Left Side) WPL 3148621 Contact Us For Availability
1
End Cap (Right Side) WPL 3148622 Contact Us For Availability
1
Frame, Front WPL 3172204 Contact Us For Availability
2
Seal, Pano Glass WPL 3148183 Contact Us For Availability
2
Harness, Wire (Lower Oven) WPL 3183364 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Trim, Top WPL 3148624 Contact Us For Availability
3
Glass, Inner 30`` WPL 3148179 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 3183751 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183577 Contact Us For Availability
3
Trim, Center (White Model) WPL 3183578 Contact Us For Availability
3
Switch, Latch WPL 3178187 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
4
screw (6) WPL 3148443 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
End Trim (Vent Door) Left Hand (White Model R WPL 3148471 Contact Us For Availability
4
End Trim (Vent Door) Left Hand (White Model) WPL 3148472 Contact Us For Availability
4
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
4
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
5
Door, Vent (Black Model) WPL 3183505 Contact Us For Availability
5
Door, Vent (White Model) WPL 3183506 Contact Us For Availability
6
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
6
Trim, Bottom WPL 3148618 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
7
Control Panel (Black Model) WPL 3182917 Contact Us For Availability
7
Control Panel (White Model) WPL 3182918 Contact Us For Availability
8
Frame, Door 30`` WPL 3148235 Contact Us For Availability
8
Screw WPL 311773 Contact Us For Availability
8
Bracket, Stiffener WPL 3183500 Contact Us For Availability
9
Glass, Outer (Black) WPL 3148185 Contact Us For Availability
9
Glass, Outer (White) WPL 3149049 Contact Us For Availability
9
Insulation Tray WPL 310770 Contact Us For Availability
9
Electronic Timer (Black Model) WPL 3182391 Contact Us For Availability
9
Electronic Timer (White Model) WPL 3182392 Contact Us For Availability
10
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
10
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
10
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
11
Top, Door Frame (Black) WPL 3148223 Contact Us For Availability
11
Top, Door Frame (White) WPL 3149355 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
11
Screw WPL 98520 Contact Us For Availability
11
Shield, Air WPL 3149142 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
12
Light, Indicator WPL 314031 Contact Us For Availability
12
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
12
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
13
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
13
Lens, Amber WPL 313101 Contact Us For Availability
14
Screw (2) WPL 3178002 Contact Us For Availability
14
Thermostat WPL 3183572 Contact Us For Availability
14
Channel Arm (2) WPL 329713 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Channel Arm (2) WPL 329714 Contact Us For Availability
15
Switch, Selector WPL 3183583 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
16
Retainer Ring (2) WPL 307594 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Handle, Oven Door (Black) WPL 3148228 Contact Us For Availability
17
Handle, Oven Door (White) WPL 3149354 Contact Us For Availability
17
Mounting Hardware WPL 3171507 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Cap, Top (White Model Only) WPL 3181363 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
21
Plate, Cover WPL 310662 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
23
Screw (2) WPL 3150532 Contact Us For Availability
28
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
29
Latch Assembly WPL 3183801 Contact Us For Availability
30
Safety Switch WPL 3178671 Contact Us For Availability
30
Screw (2) WPL 98106 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
32
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
33
Side Trim (Left Side) WPL 310685 Contact Us For Availability
33
Side Trim (Right Side) WPL 310689 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
34
Grill, Bottom (Black (3)) WPL 309029 Contact Us For Availability
34
Grill, Bottom (Black) WPL 310668 Contact Us For Availability
34
Grill, Bottom (White Screw, 8-15 x 1/2) WPL 3149359 Contact Us For Availability
34
Screw WPL 3183294 Contact Us For Availability
34
Knob, Latch Handle WPL 3184039 Contact Us For Availability
35
Switch, Door WPL 310345 Contact Us For Availability
37
Sensor, Heat WPL 3148440 Contact Us For Availability
38
WPL 311592 WPL 311592 Contact Us For Availability
38
WPL 254225 WPL 254225 Contact Us For Availability
39
Screw, 10-12 x 7/8 WPL 308043 Contact Us For Availability
40
Cover, Top WPL 310458 Contact Us For Availability
41
WPL 311013 WPL 311013 Contact Us For Availability
41
Side Trim (Left Side) WPL 310686 Contact Us For Availability
41
Side Trim (Right Side) WPL 310690 Contact Us For Availability
42
Panel, Back WPL 3182052 Contact Us For Availability
43
Hood, Low WPL 307831 Contact Us For Availability
43
WPL 309133 WPL 309133 Contact Us For Availability
43
WPL 3171868 WPL 3171868 Contact Us For Availability
43
WPL 329019 WPL 329019 Contact Us For Availability
44
WPL 3185086 WPL 3185086 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
47
WPL 308173 WPL 308173 Contact Us For Availability
47
WPL 308172 WPL 308172 Contact Us For Availability
48
WPL 311011 WPL 311011 Contact Us For Availability
49
WPL 3147864 WPL 3147864 Contact Us For Availability
50
WPL 309111 WPL 309111 Contact Us For Availability
56
WPL 3183005 WPL 3183005 Contact Us For Availability
57
WPL 3185197 WPL 3185197 Contact Us For Availability
58
WPL 3182814 WPL 3182814 Contact Us For Availability
59
WPL 3169107 WPL 3169107 Contact Us For Availability
60
WPL 309107 WPL 309107 Contact Us For Availability
61
WPL 310433 WPL 310433 Contact Us For Availability
61
WPL 310435 WPL 310435 Contact Us For Availability
61
WPL 3184208 WPL 3184208 Contact Us For Availability
61
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
