Model Whirlpool RB270PXBQ2 – Common Parts & Diagrams

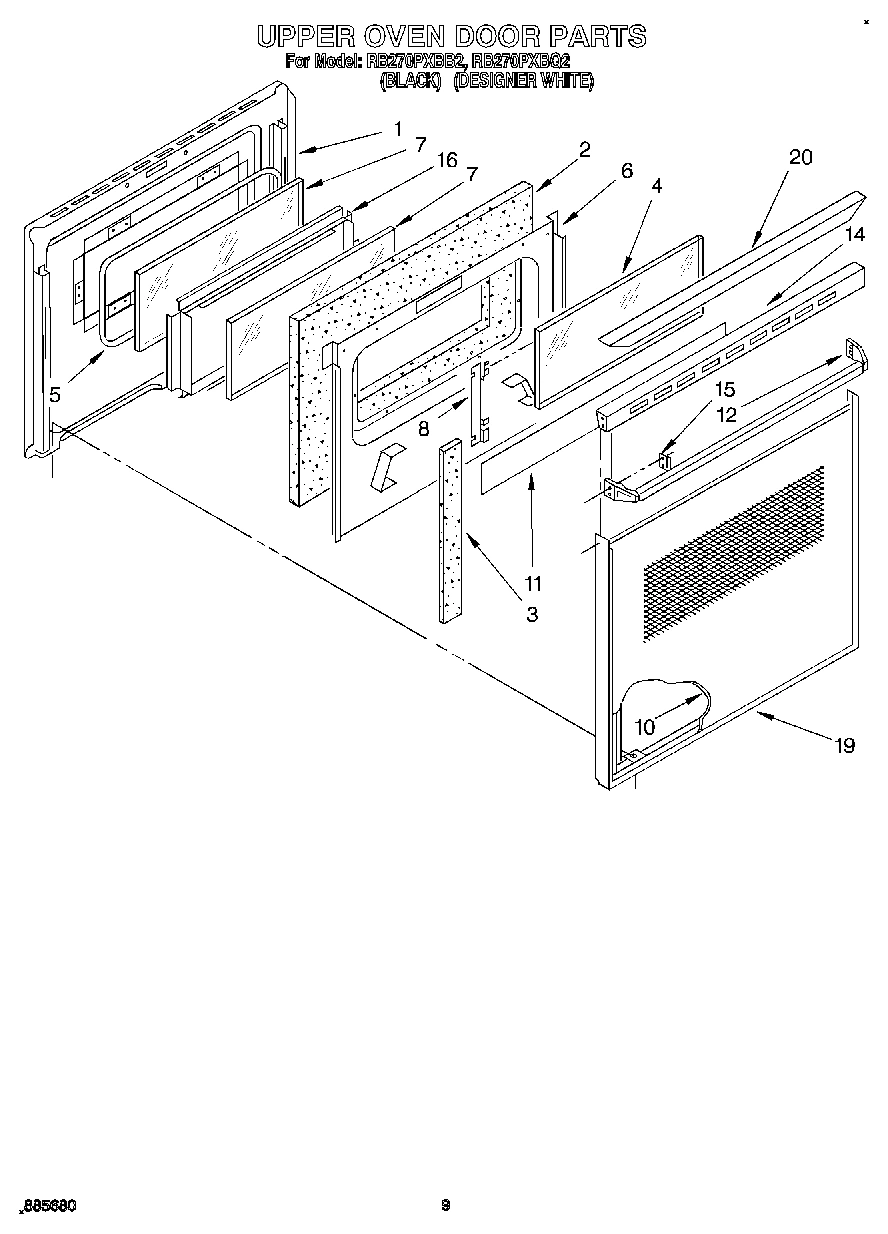

05 - UPPER OVEN DOOR

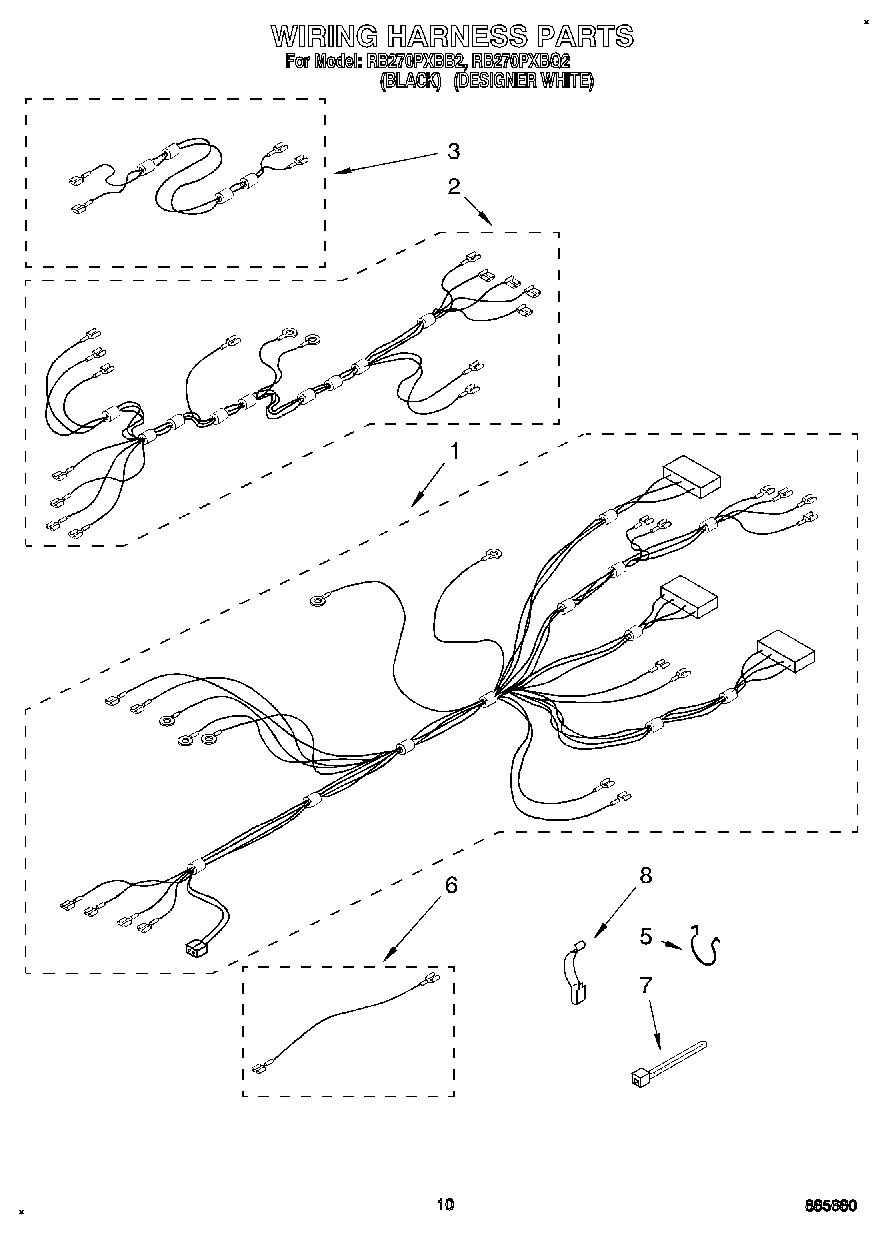

06 - WIRING HARNESS
03 - LOWER OVEN
04 - LOWER OVEN DOOR
02 - UPPER OVEN
01 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RB270PXBQ2
Installation Instructions WPL LIT3183635 Contact Us For Availability
Tech Sheet WPL LIT3186640 Contact Us For Availability
Use & Care Guide WPL LIT3188184 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Frame, Front WPL 3186977 Contact Us For Availability
1
End Cap (Left Hand (Black)) WPL 3149238 Contact Us For Availability
1
End Cap (Right Hand (Black)) WPL 3149239 Contact Us For Availability
1
End Cap (Left Hand (White)) WPL 3187926 Contact Us For Availability
1
End Cap (Right Hand (White)) WPL 3187927 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3149240 Contact Us For Availability
2
Trim, Top (White Model) WPL 3188152 Contact Us For Availability
3
Insulation WPL 3147954 Contact Us For Availability
3
Switch, Latch WPL 3178187 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183577 Contact Us For Availability
3
Trim, Center (White Model) WPL 3188165 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
4
Screw (6) WPL 3185647 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
End Trim, Vent Door (White, LH) WPL 3148471 Contact Us For Availability
4
End Trim Vent Door (White (RH)) WPL 3148472 Contact Us For Availability
4
End Trim, Vent Door (Black, LH) WPL 3148697 Contact Us For Availability
4
End Trim, Vent Door (Black, RH) WPL 3148698 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
5
Door, Vent (Black Model) WPL 3183505 Contact Us For Availability
5
Door, Vent (White Model) WPL 3187983 Contact Us For Availability
6
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
6
Trim, Bottom WPL 3148618 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
7
Control Panel (Black Model) WPL 3182917 Contact Us For Availability
7
Control Panel (White Model) WPL 3182918 Contact Us For Availability
8
Frame, Door 30`` (Black Model) WPL 3171530 Contact Us For Availability
8
Frame, Door 30`` (White Model) WPL 3187920 Contact Us For Availability
8
Screw WPL 311773 Contact Us For Availability
8
Bracket, Stiffener WPL 3183500 Contact Us For Availability
9
Insulation Tray WPL 3185944 Contact Us For Availability
9
Glass, Outer (Screw (Black)) WPL 3149253 Contact Us For Availability
9
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
9
Glass, Outer (Black) WPL 3188054 Contact Us For Availability
9
Glass, Outer (Screw (White)) WPL 3188403 Contact Us For Availability
9
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
9
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
10
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
10
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
10
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 3185955 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 3185958 Contact Us For Availability
11
Top, Door Frame (Black) WPL 3148223 Contact Us For Availability
11
Top, Door Frame (White) WPL 3149355 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
11
Screw WPL 98520 Contact Us For Availability
11
Shield, Air WPL 3149142 Contact Us For Availability
12
Light, Indicator WPL 314031 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
12
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
13
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
13
Lens, Amber WPL 313101 Contact Us For Availability
14
Channel Arm (2) WPL 3185664 Contact Us For Availability
14
Thermostat WPL 3169303 Contact Us For Availability
14
Screw (2) WPL 3178002 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw, Black WPL 3149333 Contact Us For Availability
15
Channel, Arm (2) WPL 3185665 Contact Us For Availability
15
Switch, Selector WPL 3183583 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
16
Retainer Ring (2) WPL 307594 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Anchor, Spring (2) WPL 4454431 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
18
Strain, Relief WPL 308609 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Eliminator, Smoke WPL 3186684 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
21
Plate, Cover WPL 310662 Contact Us For Availability
22
Eliminator, Smoke WPL 3186933 Contact Us For Availability
23
Screw (2) WPL 3150532 Contact Us For Availability
26
Clamp WPL 313570 Contact Us For Availability
27
Latch Mechanism WPL 3148668 Contact Us For Availability
28
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
29
Latch Assembly WPL 3185413 Contact Us For Availability
30
Safety Switch WPL 3178671 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
31
Screw WPL 3177988 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
32
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
33
Side Trim (Left Side (Black)) WPL 3149236 Contact Us For Availability
33
Side Trim (Right Side (Black)) WPL 3149237 Contact Us For Availability
33
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
33
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
34
Screw WPL 3183294 Contact Us For Availability
34
Knob, Latch Handle WPL 3184039 Contact Us For Availability
36
Grill, Bottom (Black) WPL 310668 Contact Us For Availability
36
Grill, Botto WPL 3149359 Contact Us For Availability
36
Bracket, Control Panel Mounting WPL 310719 Contact Us For Availability
37
Sensor, Heat WPL 3148440 Contact Us For Availability
38
WPL 311592 WPL 311592 Contact Us For Availability
39
WPL 3185641 WPL 3185641 Contact Us For Availability
39
Screw, 10-12 x 7/8 WPL 308043 Contact Us For Availability
40
Cover, Top WPL 3185945 Contact Us For Availability
41
WPL 3185959 WPL 3185959 Contact Us For Availability
41
Side Trim (L WPL 3149737 Contact Us For Availability
41
WPL 3149738 WPL 3149738 Contact Us For Availability
41
WPL 3187903 WPL 3187903 Contact Us For Availability
41
WPL 3187909 WPL 3187909 Contact Us For Availability
42
WPL 3182052 WPL 3182052 Contact Us For Availability
43
WPL 307831 WPL 307831 Contact Us For Availability
43
WPL 309133 WPL 309133 Contact Us For Availability
43
WPL 3188733 WPL 3188733 Contact Us For Availability
43
WPL 3188734 WPL 3188734 Contact Us For Availability
44
WPL 3185086 WPL 3185086 Contact Us For Availability
44
WPL 4454421 WPL 4454421 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
47
WPL 3185640 WPL 3185640 Contact Us For Availability
48
WPL 3185961 WPL 3185961 Contact Us For Availability
50
WPL 309111 WPL 309111 Contact Us For Availability
51
WPL 309102 WPL 309102 Contact Us For Availability
56
WPL 3183005 WPL 3183005 Contact Us For Availability
57
WPL 3185197 WPL 3185197 Contact Us For Availability
58
WPL 3182814 WPL 3182814 Contact Us For Availability
59
WPL 3169107 WPL 3169107 Contact Us For Availability
60
WPL 3169283 WPL 3169283 Contact Us For Availability
61
WPL 310435 WPL 310435 Contact Us For Availability
61
WPL 310433 WPL 310433 Contact Us For Availability
61
WPL 3149328 WPL 3149328 Contact Us For Availability
61
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
