Model Whirlpool RB270PXBB0 – Common Parts & Diagrams
05 - UPPER OVEN DOOR
01 - CONTROL PANEL, LITERATURE

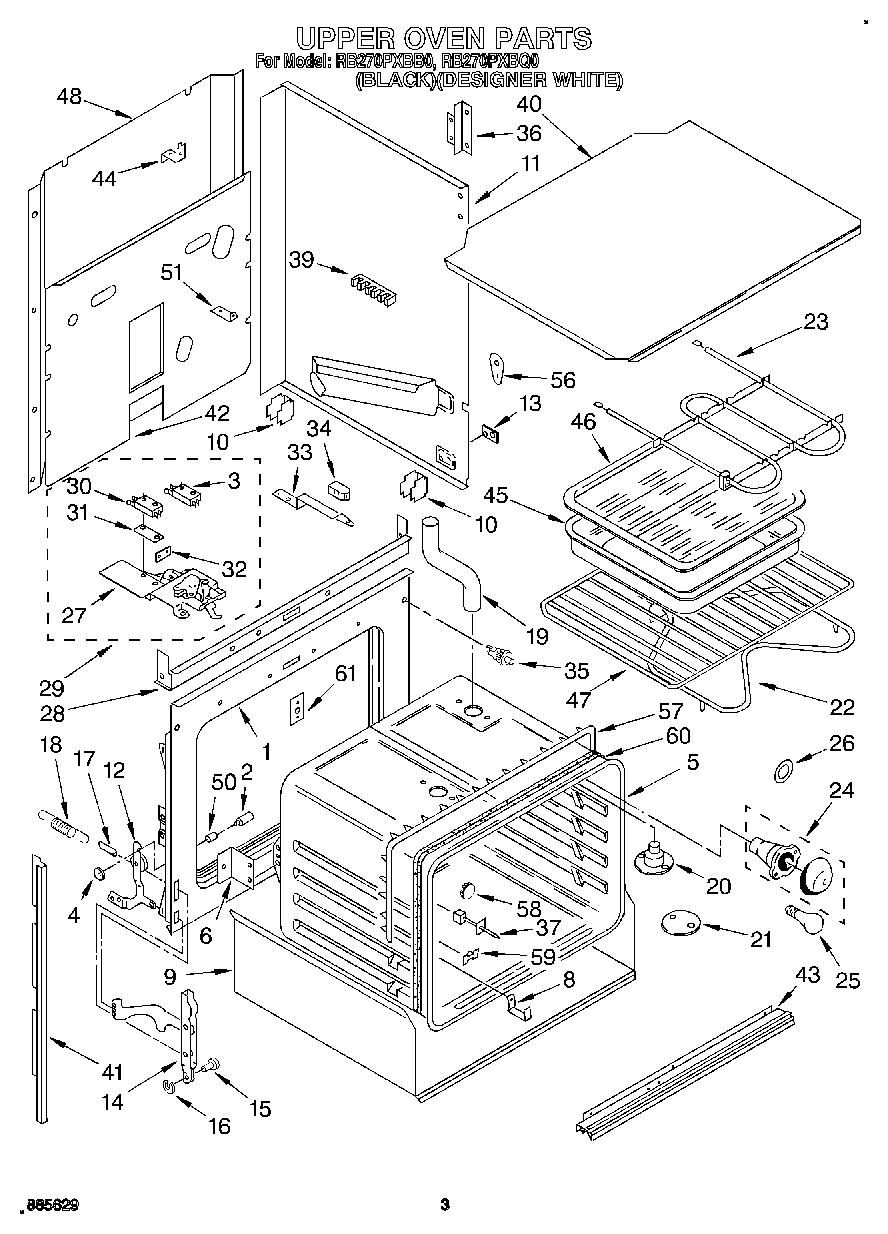

02 - UPPER OVEN

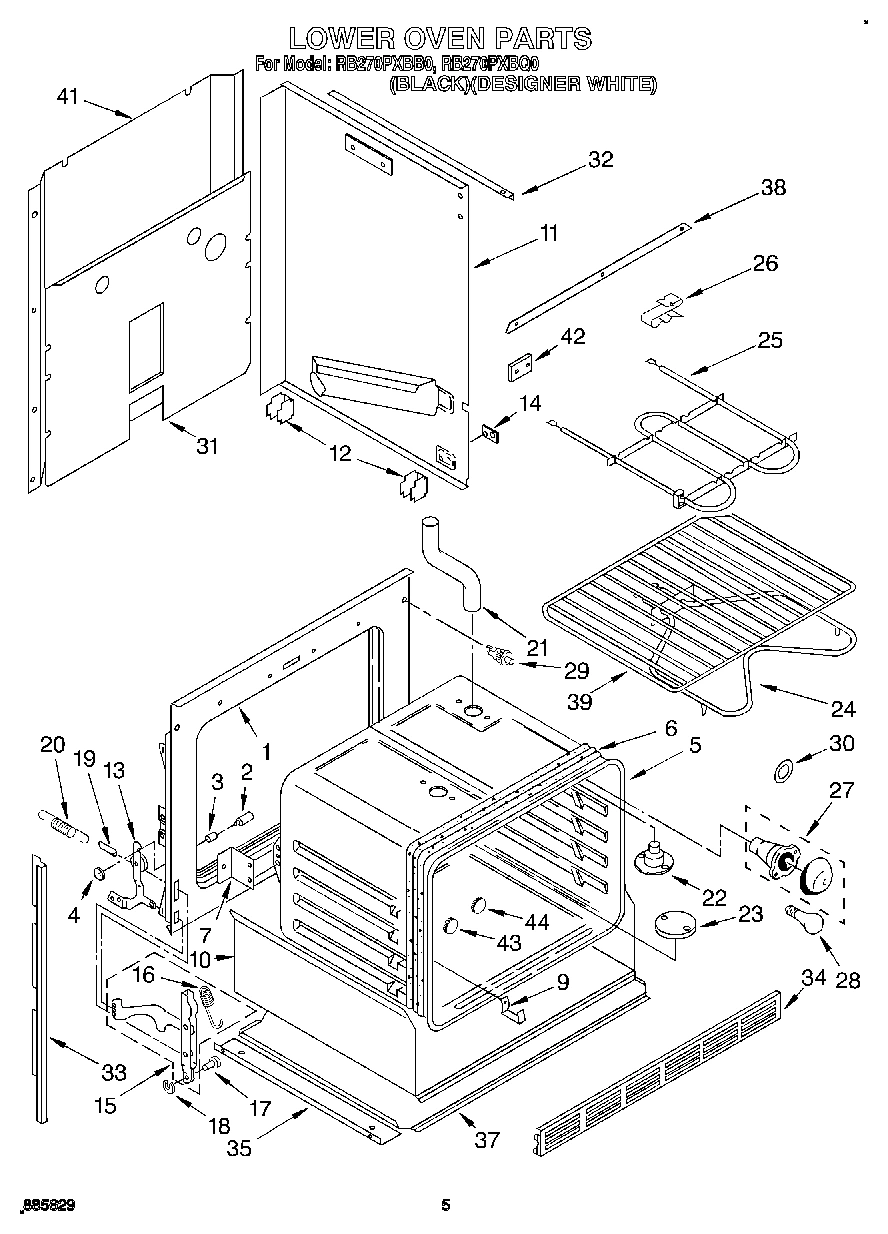

03 - LOWER OVEN

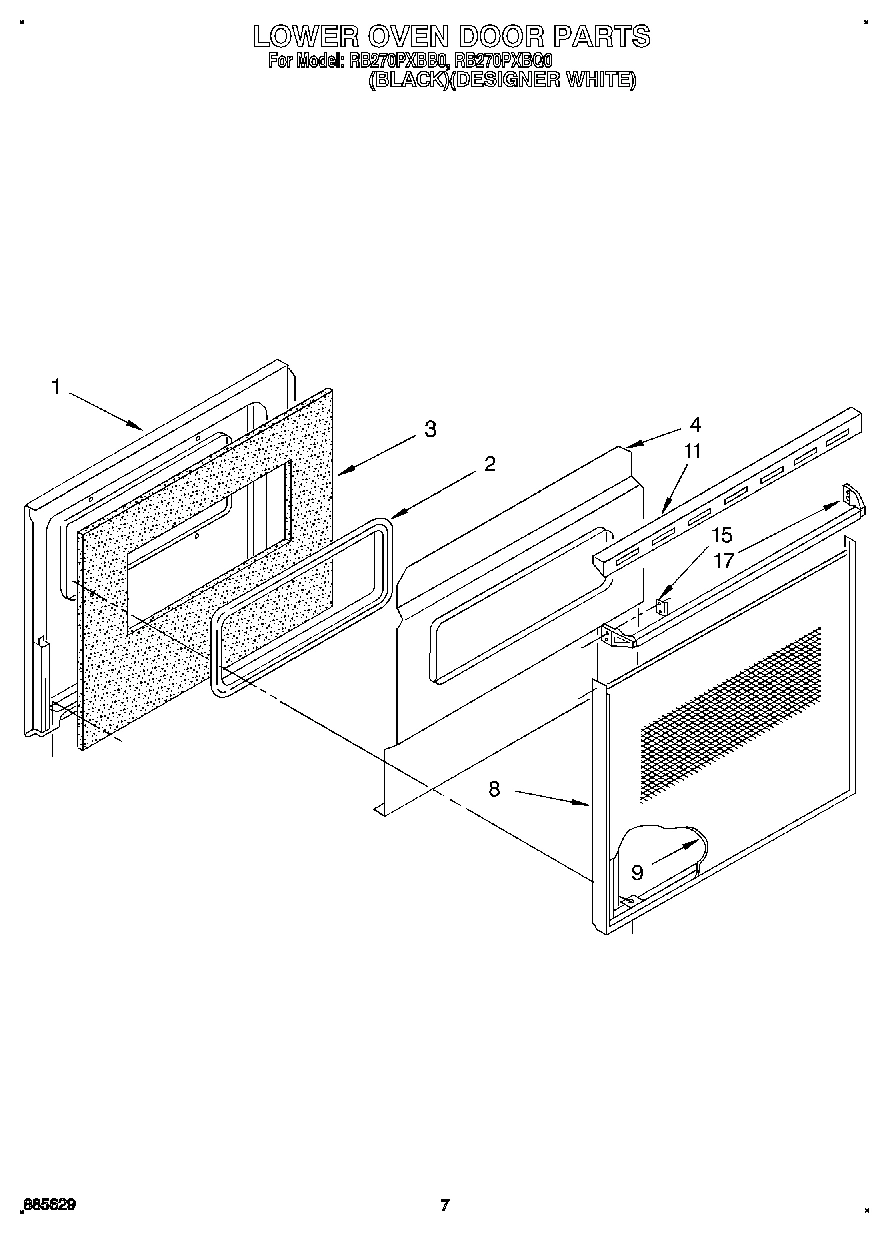

04 - LOWER OVEN DOOR, OPTIONAL

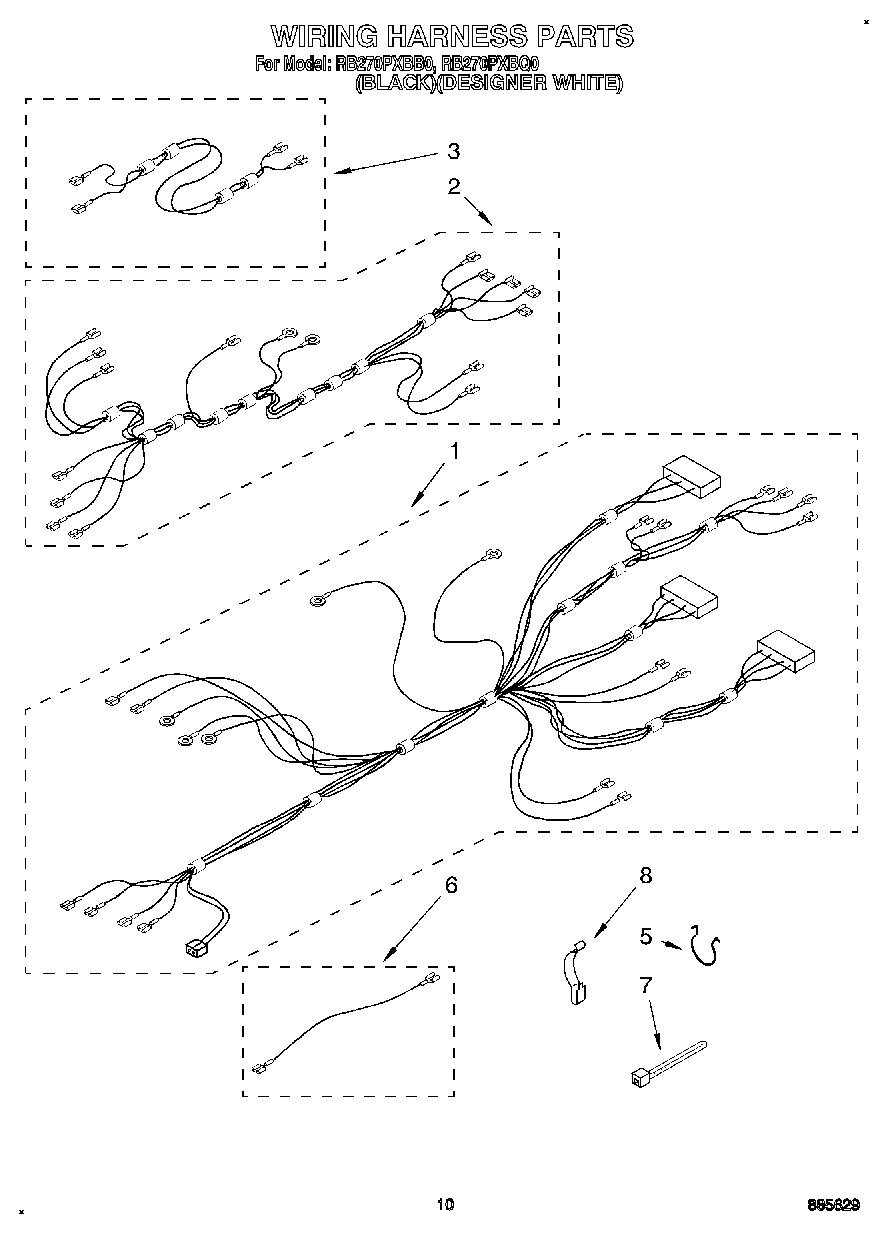

06 - WIRING HARNESS
Common parts from model Whirlpool RB270PXBB0
1
Frame, Front WPL 3176714 Contact Us For Availability
1
Frame, Front WPL 3176719 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Harness, Wire (Main) WPL 3183289 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Lower Oven) WPL 3183364 Contact Us For Availability
3
Trim, Center (White Model) WPL 3188165 Contact Us For Availability
3
Switch, Latch WPL 3178187 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Insulation WPL 3147954 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 3183751 Contact Us For Availability
4
End Trim, Vent Door (White Model, L.H.) WPL 3148471 Contact Us For Availability
4
End Trim (Vent Door) (White Model, R.H.) WPL 3148472 Contact Us For Availability
4
End Trim (Vent Door) (Black Model, L.H.) WPL 3148697 Contact Us For Availability
4
End Trim (Vent Door) (Black Model, R.H.) WPL 3148698 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
4
Screw (6) WPL 3185647 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Door, Vent (Black Model) WPL 3183505 Contact Us For Availability
5
Door, Vent (White Model) WPL 3187983 Contact Us For Availability
5
Oven, 30`` Conventional Clean WPL 3182032 Contact Us For Availability
6
Trim, Bottom WPL 3148618 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
6
Heat Seal WPL 3169283 Contact Us For Availability
6
Wire, Jumper WPL 3185412 Contact Us For Availability
7
Control Panel (Black Model) WPL 3182917 Contact Us For Availability
7
Control Panel (White Model) WPL 3182918 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
8
Screw WPL 311773 Contact Us For Availability
8
Bracket, Stiffener WPL 3183500 Contact Us For Availability
8
Frame, Door 30`` (Black Model) WPL 3171530 Contact Us For Availability
8
Frame, Door 30`` (White Model) WPL 3187920 Contact Us For Availability
9
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
9
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
9
Glass, Outer (Screw (Black)) WPL 3149253 Contact Us For Availability
9
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
9
Glass, Outer (Black) WPL 3188054 Contact Us For Availability
9
Glass, Outer (Screw (White)) WPL 3188403 Contact Us For Availability
10
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
10
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
10
Insulation Tray WPL 3185944 Contact Us For Availability
11
Screw WPL 98520 Contact Us For Availability
11
Shield, Air WPL 3149142 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 3185955 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 3185958 Contact Us For Availability
11
Top, Door Frame (Black) WPL 3148223 Contact Us For Availability
11
Top, Door Frame (White) WPL 3149355 Contact Us For Availability
12
Light, Indicator WPL 314031 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
13
Lens, Amber WPL 313101 Contact Us For Availability
13
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
13
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
14
Channel Arm (2) WPL 3185664 Contact Us For Availability
14
Thermostat WPL 3169303 Contact Us For Availability
14
Screw (2) WPL 3178002 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw, Black WPL 3149333 Contact Us For Availability
15
Switch, Selector WPL 3183583 Contact Us For Availability
15
Channel, Arm (2) WPL 3185665 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Mounting Hardware WPL 3171507 Contact Us For Availability
18
Strain, Relief WPL 308609 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
25
Screw, 10-32 x 5/8 (2) WPL 3150532 Contact Us For Availability
26
Clamp WPL 313570 Contact Us For Availability
27
Latch Mechanism WPL 3148668 Contact Us For Availability
28
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
29
Latch Assembly WPL 3185413 Contact Us For Availability
30
Safety Switch WPL 3178671 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
31
Screw WPL 3177988 Contact Us For Availability
31
Panel, Back WPL 3182052 Contact Us For Availability
32
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
33
Side Trim (Black Model, R.H.) WPL 3187905 Contact Us For Availability
33
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
33
Side Trim (Black Model, L.H.) WPL 3187911 Contact Us For Availability
33
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
34
Screw WPL 3183294 Contact Us For Availability
34
Knob, Latch Handle WPL 3184039 Contact Us For Availability
34
Grill, Bottom (Black (3)) WPL 309029 Contact Us For Availability
34
Grill, Bottom (Black) WPL 310668 Contact Us For Availability
34
Grill, Bottom (White Scr WPL 3149359 Contact Us For Availability
36
Bracket, Control Panel Mounting WPL 310719 Contact Us For Availability
37
Sensor, Heat WPL 3148440 Contact Us For Availability
37
WPL 3185945 WPL 3185945 Contact Us For Availability
38
WPL 311592 WPL 311592 Contact Us For Availability
39
WPL 3185641 WPL 3185641 Contact Us For Availability
39
Screw, 10-12 x 7/8 WPL 308043 Contact Us For Availability
41
Side Trim (B WPL 3187902 Contact Us For Availability
41
WPL 3187903 WPL 3187903 Contact Us For Availability
41
WPL 3187908 WPL 3187908 Contact Us For Availability
41
WPL 3187909 WPL 3187909 Contact Us For Availability
41
WPL 3185959 WPL 3185959 Contact Us For Availability
42
WPL 3183005 WPL 3183005 Contact Us For Availability
43
WPL 307831 WPL 307831 Contact Us For Availability
43
WPL 309133 WPL 309133 Contact Us For Availability
43
WPL 3188733 WPL 3188733 Contact Us For Availability
43
WPL 3188734 WPL 3188734 Contact Us For Availability
43
WPL 3182814 WPL 3182814 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
44
WPL 310433 WPL 310433 Contact Us For Availability
44
WPL 310435 WPL 310435 Contact Us For Availability
44
WPL 3185086 WPL 3185086 Contact Us For Availability
47
WPL 3185640 WPL 3185640 Contact Us For Availability
48
WPL 3185961 WPL 3185961 Contact Us For Availability
51
WPL 309102 WPL 309102 Contact Us For Availability
57
WPL 3185197 WPL 3185197 Contact Us For Availability
59
WPL 3169107 WPL 3169107 Contact Us For Availability
61
WPL 3149328 WPL 3149328 Contact Us For Availability
61
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
