Model Whirlpool RB266PXV2 – Common Parts & Diagrams
04 - OVEN DOOR
05 - WIRING HARNESS

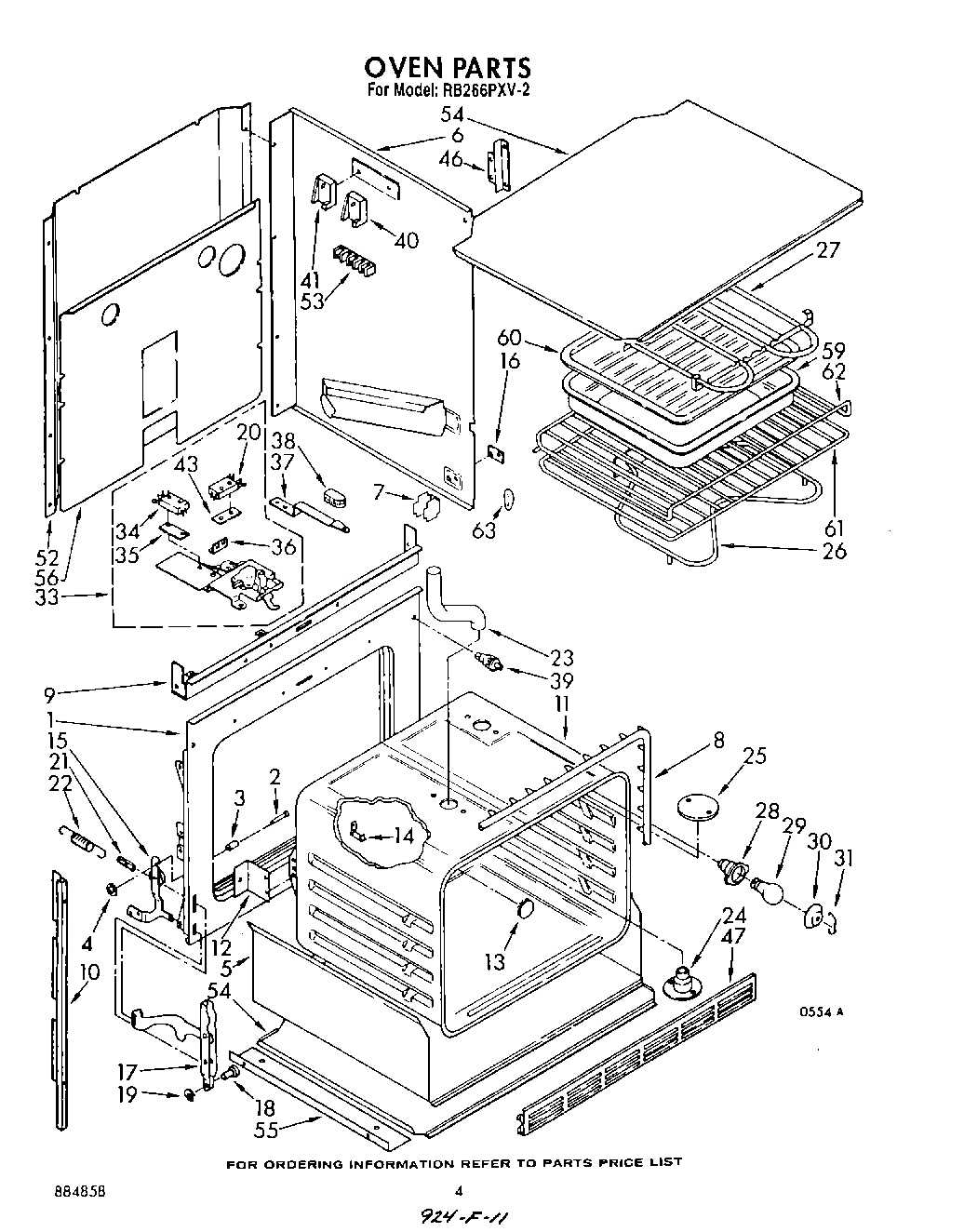

03 - OVEN

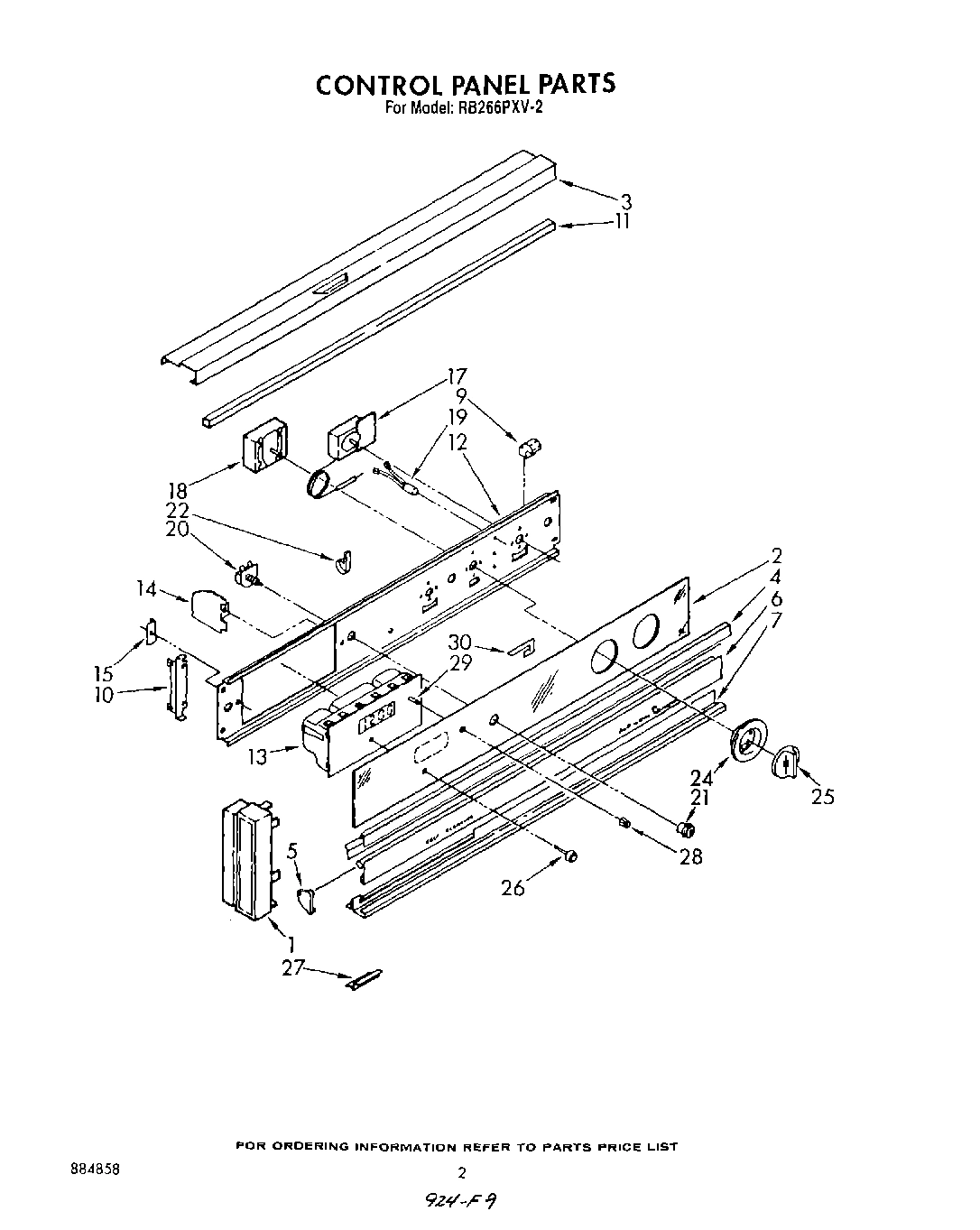

02 - CONTROL PANEL , LIT/OPTIONAL
Common parts from model Whirlpool RB266PXV2
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148317 WPL LIT3148317 Contact Us For Availability
WPL LIT3148598 WPL LIT3148598 Contact Us For Availability
WPL LIT3149600 WPL LIT3149600 Contact Us For Availability
WPL LIT884858 WPL LIT884858 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
End Cap. L.H. WPL 3148621 Contact Us For Availability
1
End Cap (R.H.) WPL 3148622 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Control Panel, Glass WPL 3149179 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 3148624 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 3149349 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
End Trim, Vent Door R.H. WPL 3148471 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148472 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Door, Vent WPL 3149603 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
Gasket, Door WPL 3148284 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 330500 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Timer, Digital WPL 3149807 Contact Us For Availability
14
Shield, Timer WPL 314129 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer WPL 313864 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven WPL 3148934 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Indicator, Light (Oven Heating) WPL 311802 Contact Us For Availability
19
Indicator, Light (Locked) WPL 3148720 Contact Us For Availability
20
Screw (2) WPL 313489 Contact Us For Availability
20
Switch, Safety WPL 3148669 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
20
Switch, Oven Light WPL 3148465 Contact Us For Availability
21
Bezel Switch WPL 3149170 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Escutcheon (Screw, 8BT x 1/4 (2)) WPL 254225 Contact Us For Availability
24
Escutcheon, Thermostat WPL 3149172 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Knob, Control (2) WPL 3150372 Contact Us For Availability
26
Set, Button (4) WPL 3149177 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 312318 Contact Us For Availability
27
Bracket, Control (2) WPL 313865 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
28
Knob, Bit Generator WPL 3149176 Contact Us For Availability
29
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
30
WPL 98520 WPL 98520 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
30
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
30
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
30
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
30
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
30
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
30
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
30
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
30
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
30
18 G WPL 242826 Contact Us For Availability
30
WPL 242827 WPL 242827 Contact Us For Availability
30
WPL 242828 WPL 242828 Contact Us For Availability
30
WPL 242829 WPL 242829 Contact Us For Availability
30
WPL 242830 WPL 242830 Contact Us For Availability
30
WPL 242832 WPL 242832 Contact Us For Availability
30
WPL 242860 WPL 242860 Contact Us For Availability
30
WPL 261582 WPL 261582 Contact Us For Availability
30
WPL 261881 WPL 261881 Contact Us For Availability
30
WPL 261890 WPL 261890 Contact Us For Availability
30
WPL 261891 WPL 261891 Contact Us For Availability
30
WPL 285365 WPL 285365 Contact Us For Availability
30
WPL 285366 WPL 285366 Contact Us For Availability
30
WPL 285367 WPL 285367 Contact Us For Availability
30
WPL 285368 WPL 285368 Contact Us For Availability
30
WPL 3149142 WPL 3149142 Contact Us For Availability
30
WPL 350806 WPL 350806 Contact Us For Availability
30
WPL 350941 WPL 350941 Contact Us For Availability
30
WPL 591014 WPL 591014 Contact Us For Availability
30
WPL 72112 WPL 72112 Contact Us For Availability
30
WPL 786020 WPL 786020 Contact Us For Availability
30
WPL 786032 WPL 786032 Contact Us For Availability
30
WPL 799832 WPL 799832 Contact Us For Availability
30
WPL 832985 WPL 832985 Contact Us For Availability
30
WPL 978849 WPL 978849 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, S WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
43
WPL 3147864 WPL 3147864 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
52
WPL 311011 WPL 311011 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 310459 WPL 310459 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
