Model Whirlpool RB262PXYB0 – Common Parts & Diagrams

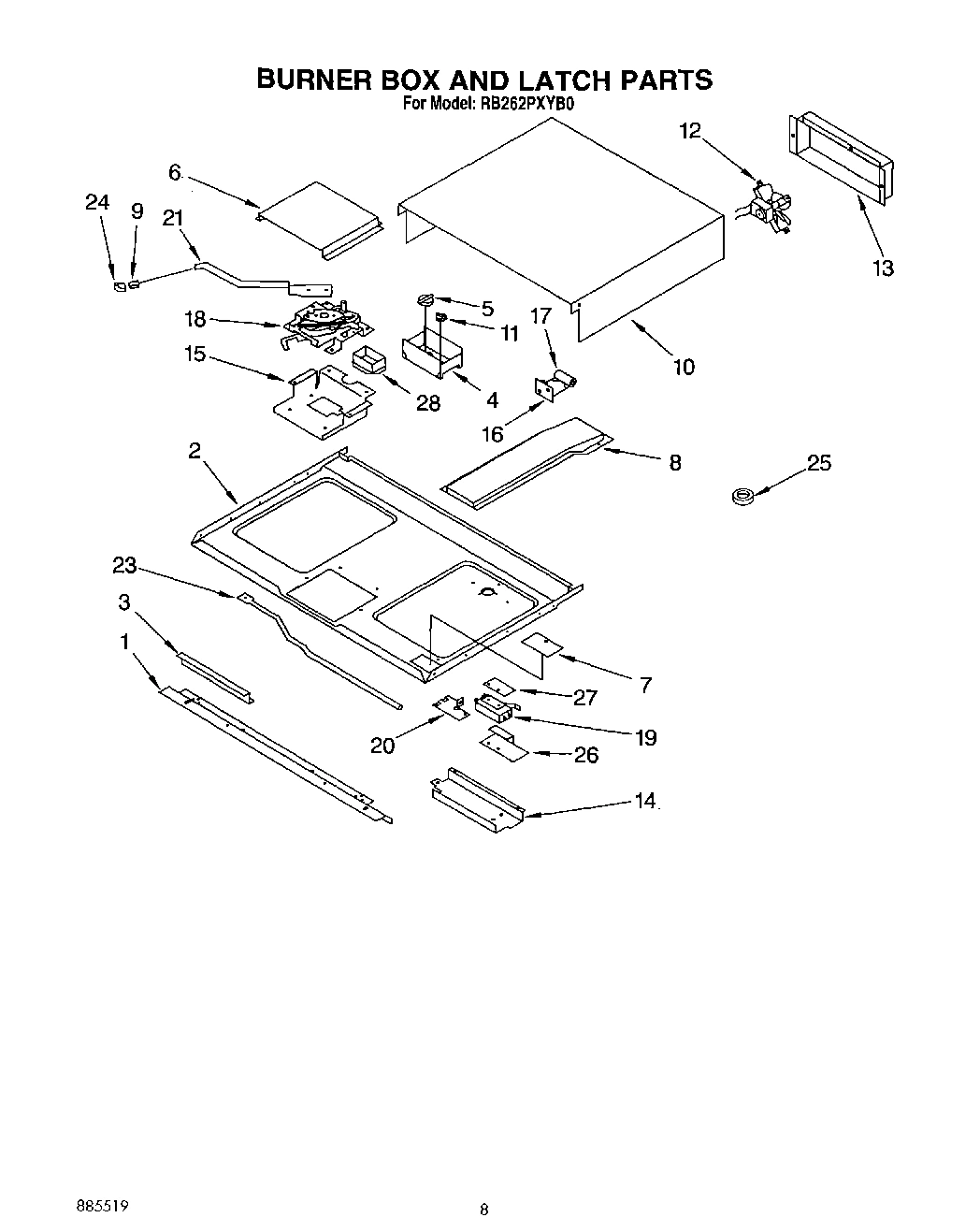

06 - BURNER BOX AND LATCH

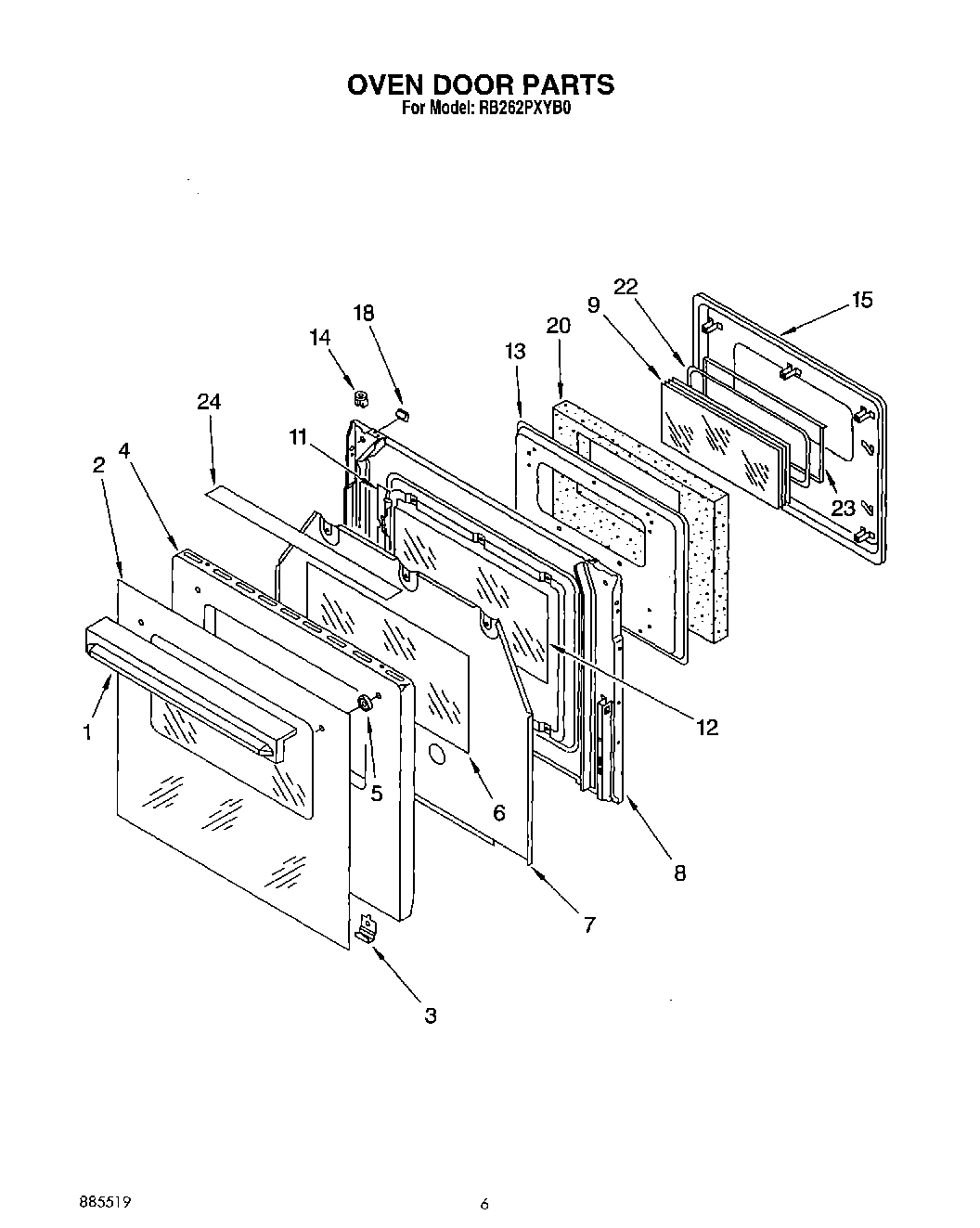

05 - OVEN DOOR, LITERATURE
03 - OVEN CABINET
02 - CONTROL PANEL
04 - INTERNAL OVEN, OPTIONAL
Common parts from model Whirlpool RB262PXYB0
Installation Instructions WPL LIT879454 Contact Us For Availability
Use & Care Guide WPL LIT879455 Contact Us For Availability
Repair Parts List WPL LIT885519 Contact Us For Availability
1
Handle, Door (Black Model) WPL 879376 Contact Us For Availability
1
Handle, Door (White Model) WPL 879377 Contact Us For Availability
1
Handle, Door (Screw) WPL 879398 Contact Us For Availability
1
Handle, Door (Washer) WPL 879430 Contact Us For Availability
1
Handle, Door (Nut) WPL 879453 Contact Us For Availability
1
Lining, Side WPL 879427 Contact Us For Availability
1
Screw WPL 879452 Contact Us For Availability
1
Trim, Bottom (Black Model) WPL 879319 Contact Us For Availability
1
Trim, Bottom (White Model) WPL 879335 Contact Us For Availability
1
Retainer, Insulation WPL 879346 Contact Us For Availability
2
Bottom, Burner Box WPL 879403 Contact Us For Availability
2
Screw WPL 879333 Contact Us For Availability
2
Glass, Outer (Black Model) WPL 879378 Contact Us For Availability
2
Glass, Outer (White Model) WPL 879379 Contact Us For Availability
2
Nut WPL 879440 Contact Us For Availability
2
Shield, Bottom WPL 879347 Contact Us For Availability
3
Shield, Terminal WPL 879404 Contact Us For Availability
3
Clip, Glass Retainer (Black Model) WPL 879380 Contact Us For Availability
3
Clip, Glass Retainer (White Model) WPL 879381 Contact Us For Availability
3
Hinge WPL 879429 Contact Us For Availability
3
Trim, Side Left (Black Model) WPL 879321 Contact Us For Availability
3
(Trim, Side Right) (Black Model) WPL 879322 Contact Us For Availability
3
Trim, Side Left (White Model) WPL 879337 Contact Us For Availability
3
(Trim, Side Right) (White Model) WPL 879338 Contact Us For Availability
3
Insulation, Wrap WPL 879348 Contact Us For Availability
4
Support, Thermal Disc WPL 879405 Contact Us For Availability
4
Panel, Door (Screw) WPL 879396 Contact Us For Availability
4
Panel, Door (Black Model) WPL 879382 Contact Us For Availability
4
Panel, Door (White Model) WPL 879383 Contact Us For Availability
4
Trim, End Cap (Black Model) WPL 879323 Contact Us For Availability
4
Trim, End Cap (White Model) WPL 879339 Contact Us For Availability
4
Tube, Oven Vent WPL 879349 Contact Us For Availability
5
Switch, Limit WPL 879406 Contact Us For Availability
5
Grommet WPL 879446 Contact Us For Availability
5
Spacer, Glass WPL 879384 Contact Us For Availability
5
Trim, Control Top (Black Model) WPL 879324 Contact Us For Availability
5
Trim, Control Top (White Model) WPL 879340 Contact Us For Availability
6
Cover, Latch WPL 879407 Contact Us For Availability
6
Glass, Clear WPL 879385 Contact Us For Availability
6
Back, Main WPL 879432 Contact Us For Availability
6
Plate, Switch Mtg. WPL 879325 Contact Us For Availability
6
Receptacle, Lamp WPL 879351 Contact Us For Availability
7
Screw (4) WPL 879445 Contact Us For Availability
7
Cover, Switch WPL 879408 Contact Us For Availability
7
Baffle WPL 879386 Contact Us For Availability
7
Screw WPL 879387 Contact Us For Availability
7
Spring, Mini WPL 879433 Contact Us For Availability
7
Timer, Electronic WPL 879326 Contact Us For Availability
7
Bracket, Lamp WPL 879352 Contact Us For Availability
8
Vent Box Assy. WPL 879409 Contact Us For Availability
8
Lining WPL 879388 Contact Us For Availability
8
Screw WPL 879389 Contact Us For Availability
8
Plate, Conduit WPL 879434 Contact Us For Availability
8
Switch, Rocker (Black Model) WPL 879327 Contact Us For Availability
8
Switch, Rocker (White Model) WPL 879341 Contact Us For Availability
8
Shield, Lower Vent (Black Model) WPL 879353 Contact Us For Availability
8
Shield, Lower Vent (White Model) WPL 879354 Contact Us For Availability
9
Clip, Handle WPL 879410 Contact Us For Availability
9
Window Pak WPL 879390 Contact Us For Availability
9
Housing, Wire WPL 879435 Contact Us For Availability
9
Panel, Control (Black Model) WPL 879328 Contact Us For Availability
9
Panel, Control (White Model) WPL 879342 Contact Us For Availability
9
Gasket, Oven WPL 879355 Contact Us For Availability
10
Housing, Fan WPL 879411 Contact Us For Availability
10
Cover, Housing WPL 879436 Contact Us For Availability
10
Trim, Control Panel (Black Model) WPL 879329 Contact Us For Availability
10
Trim, Control Panel (White Model) WPL 879343 Contact Us For Availability
11
Switch, Limit WPL 879412 Contact Us For Availability
11
Retainer WPL 879391 Contact Us For Availability
11
Cover, Access WPL 879437 Contact Us For Availability
11
Shield, Broil WPL 879357 Contact Us For Availability
12
Fan Assembly WPL 879413 Contact Us For Availability
12
Glass, Inner WPL 879392 Contact Us For Availability
12
Baffle, Side Panel WPL 879438 Contact Us For Availability
12
Trim, Filler (Black Model) WPL 879331 Contact Us For Availability
12
Trim, Filler (White Model) WPL 879344 Contact Us For Availability
12
Trim, Filler (Screw) WPL 879456 Contact Us For Availability
12
Bracket, Burner Box WPL 879358 Contact Us For Availability
13
Cover, Fan WPL 879414 Contact Us For Availability
13
Pad, Inner WPL 879393 Contact Us For Availability
13
Cover, Switch WPL 879439 Contact Us For Availability
13
Bracket, Switch WPL 879332 Contact Us For Availability
13
Element, Broil WPL 879359 Contact Us For Availability
14
Channel, Switch WPL 879415 Contact Us For Availability
14
Nut, Snap Panel Screw WPL 879394 Contact Us For Availability
14
Gasket, Element WPL 879360 Contact Us For Availability
15
Support, Latch WPL 879416 Contact Us For Availability
15
Pad, Door WPL 879395 Contact Us For Availability
15
Knob, Timer (Black Model) WPL 879334 Contact Us For Availability
15
Knob, Timer (White Model) WPL 879345 Contact Us For Availability
15
Support, Element WPL 879361 Contact Us For Availability
16
Block, Terminal WPL 879417 Contact Us For Availability
16
Shield, Timer WPL 879442 Contact Us For Availability
16
Screw WPL 879356 Contact Us For Availability
17
Resistor Assembly WPL 879418 Contact Us For Availability
17
Retainer, Lamp WPL 879363 Contact Us For Availability
18
Latch Assembly WPL 879419 Contact Us For Availability
18
Bumper WPL 879397 Contact Us For Availability
18
Insulation, Rear WPL 879441 Contact Us For Availability
18
Gasket, Retainer WPL 879364 Contact Us For Availability
19
Switch WPL 879420 Contact Us For Availability
19
Glass, Lamp WPL 879365 Contact Us For Availability
20
Support, Switch WPL 879421 Contact Us For Availability
20
Insulation WPL 879399 Contact Us For Availability
20
Housing, Lamp WPL 879366 Contact Us For Availability
21
Handle, Latch WPL 879422 Contact Us For Availability
21
Bolt WPL 879423 Contact Us For Availability
21
Gasket, Housing WPL 879367 Contact Us For Availability
22
Gasket WPL 879400 Contact Us For Availability
23
Link, Switch WPL 879424 Contact Us For Availability
23
Retainer, Gasket WPL 879401 Contact Us For Availability
24
Knob, Latch Handle (Black Model) WPL 879425 Contact Us For Availability
24
Knob, Latch Handle (White Model) WPL 879426 Contact Us For Availability
24
Tape, Foil WPL 879370 Contact Us For Availability
24
Support, Oven WPL 879369 Contact Us For Availability
26
Screw WPL 879372 Contact Us For Availability
26
Frame, Front WPL 879371 Contact Us For Availability
27
Shield, Switch (Upper) WPL 879448 Contact Us For Availability
27
Shield, Switch (Lower) WPL 879449 Contact Us For Availability
28
Shield, Door Lock WPL 879447 Contact Us For Availability
28
Rack, Oven WPL 879373 Contact Us For Availability
31
Oven, Main (Not a Serviceable Part) WPL ARI119644A Contact Us For Availability
32
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
32
Hardware, Installation (Screw (4) Black) WPL 879320 Contact Us For Availability
32
Hardware, Installat WPL 879336 Contact Us For Availability
32
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
32
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
32
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
32
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
32
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
32
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
32
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
32
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
32
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
32
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
32
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
32
Grease WPL 261582 Contact Us For Availability
32
WPL 879460 WPL 879460 Contact Us For Availability
× ![]()
