Model Whirlpool RB262PXAW0 – Common Parts & Diagrams
02 - INTERNAL OVEN, OPTIONAL
01 - CONTROL PANEL

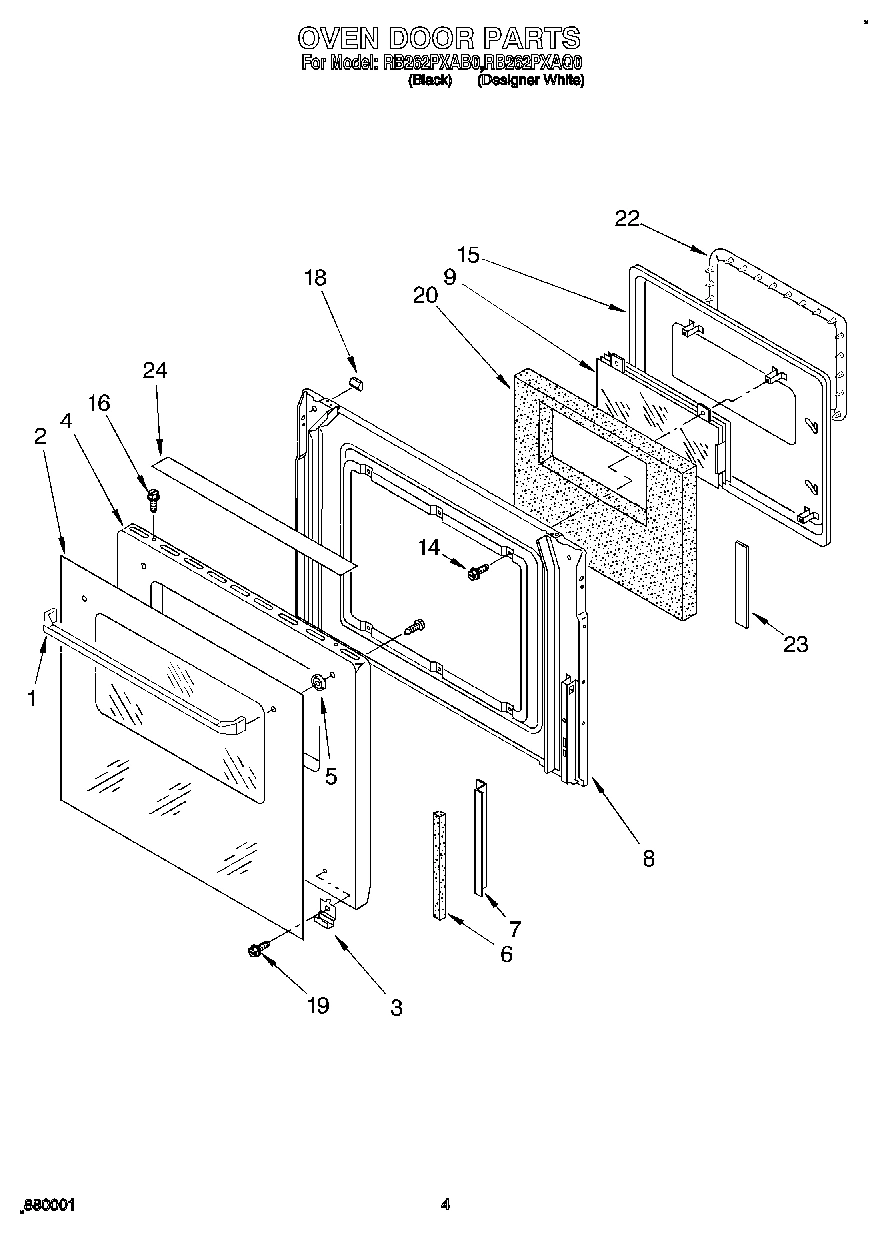

03 - OVEN DOOR, LITERATURE

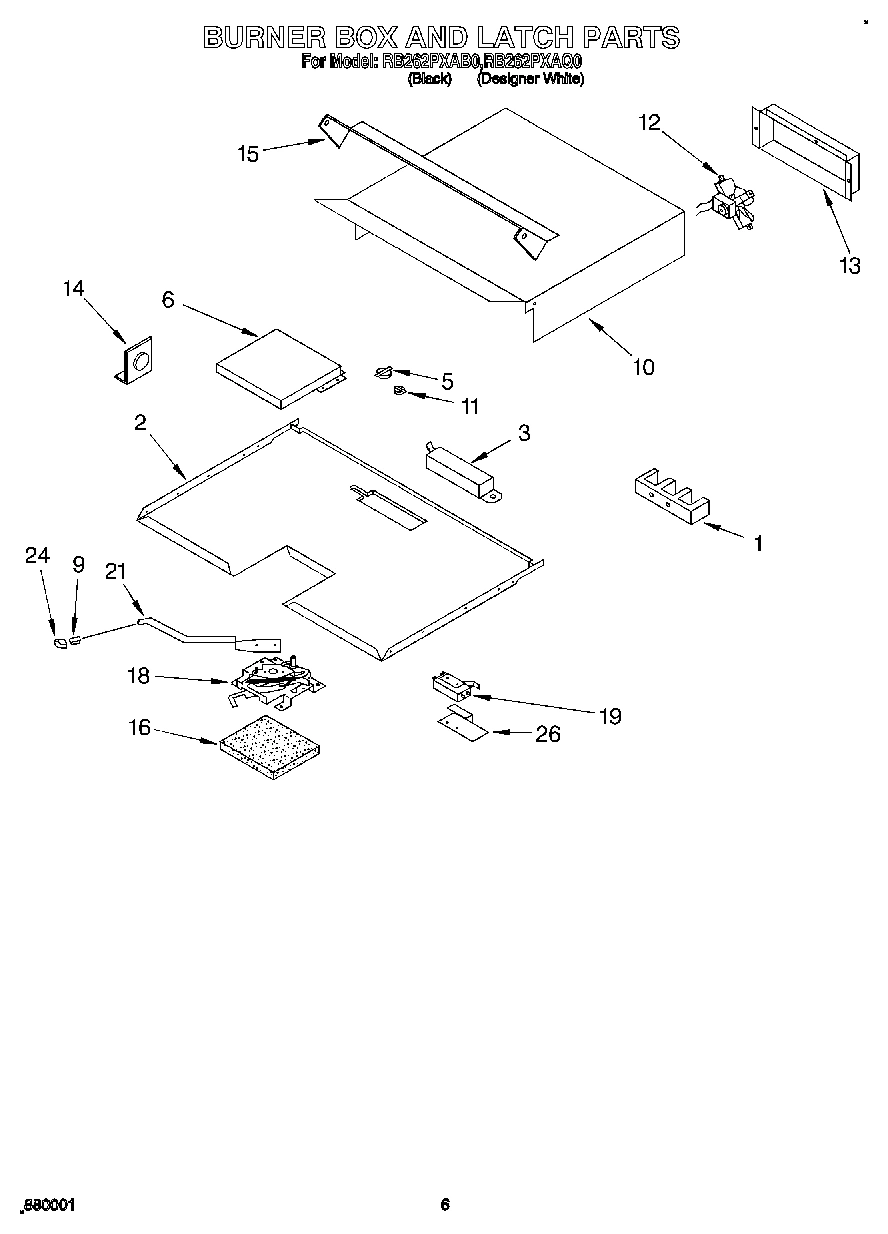

04 - BURNER BOX
Common parts from model Whirlpool RB262PXAW0
Use & Care Guide WPL LIT879462 Contact Us For Availability
Installation Instructions WPL LIT879463 Contact Us For Availability
Tech Sheet WPL LIT879464 Contact Us For Availability
1
Trim, Vent (White Model) WPL 879465 Contact Us For Availability
1
Trim, Vent (Black Model) WPL 879466 Contact Us For Availability
1
Handle, Door (Screw, Handle (2)) WPL 880031 Contact Us For Availability
1
Handle, Door (White Model) WPL 880032 Contact Us For Availability
1
Handle, Door (Black Model) WPL 880033 Contact Us For Availability
2
Panel, Side (2) WPL 880016 Contact Us For Availability
2
Screw, Trim (15) (White) WPL 879467 Contact Us For Availability
2
Glass, Outer (White Model) WPL 880028 Contact Us For Availability
2
Glass, Outer (Black Model) WPL 880029 Contact Us For Availability
2
Retainer, Insulation (Top) WPL 879495 Contact Us For Availability
3
Support, Oven (2) WPL 880017 Contact Us For Availability
3
Trim, Side Left (White Model Right) WPL 879468 Contact Us For Availability
3
Trim, Side Left (White Model) WPL 879469 Contact Us For Availability
3
Trim, Side Left (Black Model) WPL 879470 Contact Us For Availability
3
Trim, Side Left (Black Model) WPL 879471 Contact Us For Availability
3
Clip, Glass Retainer (2) (Black Model) WPL 879380 Contact Us For Availability
3
Clip, Glass Retainer (2) (White Model) WPL 879381 Contact Us For Availability
3
Cover, Wire WPL 879496 Contact Us For Availability
4
Cover, Rear WPL 880018 Contact Us For Availability
4
Trim, Control Panel (White Model) WPL 879472 Contact Us For Availability
4
Trim, Control Panel (Black Model) WPL 879473 Contact Us For Availability
4
Panel, Door (White Model Screw, Panel (2)) WPL 880045 Contact Us For Availability
4
Panel, Door (Black Model) WPL 880046 Contact Us For Availability
5
Shield, Heat WPL 880019 Contact Us For Availability
5
Trim, Top (White Model) WPL 879474 Contact Us For Availability
5
Trim, Top (Black Model) WPL 879475 Contact Us For Availability
5
Screw, Switch (2) WPL 879480 Contact Us For Availability
5
Spacer, Glass (2) WPL 880039 Contact Us For Availability
5
Switch, Limit WPL 880000 Contact Us For Availability
6
Panel, Control (White Model) WPL 879476 Contact Us For Availability
6
Panel, Control (Black Model) WPL 879477 Contact Us For Availability
6
Seal, Foam (2) WPL 880041 Contact Us For Availability
6
Cover, Latch WPL 879494 Contact Us For Availability
7
Hinge, Door (2) WPL 880021 Contact Us For Availability
7
Timer, Electronic WPL 879478 Contact Us For Availability
7
Channel, Air (2) WPL 880040 Contact Us For Availability
8
Screw (10) WPL 880004 Contact Us For Availability
8
Baffle, Door WPL 880037 Contact Us For Availability
9
Insulation, Wrap WPL 880022 Contact Us For Availability
9
Trim, Filler (Black Model) WPL 879331 Contact Us For Availability
9
Trim, Filler (White Model) WPL 879344 Contact Us For Availability
9
Window Pak WPL 880038 Contact Us For Availability
9
Clip, Handle WPL 879410 Contact Us For Availability
10
Shield, Lower Vent (White Model) WPL 880024 Contact Us For Availability
10
Shield, Lower Vent (Black Model) WPL 880025 Contact Us For Availability
10
Knob, Clock (White Model) WPL 879483 Contact Us For Availability
10
Knob, Clock (Black Model) WPL 879484 Contact Us For Availability
10
Housing, Fan WPL 879499 Contact Us For Availability
11
Retainer, Insulation (2) WPL 880026 Contact Us For Availability
12
Fan Assembly WPL 879413 Contact Us For Availability
13
Bottom, Main WPL 880027 Contact Us For Availability
13
Cover, Fan WPL 879414 Contact Us For Availability
14
Tube, Oven Vent WPL 880013 Contact Us For Availability
14
Plate, Conduit WPL 879498 Contact Us For Availability
15
Liner, Door WPL 880035 Contact Us For Availability
15
Cover, Fan Housing WPL 879497 Contact Us For Availability
16
Screw, Panel (2) (Black Model) WPL 879320 Contact Us For Availability
16
Screw, Panel (2) (White Model) WPL 879336 Contact Us For Availability
16
Insulation, Latch WPL 879486 Contact Us For Availability
18
Screw (6) WPL 879356 Contact Us For Availability
18
Baffle, Broil WPL 880011 Contact Us For Availability
18
Spacer, Rubber (3) WPL 880030 Contact Us For Availability
18
Latch Assembly WPL 879485 Contact Us For Availability
19
Element, Broil WPL 880006 Contact Us For Availability
19
Screw, Clip (2) WPL 879396 Contact Us For Availability
19
Screw, Switch (2) WPL 879487 Contact Us For Availability
19
Switch, Latch WPL 879488 Contact Us For Availability
20
Support, Element WPL 880003 Contact Us For Availability
20
Insulation, Door WPL 880036 Contact Us For Availability
21
Bolt WPL 879423 Contact Us For Availability
21
Handle, Latch WPL 879490 Contact Us For Availability
21
Screw, Handle WPL 879491 Contact Us For Availability
22
Rack, Oven (2) WPL 880008 Contact Us For Availability
22
Gasket, Door WPL 880034 Contact Us For Availability
23
Seal, Glass WPL 4381500 Contact Us For Availability
24
Cleaner, Glass WPL W10355051 No Longer Available
24
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
24
Grease WPL 261582 Contact Us For Availability
24
Tape, Foil WPL 880044 Contact Us For Availability
24
Knob, Latch Handle (White Model) WPL 879492 Contact Us For Availability
24
Knob, Latch Handle (Black Model) WPL 879493 Contact Us For Availability
26
Shield, Switch WPL 879489 Contact Us For Availability
× ![]()
