Model Whirlpool RB262PXAQ6 – Common Parts & Diagrams
04 - BURNER BOX AND LATCH
02 - OVEN DOOR, LITERATURE

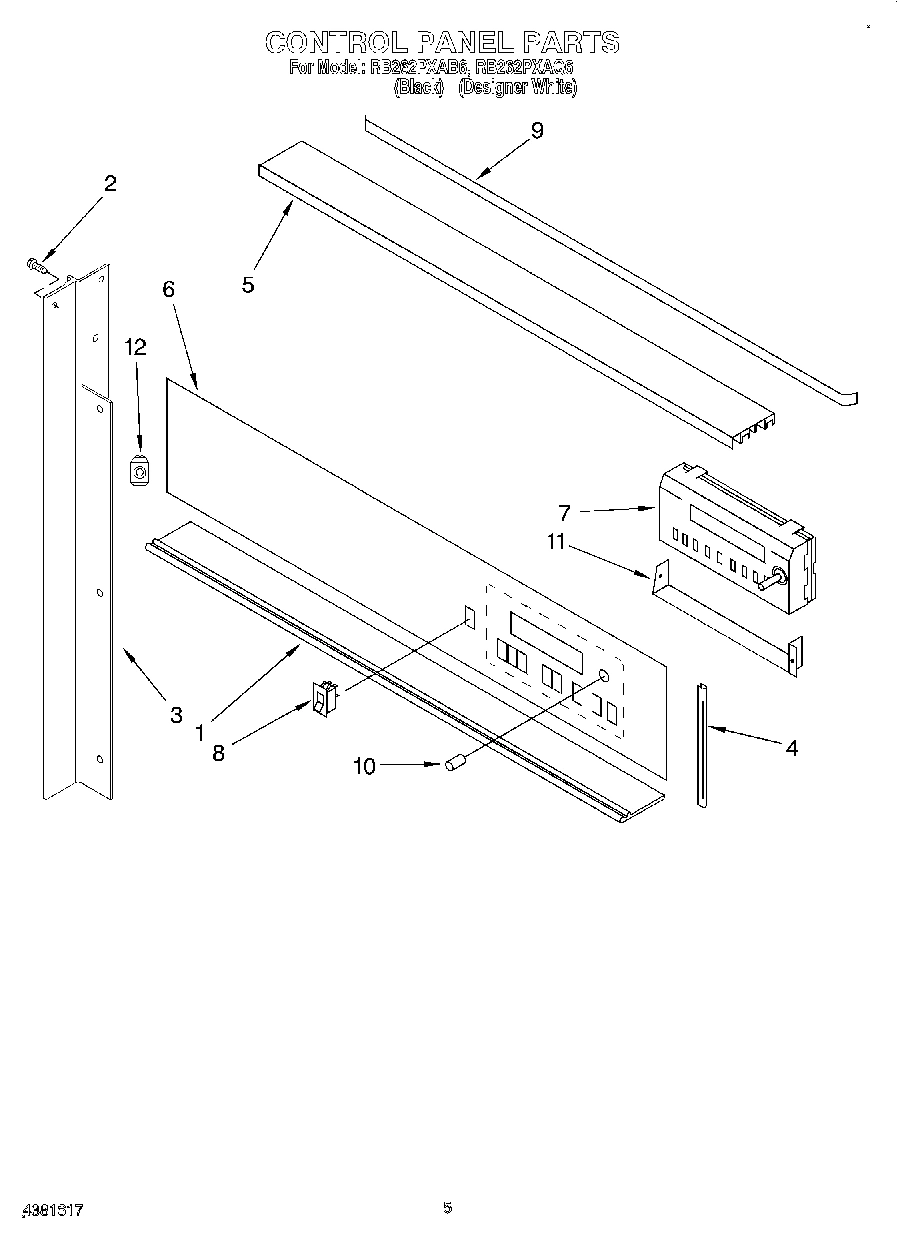

03 - CONTROL PANEL

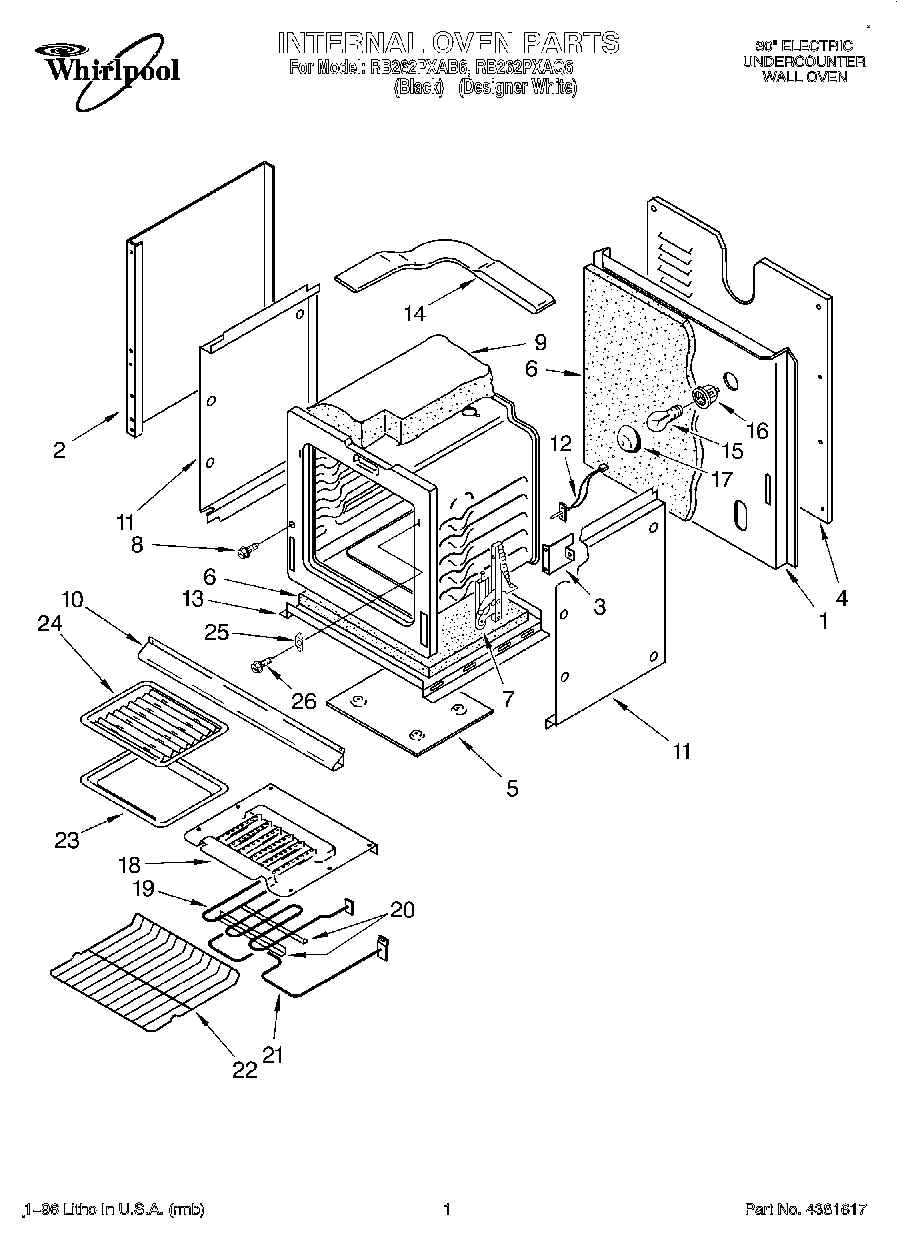

01 - INTERNAL OVEN, OPTIONAL
Common parts from model Whirlpool RB262PXAQ6
Tech Sheet WPL LIT4381511 Contact Us For Availability
Installation Instructions WPL LIT4381517 Contact Us For Availability
Use & Care Guide WPL LIT879462 Contact Us For Availability
1
Glass, Outer Door (White Model) WPL 880028 Contact Us For Availability
1
Glass, Outer Door (Black Model) WPL 880029 Contact Us For Availability
1
Trim, Vent (White Model) WPL 879465 Contact Us For Availability
1
Trim, Vent (Black Model) WPL 879466 Contact Us For Availability
1
Back, Main WPL 880015 Contact Us For Availability
2
Retainer, Insulation (Top) WPL 4381569 Contact Us For Availability
2
Spacer, Door Glass WPL 880039 Contact Us For Availability
2
Screw, Trim (White No.8 x 1/4) WPL 879467 Contact Us For Availability
2
Screw, Trim (Black No.10 x 1``) WPL 4381578 Contact Us For Availability
2
Screw, Trim (White No.10 x 1``) WPL 4381579 Contact Us For Availability
2
Screw, Trim (Black No.8 x 1/4) WPL 879456 Contact Us For Availability
2
Panel, Side (2) WPL 880016 Contact Us For Availability
3
Cover, Wire WPL 879496 Contact Us For Availability
3
Screw, Door Handle WPL 4381595 Contact Us For Availability
3
Trim, Side (Left) (Black Model) WPL 4381574 Contact Us For Availability
3
Trim, Side Left (Black Model) WPL 4381575 Contact Us For Availability
3
Trim, Side Left (White Model Right) WPL 4381576 Contact Us For Availability
3
Trim, Side Left (White Model) WPL 4381577 Contact Us For Availability
3
Support, Oven (2) WPL 880017 Contact Us For Availability
4
Handle, Door (White Model) WPL 880032 Contact Us For Availability
4
Handle, Door (Black Model) WPL 880033 Contact Us For Availability
4
Trim, Control Panel (White Model) WPL 879472 Contact Us For Availability
4
Trim, Control Panel (Black Model) WPL 879473 Contact Us For Availability
4
Cover, Rear WPL 880018 Contact Us For Availability
5
Screw, Switch (2) WPL 879480 Contact Us For Availability
5
Switch, Limit WPL 880000 Contact Us For Availability
5
Gasket, Door WPL 880034 Contact Us For Availability
5
Trim, Top (Black Model) WPL 4381508 Contact Us For Availability
5
Trim, Top (White Model) WPL 4381509 Contact Us For Availability
5
Shield, Heat WPL 880019 Contact Us For Availability
6
Liner, Door WPL 4381596 Contact Us For Availability
6
Panel, Control (White Model) WPL 4381512 Contact Us For Availability
6
Panel, Control (Black Model) WPL 4381513 Contact Us For Availability
7
Insulation, Door WPL 4381597 Contact Us For Availability
7
Timer, Electronic WPL 4381514 Contact Us For Availability
7
Hinge, Door (2) WPL 880021 Contact Us For Availability
8
Baffle, Door WPL 4381598 Contact Us For Availability
9
Clip, Handle WPL 879410 Contact Us For Availability
9
Retainer, Glass WPL 4381599 Contact Us For Availability
9
Trim, Filler (Black Model) WPL 879331 Contact Us For Availability
9
Trim, Filler (White Model) WPL 879344 Contact Us For Availability
9
Insulation, Wrap WPL 880022 Contact Us For Availability
10
Housing, Fan WPL 879499 Contact Us For Availability
10
Glass, Inner (2) WPL 4381600 Contact Us For Availability
10
Knob, Clock (White Model) WPL 4381614 Contact Us For Availability
10
Knob, Clock (Black Model) WPL 4381615 Contact Us For Availability
10
Shield, Lower Vent (White Model) WPL 880024 Contact Us For Availability
10
Shield, Lower Vent (Black Model) WPL 880025 Contact Us For Availability
11
Shield, Timer WPL 4381515 Contact Us For Availability
11
Retainer, Insulation (2) WPL 880026 Contact Us For Availability
12
Fan Assembly WPL 879413 Contact Us For Availability
12
Spacer, Foam (5) WPL 880030 Contact Us For Availability
12
Spacer, Trim (2) (Black Model) WPL 4381580 Contact Us For Availability
12
Spacer, Trim (2) (White Model) WPL 4381581 Contact Us For Availability
13
Cover, Fan WPL 879414 Contact Us For Availability
13
Spacer, Handle (Black Model) WPL 4381602 Contact Us For Availability
13
Spacer, Handle (White Model) WPL 4381603 Contact Us For Availability
13
Bottom, Main WPL 880027 Contact Us For Availability
14
Plate, Conduit WPL 879498 Contact Us For Availability
14
Screw (10) WPL 880004 Contact Us For Availability
14
Tube, Oven Vent WPL 880013 Contact Us For Availability
15
Cover, Fan Housing WPL 879497 Contact Us For Availability
15
Tape, Foil WPL 4381604 Contact Us For Availability
16
Insulation, Latch WPL 879486 Contact Us For Availability
16
Screw, Panel (4) (Black Model) WPL 879320 Contact Us For Availability
17
Panel, Door (Black Model) WPL 4381605 Contact Us For Availability
17
Panel, Door (White Model) WPL 4381606 Contact Us For Availability
18
Latch Assembly WPL 879485 Contact Us For Availability
18
Clip, Glass (2) (Black Model) WPL 879380 Contact Us For Availability
18
Clip, Glass (2) (White Model) WPL 879381 Contact Us For Availability
18
Screw (6) WPL 879356 Contact Us For Availability
18
Baffle, Broil WPL 880011 Contact Us For Availability
19
Switch, Latch WPL 4381570 Contact Us For Availability
19
Screw, Switch (2) WPL 4381572 Contact Us For Availability
19
Element, Broil WPL 880006 Contact Us For Availability
20
Support, Element WPL 880003 Contact Us For Availability
21
Handle, Latch WPL 4381573 Contact Us For Availability
21
Bolt WPL 879423 Contact Us For Availability
21
Screw, Handle WPL 879491 Contact Us For Availability
22
Rack, Oven (2) WPL 880008 Contact Us For Availability
24
Knob, Latch Handle (White Model) WPL 879492 Contact Us For Availability
24
Knob, Latch Handle (Black Model) WPL 879493 Contact Us For Availability
25
Adapter, Mounting (White Model) WPL 4381610 Contact Us For Availability
25
Adapter, Mounting (Black Model) WPL 4381611 Contact Us For Availability
26
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
26
Shield, Switch WPL 4381571 Contact Us For Availability
26
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
26
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
26
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
26
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
26
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
26
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
26
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
26
Grease WPL 261582 Contact Us For Availability
26
Screw, Adapter (Black Model) WPL 4381612 Contact Us For Availability
26
Screw, Adapter (White Model) WPL 4381613 Contact Us For Availability
× ![]()
