Model Whirlpool RB260PXBB2 – Common Parts & Diagrams

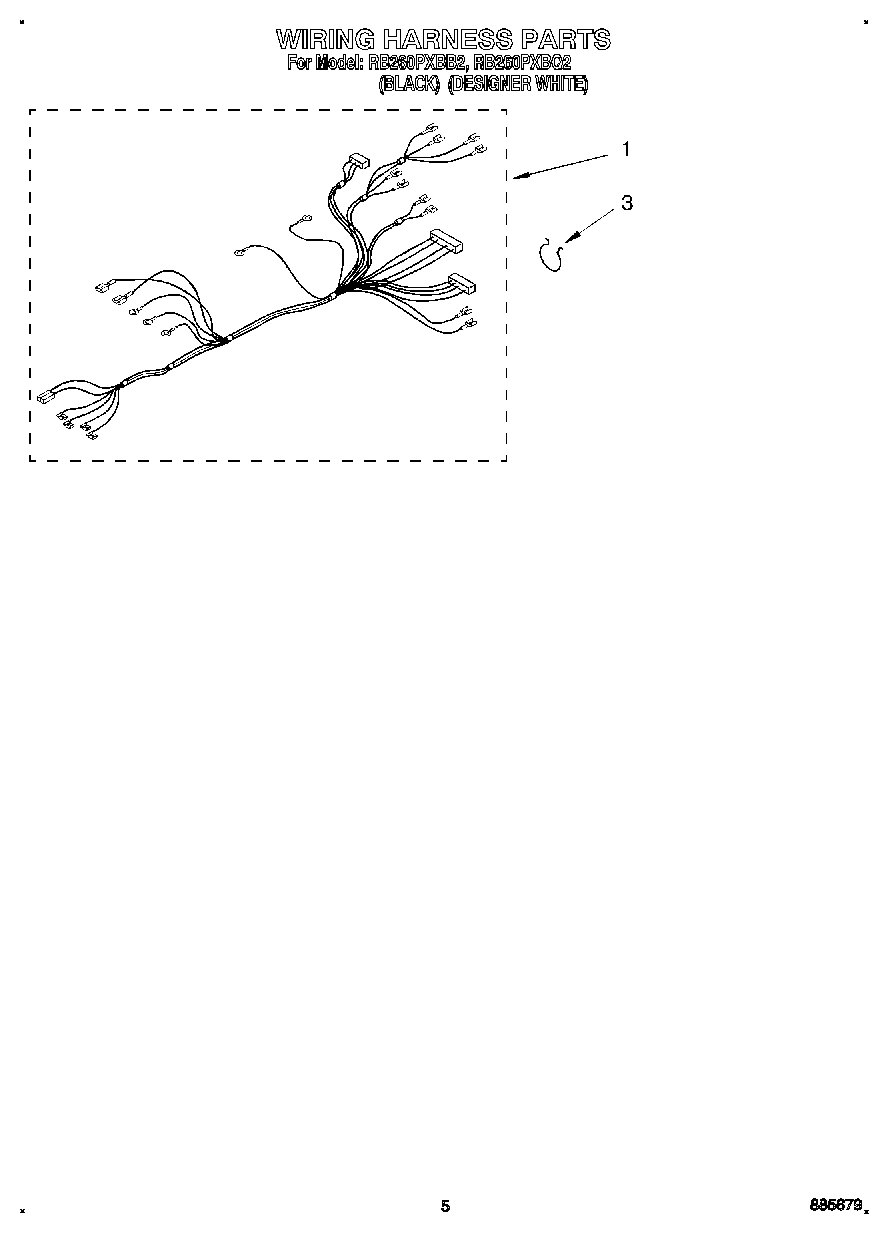

04 - WIRING HARNESS

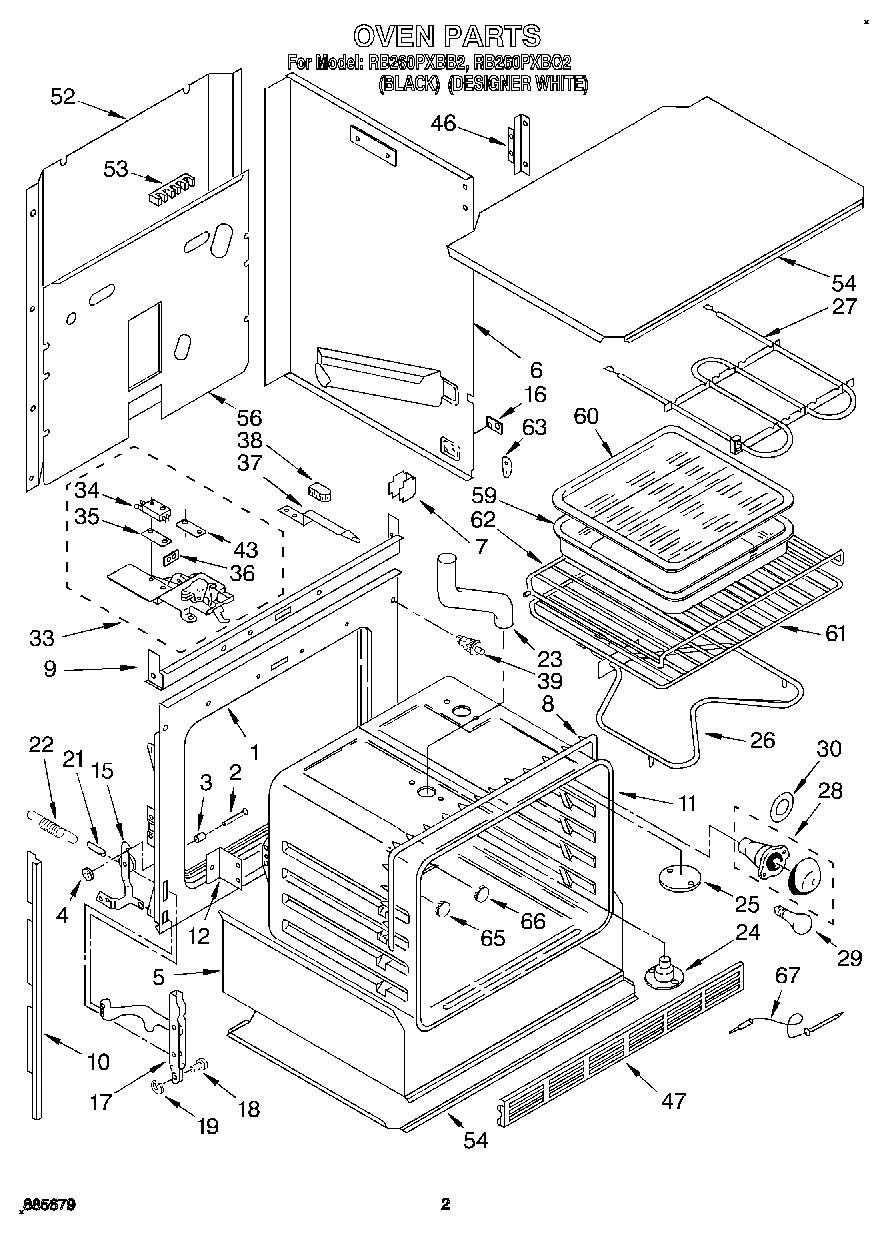

02 - OVEN

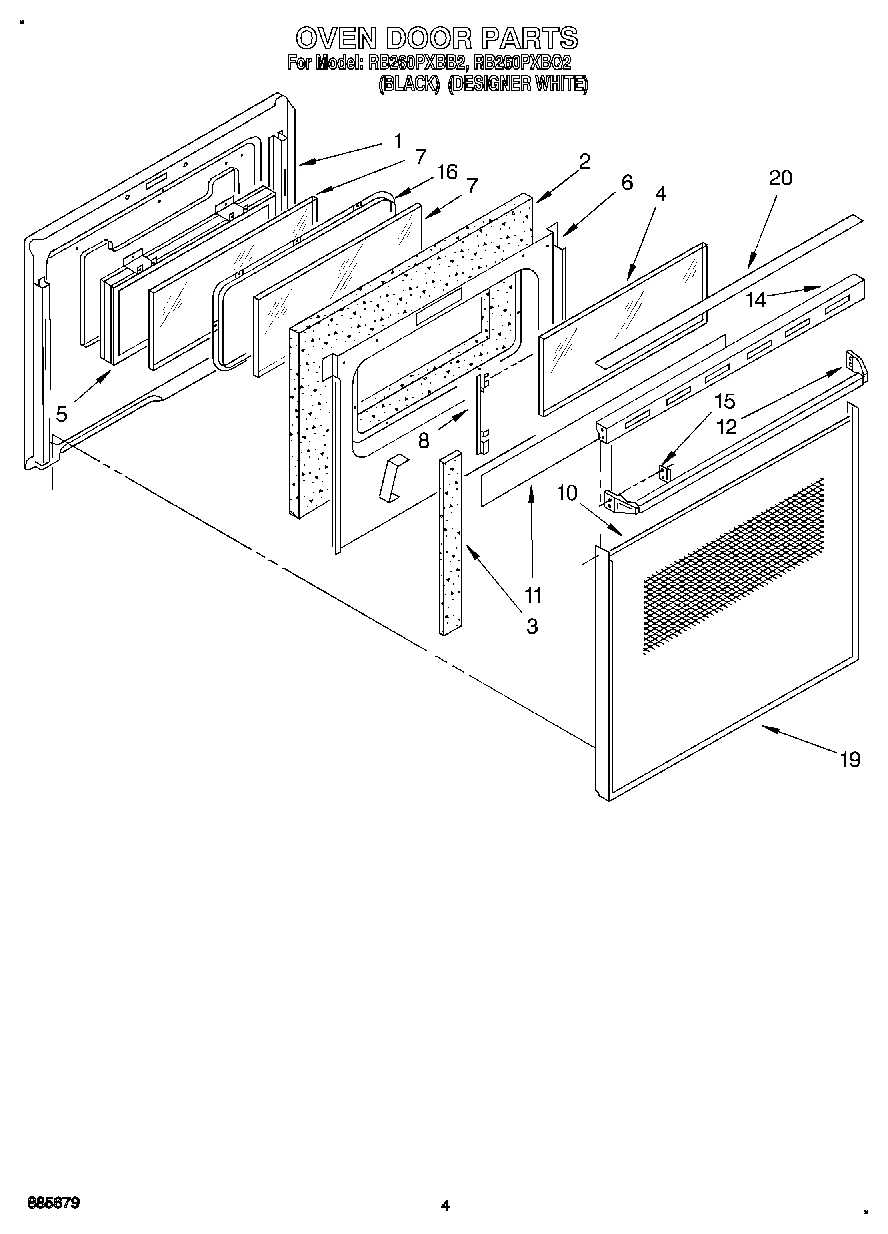

03 - OVEN DOOR

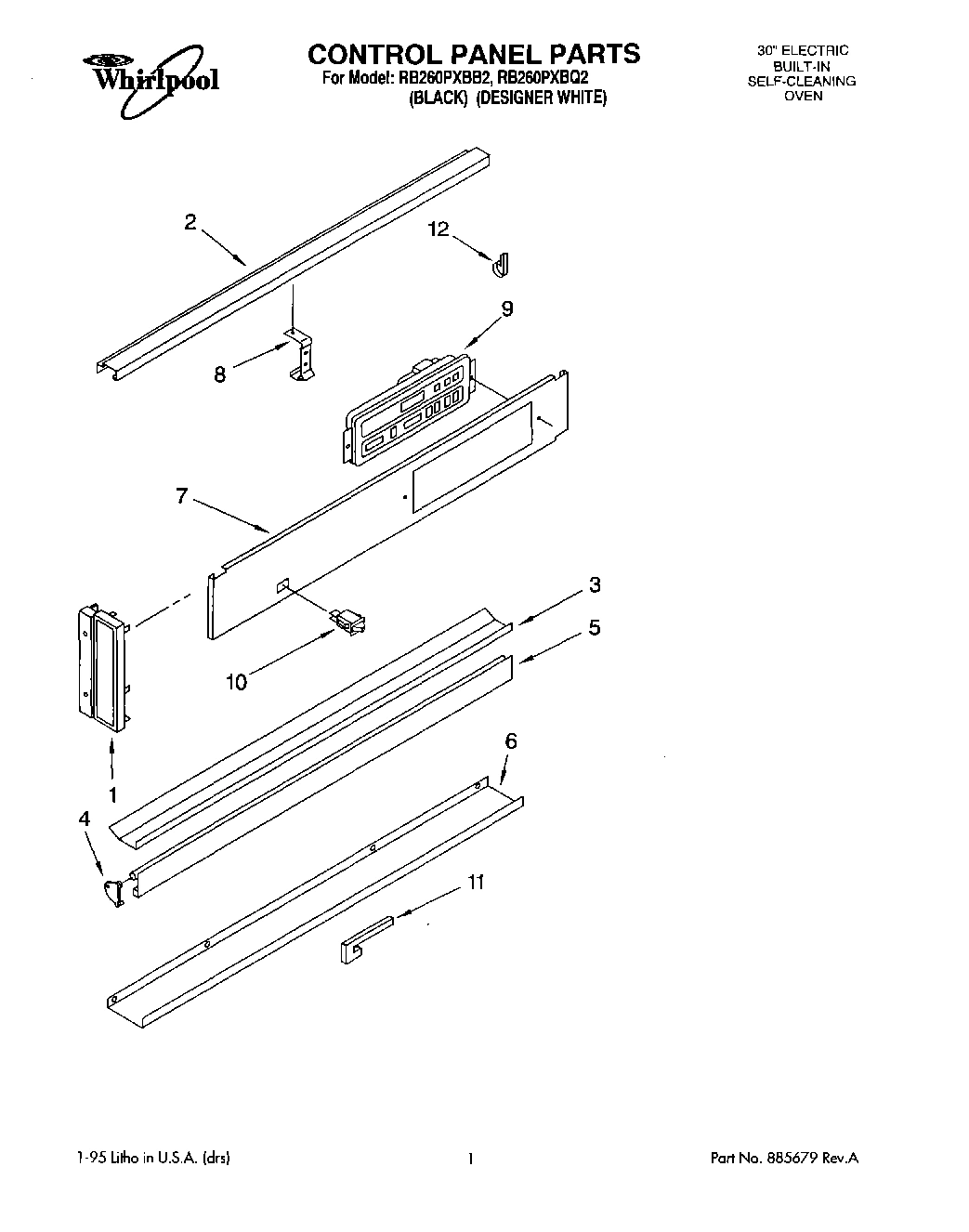

01 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RB260PXBB2
Mounting Hardware WPL 3171507 Contact Us For Availability
Installation Instructions WPL LIT3183635 Contact Us For Availability
Tech Sheet WPL LIT3184116 Contact Us For Availability
Use & Care Guide WPL LIT3188184 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
End Cap (Left Hand (Black)) WPL 3149238 Contact Us For Availability
1
End Cap (Right Hand (Black)) WPL 3149239 Contact Us For Availability
1
End Cap (Left Hand (White)) WPL 3187926 Contact Us For Availability
1
End Cap (Right Hand (White)) WPL 3187927 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Insulation, Door WPL 3147951 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3149240 Contact Us For Availability
2
Trim, Top (White Model) WPL 3188152 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183577 Contact Us For Availability
3
Trim, Center (White Model) WPL 3188165 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
End Trim, Vent Door (White, LH) WPL 3148471 Contact Us For Availability
4
End Trim Vent Door (White (RH)) WPL 3148472 Contact Us For Availability
4
End Trim, Vent Door (Black, LH) WPL 3148697 Contact Us For Availability
4
End Trim, Vent Door (Black, RH) WPL 3148698 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Door, Vent (Black Model) WPL 3183505 Contact Us For Availability
5
Door, Vent (White Model) WPL 3187983 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
6
Trim, Bottom WPL 3148618 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Control Panel (Black Model) WPL 3182915 Contact Us For Availability
7
Control Panel (White Model) WPL 3182916 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
8
Screw WPL 311773 Contact Us For Availability
8
Bracket, Stiffener WPL 3183500 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
9
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
10
Side Trim (Black, LH) WPL 3149236 Contact Us For Availability
10
Side Trim (Black, RH) WPL 3149237 Contact Us For Availability
10
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
10
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
10
Glass, Panel (Black) WPL 3188054 Contact Us For Availability
10
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
10
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
10
Switch, Rocker (Screw) WPL 3188411 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Screw WPL 98520 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
11
Shield, Air WPL 3149142 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (White) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Screw WPL 3149253 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Door (Black Model) WPL 3171530 Contact Us For Availability
19
Frame, Door (White Model) WPL 3187920 Contact Us For Availability
20
Cap, Top (White Model) WPL 3181367 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Smoke Eliminator WPL 3186684 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw (2) WPL 3150532 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
43
WPL 309245 WPL 309245 Contact Us For Availability
46
WPL 307748 WPL 307748 Contact Us For Availability
46
WPL 309133 WPL 309133 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 3150349 WPL 3150349 Contact Us For Availability
47
WPL 3150350 WPL 3150350 Contact Us For Availability
52
WPL 3185961 WPL 3185961 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 3185945 WPL 3185945 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
65
WPL 3182814 WPL 3182814 Contact Us For Availability
66
WPL 3185086 WPL 3185086 Contact Us For Availability
67
WPL 310433 WPL 310433 Contact Us For Availability
67
WPL 310435 WPL 310435 Contact Us For Availability
67
WPL 3148440 WPL 3148440 Contact Us For Availability
67
WPL 3149328 WPL 3149328 Contact Us For Availability
67
WPL 3179117 WPL 3179117 Contact Us For Availability
× ![]()
