Model Whirlpool RB22DA-3AI REFRIGERATOR – Common Parts & Diagrams

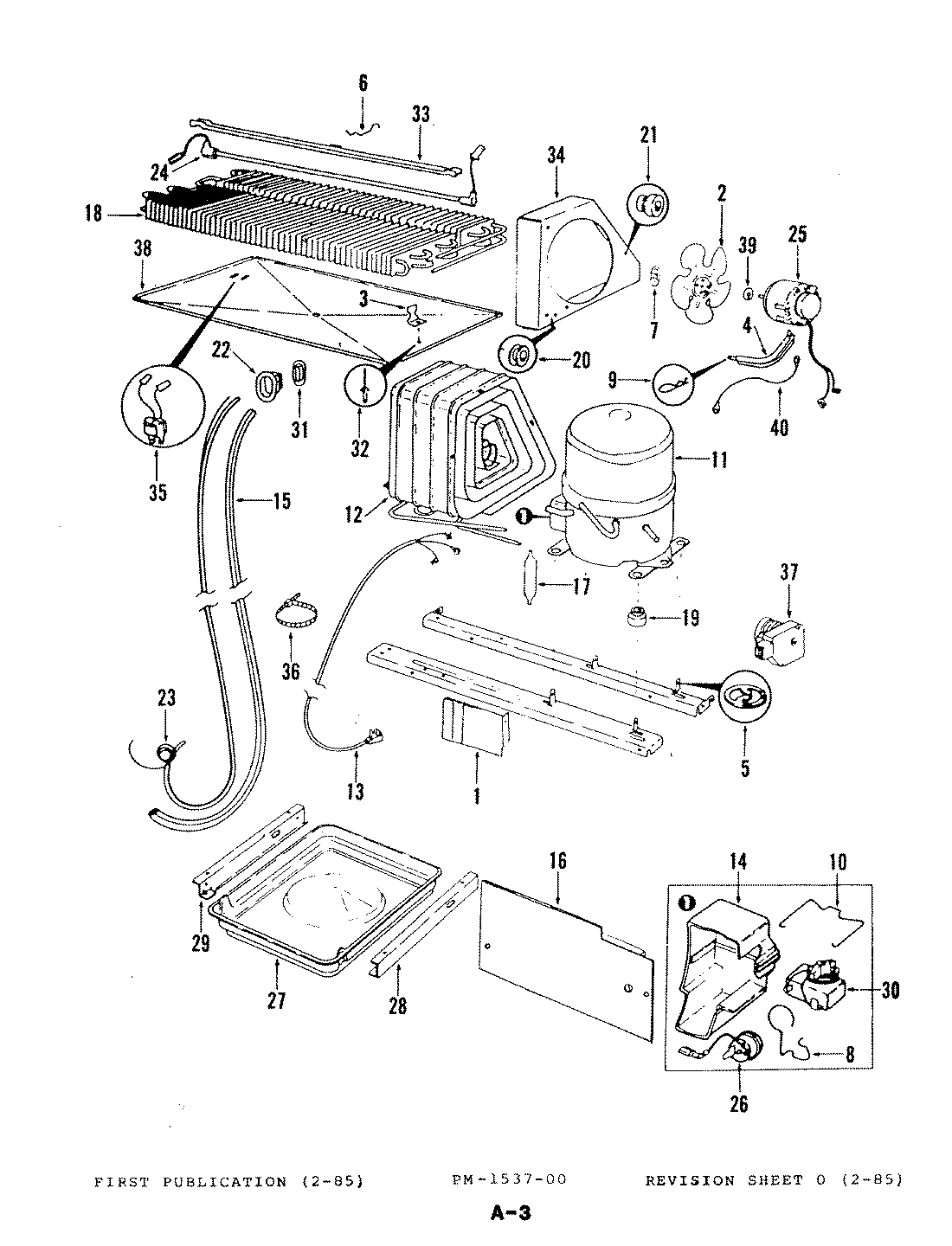

05 - UNIT COMPARTMENT & SYSTEM

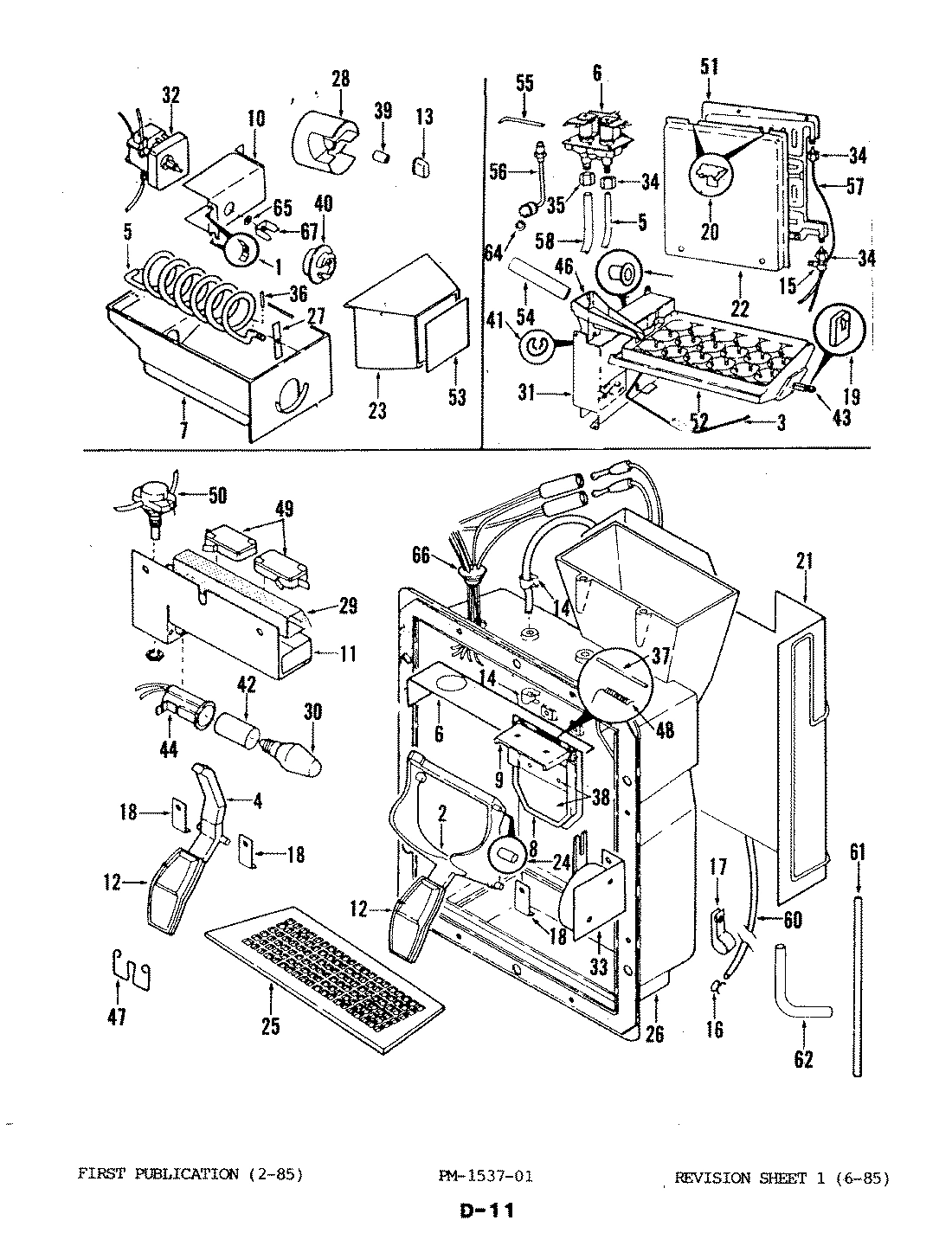

06 - WATER & ICE DISPENSER
01 - FREEZER COMPARTMENT

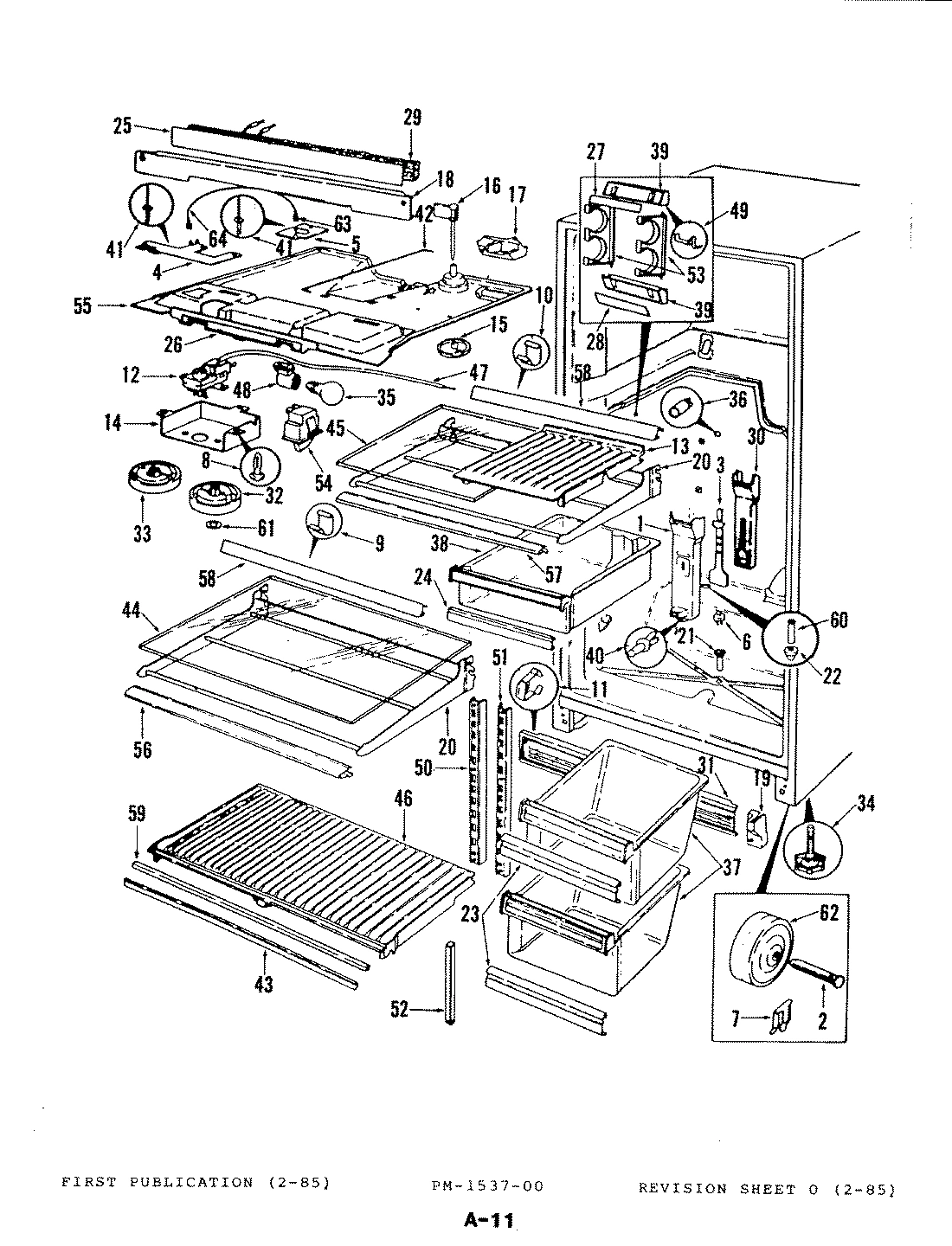

03 - FRESH FOOD COMPARTMENT

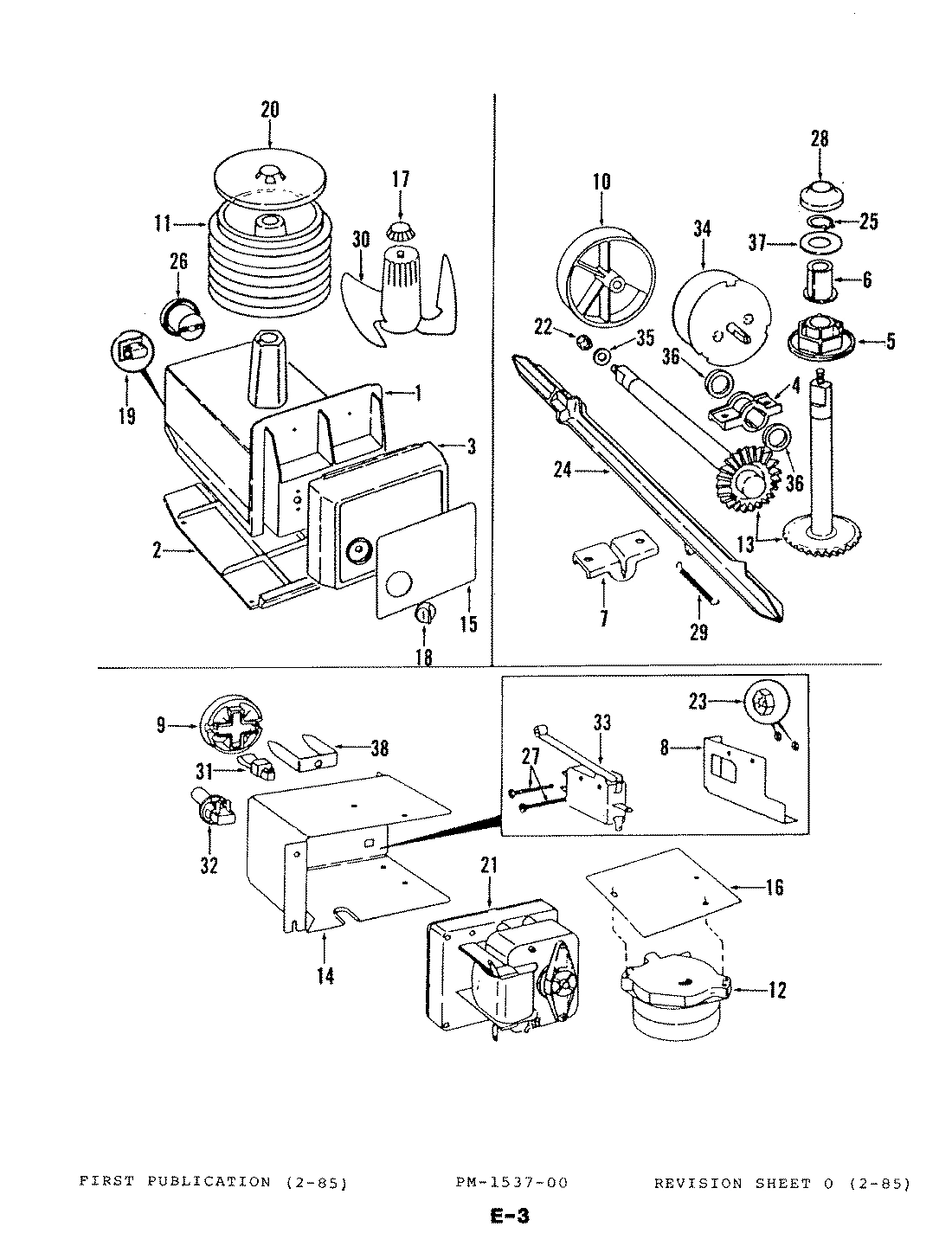

04 - ICE CREAM MAKER
02 - FRESH FOOD & FREEZER DOOR
Common parts from model Whirlpool RB22DA-3AI REFRIGERATOR
1
AIR DIVIDER WPL 606393 Contact Us For Availability
1
ANCHOR WPL 643411 Contact Us For Availability
1
TUNNEL, AIR WPL 600847 Contact Us For Availability
1
TUNNEL WPL 6009410 Contact Us For Availability
1
BASE WPL 651242 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
ARM,ICE WPL 630073 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BASE BOTTOM WPL 651251 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
SENSOR ARM WPL 604671 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604746 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BASE FRONT WPL 651261 Contact Us For Availability
3
BUSHING WPL 606271 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
ARM, WATER WPL 630083 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BEARING HORIZONTAL WPL 651091 Contact Us For Availability
4
PLUG BUTTON WPL 495036900 Contact Us For Availability
4
BUSHING WPL 557811 Contact Us For Availability
4
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
4
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
5
CLIP WPL 621651 Contact Us For Availability
5
AUGER WPL 630991 Contact Us For Availability
5
ICE CHUTE WPL 605041 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
BEARING, LOWER VERTICAL WPL 651071 Contact Us For Availability
5
COLLAR WPL 630202 Contact Us For Availability
6
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
6
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
BEARING, UPPER VERTICAL WPL 651131 Contact Us For Availability
6
DOOR, DAIRY WPL 636091 Contact Us For Availability
7
CLIP WPL 199140 Contact Us For Availability
7
BIN WPL 654611 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
BRACKET WPL 651161 Contact Us For Availability
7
ESCUTCHEON WPL 6048214 Contact Us For Availability
8
CLIP WPL 632951 Contact Us For Availability
8
DOOR, ICE CHUTE WPL 630191 Contact Us For Availability
8
CUP, SHELF WPL 603131 Contact Us For Availability
8
BRACKET WPL 652862 Contact Us For Availability
8
GASKET, DOOR WPL 604627 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
9
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
9
COVER, EVAPORATOR----NA WPL 605575 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
9
GASKET, DOOR WPL 604628 Contact Us For Availability
10
CLIP WPL 632971 Contact Us For Availability
10
SHELF MTG CUP WPL 601511 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
10
TIMER CAM WPL 651041 Contact Us For Availability
10
DOOR HANDLE WPL 604911 Contact Us For Availability
11
BRACKET, SWITCH WPL 630132 Contact Us For Availability
11
DEFLECTOR WPL 605171 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
CANNISTER WPL 651221 Contact Us For Availability
11
DOOR HANDLE WPL 604912 Contact Us For Availability
12
CONDENSER WPL RA438714 Contact Us For Availability
12
PAD, ARM WPL 630661 Contact Us For Availability
12
TRAY, DIVIDER WPL 605765 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
12
CONTROL, AUGER MOTOR WPL 651321 Contact Us For Availability
12
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
13
CORD, POWER WPL 528902 Contact Us For Availability
13
COVER WPL 600673 Contact Us For Availability
13
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
13
BUSHING WPL 630231 Contact Us For Availability
13
DIVIDER WPL 605001 Contact Us For Availability
13
COVER, MEAT PAN WPL 600756 Contact Us For Availability
13
GEAR & SHAFT ASSEMBLY WPL 651022 Contact Us For Availability
13
HINGE WPL 606303 Contact Us For Availability
14
BRACKET WPL 605591 Contact Us For Availability
14
CLAMP, SPRING WPL 603332 Contact Us For Availability
14
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
15
CLAMP WPL 535162 Contact Us For Availability
15
DOOR WPL 650662 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
INSERT WPL 652822 Contact Us For Availability
15
INSERT WPL 604902 Contact Us For Availability
16
COVER WPL 606402 Contact Us For Availability
16
CLAMP, SPRING WPL 603333 Contact Us For Availability
16
CLAMP, TUBING WPL 96029 Contact Us For Availability
16
AIR TUNNEL DUCT WPL 651501 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
INSULATION, MOTOR CONTROL WPL 651431 Contact Us For Availability
16
INSERT WPL 604893 Contact Us For Availability
17
CLAMP WPL 535169 Contact Us For Availability
17
FRONT WPL 605031 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
STIRRER KNOB WPL 651442 Contact Us For Availability
17
INSERT WPL 604901 Contact Us For Availability
18
EVAPORATOR WPL RA4362042 Contact Us For Availability
18
CLIP WPL 630352 Contact Us For Availability
18
FRONT WPL 605011 Contact Us For Availability
18
MULLION WPL 600209AM Contact Us For Availability
18
TIMER KNOB WPL 651282 Contact Us For Availability
18
INSERT WPL 604894 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
19
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
19
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
19
END CAP WPL 603811 Contact Us For Availability
19
LATCH WPL 651842 Contact Us For Availability
19
INSERT WPL 605336 Contact Us For Availability
20
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
20
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
20
UNION, TUBING (1/4``-1/4``) WPL 592051 Contact Us For Availability
20
FAN SHROUD WPL 606081 Contact Us For Availability
20
FRAME, SHELF WPL 605704 Contact Us For Availability
20
CANNISTER LID WPL 651151 Contact Us For Availability
20
INSERT WPL 605335 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
21
HEATER WPL 605081 Contact Us For Availability
21
MOTOR, AUGER WPL 651861 Contact Us For Availability
21
CLIP WPL 629271 Contact Us For Availability
21
GROMMET WPL 545318 Contact Us For Availability
21
LINER, DOOR WPL 603805 Contact Us For Availability
22
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
22
COVER WPL 654971 Contact Us For Availability
22
SCREW WPL 40001512 Contact Us For Availability
22
SCREW WPL 4060621 Contact Us For Availability
22
HINGE PIN WPL 605051 Contact Us For Availability
22
SCREW WPL 652753 Contact Us For Availability
22
GROMMET WPL 555121 Contact Us For Availability
22
LOCKNUT WPL 430087103 Contact Us For Availability
22
LINER, DOOR WPL 604045 Contact Us For Availability
23
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
23
FRONT WPL 650676 Contact Us For Availability
23
SEAL WPL 655184 Contact Us For Availability
23
HANDLE WPL 6013240 Contact Us For Availability
23
SCREW WPL 430002001 Contact Us For Availability
23
OUTER PANEL WPL 6003330AM Contact Us For Availability
24
HEATER, DEFROST WPL 6010636 Contact Us For Availability
24
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
24
SHELF WPL 605141 Contact Us For Availability
24
HANDLE WPL 6013241 Contact Us For Availability
24
PLUNGER WPL 651081 Contact Us For Availability
24
OUTER PANEL WPL 6003278AM Contact Us For Availability
25
FAN MOTOR WPL 2805613 Contact Us For Availability
25
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
25
GRILL WPL 630251 Contact Us For Availability
25
SWITCH WPL 557322 Contact Us For Availability
25
HEATER WIRE WPL 601059 Contact Us For Availability
25
RETAINER WPL 619371 Contact Us For Availability
25
RETAINER WPL 651001 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
26
OVERLOAD WPL 632942 Contact Us For Availability
26
DISPENSER, WATER WPL 630003 Contact Us For Availability
26
TRIM WPL 6041410 Contact Us For Availability
26
INSERT WPL 605719 Contact Us For Availability
26
SCREW WPL 4000011 Contact Us For Availability
26
SCREW WPL 4000151 Contact Us For Availability
26
SCREW WPL 402017001 Contact Us For Availability
26
SCREW WPL 4050721 Contact Us For Availability
26
SCREW WPL 406026103 Contact Us For Availability
26
DRIVE RING WPL 651711 Contact Us For Availability
26
PIN WPL 654181 Contact Us For Availability
27
PAN, DRAIN WPL 298394 Contact Us For Availability
27
HUB, REINFORCING WPL 630841 Contact Us For Availability
27
INSERT WPL 6528115 Contact Us For Availability
27
INSERT WPL 572061 Contact Us For Availability
27
SCREW WPL 4050221 Contact Us For Availability
27
SCREW WPL 4060361 Contact Us For Availability
27
SCREW WPL 406043001 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
28
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
IMPELLER WPL 630831 Contact Us For Availability
28
INSULATION WPL 630892 Contact Us For Availability
28
GROUND WIRE WPL 2967530 Contact Us For Availability
28
WIRE HARNESS WPL 605651 Contact Us For Availability
28
INSERT WPL 592999 Contact Us For Availability
28
SEAL WPL 652331 Contact Us For Availability
28
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
29
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
29
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
29
INSULATION WPL 601403 Contact Us For Availability
29
SPRING WPL 651421 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
30
COVER WPL 632962 Contact Us For Availability
30
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
30
BULB, LIGHT WPL 631791 Contact Us For Availability
30
INSULATION WPL 600922 Contact Us For Availability
30
STIRRER WPL 651271 Contact Us For Availability
30
SCREW WPL 40100512 Contact Us For Availability
30
SCREW WPL 4030625 Contact Us For Availability
30
RETAINER WPL 652461 Contact Us For Availability
30
SCREW WPL 9986107 Contact Us For Availability
30
SCREW WPL 9986108 Contact Us For Availability
30
SCREW WPL 9986112 Contact Us For Availability
30
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
30
SCREW WPL 9986122 Contact Us For Availability
30
SCREW, HINGE-UPPER WPL 999687 Contact Us For Availability
31
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
31
ICEMAKER MECH WPL RA437146 Contact Us For Availability
31
KICKPLATE WPL 6013817 Contact Us For Availability
31
STRIKE, AUGER BOX WPL 651851 Contact Us For Availability
31
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
32
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4030141 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
KNOB WPL 600613 Contact Us For Availability
32
SWITCH, AUGER SHUT OFF WPL 651771 Contact Us For Availability
32
DOOR SHELF WPL 6003714 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
MOTOR, INERTIA WPL 652121 Contact Us For Availability
33
KNOB WPL 600611 Contact Us For Availability
33
SWITCH, 2 CIRCUIT WPL 652851 Contact Us For Availability
33
SHELF WPL 6003727 Contact Us For Availability
34
CONDENSER SHROUD WPL 600212 Contact Us For Availability
34
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
34
LEG, LEVELING WPL 60128 Contact Us For Availability
34
TIMER WPL 652881 Contact Us For Availability
34
SHELF WPL 6003728 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
35
WASHER WPL 420066103 Contact Us For Availability
35
SHIM WPL 604881 Contact Us For Availability
36
PIN, AUGER WPL 630711 Contact Us For Availability
36
NYLON NUT WPL 1953036 Contact Us For Availability
36
SPACER WPL 542333 Contact Us For Availability
36
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
37
TIMER WPL 541134 Contact Us For Availability
37
PIN, ICE DOOR WPL 630531 Contact Us For Availability
37
PAN, CRISPER WPL 60457224 Contact Us For Availability
37
WASHER WPL 420097103 Contact Us For Availability
37
WIRE HARNESS WPL 652923 Contact Us For Availability
37
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
TRAY, DRIP WPL 601019 Contact Us For Availability
38
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
38
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
38
PAN, MEAT WPL 60466204 Contact Us For Availability
38
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
39
WASHER WPL 199134 Contact Us For Availability
39
WIRE HARNESS WPL 652727 Contact Us For Availability
39
RETAINER WPL 630312 Contact Us For Availability
39
RACK, WINE WPL 565194 Contact Us For Availability
39
DOOR STOP WPL 600301 Contact Us For Availability
40
GROUND WIRE WPL 296753 Contact Us For Availability
40
RING, DRIVE WPL 630171 Contact Us For Availability
40
DOOR STOP WPL 604196 Contact Us For Availability
41
SCREW WPL 4000161 Contact Us For Availability
41
SCREW WPL 400018103 Contact Us For Availability
41
SCREW WPL 4000271 Contact Us For Availability
41
SCREW WPL 405009103 Contact Us For Availability
41
SCREW WPL 405022103 Contact Us For Availability
41
RING, RETAINER WPL 587061 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
41
TRAY, BUTTER WPL 299362 Contact Us For Availability
42
SEAL WPL 630561 Contact Us For Availability
42
SHIELD, HEATER WPL 400171 Contact Us For Availability
42
SCREW WPL 4020394 Contact Us For Availability
42
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
42
SCREW WPL 9986117 Contact Us For Availability
42
TRAY, EGG WPL 600665 Contact Us For Availability
43
SHAFT, DRIVE WPL 653191 Contact Us For Availability
43
INSERT WPL 6057318 Contact Us For Availability
44
SOCKET, LIGHT WPL 630391 Contact Us For Availability
44
SEAL WPL 601486 Contact Us For Availability
45
SPACER WPL 653171 Contact Us For Availability
45
GLASS SHELF WPL 6016223 Contact Us For Availability
45
HANDLE EXT WPL 605541 Contact Us For Availability
46
SPOUT, FILL WPL 537481 Contact Us For Availability
46
SHELF, CRISPER WPL 600198 Contact Us For Availability
46
TRIM WPL 5930954 Contact Us For Availability
47
SPRING WPL 633061 Contact Us For Availability
47
PLASTIC TUBE WPL 400812 Contact Us For Availability
47
TRIM WPL 5930955 Contact Us For Availability
48
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
48
SOCKET, LIGHT WPL 605771 Contact Us For Availability
48
TRIM, DOOR SHELF WPL 65151176 Contact Us For Availability
49
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
49
SPRING, WINE RACK WPL 580571 Contact Us For Availability
49
SUPPORT WPL 600966 Contact Us For Availability
49
TRIM, DOOR SHELF WPL 65151175 Contact Us For Availability
50
SWITCH, LIGHT WPL 630401 Contact Us For Availability
50
SUPPORT WPL 600964 Contact Us For Availability
50
TRIM, DOOR SHELF WPL 65151177 Contact Us For Availability
51
WIRE TIE WPL 575763 Contact Us For Availability
51
TANK, WATER WPL 654571 Contact Us For Availability
51
SUPPORT WPL 600965 Contact Us For Availability
51
TRIM WPL 6008030 Contact Us For Availability
52
TRAY, ICE WPL 596881 Contact Us For Availability
52
SUPPORT WPL 601501 Contact Us For Availability
52
TRIM, DOOR SHELF WPL 65151174 Contact Us For Availability
53
INSERT WPL 6528015 Contact Us For Availability
53
SUPPORT WPL 572054 Contact Us For Availability
53
INSERT WPL 6057227 Contact Us For Availability
54
TUBE, FILL WPL 584613 Contact Us For Availability
54
SWITCH WPL 557323 Contact Us For Availability
54
INSERT WPL 6057228 Contact Us For Availability
55
TUBE WPL 561252 Contact Us For Availability
55
TOP, F.F. COMPARTMENT WPL 6008543 Contact Us For Availability
55
INSERT WPL 6057229 Contact Us For Availability
56
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
56
TRIM WPL 605245 Contact Us For Availability
56
SPACER WPL 542334 Contact Us For Availability
57
TUBING WPL 5560229 Contact Us For Availability
57
WASHER WPL 521851 Contact Us For Availability
57
TRIM WPL 604146 Contact Us For Availability
58
TUBING WPL 556038 Contact Us For Availability
58
TRIM, REAR WPL 652767 Contact Us For Availability
59
TUBING 34`` WPL 5560224 Contact Us For Availability
59
TRIM WPL 604543 Contact Us For Availability
60
TUBING WPL 556023 Contact Us For Availability
60
TUBE WPL 555131 Contact Us For Availability
61
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
61
WASHER, SPRING WPL 420092900 Contact Us For Availability
62
WATER LINE WPL 630381 Contact Us For Availability
62
WATER LINE WPL 630382 Contact Us For Availability
62
WHEEL WPL 298342 Contact Us For Availability
63
VALVE, WATER WPL 565953 Contact Us For Availability
63
GROUND WIRE WPL 2967528 Contact Us For Availability
64
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
64
GROUND WIRE WPL 2967522 Contact Us For Availability
64
WIRE HARNESS WPL 652741 Contact Us For Availability
65
WASHER WPL 4200711 Contact Us For Availability
66
WIRE HARNESS WPL 605231 Contact Us For Availability
66
WIRE HARNESS WPL 606241 Contact Us For Availability
× ![]()
Login and Registration Form
