Model Whirlpool RB220PXYB3 – Common Parts & Diagrams
04 - WIRING HARNESS
01 - CONTROL PANEL

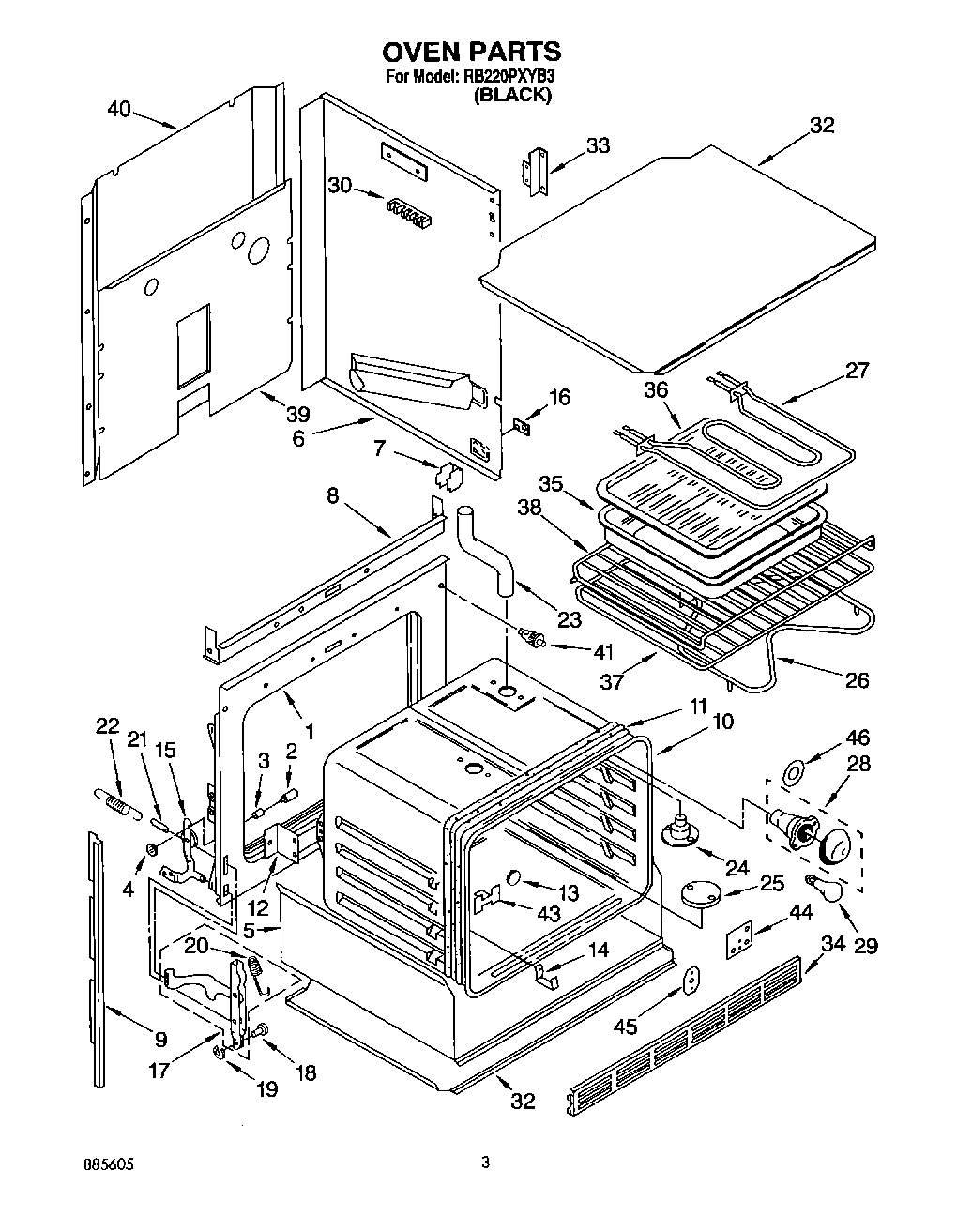

02 - OVEN, LITERATURE

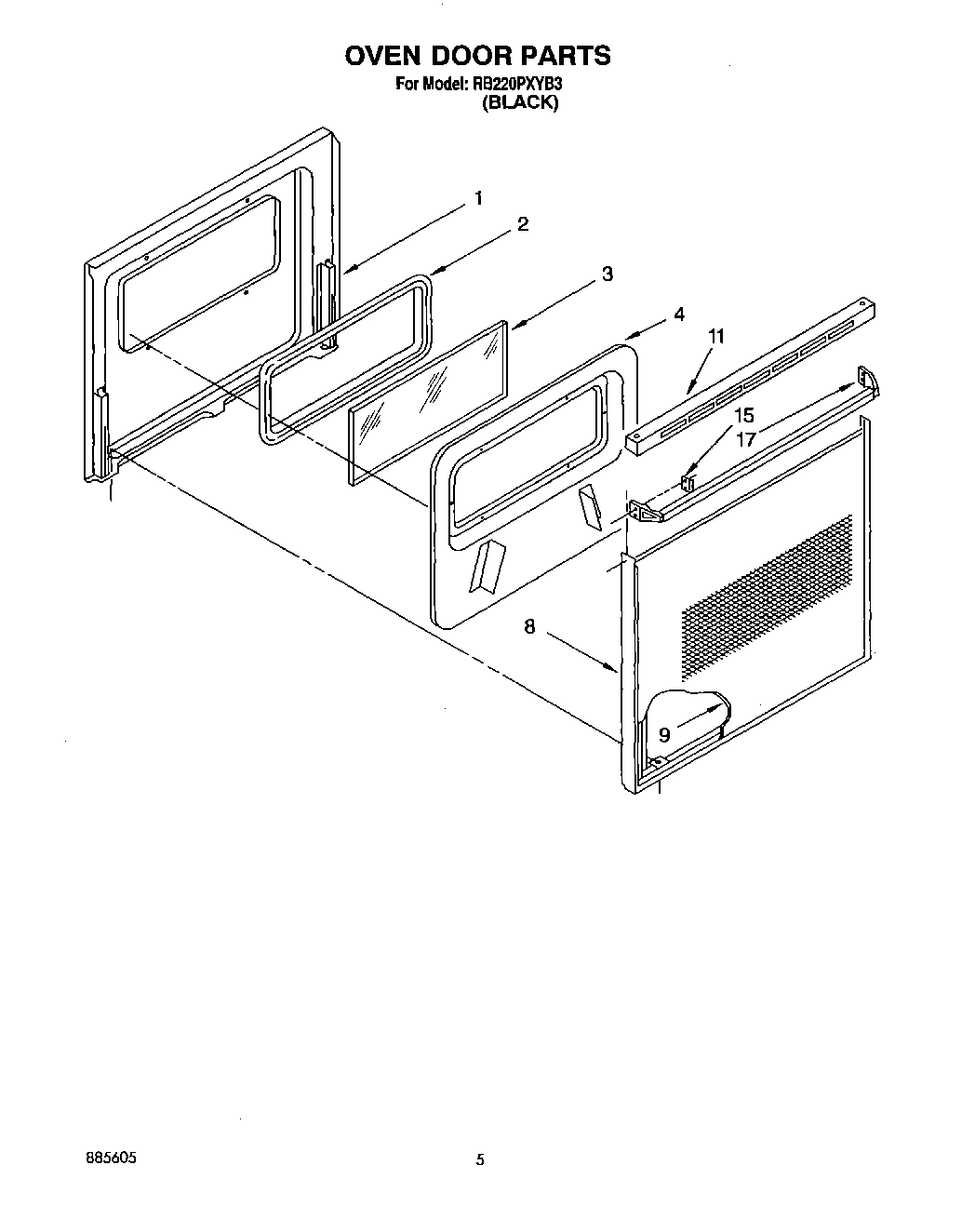

03 - OVEN DOOR, OPTIONAL
Common parts from model Whirlpool RB220PXYB3
WPL 309961 WPL 309961 Contact Us For Availability
WPL 311458 WPL 311458 Contact Us For Availability
WPL 3171507 WPL 3171507 Contact Us For Availability
WPL LIT3149600 WPL LIT3149600 Contact Us For Availability
WPL LIT3185981 WPL LIT3185981 Contact Us For Availability
WPL LIT3186645 WPL LIT3186645 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Frame, Front WPL 3176714 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3170712 Contact Us For Availability
2
Seal, Pano Glass WPL 3148183 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Glass, Inner 30`` WPL 3169202 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
4
Screw (6) WPL 3185647 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
8
Frame, Door 30`` WPL 3148235 Contact Us For Availability
9
Side Trim L.H. WPL 310685 Contact Us For Availability
9
Side Trim (R.H.) WPL 310689 Contact Us For Availability
9
Glass, Outer WPL 3148185 Contact Us For Availability
10
Oven (30`` Continuous Clean) WPL 3184219 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Heat Seal WPL 3169283 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
12
Bracket, Oven Mounting WPL 310713 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Thermostat, Oven WPL 3169304 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
17
Channel, Arm (2) WPL 3185665 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Handle, Oven Door WPL 3148228 Contact Us For Availability
18
Selector Switch WPL 3149887 Contact Us For Availability
18
Screw, 8-32 x 1/2 WPL 4159448 Contact Us For Availability
19
Light, Indicator Oven WPL 311802 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Lockwasher WPL 312796 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
screw, 8a x3/8 WPL 98520 Contact Us For Availability
23
Knob, Thermostat WPL 3183106 Contact Us For Availability
23
Vent Extension WPL 310836 Contact Us For Availability
24
Knob, Selector Switch WPL 3183112 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Screw (2) WPL 307748 Contact Us For Availability
27
Screw (2) 10-32 x 5/8 (4) WPL 3150532 Contact Us For Availability
28
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
32
Top & Bottom Cover (2) WPL 3185945 Contact Us For Availability
33
Bracket, Control Panel Mounting (2) WPL 310719 Contact Us For Availability
33
screw (2) WPL 342043 Contact Us For Availability
34
screw, 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
34
Bottom Grill WPL 310668 Contact Us For Availability
37
WPL 3185641 WPL 3185641 Contact Us For Availability
38
WPL 3185640 WPL 3185640 Contact Us For Availability
39
WPL 3182052 WPL 3182052 Contact Us For Availability
40
WPL 3185961 WPL 3185961 Contact Us For Availability
41
WPL 310345 WPL 310345 Contact Us For Availability
43
WPL 3169107 WPL 3169107 Contact Us For Availability
44
WPL 3183005 WPL 3183005 Contact Us For Availability
45
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
