Model Whirlpool RB21KN4AF REFRIGERATOR – Common Parts & Diagrams

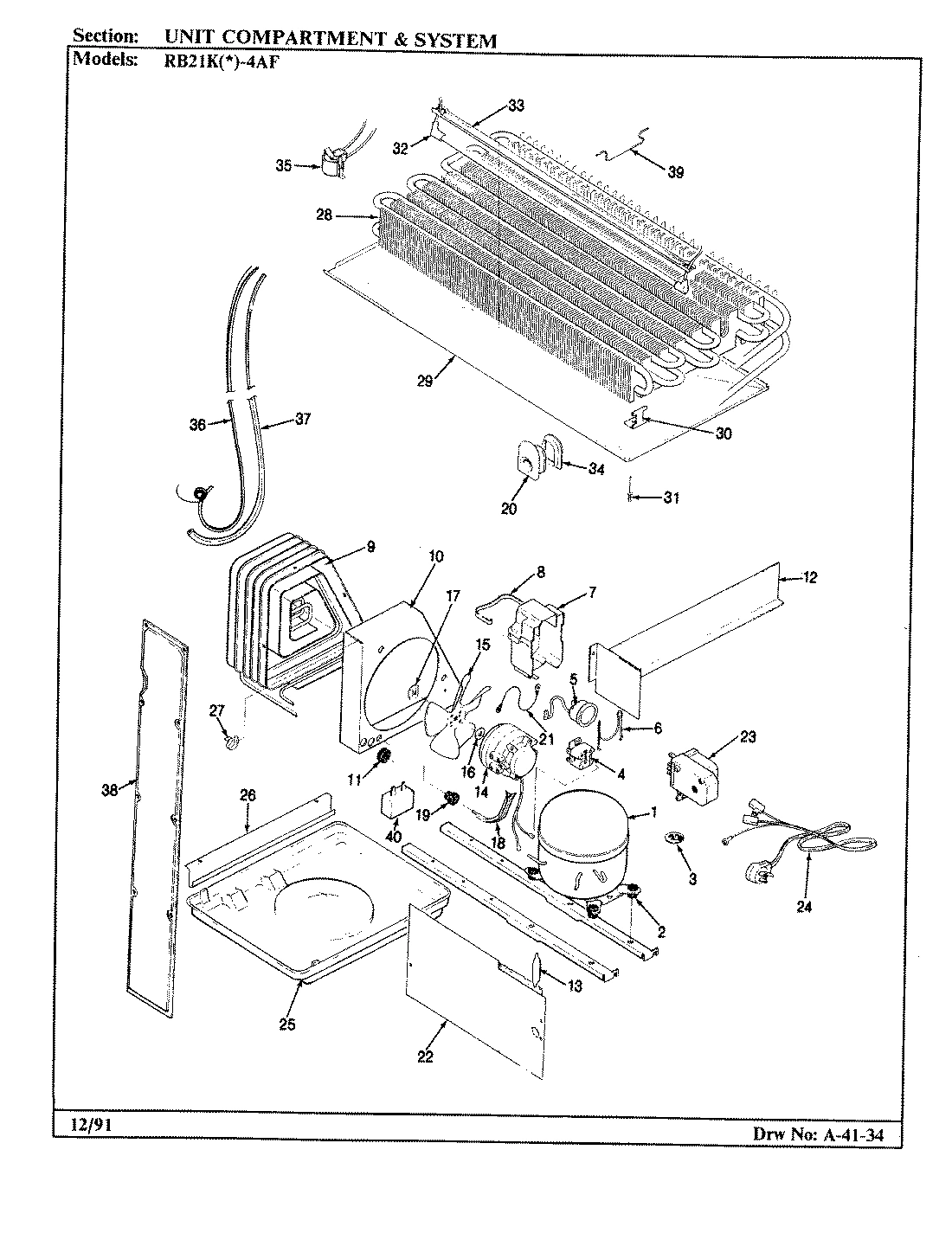

02 - UNIT COMPARTMENT & SYSTEM

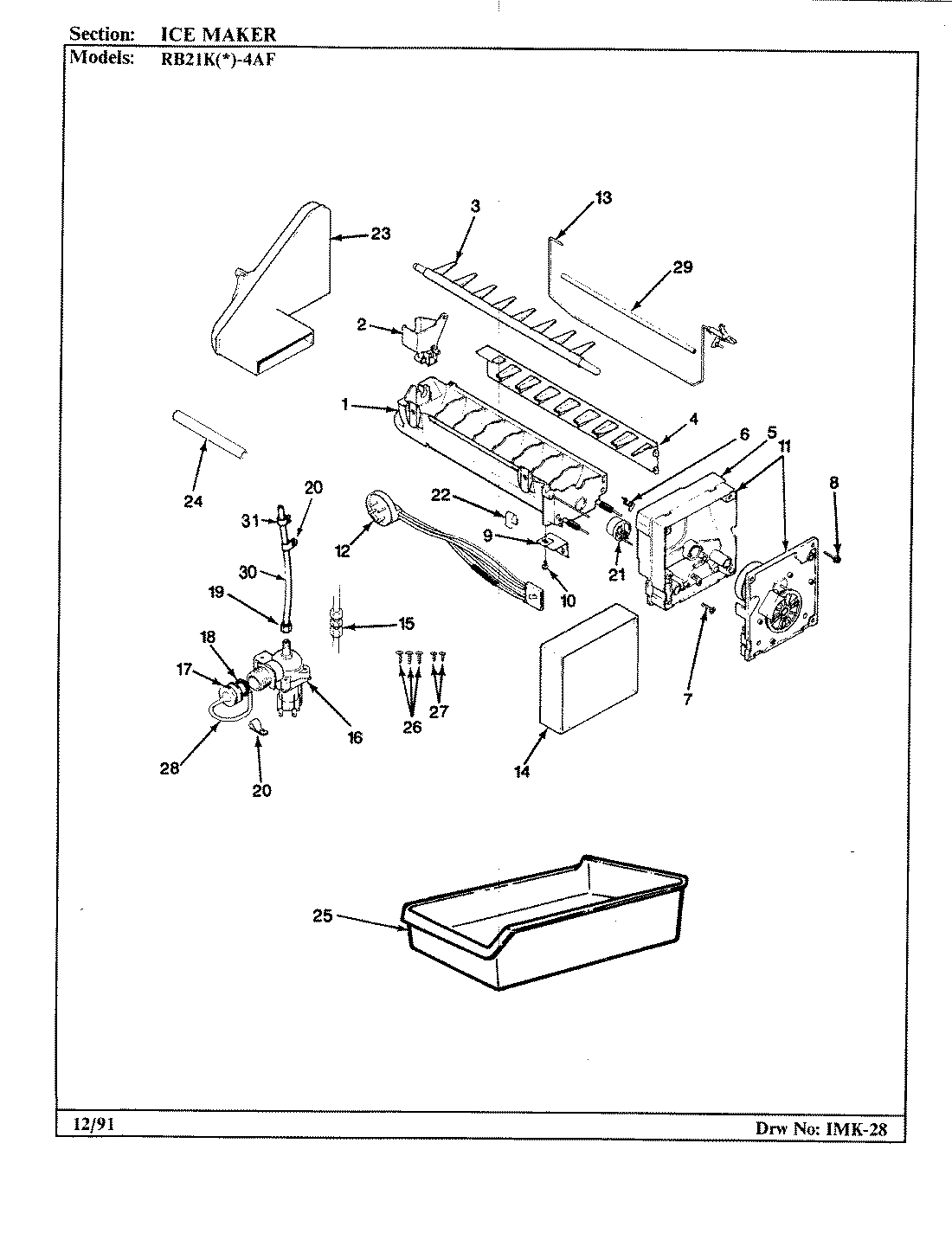

01 - ICE MAKER
Common parts from model Whirlpool RB21KN4AF REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
20
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
27
CLIP WPL 550422 Contact Us For Availability
27
SCREW WPL 4010181 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
CLAMP, SPRING WPL 603334 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, HEATER WPL 690211 Contact Us For Availability
34
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
39
WIRE HARNESS WPL 688393 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1069022 Contact Us For Availability
× ![]()
