Model Whirlpool RB21FY-3A REFRIGERATOR – Common Parts & Diagrams

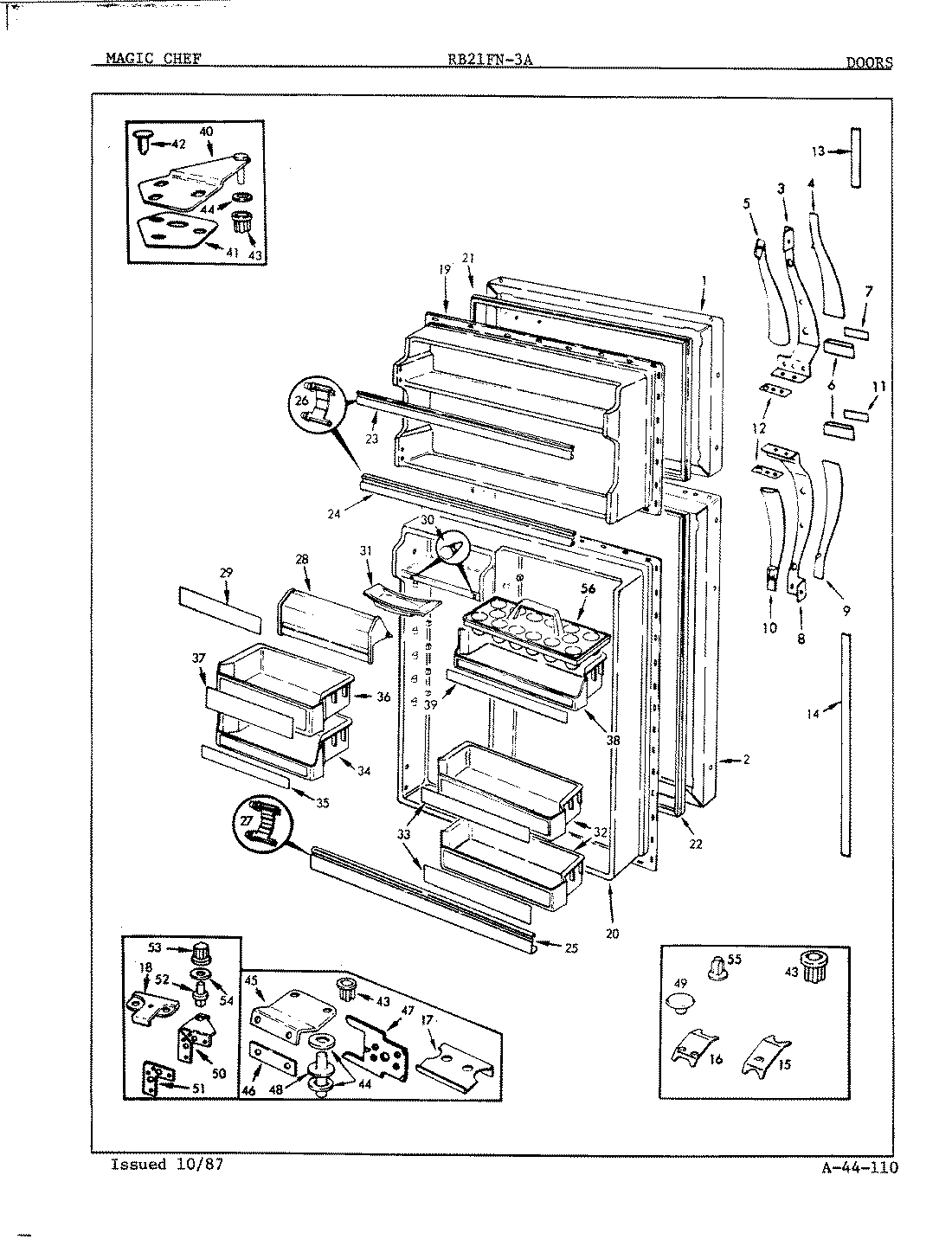

01 - DOORS

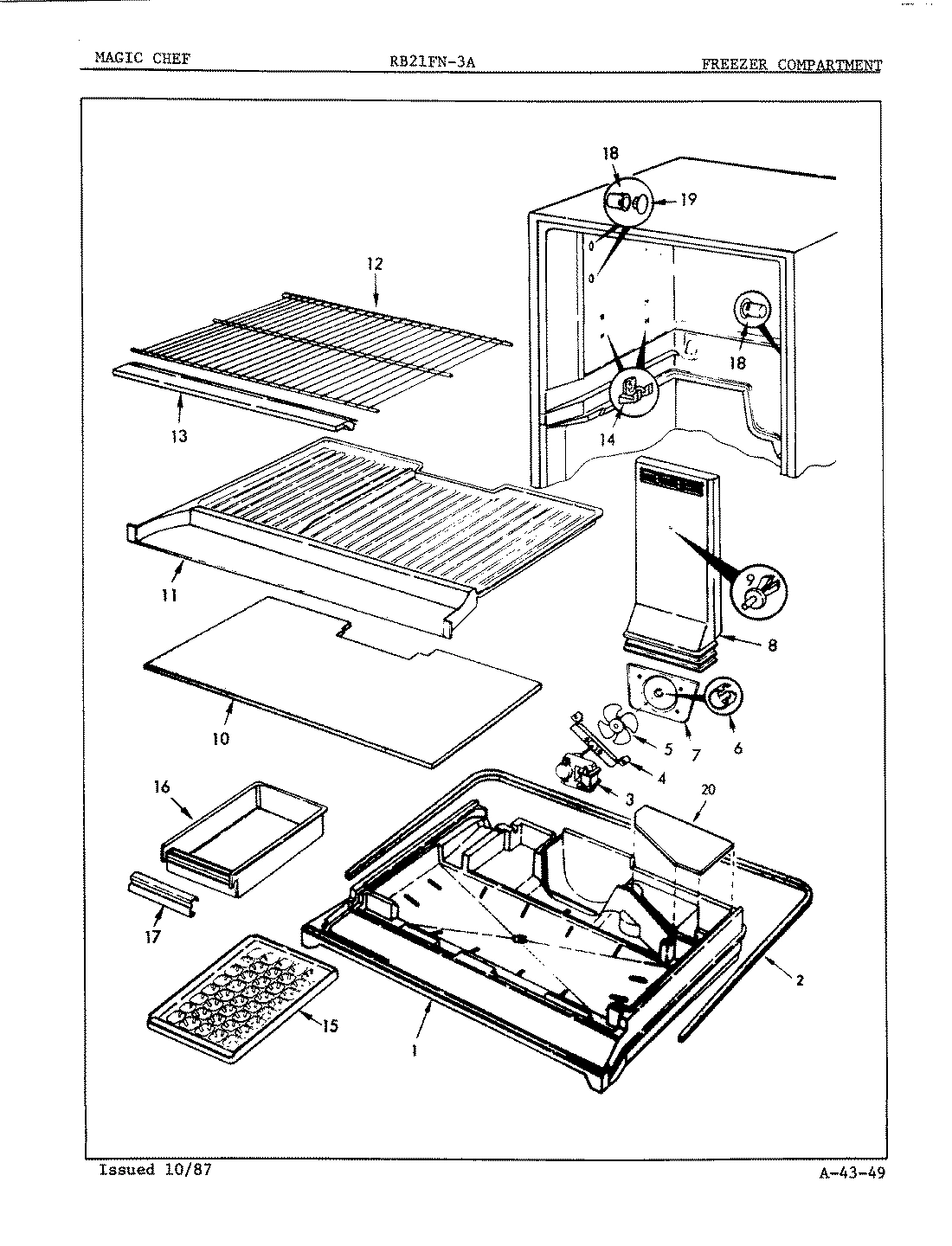

02 - FREEZER COMPARTMENT

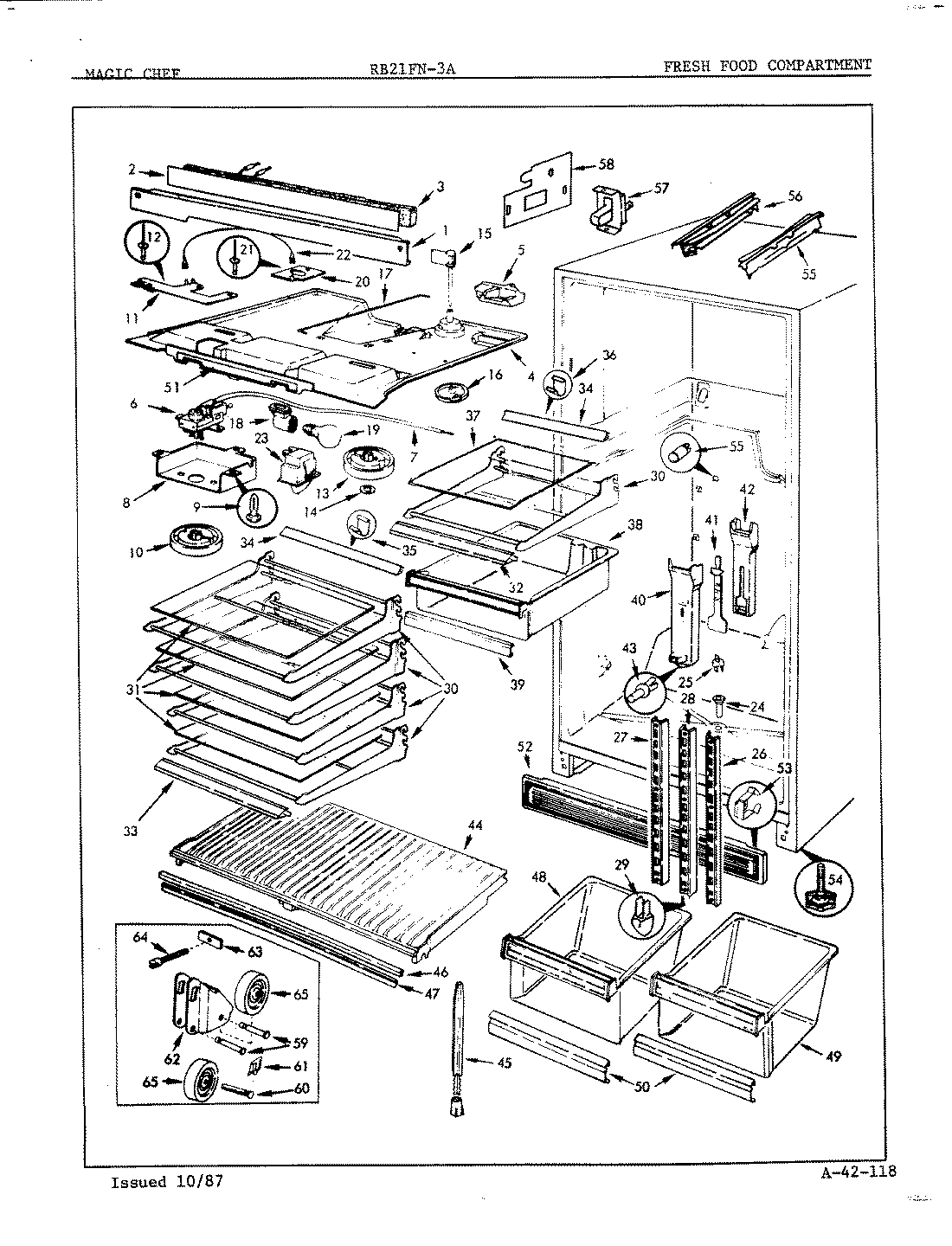

03 - FRESH FOOD COMPARTMENT

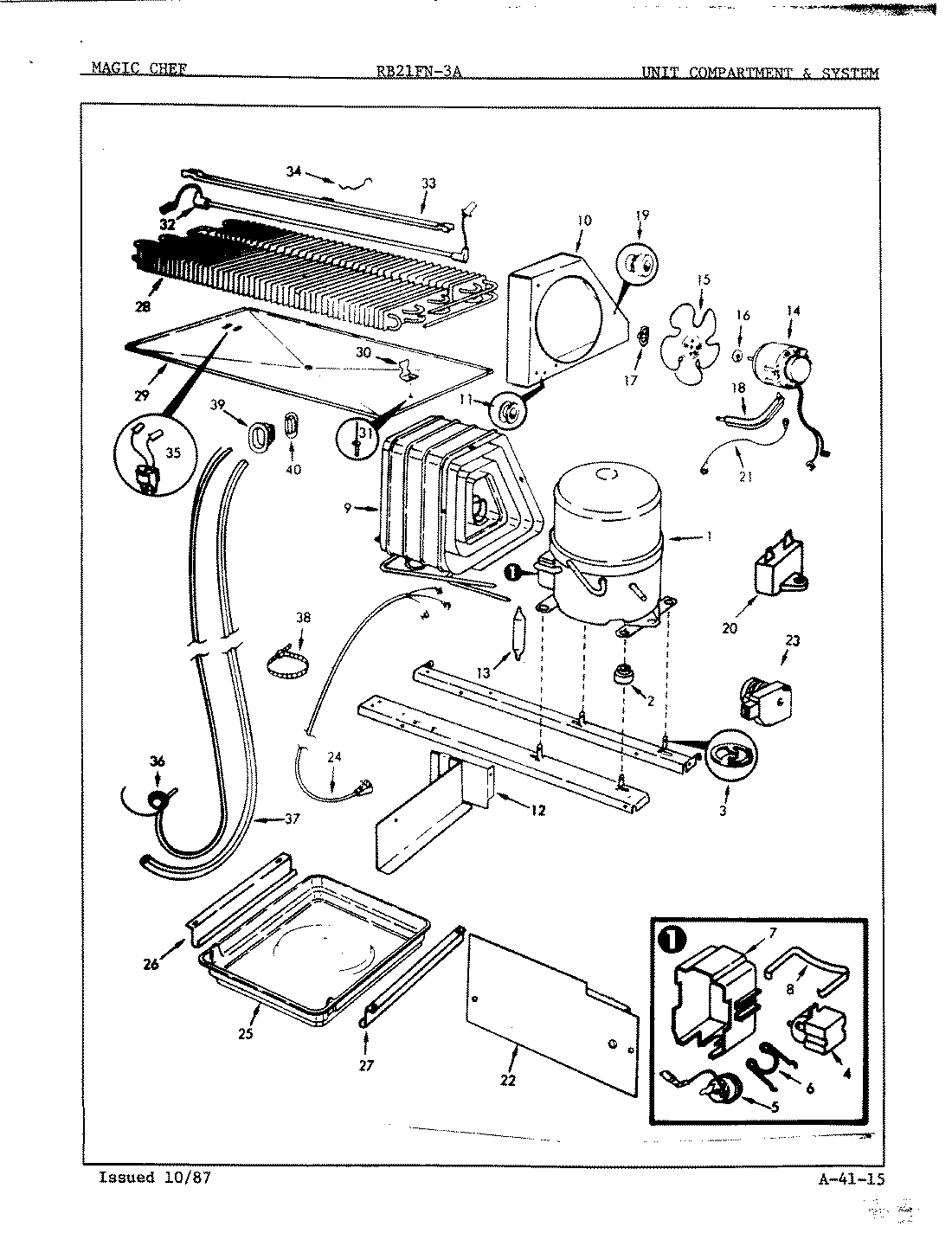

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB21FY-3A REFRIGERATOR
1
OUTER PANEL WPL 6003316HW Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666071 Contact Us For Availability
1
DIVIDER, MULLION (HW) WPL 657972HW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
OUTER PANEL WPL 6003254HW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL WPL 663257 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
DOOR HANDLE WPL 604911 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605602 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
INSERT WPL 604893 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008544 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
INSERT WPL 604901 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
6
SCREW WPL 40100512 Contact Us For Availability
6
BEZEL WPL 604871 Contact Us For Availability
6
SCREW WPL 4050131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
6
TRIM WPL 659981 Contact Us For Availability
7
INSERT WPL 605339 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
DOOR HANDLE WPL 604912 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
INSERT WPL 604894 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
INSERT WPL 604902 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
INSERT WPL 6053310 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604743 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHIM WPL 604882 Contact Us For Availability
12
SHELF WPL 6032327 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
13
HANDLE EXT WPL 605542 Contact Us For Availability
13
TRIM WPL 6041410 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
14
HANDLE EXT WPL 605541 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
DAMPER WPL 681581 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
16
SCREW WPL 9986122 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
DOOR STOP WPL 600301 Contact Us For Availability
17
HANDLE WPL 6013269 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
18
DOOR STOP WPL 604191 Contact Us For Availability
18
SCREW WPL 9986108 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
19
DIVIDER WPL 601166 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SCREW WPL 652755 Contact Us For Availability
20
LINER, DOOR WPL 659324 Contact Us For Availability
20
PLUG WPL 603211 Contact Us For Availability
20
SHELF WPL 606557 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
21
COVER, PLENUM WPL 664802 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 65151185 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
TRIM, DOOR SHELF WPL 65151184 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528905 Contact Us For Availability
25
TRIM WPL 6008031 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
26
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
26
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RETAINER WPL 652461 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
28
DOOR, DAIRY WPL 6040612 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
INSERT WPL 6057332 Contact Us For Availability
29
SCREW WPL 40003728 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
BUMPER, DOOR WPL 282726 Contact Us For Availability
30
FRAME, SHELF WPL 6057010 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
TRAY, BUTTER WPL 299362 Contact Us For Availability
31
GLASS SHELF WPL 655982 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
SHELF, PICK-OFF WPL 6003738 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
INSERT WPL 6057238 Contact Us For Availability
33
TRIM WPL 605243 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
SHELF, PICK-OFF WPL 6003737 Contact Us For Availability
34
TRIM WPL 652763 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
INSERT WPL 6057239 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
DOOR SHELF WPL 6003735 Contact Us For Availability
36
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
INSERT WPL 6057237 Contact Us For Availability
37
GLASS SHELF WPL 6559819 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SHELF, PICK-OFF WPL 6003736 Contact Us For Availability
38
PAN, MEAT WPL 665172 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
INSERT WPL 6057240 Contact Us For Availability
39
HANDLE WPL 6013274 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
40
TUNNEL WPL 6009412 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 663312 Contact Us For Availability
41
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
41
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
42
PLUG BUTTON WPL 5614412 Contact Us For Availability
42
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
43
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
44
WASHER WPL 521851 Contact Us For Availability
44
SCREW WPL 998687 Contact Us For Availability
44
SHELF, CRISPER WPL 666603 Contact Us For Availability
45
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
45
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
46
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
46
TRIM WPL 604542 Contact Us For Availability
47
TAPPING PLATE WPL 606221 Contact Us For Availability
47
SCREW, CENTER HINGE MTG WPL 9987107 Contact Us For Availability
47
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
48
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
48
PAN, CRISPER WPL 60457467 Contact Us For Availability
49
PLUG BUTTON WPL 561869 Contact Us For Availability
49
PAN, CRISPER WPL 60457471 Contact Us For Availability
50
SCREW WPL 4030625 Contact Us For Availability
50
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
50
HANDLE WPL 6013272 Contact Us For Availability
51
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
51
INSERT WPL 6057143 Contact Us For Availability
52
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
52
KICKPLATE WPL 6013819 Contact Us For Availability
53
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
53
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
54
WASHER WPL 542332 Contact Us For Availability
54
LEG, LEVELING WPL 60128 Contact Us For Availability
55
PLUG BUTTON WPL 557829 Contact Us For Availability
55
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
56
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
57
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
58
BRACKET, SWITCH WPL 605831 Contact Us For Availability
59
PIN, WHEEL WPL 298352 Contact Us For Availability
60
PIN, WHEEL WPL 649651 Contact Us For Availability
61
CLIP WPL 602161 Contact Us For Availability
62
BRACKET, ADJUSTING WHEEL WPL 591001 Contact Us For Availability
63
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
64
BOLT WPL 4060871 Contact Us For Availability
65
WHEEL WPL 298342 Contact Us For Availability
× ![]()
Login and Registration Form
