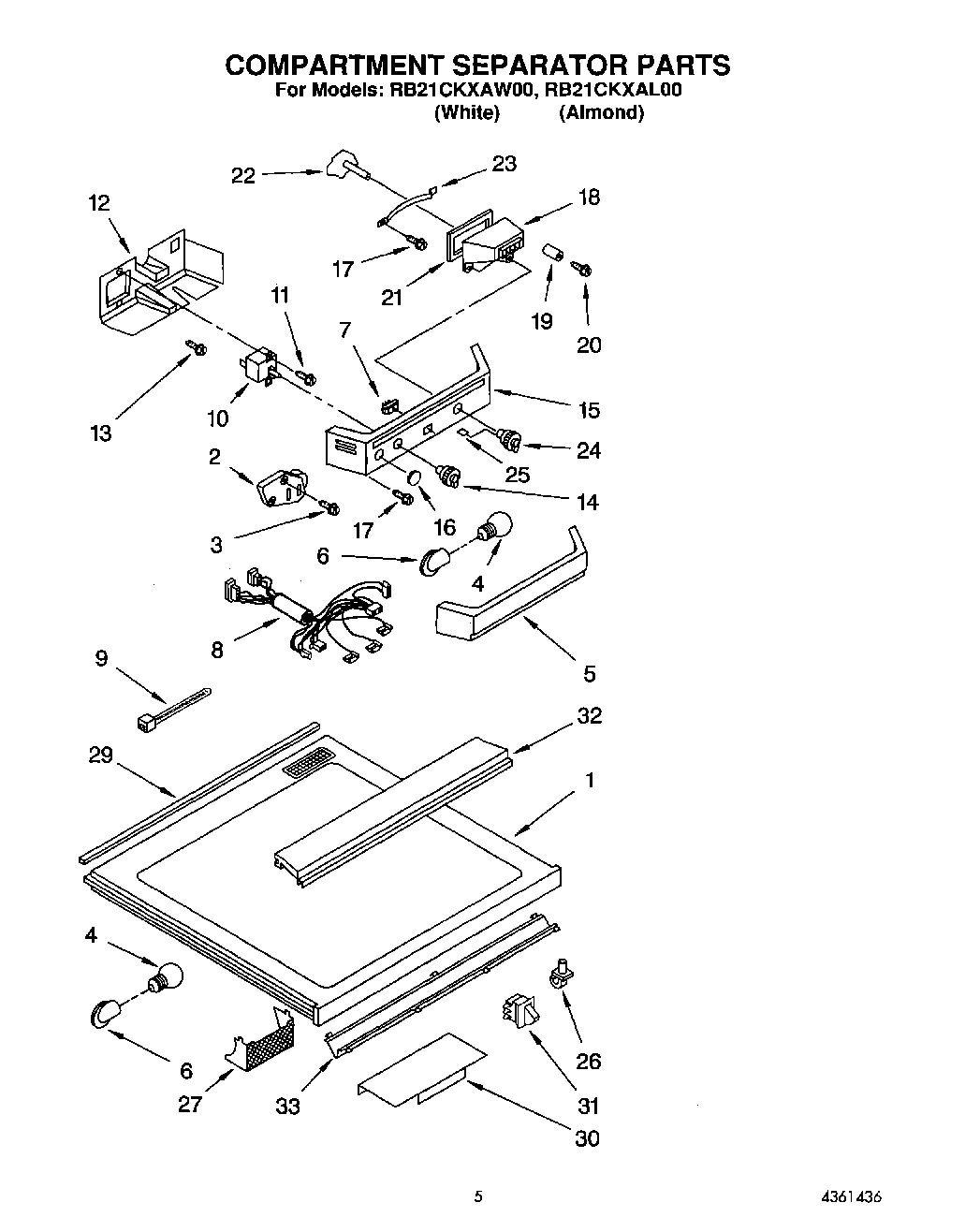

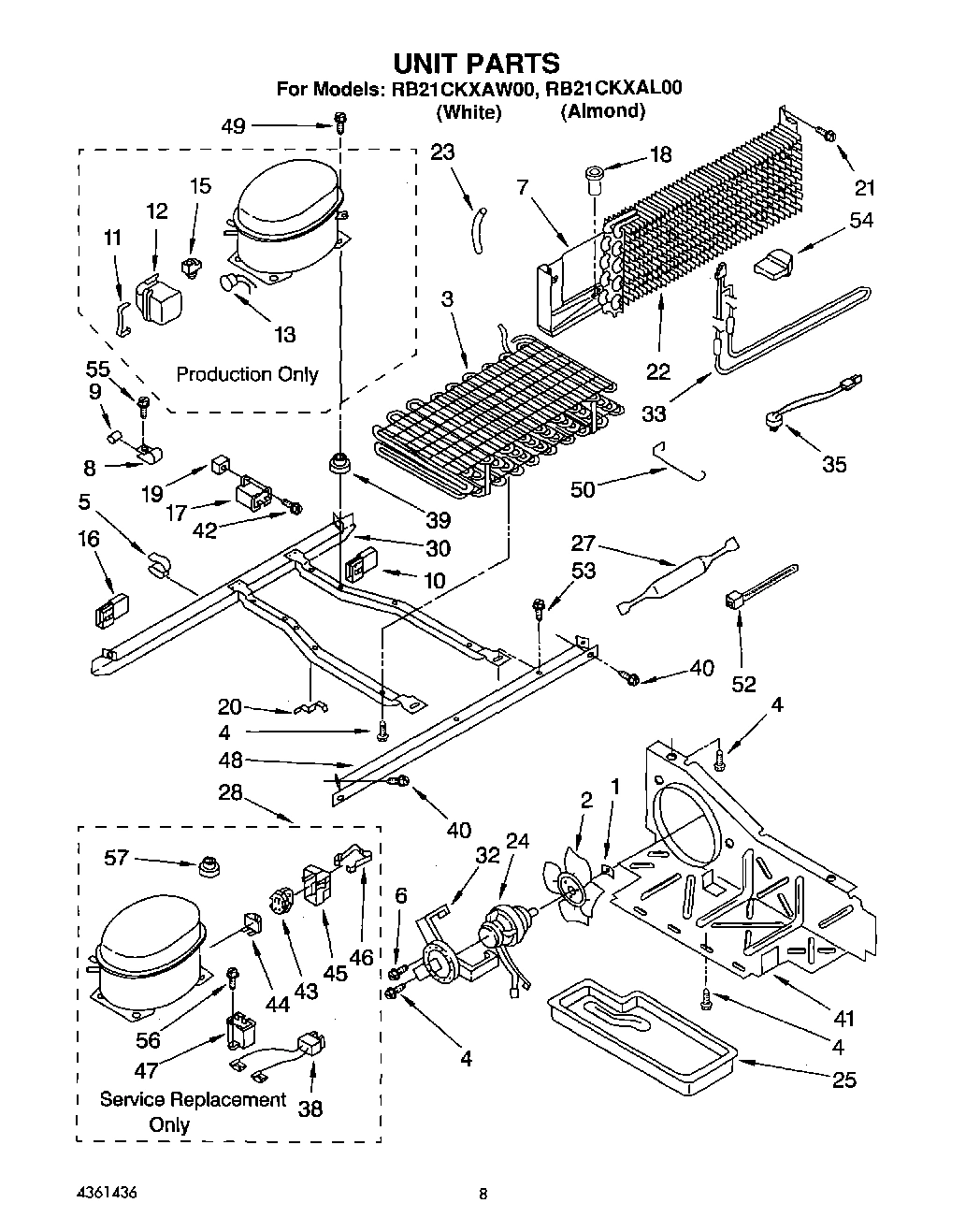

Model Whirlpool RB21CKXAL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2152790 WPL LIT2152790 Contact Us For Availability

WPL LIT2163367 WPL LIT2163367 Contact Us For Availability

WPL LIT2163401 WPL LIT2163401 Contact Us For Availability

WPL LIT4361436 WPL LIT4361436 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2152871 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2161785 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI159863A Contact Us For Availability

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI159862A Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2152806 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160485 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Plate, Tap (4) WPL 1123568 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 2157748 Contact Us For Availability

4

Trim, Shelf F.C. WPL 2163478 Contact Us For Availability

4

Bracket, Door Stop WPL 2157749 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever WPL 1110738 Contact Us For Availability

8

Door Gasket WPL 2160436 Contact Us For Availability

8

Trim, Shelf WPL 1124366 Contact Us For Availability

8

Screw WPL 489327 Contact Us For Availability

8

Door Gasket, Magnetic WPL 2160435 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Scroll, Fan WPL 2152779 Contact Us For Availability

9

Scoop, Air WPL 2160492 Contact Us For Availability

Shim WPL 989711 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Trim, Crisper Cover WPL 1119480 Contact Us For Availability

Heater, Mullion WPL 2154065 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Handle End, Side WPL 1109189 Contact Us For Availability

Fan Motor WPL 2160412 Contact Us For Availability

Glass, Crisper Cover WPL 1124363 Contact Us For Availability

Clip, Center Rail (4) WPL 2149060 Contact Us For Availability

Handle WPL 657077 Contact Us For Availability

Fan Blade WPL 2160471 Contact Us For Availability

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Handle, Center WPL 1109057 Contact Us For Availability

WP2149959 Whirlpool Refrigerator Overload Backorder WPL WP2149959 $40.37

Trim, Door Shelf WPL 2163393 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Center Rail WPL 2152836 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

Spacer, Handle Door WPL 943188 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Trim, Basket WPL 2163399 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 2152814 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

16

Screw, 8 x 5/8 WPL 488933 Contact Us For Availability

16

Glass, Shelf WPL 1124367 Contact Us For Availability

17

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

17

Trim, Door WPL 2163392 Contact Us For Availability

17

Shelf, F.C. Full WPL 2163475 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Insert, Handle WPL 2160476 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Pan, Crisper WPL 2152501 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Interior Door Panel WPL 2160431 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Hole Cover, Evaporator WPL 2163406 Contact Us For Availability

Pan, Meat WPL 2152502 Contact Us For Availability

Trim, Door Compartment WPL 1122750 Contact Us For Availability

21

Kit, Foam Slab WPL 876029 Contact Us For Availability

21

Hinge, Center WPL 2147335 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Evaporator WPL 2152776 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Compartment Door, WPL 2152474 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Hole Plug WPL 1103725 Contact Us For Availability

Reflector, Shelf WPL 1110744 Contact Us For Availability

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

24

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Tray, Evaporator WPL 2154114 Contact Us For Availability

Stud-Support (4) WPL 946355 Contact Us For Availability

Trim, Shelf WPL 2152284 Contact Us For Availability

Trim, Door Shelf WPL 2152471 Contact Us For Availability

Stud WPL 2155555 Contact Us For Availability

Stud, Front (2) WPL 946356 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

28

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Shelf, Full Cantilever WPL 1120135 Contact Us For Availability

29

Shim, Bottom WPL 1123379 Contact Us For Availability

29

Retainer, Insert WPL 935873 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Nameplate WPL 2160005 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Trim, Door Shelf WPL 2152490 Contact Us For Availability

33

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $8.55

33

Heater, Defrost WPL 2162083 Contact Us For Availability

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

34

Trim, Door Shelf WPL 2152472 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

35

Grille WPL 1129001 Contact Us For Availability

35

Trim, Door Shelf WPL 2152473 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

36

End Cap, Trim WPL 1115364 Contact Us For Availability

37

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

37

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

38

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Grommet (4) WPL 2162067 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

41

Air Baffle WPL 2155566 Contact Us For Availability

41

Tape Strip WPL 991259 Contact Us For Availability

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Overload WPL 1108114 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

45

Cover WPL 1105055 Contact Us For Availability

45

For Service Compressor Only WPL 1108115 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

48

Cover, Unit WPL 2160490 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

54

Support (2) WPL 1115128 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
