Model Whirlpool RB19KN-00 REFRIGERATOR – Common Parts & Diagrams
02 - FRESH FOOD COMPARTMENT
01 - FREEZER COMPARTMENT

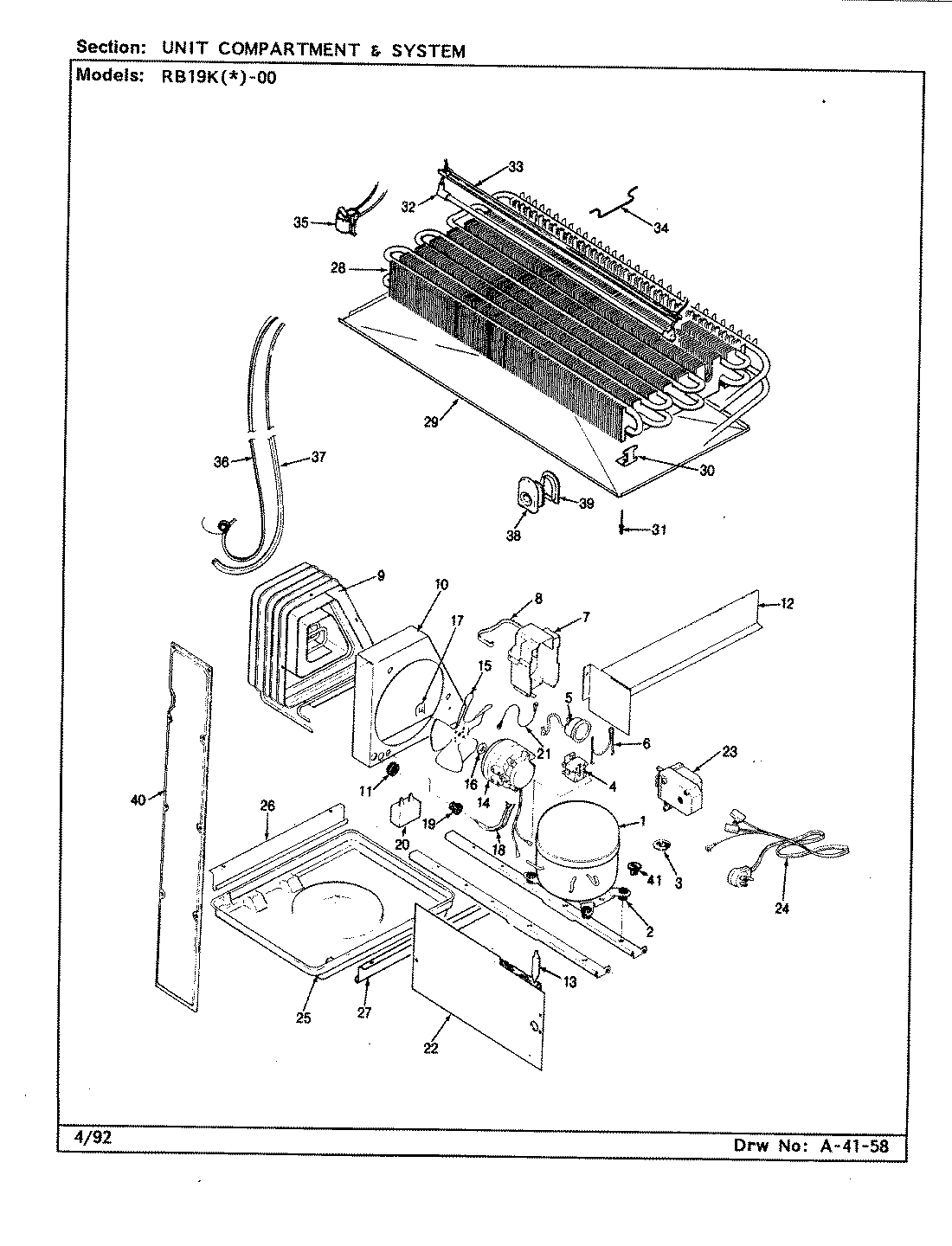

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB19KN-00 REFRIGERATOR
1
GROMMET WPL 545318 Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
1
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. WPL 686002 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
ORIFICE ASSY WPL 679152 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BAFFLE WPL 664932 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
BULB, LIGHT WPL 681231 Contact Us For Availability
13
COVER, PLENUM WPL 664805 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
INSERT WPL 6057165 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
RIVET WPL 263972 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
KNOB, CONTROL WPL 686001 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
24
SHELF WPL 602239 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
STUD WPL 216979 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
TIP WPL 245803 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
TRIVET WPL 682251 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SCREW WPL 4020131 Contact Us For Availability
28
BRACKET, SWITCH WPL 605831 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
LEG, LEVELING WPL 60128 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SCREW WPL 6527554 Contact Us For Availability
31
DIVIDER, MULLION (WHT) WPL 684342WW Contact Us For Availability
31
WIRE HARNESS MULLION WPL 691461 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER WPL 688292 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
INSULATION WPL 601402 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
KICKPLATE WPL 689802 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
COVER, CRANK WPL 674931 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
37
SCREW WPL 6527513 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
DISC, CRANK COVER WPL 690371 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 691591 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1070992 Contact Us For Availability
× ![]()
