Model Whirlpool RB19KA-1A REFRIGERATOR – Common Parts & Diagrams

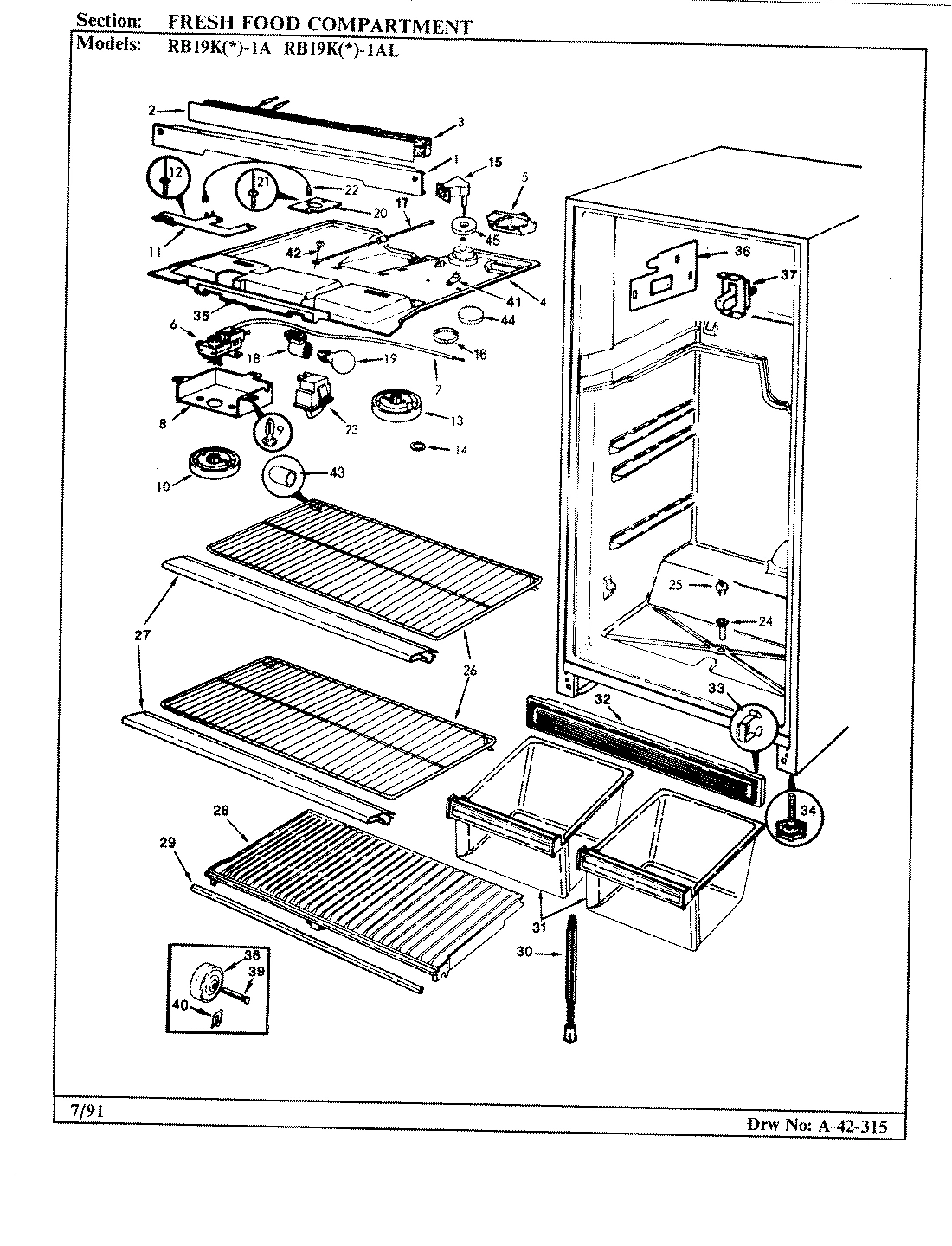

03 - FRESH FOOD COMPARTMENT

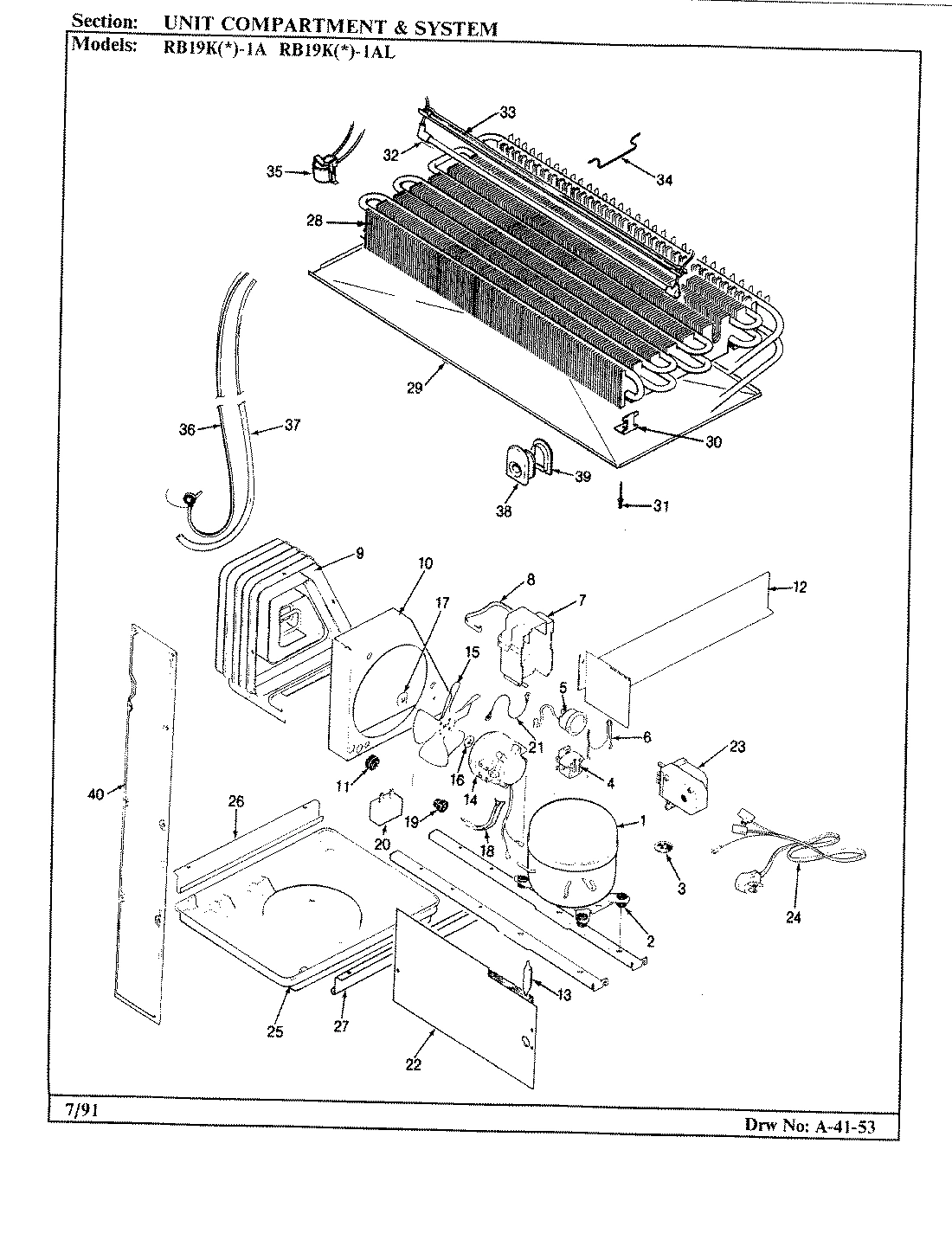

04 - UNIT COMPARTMENT & SYSTEM

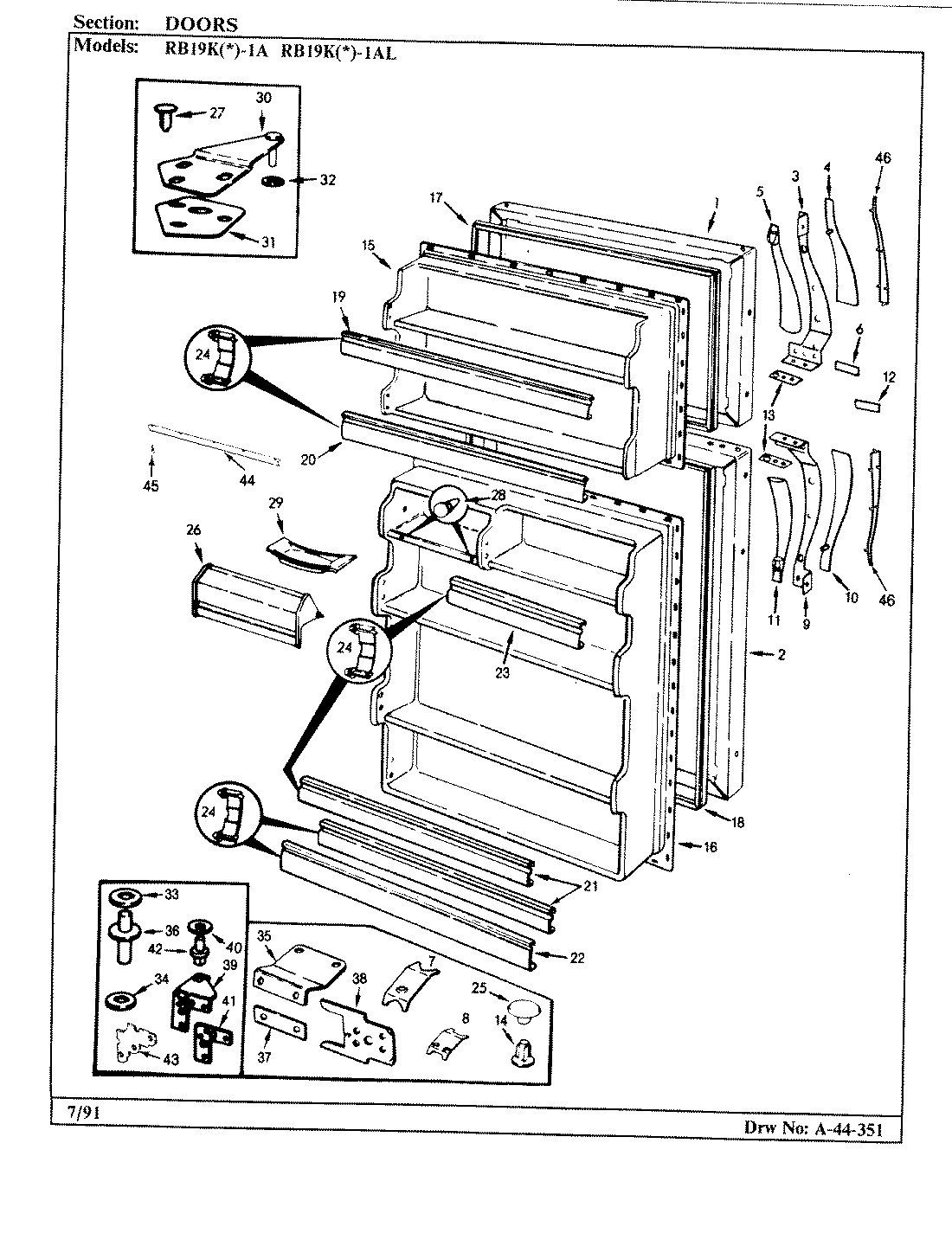

01 - DOORS

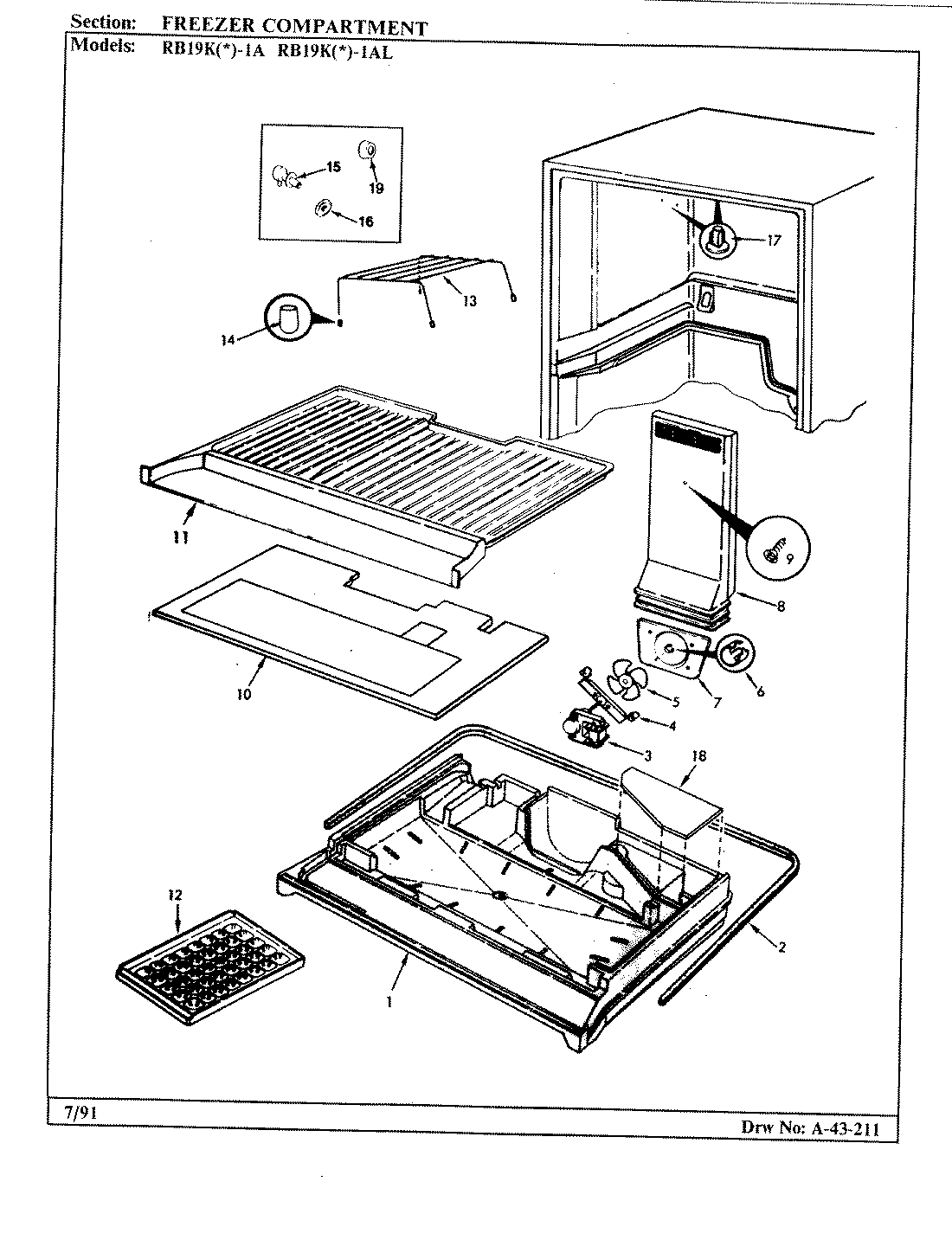

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB19KA-1A REFRIGERATOR
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720451AM Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
2
HEATER WIRE WPL 688311 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684731AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL----NA WPL 688662 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
INSULATION WPL 685772 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
INSERT, HANDLE WPL 680161 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT, HANDLE WPL 6060315 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
DOOR HANDLE WPL 662554 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
9
SCREW WPL 9986122 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
10
KNOB, CONTROL WPL 686001 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT WPL 604451 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
KNOB, FRZ. WPL 686002 Contact Us For Availability
13
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
13
TRIVET WPL 682593 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
14
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
14
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
15
GASKET WPL 675582 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
LINER, DOOR WPL 6592818 Contact Us For Availability
15
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
16
COVER, CRANK WPL 674931 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SCREW WPL 652755 Contact Us For Availability
16
CAP, CONNECTOR WPL 681871 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
17
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
17
PLUG BUTTON WPL 669202 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
18
SOCKET, LIGHT WPL 605772 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
18
COVER, PLENUM WPL 664805 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
19
SCREW WPL 652751 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 65151334 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
25
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
26
SHELF WPL 602234 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
DOOR, DAIRY WPL 6040629 Contact Us For Availability
27
TRIM WPL 681368 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
27
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
28
SHELF, CRISPER WPL 600196 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
BUMPER, DOOR WPL 282726 Contact Us For Availability
29
TRIM WPL 604542 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
TRAY, BUTTER WPL 299362 Contact Us For Availability
30
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
HINGE, UPPER WPL 5370920 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PAN, CRISPER WPL 60457163 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
32
KICKPLATE WPL 601387 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
WASHER WPL 542332 Contact Us For Availability
33
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
34
LEG, LEVELING WPL 686641 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
WASHER WPL 542331 Contact Us For Availability
34
SCREW WPL 998687 Contact Us For Availability
35
INSERT WPL 6057144 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
HINGE, CENTER WPL 688112 Contact Us For Availability
36
SCREW WPL 4020131 Contact Us For Availability
36
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
37
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
38
WHEEL WPL 298342 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
SCREW WPL 6527524 Contact Us For Availability
38
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
39
PIN, WHEEL WPL 298352 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
39
HINGE, LOWER WPL 677146 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
CLIP WPL 602161 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
40
WASHER WPL 674834 Contact Us For Availability
41
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
42
SCREW WPL 6527513 Contact Us For Availability
42
HINGE PIN WPL 687881 Contact Us For Availability
43
TIP WPL 245803 Contact Us For Availability
43
SCREW WPL 4031001 Contact Us For Availability
43
TAPPING PLATE WPL 657903 Contact Us For Availability
44
DISC, CRANK COVER WPL 690371 Contact Us For Availability
44
GASKET, SECONDARY WPL 685442 Contact Us For Availability
45
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
45
CLIP WPL 524474 Contact Us For Availability
46
INSERT, HANDLE WPL 680174 Contact Us For Availability
× ![]()
