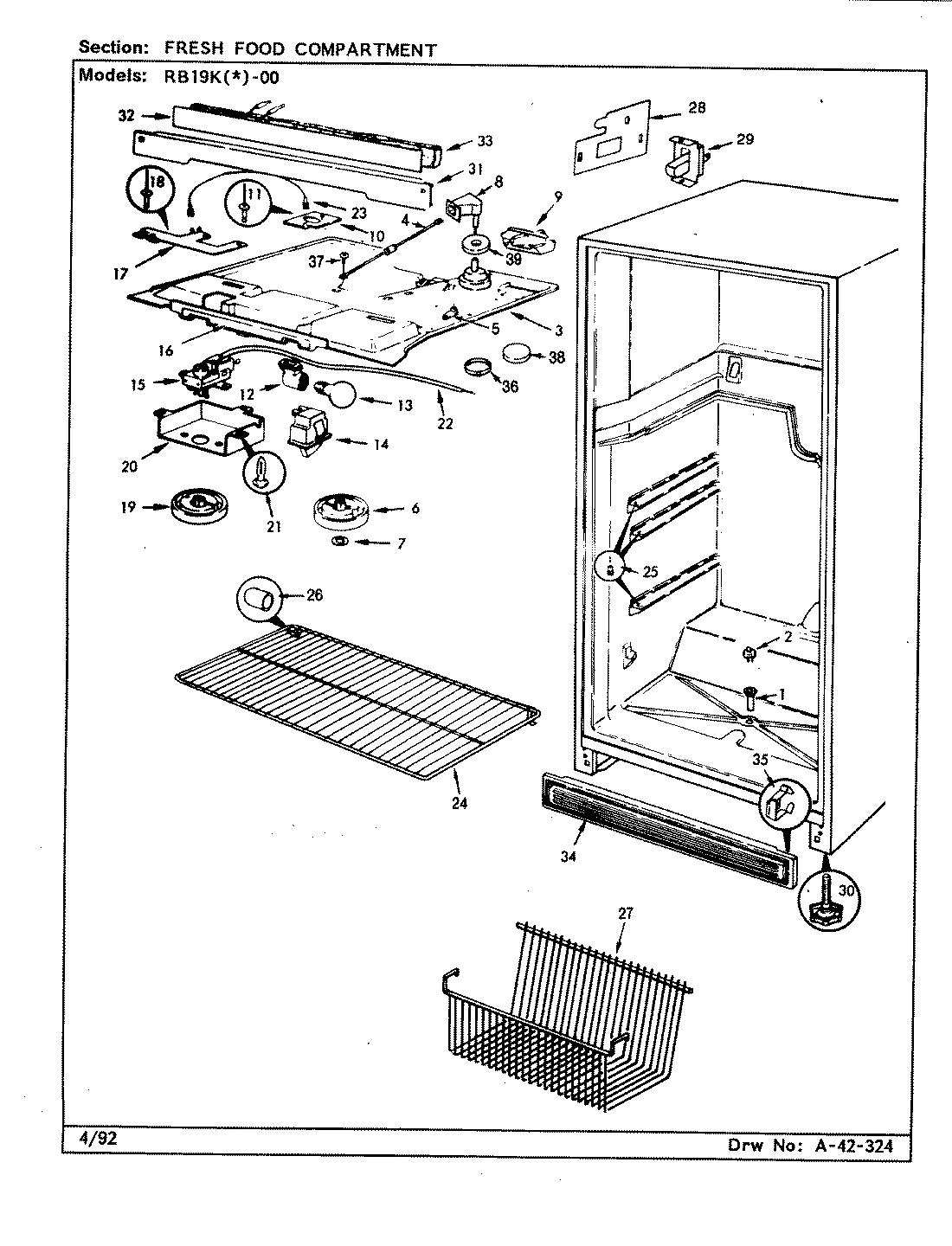

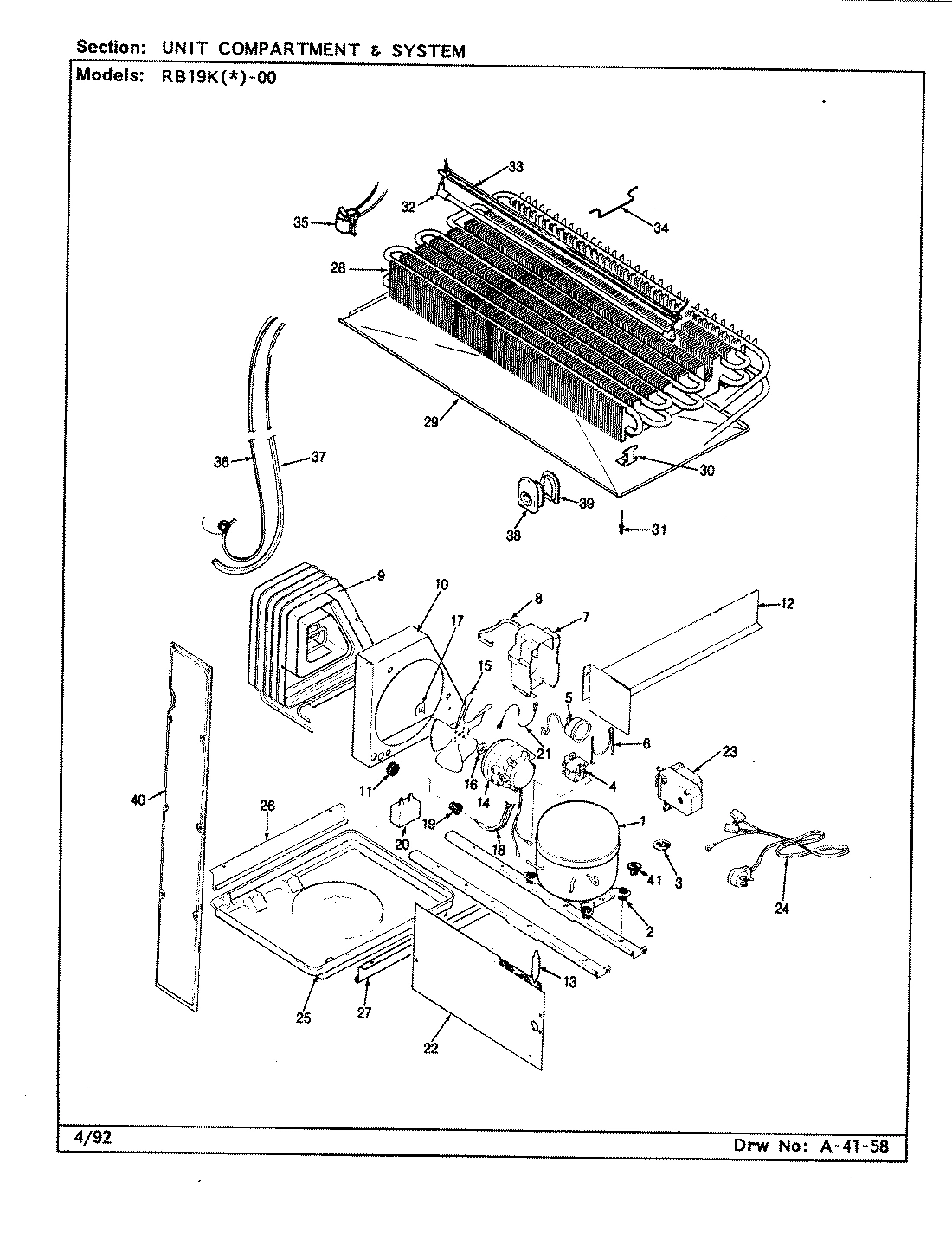

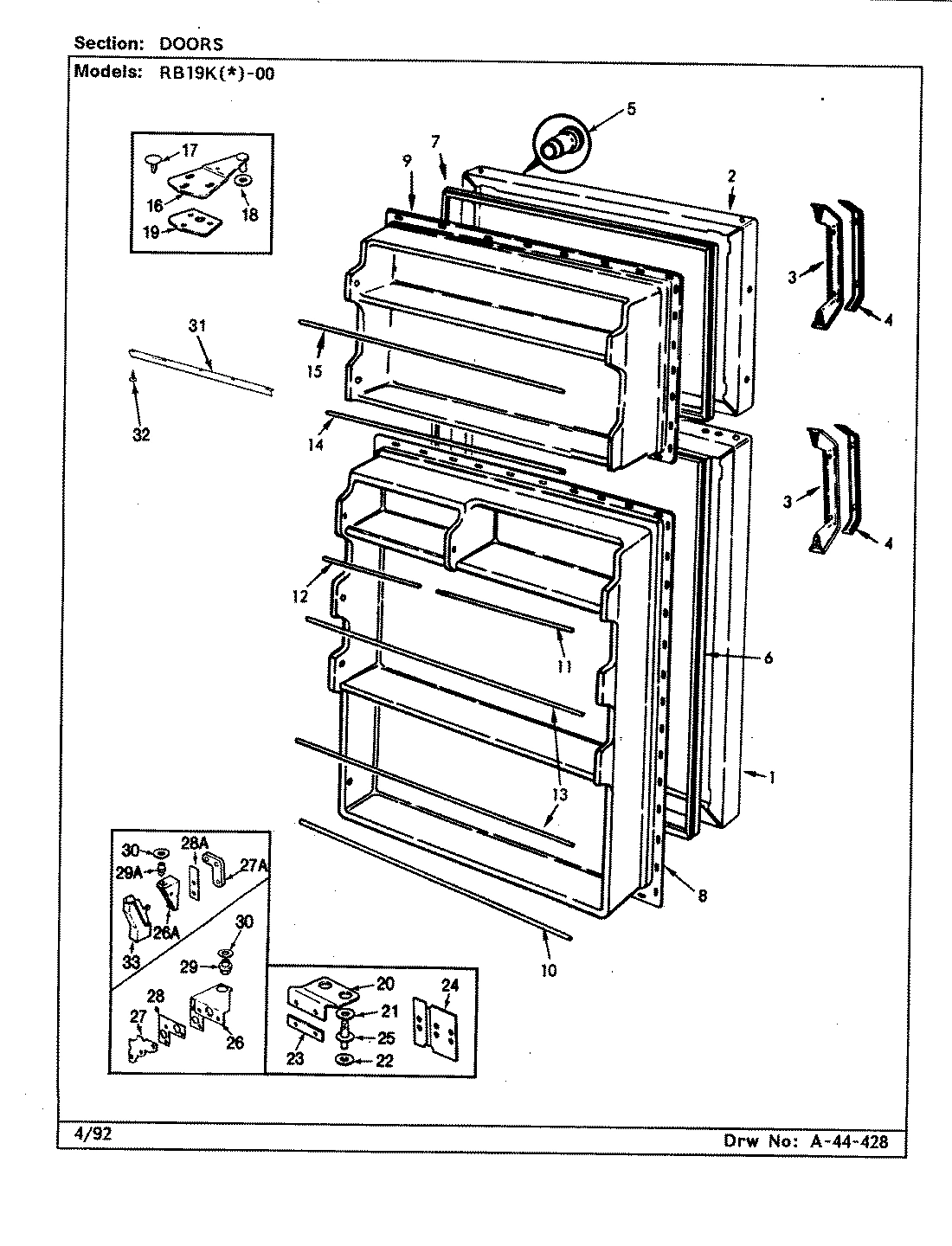

Model Whirlpool RB19KA-00 REFRIGERATOR – Common Parts & Diagrams

1
FOAM TRAY
FOAM TRAY WPL 675193 Contact Us For Availability
View on Model
1
SEAL, FRONT CORNER
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
View on Model
1
GROMMET
GROMMET WPL 545318 Contact Us For Availability
View on Model
1
PANEL, F.F. DOOR (ALM)
PANEL, F.F. DOOR (ALM) WPL 684737AM Contact Us For Availability
View on Model
2
GROMMET, COMPRESSOR
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
View on Model
2
SEAL
SEAL WPL 688666 Contact Us For Availability
View on Model
2
CAP, DRAIN TUBE
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
View on Model
2
PANEL, FRZ. DOOR (ALM)
PANEL, FRZ. DOOR (ALM) WPL 6847418AM Contact Us For Availability
View on Model
2
DOOR INSULATION KIT
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
View on Model
3
SCREW, COMPRESSOR RAIL
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
View on Model
3
CLIP
CLIP WPL 621651 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 4060621 Contact Us For Availability
View on Model
3
MOTOR, EVAPORATOR FAN
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
View on Model
3
TOP, F.F. COMPARTMENT
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 4000611 Contact Us For Availability
View on Model
3
HANDLE, DOOR
HANDLE, DOOR WPL 651563 Contact Us For Availability
View on Model
4
RELAY, START
RELAY, START WPL 665881 Contact Us For Availability
View on Model
4
BRACKET, FAN MOTOR
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
View on Model
4
ROD, FREEZER CONTROL
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
View on Model
4
INSERT
INSERT WPL 651559 Contact Us For Availability
View on Model
4
ACHOR, SCREW
ACHOR, SCREW WPL 667991 Contact Us For Availability
View on Model
5
OVERLOAD
OVERLOAD WPL 6329417 Contact Us For Availability
View on Model
5
BLADE, EVAPORATOR FAN
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
View on Model
5
CRANK, FRZ. CONTROL
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
View on Model
5
RETAINER, NAMEPLATE
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
View on Model
6
CLIP, OVERLOAD
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 405016103 Contact Us For Availability
View on Model
6
KNOB, FRZ.
KNOB, FRZ. WPL 686002 Contact Us For Availability
View on Model
6
GASKET, F.F. DOOR
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
View on Model
7
COVER, TERMINAL
COVER, TERMINAL WPL 665892 Contact Us For Availability
View on Model
7
WASHER, SPRING
WASHER, SPRING WPL 420092900 Contact Us For Availability
View on Model
7
ORIFICE, FAN BLADE
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
View on Model
7
GASKET, FRZ. DOOR
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
View on Model
8
CLIP, TERMINAL COVER
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
View on Model
8
TUNNEL, AIR
TUNNEL, AIR WPL 685923 Contact Us For Availability
View on Model
8
ORIFICE ASSY
ORIFICE ASSY WPL 679152 Contact Us For Availability
View on Model
8
LINER, F.F. DOOR
LINER, F.F. DOOR WPL 688881 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 4140011 Contact Us For Availability
View on Model
9
U-NUT, CONDENSER
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
View on Model
9
CONDENSER
CONDENSER WPL RA438711 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 40001531 Contact Us For Availability
View on Model
9
SEAL, AIR TUNNEL----NA
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
View on Model
9
DEFLECTOR
DEFLECTOR WPL 601202 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 652755 Contact Us For Availability
View on Model
9
LINER, FRZ DOOR
LINER, FRZ DOOR WPL 6592821 Contact Us For Availability
View on Model
10
SHROUD, CONDENSER
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
View on Model
10
COVER, EVAPORATOR
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
View on Model
10
BRACKET, LIGHT SOCKET
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
View on Model
10
TRIM
TRIM WPL 5360524 Contact Us For Availability
View on Model
11
GROMMET, CONDENSER TUBING
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
View on Model
11
BAFFLE
BAFFLE WPL 664932 Contact Us For Availability
View on Model
11
SEAL, FROST CHEST
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
View on Model
11
BOTTOM, FRZ.
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
View on Model
11
TRIM
TRIM WPL 5360510 Contact Us For Availability
View on Model
12
ICE CUBE TRAY
ICE CUBE TRAY WPL 601121 Contact Us For Availability
View on Model
12
SOCKET, LIGHT
SOCKET, LIGHT WPL 605771 Contact Us For Availability
View on Model
12
TRIM
TRIM WPL 5360520 Contact Us For Availability
View on Model
13
COVER, PLENUM
COVER, PLENUM WPL 664805 Contact Us For Availability
View on Model
13
BULB, LIGHT
BULB, LIGHT WPL 681231 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 6527533 Contact Us For Availability
View on Model
14
MOTOR, CONDENSER FAN
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
View on Model
14
SWITCH, LIGHT
SWITCH, LIGHT WPL 557321 Contact Us For Availability
View on Model
14
TRIM
TRIM WPL 5360526 Contact Us For Availability
View on Model
15
BLADE, CONDENSER FAN
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 4060131 Contact Us For Availability
View on Model
15
CONTROL, TEMPERATURE
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
View on Model
15
TRIM
TRIM WPL 5360517 Contact Us For Availability
View on Model
16
WASHER
WASHER WPL 199134 Contact Us For Availability
View on Model
16
INSERT
INSERT WPL 6057165 Contact Us For Availability
View on Model
16
HINGE, UPPER
HINGE, UPPER WPL 5370920 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 6527552 Contact Us For Availability
View on Model
17
BRACKET, CONTROL
BRACKET, CONTROL WPL 601471 Contact Us For Availability
View on Model
17
PLUG BUTTON, HINGE SCREW (ALM)
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
View on Model
18
BRACKET, FAN MOTOR
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
View on Model
18
RIVET
RIVET WPL 263972 Contact Us For Availability
View on Model
18
WASHER
WASHER WPL 542332 Contact Us For Availability
View on Model
19
GROMMET, BRACKET
GROMMET, BRACKET WPL 569331 Contact Us For Availability
View on Model
19
KNOB, CONTROL
KNOB, CONTROL WPL 686001 Contact Us For Availability
View on Model
19
SHIM, UPPER HINGE
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
View on Model
20
CAPACITOR, RUN
CAPACITOR, RUN WPL 658892 Contact Us For Availability
View on Model
20
SCREW
SCREW WPL 4050121 Contact Us For Availability
View on Model
20
COVER, TEMPERATURE CONTROL
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
View on Model
20
SCREW
SCREW WPL 6527555 Contact Us For Availability
View on Model
20
HINGE, CENTER
HINGE, CENTER WPL 688112 Contact Us For Availability
View on Model
21
GROUND WIRE
GROUND WIRE WPL 296753 Contact Us For Availability
View on Model
21
WASHER, CENTER HINGE (UPPER)
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
View on Model
22
COVER, UNIT COMPARTMENT
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
View on Model
22
SCREW
SCREW WPL 998645 Contact Us For Availability
View on Model
22
PLASTIC TUBE
PLASTIC TUBE WPL 400812 Contact Us For Availability
View on Model
22
WASHER
WASHER WPL 542331 Contact Us For Availability
View on Model
23
SCREW
SCREW WPL 4050071 Contact Us For Availability
View on Model
23
TIMER, DEFROST
TIMER, DEFROST WPL 665565 Contact Us For Availability
View on Model
23
GROUND WIRE
GROUND WIRE WPL 2967528 Contact Us For Availability
View on Model
23
SHIM, CENTER HINGE
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
View on Model
24
CORD, POWER
CORD, POWER WPL 528902 Contact Us For Availability
View on Model
24
SHELF
SHELF WPL 602239 Contact Us For Availability
View on Model
24
TAPPING PLATE, CENTER HINGE
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
View on Model
25
PAN, DRAIN
PAN, DRAIN WPL 682361 Contact Us For Availability
View on Model
25
STUD
STUD WPL 216979 Contact Us For Availability
View on Model
25
PIN, CENTER HINGE
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
View on Model
26
RAIL, DRAIN PAN (RT)
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
View on Model
26
TIP
TIP WPL 245803 Contact Us For Availability
View on Model
26
HINGE, LOWER
HINGE, LOWER WPL 6771410 Contact Us For Availability
View on Model
27
RAIL, DRAIN PAN (LT)
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
View on Model
27
TRIVET
TRIVET WPL 682251 Contact Us For Availability
View on Model
27
SCREW
SCREW WPL 4031001 Contact Us For Availability
View on Model
27
TAPPING PLATE
TAPPING PLATE WPL 657903 Contact Us For Availability
View on Model
28
EVAPORATOR
EVAPORATOR WPL RA4362011 Contact Us For Availability
View on Model
28
SCREW
SCREW WPL 4020131 Contact Us For Availability
View on Model
28
BRACKET, SWITCH
BRACKET, SWITCH WPL 605831 Contact Us For Availability
View on Model
28
SHIM, LOWER HINGE
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
View on Model
29
TRAY, DRIP
TRAY, DRIP WPL 601018 Contact Us For Availability
View on Model
29
SWITCH, MULLION HEATER
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
View on Model
29
HINGE PIN
HINGE PIN WPL 687881 Contact Us For Availability
View on Model
30
BRACKET, COIL TO TRAY
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
View on Model
30
LEG, LEVELING
LEG, LEVELING WPL 60128 Contact Us For Availability
View on Model
30
WASHER, LOWER HINGE
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
View on Model
30
WASHER
WASHER WPL 674834 Contact Us For Availability
View on Model
31
RIVET
RIVET WPL 263979 Contact Us For Availability
View on Model
31
SCREW
SCREW WPL 6527554 Contact Us For Availability
View on Model
31
DIVIDER, MULLION (ALM)
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
View on Model
31
WIRE HARNESS
WIRE HARNESS WPL 689031 Contact Us For Availability
View on Model
31
GASKET, SECONDARY
GASKET, SECONDARY WPL 685442 Contact Us For Availability
View on Model
32
HEATER, DEFROST
HEATER, DEFROST WPL 6010635 Contact Us For Availability
View on Model
32
INSULATION
INSULATION WPL 685772 Contact Us For Availability
View on Model
32
HEATER WIRE
HEATER WIRE WPL 688311 Contact Us For Availability
View on Model
32
CLIP
CLIP WPL 524474 Contact Us For Availability
View on Model
33
SHIELD, DEFROST HEATER
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
View on Model
33
INSULATION
INSULATION WPL 601402 Contact Us For Availability
View on Model
34
CLIP, DEFROST HEATER
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
View on Model
34
KICKPLATE
KICKPLATE WPL 6023738 Contact Us For Availability
View on Model
35
THERMOSTAT, DEFROST
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
View on Model
35
SCREW
SCREW WPL 4000171 Contact Us For Availability
View on Model
35
CLIP, KICKPLATE
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
View on Model
36
HEAT EXCHANGER
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
View on Model
36
COVER, CRANK
COVER, CRANK WPL 674931 Contact Us For Availability
View on Model
37
COVER, HEAT EXCHANGER
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
View on Model
37
WIRE TIE
WIRE TIE WPL 662231 Contact Us For Availability
View on Model
37
WASHER, CONTROL ROD
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
View on Model
37
SCREW
SCREW WPL 6527513 Contact Us For Availability
View on Model
38
GROMMET, TUBE ENTRY
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
View on Model
38
DISC, CRANK COVER
DISC, CRANK COVER WPL 690371 Contact Us For Availability
View on Model
39
RETAINER, ENTRY GROMMET
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
View on Model
39
RETAINER, MAIN WIRE HARNESS
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
View on Model
39
WIRE HARNESS, MAIN
WIRE HARNESS, MAIN WPL 688821 Contact Us For Availability
View on Model
39
SEAL, TOP TOWER
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
View on Model
40
COVER, WIRE HARNESS
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
View on Model
41
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 1070992 Contact Us For Availability
View on Model
