Model Whirlpool RB19HY-2A REFRIGERATOR – Common Parts & Diagrams

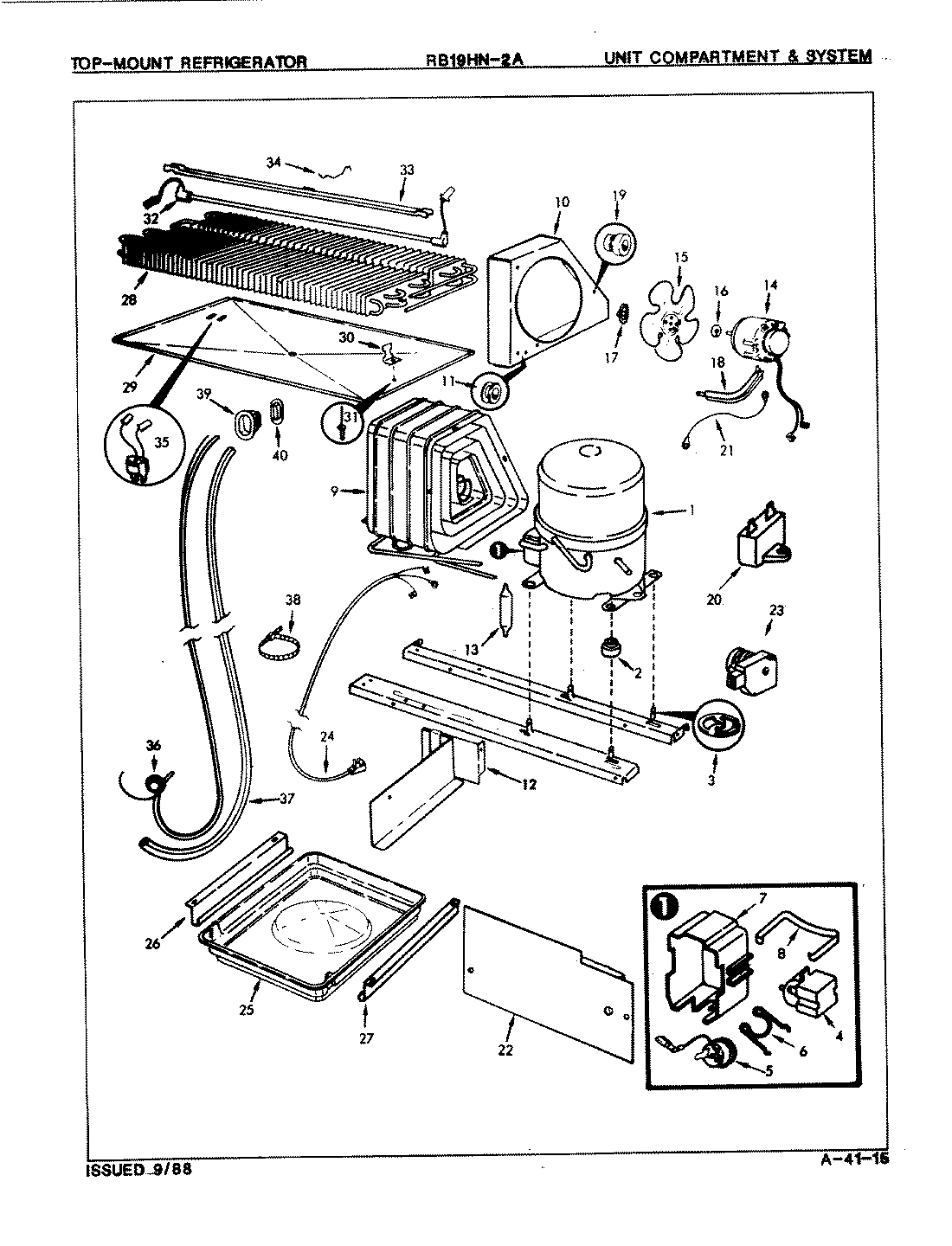

03 - UNIT COMPARTMENT & SYSTEM

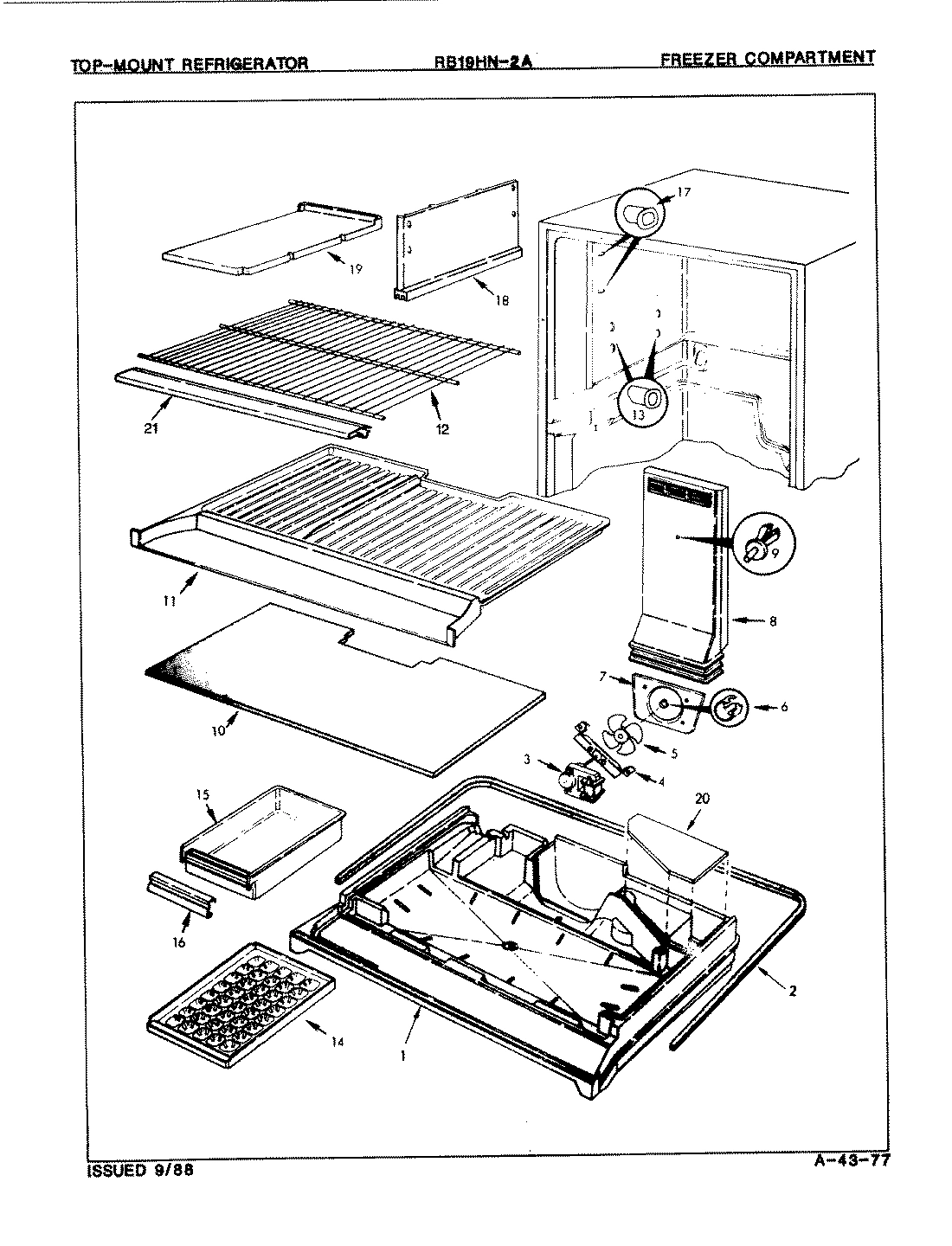

01 - FREEZER COMPARTMENT

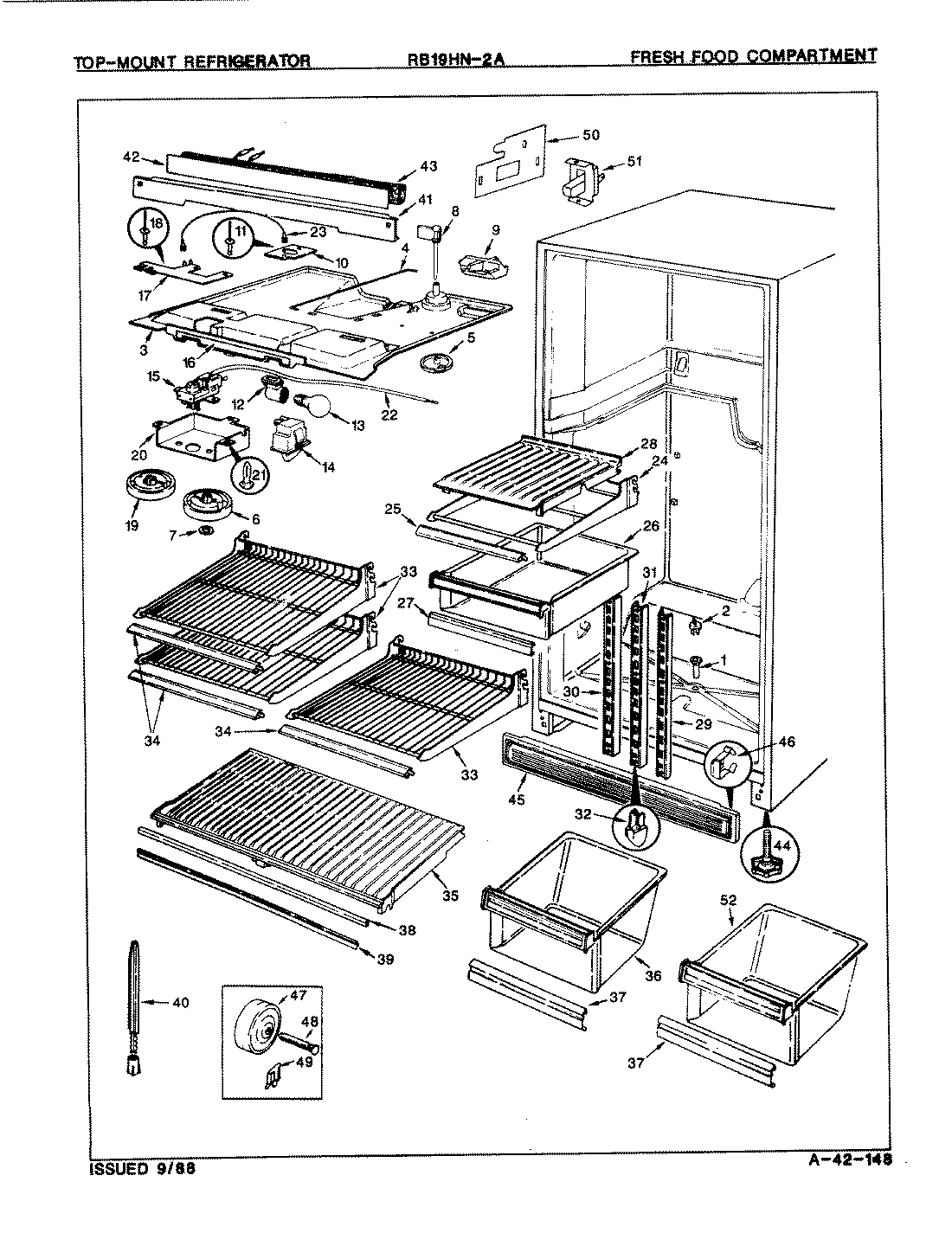

02 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB19HY-2A REFRIGERATOR
1
COMPRESSOR WPL YRA1010 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666061 Contact Us For Availability
1
GROMMET WPL 545318 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 6008554 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
ROD WPL 600783 Contact Us For Availability
5
OVERLOAD WPL 6329416 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
CRANK WPL 681613 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB WPL 681623 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
DAMPER WPL 666091 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SCREW WPL 402017103 Contact Us For Availability
12
STUD WPL 545701 Contact Us For Availability
12
SHELF WPL 6032325 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
13
BULB, LIGHT WPL 681231 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
V NUT WPL 537321 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 681191 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
HANDLE WPL 6013267 Contact Us For Availability
16
INSERT WPL 6057143 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
GROUND WIRE WPL 2967522 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
RIVET WPL 263979 Contact Us For Availability
18
DIVIDER WPL 601165 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHELF WPL 606557 Contact Us For Availability
19
KNOB WPL 681621 Contact Us For Availability
20
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
COVER, PLENUM WPL 664802 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
CANTILEVER TRIM WPL 681369 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
PAN, MEAT WPL 665161 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
HANDLE WPL 6013268 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
COVER, MEAT PAN WPL 600757 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
31
SCREW WPL 40003728 Contact Us For Availability
31
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
SHELF WPL 6041712 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM WPL 681362 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
SHELF, CRISPER WPL 600196 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
PAN, CRISPER WPL 60457466 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
HANDLE WPL 6013270 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
TRIM WPL 604542 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 668561 Contact Us For Availability
40
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1051251 Contact Us For Availability
41
WIRE HARNESS WPL 605601 Contact Us For Availability
41
DIVIDER, MULLION (HW) WPL 657972HW Contact Us For Availability
41
SCREW WPL 9986117 Contact Us For Availability
42
HEATER WIRE WPL 601058 Contact Us For Availability
43
INSULATION WPL 601402 Contact Us For Availability
44
LEG, LEVELING WPL 60128 Contact Us For Availability
45
KICKPLATE WPL 6013819 Contact Us For Availability
46
SCREW WPL 4000171 Contact Us For Availability
46
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
47
WHEEL WPL 298342 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
CLIP WPL 602161 Contact Us For Availability
50
BRACKET, SWITCH WPL 605831 Contact Us For Availability
51
SCREW WPL 4020131 Contact Us For Availability
51
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
52
PAN, CRISPER WPL 60457470 Contact Us For Availability
× ![]()
