Model Whirlpool RB19HA-1AL REFRIGERATOR – Common Parts & Diagrams

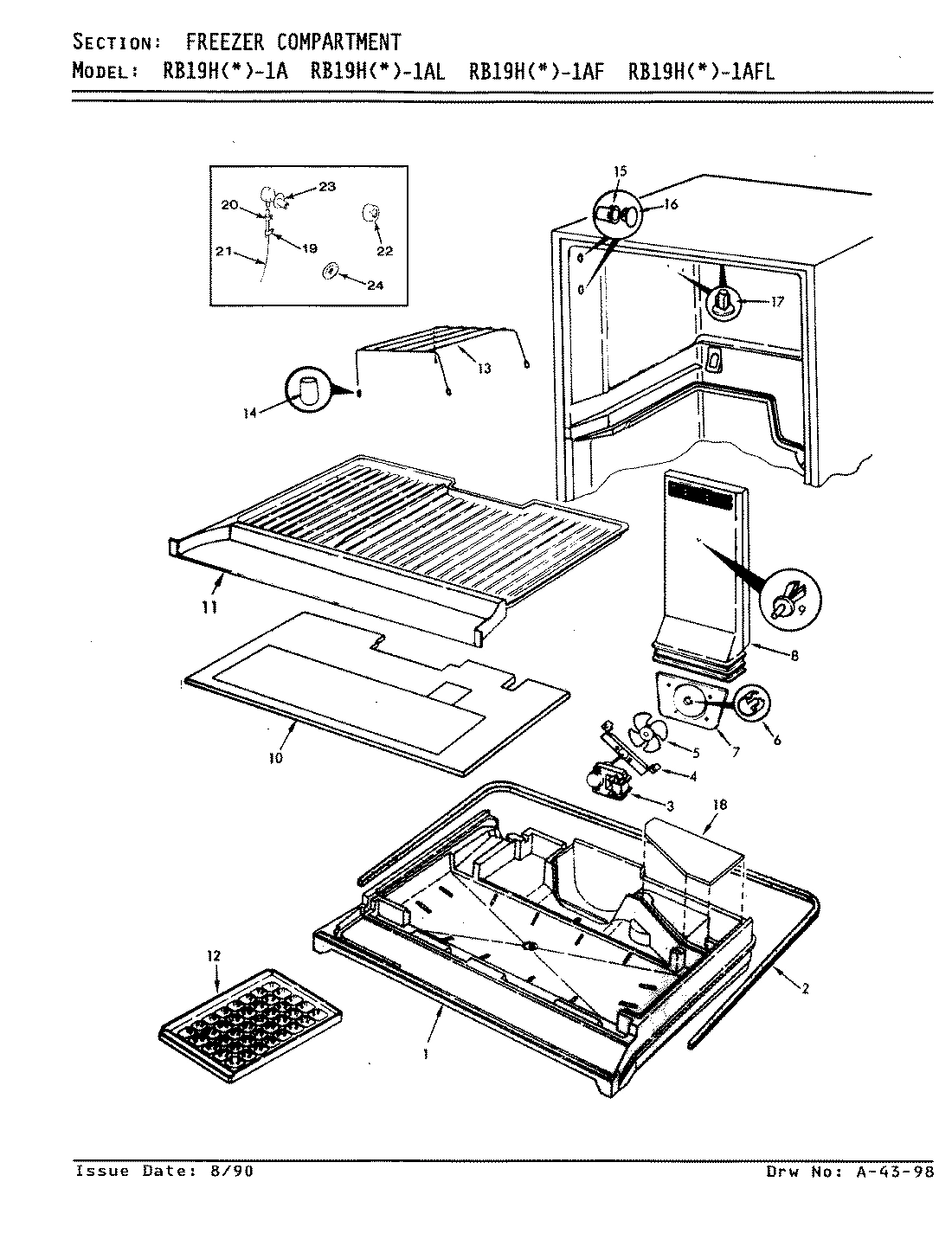

02 - FREEZER COMPARTMENT

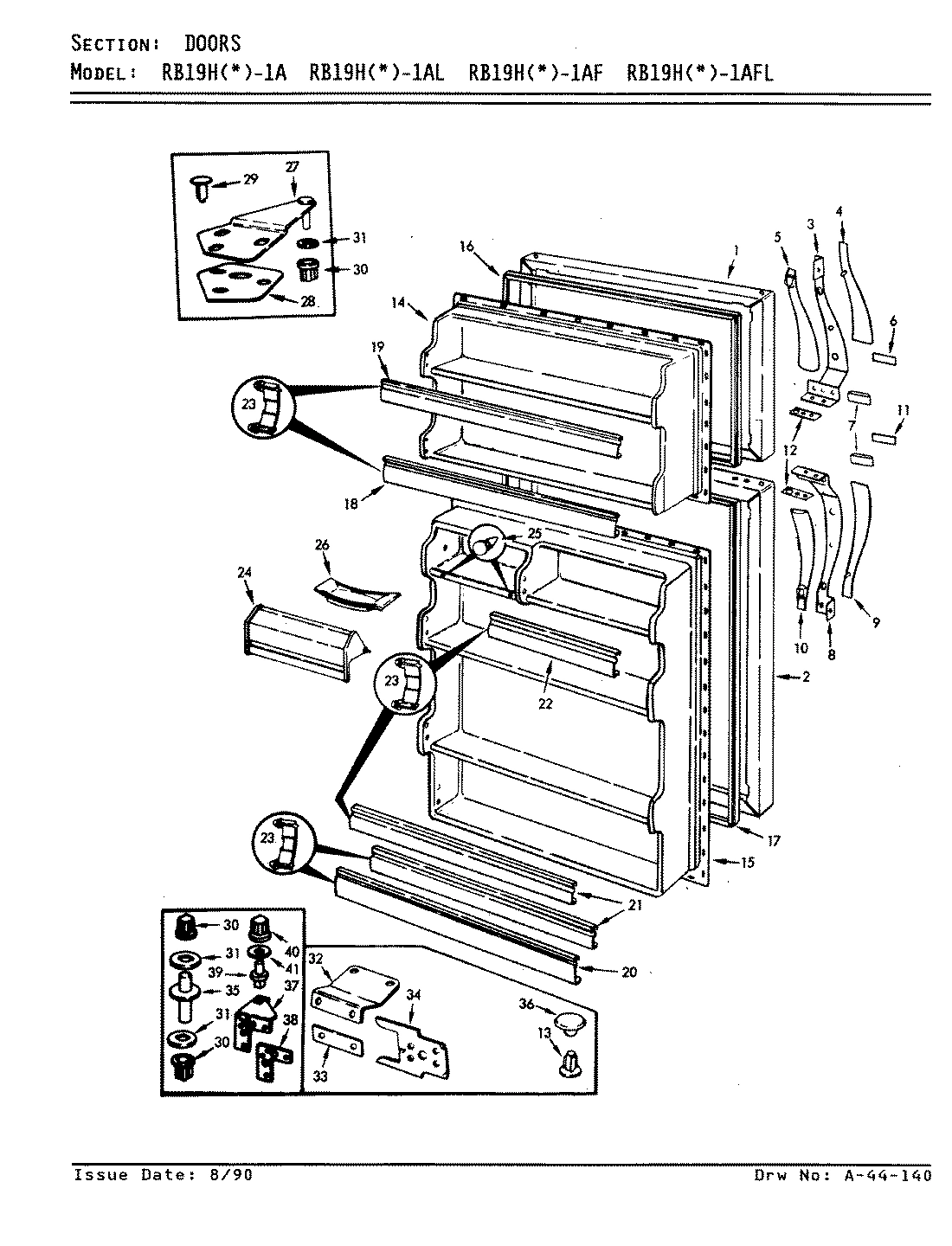

01 - DOORS

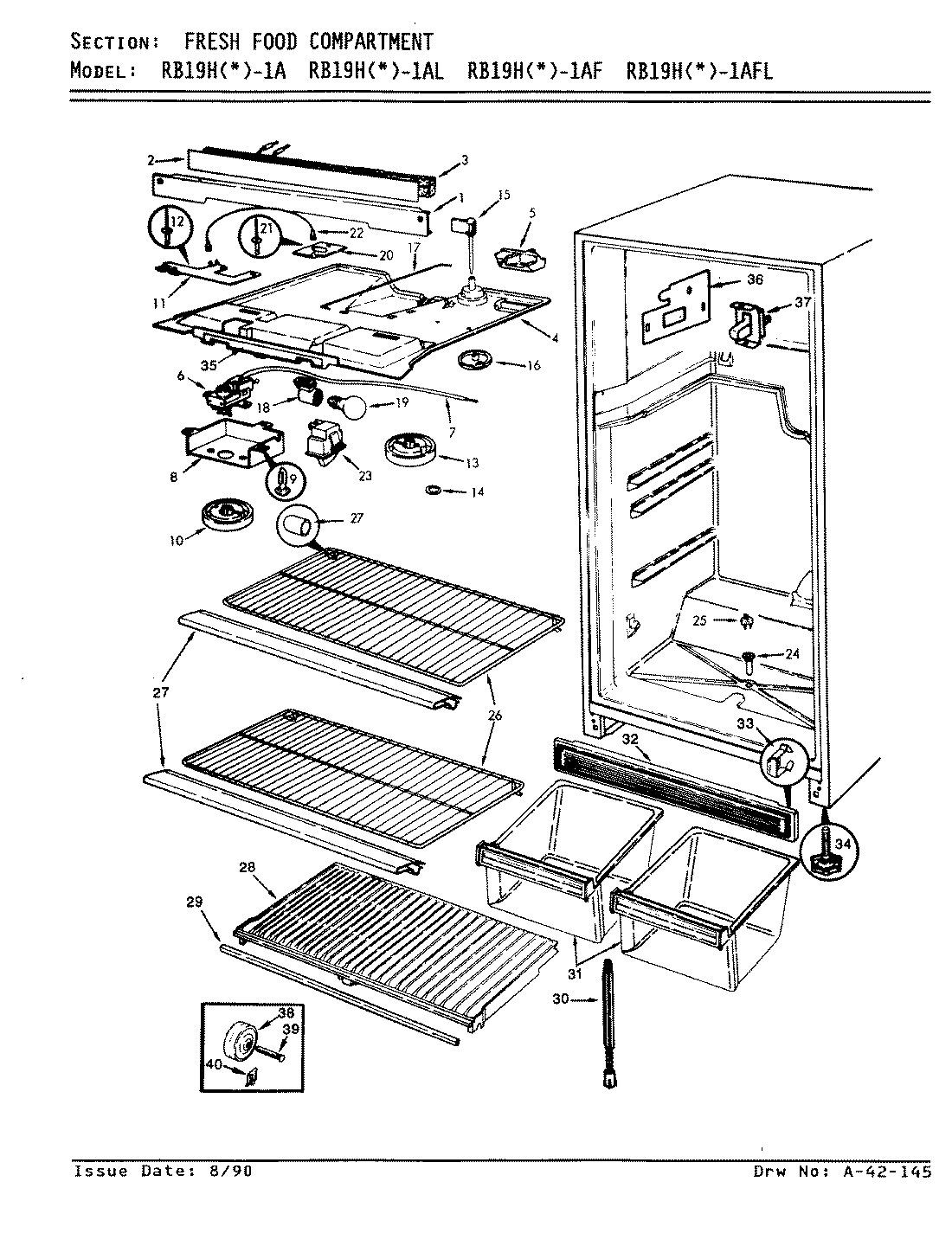

03 - FRESH FOOD COMPARTMENT

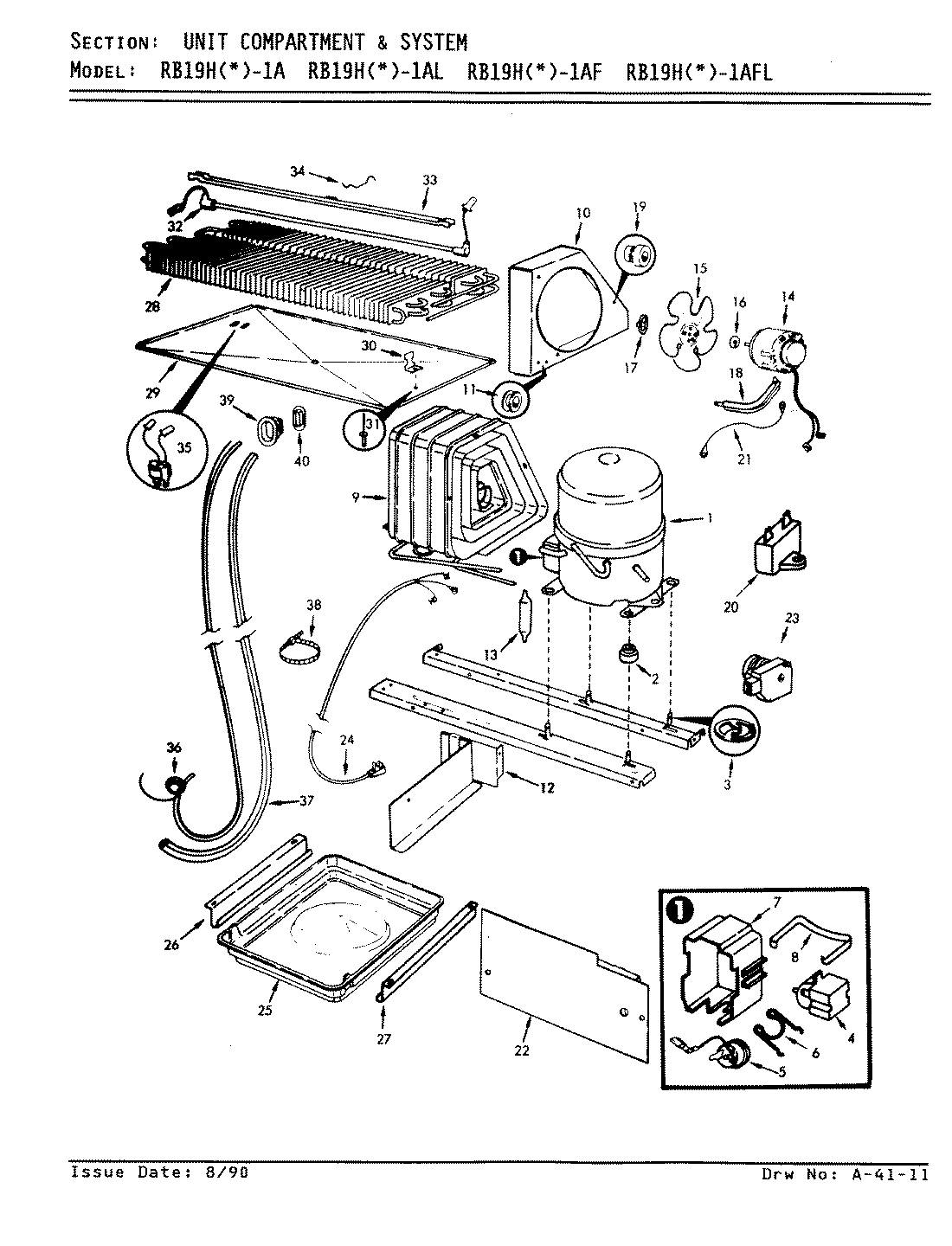

05 - UNIT COMPARTMENT & SYSTEM
04 - ICE MAKER
Common parts from model Whirlpool RB19HA-1AL REFRIGERATOR
1
STYROFOAM DIVIDER WPL 674581 Contact Us For Availability
1
OUTER PANEL WPL 600336AM Contact Us For Availability
1
CHANNEL WPL 664912AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
COMPRESSOR WPL YRA1010 Contact Us For Availability
1
TUBE, FILL WPL 584613 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
OUTER PANEL WPL 6003275AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
WIRE HARNESS WPL 601981 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
DOOR HANDLE WPL 604912 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4000221 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSERT WPL 680191 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008554 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
SCREW WPL 400084103 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
SCREW WPL 9986112 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329416 Contact Us For Availability
5
TRAY, ICE WPL 596881 Contact Us For Availability
6
INSERT WPL 6053311 Contact Us For Availability
6
GROUND WIRE WPL 2967522 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
BEZEL WPL 604871 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
SENSOR ARM WPL 606192 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
DOOR HANDLE WPL 604911 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SHAFT, DRIVE WPL 653191 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT WPL 680911 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
RING, RETAINER WPL 587061 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
INSERT WPL 604902 Contact Us For Availability
10
INSERT WPL 604901 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SPOUT, FILL WPL 537481 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
INSERT WPL 6053312 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SCREW WPL 405009103 Contact Us For Availability
12
SHIM WPL 604882 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
13
TRIVET WPL 682593 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
SIDE, ICE MAKER ENCLOSURE WPL 604261 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
14
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
14
FAN MOTOR WPL 2805616 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
FRONT, ICE MAKER ENCLOSURE WPL 650701 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, F.F. DOOR WPL 687171 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
INSERT WPL 6813312 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SCREW WPL 400018103 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
WASHER WPL 420051900 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
18
SOCKET, LIGHT WPL 605772 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 402019103 Contact Us For Availability
20
CLAMP, SPRING WPL 603334 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151144 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
IM DUCT WPL 657596 Contact Us For Availability
21
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
FEEDER TUBE WPL 667592 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TUBING 62`` WPL 5560222 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
CLAMP, SPRING WPL 603331 Contact Us For Availability
24
CLAMP, TUBING WPL 535168 Contact Us For Availability
24
SCREW WPL 652751 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
DOOR, DAIRY WPL 6040629 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
BUMPER, DOOR WPL 282726 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
SCREW WPL 4000161 Contact Us For Availability
26
TRAY, BUTTER WPL 299362 Contact Us For Availability
26
SHELF WPL 602234 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CLAMP WPL 575761 Contact Us For Availability
27
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
27
TRIM WPL 681368 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
VALVE, WATER WPL 601844 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
SHELF, CRISPER WPL 600196 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
29
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
29
TRIM WPL 604542 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
30
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
30
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
31
WASHER WPL 521851 Contact Us For Availability
31
SCREW WPL 998687 Contact Us For Availability
31
PAN, CRISPER WPL 60457163 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
NUT, INLET TUBING WPL 246851 Contact Us For Availability
32
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
32
KICKPLATE WPL 601387 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
SCREW WPL 4010181 Contact Us For Availability
33
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
33
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
PAN, STORAGE WPL 605881 Contact Us For Availability
34
TAPPING PLATE WPL 606221 Contact Us For Availability
34
SCREW WPL 9986107 Contact Us For Availability
34
LEG, LEVELING WPL 60128 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
INSERT WPL 681343 Contact Us For Availability
35
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
35
INSERT WPL 6057144 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
36
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
36
GROUND WIRE WPL 2967532 Contact Us For Availability
36
SCREW WPL 4020131 Contact Us For Availability
36
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
SPACER WPL 653171 Contact Us For Availability
37
SCREW WPL 4030625 Contact Us For Availability
37
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
37
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
TUBING WPL 6500114 Contact Us For Availability
38
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
WHEEL WPL 298342 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
39
PIN, WHEEL WPL 298352 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
40
CLIP WPL 602161 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
WASHER WPL 542332 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
WIRE HARNESS WPL 682501 Contact Us For Availability
× ![]()
Login and Registration Form
