Model Whirlpool RB190PW REFRIGERATOR – Common Parts & Diagrams

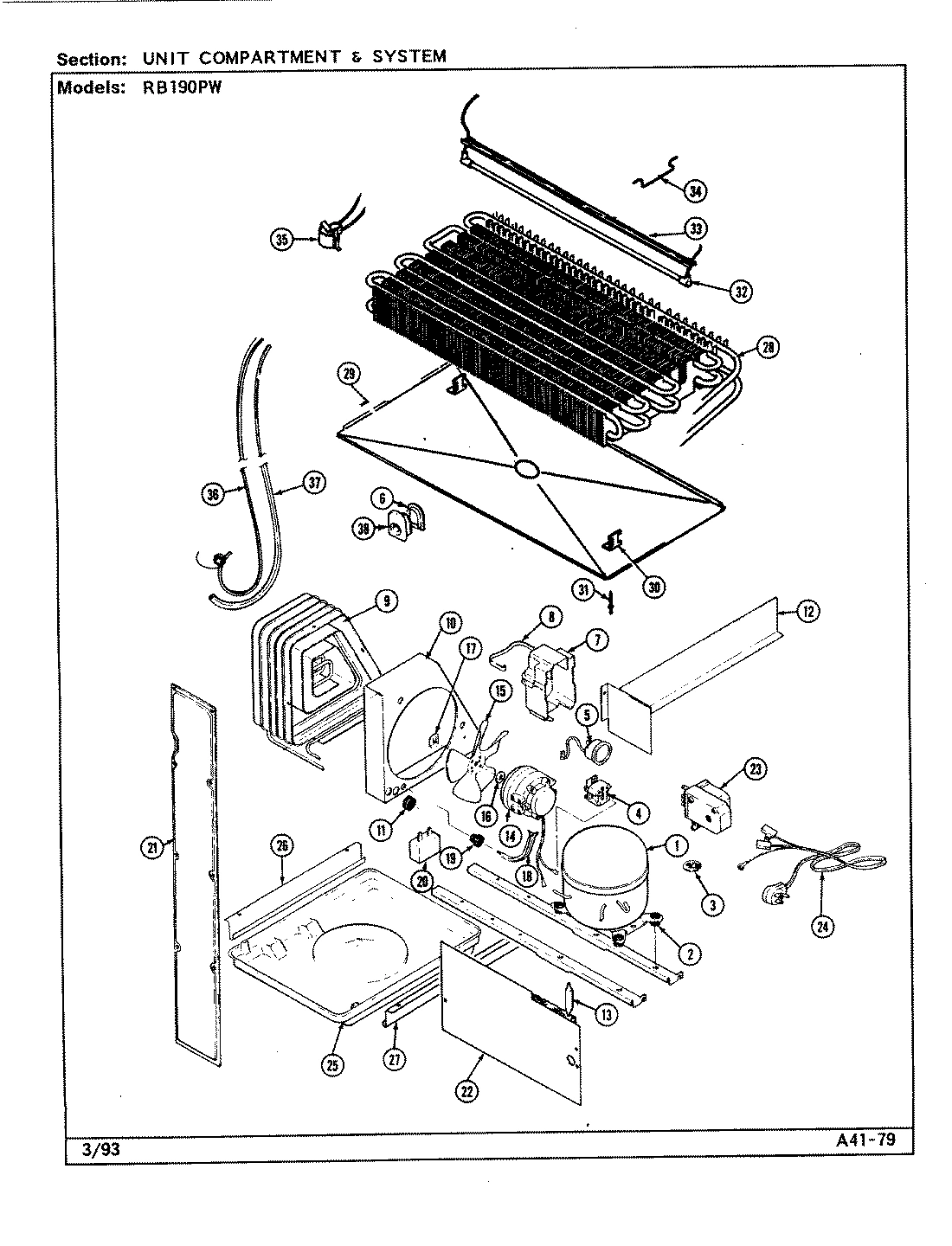

06 - UNIT COMPARTMENT & SYSTEM

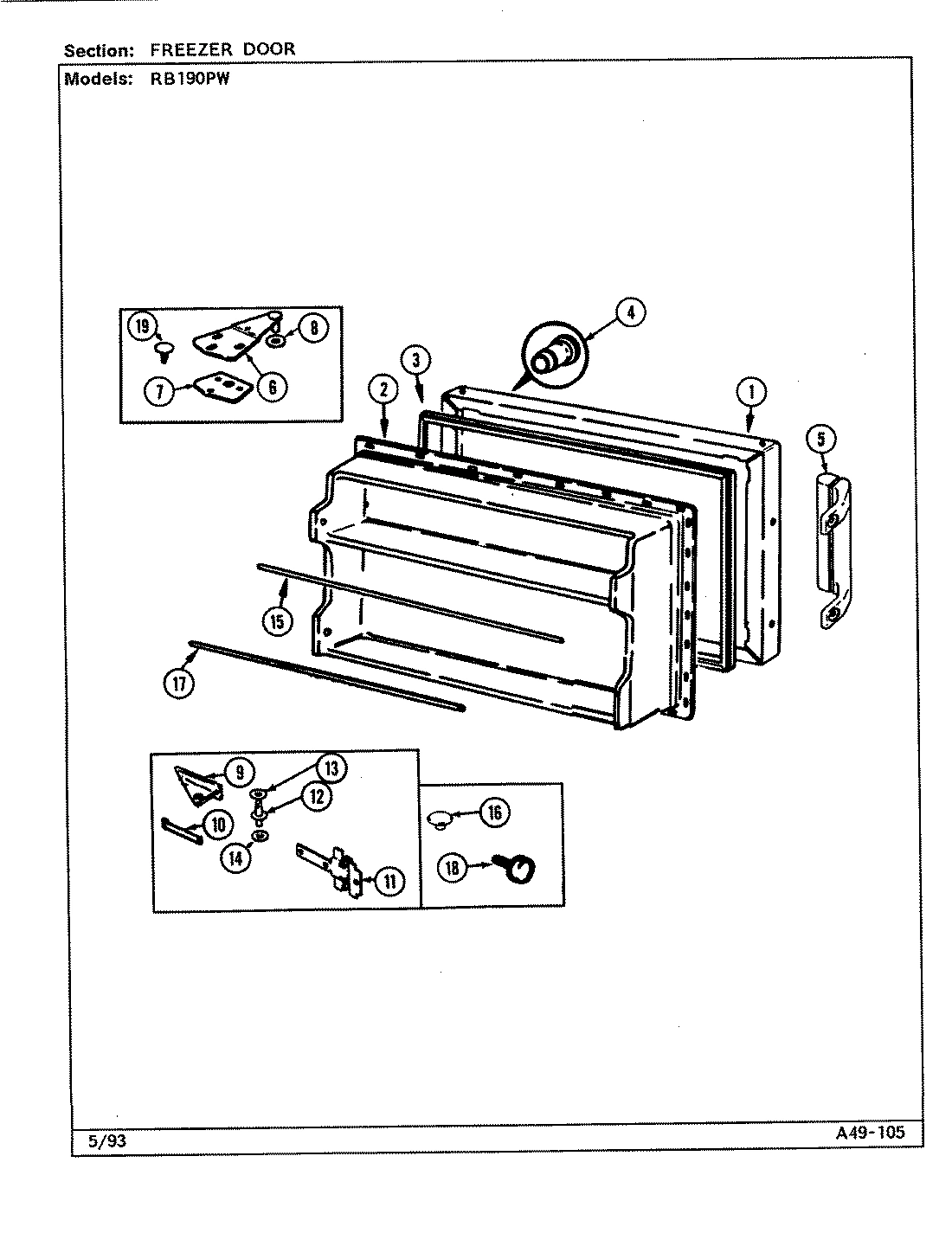

02 - FREEZER DOOR

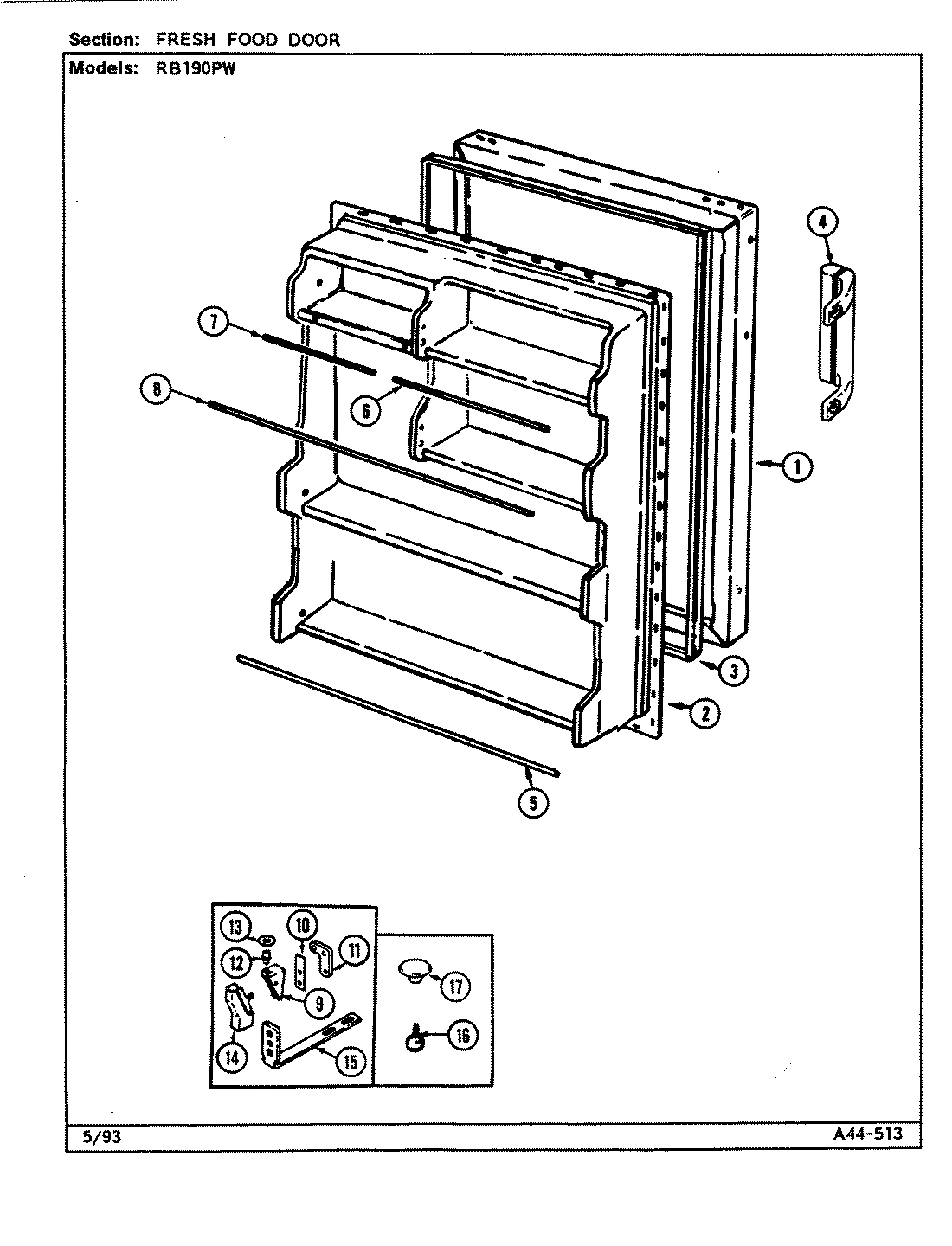

04 - FRESH FOOD DOOR
01 - FREEZER COMPARTMENT

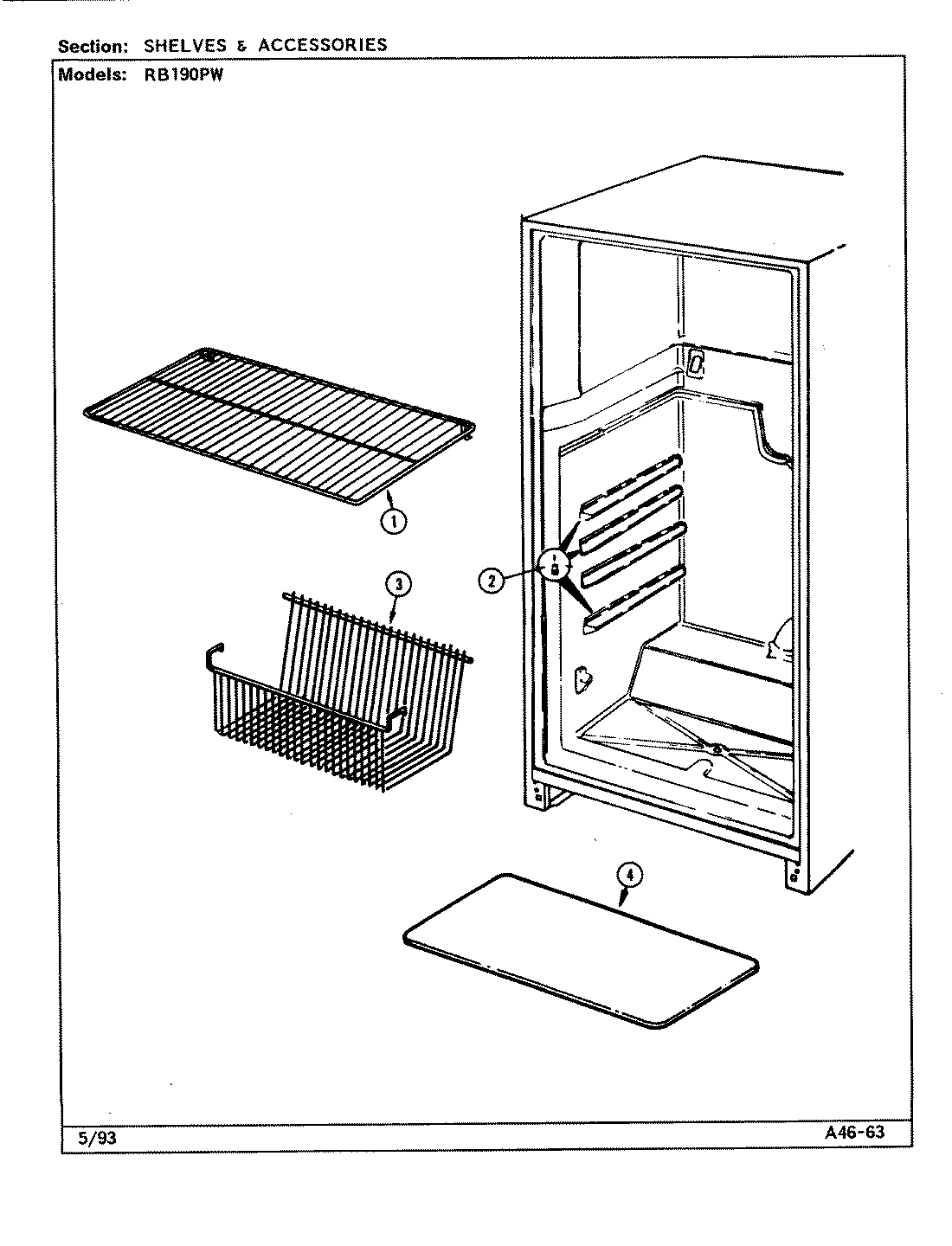

05 - SHELVES & ACCESSORIES

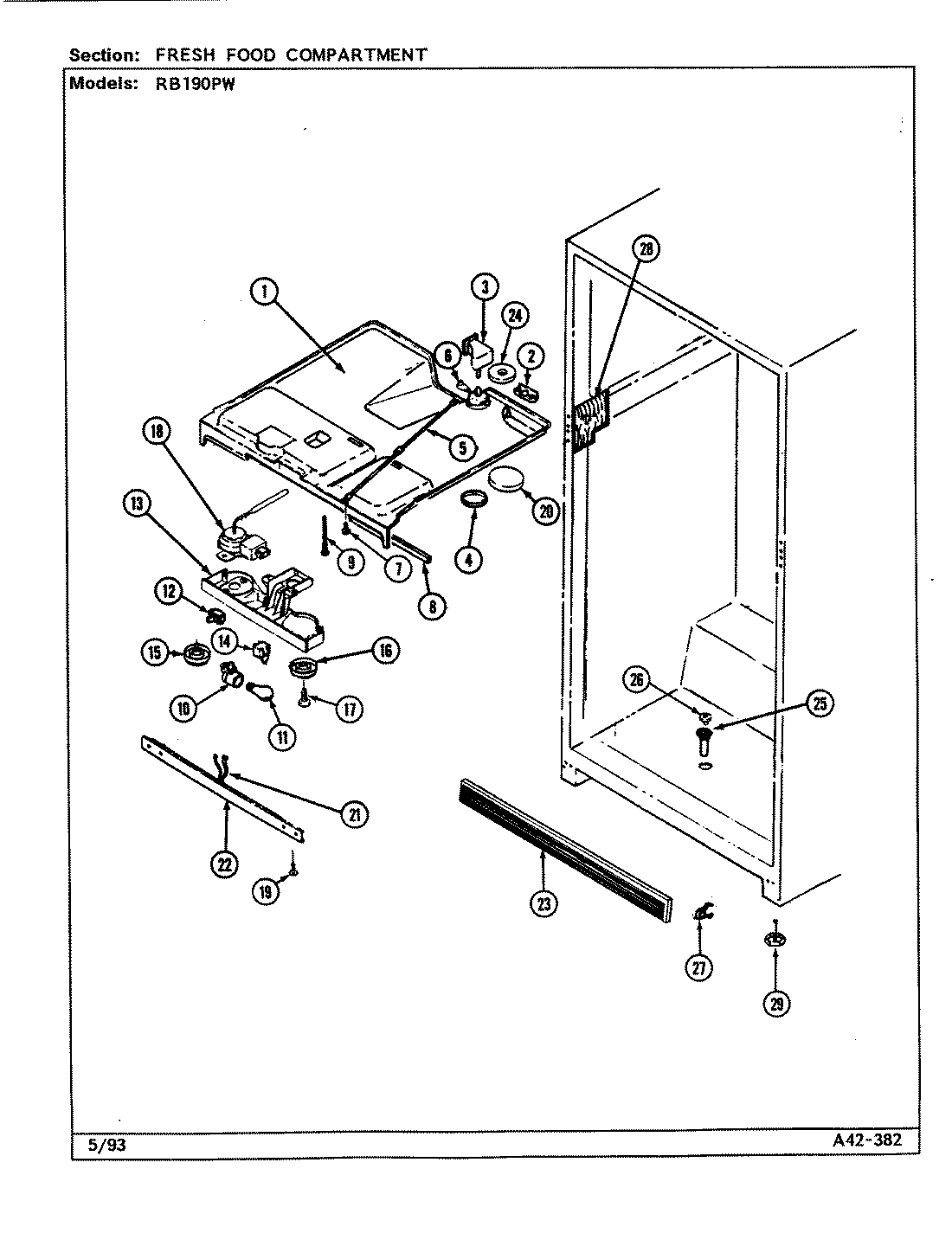

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB190PW REFRIGERATOR
1
COMPRESSOR WPL RA10321 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 7234513WW Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 7234912WW Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
SHELF, WIRE WPL 6022323 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 694702 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694543 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
STUD WPL 216979 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
3
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
TRIVET WPL 682254 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698112 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 691684 Contact Us For Availability
4
SCREW WPL 6527570 Contact Us For Availability
4
PLUG, BUTTON (BLK) WPL 699223 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
SHELF WPL 682264 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability
5
TRIM, SHELF WPL 5360533 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
6
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
6
HINGE, UPPER WPL 5370920 Contact Us For Availability
6
SCREW WPL 6527552 Contact Us For Availability
6
TRIM, DOOR SHELF (14 3/4``) WPL 5360527 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
7
TRIM, DOOR SHELF (10 1/2``) WPL 5360532 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
WASHER WPL 542332 Contact Us For Availability
8
TRIM, DOOR SHELF (25``) WPL 5360531 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SCREW WPL 6527562 Contact Us For Availability
9
HINGE, CENTER WPL 695142 Contact Us For Availability
9
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
9
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
9
TUNNEL, AIR WPL 685923 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
10
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
11
SCREW WPL 6527559 Contact Us For Availability
11
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
12
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
13
WASHER WPL 674836 Contact Us For Availability
13
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
13
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
13
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675608 Contact Us For Availability
14
WASHER WPL 542337 Contact Us For Availability
14
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
14
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
SCREW WPL 4140121 Contact Us For Availability
15
SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability
15
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
15
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
PLUG BUTTON, HANDLE HOLE (WHT) WPL 694802 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
17
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
17
TRIM, DOOR SHELF (25 1/4``) WPL 5360534 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
17
SCREW WPL 40501635 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
18
TRAY, ICE WPL 592812 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686015 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
KICKPLATE WPL 689802 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
28
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
LEG, LEVELING WPL 686641 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
SCREW WPL 4000171 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 692911 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
