Model Whirlpool RB18FN-3AW REFRIGERATOR – Common Parts & Diagrams

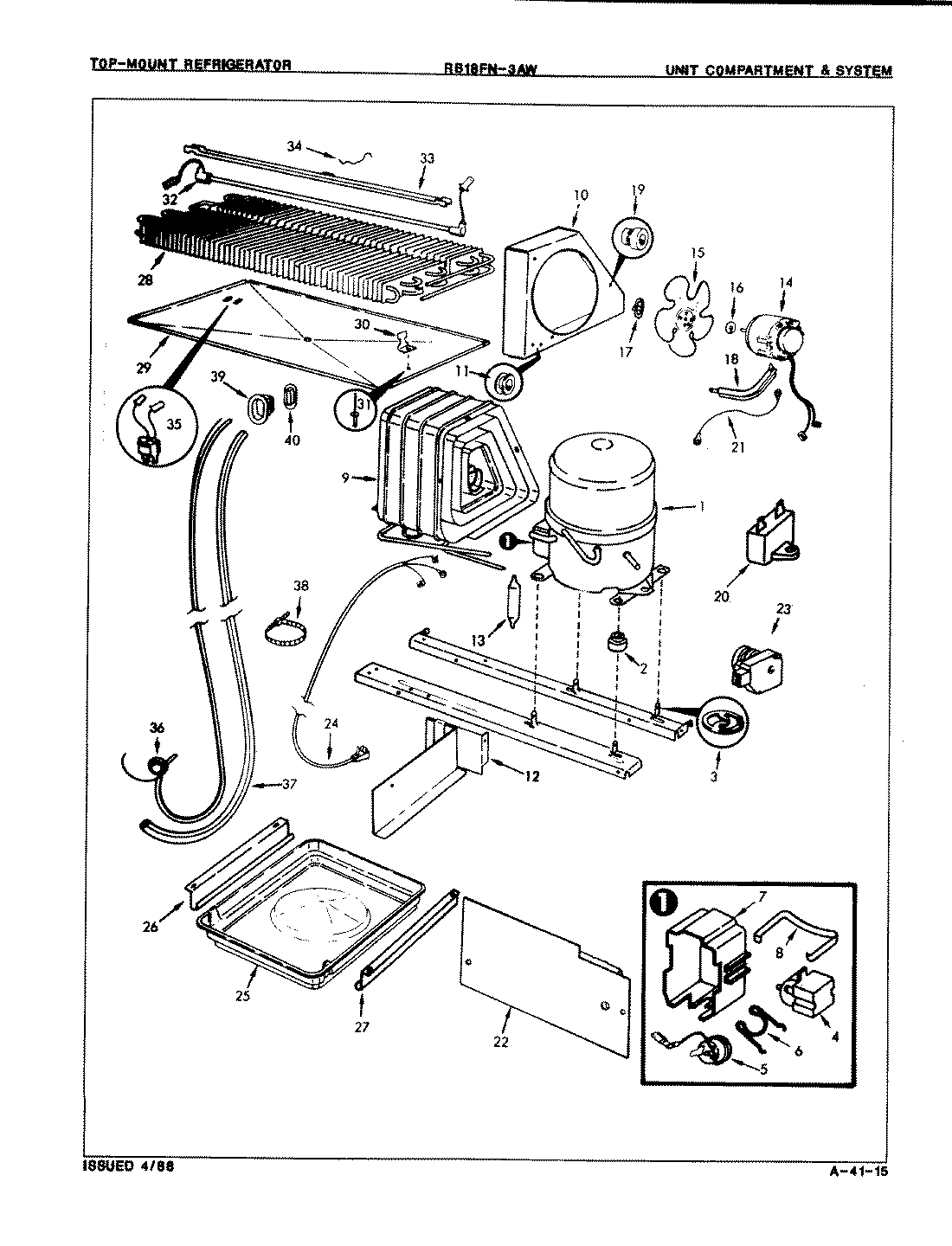

04 - UNIT COMPARTMENT & SYSTEM
01 - FREEZER COMPARTMENT

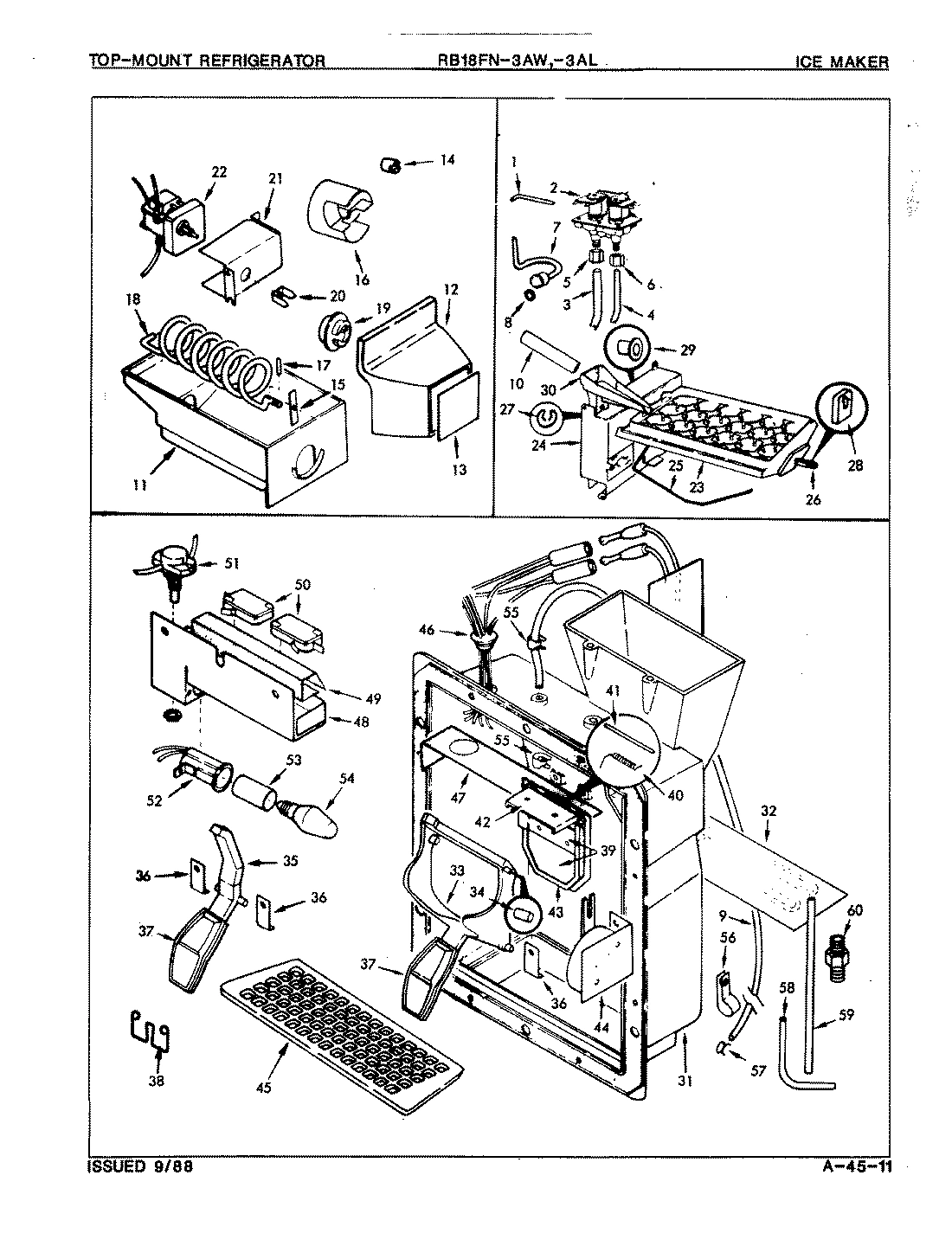

03 - ICE MAKER
02 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB18FN-3AW REFRIGERATOR
1
COMPRESSOR WPL RA997 Contact Us For Availability
1
TRAY, DIVIDER WPL 605766 Contact Us For Availability
1
CLAMP WPL 535162 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657972WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605603 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TUBING WPL 5560231 Contact Us For Availability
4
TUBE WPL 556029 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008557 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
TUBING WPL 556023 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664036 Contact Us For Availability
10
TUBE, FILL WPL 584613 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 659591 Contact Us For Availability
11
BIN, STORAGE WPL 664461 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
SCREW WPL 405022103 Contact Us For Availability
12
ICE DISP FRONT WPL 662051 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
13
INSERT WPL 657073 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
NUT, AUGER WPL 660981 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
HUB, REINFORCING WPL 630841 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SHELF WPL 605991 Contact Us For Availability
16
IMPELLER, AUGER WPL 664481 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
17
TRIM WPL 6041452 Contact Us For Availability
17
PIN, AUGER WPL 630711 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
DIVIDER WPL 606511 Contact Us For Availability
18
AUGER WPL 664361 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000161 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
RING, DRIVE WPL 630171 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
IM ENCL FRONT WPL 656271 Contact Us For Availability
20
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
INSERT WPL 656284 Contact Us For Availability
21
SCREW WPL 406026103 Contact Us For Availability
21
MOTOR MTG BRKT WPL 653682 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SCREW WPL 400018103 Contact Us For Availability
22
IM DUCT WPL 657596 Contact Us For Availability
22
IM MOTOR WPL 641433 Contact Us For Availability
22
MOTOR MTG SHIM WPL 655791 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
SWITCH WPL 557322 Contact Us For Availability
23
TRAY, ICE WPL 596881 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
24
CUP, SHELF WPL 603131 Contact Us For Availability
24
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
24
LEAD WPL 5465330 Contact Us For Availability
24
SWITCH WPL 557323 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
25
SENSOR ARM WPL 604671 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SHAFT, DRIVE WPL 653191 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RING, RETAINER WPL 587061 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
28
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SPACER WPL 653171 Contact Us For Availability
29
SCREW WPL 40003728 Contact Us For Availability
29
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
SCREW WPL 405009103 Contact Us For Availability
30
SPOUT, FILL WPL 537481 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4050221 Contact Us For Availability
31
DISPENSER, WATER WPL 630003 Contact Us For Availability
31
FRAME, SHELF WPL 6057013 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
HEATER WPL 605081 Contact Us For Availability
32
GLASS SHELF WPL 6559811 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
33
TRIM WPL 605243 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
34
TRIM WPL 652763 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
35
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
CLIP WPL 630352 Contact Us For Availability
36
GLASS SHELF WPL 6559821 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
PAD, ARM WPL 630661 Contact Us For Availability
37
PAN, MEAT WPL 665171 Contact Us For Availability
38
SPRING WPL 633061 Contact Us For Availability
38
COVER WPL 666161 Contact Us For Availability
38
HANDLE WPL 6013274 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
39
TUNNEL WPL 6009412 Contact Us For Availability
40
COVER WPL 600673 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 663291 Contact Us For Availability
40
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
40
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
41
PIN, ICE DOOR WPL 630531 Contact Us For Availability
41
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
42
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
42
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
43
INSULATION WPL 630891 Contact Us For Availability
43
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
43
SHELF, CRISPER WPL 665023 Contact Us For Availability
44
SCREW WPL 4000351 Contact Us For Availability
44
MOTOR, INERTIA WPL 652121 Contact Us For Availability
44
CLIP WPL 655171 Contact Us For Availability
44
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
45
GRILL WPL 630251 Contact Us For Availability
45
TRIM WPL 604542 Contact Us For Availability
46
WIRE HARNESS WPL 605231 Contact Us For Availability
46
WIRE HARNESS WPL 606232 Contact Us For Availability
46
WIRE HARNESS WPL 606241 Contact Us For Availability
46
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
47
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
47
PAN, CRISPER WPL 60457466 Contact Us For Availability
48
BRACKET, SWITCH WPL 630132 Contact Us For Availability
48
PAN, CRISPER WPL 60457470 Contact Us For Availability
49
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
49
HANDLE WPL 6013272 Contact Us For Availability
50
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
50
INSERT WPL 6057143 Contact Us For Availability
51
SCREW WPL 4000171 Contact Us For Availability
51
SCREW WPL 4050711 Contact Us For Availability
51
SWITCH, LIGHT WPL 630401 Contact Us For Availability
51
KICKPLATE WPL 6013825 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
52
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
53
SCREW WPL 4010111 Contact Us For Availability
53
SEAL WPL 630561 Contact Us For Availability
53
SCREW WPL 4020394 Contact Us For Availability
53
END CAP WPL 603812 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
54
LEG, LEVELING WPL 60128 Contact Us For Availability
55
CLAMP, SPRING WPL 603333 Contact Us For Availability
55
WHEEL WPL 298342 Contact Us For Availability
56
CLAMP WPL 535169 Contact Us For Availability
56
PIN, WHEEL WPL 298352 Contact Us For Availability
57
CLAMP, TUBING WPL 96029 Contact Us For Availability
57
CLIP WPL 602161 Contact Us For Availability
58
WATER LINE WPL 630382 Contact Us For Availability
58
BRACKET, ADJUSTING WHEEL WPL 591001 Contact Us For Availability
59
WIRE WPL 662231 Contact Us For Availability
59
CLAMP, SPRING WPL 603332 Contact Us For Availability
59
INSTALATION KIT WPL 634592 Contact Us For Availability
59
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
59
SPACER WPL 655121 Contact Us For Availability
59
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
60
WPL 554191 WPL 554191 Contact Us For Availability
60
WPL 1034061 WPL 1034061 Contact Us For Availability
60
WPL 592051 WPL 592051 Contact Us For Availability
60
WPL 643291 WPL 643291 Contact Us For Availability
60
BOLT WPL 4060871 Contact Us For Availability
61
PIN, WHEEL WPL 649651 Contact Us For Availability
62
SCREW WPL 4000221 Contact Us For Availability
62
RACK, WINE WPL 565194 Contact Us For Availability
63
SPRING, WINE RACK WPL 580571 Contact Us For Availability
64
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
65
INSERT WPL 657533 Contact Us For Availability
66
INSERT WPL 657537 Contact Us For Availability
67
BRACKET, SWITCH WPL 605831 Contact Us For Availability
68
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
69
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
70
RAIL, MEAT PAN (R WPL 668141 Contact Us For Availability
× ![]()
Login and Registration Form
