Model Whirlpool RB18EN-3AW REFRIGERATOR – Common Parts & Diagrams

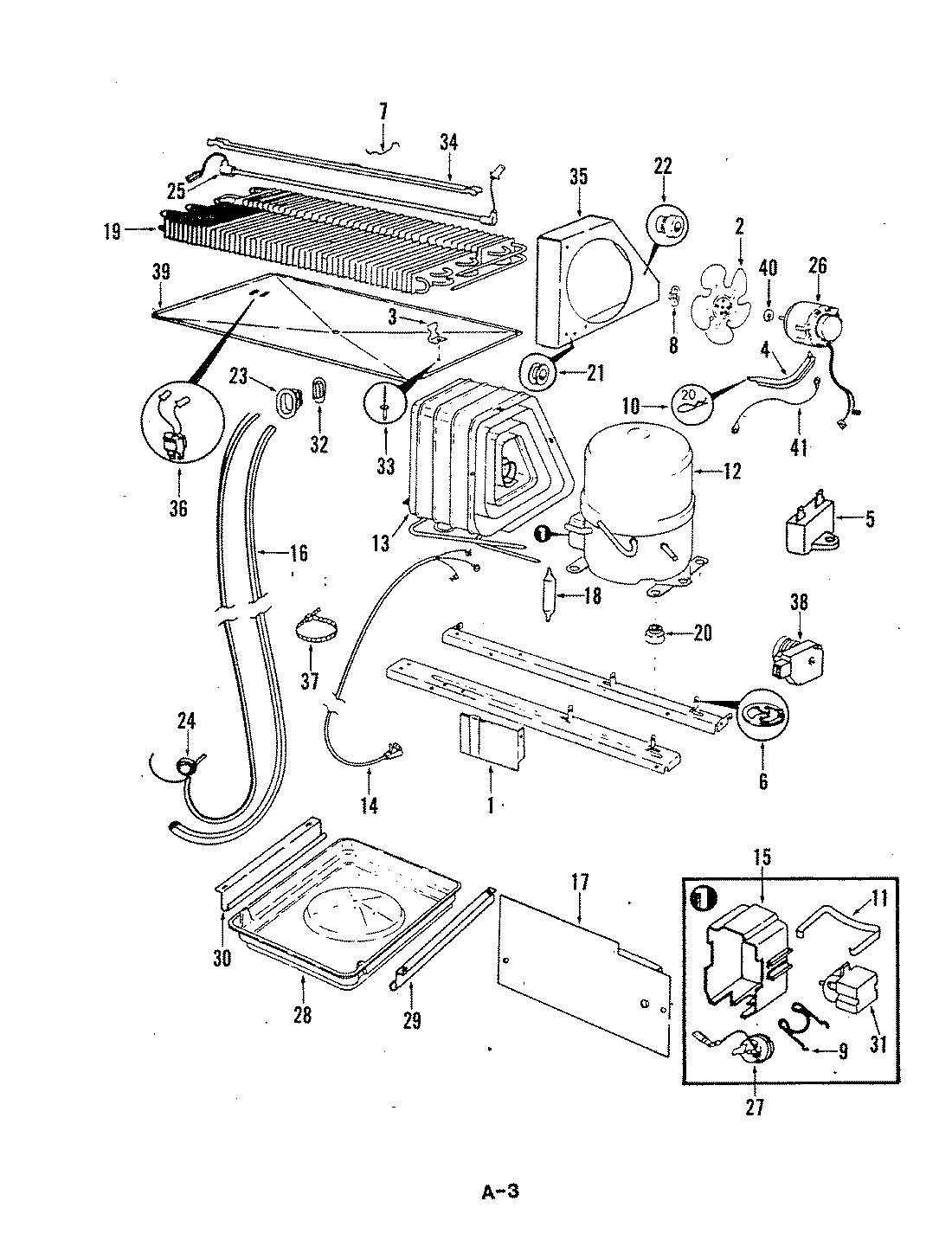

04 - UNIT COMPARTMENT & SYSTEM

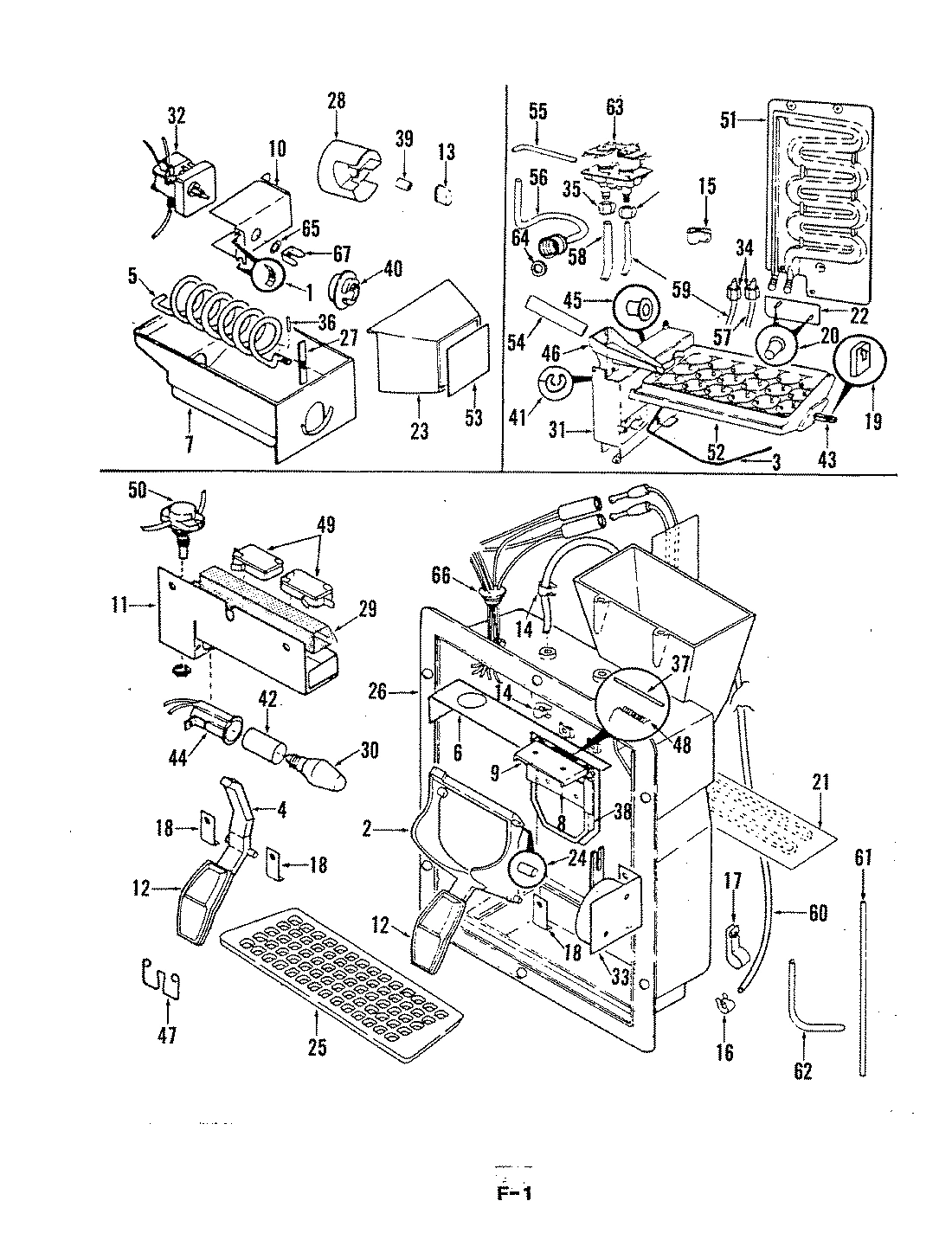

05 - WATER & ICE DISPENSER

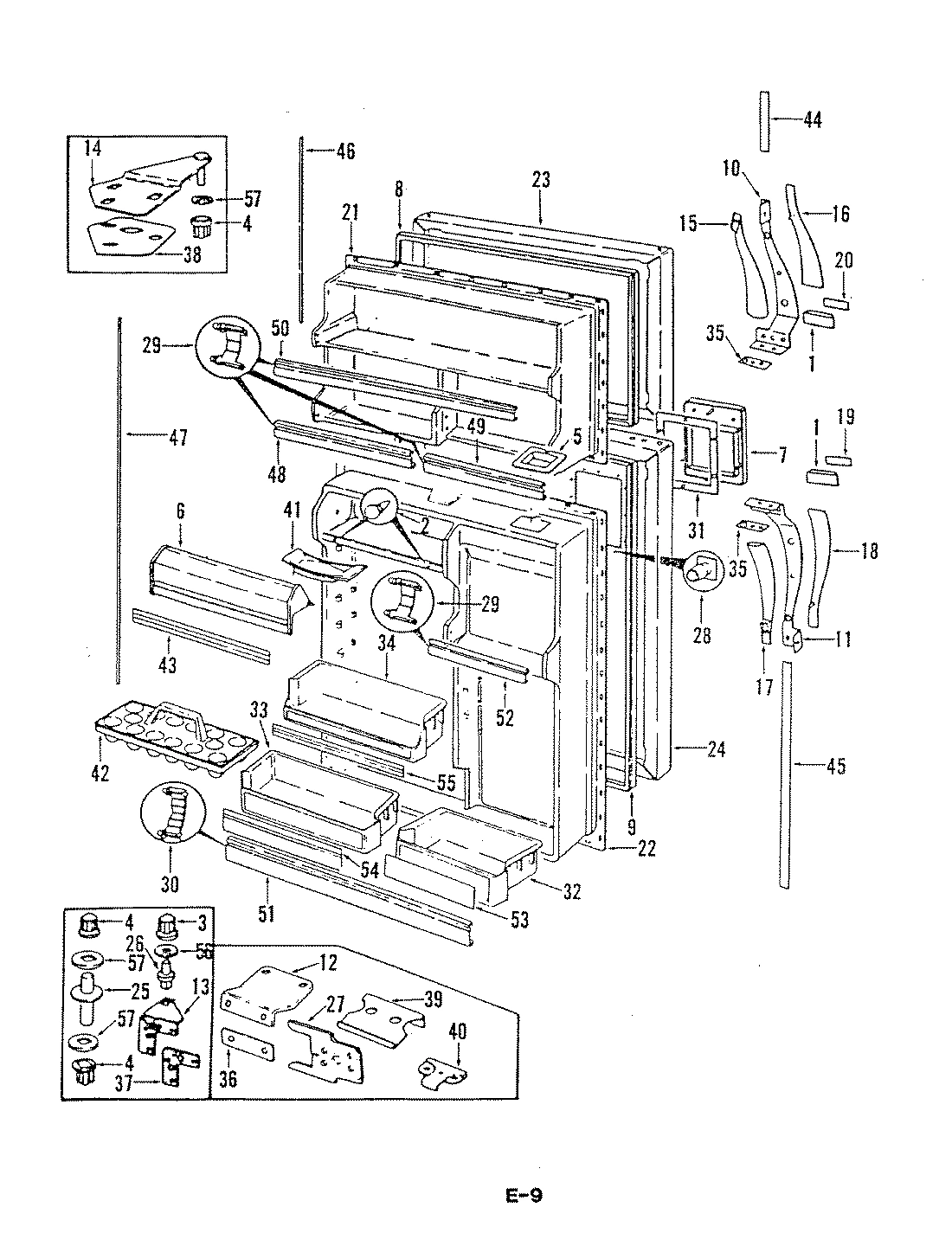

02 - FRESH FOOD & FREEZER DOOR

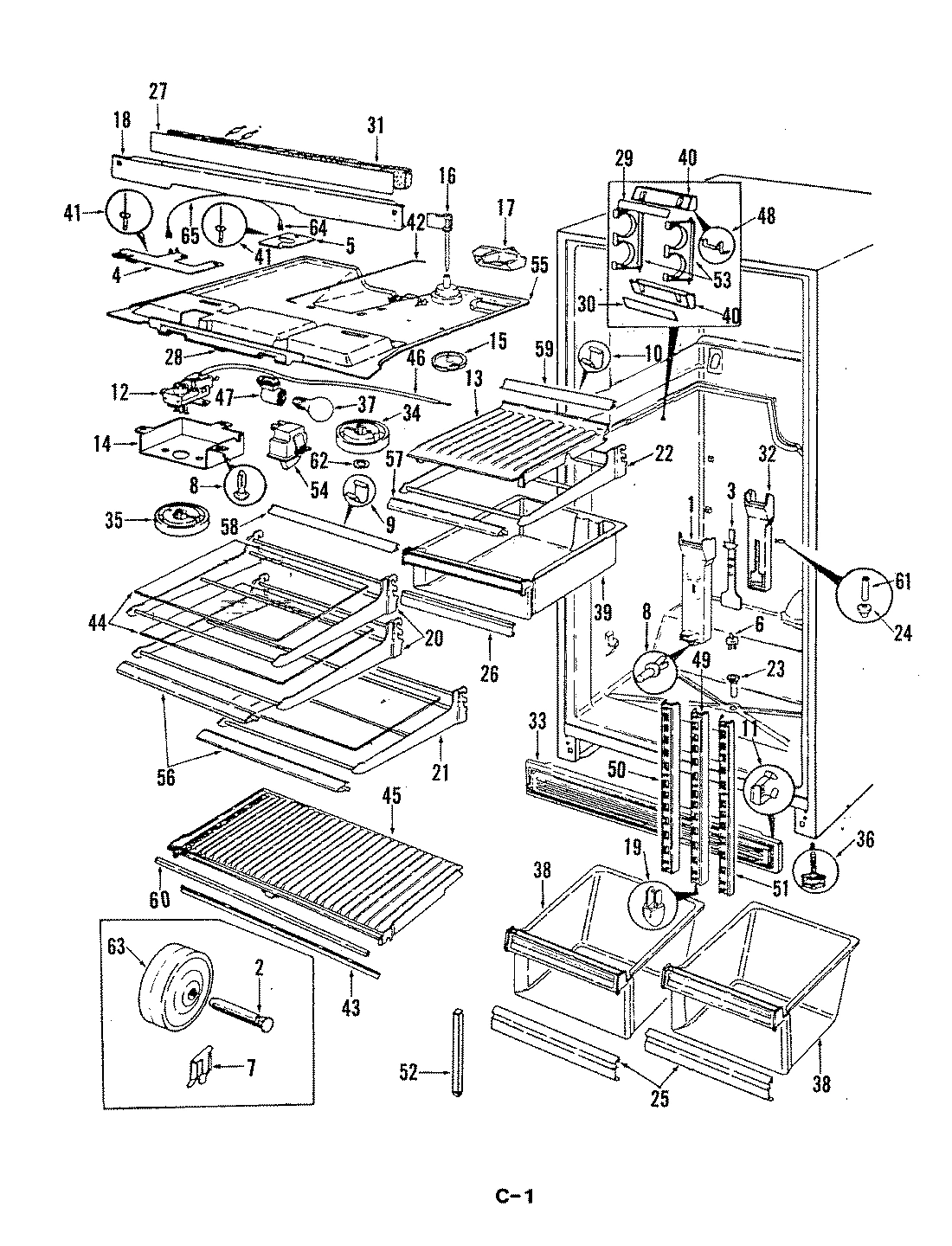

03 - FRESH FOOD COMPARTMENT

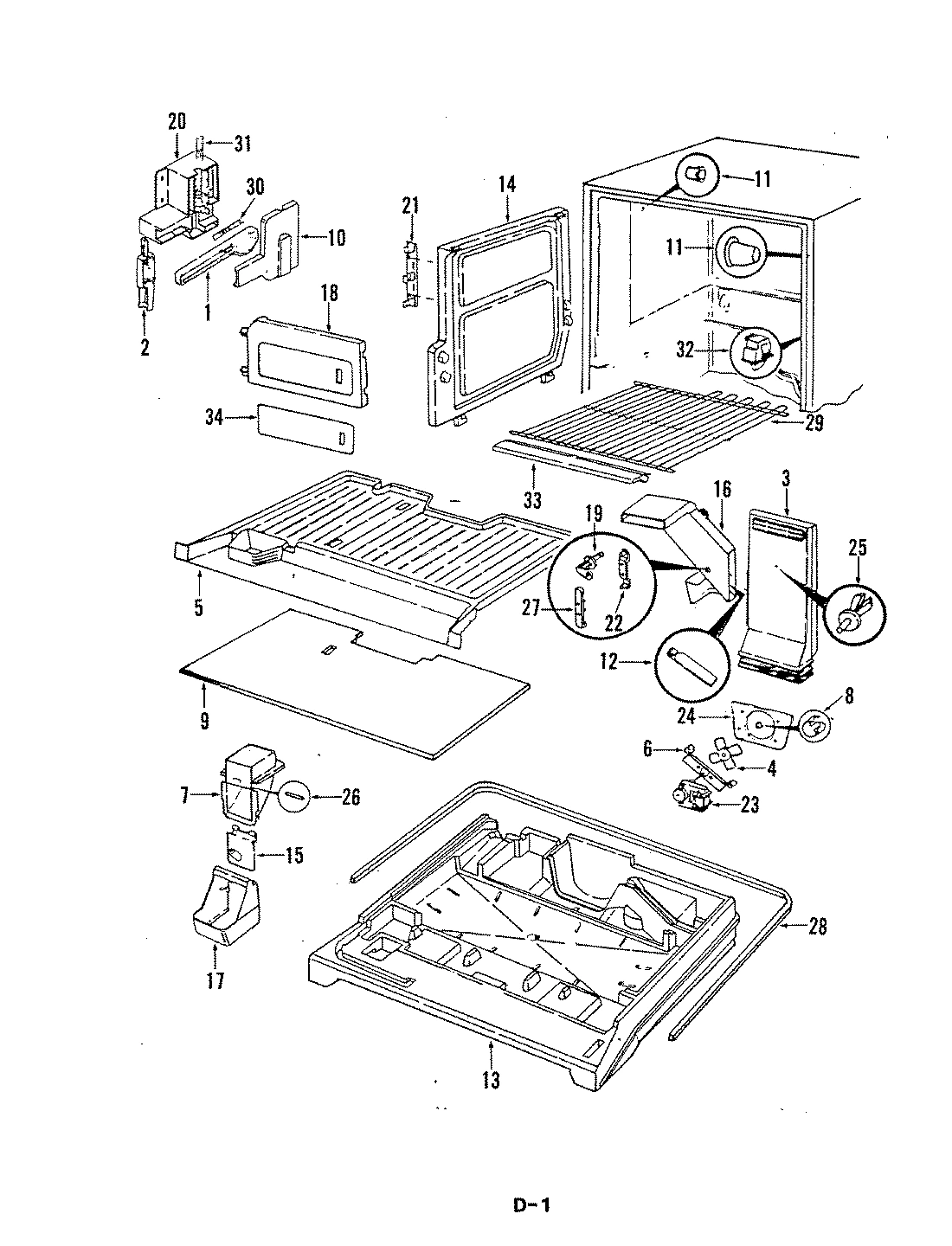

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB18EN-3AW REFRIGERATOR
1
AIR DIVIDER WPL 606392 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
1
TUNNEL WPL 6009412 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
ARM,ICE WPL 630073 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
SENSOR ARM WPL 604671 Contact Us For Availability
3
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
TUNNEL, AIR WPL 660443 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
ARM, WATER WPL 630083 Contact Us For Availability
4
PLUG BUTTON WPL 495036900 Contact Us For Availability
4
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
4
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
CAPACITOR, RUN WPL 658892 Contact Us For Availability
5
AUGER WPL 606002 Contact Us For Availability
5
COLLAR WPL 630202 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
BOTTOM, FRZ. WPL 659591 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
6
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
6
DOOR, DAIRY WPL 6040611 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
7
ICE BIN WPL 605951 Contact Us For Availability
7
ESCUTCHEON WPL 6048224 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
ICE CHUTE WPL 605041 Contact Us For Availability
8
CLIP WPL 199140 Contact Us For Availability
8
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
8
GASKET, DOOR WPL 604625 Contact Us For Availability
8
WASHER, SPRING WPL 420092900 Contact Us For Availability
9
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
9
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
9
GASKET, DOOR WPL 604626 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
COVER, EVAPORATOR WPL 605576 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
MOTOR MTG BRKT WPL 653682 Contact Us For Availability
10
DOOR HANDLE WPL 604911 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
11
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
11
BRACKET, SWITCH WPL 630132 Contact Us For Availability
11
DOOR HANDLE WPL 604912 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
12
COMPRESSOR WPL RA997 Contact Us For Availability
12
PAD, ARM WPL 630661 Contact Us For Availability
12
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288147 Contact Us For Availability
13
CONDENSER WPL RA438714 Contact Us For Availability
13
BUSHING WPL 630231 Contact Us For Availability
13
HINGE WPL 606303 Contact Us For Availability
13
COVER, MEAT PAN WPL 600754 Contact Us For Availability
13
TRAY, DIVIDER WPL 605766 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
14
CLAMP, SPRING WPL 603332 Contact Us For Availability
14
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
DIVIDER WPL 606511 Contact Us For Availability
15
COVER, TERMINAL WPL 658851 Contact Us For Availability
15
INSERT WPL 604901 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
16
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
16
CLAMP, SPRING WPL 603333 Contact Us For Availability
16
CLAMP, TUBING WPL 96029 Contact Us For Availability
16
INSERT WPL 604893 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
IM DUCT ASM WPL 657591 Contact Us For Availability
17
COVER WPL 660322 Contact Us For Availability
17
CLAMP WPL 535169 Contact Us For Availability
17
INSERT WPL 604902 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
FRONT WPL 605031 Contact Us For Availability
18
CLIP WPL 630352 Contact Us For Availability
18
INSERT WPL 604894 Contact Us For Availability
18
DIVIDER, MULLION (WHT) WPL 657972WW Contact Us For Availability
18
IM ENCL FRONT WPL 656271 Contact Us For Availability
19
EVAPORATOR WPL RA4362041 Contact Us For Availability
19
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
19
INSERT WPL 605336 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
20
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
20
UNION, TUBING (1/4``-1/4``) WPL 592051 Contact Us For Availability
20
INSERT WPL 605335 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
21
HEATER WPL 605081 Contact Us For Availability
21
LINER, DOOR WPL 605982 Contact Us For Availability
21
IM ENCL LATCH WPL 656301 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
LINER, DOOR WPL 605972 Contact Us For Availability
22
FRAME, SHELF WPL 605709 Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
23
ICE DISP FRONT WPL 656251 Contact Us For Availability
23
OUTER PANEL WPL 6003341WW Contact Us For Availability
23
GROMMET WPL 545318 Contact Us For Availability
23
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
24
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
24
OUTER PANEL WPL 6003274WW Contact Us For Availability
24
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
25
HEATER, DEFROST WPL 6010635 Contact Us For Availability
25
GRILL WPL 630251 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
25
HANDLE WPL 6013258 Contact Us For Availability
25
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
26
FAN MOTOR WPL 2805615 Contact Us For Availability
26
DISPENSER, WATER WPL 630003 Contact Us For Availability
26
PIN WPL 654181 Contact Us For Availability
26
HANDLE WPL 6013255 Contact Us For Availability
26
HINGE PIN WPL 605051 Contact Us For Availability
27
OVERLOAD WPL 632945 Contact Us For Availability
27
HUB, REINFORCING WPL 630841 Contact Us For Availability
27
SCREW WPL 40001512 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
27
HEATER WIRE WPL 601058 Contact Us For Availability
27
SCREW WPL 4060621 Contact Us For Availability
27
SCREW WPL 652753 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
28
IMPELLER WPL 630831 Contact Us For Availability
28
INSULATION WPL 630892 Contact Us For Availability
28
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
28
INSERT WPL 6057127 Contact Us For Availability
28
SEAL WPL 663256 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
29
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
INSERT WPL 657535 Contact Us For Availability
29
SHELF WPL 605991 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
30
BULB, LIGHT WPL 631791 Contact Us For Availability
30
SCREW WPL 40100512 Contact Us For Availability
30
SCREW WPL 4030625 Contact Us For Availability
30
RETAINER WPL 652461 Contact Us For Availability
30
SCREW WPL 9986107 Contact Us For Availability
30
SCREW WPL 9986108 Contact Us For Availability
30
SCREW WPL 9986112 Contact Us For Availability
30
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
30
SCREW WPL 9986122 Contact Us For Availability
30
INSERT WPL 657536 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 658881 Contact Us For Availability
31
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
31
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
31
INSULATION WPL 601402 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
32
MOTOR, AUGER WPL 651861 Contact Us For Availability
32
DOOR SHELF WPL 6003714 Contact Us For Availability
32
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
32
SWITCH WPL 557322 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
33
SCREW WPL 4030141 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SCREW WPL 4140011 Contact Us For Availability
33
MOTOR, INERTIA WPL 652121 Contact Us For Availability
33
DOOR SHELF WPL 6003715 Contact Us For Availability
33
KICKPLATE WPL 6013824 Contact Us For Availability
33
TRIM WPL 6041452 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
34
DOOR SHELF WPL 6003716 Contact Us For Availability
34
KNOB WPL 600613 Contact Us For Availability
34
GROUND WIRE WPL 2967530 Contact Us For Availability
34
INSERT WPL 656284 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
35
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
35
SHIM WPL 604881 Contact Us For Availability
35
KNOB WPL 600611 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
PIN, AUGER WPL 630711 Contact Us For Availability
36
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
36
LEG, LEVELING WPL 60128 Contact Us For Availability
37
PIN, ICE DOOR WPL 630531 Contact Us For Availability
37
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
37
NYLON NUT WPL 1953036 Contact Us For Availability
37
NUT WPL 658181 Contact Us For Availability
38
TIMER, DEFROST WPL 653221 Contact Us For Availability
38
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
38
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
38
PAN, CRISPER WPL 60457216 Contact Us For Availability
39
TRAY, DRIP WPL 601018 Contact Us For Availability
39
RETAINER WPL 630312 Contact Us For Availability
39
DOOR STOP WPL 600301 Contact Us For Availability
39
PAN, MEAT WPL 60466203 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 606232 Contact Us For Availability
40
WIRE HARNESS WPL 606322 Contact Us For Availability
40
RING, DRIVE WPL 630171 Contact Us For Availability
40
DOOR STOP WPL 604196 Contact Us For Availability
40
RACK, WINE WPL 565194 Contact Us For Availability
41
SCREW WPL 4000161 Contact Us For Availability
41
SCREW WPL 400018103 Contact Us For Availability
41
SCREW WPL 405009103 Contact Us For Availability
41
SCREW WPL 405022103 Contact Us For Availability
41
RING, RETAINER WPL 587061 Contact Us For Availability
41
TRAY, BUTTER WPL 299362 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
42
SEAL WPL 630561 Contact Us For Availability
42
TRAY, EGG WPL 600665 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
SCREW WPL 40003728 Contact Us For Availability
42
ROD WPL 600783 Contact Us For Availability
42
SCREW WPL 9986117 Contact Us For Availability
43
SHAFT, DRIVE WPL 653191 Contact Us For Availability
43
INSERT WPL 6057332 Contact Us For Availability
43
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
44
SOCKET, LIGHT WPL 630391 Contact Us For Availability
44
HANDLE EXT WPL 605541 Contact Us For Availability
44
GLASS SHELF WPL 6559811 Contact Us For Availability
45
SPACER WPL 620284 Contact Us For Availability
45
SPACER WPL 653171 Contact Us For Availability
45
HANDLE EXT WPL 605542 Contact Us For Availability
45
SHELF, CRISPER WPL 600196 Contact Us For Availability
46
SPOUT, FILL WPL 537481 Contact Us For Availability
46
TRIM WPL 657725 Contact Us For Availability
46
PLASTIC TUBE WPL 400812 Contact Us For Availability
47
SPRING WPL 633061 Contact Us For Availability
47
TRIM WPL 657726 Contact Us For Availability
47
SOCKET, LIGHT WPL 605771 Contact Us For Availability
48
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
48
TRIM, DOOR SHELF WPL 65151196 Contact Us For Availability
48
SPRING, WINE RACK WPL 580571 Contact Us For Availability
49
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
49
TRIM, DOOR SHELF WPL 65151197 Contact Us For Availability
49
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
50
SWITCH, LIGHT WPL 630401 Contact Us For Availability
50
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
50
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
51
WIRE TIE WPL 575763 Contact Us For Availability
51
TRIM WPL 6008029 Contact Us For Availability
51
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
52
TRAY, ICE WPL 596881 Contact Us For Availability
52
TRIM, DOOR SHELF WPL 65151195 Contact Us For Availability
52
SHELF SUPPORT WPL 658161 Contact Us For Availability
53
INSERT WPL 6528015 Contact Us For Availability
53
INSERT WPL 6057237 Contact Us For Availability
53
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
54
TUBE, FILL WPL 584613 Contact Us For Availability
54
INSERT WPL 6057239 Contact Us For Availability
55
TUBE WPL 561252 Contact Us For Availability
55
INSERT WPL 6057240 Contact Us For Availability
55
TOP, F.F. COMPARTMENT WPL 6008546 Contact Us For Availability
56
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
56
SPACER WPL 542334 Contact Us For Availability
57
WASHER WPL 521851 Contact Us For Availability
58
TUBING WPL 556038 Contact Us For Availability
59
TUBING WPL 5560231 Contact Us For Availability
60
TUBING WPL 556023 Contact Us For Availability
62
WATER LINE WPL 630381 Contact Us For Availability
62
WATER LINE WPL 630382 Contact Us For Availability
63
VALVE, WATER WPL 565953 Contact Us For Availability
64
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
65
WIRE HARNESS WPL 606241 Contact Us For Availability
66
WIRE HARNESS WPL 605231 Contact Us For Availability
67
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
× ![]()
Login and Registration Form
