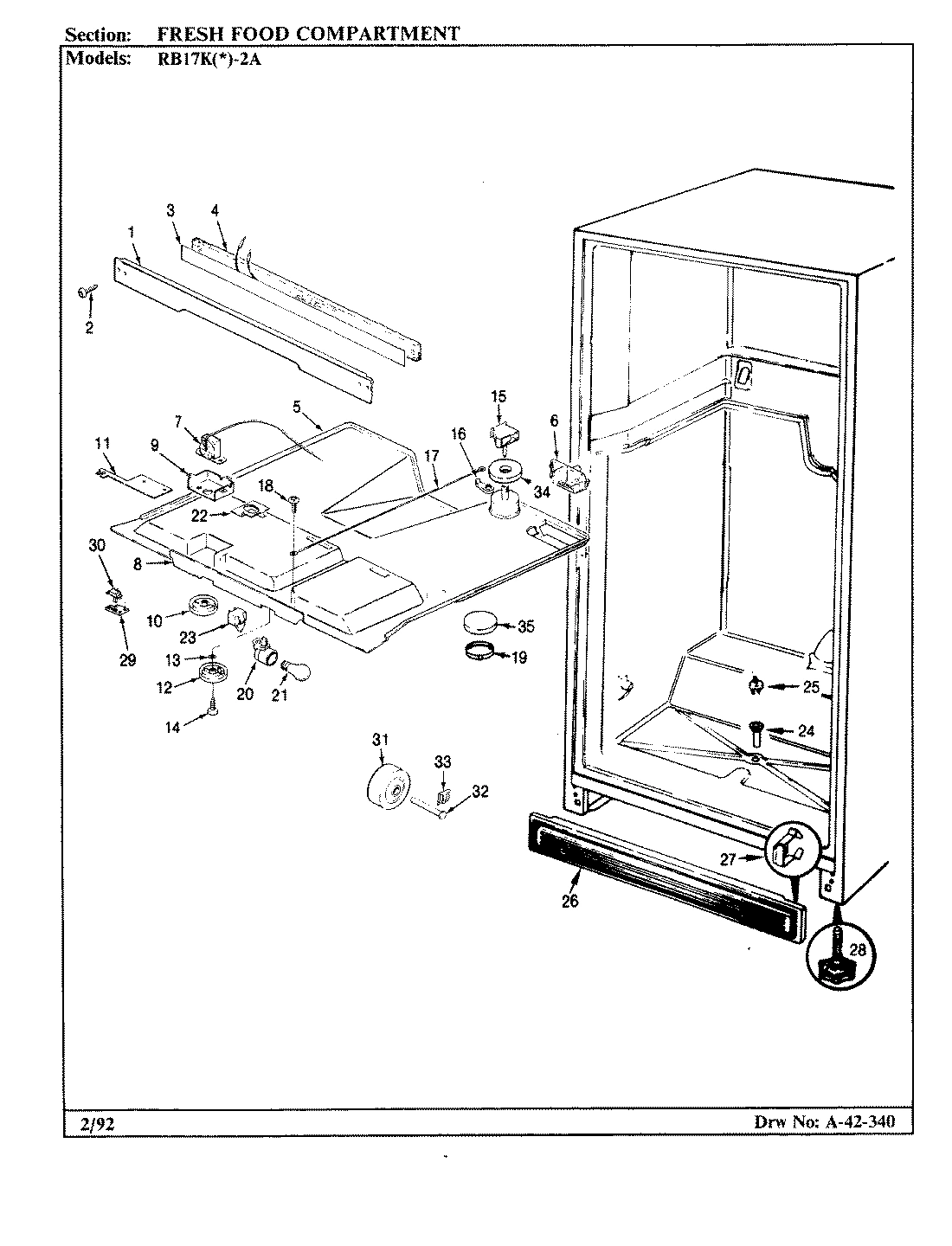

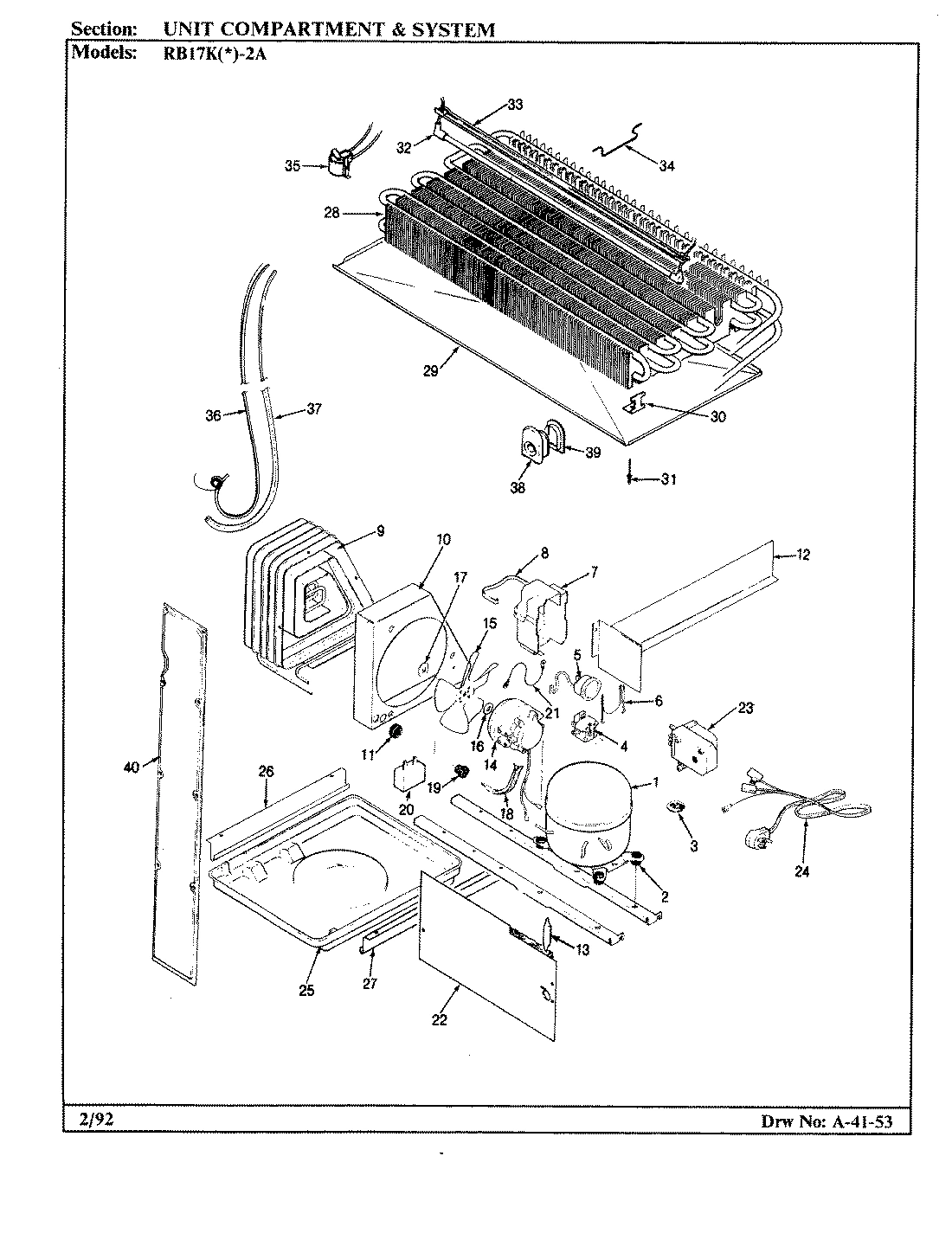

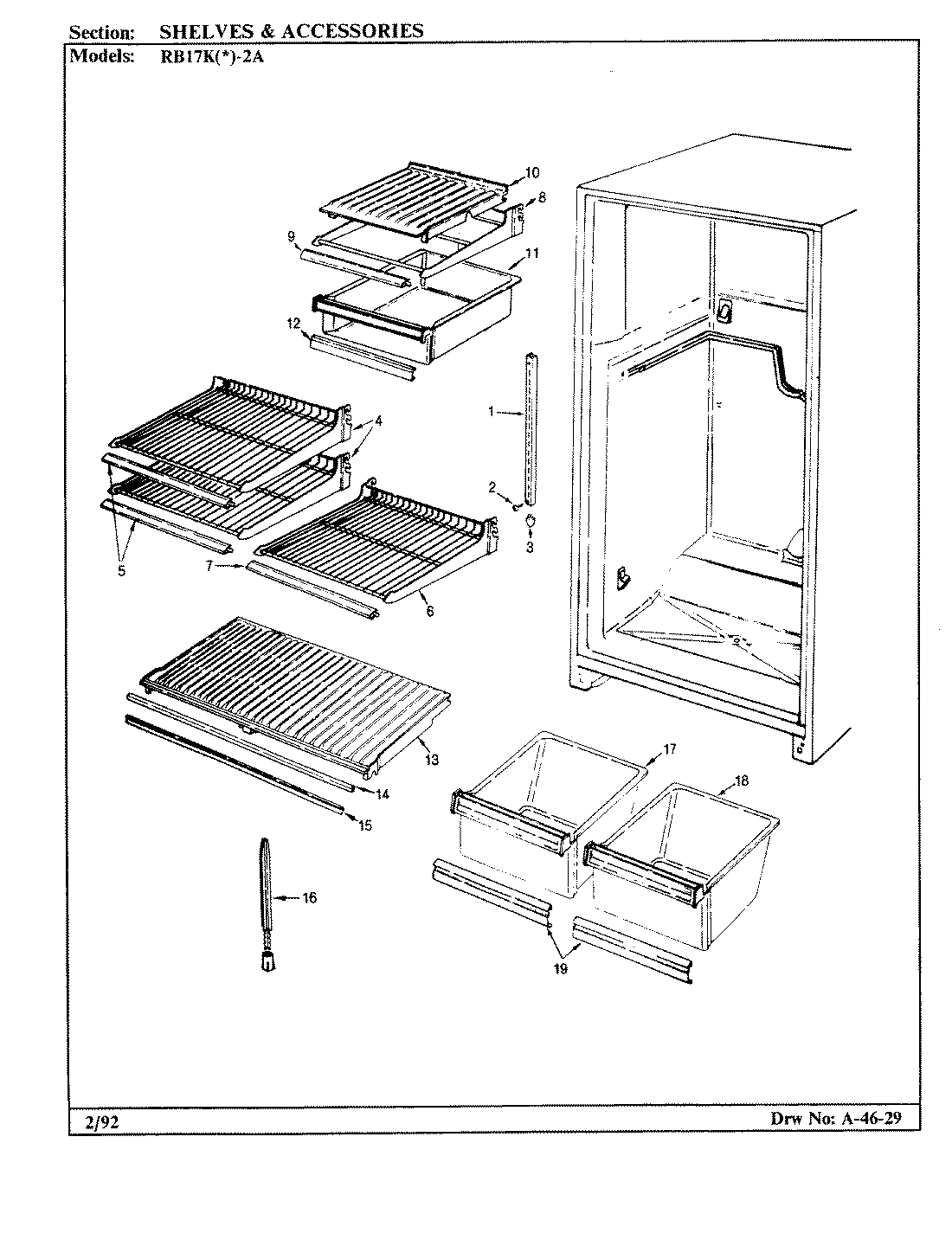

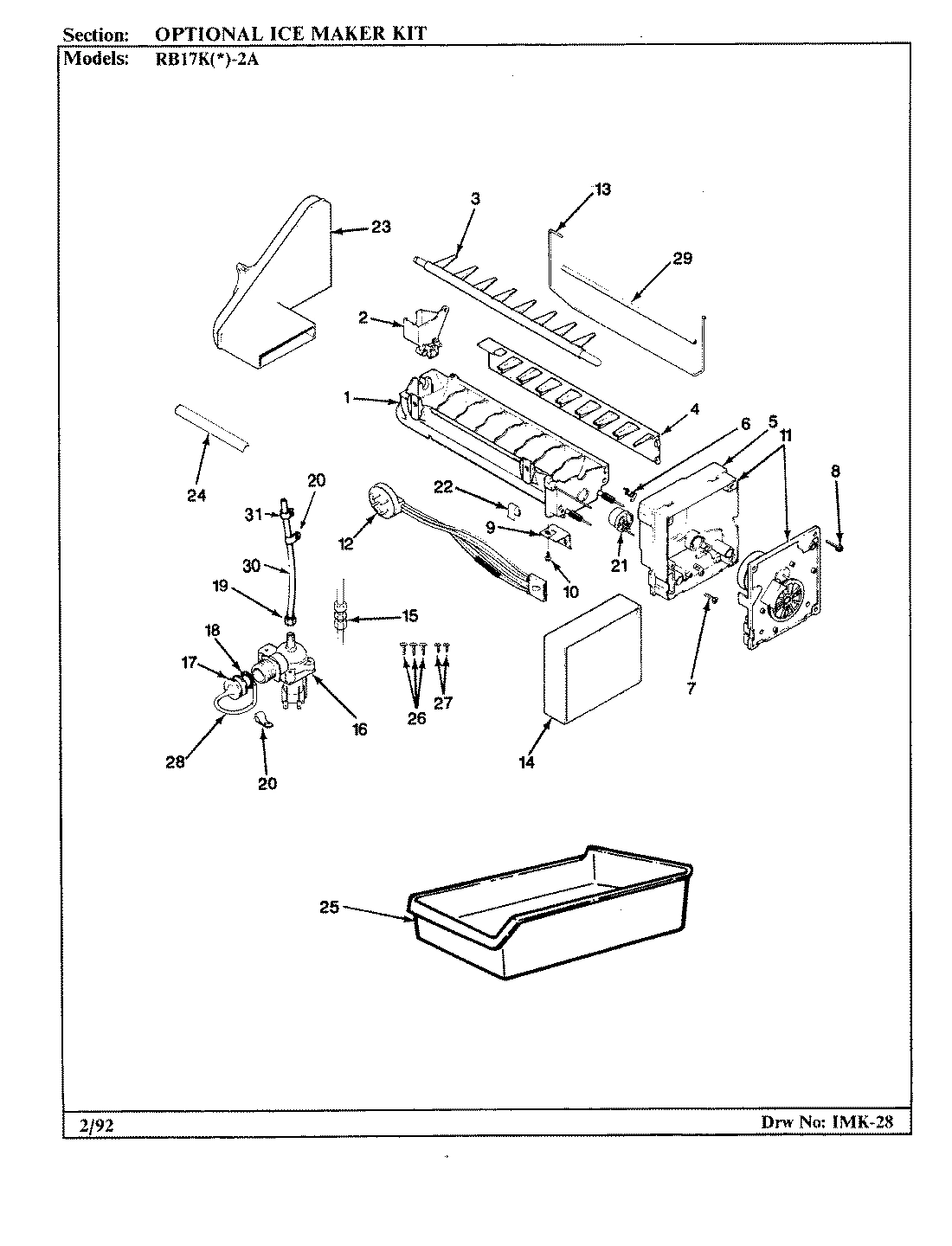

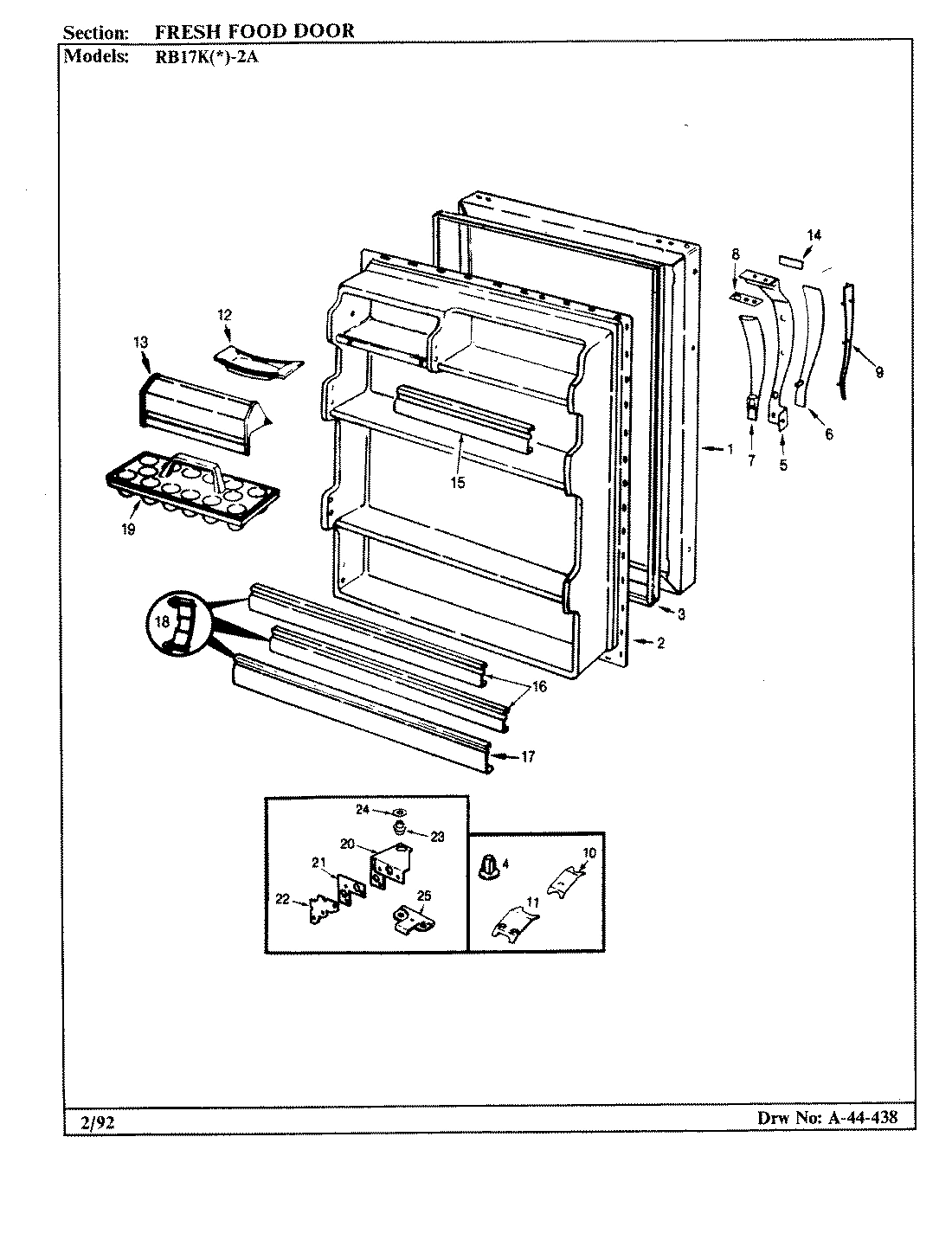

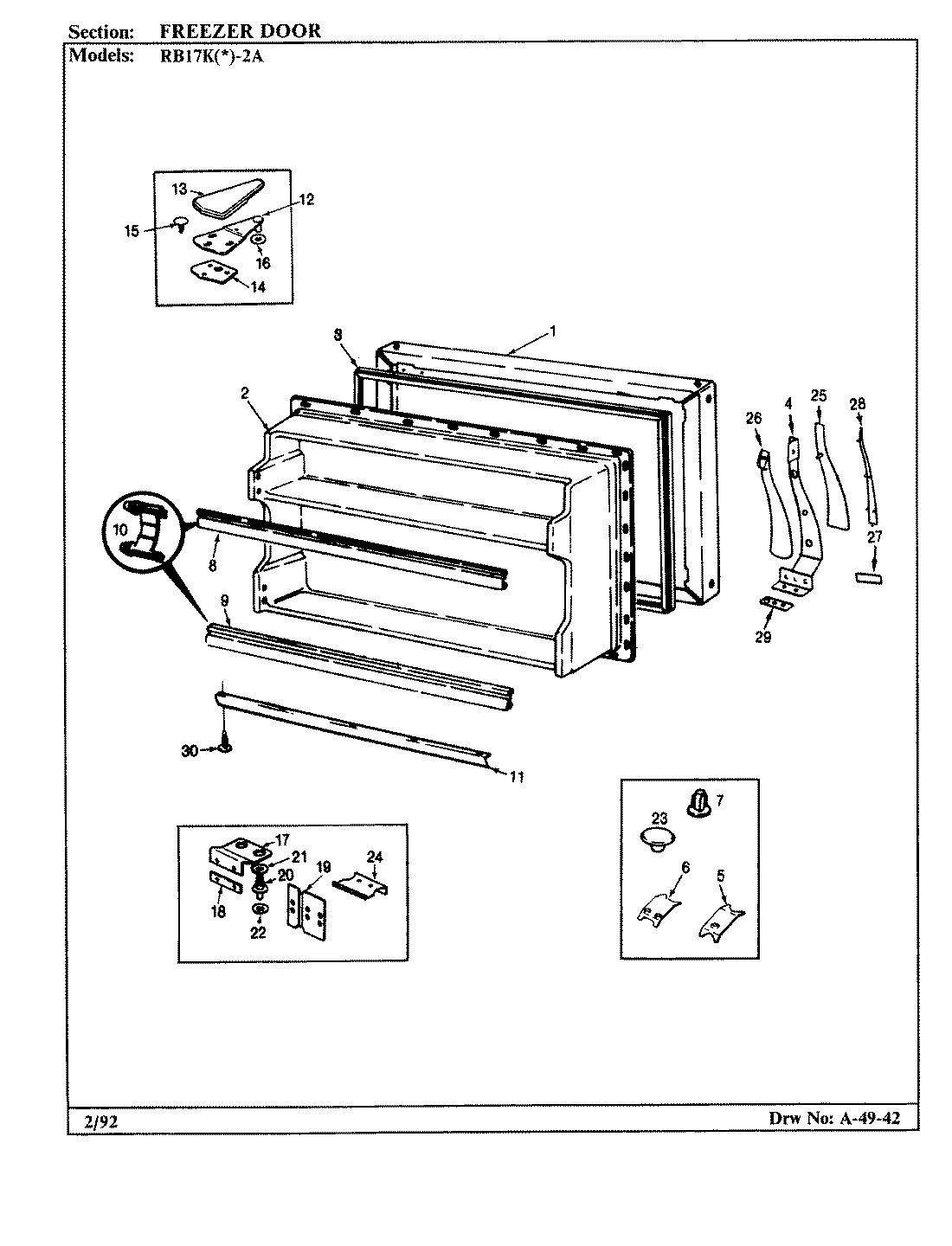

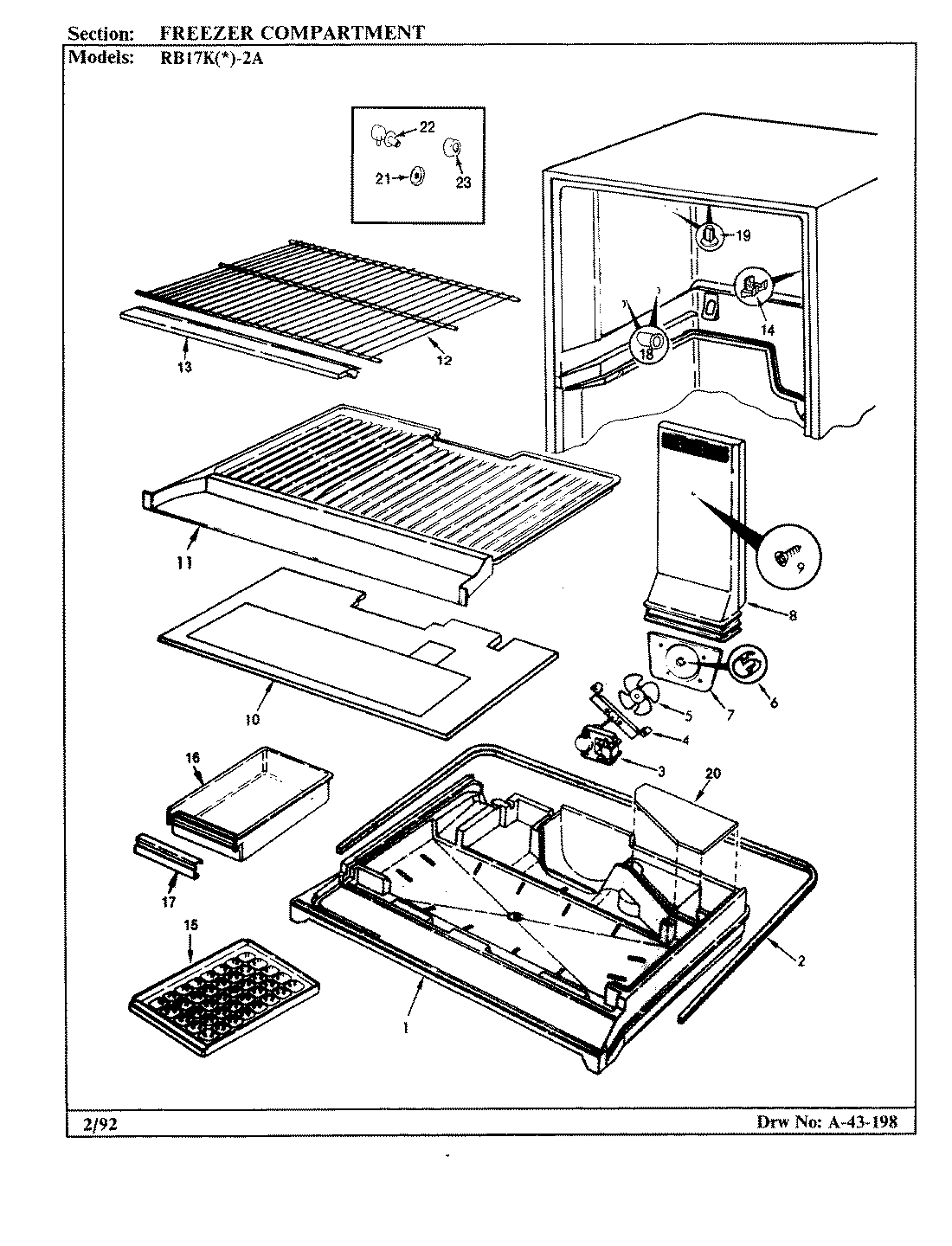

Model Whirlpool RB17KY-2A REFRIGERATOR – Common Parts &amp; Diagrams

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

PANEL, FRZ. DOOR (HW) WPL 684721HW Contact Us For Availability

1

DOOR INSULATION KIT WPL RA950561 Contact Us For Availability

1

PANEL, F.F. DOOR (HW) WPL 684711HW Contact Us For Availability

1

MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability

1

DIVIDER, MULLION (HW) WPL 684341HW Contact Us For Availability

1

RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability

1

RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability

1

RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

SCREW WPL 652755 Contact Us For Availability

2

LINER, DOOR WPL 6592913 Contact Us For Availability

2

LINER, F.F. DOOR WPL 6593414 Contact Us For Availability

2

SEAL, FRONT CORNER WPL 677301 Contact Us For Availability

2

SEAL 72`` WPL 688665 Contact Us For Availability

2

SCREW WPL 6527554 Contact Us For Availability

2

SCREW WPL 40003728 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

GASKET, DOOR WPL 661993 Contact Us For Availability

3

GASKET, DOOR WPL 661994 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

INSULATION WPL 685771 Contact Us For Availability

3

HEATER WIRE WPL 688301 Contact Us For Availability

3

END CAP, CENTER RAIL WPL 603401 Contact Us For Availability

3

SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

DOOR HANDLE WPL 662553 Contact Us For Availability

4

PLUG BUTTON WPL 557829 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

INSULATION WPL 601401 Contact Us For Availability

4

WIRE HARNESS MULLION WPL 691461 Contact Us For Availability

4

CANTILEVER SHELF (SPLIT) WPL 6041713 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

5

SCREW WPL 9986122 Contact Us For Availability

5

DOOR HANDLE WPL 662554 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability

5

TRIM WPL 6041436 Contact Us For Availability

5

OVERLOAD WPL 6329412 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

INSERT, HANDLE----NA WPL 680162 Contact Us For Availability

6

DEFLECTOR WPL 601202 Contact Us For Availability

6

SHELF WPL 6041712 Contact Us For Availability

6

CLIP, OVERLOAD WPL 658871 Contact Us For Availability

7

SCREW WPL 951051 Contact Us For Availability

7

INSERT WPL 604451 Contact Us For Availability

7

SCREW WPL 6527553 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

SCREW WPL 4060131 Contact Us For Availability

7

CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability

7

TRIM WPL 681362 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

8

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

8

SHIM HANDLE----NA WPL 687761 Contact Us For Availability

8

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

8

TUNNEL, AIR WPL 685922 Contact Us For Availability

8

INSERT WPL 6057165 Contact Us For Availability

8

CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

9

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

TRIM, DOOR SHELF WPL 65151102 Contact Us For Availability

9

INSERT, HANDLE WPL 680174 Contact Us For Availability

9

SCREW WPL 40001531 Contact Us For Availability

9

SCREW WPL 4050121 Contact Us For Availability

9

COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability

9

TRIM WPL 604144 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

9

CONDENSER WPL RA439911 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

CLIP, STOP SCREW WPL 562093 Contact Us For Availability

COVER, EVAPORATOR WPL 664031 Contact Us For Availability

KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability

COVER, MEAT PAN WPL 600757 Contact Us For Availability

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

ICEMAKER WPL 951091 Contact Us For Availability

SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability

CLIP, STOP SCREW WPL 601232 Contact Us For Availability

SEAL, FROST CHEST WPL 6632510 Contact Us For Availability

BOTTOM, FRZ. WPL 664601 Contact Us For Availability

BRACKET, CONTROL WPL 601471 Contact Us For Availability

PAN, MEAT WPL 665163 Contact Us For Availability

SCREW WPL 4140011 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability

HINGE, UPPER WPL 5370920 Contact Us For Availability

SCREW WPL 6527552 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

SHELF WPL 6043829 Contact Us For Availability

KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability

HANDLE WPL 6013268 Contact Us For Availability

BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

ARM, SENSOR WPL 681121 Contact Us For Availability

COVER, UPPER HINGE (HW) WPL 650032 Contact Us For Availability

DOOR, DAIRY WPL 66184395 Contact Us For Availability

WASHER, SPRING WPL 420092900 Contact Us For Availability

TRIM WPL 604141 Contact Us For Availability

SHELF, CRISPER WPL 668341 Contact Us For Availability

SP12MA Chromalox 6" Burner Unit In Stock CHR SP12MA $10.41

COVER, ICE MAKER WPL 683282 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

INSERT, HANDLE WPL 6060315 Contact Us For Availability

SCREW WPL 4000191 Contact Us For Availability

SCREW WPL 405016103 Contact Us For Availability

TRIM WPL 604541 Contact Us For Availability

SCREW WPL 4080151 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability

UNION, COMPRESSION WPL 542671 Contact Us For Availability

PLUG BUTTON WPL 5614412 Contact Us For Availability

TRIM, DOOR SHELF WPL 6515128 Contact Us For Availability

ICE CUBE TRAY WPL 601121 Contact Us For Availability

DAMPER WPL 675586 Contact Us For Availability

SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

VALVE, WATER WPL 601843 Contact Us For Availability

TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability

WASHER WPL 542331 Contact Us For Availability

PAN, ICE WPL 606531 Contact Us For Availability

CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability

WASHER WPL 199134 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

NUT, INLET TUBING WPL 246851 Contact Us For Availability

SCREW WPL 6527555 Contact Us For Availability

HINGE, CENTER WPL 688112 Contact Us For Availability

TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability

ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability

PAN, CRISPER (FRUIT) WPL 68221425 Contact Us For Availability

WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability

RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability

SHIM, CENTER HINGE WPL 688121 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability

SCREW WPL 6527513 Contact Us For Availability

PAN, CRISPER (VEGETABLE) WPL 68221426 Contact Us For Availability

BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability

TAPPING PLATE WPL 606221 Contact Us For Availability

TRAY, EGG WPL 600661 Contact Us For Availability

HANDLE WPL 6013266 Contact Us For Availability

PLUG BUTTON WPL 669202 Contact Us For Availability

PLUG BUTTON WPL 675571 Contact Us For Availability

COVER, CRANK WPL 674931 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

PIN, CENTER HINGE WPL 673221 Contact Us For Availability

HINGE, LOWER WPL 677146 Contact Us For Availability

COVER, PLENUM WPL 664804 Contact Us For Availability

SOCKET, LIGHT WPL 605771 Contact Us For Availability

CAPACITOR, RUN WPL 658891 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability

SHIM, LOWER HINGE WPL 606261 Contact Us For Availability

CAP, CONNECTOR WPL 681871 Contact Us For Availability

GROUND WIRE WPL 296753 Contact Us For Availability

CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability

WASHER WPL 542332 Contact Us For Availability

SCREW WPL 4031001 Contact Us For Availability

TAPPING PLATE WPL 657903 Contact Us For Availability

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability

COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability

DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability

DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability

PLUG BUTTON (HW) WPL 676344 Contact Us For Availability

HINGE PIN WPL 687881 Contact Us For Availability

CAP, GROMMET WPL 683871 Contact Us For Availability

CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability

SWITCH, LIGHT WPL 557321 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 661281 Contact Us For Availability

TUBE, WATER ENTRY WPL 676665 Contact Us For Availability

DOOR STOP WPL 600301 Contact Us For Availability

WASHER, LOWER HINGE WPL 674832 Contact Us For Availability

GROMMET WPL 545318 Contact Us For Availability

CORD, POWER WPL 528902 Contact Us For Availability

PAN, ICE WPL 683271 Contact Us For Availability

SCREW WPL 6527548 Contact Us For Availability

INSERT, HANDLE WPL 680161 Contact Us For Availability

DOOR STOP WPL 6041910 Contact Us For Availability

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

PAN, DRAIN WPL 682361 Contact Us For Availability

26

SCREW WPL 4000211 Contact Us For Availability

26

KICKPLATE WPL 6023737 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

SCREW WPL 4010171 Contact Us For Availability

INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability

CLIP, KICKPLATE WPL 601001 Contact Us For Availability

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

28

INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability

28

LEG, LEVELING WPL 686641 Contact Us For Availability

28

EVAPORATOR WPL RA4362010 Contact Us For Availability

SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability

SCREW WPL 4020131 Contact Us For Availability

BRACKET, SWITCH WPL 605831 Contact Us For Availability

TRAY, DRIP WPL 601017 Contact Us For Availability

TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability

CLIP WPL 524474 Contact Us For Availability

SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

31

CLAMP, SPRING WPL 603334 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

31

WHEEL WPL 298342 Contact Us For Availability

32

PIN, WHEEL WPL 298352 Contact Us For Availability

32

HEATER, DEFROST WPL 6010634 Contact Us For Availability

33

CLIP WPL 602161 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability

34

SEAL, TOP TOWER WPL 689891 Contact Us For Availability

34

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

35

DISC, CRANK COVER WPL 690371 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability

36

HEAT EXCHANGER WPL RA4364513 Contact Us For Availability

37

WIRE TIE WPL 662231 Contact Us For Availability

37

SCREW, ANCHOR WPL 683981 Contact Us For Availability

38

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

39

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

39

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

39

WIRE HARNESS, MAIN WPL 691611 Contact Us For Availability

40

SCREW WPL 4000171 Contact Us For Availability

40

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

41

MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
