Model Whirlpool RB17KA-2A REFRIGERATOR – Common Parts & Diagrams

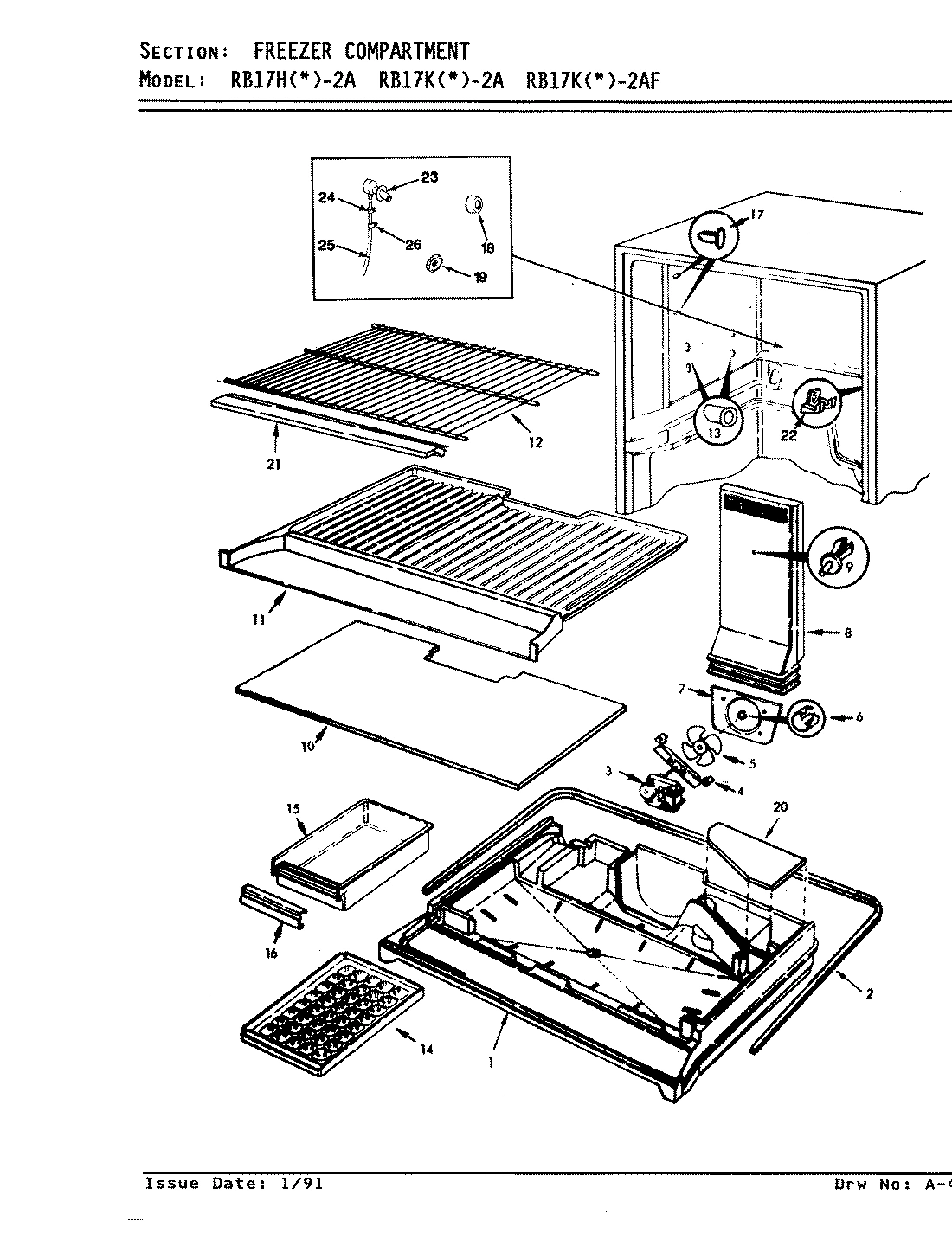

02 - FREEZER COMPARTMENT

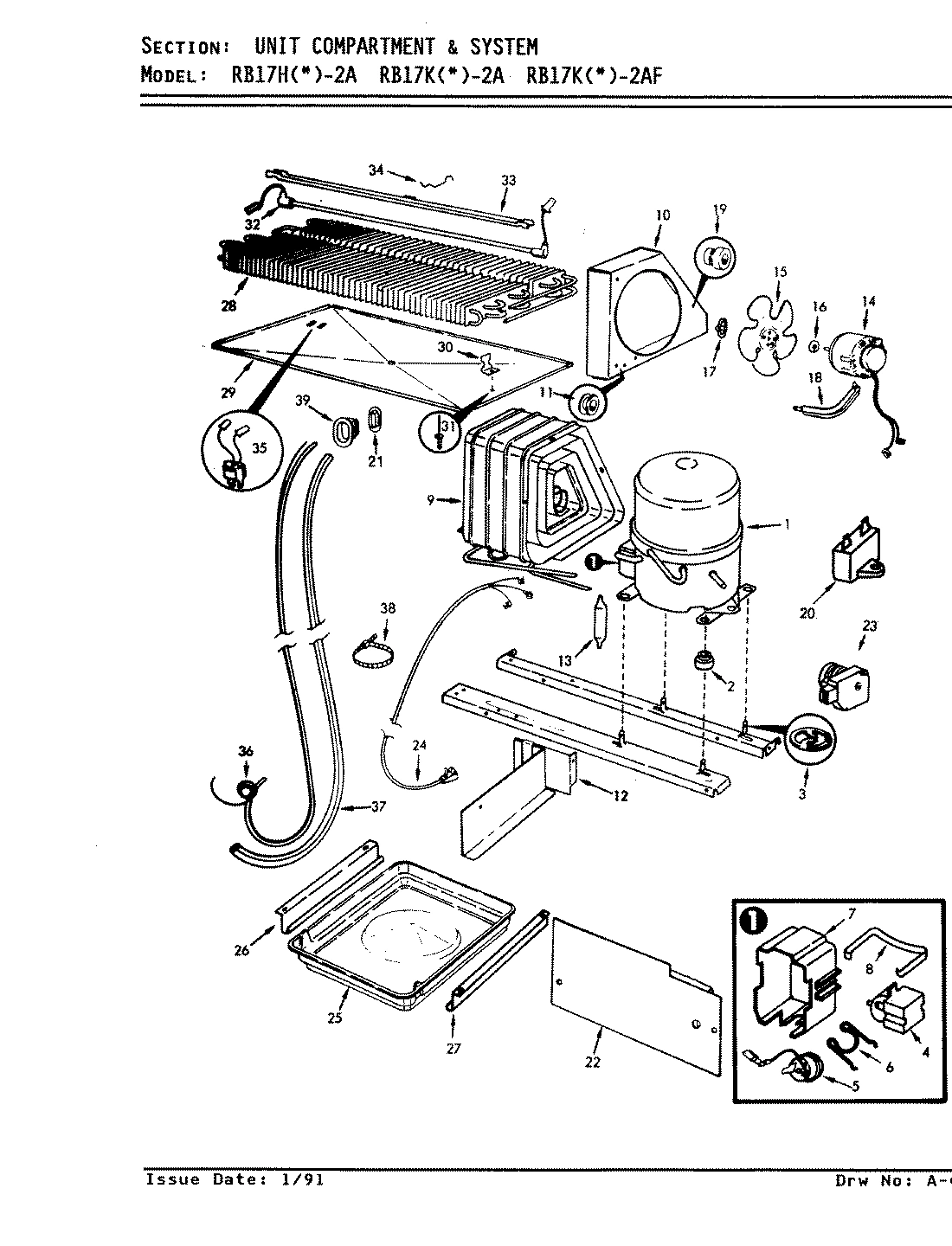

04 - UNIT COMPARTMENT & SYSTEM

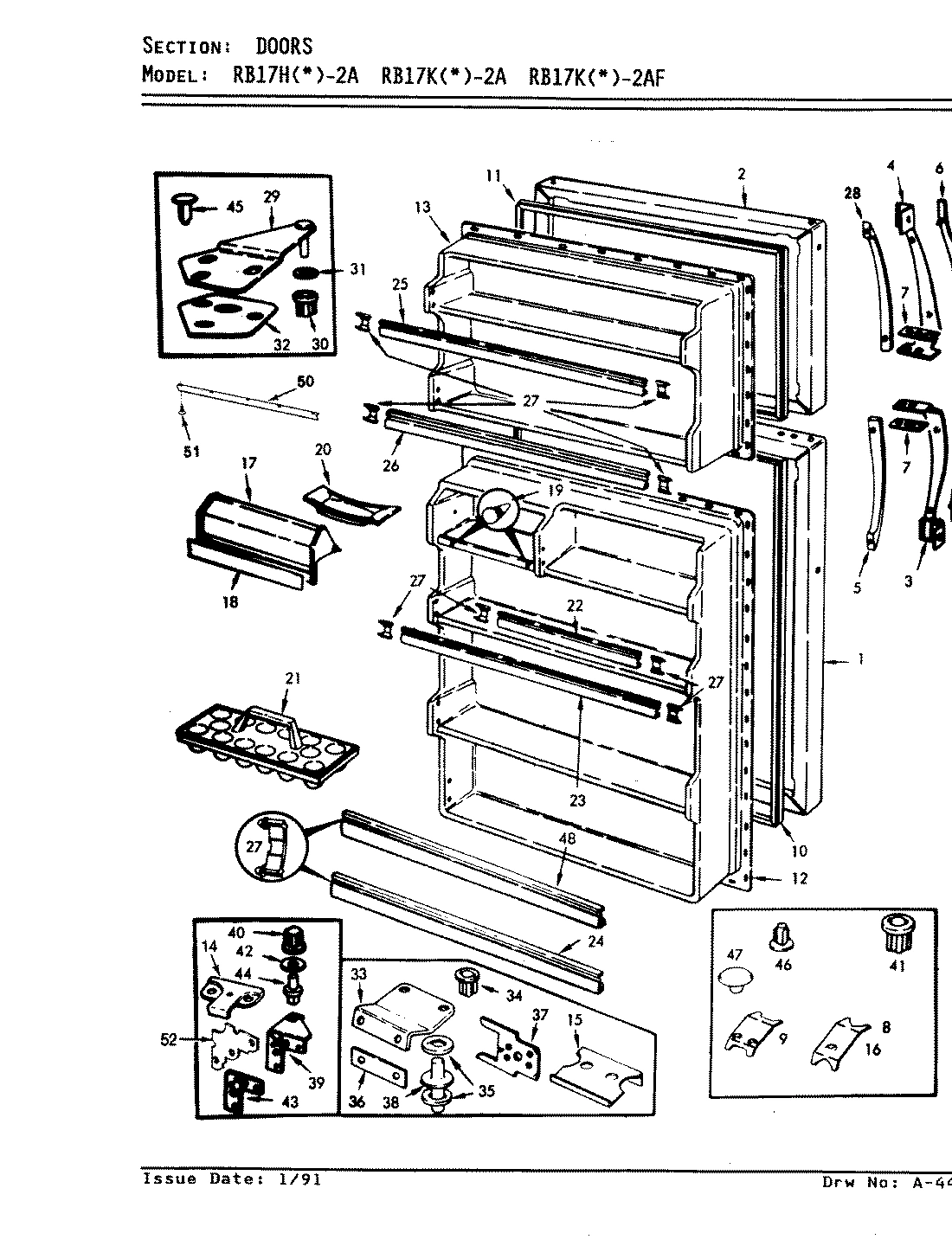

01 - DOORS

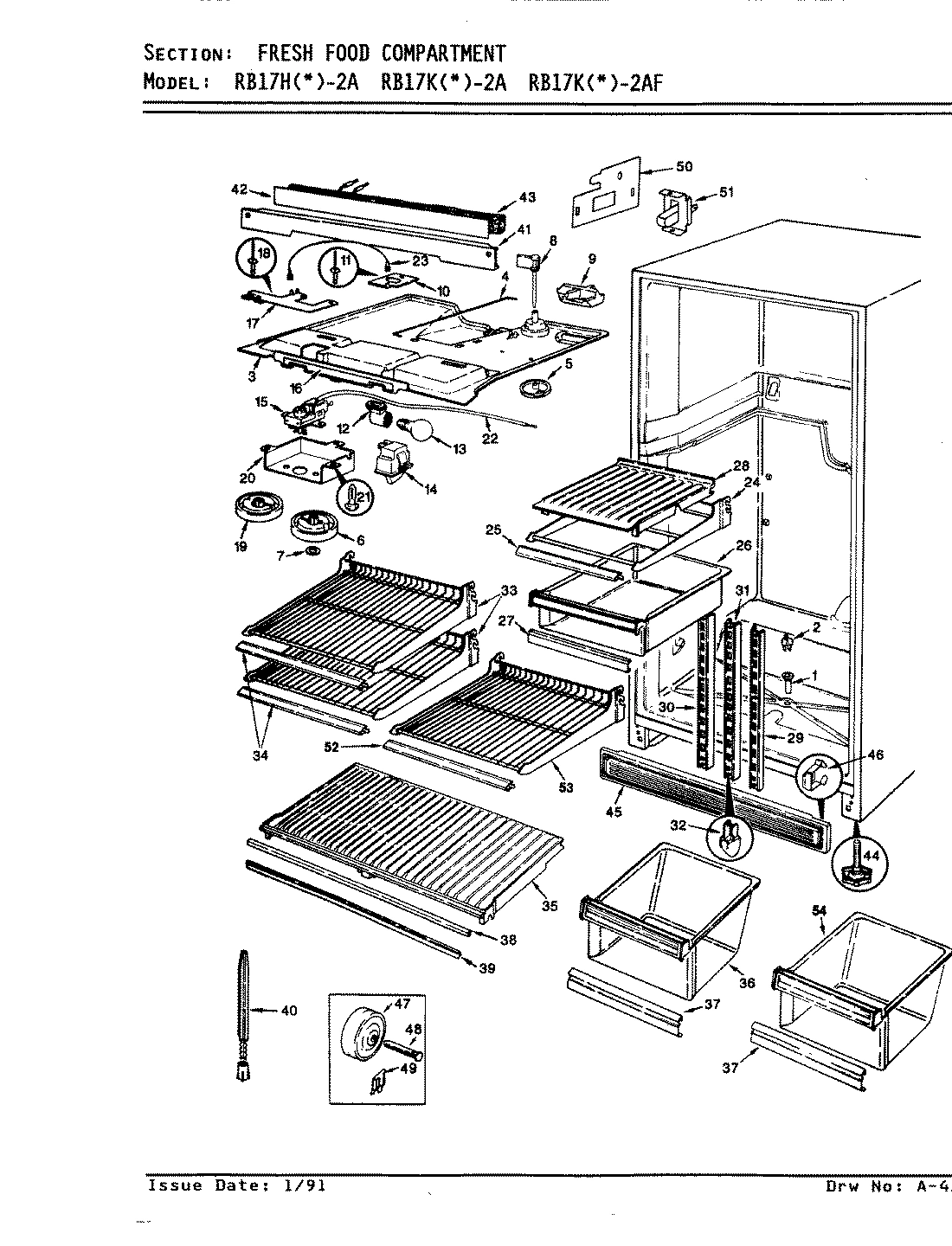

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB17KA-2A REFRIGERATOR
1
PANEL, F.F. DOOR (ALM) WPL 684711AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 684711WW Contact Us For Availability
1
GROMMET WPL 545318 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INSERT, HANDLE WPL 6060315 Contact Us For Availability
2
INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability
2
PANEL, FRZ. DOOR (ALM) WPL 684721AM Contact Us For Availability
2
PANEL, FRZ. DOOR (WHT) WPL 684721WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662554 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
DOOR HANDLE WPL 662553 Contact Us For Availability
4
SCREW WPL 9986122 Contact Us For Availability
4
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
4
SCREW WPL 6527513 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329415 Contact Us For Availability
5
INSERT WPL 604902 Contact Us For Availability
5
COVER, CRANK WPL 674931 Contact Us For Availability
5
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 680191 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DAMPER WPL 675586 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
GASKET, DOOR WPL 661994 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
GASKET, DOOR WPL 661993 Contact Us For Availability
12
SHELF WPL 6043819 Contact Us For Availability
12
SHELF WPL 604389 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
LINER, FRZ. DOOR WPL 659295 Contact Us For Availability
13
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
13
BULB, LIGHT WPL 319560 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
DOOR STOP WPL 6041910 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DOOR STOP WPL 600301 Contact Us For Availability
15
SCREW WPL 9986108 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
16
HANDLE WPL 6013267 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
16
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
16
INSERT WPL 6057165 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GROUND WIRE WPL 2967522 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
INSERT WPL 681286 Contact Us For Availability
18
RIVET WPL 263972 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
BUMPER, DOOR WPL 282726 Contact Us For Availability
19
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
20
COVER, PLENUM WPL 664804 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
TRAY, BUTTER WPL 299362 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
21
TRIM SHELF WPL 6813637 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
WIRE HARNESS WPL 687111 Contact Us For Availability
21
TRAY, EGG WPL 600661 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515128 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661281 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
24
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
CLAMP, TUBING WPL 535168 Contact Us For Availability
26
SCREW WPL 652751 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
TRIM, DOOR SHELF WPL 65151102 Contact Us For Availability
26
PAN, MEAT WPL 665162 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
27
HANDLE WPL 6013268 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
INSERT WPL 604451 Contact Us For Availability
28
COVER, MEAT PAN WPL 600757 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
29
HINGE, UPPER WPL 5370920 Contact Us For Availability
29
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
29
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
WASHER WPL 542331 Contact Us For Availability
31
SCREW WPL 40003728 Contact Us For Availability
31
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
32
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SCREW WPL 6527524 Contact Us For Availability
33
HINGE, CENTER WPL 688112 Contact Us For Availability
33
CANTILEVER SHELF (SPLIT) WPL 6041713 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM WPL 681364 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
WASHER WPL 542332 Contact Us For Availability
35
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
35
SHELF, CRISPER WPL 668341 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
36
PAN, CRISPER WPL 68221420 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
TAPPING PLATE WPL 606221 Contact Us For Availability
37
HANDLE WPL 6013266 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
38
TRIM WPL 604541 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SCREW WPL 4031001 Contact Us For Availability
39
HINGE, LOWER WPL 677146 Contact Us For Availability
39
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
40
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
41
SCREW WPL 6527523 Contact Us For Availability
41
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
41
DIVIDER, MULLION (WHT) WPL 684341WW Contact Us For Availability
41
WIRE HARNESS WPL 688691 Contact Us For Availability
42
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
42
HEATER WIRE WPL 688301 Contact Us For Availability
43
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
43
INSULATION WPL 601401 Contact Us For Availability
43
INSULATION WPL 685771 Contact Us For Availability
44
HINGE PIN WPL 687881 Contact Us For Availability
44
LEG, LEVELING WPL 60128 Contact Us For Availability
45
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
45
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
45
KICKPLATE WPL 6023737 Contact Us For Availability
46
SCREW WPL 4000171 Contact Us For Availability
46
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
46
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
46
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
47
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
47
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
47
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
47
PLUG BUTTON, HIN WPL 676343 Contact Us For Availability
47
WHEEL WPL 298342 Contact Us For Availability
48
WPL 6515193 WPL 6515193 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
WPL 680174 WPL 680174 Contact Us For Availability
49
WPL 9986112 WPL 9986112 Contact Us For Availability
49
WPL 680162 WPL 680162 Contact Us For Availability
49
CLIP WPL 602161 Contact Us For Availability
50
BRACKET, SWITCH WPL 605831 Contact Us For Availability
51
WPL 524474 WPL 524474 Contact Us For Availability
51
GROUND WIRE WPL 2967532 Contact Us For Availability
51
SCREW WPL 4020131 Contact Us For Availability
51
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
52
WPL 657903 WPL 657903 Contact Us For Availability
52
TRIM WPL 681362 Contact Us For Availability
53
SHELF WPL 6041712 Contact Us For Availability
54
PAN, CRISPER WPL 68221421 Contact Us For Availability
× ![]()
Login and Registration Form
