Model Whirlpool RB17HN1AF REFRIGERATOR – Common Parts & Diagrams

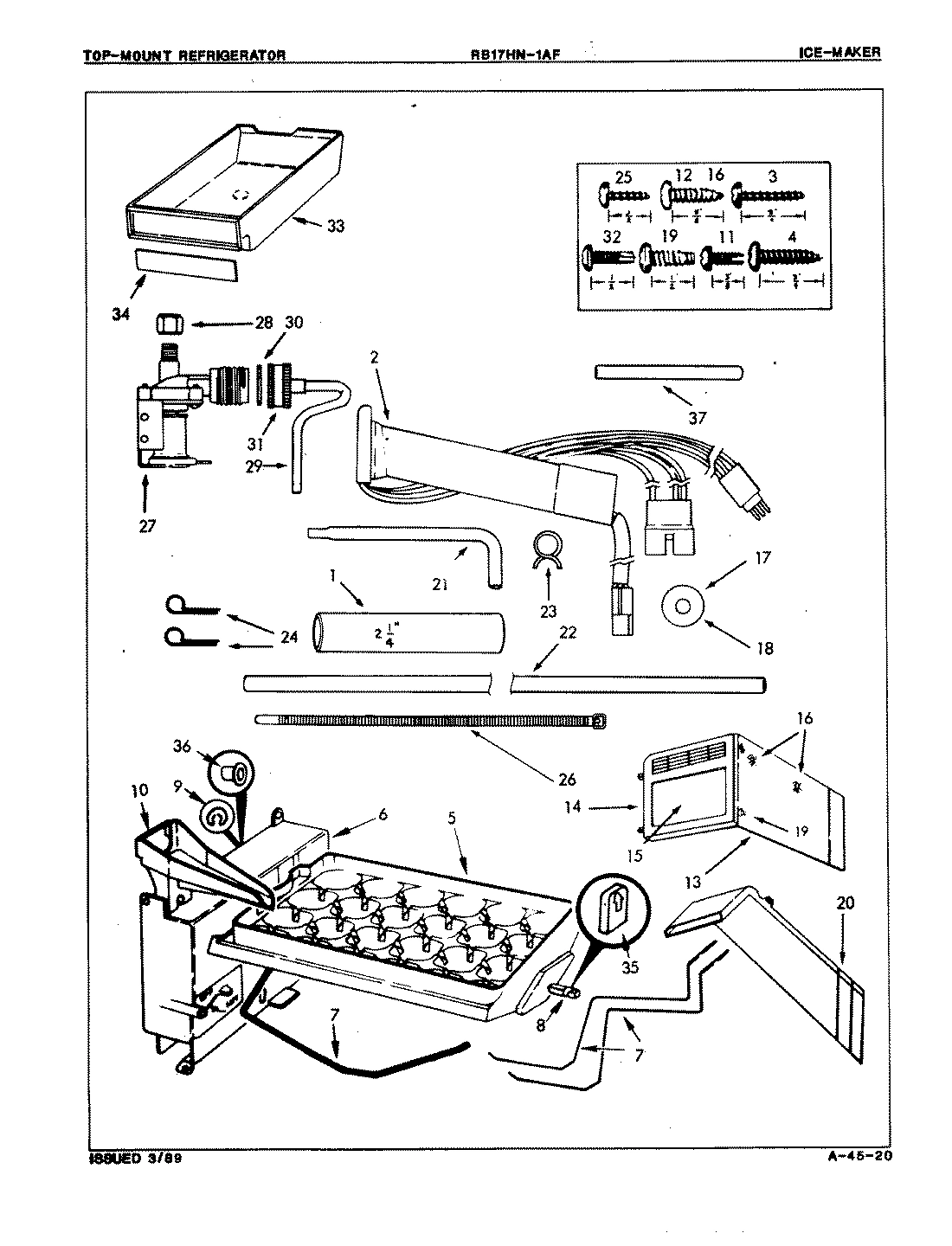

02 - ICE MAKER
03 - UNIT COMPARTMENT & SYSTEM

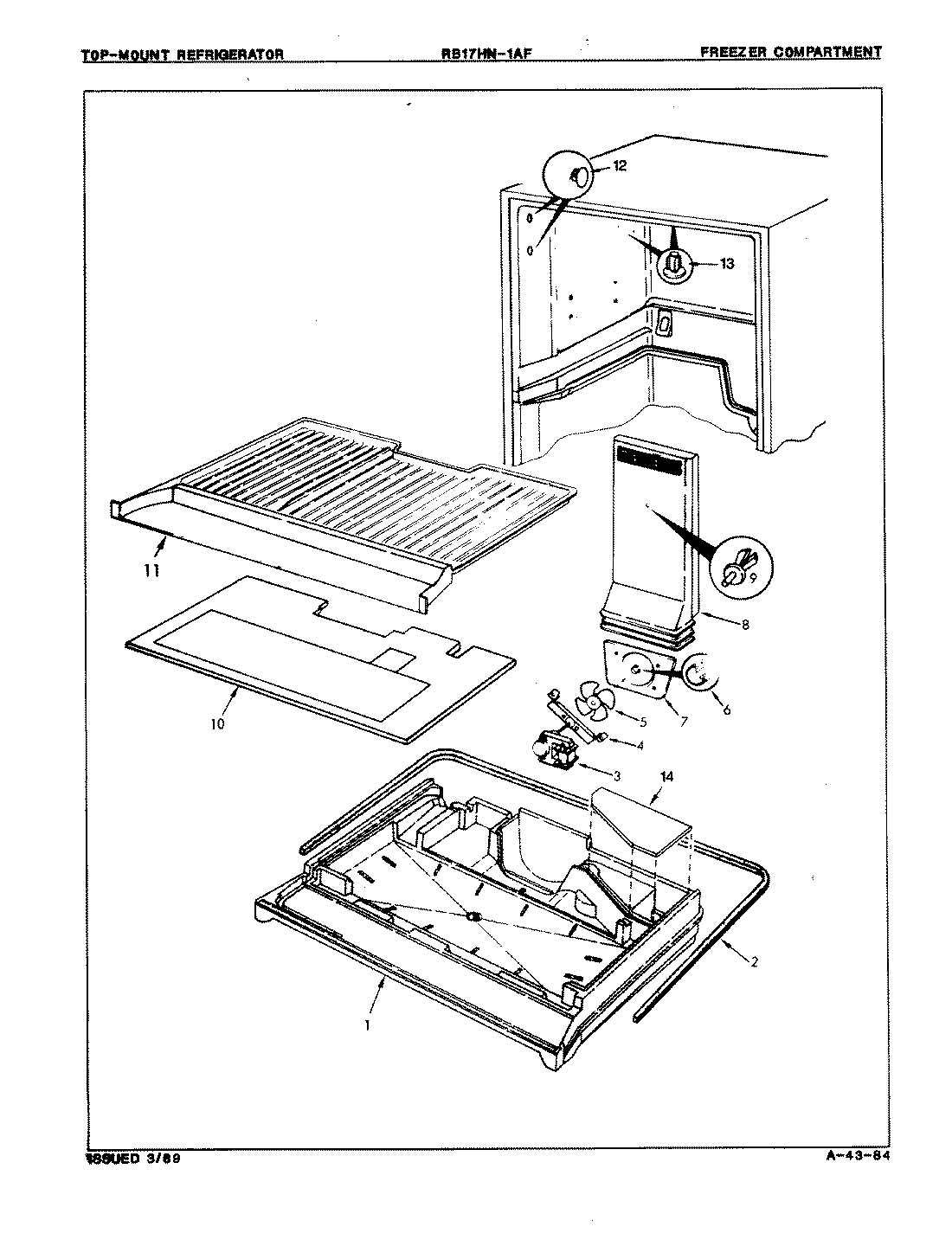

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB17HN1AF REFRIGERATOR
1
TUBE, FILL WPL 584613 Contact Us For Availability
1
COMPRESSOR WPL RA1009 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666051 Contact Us For Availability
2
WIRE HARNESS WPL 601981 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663255 Contact Us For Availability
3
SCREW WPL 4000221 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
4
SCREW WPL 400084103 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
TRAY, ICE WPL 596881 Contact Us For Availability
5
OVERLOAD WPL 6329415 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
SENSOR ARM WPL 606192 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
SHAFT, DRIVE WPL 653191 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
9
RING, RETAINER WPL 587061 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
SPOUT, FILL WPL 537481 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
SCREW WPL 405009103 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
SIDE, ICE MAKER ENCLOSURE WPL 604261 Contact Us For Availability
13
PLUG WPL 603211 Contact Us For Availability
14
FRONT, ICE MAKER ENCLOSURE WPL 650701 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
COVER, PLENUM WPL 664801 Contact Us For Availability
15
INSERT WPL 6813312 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
SCREW WPL 400018103 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
WASHER WPL 420051900 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
SCREW WPL 402019103 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
IM DUCT WPL 657595 Contact Us For Availability
21
FEEDER TUBE WPL 667592 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
TUBING 62`` WPL 5560222 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
CLAMP, SPRING WPL 603331 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
CLAMP, TUBING WPL 535168 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
SCREW WPL 4000161 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
CLAMP WPL 575761 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
VALVE, WATER WPL 601841 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
NUT, INLET TUBING WPL 246851 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4010171 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
PAN, STORAGE WPL 605881 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
INSERT WPL 681343 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SPACER WPL 653171 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
TUBING WPL 6500114 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 668551 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1051211 Contact Us For Availability
× ![]()
