Model Whirlpool RB17HN-3A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

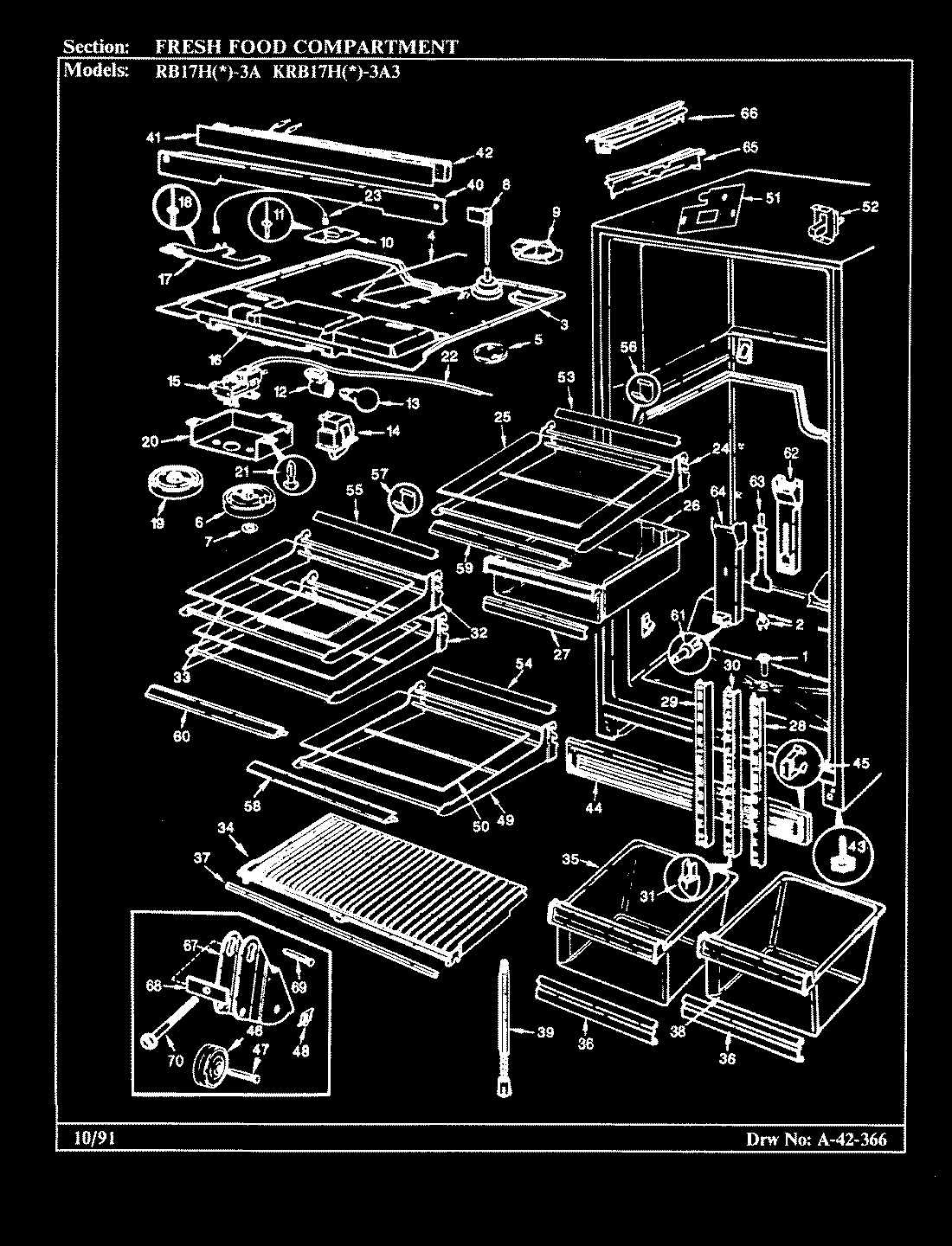

02 - FRESH FOOD COMPARTMENT

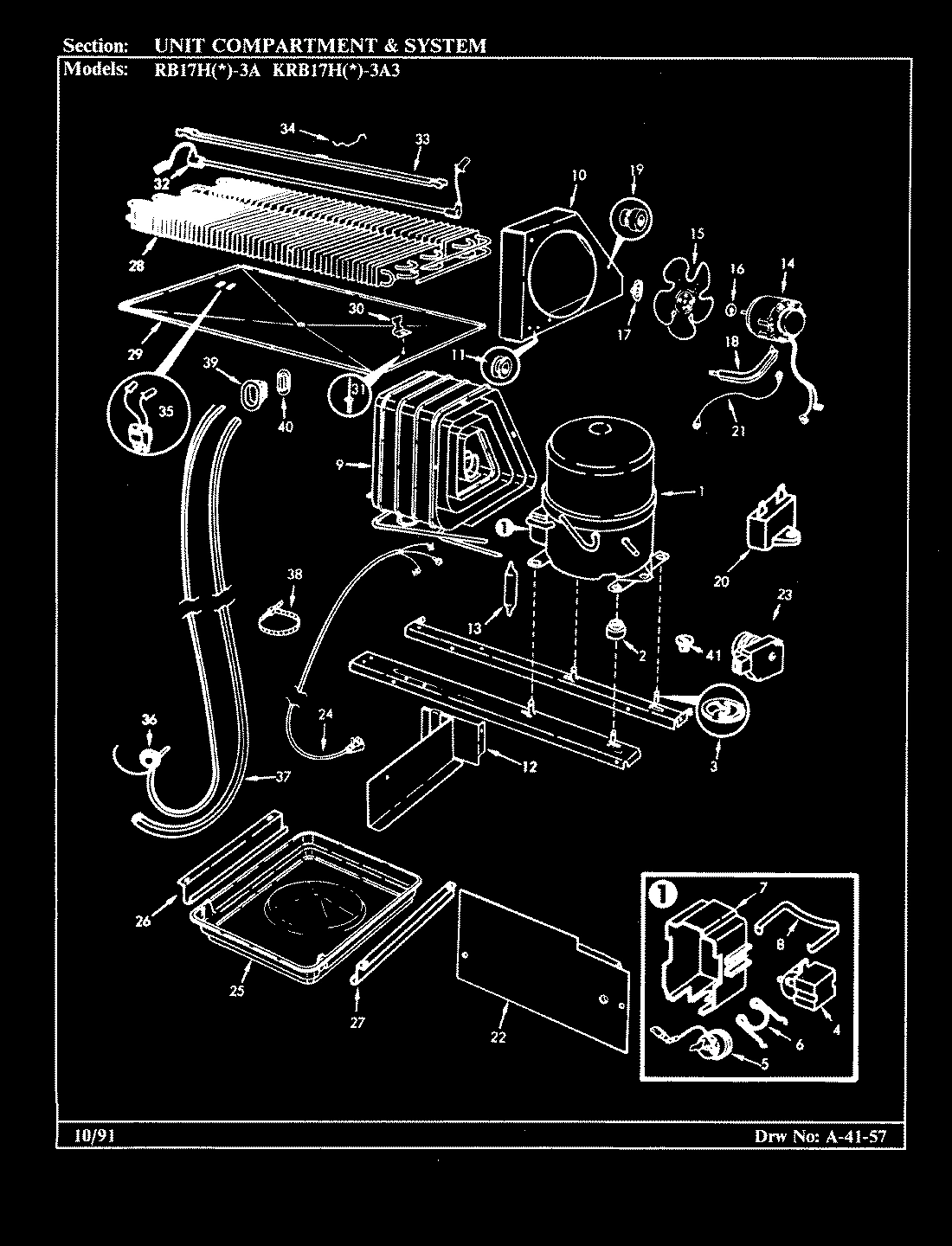

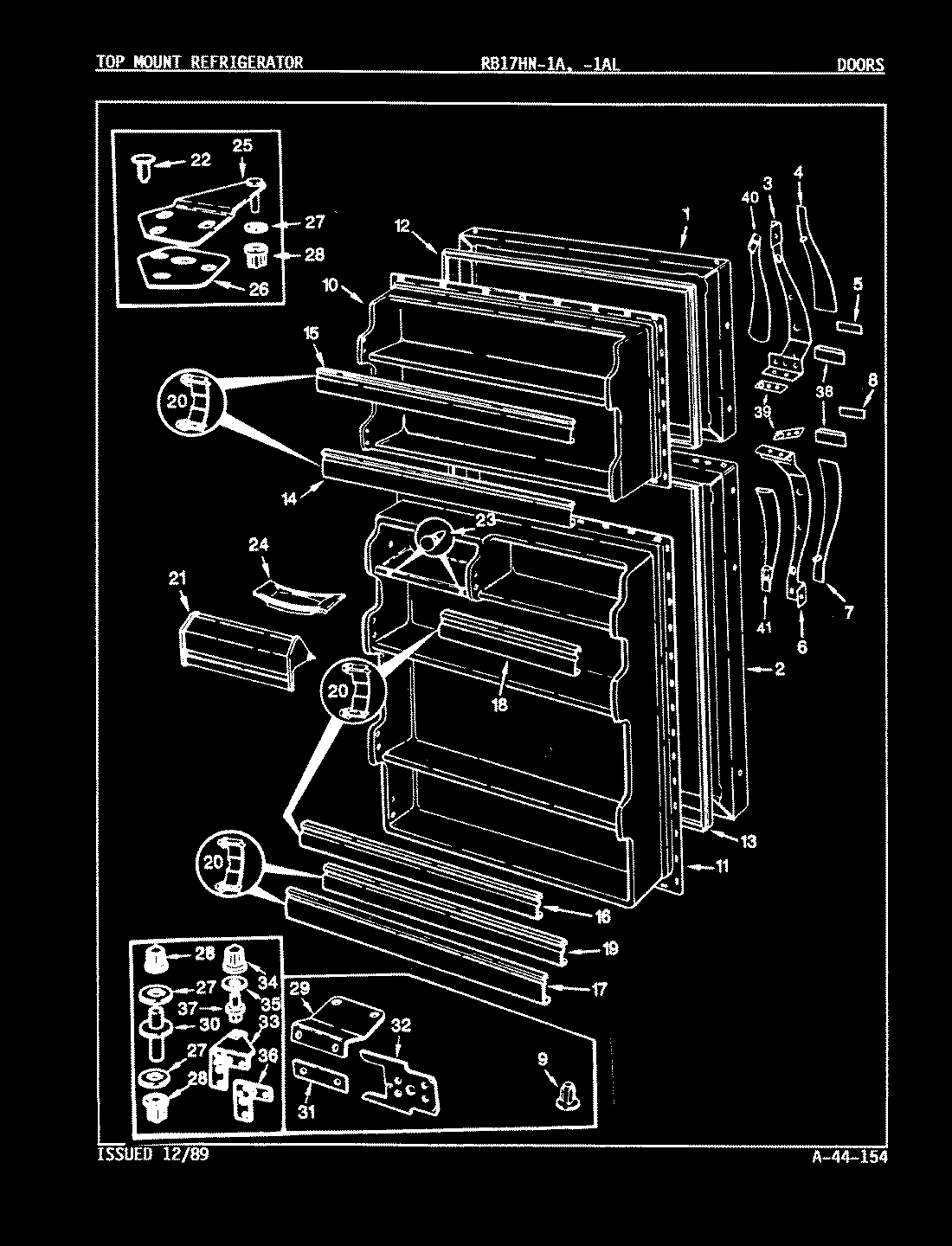

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB17HN-3A REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 666051 Contact Us For Availability
1
GROMMET WPL 545318 Contact Us For Availability
1
COMPRESSOR WPL RA1008 Contact Us For Availability
2
SEAL WPL 663255 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 6008551 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
ROD WPL 600783 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
5
OVERLOAD WPL 632949 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB WPL 600613 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
8
DAMPER WPL 666091 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHELF WPL 6032319 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
14
FAN MOTOR WPL 2805616 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
HANDLE WPL 6013269 Contact Us For Availability
16
INSERT WPL 6057146 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
17
GROUND WIRE WPL 2967522 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
RIVET WPL 263972 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
TRIM WPL 6813612 Contact Us For Availability
19
KNOB WPL 600611 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
DIVIDER WPL 601167 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
20
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
SHELF WPL 606557 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
GLASS SHELF WPL 681393 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
PAN, MEAT WPL 665171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
PLUG BUTTON WPL 669202 Contact Us For Availability
27
PLUG BUTTON WPL 675571 Contact Us For Availability
27
CUP PLUG WPL 680531 Contact Us For Availability
27
HANDLE WPL 6013274 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
SCREW WPL 40003728 Contact Us For Availability
30
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
FRAME, SHELF WPL 6057012 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
GLASS SHELF WPL 681392 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
SHELF, CRISPER WPL 666441 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
PAN, CRISPER WPL 68221407 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HANDLE WPL 6013271 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
TRIM WPL 604541 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PAN, CRISPER WPL 68221408 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
WIRE HARNESS WPL 605601 Contact Us For Availability
40
DIVIDER, MULLION (ALM) WPL 657971AM Contact Us For Availability
40
DIVIDER, MULLION (WHT) WPL 657971WW Contact Us For Availability
40
SCREW WPL 9986117 Contact Us For Availability
40
WIRE HARNESS WPL 666551 Contact Us For Availability
41
HEATER WIRE WPL 601057 Contact Us For Availability
42
INSULATION WPL 601401 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1051241 Contact Us For Availability
43
LEG, LEVELING WPL 60128 Contact Us For Availability
44
KICKPLATE WPL 6023742 Contact Us For Availability
45
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
PIN, WHEEL WPL 298352 Contact Us For Availability
48
CLIP WPL 602161 Contact Us For Availability
49
FRAME, SHELF WPL 6057013 Contact Us For Availability
50
GLASS SHELF WPL 681391 Contact Us For Availability
51
SCREW WPL 4020131 Contact Us For Availability
51
BRACKET, SWITCH WPL 605831 Contact Us For Availability
52
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
53
TRIM WPL 652761 Contact Us For Availability
55
TRIM WPL 652763 Contact Us For Availability
57
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
59
TRIM WPL 681365 Contact Us For Availability
60
TRIM WPL 681366 Contact Us For Availability
62
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
63
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
64
TUNNEL WPL 6009412 Contact Us For Availability
65
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
66
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
67
BRACKET, ADJUSTING WHEEL WPL 591001 Contact Us For Availability
68
TAPPING PL WPL 591011 Contact Us For Availability
69
WPL 649651 WPL 649651 Contact Us For Availability
70
WPL 4060871 WPL 4060871 Contact Us For Availability
× ![]()
