Model Whirlpool RB17EY-3A REFRIGERATOR – Common Parts & Diagrams

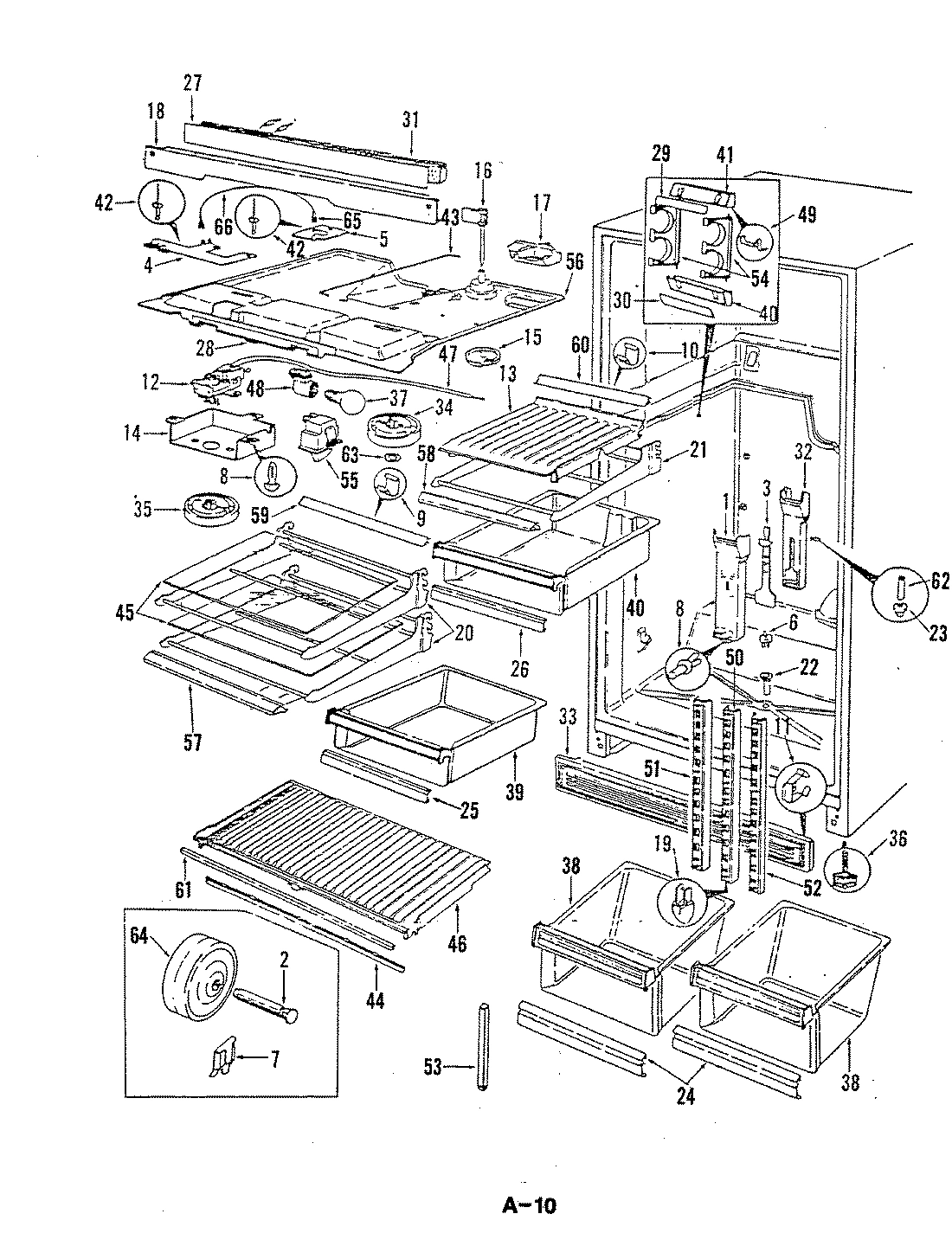

02 - FRESH FOOD COMPARTMENT

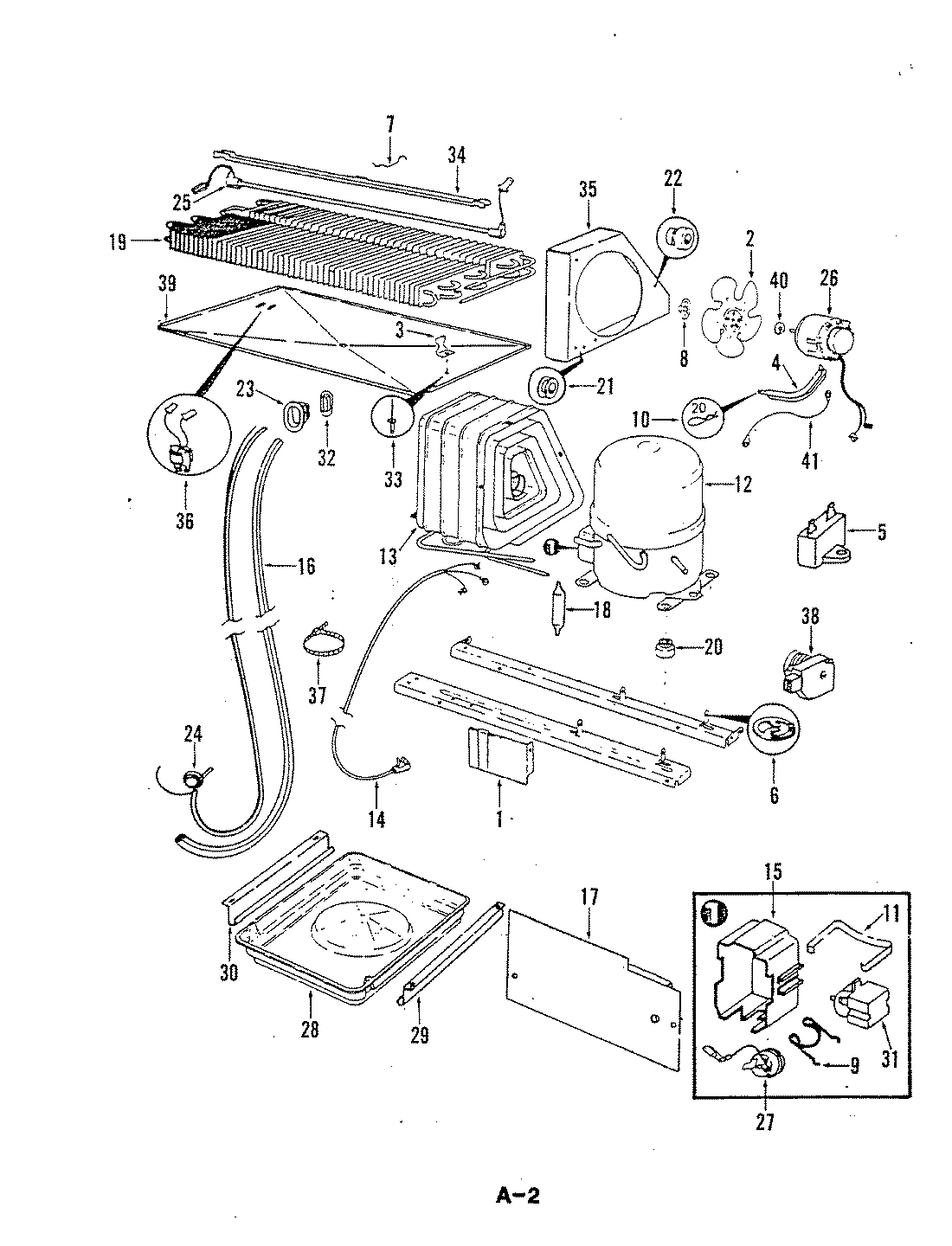

04 - UNIT COMPARTMENT & SYSTEM

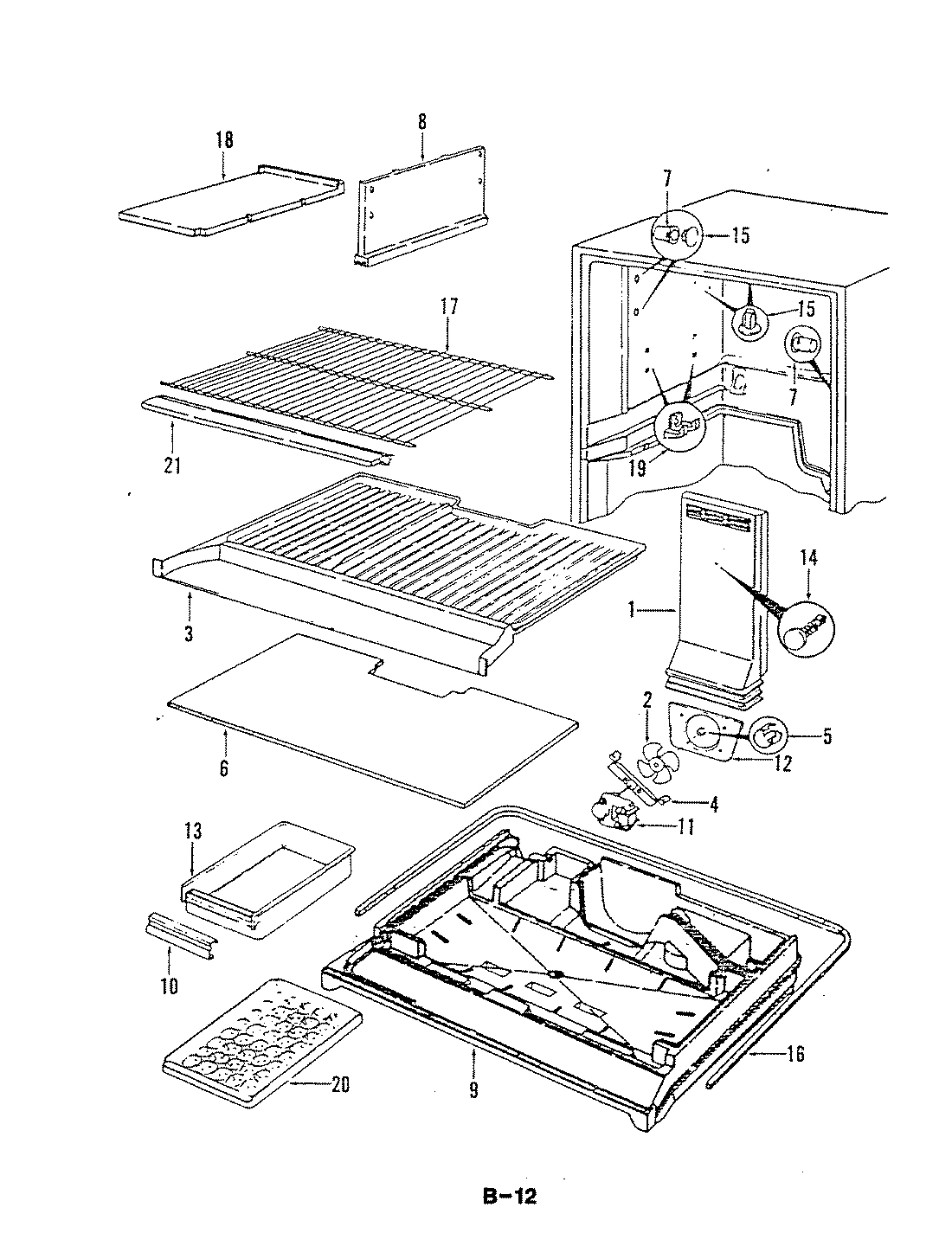

01 - FREEZER COMPARTMENT

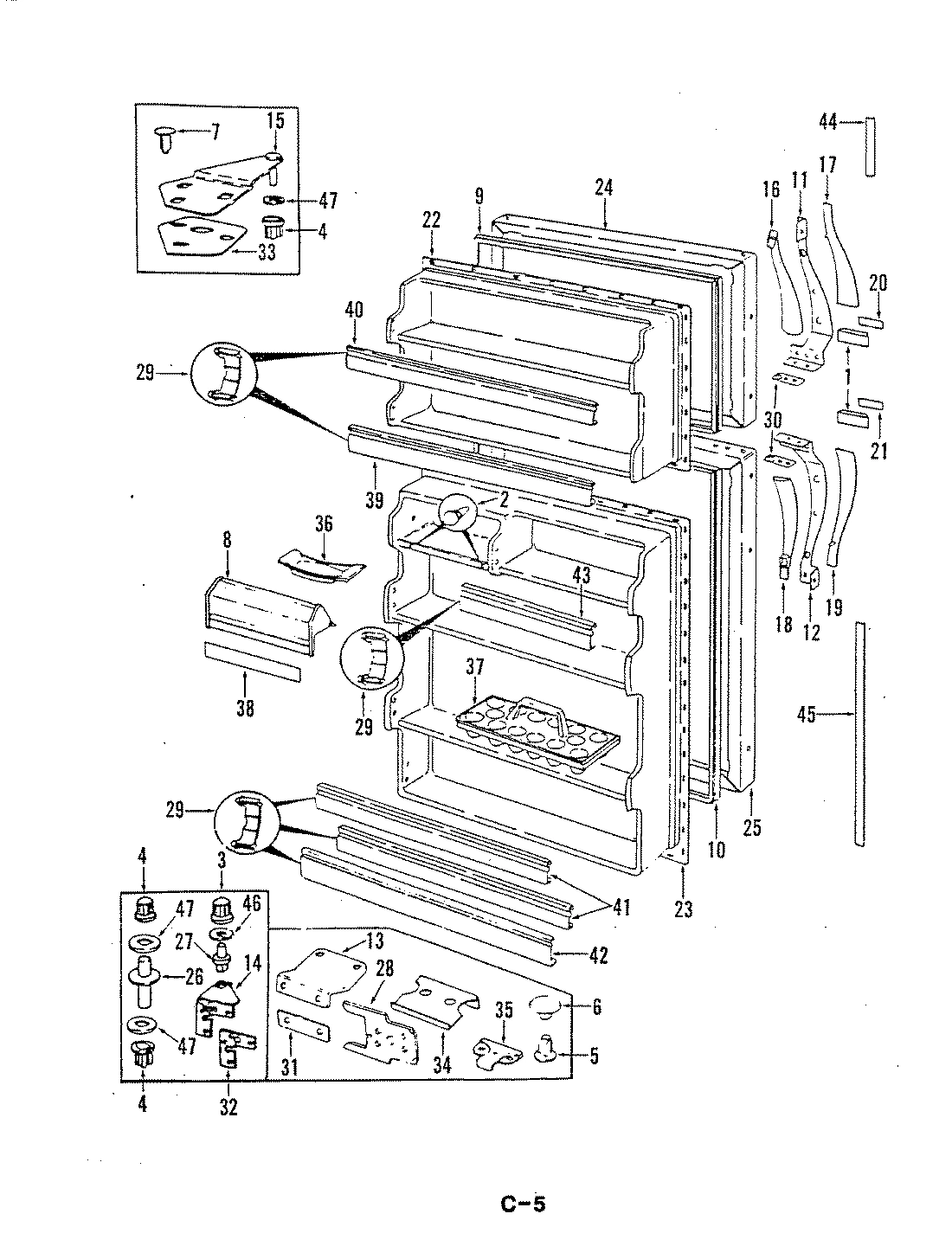

03 - FRESH FOOD DOOR
Common parts from model Whirlpool RB17EY-3A REFRIGERATOR
1
TUNNEL WPL 6009412 Contact Us For Availability
1
BAFFLE WPL 6002410 Contact Us For Availability
1
TUNNEL, AIR WPL 660442 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
3
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
5
SHELF WPL 604172 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
CAPACITOR, RUN WPL 658891 Contact Us For Availability
5
PLUG BUTTON WPL 557829 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
6
COVER, EVAPORATOR WPL 605571 Contact Us For Availability
6
PLUG BUTTON WPL 561869 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
7
CUP, SHELF WPL 603131 Contact Us For Availability
7
PLUG BUTTON WPL 5614412 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
SPEEDNUT WPL 199141 Contact Us For Availability
8
DIVIDER WPL 601167 Contact Us For Availability
8
DOOR, DAIRY WPL 6040611 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
9
TRAY, DIVIDER WPL 605761 Contact Us For Availability
9
GASKET, DOOR WPL 604623 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
INSERT WPL 606144 Contact Us For Availability
10
GASKET, DOOR WPL 604624 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
11
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
11
DOOR HANDLE WPL 604911 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
12
COMPRESSOR WPL RA995 Contact Us For Availability
12
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
12
DOOR HANDLE WPL 604912 Contact Us For Availability
13
COVER, MEAT PAN WPL 600756 Contact Us For Availability
13
CONDENSER WPL RA439914 Contact Us For Availability
13
PAN, ICE WPL 606531 Contact Us For Availability
13
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
14
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
14
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
14
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
COVER, TERMINAL WPL 658851 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
SCREW WPL 4060621 Contact Us For Availability
15
PLUG WPL 603211 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
16
SEAL WPL 655181 Contact Us For Availability
16
INSERT WPL 604901 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
COVER WPL 606401 Contact Us For Availability
17
SHELF WPL 6032319 Contact Us For Availability
17
INSERT WPL 604893 Contact Us For Availability
18
DIVIDER, MULLION (HW) WPL 657973HW Contact Us For Availability
18
SHELF WPL 606551 Contact Us For Availability
18
INSERT WPL 604902 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
19
EVAPORATOR WPL RA4362040 Contact Us For Availability
19
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
19
INSERT WPL 604894 Contact Us For Availability
20
FRAME, SHELF WPL 605704 Contact Us For Availability
20
GROMMET WPL 172453 Contact Us For Availability
20
ICE CUBE TRAY WPL 601121 Contact Us For Availability
20
INSERT WPL 605331 Contact Us For Availability
21
FRAME, SHELF WPL 6057011 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
21
TRIM WPL 604149 Contact Us For Availability
21
WIRE HARNESS WPL 605651 Contact Us For Availability
21
INSERT WPL 605332 Contact Us For Availability
22
GROMMET WPL 545318 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
INNER PANEL WPL 600438 Contact Us For Availability
23
GROMMET WPL 555121 Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
23
INNER PANEL WPL 600509 Contact Us For Availability
24
HANDLE WPL 6013259 Contact Us For Availability
24
HEAT EXCHANGER WPL RA4364543 Contact Us For Availability
24
OUTER PANEL WPL 6003315HW Contact Us For Availability
25
HANDLE WPL 6013261 Contact Us For Availability
25
HEATER, DEFROST WPL 6010634 Contact Us For Availability
25
OUTER PANEL WPL 6003252HW Contact Us For Availability
26
HANDLE WPL 6013255 Contact Us For Availability
26
FAN MOTOR WPL 2805615 Contact Us For Availability
26
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
26
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
27
HEATER WIRE WPL 601059 Contact Us For Availability
27
OVERLOAD WPL 632944 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
28
INSERT WPL 6057127 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
28
TAPPING PLATE WPL 606221 Contact Us For Availability
29
INSERT WPL 657533 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 9986108 Contact Us For Availability
29
SCREW WPL 9986112 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
30
INSERT WPL 657537 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
30
SHIM WPL 604881 Contact Us For Availability
31
INSULATION WPL 601403 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 658881 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
32
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
33
KICKPLATE WPL 6013830 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
33
SCREW WPL 4030141 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SEAL WPL 640778 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
34
KNOB WPL 600613 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
DOOR STOP WPL 600301 Contact Us For Availability
35
KNOB WPL 600611 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
35
DOOR STOP WPL 604191 Contact Us For Availability
36
LEG, LEVELING WPL 60128 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
TRAY, BUTTER WPL 299362 Contact Us For Availability
37
WIRE TIE WPL 575763 Contact Us For Availability
37
TRAY, EGG WPL 600665 Contact Us For Availability
38
PAN, CRISPER WPL 60457224 Contact Us For Availability
38
TIMER WPL 541134 Contact Us For Availability
38
INSERT WPL 6057332 Contact Us For Availability
39
PAN, MEAT WPL 60466205 Contact Us For Availability
39
TRAY, DRIP WPL 601017 Contact Us For Availability
40
PAN, MEAT WPL 60466204 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 660221 Contact Us For Availability
40
TRIM, DOOR SHELF WPL 65151181 Contact Us For Availability
41
RACK, WINE WPL 565194 Contact Us For Availability
41
GROUND WIRE WPL 296753 Contact Us For Availability
41
TRIM, DOOR SHELF WPL 65151180 Contact Us For Availability
42
RIVET WPL 263972 Contact Us For Availability
42
TRIM, DOOR SHELF WPL 65151179 Contact Us For Availability
43
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
43
SCREW WPL 9986117 Contact Us For Availability
43
TRIM, DOOR SHELF WPL 65151182 Contact Us For Availability
44
SEAL WPL 601486 Contact Us For Availability
44
HANDLE EXT WPL 605543 Contact Us For Availability
45
GLASS SHELF WPL 6016217 Contact Us For Availability
45
HANDLE EXT WPL 605541 Contact Us For Availability
46
SHELF, CRISPER WPL 600198 Contact Us For Availability
46
WASHER WPL 542332 Contact Us For Availability
47
PLASTIC TUBE WPL 400812 Contact Us For Availability
47
WASHER WPL 521851 Contact Us For Availability
48
SOCKET, LIGHT WPL 605771 Contact Us For Availability
49
SPRING, WINE RACK WPL 580571 Contact Us For Availability
50
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
51
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
52
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
53
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
54
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
55
SWITCH, LIGHT WPL 557321 Contact Us For Availability
56
TOP, F.F. COMPARTMENT WPL 6008537 Contact Us For Availability
57
TRIM WPL 605245 Contact Us For Availability
58
TRIM WPL 604146 Contact Us For Availability
60
TRIM, REAR WPL 652767 Contact Us For Availability
61
TRIM WPL 604543 Contact Us For Availability
62
TUBE WPL 555133 Contact Us For Availability
64
WHEEL WPL 298342 Contact Us For Availability
65
GROUND WIRE WPL 2967528 Contact Us For Availability
66
GROUND WIRE WPL 2967522 Contact Us For Availability
66
WIRE HARNESS WPL 605602 Contact Us For Availability
× ![]()
Login and Registration Form
