Model Whirlpool RB172PLFW REFRIGERATOR – Common Parts & Diagrams

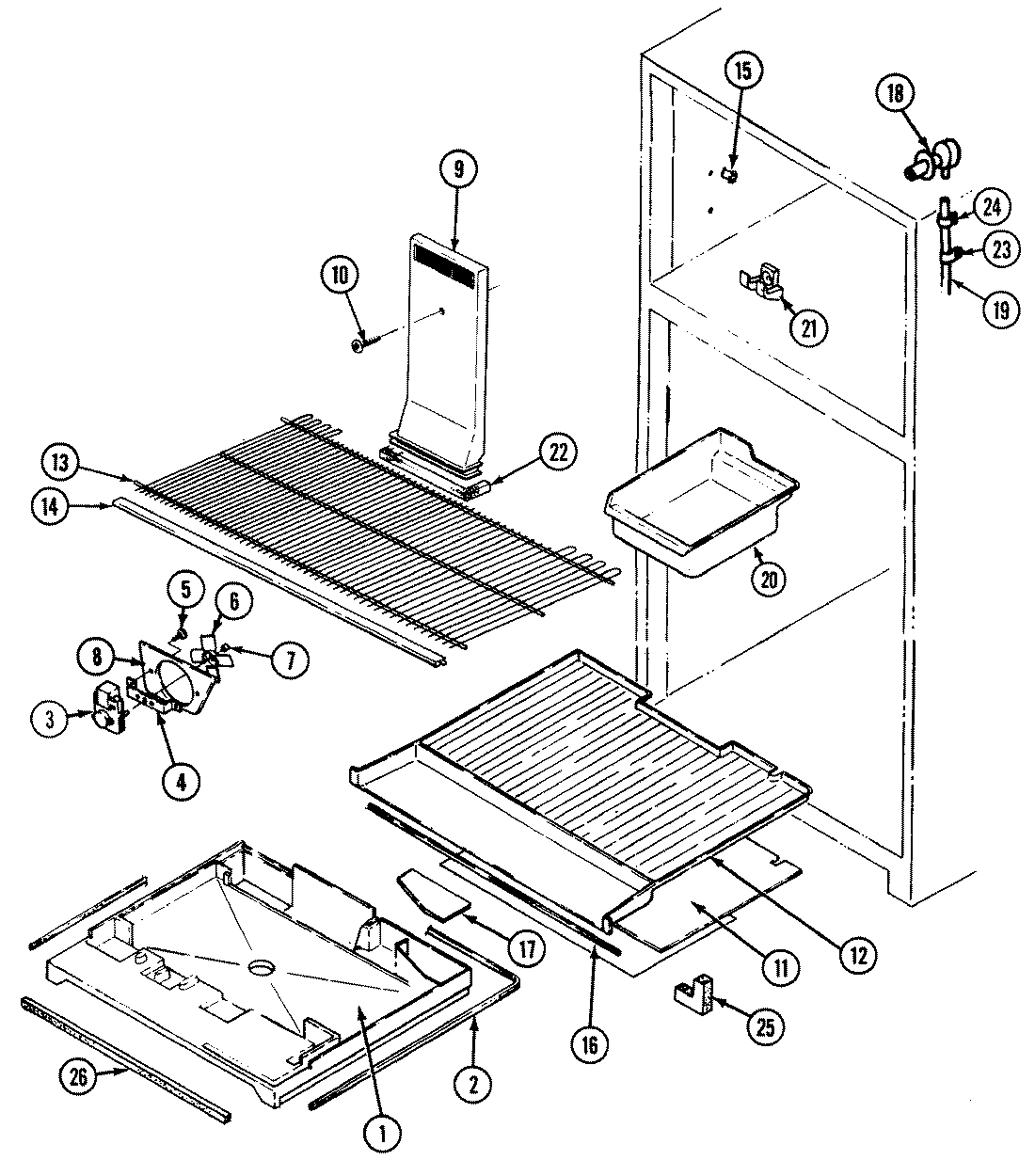

01 - FREEZER COMPARTMENT

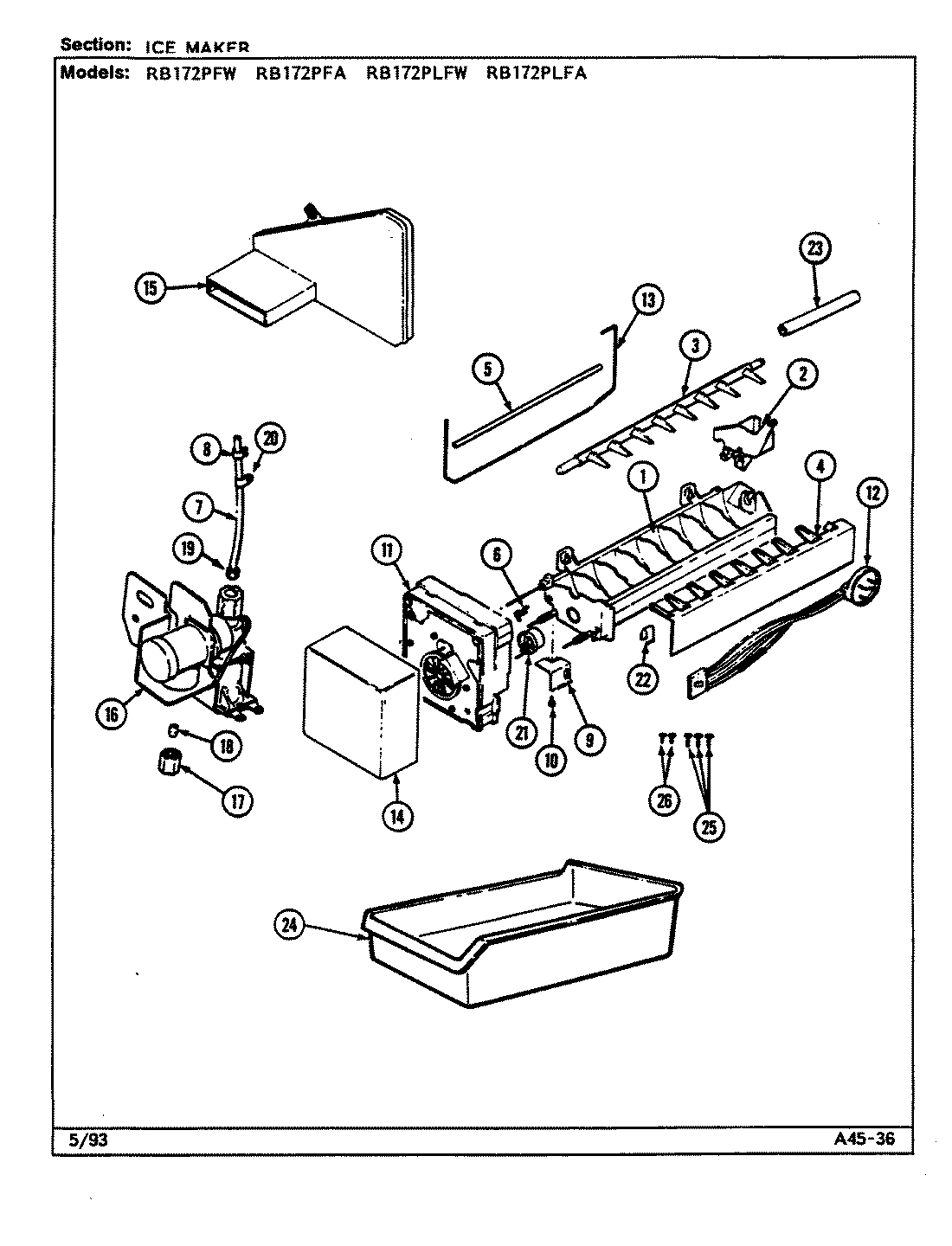

02 - ICE MAKER

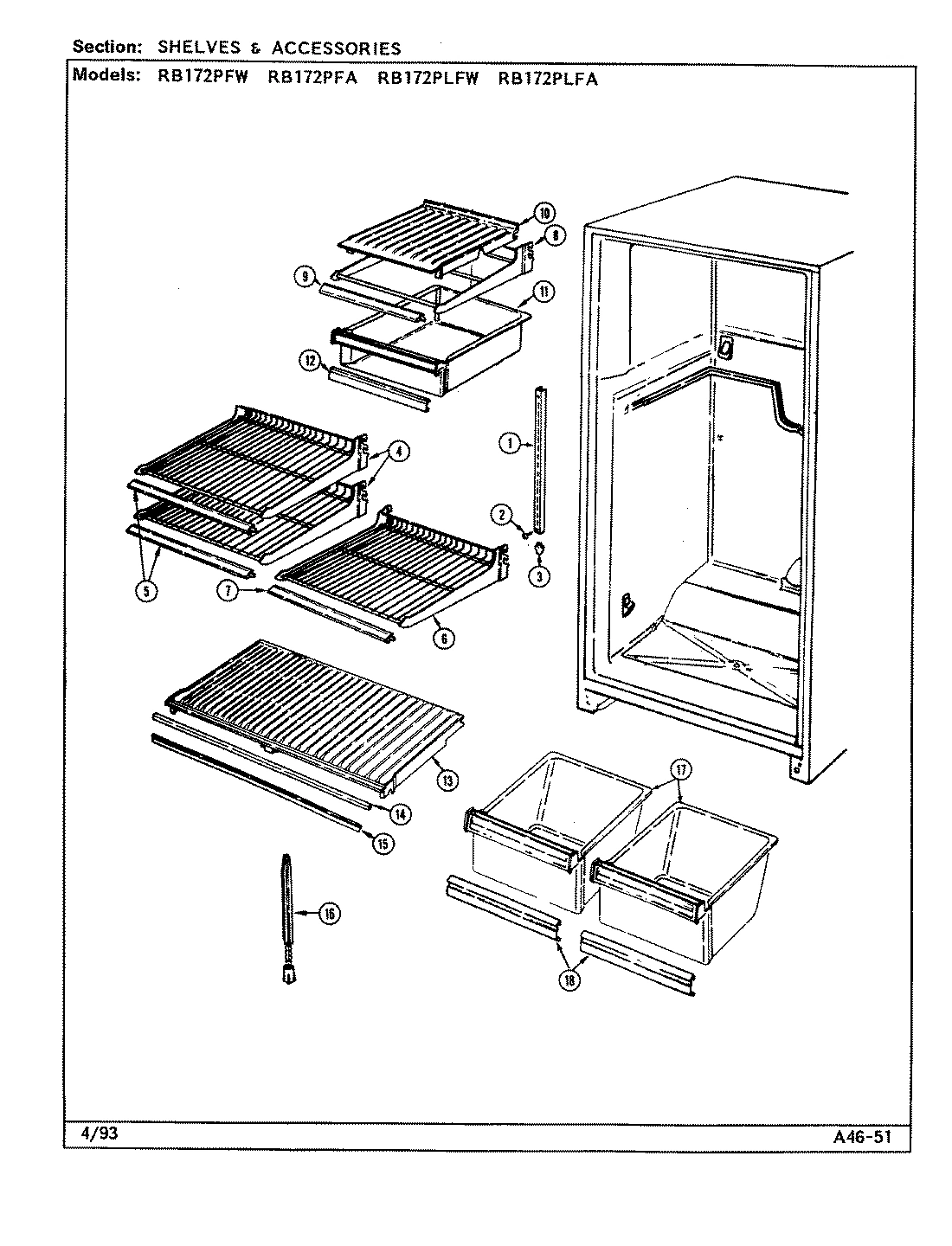

03 - SHELVES & ACCESSORIES

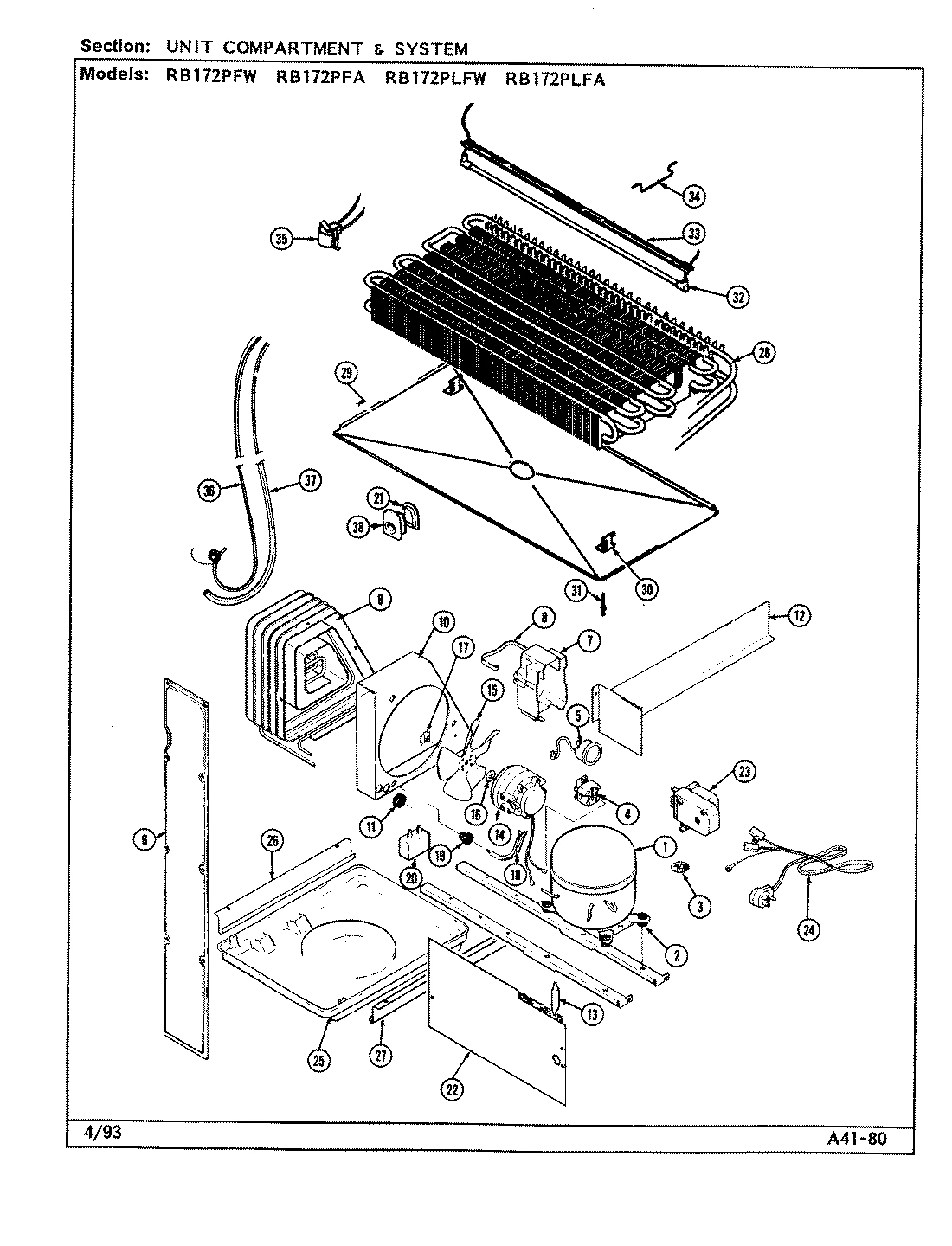

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB172PLFW REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SHELF, SPLIT WPL 6041720 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
SCREW WPL 40001512 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
5
TRIM WPL 6041439 Contact Us For Availability
5
OVERLOAD WPL 691059 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SHELF, SPLIT WPL 6041719 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
8
SHELF, MEAT WPL 6041613 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
TUNNEL, AIR WPL 702082 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
TRIM WPL 6041462 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, MEAT PAN WPL 600757 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
PAN, MEAT WPL 665166 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
TRIM, CRISPER WPL 60132121 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
SHELF WPL 6043829 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHELF, CRISPER WPL 668341 Contact Us For Availability
14
TRIM WPL 6041461 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
15
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
15
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
15
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
MAGNET WPL 694131 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
COVER, PLENUM WPL 664804 Contact Us For Availability
17
PAN, CRISPER (FRUIT) WPL 68221533 Contact Us For Availability
17
PAN, CRISPER (VEGETABLE) WPL 68221535 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
TRIM, CRISPER WPL 60132120 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
SCREW WPL 4000191 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
SCREW WPL 6527550 Contact Us For Availability
23
TUBE, FILL WPL 676668 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 695432 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
SEAL WPL 689462 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
29
TRAY, DRIP WPL 691181 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
SCREW WPL 4000171 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
