Model Whirlpool RB170PXYB2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

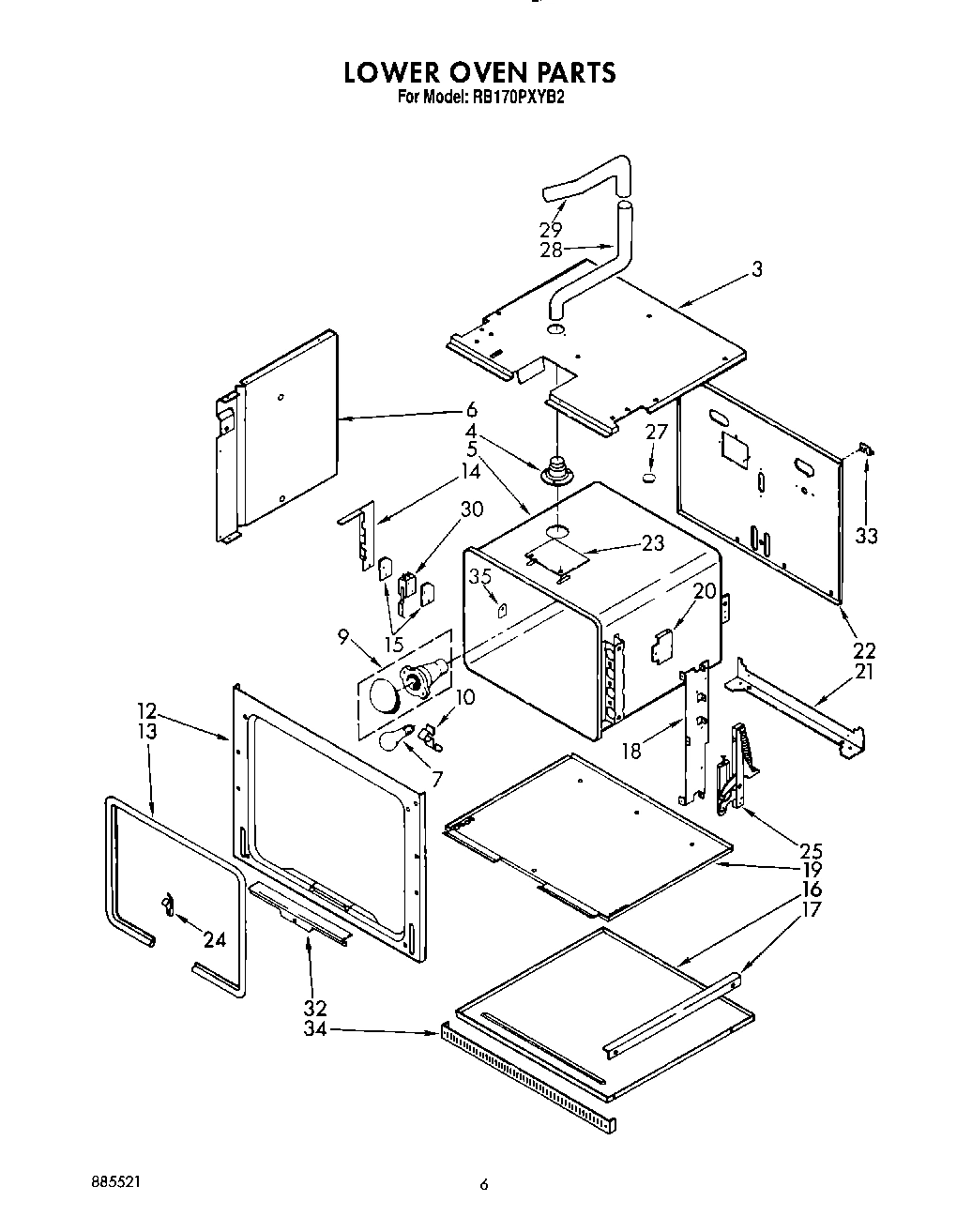

04 - LOWER OVEN

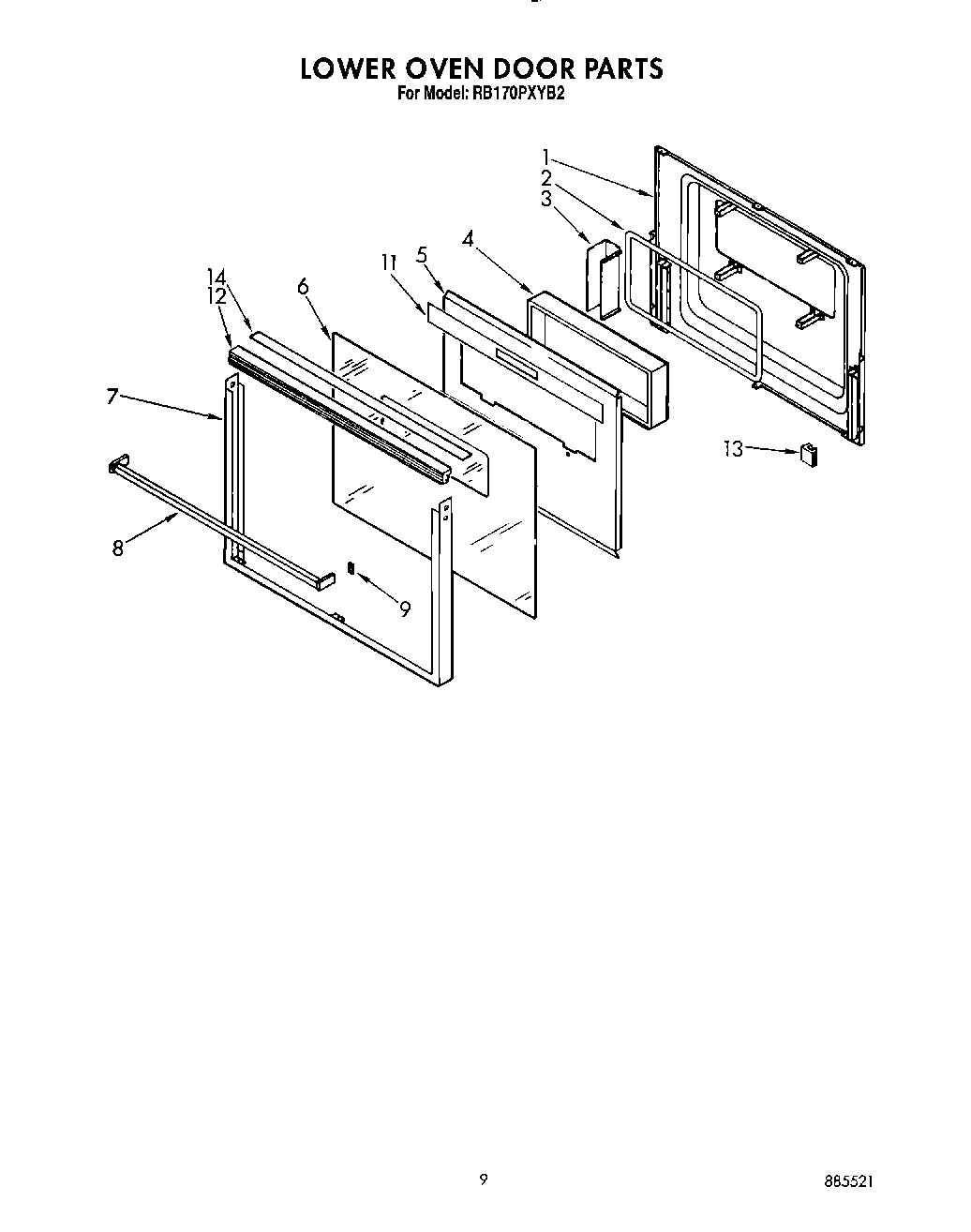

06 - LOWER OVEN DOOR

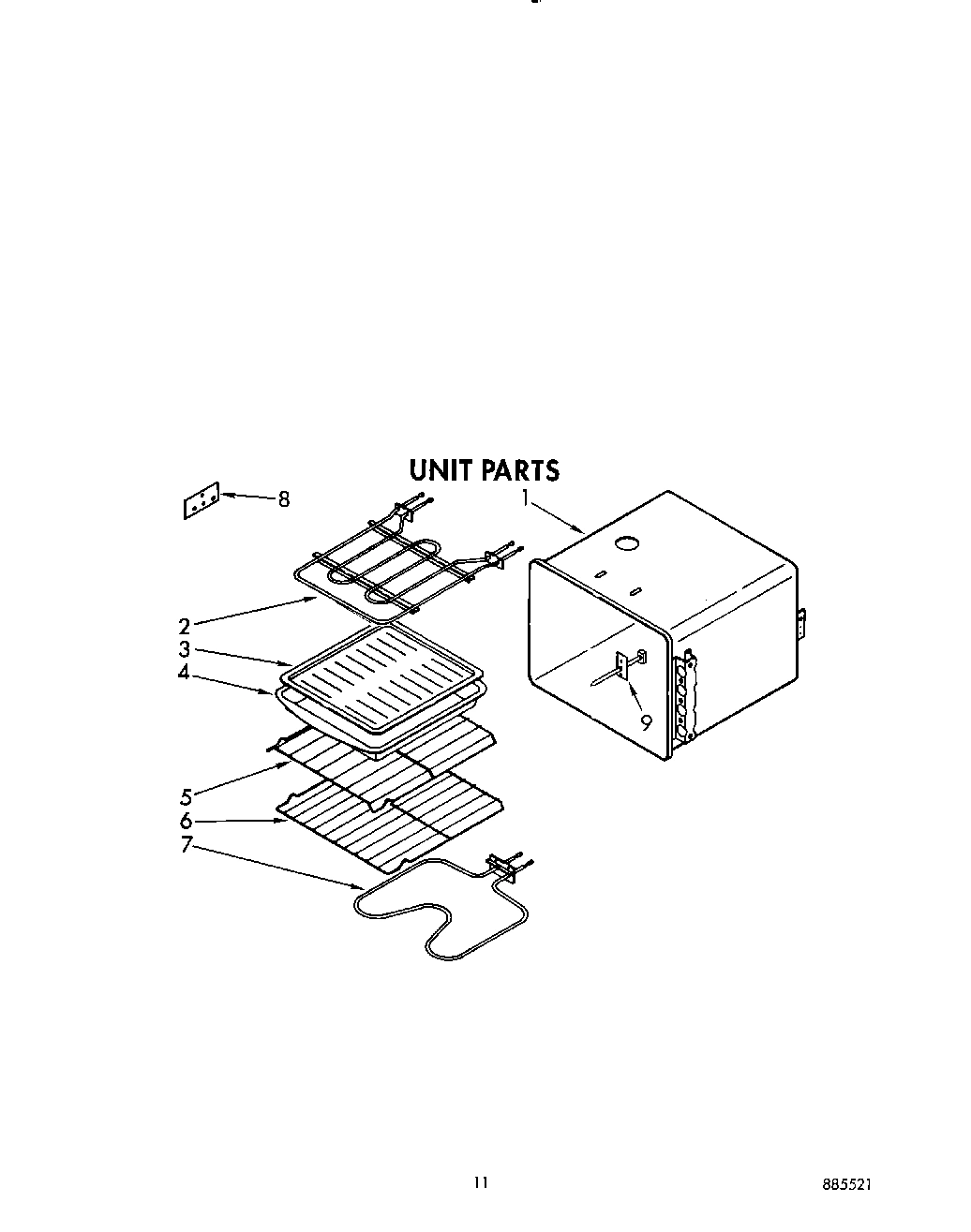

08 - UNIT

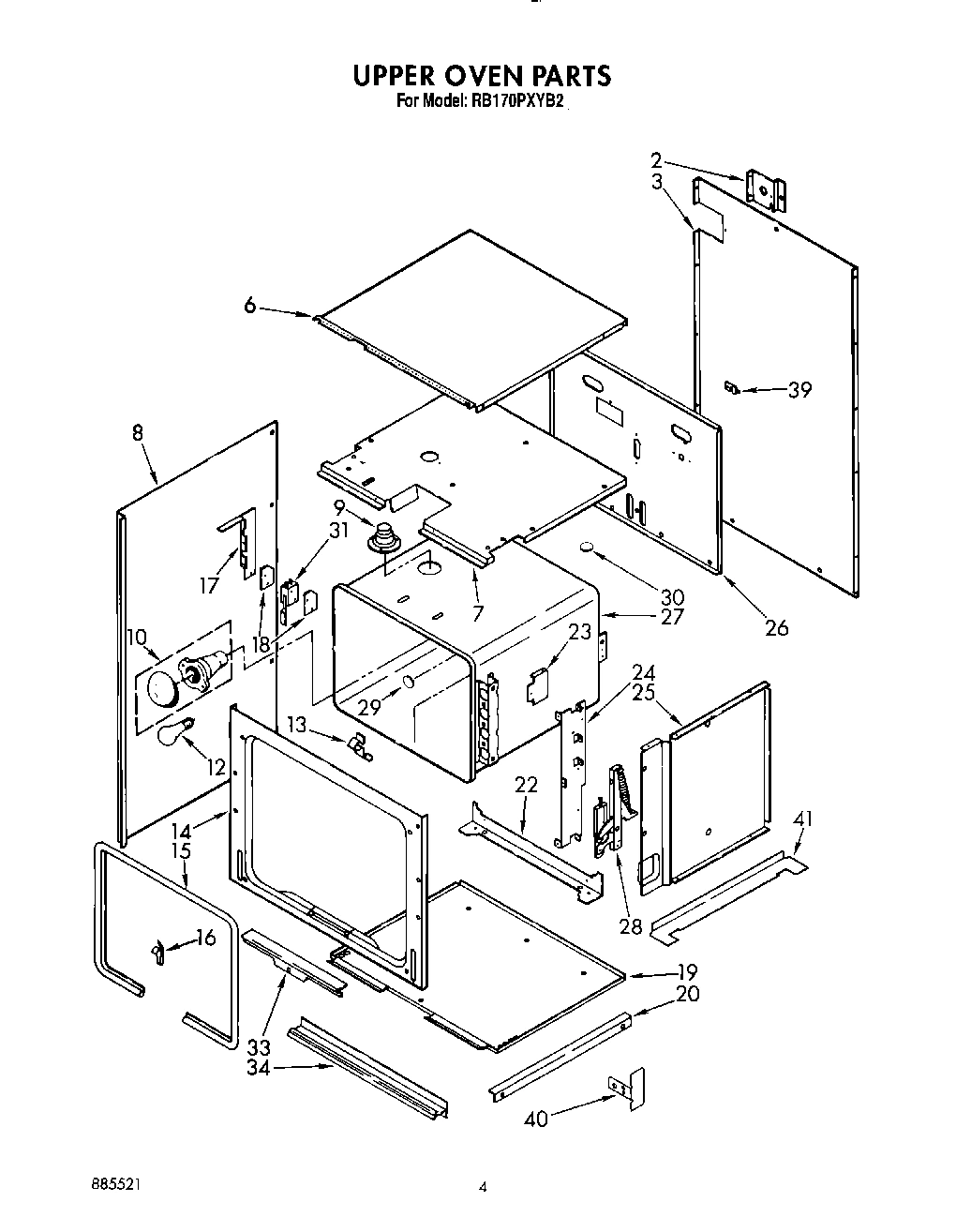

03 - UPPER OVEN

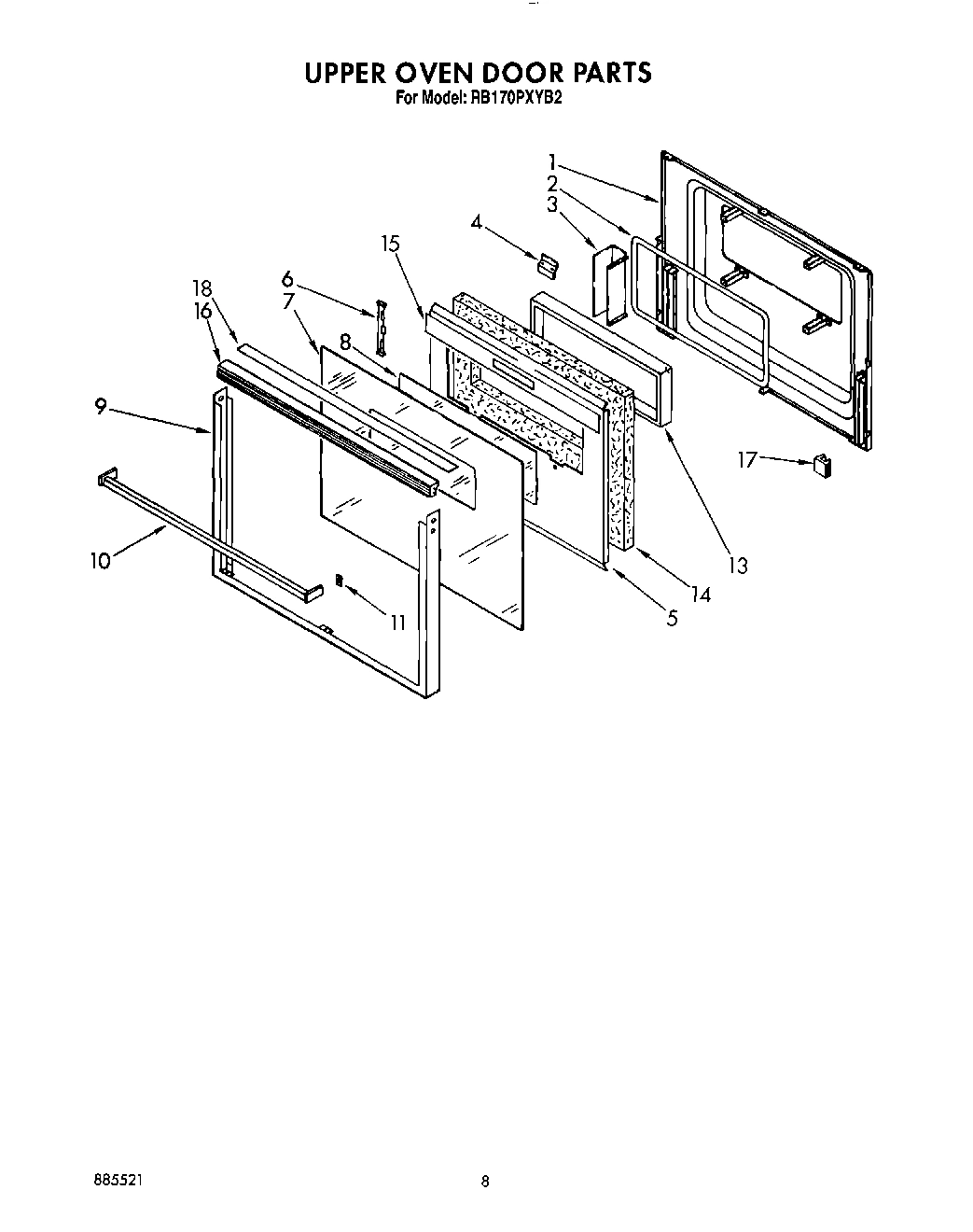

05 - UPPER OVEN DOOR

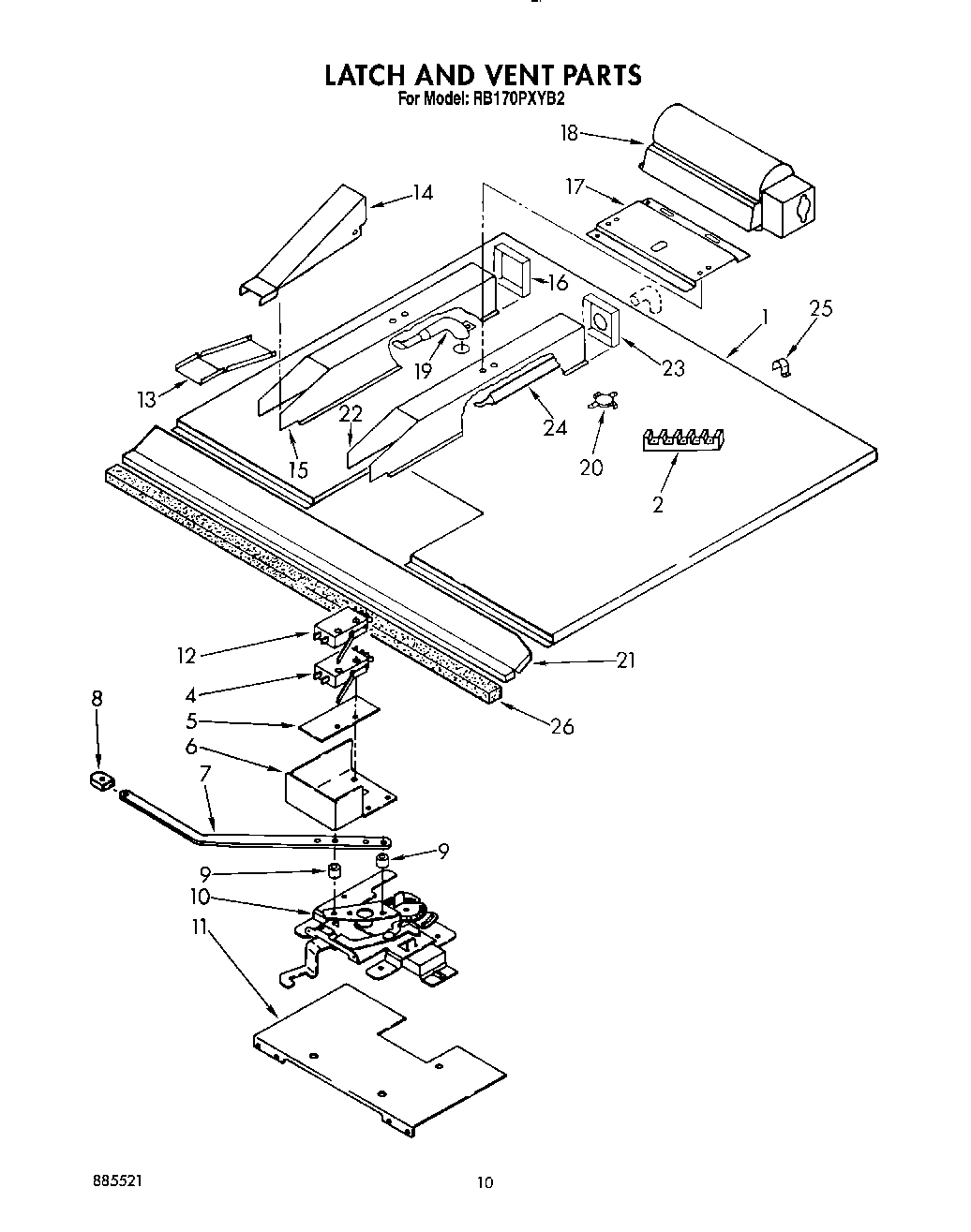

07 - LATCH AND VENT

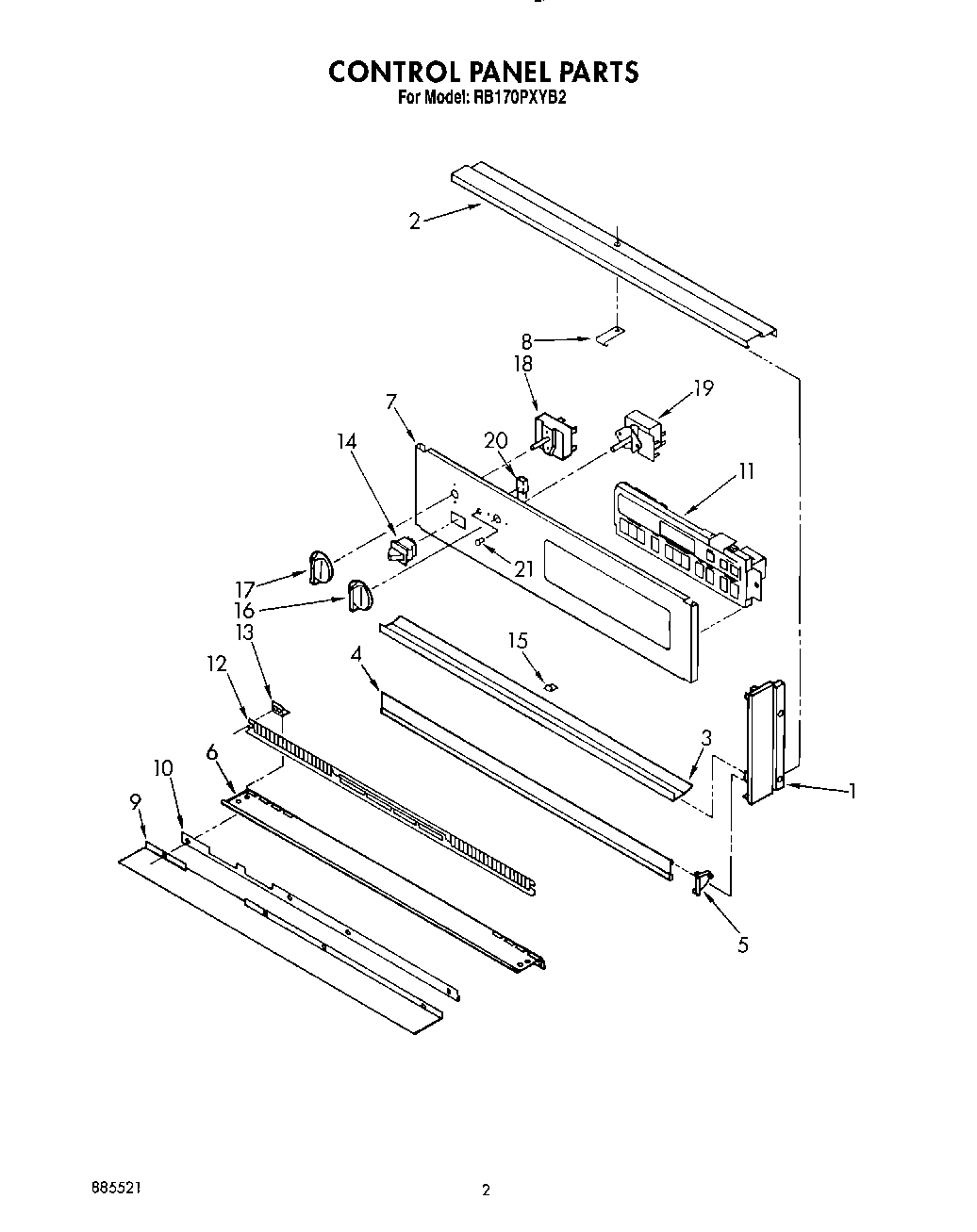

02 - CONTROL PANEL, LIT/OPTIONAL

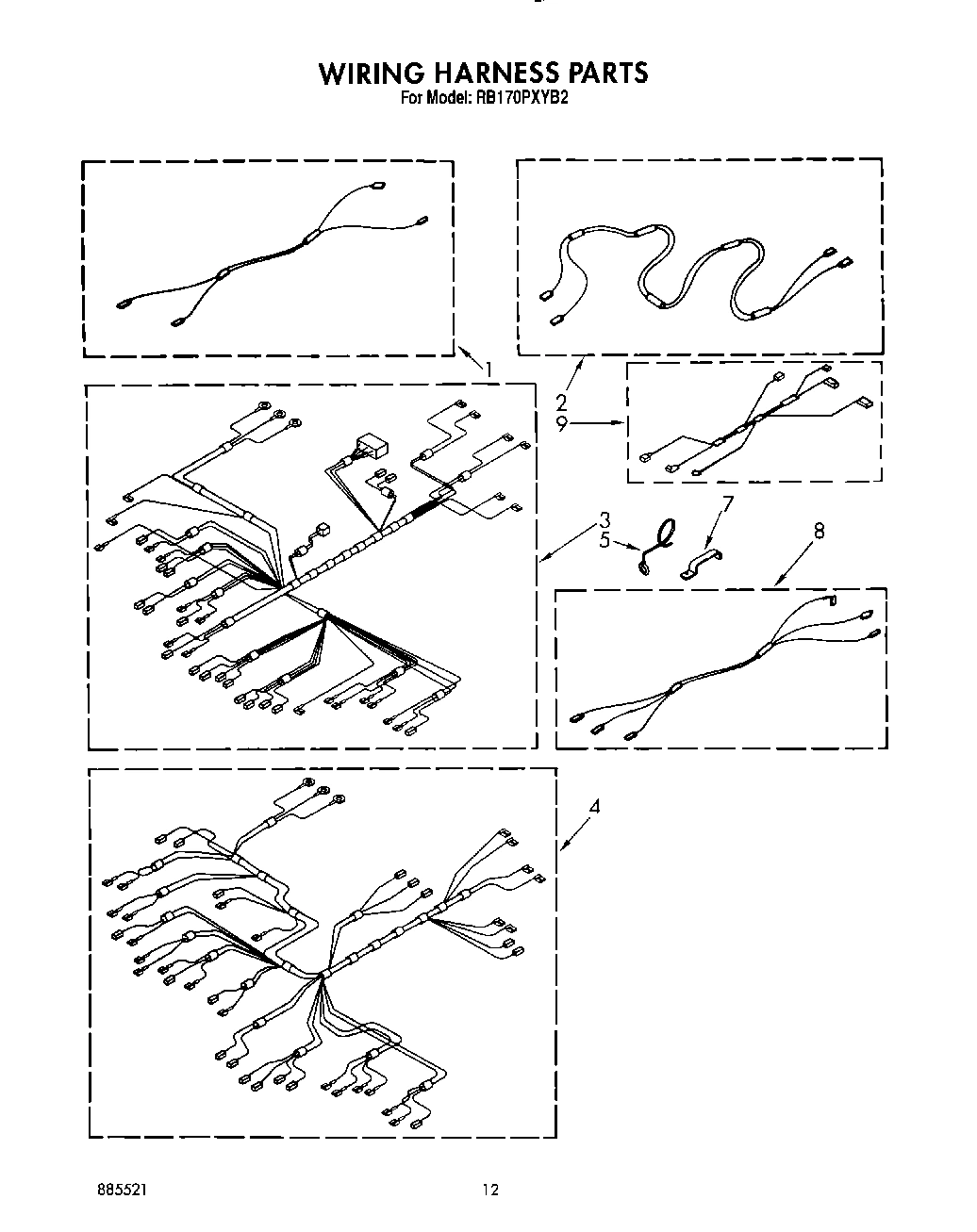

09 - WIRING HARNESS
Common parts from model Whirlpool RB170PXYB2 BUILT-IN ELECTRIC DOUBLE OVEN
Use & C WPL LIT3182871 Contact Us For Availability
WPL LIT3183636 WPL LIT3183636 Contact Us For Availability
WPL LIT3184299 WPL LIT3184299 Contact Us For Availability
WPL LIT885521 WPL LIT885521 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Module, Top WPL 3183747 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
1
End Cap (Left Hand) WPL 3183630 Contact Us For Availability
1
End Cap (Right Hand) WPL 3183631 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3183655 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
2
Trim, Top WPL 3179424 Contact Us For Availability
2
Screw (2) WPL 3185383 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183574 Contact Us For Availability
3
Trim, Center (White Model) WPL 3183576 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3184298 Contact Us For Availability
4
Window Pack WPL 4169572 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Screw (2) WPL 3177988 Contact Us For Availability
4
Switch, Latch WPL 3178669 Contact Us For Availability
4
Vent Door (Black Model) WPL 3183502 Contact Us For Availability
4
Vent Door (White Model) WPL 3183504 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3184218 Contact Us For Availability
5
Screw (4) WPL 3148443 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Rack, Offset WPL 3185369 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model R WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model) WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Rack, Oven WPL 3185370 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Trim, Bottom (Black Model) WPL 3184410 Contact Us For Availability
6
Trim, Bottom (White Model) WPL 3184411 Contact Us For Availability
6
Trim, Bottom (Screw (2)) WPL 342043 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3179497 Contact Us For Availability
7
Glass, Door (White Model) WPL 3179499 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Control Panel (Black Model) WPL 3182909 Contact Us For Availability
7
Control Panel (White Model) WPL 3182910 Contact Us For Availability
8
Bracket, Element WPL 3182950 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Screw (5) WPL 311773 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Wiring Harness (Latch Assembly) WPL 3183977 Contact Us For Availability
9
Screw (3) WPL 3179117 Contact Us For Availability
9
Frame, Door WPL 3180606 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184041 Contact Us For Availability
9
Screw (2) WPL 3184042 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184414 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184415 Contact Us For Availability
9
Harness, Wire (Blower Fan) WPL 3183658 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3179482 Contact Us For Availability
10
Handle, Door (White Model) WPL 3179484 Contact Us For Availability
10
Screw (4) WPL 4173601 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Shim WPL 3184224 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3182391 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3182392 Contact Us For Availability
12
Switch, Latch WPL 3178671 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Nozzel, Vent Bottom (2) WPL 3183954 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
14
Frame, Front WPL 3177705 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Nozzel, Vent Top (2) WPL 3183955 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
15
Shield, Door WPL 3181349 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
15
Screw WPL 254217 Contact Us For Availability
15
Stiffener Bracket WPL 3183493 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Trim, Door (Black Model) WPL 3179477 Contact Us For Availability
16
Trim, Door (White Model) WPL 3179479 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
18
Cap, Top (White Model) WPL 3181365 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Switch, Selector WPL 3183583 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
19
Vent, Tube (Upper Oven) WPL 3183791 Contact Us For Availability
19
Screw WPL 4173231 Contact Us For Availability
19
Screw (2) WPL 3178002 Contact Us For Availability
19
Thermostat WPL 3183572 Contact Us For Availability
20
Light, Indicator WPL 314031 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Shield, Heat WPL 3183799 Contact Us For Availability
21
Screw (4) WPL 309133 Contact Us For Availability
21
Lens, Amber WPL 313101 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
23
End, Vent Box WPL 3183965 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
26
Seal, foam WPL 313755 Contact Us For Availability
27
Liner, Oven WPL 3177491 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent (Female) WPL 3182159 Contact Us For Availability
29
Tube, Vent (Male) WPL 3182160 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Screw (8) WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 4170323 Contact Us For Availability
34
Trim, Lower Vent WPL 3177784 Contact Us For Availability
34
Vent, Middle Trim (Screw) WPL 3179847 Contact Us For Availability
34
Vent, Middle Trim (Screw) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black Model) WPL 3182118 Contact Us For Availability
34
Vent, Middle Trim (White Model) WPL 3182120 Contact Us For Availability
35
Plate, Cover WPL 3184208 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Insert, Middle Vent Trim WPL 3182286 Contact Us For Availability
41
Insulation, Wrap WPL 3177865 Contact Us For Availability
41
Insulation, Back WPL 3177870 Contact Us For Availability
41
Bracket, Mounting Control Panel WPL 3182584 Contact Us For Availability
× ![]()
