Model Whirlpool RB170PXBQ2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

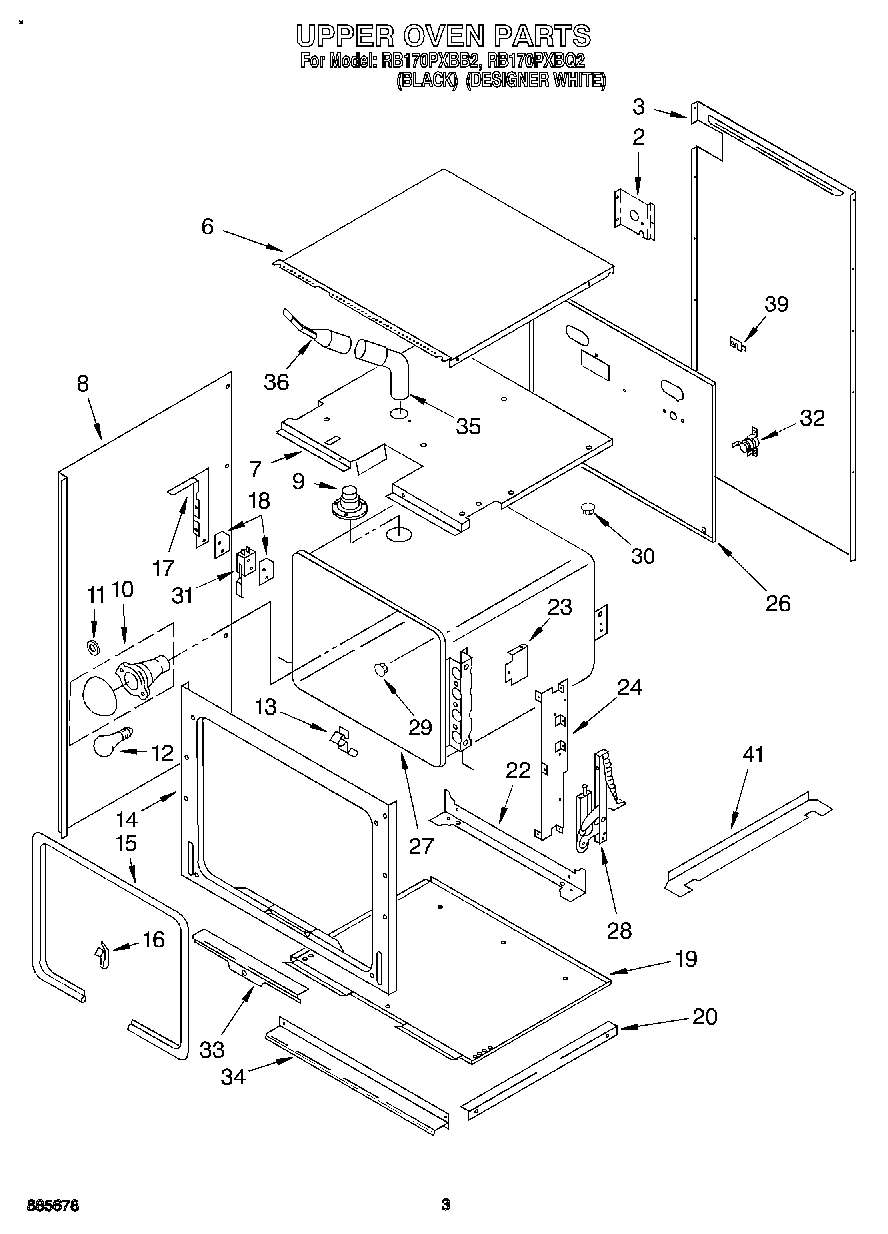

02 - UPPER OVEN

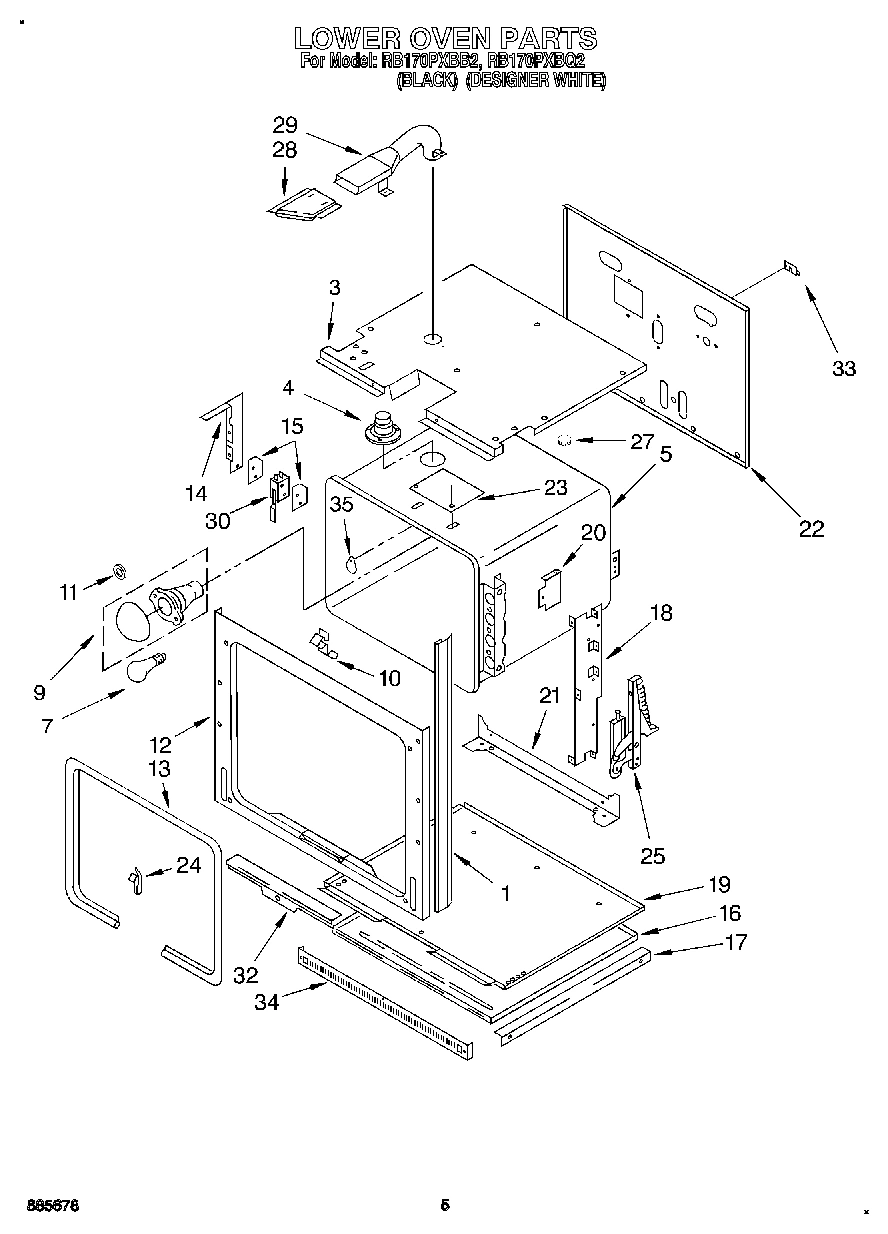

03 - LOWER OVEN
08 - WIRING HARNESS
01 - CONTROL PANEL, LITERATURE
04 - UPPER OVEN DOOR
06 - COMPONENT SHELF AND LATCH
05 - LOWER OVEN DOOR
07 - UNIT
Common parts from model Whirlpool RB170PXBQ2 BUILT-IN ELECTRIC DOUBLE OVEN
WPL LIT3182871 WPL LIT3182871 Contact Us For Availability
WPL LIT3183636 WPL LIT3183636 Contact Us For Availability
WPL LIT3186642 WPL LIT3186642 Contact Us For Availability
1
Liner, Oven WPL 3185561 Contact Us For Availability
1
Trim, Side Door (Black) WPL 3187875 Contact Us For Availability
1
Trim, Side Door (White Model) WPL 3187878 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3187607 Contact Us For Availability
1
End Cap (Black Model, LH) WPL 3188123 Contact Us For Availability
1
End Cap (Black Model, RH) WPL 3188124 Contact Us For Availability
1
End Cap (White Model, LH) WPL 3188125 Contact Us For Availability
1
End Cap (White Model, RH) WPL 3188126 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185499 Contact Us For Availability
1
Shelf, Component WPL 3178092 Contact Us For Availability
1
Liner, Door WPL 3185500 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
2
Trim, Top (White Model) WPL 3187970 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3187972 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
3
Module, Top WPL 3183747 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3186591 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183574 Contact Us For Availability
3
Trim, Center (White Model) WPL 3187961 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Glass, Clear WPL 3185457 Contact Us For Availability
4
Tube, Vent WPL 3186933 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3186590 Contact Us For Availability
4
Vent Door (Black Model) WPL 3183502 Contact Us For Availability
4
Vent Door (White Model) WPL 3187982 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
5
Screw, (4) WPL 4168863 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
End Trim, Vent Door (White Model, L.H.) WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) (White Model, R.H.) WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) (Black Model, L.H.) WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) (Black Model, R.H.) WPL 3148698 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3185369 Contact Us For Availability
6
Clamp (3/4 I.D.) WPL 3184792 Contact Us For Availability
6
Trim, Bottom (Black Model) WPL 3184410 Contact Us For Availability
6
Trim, Bottom (White Model) WPL 3188154 Contact Us For Availability
6
Trim, Bottom (Screw (2)) WPL 342043 Contact Us For Availability
6
Glass, Door (Black Model) WPL 3187869 Contact Us For Availability
6
Glass, Door (White Model) WPL 3187871 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3185370 Contact Us For Availability
7
Control Panel (Black Model) WPL 3184646 Contact Us For Availability
7
Control Panel (White Model) WPL 3184647 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Frame, Door (Black Model) WPL 3187851 Contact Us For Availability
7
Frame, Door (White Model) WPL 3187853 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
8
Wiring Harness (Latch Assembly) WPL 3186593 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Handle, Door (White Model) WPL 3187943 Contact Us For Availability
8
Handle, Door (Black Model) WPL 3187945 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Bracket, Element WPL 3182950 Contact Us For Availability
9
Screw (2) WPL 3185648 Contact Us For Availability
9
Wiring, Harness (Latch Assembly Lower) WPL 3186594 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184590 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184591 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Spacer (White Model) WPL 814281 Contact Us For Availability
9
Spacer (Black Model) WPL 814282 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184041 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Screw WPL 3179116 Contact Us For Availability
12
Frame, Door WPL 3177704 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Screw WPL 3185647 Contact Us For Availability
13
Seal, Door WPL 3179814 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
13
Extension, Shelf WPL 3178133 Contact Us For Availability
14
Screw WPL 4173601 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
14
Bushing WPL 3188599 Contact Us For Availability
14
Screw WPL 3184042 Contact Us For Availability
14
Screw WPL 3177988 Contact Us For Availability
14
Switch, Latch WPL 3178187 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
15
Stiffener Bracket WPL 3183493 Contact Us For Availability
15
Foil-Adhesive Backed WPL 3188635 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
16
Foil-Adhesive WPL 3188634 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
17
Knob Selector (Whi WPL 3183110 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
18
WPL 3183583 WPL 3183583 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
19
WPL 3169303 WPL 3169303 Contact Us For Availability
19
WPL 3178002 WPL 3178002 Contact Us For Availability
20
WPL 314031 WPL 314031 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
21
Support, Oven WPL 3177434 Contact Us For Availability
21
WPL 309133 WPL 309133 Contact Us For Availability
21
WPL 313101 WPL 313101 Contact Us For Availability
22
Back, Module WPL 3177559 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
25
Screw (4) WPL 3179795 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
27
Button, Plug WPL 3182814 Contact Us For Availability
28
Tube, Vent (Female) (White Model) WPL 3181964 Contact Us For Availability
28
Tube, Vent (Female) (Black Model) WPL 3187388 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
29
Tube, Vent Male WPL 3179945 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
32
Thermostat WPL 3149653 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 3179776 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Vent, Middle Trim (Screw) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black Model) WPL 3187890 Contact Us For Availability
34
Vent, Middle Trim (White Model) WPL 3187892 Contact Us For Availability
34
Vent, Middle Trim (Screw) WPL 3188645 Contact Us For Availability
34
Trim, Lower Vent (Black Model) WPL 3177784 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187958 Contact Us For Availability
35
Tube, Vent (Upper Female) WPL 3179922 Contact Us For Availability
35
Plate, Cover WPL 3184208 Contact Us For Availability
36
Screw, WPL 254225 Contact Us For Availability
36
Tube, Vent (Upper Male) WPL 3184652 Contact Us For Availability
41
Insulation, Back WPL 3177870 Contact Us For Availability
41
Bracket, Mounting Control Panel WPL 3182584 Contact Us For Availability
41
Insulation, Wrap WPL 3185550 Contact Us For Availability
× ![]()
