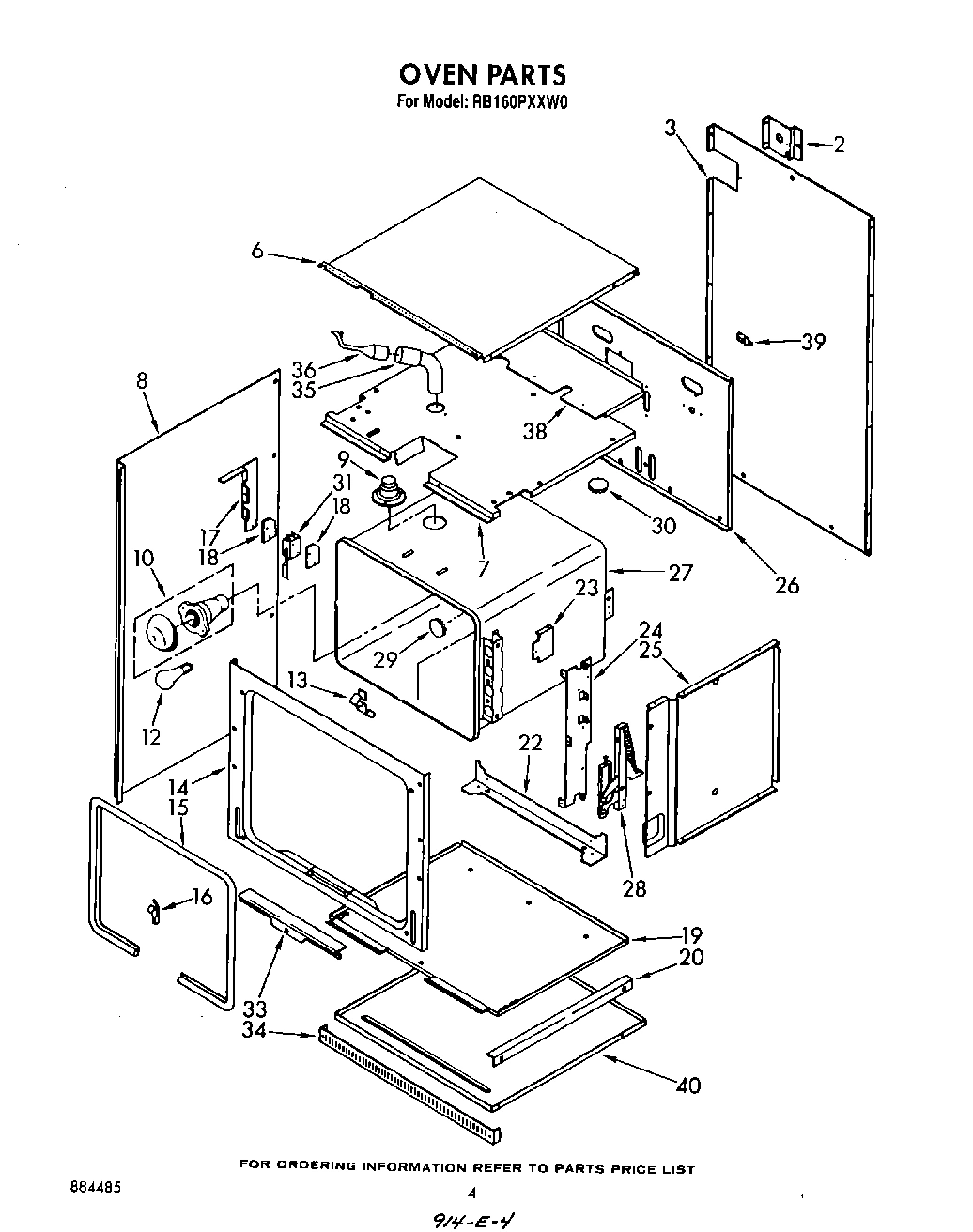

Model Whirlpool RB160PXXW0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

Use & Care Guide
Use & Care Guide WPL LIT3180016 Contact Us For Availability
View on Model
Tech Sheet
Tech Sheet WPL LIT3180386 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT3180568 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT884485 Contact Us For Availability
View on Model

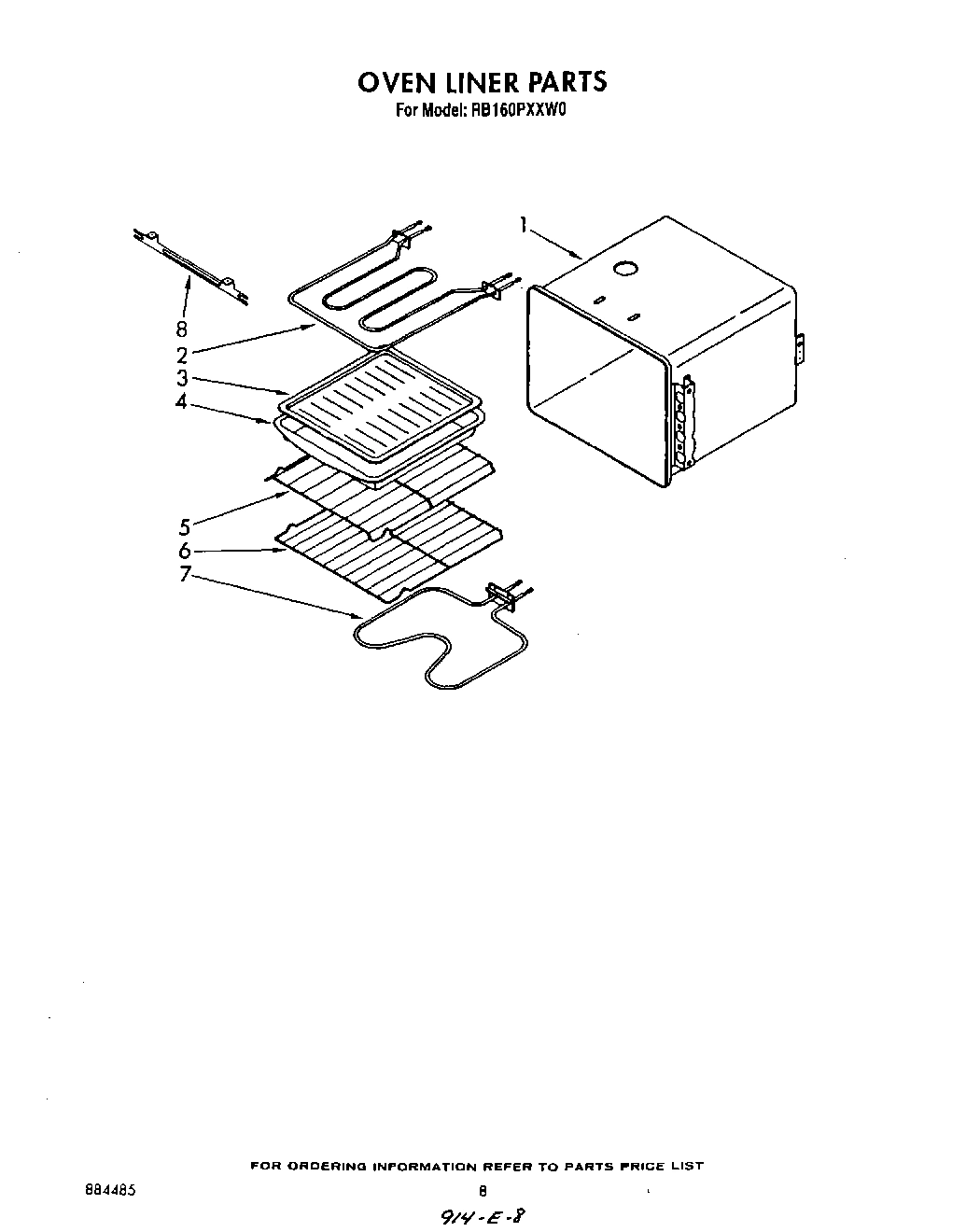

1
Liner, Oven
Liner, Oven WPL 3180803 Contact Us For Availability
View on Model
1
Screw (6)
Screw (6) WPL 4168863 Contact Us For Availability
View on Model
1
Screw (2)
Screw (2) WPL 3178001 Contact Us For Availability
View on Model
1
End Cap (Left Hand)
End Cap (Left Hand) WPL 3179458 Contact Us For Availability
View on Model
1
End Cap (Right Hand)
End Cap (Right Hand) WPL 3179459 Contact Us For Availability
View on Model

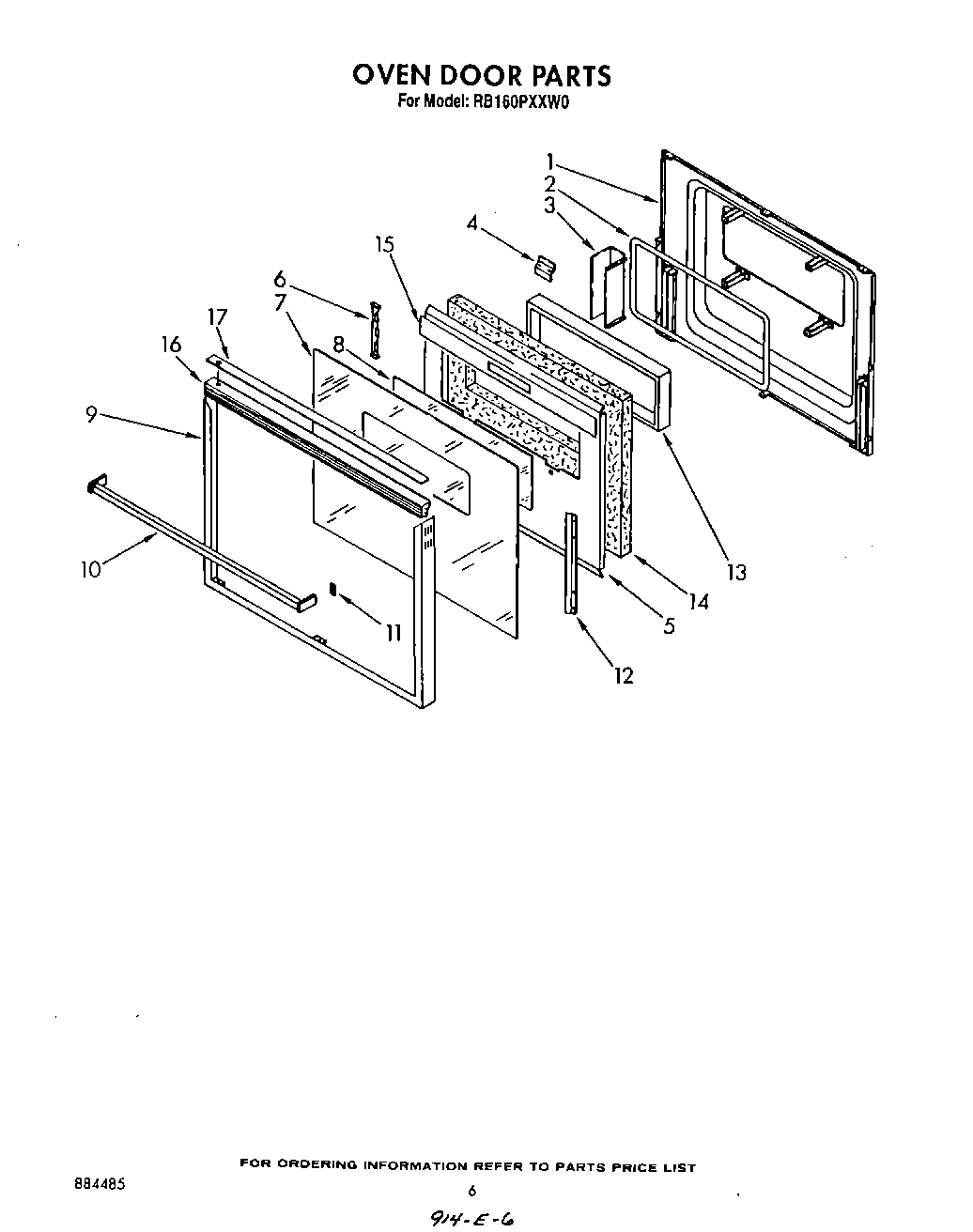

1
Liner, Door
Liner, Door WPL 3177597 Contact Us For Availability
View on Model

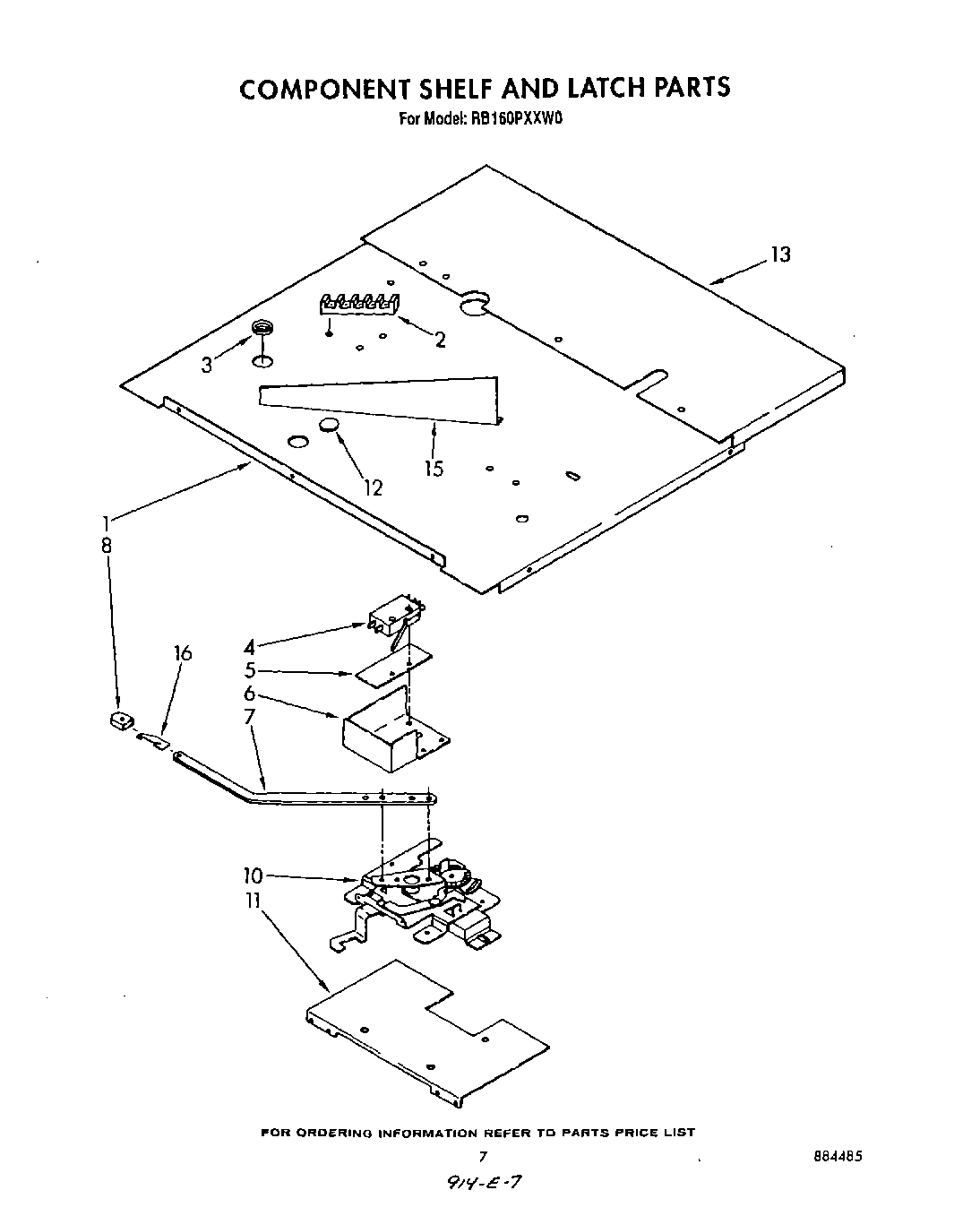

1
Shelf, Componant
Shelf, Componant WPL 3178090 Contact Us For Availability
View on Model

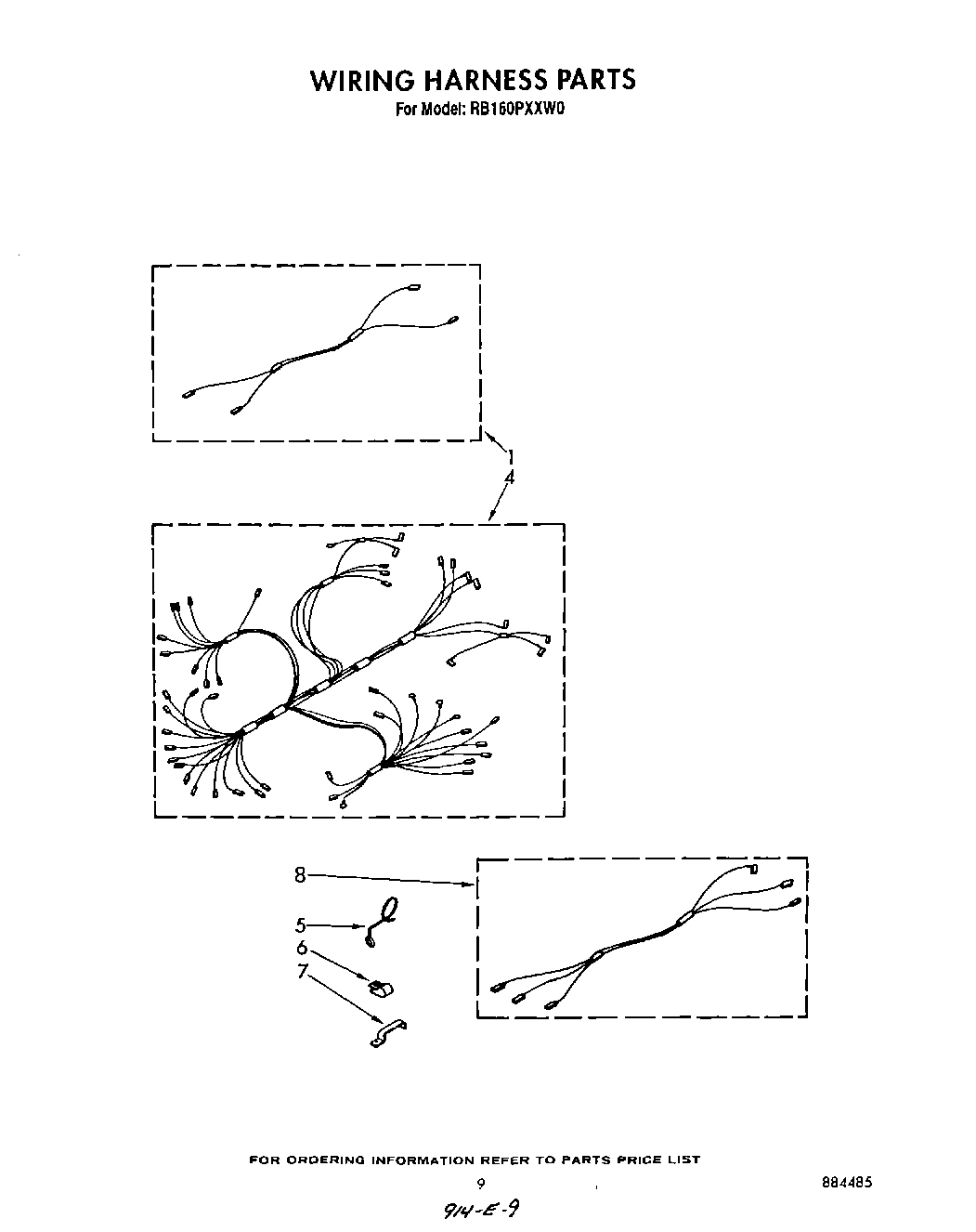

1
Harness Wire Door Switch
Harness Wire Door Switch WPL 3179941 Contact Us For Availability
View on Model
2
Trim, Top
Trim, Top WPL 3179422 Contact Us For Availability
View on Model
2
Seal, Window
Seal, Window WPL 3178584 Contact Us For Availability
View on Model
2
Element, Broil
Element, Broil WPL 661415 Contact Us For Availability
View on Model
3
Trim, Center
Trim, Center WPL 3181517 Contact Us For Availability
View on Model
3
Spacer, Window
Spacer, Window WPL 3179694 Contact Us For Availability
View on Model
3
Bushing
Bushing WPL 4173043 Contact Us For Availability
View on Model
4
Door, Vent
Door, Vent WPL 3179455 Contact Us For Availability
View on Model
4
Latch, Strike
Latch, Strike WPL 3177831 Contact Us For Availability
View on Model
4
Switch, Latch
Switch, Latch WPL 3178668 Contact Us For Availability
View on Model
4
Screw (2)
Screw (2) WPL 98106 Contact Us For Availability
View on Model
4
Harness Wire
Harness Wire WPL 3180384 Contact Us For Availability
View on Model
5
End Trim (Vent Door) (Left Hand)
End Trim (Vent Door) (Left Hand) WPL 3148471 Contact Us For Availability
View on Model
5
End Trim (Vent Door) (Right Hand)
End Trim (Vent Door) (Right Hand) WPL 3148472 Contact Us For Availability
View on Model
5
Retainer, Insulation
Retainer, Insulation WPL 3177719 Contact Us For Availability
View on Model
5
Insulator, Switch
Insulator, Switch WPL 3178185 Contact Us For Availability
View on Model
5
Standoff, Wire
Standoff, Wire WPL 3179668 Contact Us For Availability
View on Model
5
Rack, Offset
Rack, Offset WPL 3180867 Contact Us For Availability
View on Model
6
Trim, Bottom
Trim, Bottom WPL 3181519 Contact Us For Availability
View on Model
6
Screw (4)
Screw (4) WPL 342043 Contact Us For Availability
View on Model
6
screw (2)
screw (2) WPL 254225 Contact Us For Availability
View on Model
6
Bracket, Glass Mounting (2)
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
View on Model
6
Guard, Latch
Guard, Latch WPL 3177662 Contact Us For Availability
View on Model
6
Rack, Oven
Rack, Oven WPL 3180866 Contact Us For Availability
View on Model

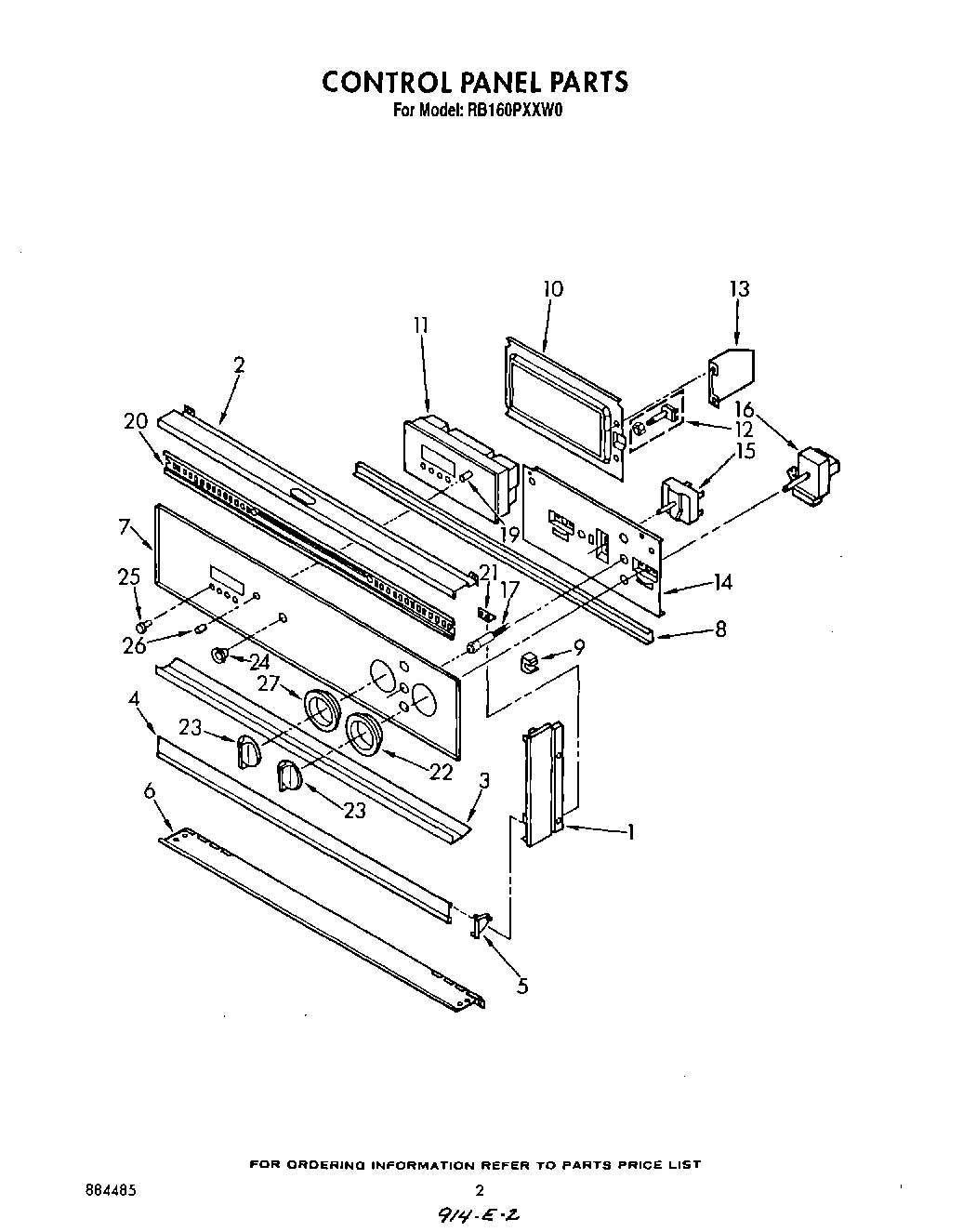

7
Glass, Control Panel
Glass, Control Panel WPL 3180537 Contact Us For Availability
View on Model
7
Glass, Door
Glass, Door WPL 3179499 Contact Us For Availability
View on Model
7
Handle, Latch
Handle, Latch WPL 3180409 Contact Us For Availability
View on Model
7
Screw (2)
Screw (2) WPL 3180567 Contact Us For Availability
View on Model
8
Screw (2)
Screw (2) WPL 3179117 Contact Us For Availability
View on Model
8
Rail, Mounting (Components)
Rail, Mounting (Components) WPL 3180290 Contact Us For Availability
View on Model
8
Glass, Reflective
Glass, Reflective WPL 4164243 Contact Us For Availability
View on Model
8
Knob, Latch Handle
Knob, Latch Handle WPL 311253 Contact Us For Availability
View on Model
8
Wiring Harness (Latch Assembly)
Wiring Harness (Latch Assembly) WPL 3180731 Contact Us For Availability
View on Model
8
Bracket, Element
Bracket, Element WPL 3180694 Contact Us For Availability
View on Model
9
Tube, Vent
Tube, Vent WPL 4168492 Contact Us For Availability
View on Model
9
Retainer, Glass
Retainer, Glass WPL 3180440 Contact Us For Availability
View on Model
9
Frame, Door
Frame, Door WPL 3180606 Contact Us For Availability
View on Model
10
Plate, Mounting (Clock)
Plate, Mounting (Clock) WPL 3180293 Contact Us For Availability
View on Model
10
Handle, Door
Handle, Door WPL 3179484 Contact Us For Availability
View on Model
10
Latch, Mechanism
Latch, Mechanism WPL 3178410 Contact Us For Availability
View on Model
11
Clip (2)
Clip (2) WPL 3148282 Contact Us For Availability
View on Model
11
Timer
Timer WPL 3149807 Contact Us For Availability
View on Model
11
Plate, Mounting
Plate, Mounting WPL 3177496 Contact Us For Availability
View on Model
12
Switch, Oven Light
Switch, Oven Light WPL 3179708 Contact Us For Availability
View on Model
12
Screw (3)
Screw (3) WPL 3180967 Contact Us For Availability
View on Model
12
Retainer, Glass
Retainer, Glass WPL 4167975 Contact Us For Availability
View on Model
12
Plug, Button
Plug, Button WPL 3179777 Contact Us For Availability
View on Model
13
Extension, Shelf
Extension, Shelf WPL 3178133 Contact Us For Availability
View on Model
13
Shield, Heat
Shield, Heat WPL 3180542 Contact Us For Availability
View on Model
13
Window Package
Window Package WPL 4164235 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 3177705 Contact Us For Availability
View on Model
14
Screw (4)
Screw (4) WPL 3179776 Contact Us For Availability
View on Model
14
Plate, Mounting (Controls)
Plate, Mounting (Controls) WPL 3180294 Contact Us For Availability
View on Model
14
Insulation, Door
Insulation, Door WPL 3180094 Contact Us For Availability
View on Model
15
Seal, Door
Seal, Door WPL 3179814 Contact Us For Availability
View on Model
15
Switch, Selector
Switch, Selector WPL 3178237 Contact Us For Availability
View on Model
15
Shield, Door
Shield, Door WPL 3181349 Contact Us For Availability
View on Model
15
Baffle, Air
Baffle, Air WPL 3180693 Contact Us For Availability
View on Model
16
Clip, Oven Seal
Clip, Oven Seal WPL 3179848 Contact Us For Availability
View on Model
16
Thermostat, Oven
Thermostat, Oven WPL 3178275 Contact Us For Availability
View on Model
16
Trim, Door
Trim, Door WPL 3179479 Contact Us For Availability
View on Model
16
Support, Latch
Support, Latch WPL 3180692 Contact Us For Availability
View on Model
17
Bracket, Switch
Bracket, Switch WPL 3177681 Contact Us For Availability
View on Model
17
Light, Indicator (3)
Light, Indicator (3) WPL 4168598 Contact Us For Availability
View on Model
17
Cap, Top
Cap, Top WPL 3181365 Contact Us For Availability
View on Model
19
Bottom, Modual
Bottom, Modual WPL 3177622 Contact Us For Availability
View on Model
19
Shaft, Bit Generator
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
View on Model
20
Rail, Support (2)
Rail, Support (2) WPL 3179220 Contact Us For Availability
View on Model
20
Insert, Vent
Insert, Vent WPL 3177968 Contact Us For Availability
View on Model
21
Bracket, Mounting
Bracket, Mounting WPL 3181279 Contact Us For Availability
View on Model
22
Support, Oven
Support, Oven WPL 3177434 Contact Us For Availability
View on Model
22
Escutcheon, Oven Thermostat
Escutcheon, Oven Thermostat WPL 3181510 Contact Us For Availability
View on Model
23
Shield, Radiation
Shield, Radiation WPL 3178612 Contact Us For Availability
View on Model
23
Knob, Control
Knob, Control WPL 3150372 Contact Us For Availability
View on Model
24
Bracket, Hinge
Bracket, Hinge WPL 3177433 Contact Us For Availability
View on Model
24
Bezel Switch
Bezel Switch WPL 3149170 Contact Us For Availability
View on Model
25
Side, Module (R.H. & L.H.)
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
View on Model
25
Button, Set (4)
Button, Set (4) WPL 3149177 Contact Us For Availability
View on Model
26
Back, Module
Back, Module WPL 3177558 Contact Us For Availability
View on Model
26
Knob, Bit Generator
Knob, Bit Generator WPL 3149176 Contact Us For Availability
View on Model
27
Escutcheon, Selector Switch
Escutcheon, Selector Switch WPL 3181508 Contact Us For Availability
View on Model
28
Screw (4)
Screw (4) WPL 3178000 Contact Us For Availability
View on Model
28
Hinge, Door (2)
Hinge, Door (2) WPL 3178298 Contact Us For Availability
View on Model
29
Button, Plug
Button, Plug WPL 4159122 Contact Us For Availability
View on Model
30
Button, Plug
Button, Plug WPL 4159120 Contact Us For Availability
View on Model
31
Screw (2)
Screw (2) WPL 313489 Contact Us For Availability
View on Model
31
Nut (2)
Nut (2) WPL 4159117 Contact Us For Availability
View on Model
31
Switch, Door
Switch, Door WPL 4173553 Contact Us For Availability
View on Model
32
Insulator, Switch
Insulator, Switch WPL 3177923 Contact Us For Availability
View on Model
33
Retainer, Seal
Retainer, Seal WPL 3179587 Contact Us For Availability
View on Model
34
Vent, Lower Trim
Vent, Lower Trim WPL 3177786 Contact Us For Availability
View on Model
35
Vent, Tube (Upper, Female)
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
View on Model
36
Vent Tube (Upper Male)
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
View on Model
39
Screw
Screw WPL 4159445 Contact Us For Availability
View on Model
39
Cover, Cap Tube
Cover, Cap Tube WPL 4168203 Contact Us For Availability
View on Model
40
Bottom, Oven
Bottom, Oven WPL 3177552 Contact Us For Availability
View on Model
40
Insulation, Wrap
Insulation, Wrap WPL 3177865 Contact Us For Availability
View on Model
40
Insulation, Back
Insulation, Back WPL 3177870 Contact Us For Availability
View on Model
