Model Whirlpool RB160PXL4 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
01 - SECTION
03 - SECTION

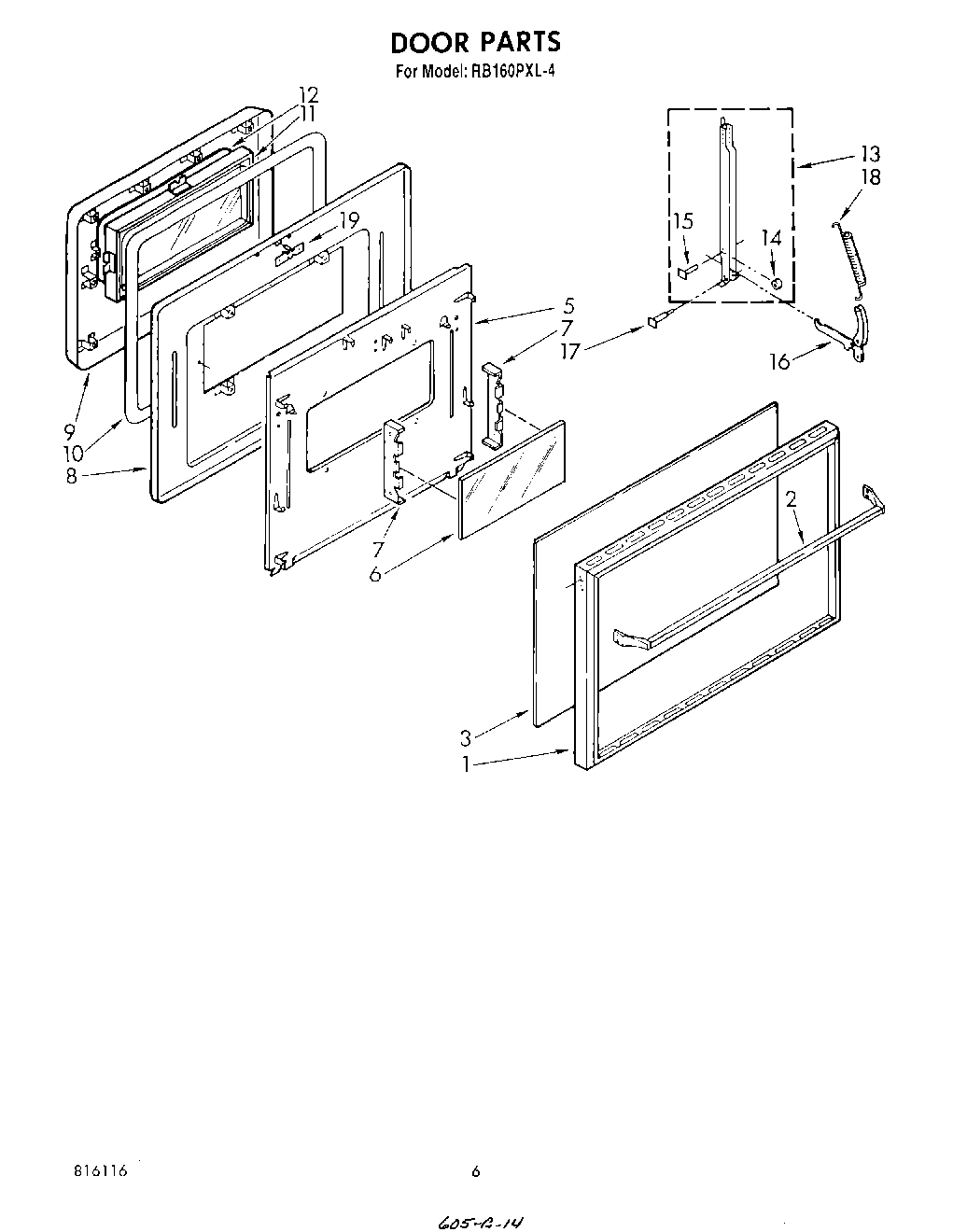

04 - SECTION

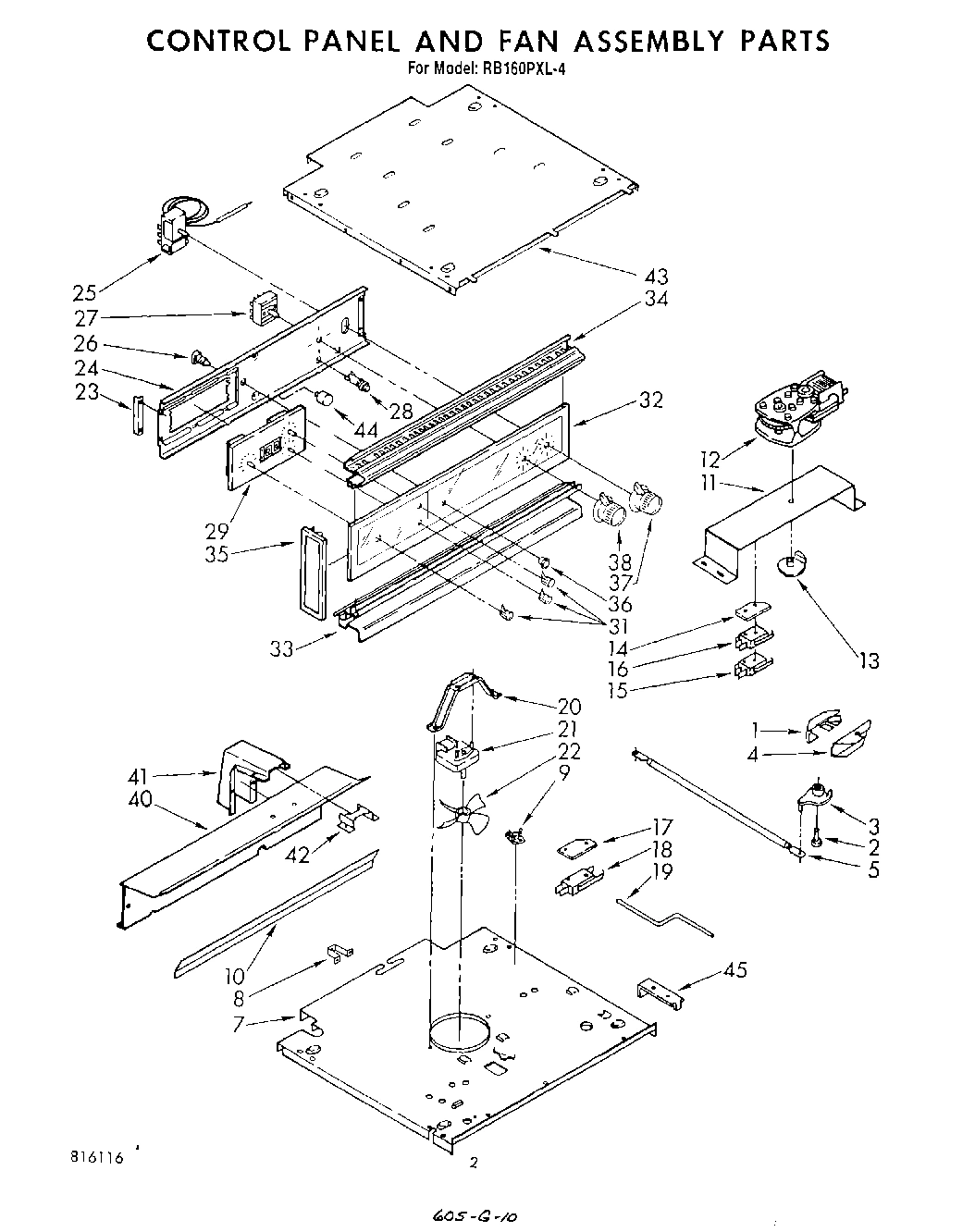

02 - SECTION
Common parts from model Whirlpool RB160PXL4 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT877952 WPL LIT877952 Contact Us For Availability
1
Oven (27`` Pyro) WPL 877799 Contact Us For Availability
1
Frame, Oven Door WPL 877887 Contact Us For Availability
1
Housing, Latch WPL 877614 Contact Us For Availability
2
Cup, Light WPL 877802 Contact Us For Availability
2
Handle, Oven Door WPL 877888 Contact Us For Availability
2
Screw, 6-32 x 1/2 (4) WPL 877889 Contact Us For Availability
2
Axle, Latch WPL 877884 Contact Us For Availability
3
Glass, Outer WPL 877890 Contact Us For Availability
3
Latch, Door WPL 816105 Contact Us For Availability
4
Washer WPL 816058 Contact Us For Availability
4
Pushnut, 1/4 WPL 256158 Contact Us For Availability
4
Cover, Latch Housing WPL 816117 Contact Us For Availability
5
Lens, Light WPL 877804 Contact Us For Availability
5
Panel, Air Wash WPL 877501 Contact Us For Availability
5
Tie Bar WPL 816118 Contact Us For Availability
6
Retainer, Lens WPL 877805 Contact Us For Availability
6
Glass, Inner WPL 868502 Contact Us For Availability
7
Bracket, Thermo Bulb WPL 865959 Contact Us For Availability
7
Retainer, Glass WPL 868503 Contact Us For Availability
7
Casing, Fan WPL 868979 Contact Us For Availability
8
Liner, Oven Door WPL 877502 Contact Us For Availability
8
Washer, Flat WPL 486608 Contact Us For Availability
8
Spacer, Fan Casing WPL 868798 Contact Us For Availability
9
Unit, Broiler (208V) WPL 261968 Contact Us For Availability
9
Unit, Broil ((240V)) WPL 865638 Contact Us For Availability
9
Plug Button 3/16`` WPL 142001 Contact Us For Availability
9
Baffle, Weldment WPL 877503 Contact Us For Availability
9
Thermal Protector WPL 868980 Contact Us For Availability
9
Screw, 6-32 x 5/16 (2) WPL 877978 Contact Us For Availability
10
Hanger, Broil Unit WPL 866429 Contact Us For Availability
10
Seal, Oven Door WPL 877504 Contact Us For Availability
10
Shield, Control Panel WPL 868981 Contact Us For Availability
11
Unit Bake (Screw, 10-24 x 1/2 (2)) WPL 486146 Contact Us For Availability
11
Unit, Bake (Alternate (208V)) WPL 261967 Contact Us For Availability
11
Window Assembly WPL 877505 Contact Us For Availability
11
Support, Latch Motor WPL 816114 Contact Us For Availability
12
Seal, Window WPL 877506 Contact Us For Availability
12
Motor, Door Latch WPL 816113 Contact Us For Availability
13
Channel, Assembly (2) WPL 865972 Contact Us For Availability
13
Pin, Spring WPL 816107 Contact Us For Availability
13
Cam, Door Latch WPL 816112 Contact Us For Availability
14
Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability
14
Vent Tube WPL 877880 Contact Us For Availability
14
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
14
Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability
15
Retainer, Insulation Side (2) WPL 866376 Contact Us For Availability
15
Rivet (2) WPL 241423 Contact Us For Availability
15
Switch, Lower Limit (Alternate) WPL 834906 Contact Us For Availability
15
Switch, Lower Limit (Alternate) WPL 877877 Contact Us For Availability
16
Retainer, Insulation Top WPL 868974 Contact Us For Availability
16
Arm, Hinge WPL 865640 Contact Us For Availability
16
Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2)) WPL 834903 Contact Us For Availability
16
Switch, Upper Limit (Alternate) WPL 868280 Contact Us For Availability
16
Switch, Upper Limit (Alternate) WPL 877878 Contact Us For Availability
17
Retainer, Insulation Bottom WPL 866379 Contact Us For Availability
17
Insulator, Switch WPL 868528 Contact Us For Availability
18
Casing, Back WPL 868975 Contact Us For Availability
18
Spring, Door WPL 241312 Contact Us For Availability
18
Switch, Door (Alternate) WPL 816067 Contact Us For Availability
18
Switch, Door (Screw (2)) WPL 834852 Contact Us For Availability
18
Switch, Door (Alternate) WPL 868527 Contact Us For Availability
19
Casing, Bottom WPL 868976 Contact Us For Availability
19
Strike WPL 877507 Contact Us For Availability
19
Rod Switch Interlock WPL 868526 Contact Us For Availability
20
Support, Bottom Casing (2) WPL 868977 Contact Us For Availability
20
Bracket, Fan Motor WPL 866393 Contact Us For Availability
21
Spacer Trim (4) WPL 866382 Contact Us For Availability
21
Nut, 6/32 (2) WPL 271482 Contact Us For Availability
21
Motor, Fan WPL 877550 Contact Us For Availability
22
Trim, Oven Front (2) WPL 866383 Contact Us For Availability
22
Clip, Retainer WPL 866392 Contact Us For Availability
22
Fan Blade WPL 868990 Contact Us For Availability
23
Casing, Side (2) WPL 868978 Contact Us For Availability
23
Support, Control Bracket (2) WPL 866395 Contact Us For Availability
24
Plate, Conduit WPL 868868 Contact Us For Availability
24
Bracket, Control WPL 877886 Contact Us For Availability
25
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
25
Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability
25
Thermostat, Oven WPL 816061 Contact Us For Availability
26
Switch, Oven Light WPL 866138 Contact Us For Availability
26
Nut, 3/8-27 WPL 98754 Contact Us For Availability
27
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
27
Switch, Oven Selector WPL 816059 Contact Us For Availability
28
Ind WPL 868433 Contact Us For Availability
28
WPL 877881 WPL 877881 Contact Us For Availability
29
WPL 487836 WPL 487836 Contact Us For Availability
29
WPL 816060 WPL 816060 Contact Us For Availability
32
WPL 816062 WPL 816062 Contact Us For Availability
32
WPL 866454 WPL 866454 Contact Us For Availability
33
Cover, Access WPL 868524 Contact Us For Availability
33
WPL 816063 WPL 816063 Contact Us For Availability
34
Rack, Oven Regular WPL 834731 Contact Us For Availability
34
WPL 816064 WPL 816064 Contact Us For Availability
34
WPL 816065 WPL 816065 Contact Us For Availability
35
Rack, Oven (Offset) WPL 834732 Contact Us For Availability
35
WPL 868430 WPL 868430 Contact Us For Availability
35
WPL 868995 WPL 868995 Contact Us For Availability
35
WPL 868996 WPL 868996 Contact Us For Availability
36
WPL 866053 WPL 866053 Contact Us For Availability
37
Pan WPL 866218 Contact Us For Availability
37
WPL 868997 WPL 868997 Contact Us For Availability
38
WPL 142017 WPL 142017 Contact Us For Availability
38
WPL 868998 WPL 868998 Contact Us For Availability
39
WPL 241430 WPL 241430 Contact Us For Availability
39
WPL 242820 WPL 242820 Contact Us For Availability
39
WPL 242821 WPL 242821 Contact Us For Availability
39
WPL 242822 WPL 242822 Contact Us For Availability
39
WPL 242823 WPL 242823 Contact Us For Availability
39
WPL 242824 WPL 242824 Contact Us For Availability
39
WPL 242825 WPL 242825 Contact Us For Availability
39
WPL 242826 WPL 242826 Contact Us For Availability
39
WPL 242827 WPL 242827 Contact Us For Availability
39
WPL 242828 WPL 242828 Contact Us For Availability
39
WPL 242829 WPL 242829 Contact Us For Availability
39
WPL 242830 WPL 242830 Contact Us For Availability
39
WPL 242832 WPL 242832 Contact Us For Availability
39
WPL 261582 WPL 261582 Contact Us For Availability
39
WPL 261810 WPL 261810 Contact Us For Availability
39
WPL 816068 WPL 816068 Contact Us For Availability
40
WPL 866411 WPL 866411 Contact Us For Availability
41
WPL 866412 WPL 866412 Contact Us For Availability
42
WPL 868222 WPL 868222 Contact Us For Availability
43
WPL 681151 WPL 681151 Contact Us For Availability
43
WPL 868102 WPL 868102 Contact Us For Availability
44
WPL 834956 WPL 834956 Contact Us For Availability
45
WPL 868799 WPL 868799 Contact Us For Availability
× ![]()
