Model Whirlpool RB160PXL0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

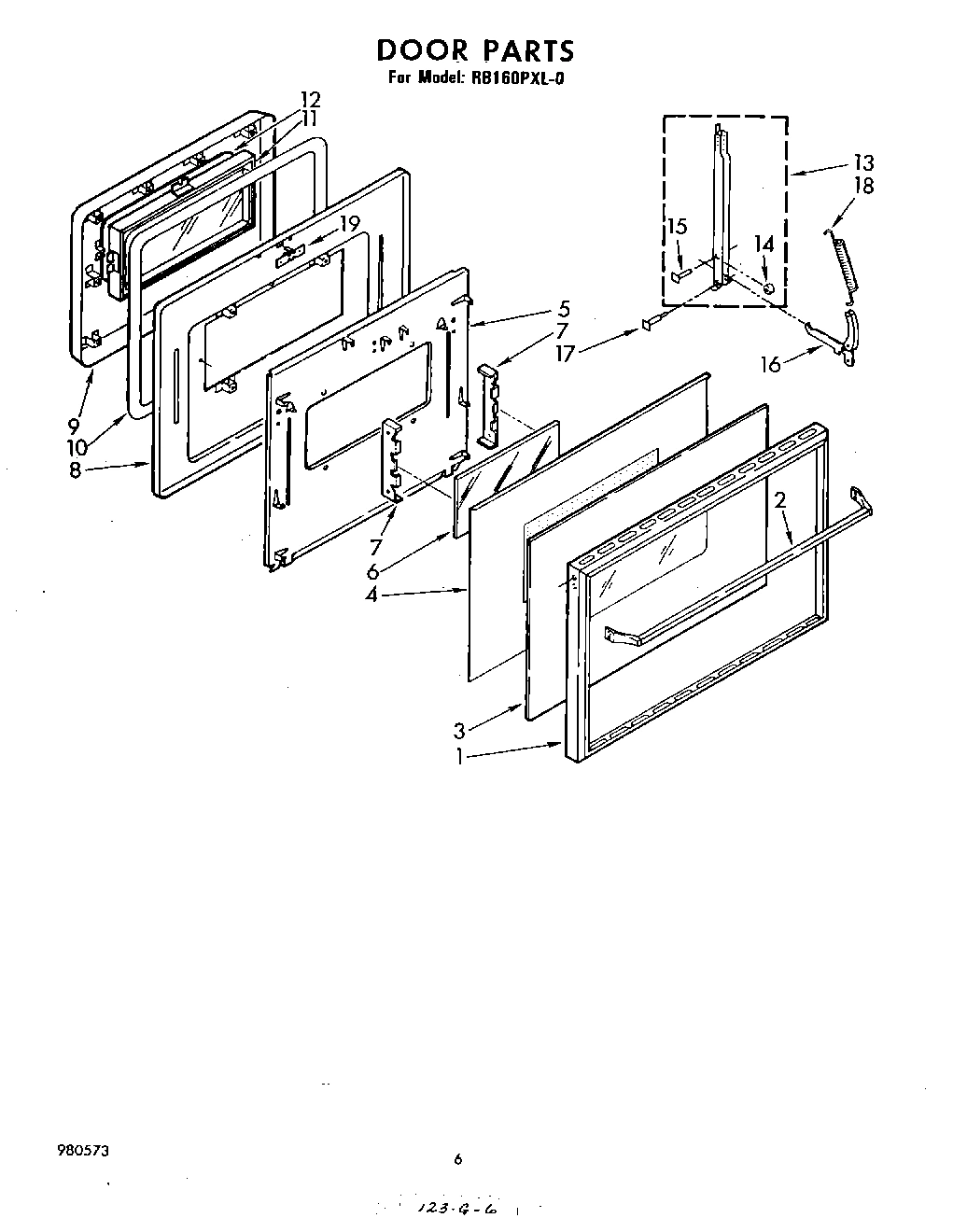

04 - DOOR

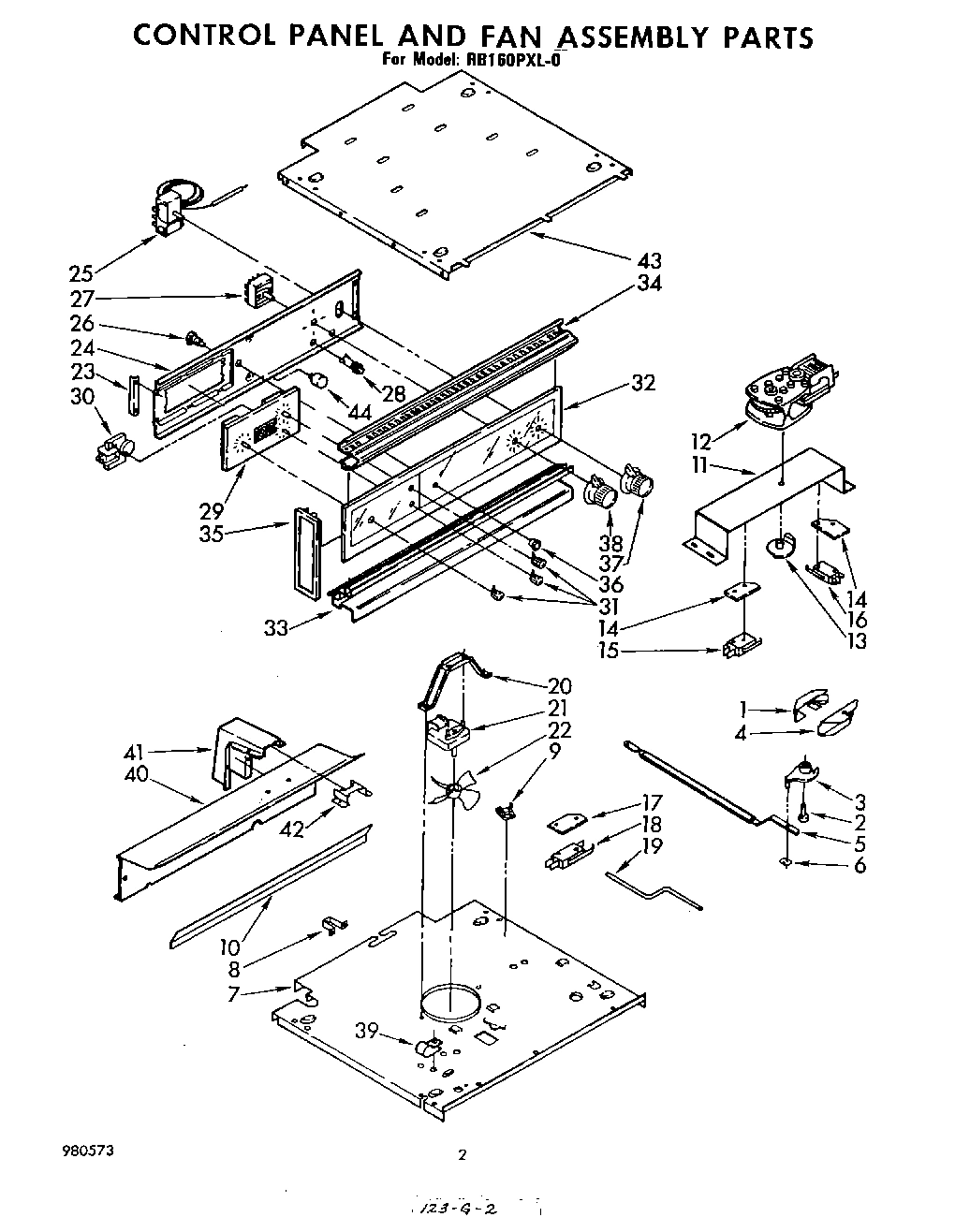

02 - CONTROL PANEL AND FAN ASSEMBLY

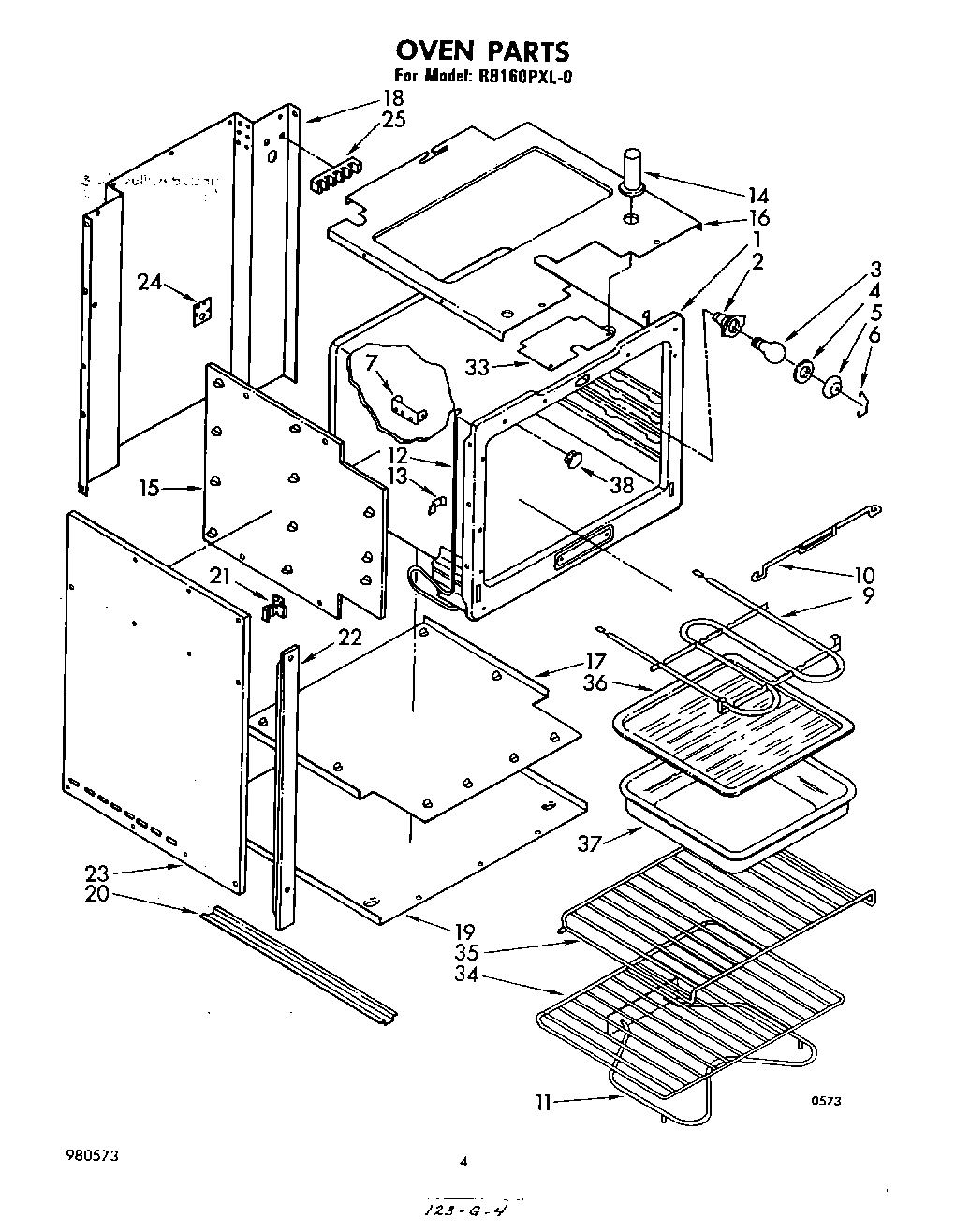

03 - OVEN, LIT/OPTIONAL
Common parts from model Whirlpool RB160PXL0 BUILT-IN ELECTRIC SINGLE OVEN
1
Housing, Latch WPL 868281 Contact Us For Availability
1
Oven (27`` Pyro) WPL 877644 Contact Us For Availability
2
Axle, Latch WPL 241564 Contact Us For Availability
2
Socket, Light WPL 866133 Contact Us For Availability
3
Glass, Outer WPL 868223 Contact Us For Availability
3
Washer (2) WPL 241422 Contact Us For Availability
3
Latch, Door WPL 834484 Contact Us For Availability
4
Panel, Heat Reflector WPL 868224 Contact Us For Availability
4
Pushnut, 1/4 WPL 256158 Contact Us For Availability
4
Cover, Latch Housing WPL 868513 Contact Us For Availability
4
Gasket, Light WPL 241609 Contact Us For Availability
5
Panel, Air Wash WPL 877501 Contact Us For Availability
5
Tie Bar WPL 868523 Contact Us For Availability
5
Cover, Light WPL 241592 Contact Us For Availability
6
Glass, Inner WPL 868502 Contact Us For Availability
6
retainer, oven light WPL 866134 Contact Us For Availability
7
Retainer, Glass WPL 868503 Contact Us For Availability
7
Casing, Fan WPL 868979 Contact Us For Availability
7
Bracket, Thermo Bulb WPL 865959 Contact Us For Availability
8
Liner, Oven Door WPL 877502 Contact Us For Availability
8
Washer, Flat WPL 486608 Contact Us For Availability
8
Spacer, Fan Casing WPL 868798 Contact Us For Availability
9
Plug Button 3/16`` (2) WPL 142001 Contact Us For Availability
9
Baffle, Weldment WPL 877503 Contact Us For Availability
9
Thermal Protector WPL 868980 Contact Us For Availability
9
Unit, Broil WPL 865638 Contact Us For Availability
10
Screw, 10-24 x1/2 (2) WPL 486146 Contact Us For Availability
10
Seal, Oven Door WPL 877504 Contact Us For Availability
10
Shield, Control Panel WPL 868981 Contact Us For Availability
10
Hanger, Broil Unit WPL 866429 Contact Us For Availability
11
Window Assembly WPL 877505 Contact Us For Availability
11
Support, Latch Motor WPL 868982 Contact Us For Availability
12
Seal, Window WPL 877506 Contact Us For Availability
12
Motor (Alternate) WPL 834849 Contact Us For Availability
12
Motor (Alternate) WPL 868983 Contact Us For Availability
12
Heater, Mullion WPL 868970 Contact Us For Availability
13
Channel, Assembly (2) WPL 865972 Contact Us For Availability
13
Cam, Door Latch (Pushnut, 3/16``) WPL 241547 Contact Us For Availability
13
Cam, Door Latch (Pin, Spring) WPL 455105 Contact Us For Availability
13
cam, door latch (alternate) WPL 834483 Contact Us For Availability
13
Cam, Door Latch (Alternate) WPL 868984 Contact Us For Availability
13
Clip, Heater R.H. WPL 868971 Contact Us For Availability
13
Clip, Heater L.H. WPL 868972 Contact Us For Availability
14
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
14
Insulator, Limit Switch (3) WPL 834905 Contact Us For Availability
14
Vent Tube (Screw, 10-24 x 3/8 (2)) WPL 241428 Contact Us For Availability
14
vent tube (alternate) WPL 865939 Contact Us For Availability
14
vent tube (alternate) WPL 868973 Contact Us For Availability
15
Rivet (2) WPL 241423 Contact Us For Availability
15
Switch, Lower Limit (2) (Alternate) WPL 834906 Contact Us For Availability
15
Switch, Lower Limit (2) (Alternate) WPL 868985 Contact Us For Availability
15
Switch, Lower Limit (2) (Alternate) WPL 868986 Contact Us For Availability
15
Switch, Lower Limit (2) (Screw, 4-40 x 5/8 (2 WPL 9405910 Contact Us For Availability
15
Retainer, Insulation Side (2) WPL 866376 Contact Us For Availability
16
Arm, Hinge (2) WPL 865640 Contact Us For Availability
16
Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2)) WPL 834903 Contact Us For Availability
16
Switch, Upper Limit (Alternate) WPL 868280 Contact Us For Availability
16
Switch, Upper Limit (Alternate) WPL 868987 Contact Us For Availability
16
Switch, Upper Limit (Alternate) WPL 868988 Contact Us For Availability
16
Retainer, Insulation Top WPL 868974 Contact Us For Availability
17
Pin, Hinge (2) WPL 241334 Contact Us For Availability
17
Insulator, Switch WPL 868528 Contact Us For Availability
17
Retainer, Insulation Bottom WPL 866379 Contact Us For Availability
18
Spring, Door (2) WPL 241312 Contact Us For Availability
18
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
18
Screw (2) WPL 834852 Contact Us For Availability
18
Switch, Limit WPL 868527 Contact Us For Availability
18
Casing, Back WPL 868975 Contact Us For Availability
19
Strike WPL 877507 Contact Us For Availability
19
Rod Switch Interlock WPL 868526 Contact Us For Availability
19
Casing, Bottom WPL 868976 Contact Us For Availability
20
Bracket, Fan Motor WPL 866393 Contact Us For Availability
20
Support, Bottom Casing (2) WPL 868977 Contact Us For Availability
21
Motor, Fan (Nut, 6/32 (2)) WPL 271482 Contact Us For Availability
21
Motor, Fan (Alternate) WPL 868989 Contact Us For Availability
21
Motor, Fan (A WPL 877550 Contact Us For Availability
21
Spacer Trim (4) WPL 866382 Contact Us For Availability
22
WPL 866392 WPL 866392 Contact Us For Availability
22
WPL 868990 WPL 868990 Contact Us For Availability
22
Trim, Oven Front (2) WPL 866383 Contact Us For Availability
23
WPL 866395 WPL 866395 Contact Us For Availability
23
Casing, Side (2) WPL 868978 Contact Us For Availability
24
WPL 868402 WPL 868402 Contact Us For Availability
24
Plate, Conduit WPL 868868 Contact Us For Availability
25
WPL 868808 WPL 868808 Contact Us For Availability
25
Nut, Hex (10-32) (3) WPL 487836 Contact Us For Availability
25
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
25
Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability
26
WPL 866138 WPL 866138 Contact Us For Availability
26
WPL 98754 WPL 98754 Contact Us For Availability
27
WPL 486525 WPL 486525 Contact Us For Availability
27
WPL 868991 WPL 868991 Contact Us For Availability
28
WPL 868172 WPL 868172 Contact Us For Availability
28
WPL 868433 WPL 868433 Contact Us For Availability
29
WPL 868992 WPL 868992 Contact Us For Availability
30
WPL 866403 WPL 866403 Contact Us For Availability
31
WPL 241383 WPL 241383 Contact Us For Availability
32
WPL 866454 WPL 866454 Contact Us For Availability
32
WPL 868993 WPL 868993 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
33
WPL 868531 WPL 868531 Contact Us For Availability
33
Cover, Access WPL 868524 Contact Us For Availability
34
WPL 595119 WPL 595119 Contact Us For Availability
34
WPL 868994 WPL 868994 Contact Us For Availability
34
Rack, Oven Regular WPL 834731 Contact Us For Availability
35
WPL 868430 WPL 868430 Contact Us For Availability
35
WPL 868995 WPL 868995 Contact Us For Availability
35
WPL 868996 WPL 868996 Contact Us For Availability
35
Rack, Oven (Offset) WPL 834732 Contact Us For Availability
36
WPL 866053 WPL 866053 Contact Us For Availability
37
WPL 868997 WPL 868997 Contact Us For Availability
37
Pan, Broiler WPL 866218 Contact Us For Availability
38
WPL 241430 WPL 241430 Contact Us For Availability
38
WPL 868998 WPL 868998 Contact Us For Availability
38
Plug, Button WPL 142017 Contact Us For Availability
38
WPL 242820 WPL 242820 Contact Us For Availability
38
WPL 242821 WPL 242821 Contact Us For Availability
38
WPL 242822 WPL 242822 Contact Us For Availability
38
WPL 242823 WPL 242823 Contact Us For Availability
38
WPL 242824 WPL 242824 Contact Us For Availability
38
WPL 242825 WPL 242825 Contact Us For Availability
38
WPL 242826 WPL 242826 Contact Us For Availability
38
WPL 242827 WPL 242827 Contact Us For Availability
38
WPL 242828 WPL 242828 Contact Us For Availability
38
WPL 242829 WPL 242829 Contact Us For Availability
38
WPL 242830 WPL 242830 Contact Us For Availability
38
WPL 242832 WPL 242832 Contact Us For Availability
38
WPL 261582 WPL 261582 Contact Us For Availability
38
WPL 261810 WPL 261810 Contact Us For Availability
38
WPL 308500 WPL 308500 Contact Us For Availability
38
WPL 866338 WPL 866338 Contact Us For Availability
38
WPL 877603 WPL 877603 Contact Us For Availability
38
WPL 980573 WPL 980573 Contact Us For Availability
39
WPL 273225 WPL 273225 Contact Us For Availability
39
WPL 865797 WPL 865797 Contact Us For Availability
40
WPL 866411 WPL 866411 Contact Us For Availability
41
WPL 866412 WPL 866412 Contact Us For Availability
42
WPL 868222 WPL 868222 Contact Us For Availability
43
WPL 868102 WPL 868102 Contact Us For Availability
44
WPL 834956 WPL 834956 Contact Us For Availability
× ![]()
