Model Whirlpool RB160PXBQ1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
01 - CONTROL PANEL
02 - UPPER OVEN DOOR

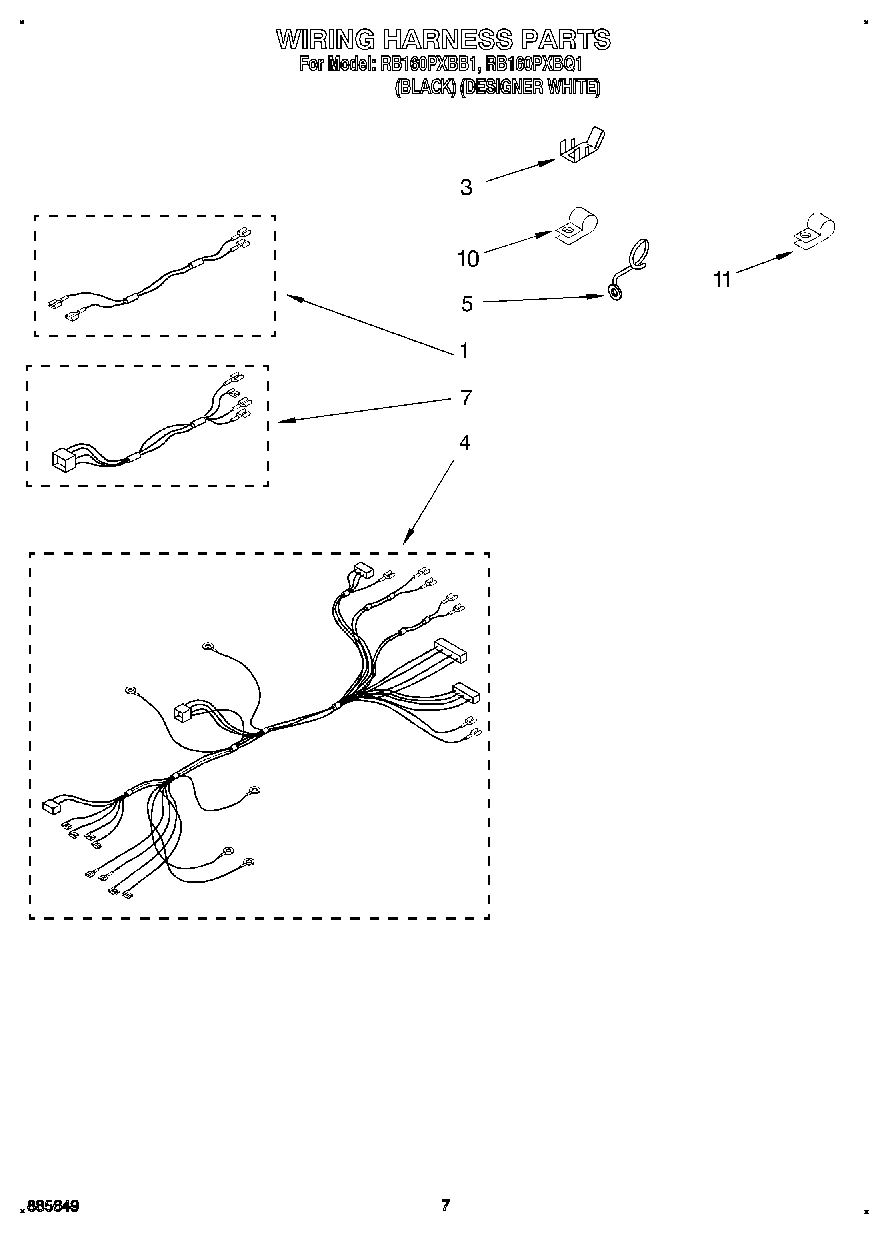

06 - WIRING HARNESS, LIT/OPTIONAL

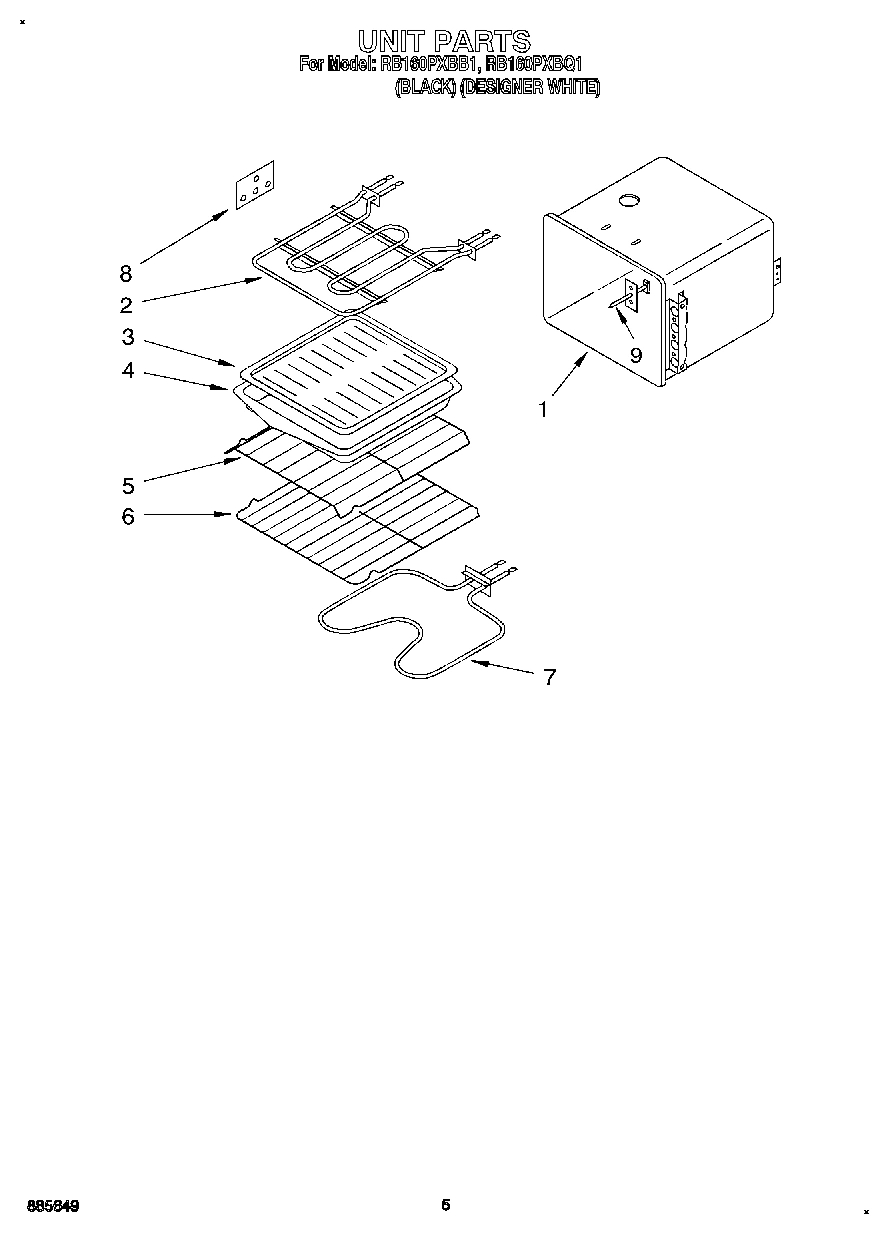

04 - UNIT

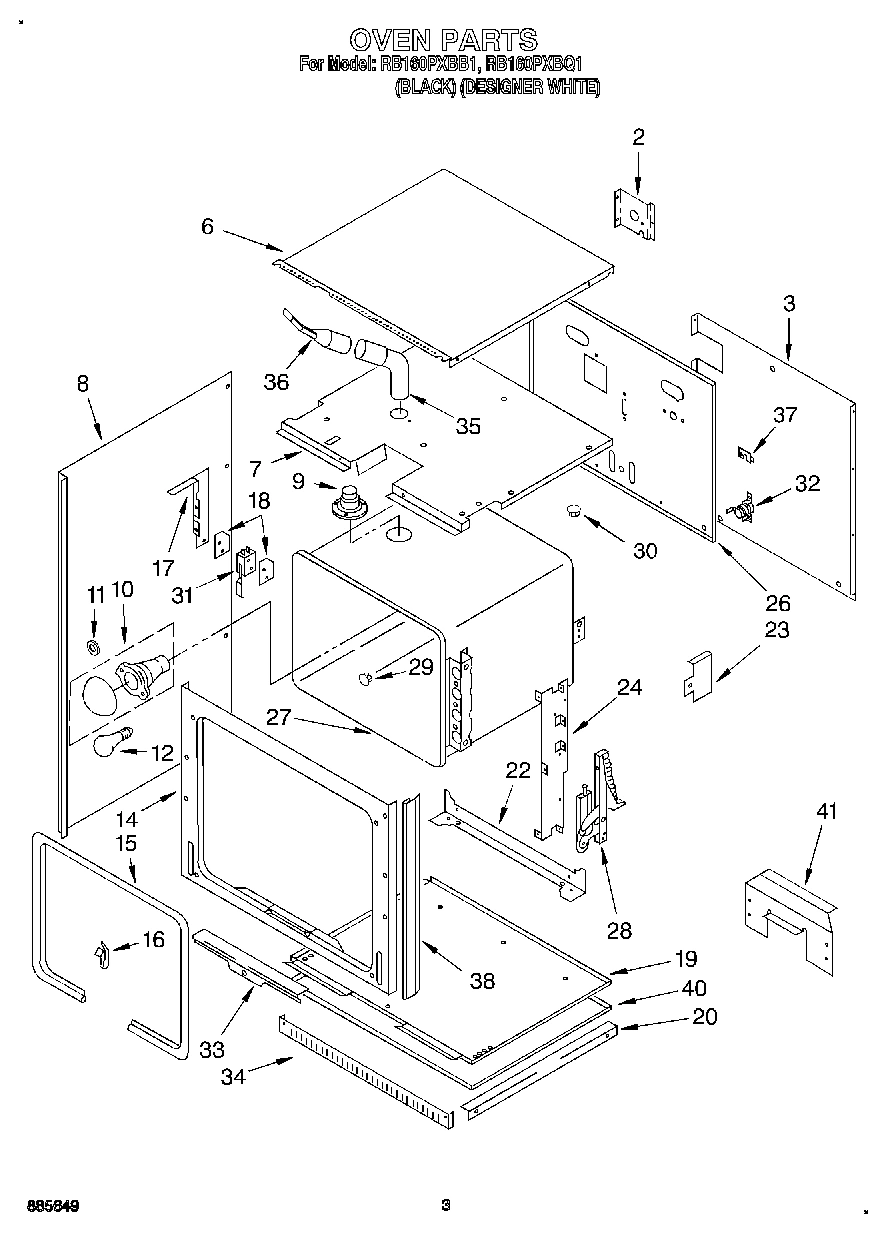

03 - OVEN

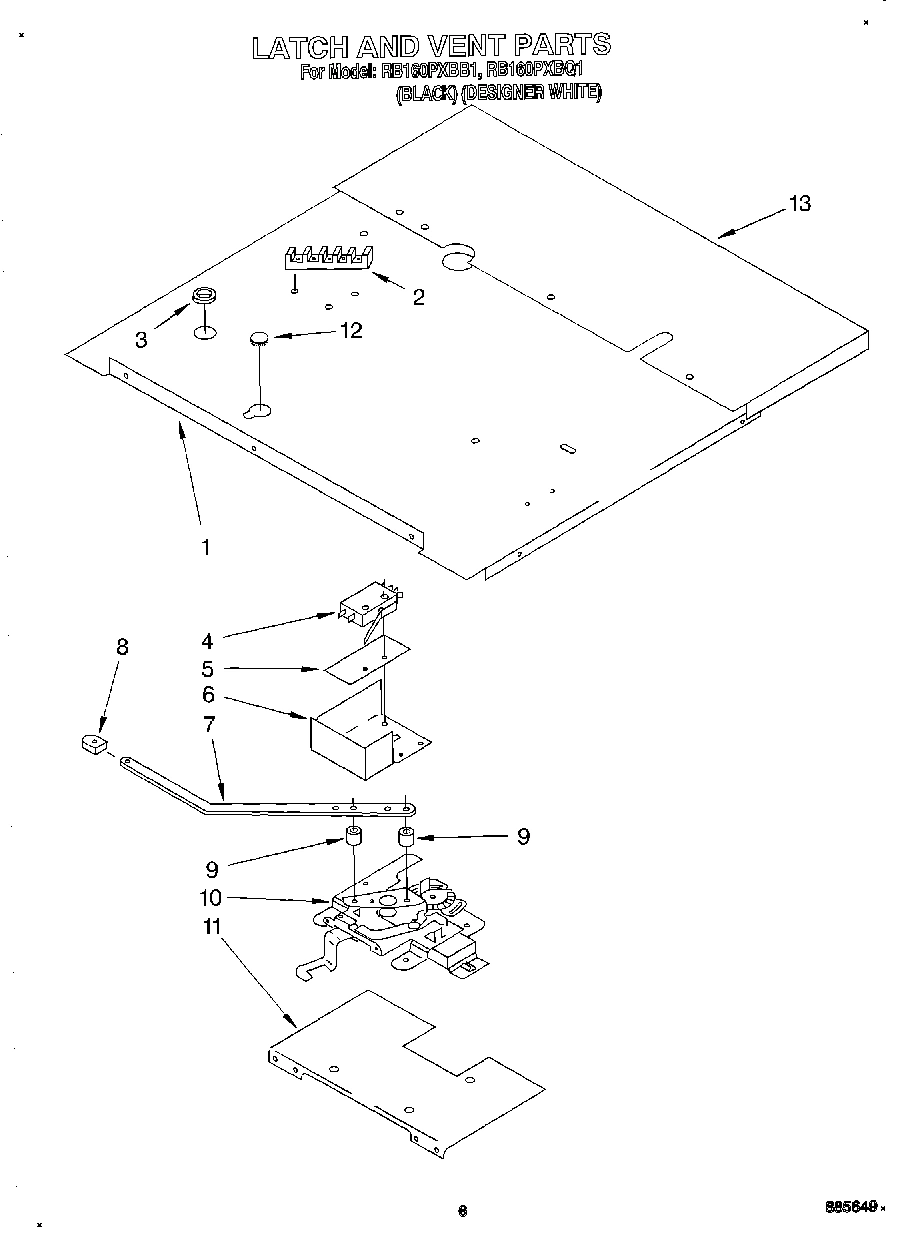

05 - LATCH AND VENT
Common parts from model Whirlpool RB160PXBQ1 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT3183636 WPL LIT3183636 Contact Us For Availability
WPL LIT3186592 WPL LIT3186592 Contact Us For Availability
WPL LIT3188184 WPL LIT3188184 Contact Us For Availability
1
Liner, Door WPL 3185499 Contact Us For Availability
1
Wiring Harness (Door Switch) WPL 3187607 Contact Us For Availability
1
Shelf, Component WPL 3178092 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Screw WPL 309133 Contact Us For Availability
3
Cabinet, Back WPL 3177626 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Wiring Harness (Oven) WPL 3186590 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Screw WPL 3179116 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Rack, Offset WPL 3185369 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Screw WPL 3178001 Contact Us For Availability
6
Foil-Adhesive Backed (2) WPL 3188635 Contact Us For Availability
6
Screw WPL 4173601 Contact Us For Availability
6
Rack, Oven WPL 3185370 Contact Us For Availability
6
Cabinet, Top WPL 3178141 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
7
Control Panel (White Model) WPL 3184645 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Wiring Harness (Latch Assembly) WPL 3186593 Contact Us For Availability
7
Module, Top WPL 3183747 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Bracket, Element WPL 3182950 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177442 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184590 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184591 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Screw (2) WPL 3184042 Contact Us For Availability
9
Screw WPL 3185648 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184041 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
11
Spacer, Door Handle (White Model) WPL 814281 Contact Us For Availability
11
Spacer, Door Handle (Black Model) WPL 814282 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum WPL 285368 Contact Us For Availability
11
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
11
Leveler (Primer) WPL 350941 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
12
Frame, Door (Black Model) WPL 3187851 Contact Us For Availability
12
Frame, Door (White Model) WPL 3187853 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Screw WPL 3185647 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
13
Handle, Door (White Model) WPL 3187943 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3187945 Contact Us For Availability
13
Handle, Door (Screw) WPL 3188405 Contact Us For Availability
13
Extention, Shelf WPL 3178133 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
14
Glass, Door (Black Model) WPL 3187869 Contact Us For Availability
14
Glass, Door (White Model) WPL 3187871 Contact Us For Availability
14
Frame, Front WPL 3186952 Contact Us For Availability
15
Screw WPL 254217 Contact Us For Availability
15
Bracket, Support WPL 3183493 Contact Us For Availability
15
Foil-Adhesive Backed WPL 3188634 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Bushing, Door Handle WPL 3188599 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
27
Liner, Oven WPL 3185561 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Thermostat WPL 3149653 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 4168863 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177784 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187958 Contact Us For Availability
35
Vent, Tube (Female) WPL 3179922 Contact Us For Availability
36
Screw, WPL 254225 Contact Us For Availability
36
Vent, Tube (Male) WPL 3184652 Contact Us For Availability
37
Screw WPL 4159445 Contact Us For Availability
37
Cover, Cap Tube WPL 4168203 Contact Us For Availability
38
Trim, Door Side (2) (Black Model) WPL 3187873 Contact Us For Availability
38
Side Trim, Door (2) (White Model) WPL 3187876 Contact Us For Availability
40
Bottom, Oven WPL 3177552 Contact Us For Availability
41
Insulation, Back WPL 3177870 Contact Us For Availability
41
Bracket, Control Panel WPL 3182584 Contact Us For Availability
41
Insulation, Wrap WPL 3185550 Contact Us For Availability
× ![]()
