Model Whirlpool RB151PW REFRIGERATOR – Common Parts & Diagrams

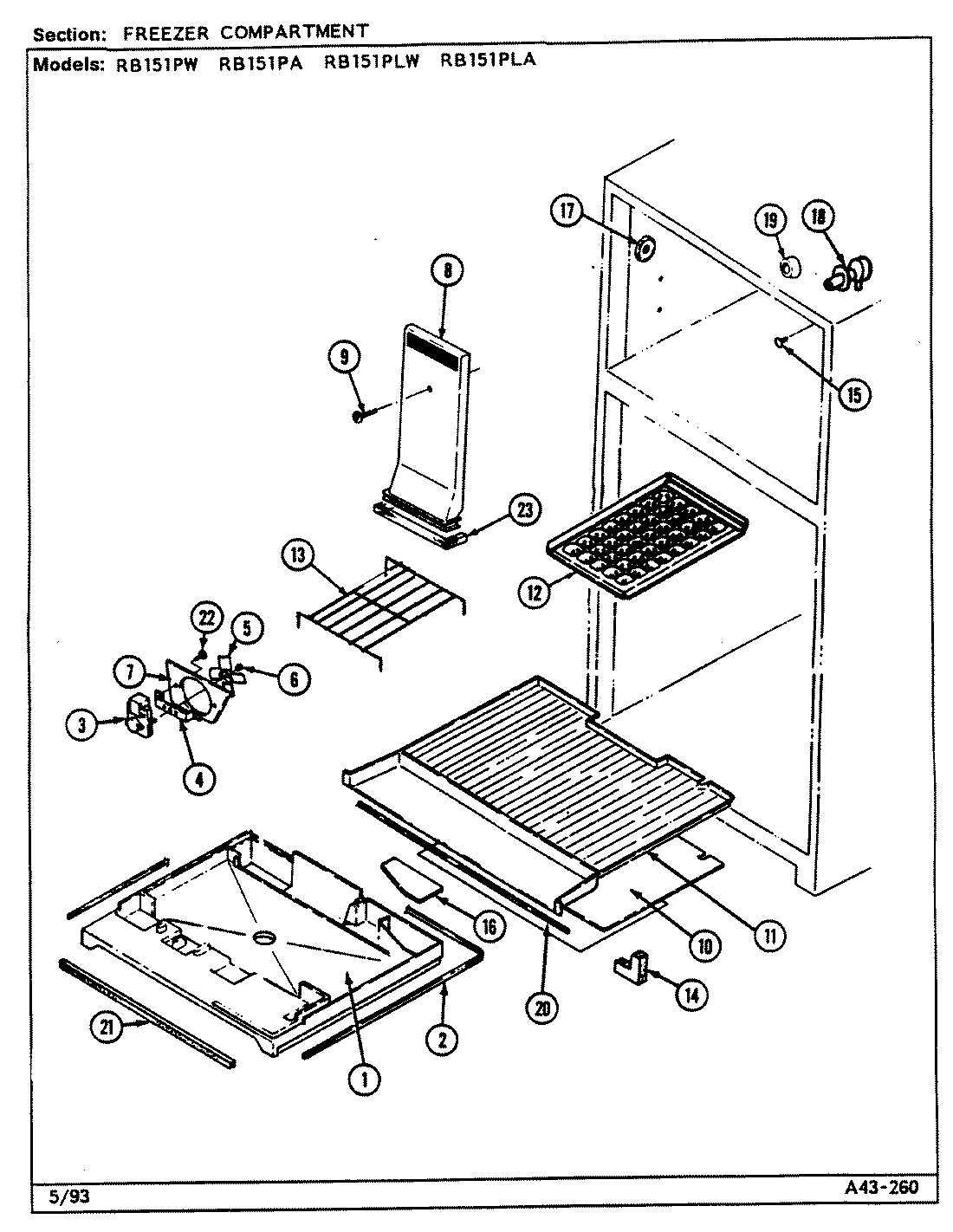

01 - FREEZER COMPARTMENT

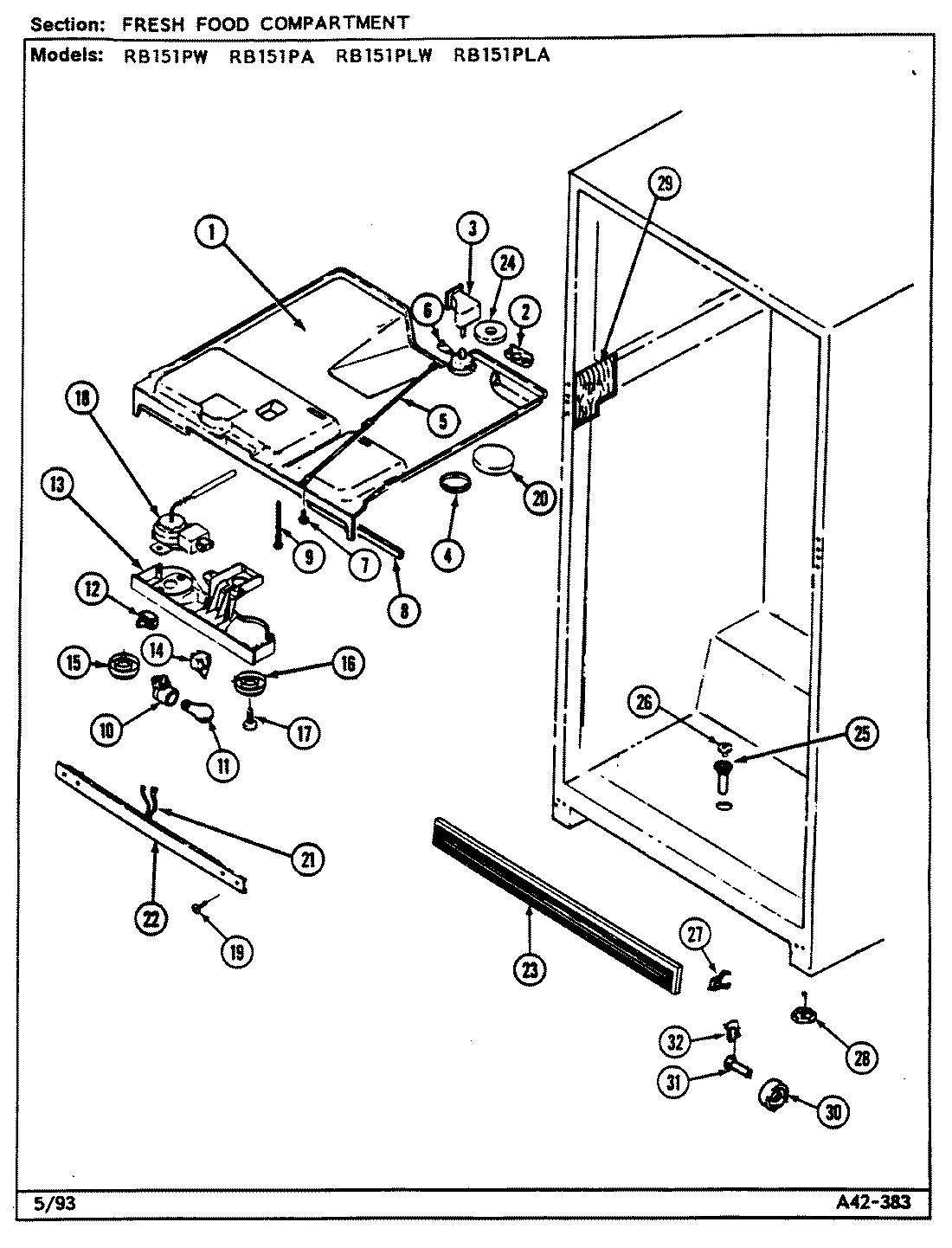

02 - FRESH FOOD COMPARTMENT
03 - OPTIONAL ICE MAKER

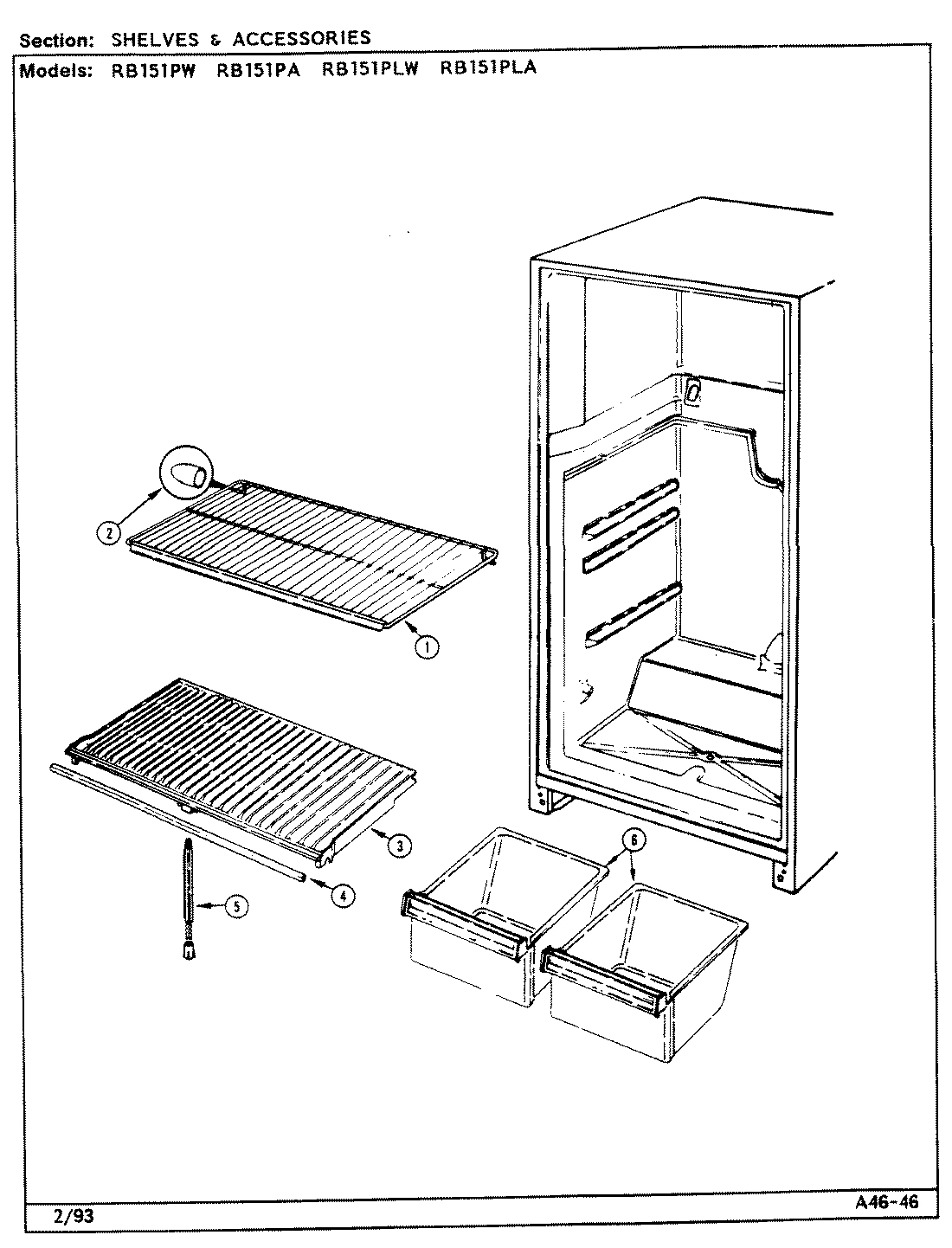

04 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RB151PW REFRIGERATOR
1
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SHELF, SLIDE-OUT WPL 700954 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
TIP WPL 245803 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
ORIFICE, DAMPER WPL 679151 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SHELF, CRISPER WPL 668341 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
5
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PAN, CRISPER WPL 68221138 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
8
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
12
TRAY, ICE WPL 592812 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SEAL WPL 689461 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
PLUG BUTTON WPL 701462 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
16
COVER, PLENUM WPL 664804 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
CAP, CONNECTOR WPL 681871 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 681196 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
SCREW WPL 40001512 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (BLK) WPL 701281 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
× ![]()
