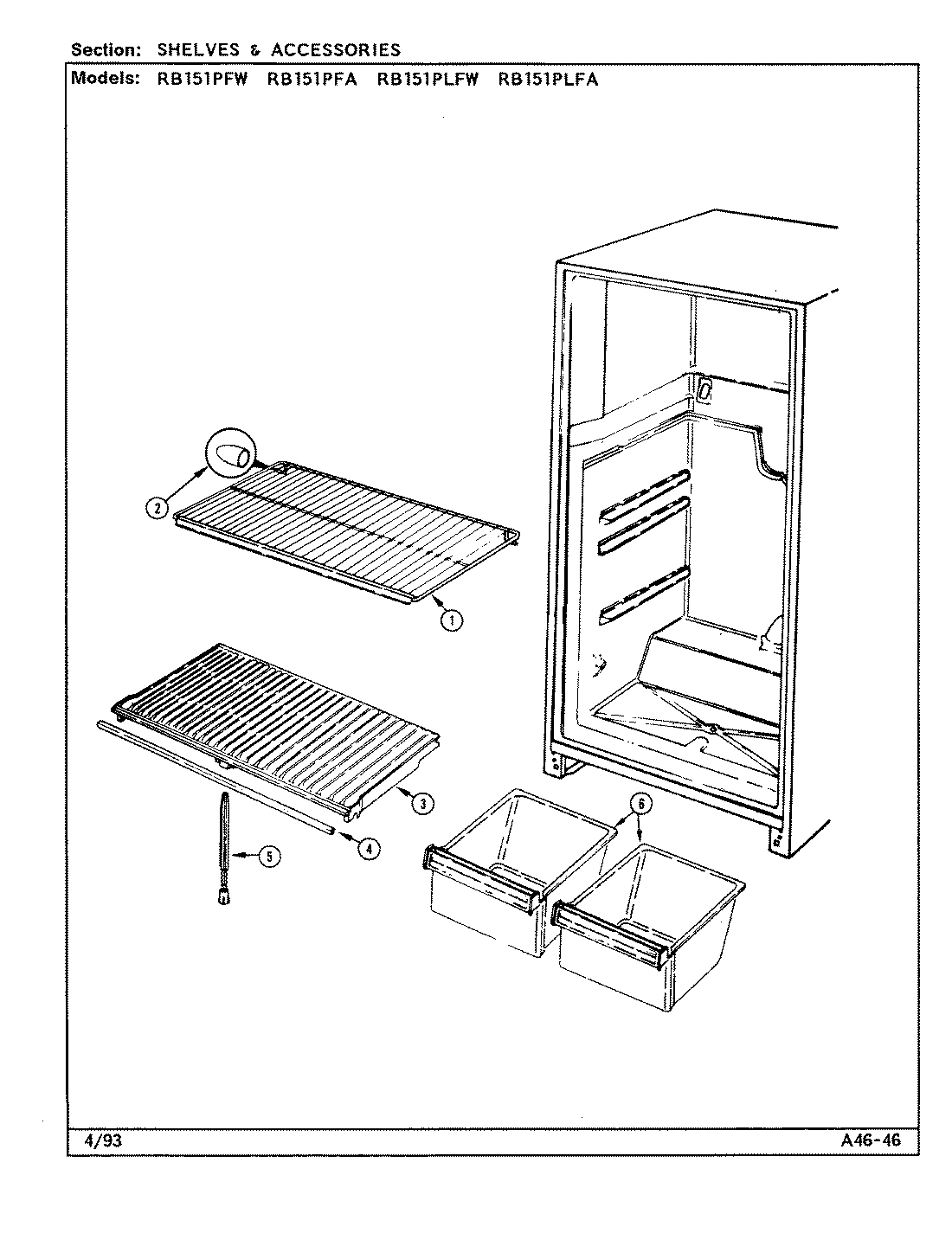

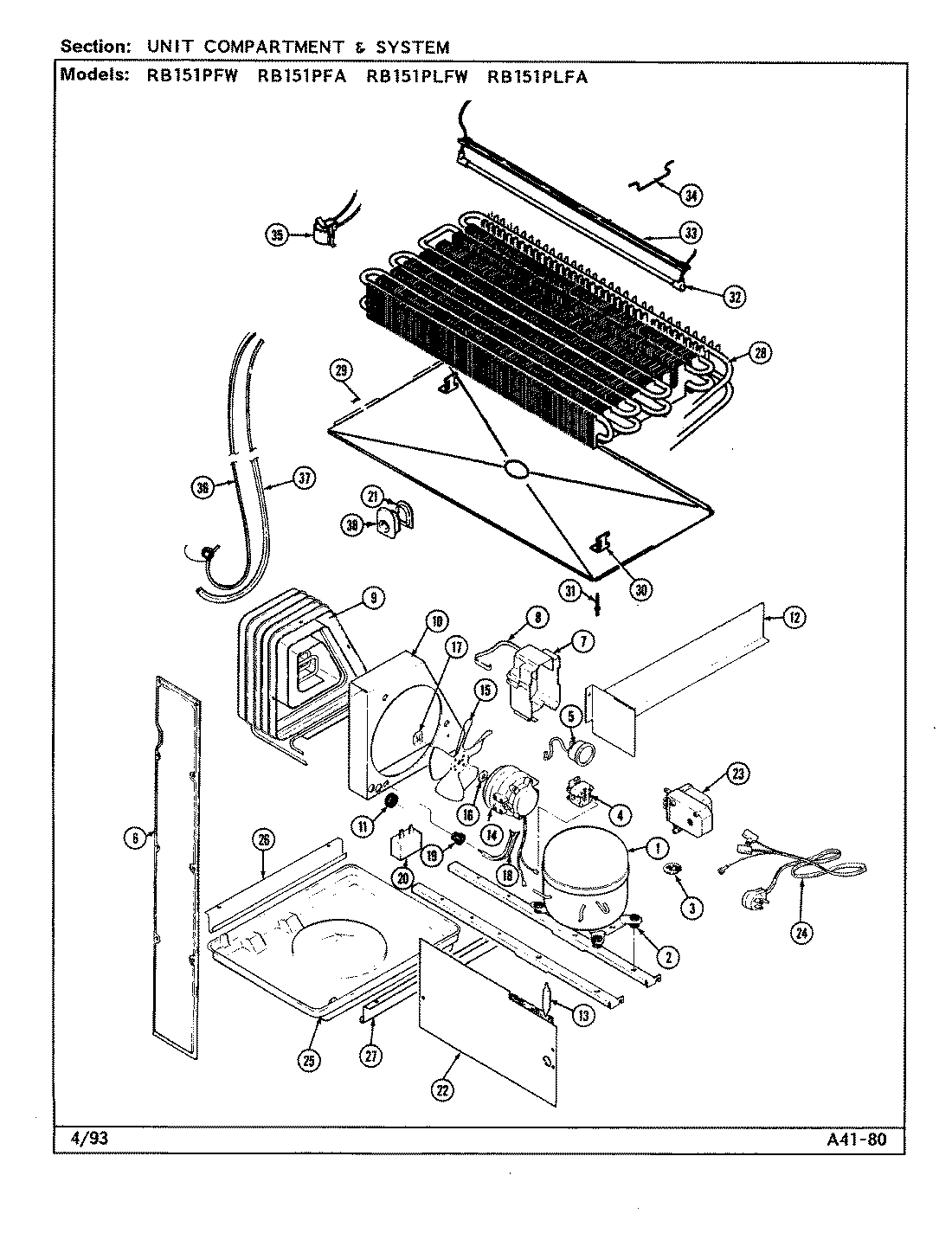

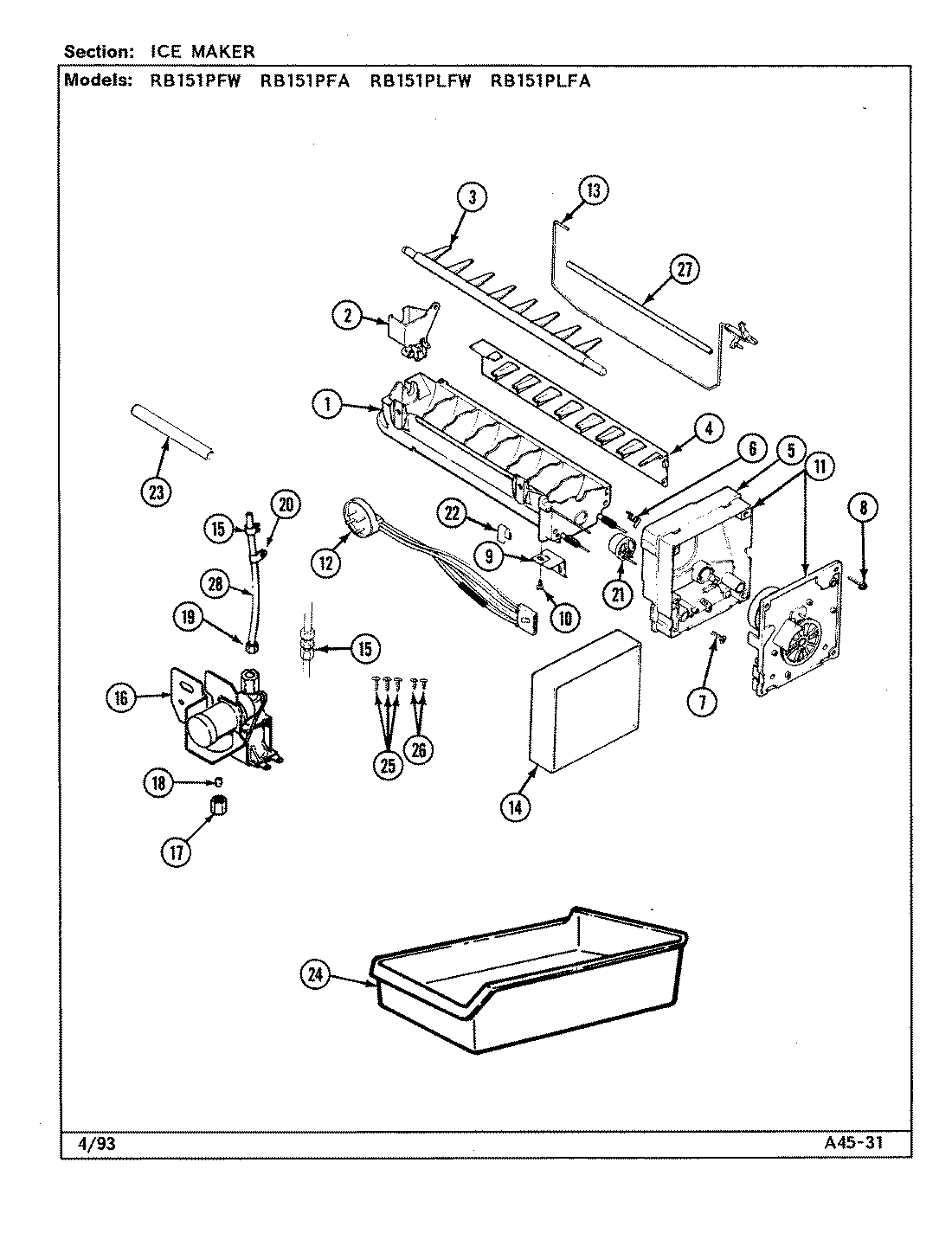

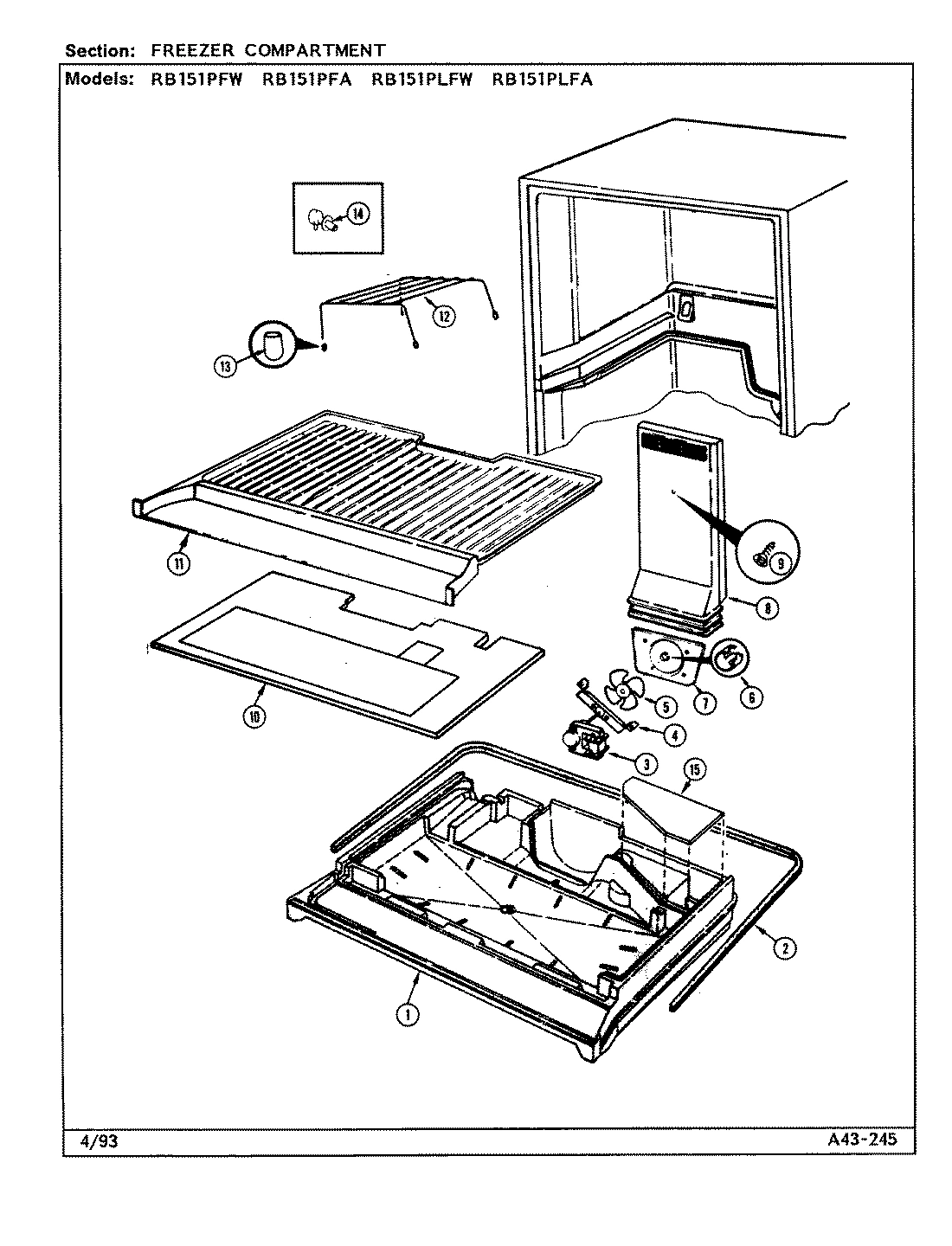

Model Whirlpool RB151PLFW REFRIGERATOR – Common Parts &amp; Diagrams

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability

1

SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability

1

SHELF, SLIDE-OUT WPL 700954 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

SEAL, MULLION TRAY WPL 694141 Contact Us For Availability

2

TIP WPL 245803 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

SHELF, CRISPER WPL 668341 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability

5

OVERLOAD WPL 691059 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability

6

WIRE COVER WPL 601101 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

WASHER, SPRING WPL 420092900 Contact Us For Availability

6

PAN, CRISPER WPL 68221138 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

7

SCREW WPL 951051 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

8

SCREW WPL 951061 Contact Us For Availability

8

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

8

TUNNEL, AIR WPL 685921 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604081 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW WPL 40001531 Contact Us For Availability

10

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

10

SCREW, BRACKET WPL 951081 Contact Us For Availability

10

COVER, EVAPORATOR WPL 664031 Contact Us For Availability

SCREW WPL 4140011 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability

SEAL WPL 689461 Contact Us For Availability

BOTTOM, FRZ. WPL 693951 Contact Us For Availability

12

BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability

12

WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability

12

TRIVET WPL 682597 Contact Us For Availability

13

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

13

ARM, SENSOR WPL 681121 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability

COVER, ICE MAKER WPL 683282 Contact Us For Availability

PLUG BUTTON WPL 669202 Contact Us For Availability

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

15

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

15

CLAMP, SPRING WPL 603334 Contact Us For Availability

15

COVER, PLENUM WPL 664804 Contact Us For Availability

16

WASHER WPL 199134 Contact Us For Availability

16

VALVE, WATER WPL 693641 Contact Us For Availability

17

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

17

SPEEDNUT WPL 199141 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability

18

SLEEVE, BRASS WPL 694311 Contact Us For Availability

19

GROMMET, BRACKET WPL 569331 Contact Us For Availability

19

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

20

CAPACITOR, RUN WPL 658892 Contact Us For Availability

20

SCREW WPL 4000161 Contact Us For Availability

20

CLAMP, TUBING WPL 535168 Contact Us For Availability

21

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

21

THERMOSTAT WPL 950921 Contact Us For Availability

21

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

22

COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability

22

SCREW WPL 998645 Contact Us For Availability

22

CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability

23

SCREW WPL 4050071 Contact Us For Availability

23

TIMER, DEFROST WPL 695432 Contact Us For Availability

23

TUBE, FILL WPL 676668 Contact Us For Availability

24

CORD, POWER WPL 528902 Contact Us For Availability

24

PAN, ICE WPL 683271 Contact Us For Availability

25

PAN, DRAIN WPL 682361 Contact Us For Availability

25

SCREW WPL 4000211 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

26

SCREW WPL 4010181 Contact Us For Availability

27

SCREW WPL 4000171 Contact Us For Availability

27

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

27

SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability

28

EVAPORATOR WPL 698221 Contact Us For Availability

28

TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability

29

TRAY, DRIP WPL 601017 Contact Us For Availability

30

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

32

HEATER, DEFROST WPL 6010634 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability

34

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability

36

HEAT EXCHANGER WPL 650134 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

37

WIRE TIE WPL 662231 Contact Us For Availability

38

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

38

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

38

WIRE HARNESS, MAIN WPL 692921 Contact Us For Availability

39

MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
