Model Whirlpool RB150PLW REFRIGERATOR – Common Parts & Diagrams

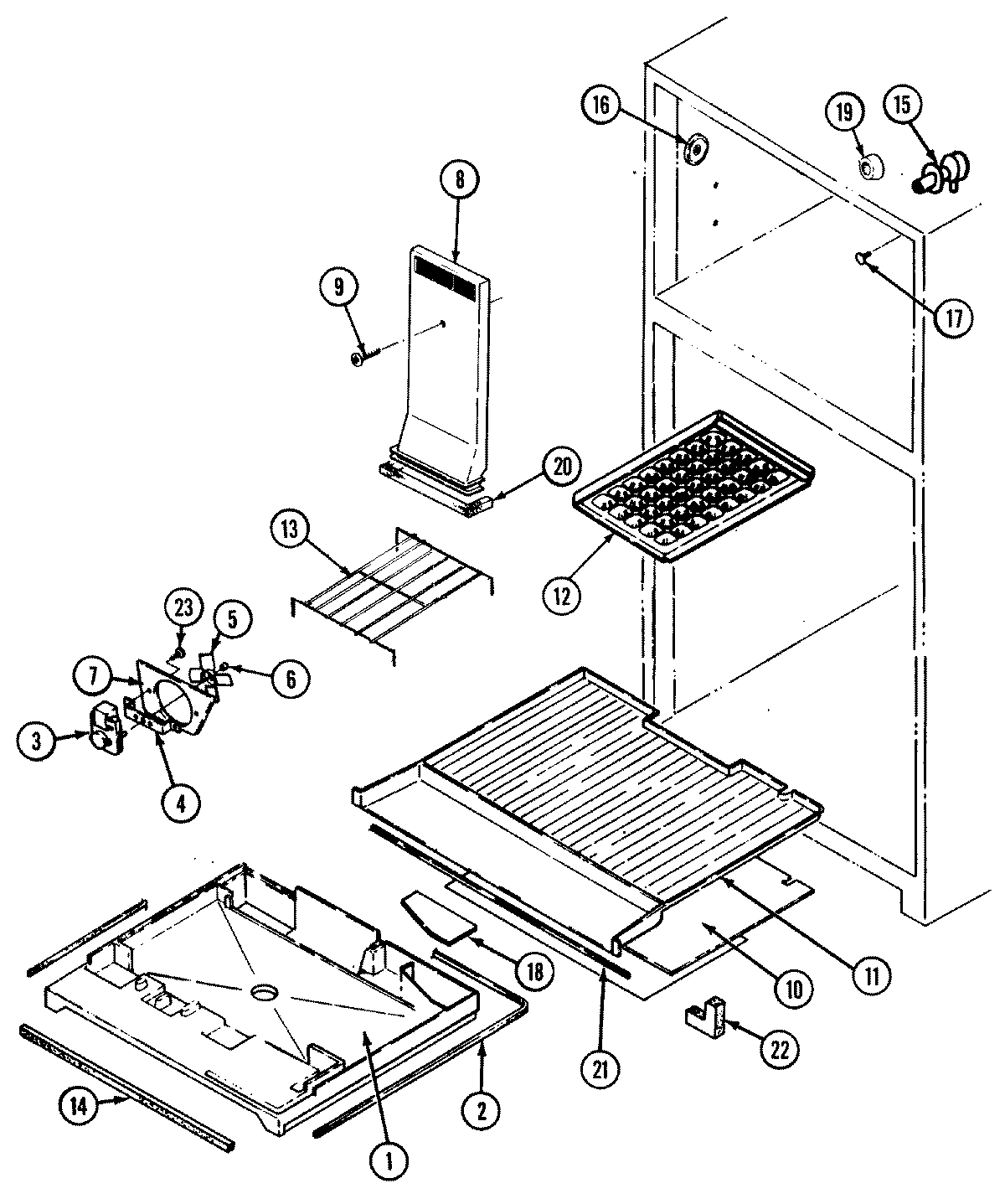

01 - FREEZER COMPARTMENT

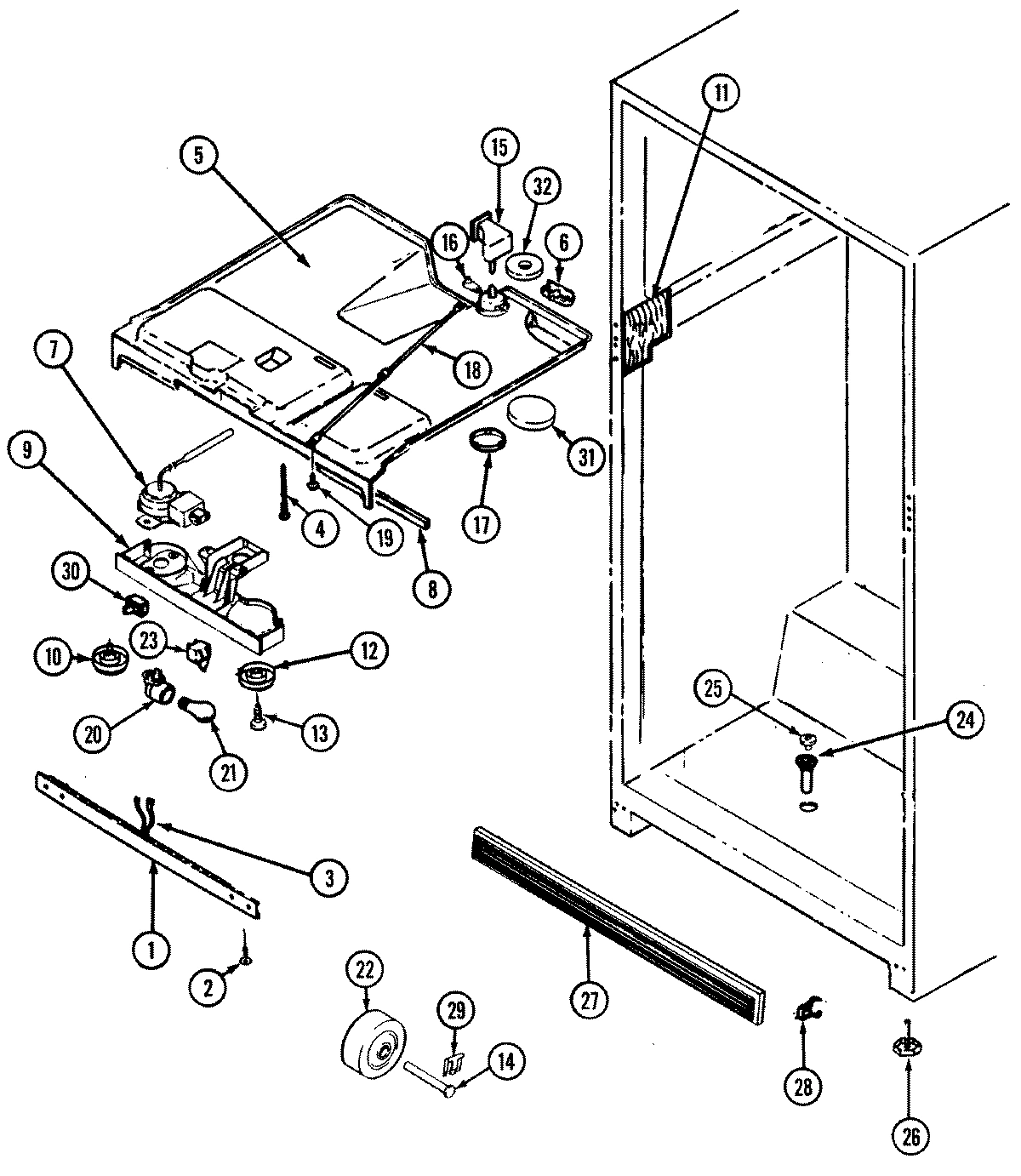

03 - FRESH FOOD COMPARTMENT

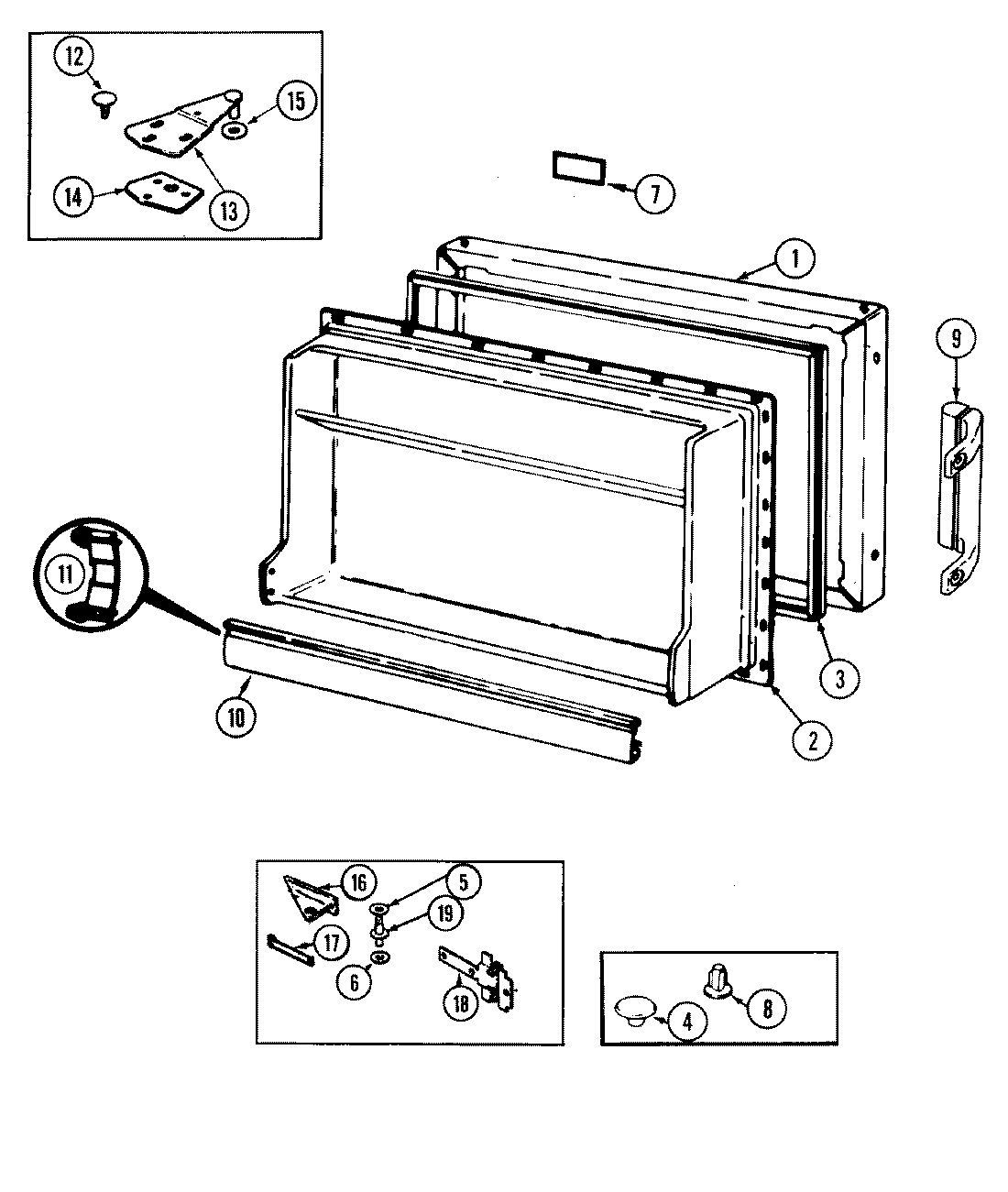

02 - FREEZER DOOR

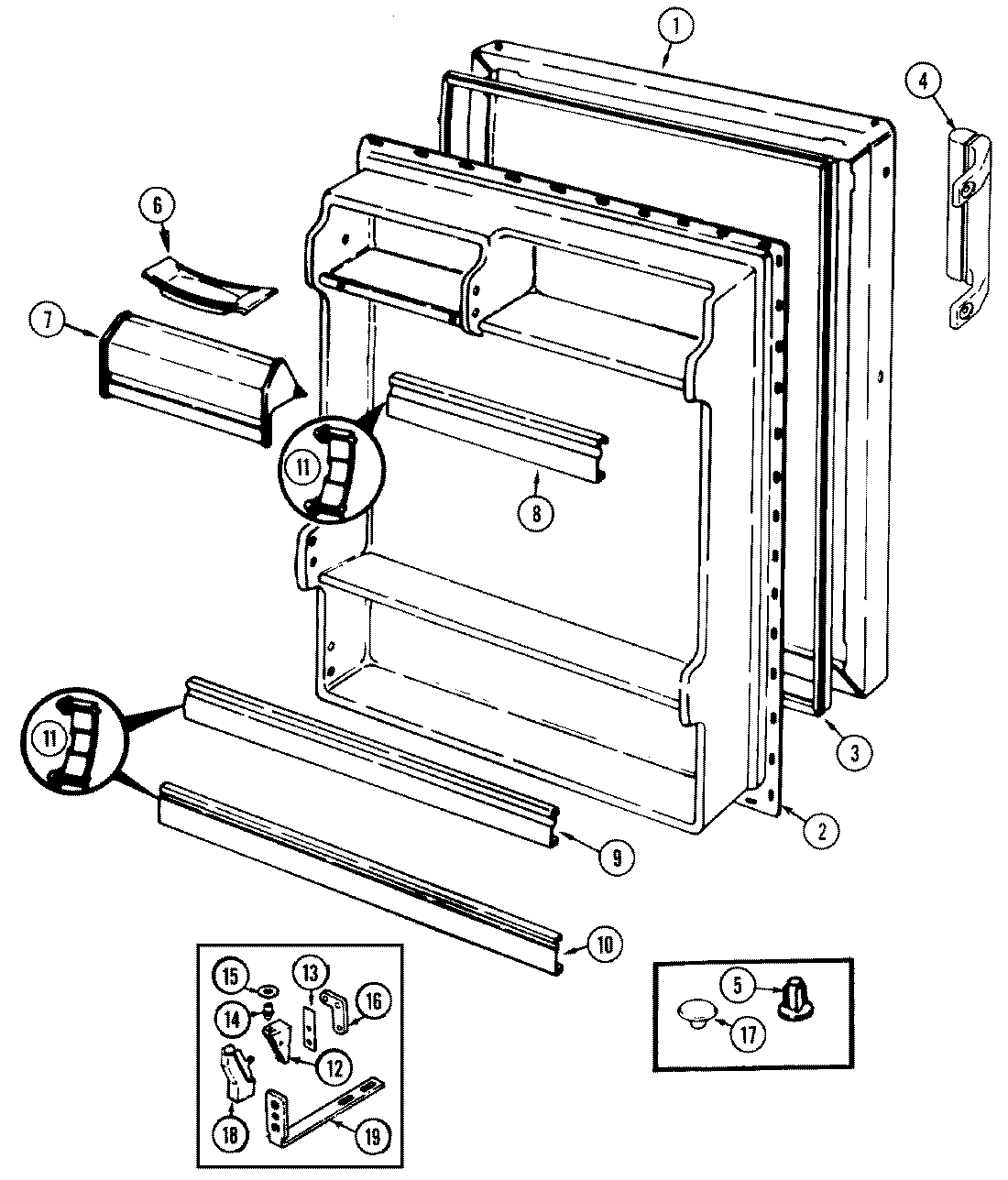

04 - FRESH FOOD DOOR

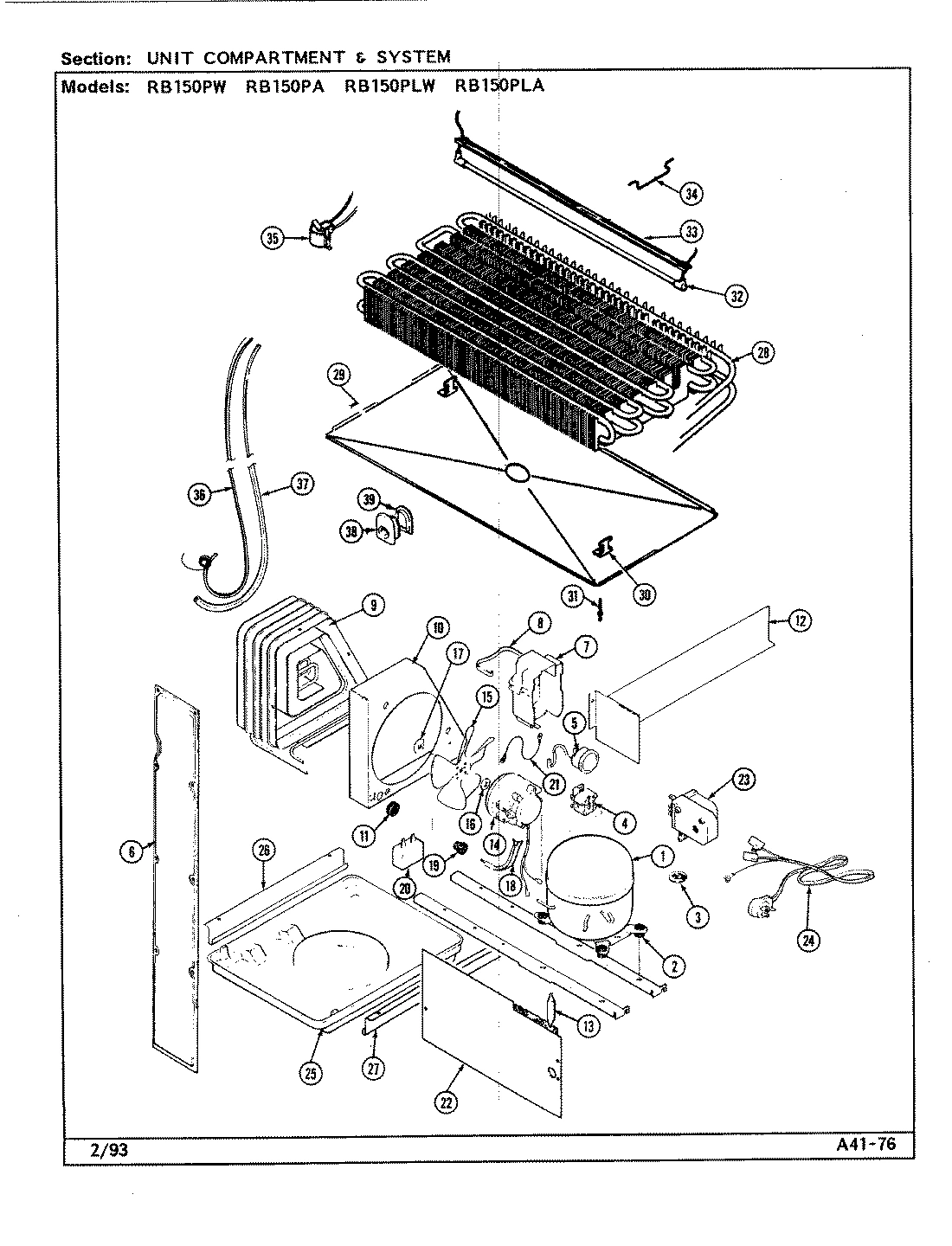

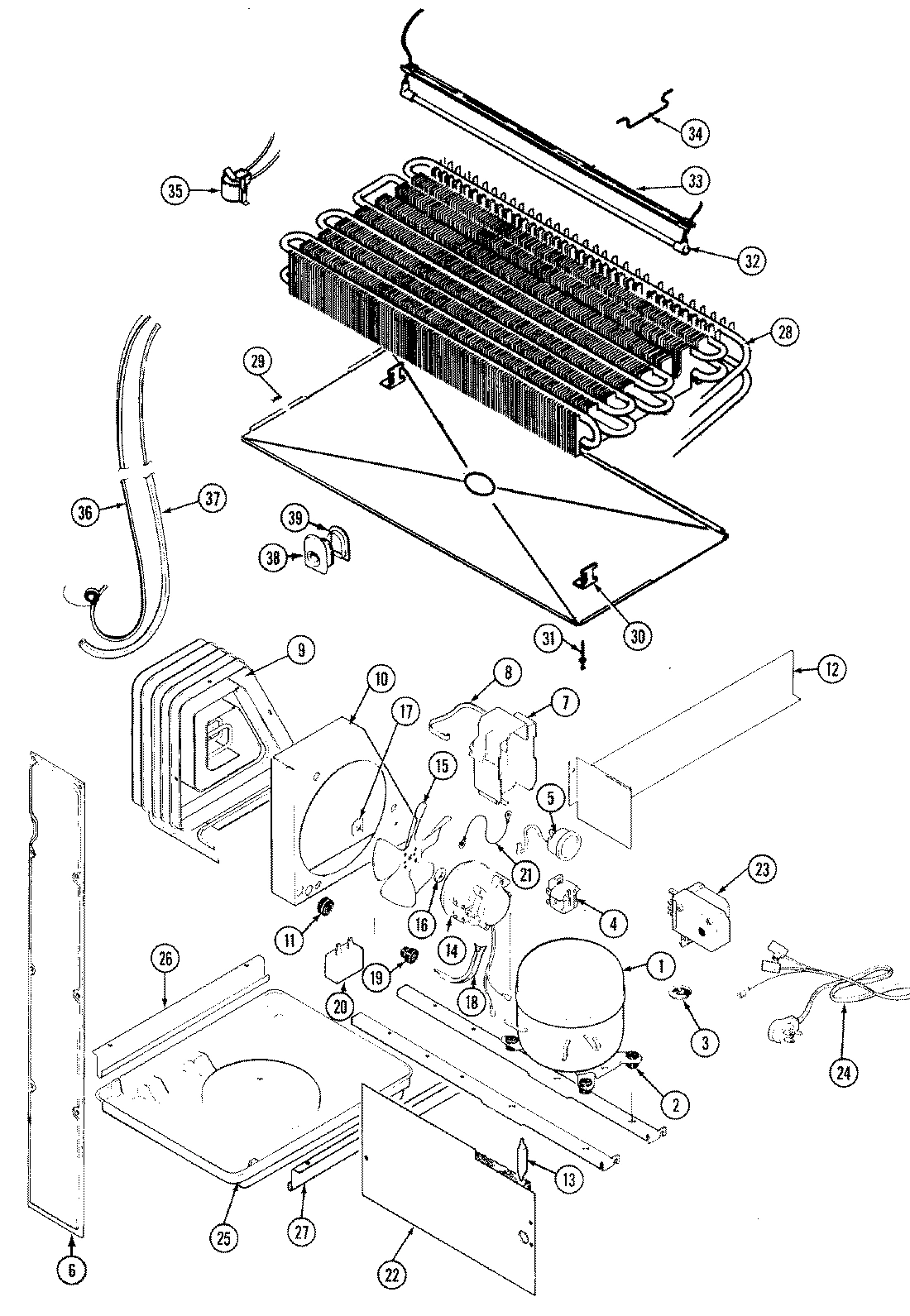

06 - UNIT COMPARTMENT & SYSTEM

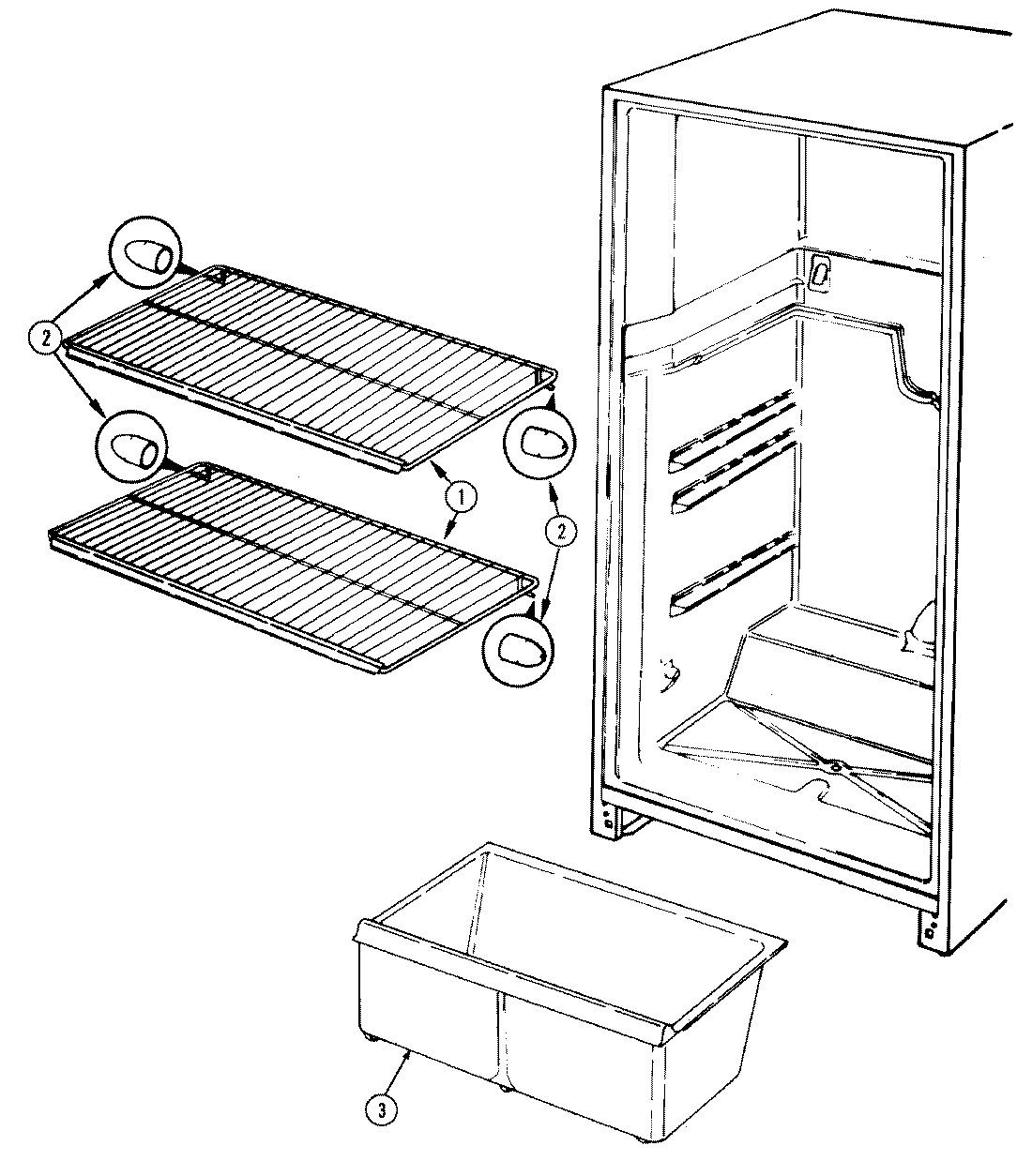

05 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RB150PLW REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 723459WW Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723498WW Contact Us For Availability
1
SHELF, SLIDE-OUT WPL 700954 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER WPL 694641 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694431 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
TIP WPL 245803 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
3
GASKET, DOOR WPL 700201 Contact Us For Availability
3
GASKET, DOOR WPL 700202 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
PAN, CRISPER WPL 6014532 Contact Us For Availability
3
SHELF, CRISPER WPL 654246 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
SCREW WPL 6527578 Contact Us For Availability
4
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
4
SCREW WPL 6527570 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 691684 Contact Us For Availability
4
CLIP WPL 694771 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
5
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
5
PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
6
WASHER WPL 542332 Contact Us For Availability
6
TRAY, BUTTER WPL 299362 Contact Us For Availability
6
WIRE COVER WPL 601101 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 681196 Contact Us For Availability
7
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
7
DOOR, DAIRY WPL 6905823 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 65151344 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMP. CONT. WPL 694214 Contact Us For Availability
9
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
KNOB, CONTROL WPL 694175 Contact Us For Availability
10
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
11
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
11
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
TRAY, ICE WPL 592812 Contact Us For Availability
12
KNOB, CONTROL WPL 694176 Contact Us For Availability
12
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
12
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
HINGE, UPPER WPL 5370920 Contact Us For Availability
13
SCREW WPL 6527552 Contact Us For Availability
13
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
14
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
14
PIN, WHEEL WPL 298352 Contact Us For Availability
14
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
14
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
15
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
15
ORIFICE, DAMPER WPL 679151 Contact Us For Availability
15
WASHER WPL 542337 Contact Us For Availability
15
WASHER WPL 674836 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
CAP, CONNECTOR WPL 681871 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
SCREW WPL 6527555 Contact Us For Availability
16
HINGE, CENTER WPL 695142 Contact Us For Availability
16
SCREW WPL 4031001 Contact Us For Availability
16
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
PLUG BUTTON WPL 701462 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
17
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
COVER, PLENUM WPL 664804 Contact Us For Availability
18
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
18
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
18
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
19
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
20
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
22
WHEEL WPL 698121 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
SCREW WPL 40001536 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682331 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
KICKPLATE ASSY. W/CLIPS (BLK) WPL 701281 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
29
SCREW WPL 4020131 Contact Us For Availability
29
CLIP WPL 602161 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
SWITCH, HEATER WPL 692831 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
DISC, CRANK COVER WPL 690371 Contact Us For Availability
32
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 692911 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
