Model Whirlpool RB120PXYB0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

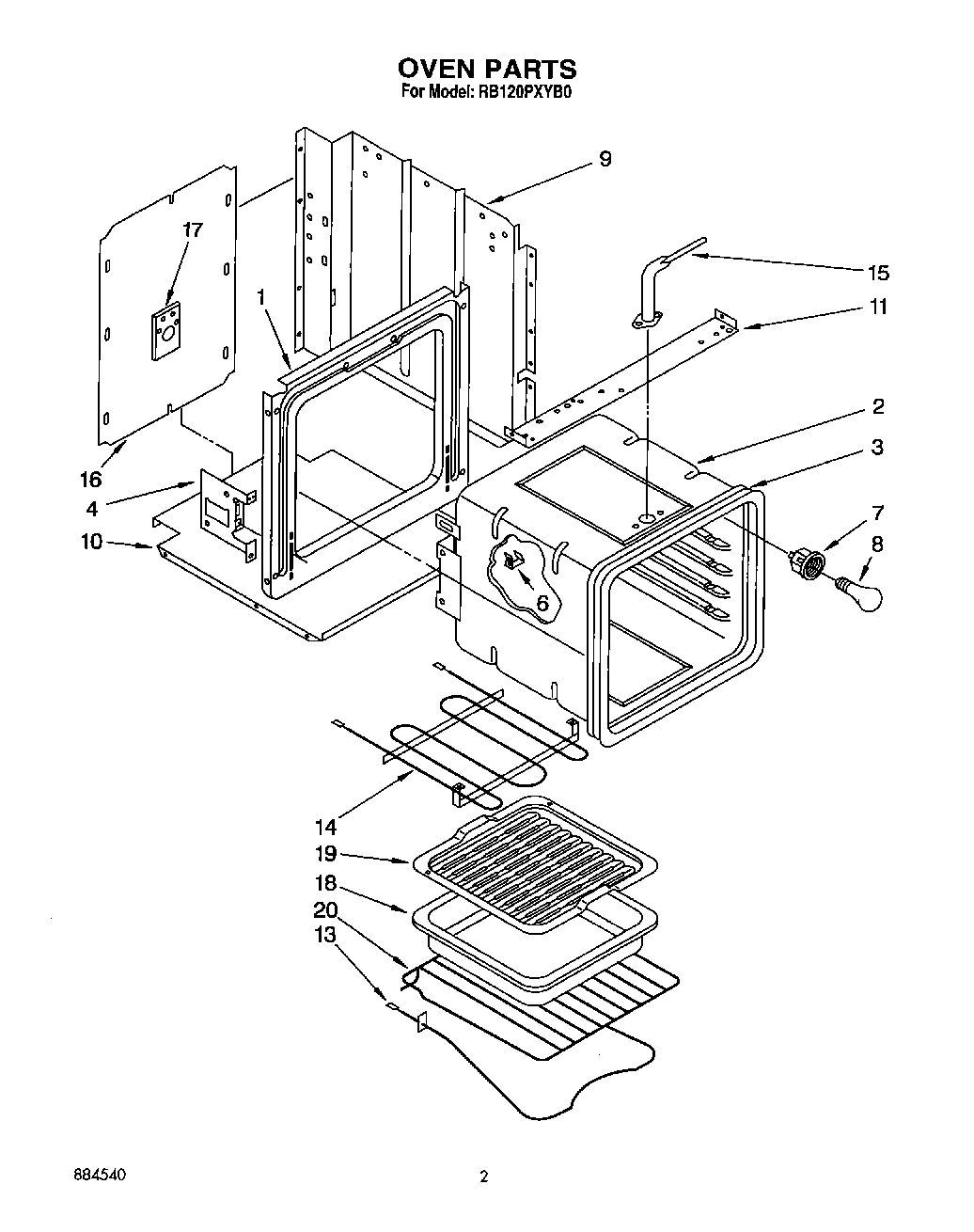

02 - OVEN

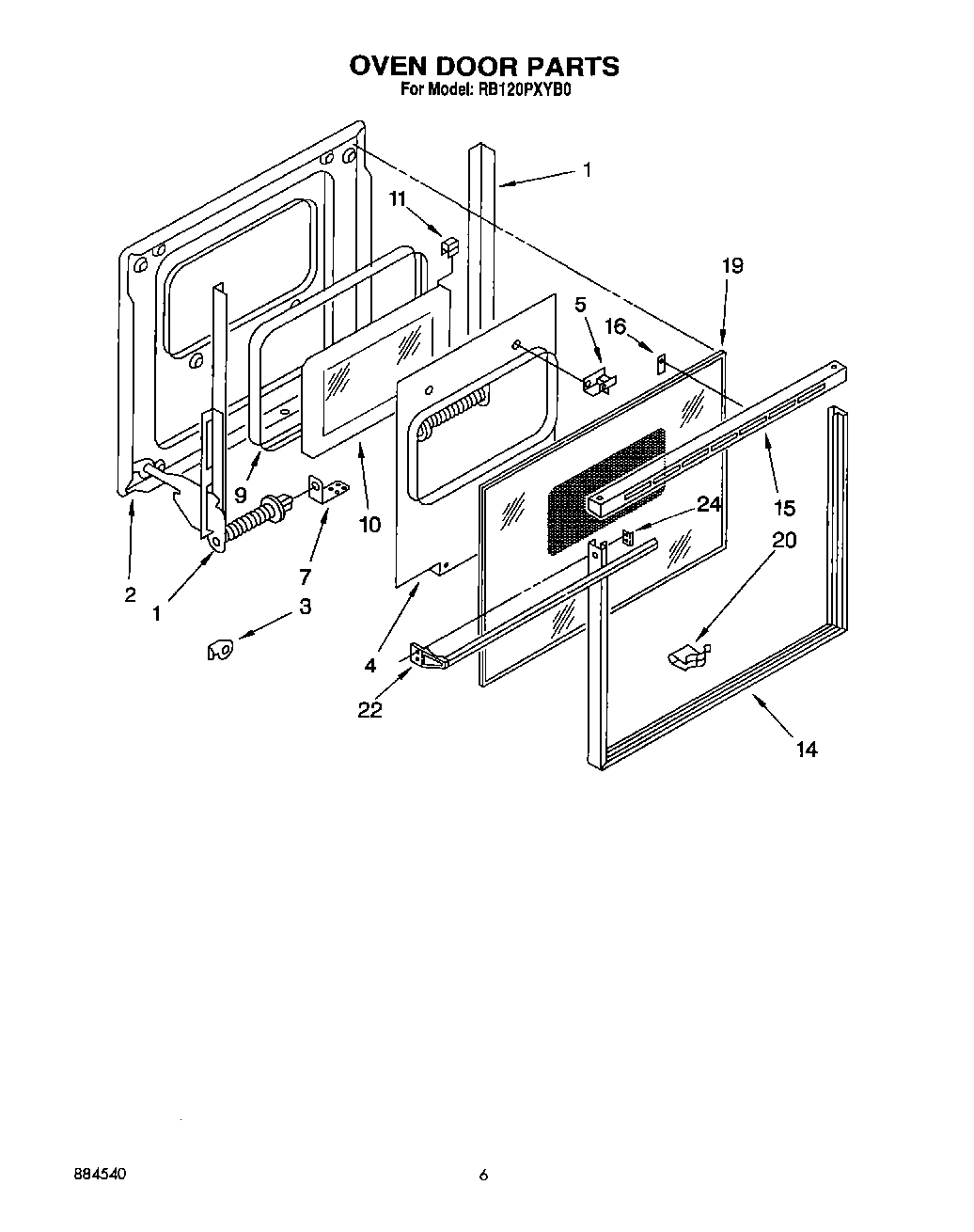

04 - OVEN DOOR
03 - CONTROL PANEL, LIT/OPTIONAL
05 - WIRING HARNESS
Common parts from model Whirlpool RB120PXYB0 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT311435 WPL LIT311435 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3183544 WPL LIT3183544 Contact Us For Availability
WPL LIT884540 WPL LIT884540 Contact Us For Availability
1
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
1
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
1
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
1
End Cap (Screw, 8A x 5/8 (4)) WPL 309133 Contact Us For Availability
1
End Cap (Right Side) WPL 311375 Contact Us For Availability
1
End Cap (Left Side) WPL 311376 Contact Us For Availability
1
End Cap (Screw, 8-18 x 5/8 (2)) WPL 312604 Contact Us For Availability
1
Harness, Wire (Main) WPL 3185190 Contact Us For Availability
2
Washer, Fiber WPL 229364 Contact Us For Availability
2
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
2
Screw (8) WPL 311056 Contact Us For Availability
2
Liner, Door 24`` WPL 328116 Contact Us For Availability
2
Trim, Center WPL 3148703 Contact Us For Availability
2
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
2
Receptacle, Housing WPL 307772 Contact Us For Availability
3
Seal, Oven WPL 309107 Contact Us For Availability
3
Stop, Door (Right Hand) WPL 252138 Contact Us For Availability
3
Stop, Door (L.H.) WPL 252139 Contact Us For Availability
3
Trim, Bottom WPL 3183522 Contact Us For Availability
4
Baffle WPL 258991 Contact Us For Availability
4
Trim, Upper WPL 312002 Contact Us For Availability
5
Screw, 10A x 1/2 (4) WPL 307748 Contact Us For Availability
5
Channel, Rubber WPL 310842 Contact Us For Availability
6
Glass, Control Panel WPL 3183969 Contact Us For Availability
7
Support, Torsion Bar (2) WPL 258921 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
8
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 3184166 Contact Us For Availability
9
Seal, Window WPL 307852 Contact Us For Availability
9
Control Bracket WPL 313317 Contact Us For Availability
10
Glass, Inner WPL 258989 Contact Us For Availability
10
Thermostat WPL 3183723 Contact Us For Availability
10
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
11
Bumper (4) WPL 312783 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
12
Selector Switch (4 Position) WPL 3149887 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
14
Frame, Door WPL 311459 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3183063 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
15
Top, Door Frame WPL 311460 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Hold-Down, Glass WPL 310705 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
17
Plate, Service WPL 252978 Contact Us For Availability
19
Glass, Outer WPL 311589 Contact Us For Availability
19
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
19
Knob, Thermostat WPL 3183106 Contact Us For Availability
20
Knob, Selector WPL 3183112 Contact Us For Availability
20
Mounting Screws No.10 X 2`` (4) WPL 161463 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
20
Insulation, Wrap WPL 310284 Contact Us For Availability
20
Insulation, Top WPL 310285 Contact Us For Availability
20
Clip, Glass (7) WPL 310706 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Handle, Door WPL 312725 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
22
Coffee WPL 261886 Contact Us For Availability
22
Coffee (Uncut) WPL 261887 Contact Us For Availability
22
New Avocado WPL 261888 Contact Us For Availability
22
WPL 261889 WPL 261889 Contact Us For Availability
22
WPL 261890 WPL 261890 Contact Us For Availability
22
WPL 261891 WPL 261891 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
24
Clip (2) WPL 311506 Contact Us For Availability
× ![]()
