Model Whirlpool RB100PXYB2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
04 - WIRING HARNESS
01 - OVEN

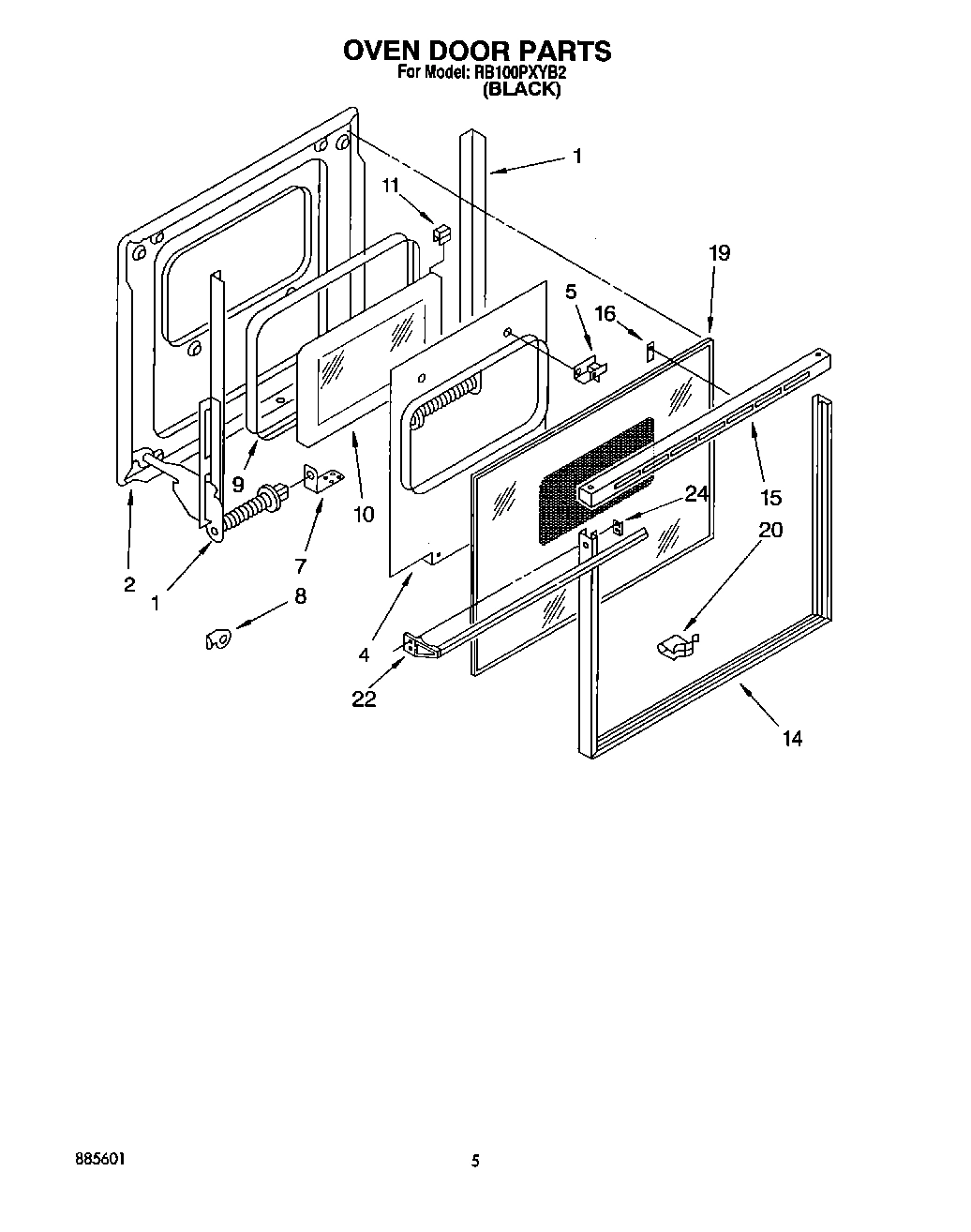

03 - OVEN DOOR

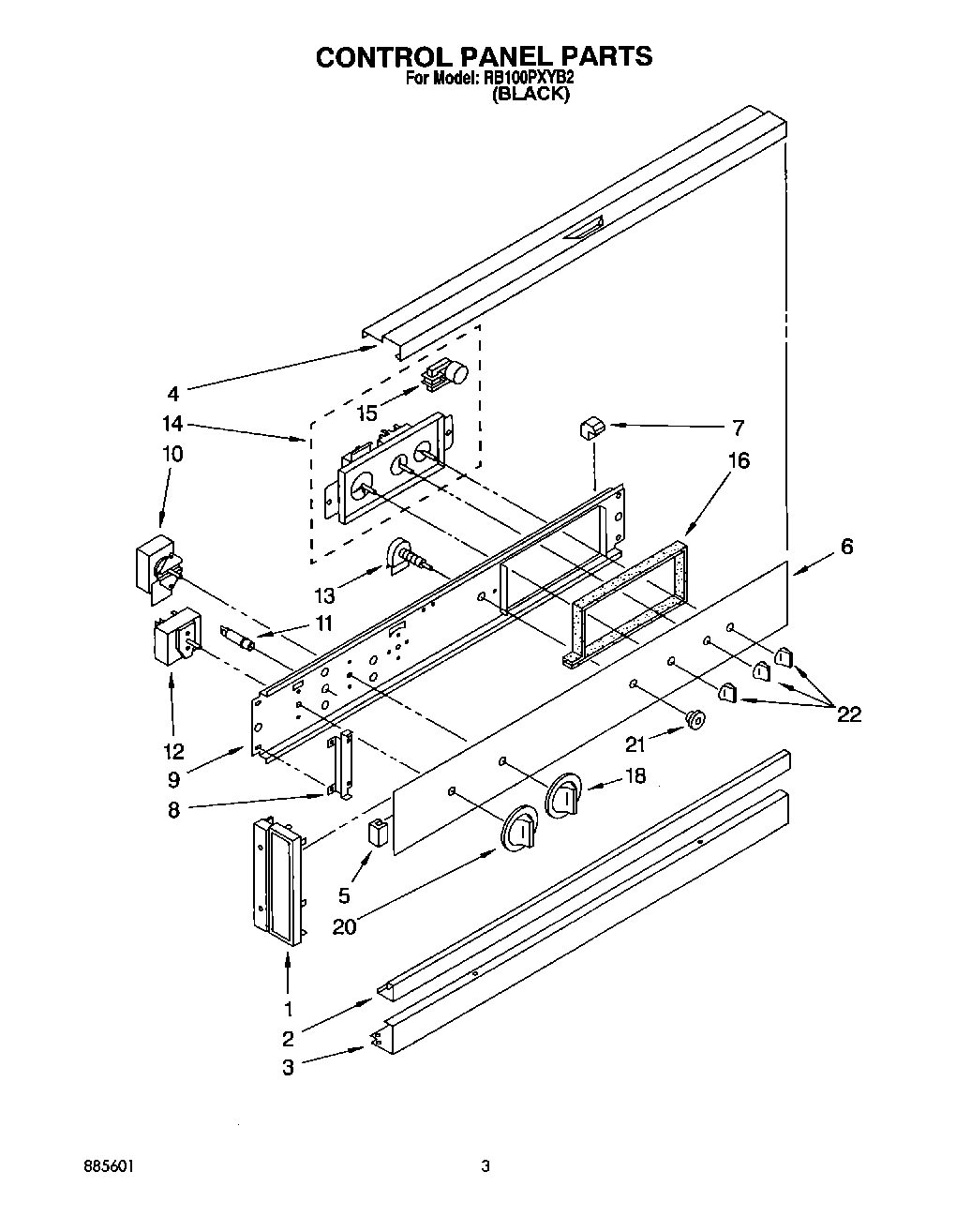

02 - CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool RB100PXYB2 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT311435 WPL LIT311435 Contact Us For Availability
WPL LIT3185981 WPL LIT3185981 Contact Us For Availability
WPL LIT3186641 WPL LIT3186641 Contact Us For Availability
1
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
1
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
1
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
1
End Cap (Right Side) WPL 311375 Contact Us For Availability
1
End Cap (Left Side) WPL 311376 Contact Us For Availability
1
End Cap (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
2
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
2
Liner, Door 24`` WPL 3172551 Contact Us For Availability
2
Trim, Center WPL 3148703 Contact Us For Availability
3
Trim, Bottom WPL 3181005 Contact Us For Availability
4
Baffle WPL 258991 Contact Us For Availability
4
Trim, Upper WPL 312002 Contact Us For Availability
5
Spacer (4) WPL 3170094 Contact Us For Availability
5
Channel, Rubber WPL 310842 Contact Us For Availability
6
Glass, Control Panel WPL 3183969 Contact Us For Availability
7
Support, Torsion Bar (2) WPL 258921 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
8
Stop, Door (Right Hand) WPL 252138 Contact Us For Availability
8
Stop, Door (Left Hand) WPL 252139 Contact Us For Availability
8
Stop, Door (Washer) WPL 3148905 Contact Us For Availability
8
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
9
Seal, Window WPL 307852 Contact Us For Availability
9
Control Bracket WPL 3184166 Contact Us For Availability
10
Glass, Inner WPL 258989 Contact Us For Availability
10
Thermostat WPL 3169305 Contact Us For Availability
10
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
11
Bumper (4) WPL 312783 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
12
Screw, WPL 313045 Contact Us For Availability
12
Selector Switch (4 Position) WPL 3149887 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
14
Screw WPL 3150532 Contact Us For Availability
14
Frame, Door WPL 311459 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 661458 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
15
Top, Door Frame WPL 311460 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Hold-Down, Glass WPL 310705 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
18
Knob, Thermostat WPL 3183106 Contact Us For Availability
19
Glass, Outer WPL 311589 Contact Us For Availability
20
Knob, Selector WPL 3183112 Contact Us For Availability
20
Mounting Screw No.10 X 2`` (4) WPL 161463 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
20
Insulation, Wrap WPL 310284 Contact Us For Availability
20
Insulation, Top WPL 310285 Contact Us For Availability
20
Clip, Glass (7) WPL 310706 Contact Us For Availability
20
Screw (8) WPL 311056 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Handle, Door WPL 312725 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Coffee WPL 261886 Contact Us For Availability
22
New Avocado WPL 261888 Contact Us For Availability
22
Harvest Gold WPL 261890 Contact Us For Availability
22
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
24
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
24
Clip (2) WPL 311506 Contact Us For Availability
× ![]()
