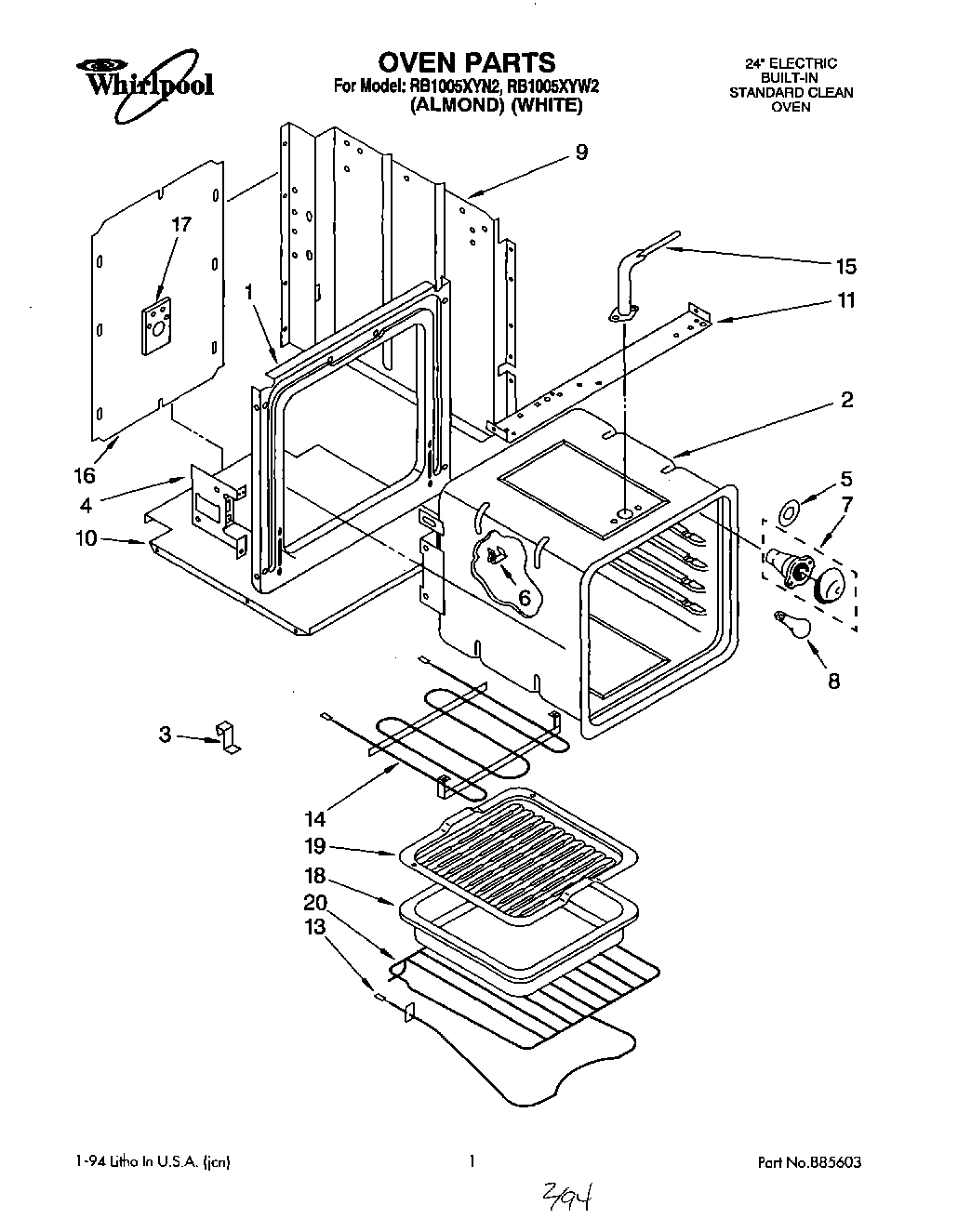

Model Whirlpool RB1005XYW2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Ena WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3186641 WPL 3186641 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT311435 WPL LIT311435 Contact Us For Availability

WPL LIT3185981 WPL LIT3185981 Contact Us For Availability

1

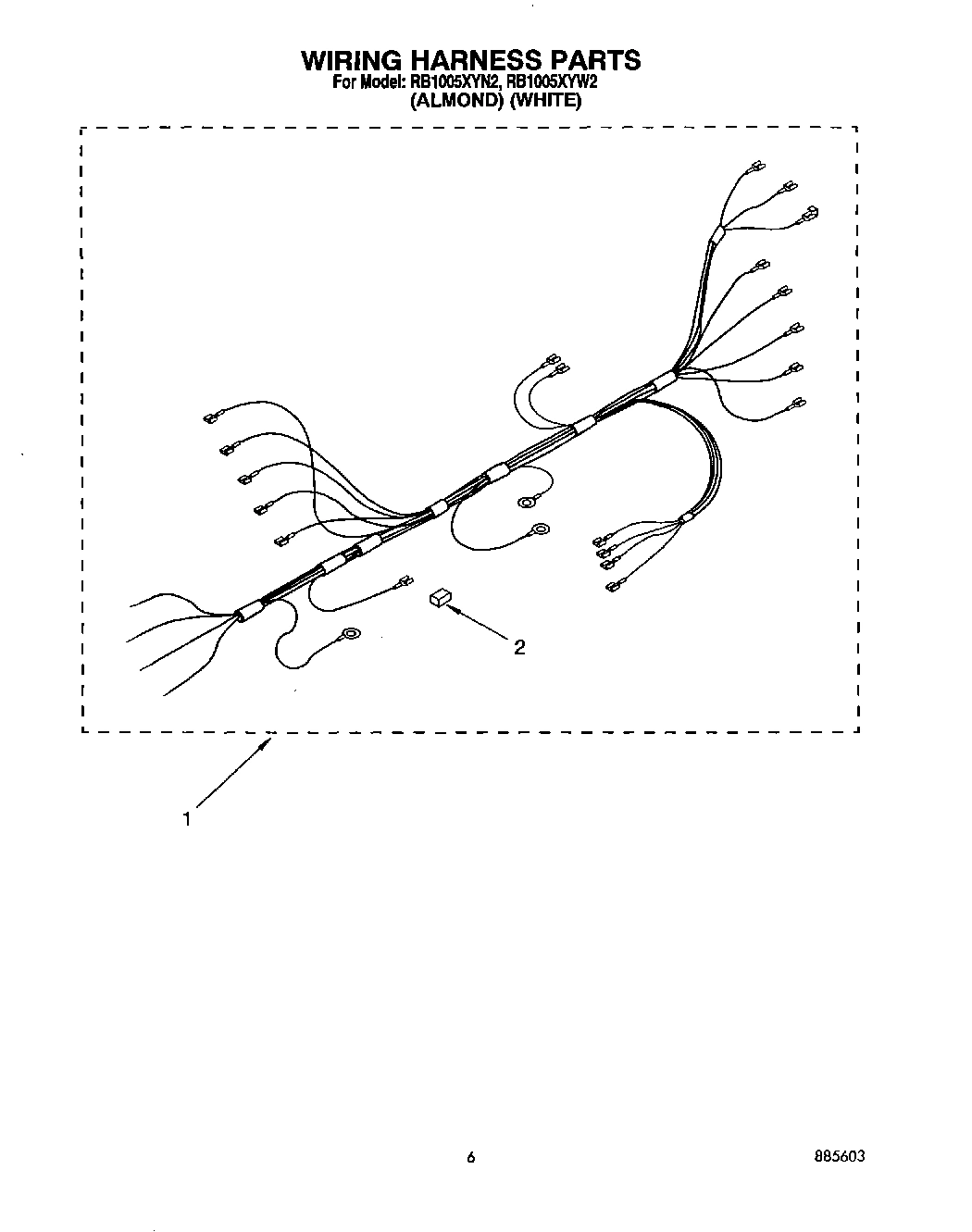

Harness, Wire (Main) WPL 3185946 Contact Us For Availability

1

End Cap (Right Side) WPL 311375 Contact Us For Availability

1

End Cap (Left Side) WPL 311376 Contact Us For Availability

1

End Cap (Screw, 8-18 x 5/8 (2)) WPL 312604 Contact Us For Availability

1

Frame, Front WPL 329048 Contact Us For Availability

2

Screw WPL 309133 Contact Us For Availability

2

Screw WPL 166681 Contact Us For Availability

2

Receptacle, Housing WPL 307772 Contact Us For Availability

2

Trim, Center WPL 3148703 Contact Us For Availability

2

Screw (8) WPL 311056 Contact Us For Availability

2

Oven (24`` Standard) WPL 3185999 Contact Us For Availability

3

Trim, Bottom WPL 3181005 Contact Us For Availability

3

Clip WPL 252893 Contact Us For Availability

4

Trim, Upper WPL 312002 Contact Us For Availability

4

Hinge Plate (2) WPL 257807 Contact Us For Availability

4

Screw (4) WPL 342043 Contact Us For Availability

5

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

5

Channel, Rubber WPL 310842 Contact Us For Availability

6

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

6

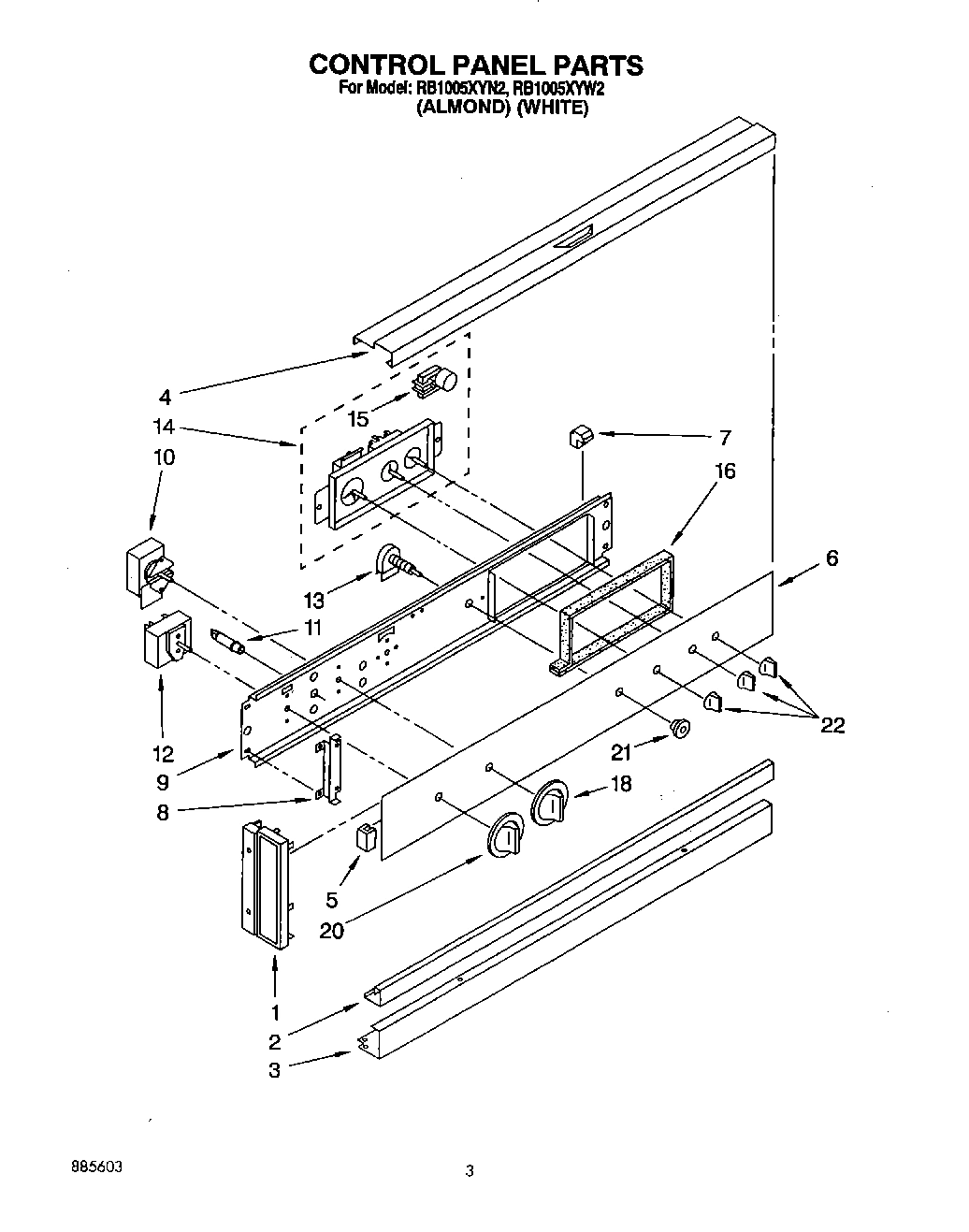

Glass, Control Panel WPL 3183969 Contact Us For Availability

7

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

7

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

8

Screw (4) WPL 254217 Contact Us For Availability

8

Bracket, Control Panel (2) WPL 311372 Contact Us For Availability

9

Control Bracket WPL 3184166 Contact Us For Availability

9

Side Wrapper (2) WPL 3149820 Contact Us For Availability

10

Thermostat WPL 3169305 Contact Us For Availability

10

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

10

Cover (Bottom) WPL 252687 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

Nut, Snap-In (2) WPL 258093 Contact Us For Availability

Handle, Oven Door WPL 311567 Contact Us For Availability

Indicator Light (250V) WPL 311802 Contact Us For Availability

Baffle, Top Insulation WPL 255575 Contact Us For Availability

12

Frame, Window WPL 3149276 Contact Us For Availability

12

Selector Switch (4 Position) WPL 3149887 Contact Us For Availability

326791 Whirlpool Range Oven Bake Element In Stock WPL 326791 $22.23

Retainer, Glass WPL 307793 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Lockwasher WPL 312796 Contact Us For Availability

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

Clip, Frame (2) WPL 307731 Contact Us For Availability

Screw WPL 3150532 Contact Us For Availability

Timer, Automatic (Includes Illus. 15) WPL 661458 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Glass, Outer WPL 307733 Contact Us For Availability

Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

Vent, Built-In Oven WPL 311382 Contact Us For Availability

16

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

16

Seal, Backguard WPL 313316 Contact Us For Availability

16

Cover, Rear WPL 257975 Contact Us For Availability

17

Plate, Service WPL 252978 Contact Us For Availability

18

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

18

Knob, Thermostat WPL 3183106 Contact Us For Availability

Knob, Selector WPL 3183112 Contact Us For Availability

Mounting Screws No.10 X 2`` (4) WPL 161463 Contact Us For Availability

Rack, Oven (2) WPL 254426 Contact Us For Availability

Insulation, Wrap WPL 310284 Contact Us For Availability

Insulation, Top WPL 310285 Contact Us For Availability

21

Bezel Switch WPL 313030 Contact Us For Availability

22

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28
