Model Whirlpool RB1005XYN0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

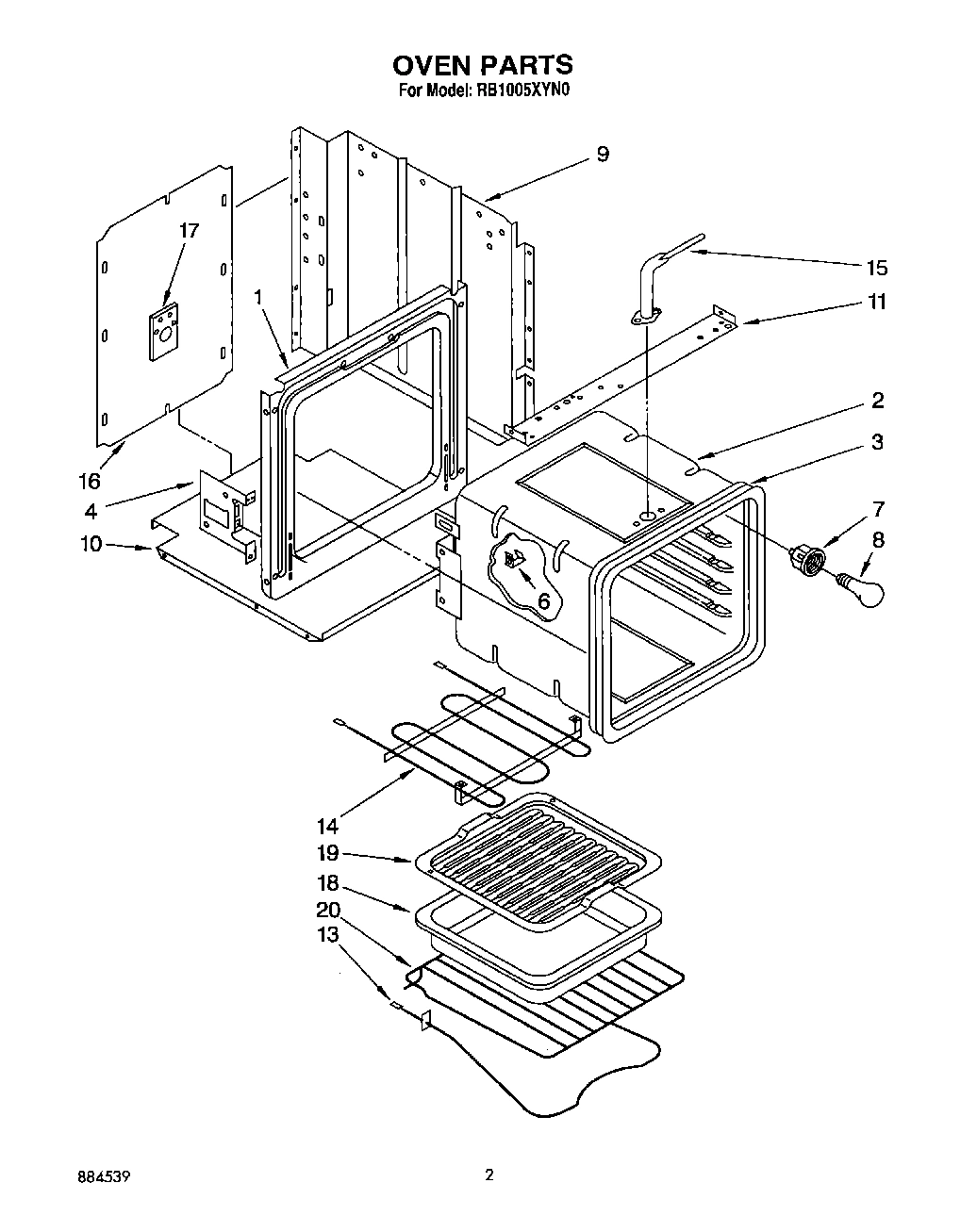

02 - OVEN

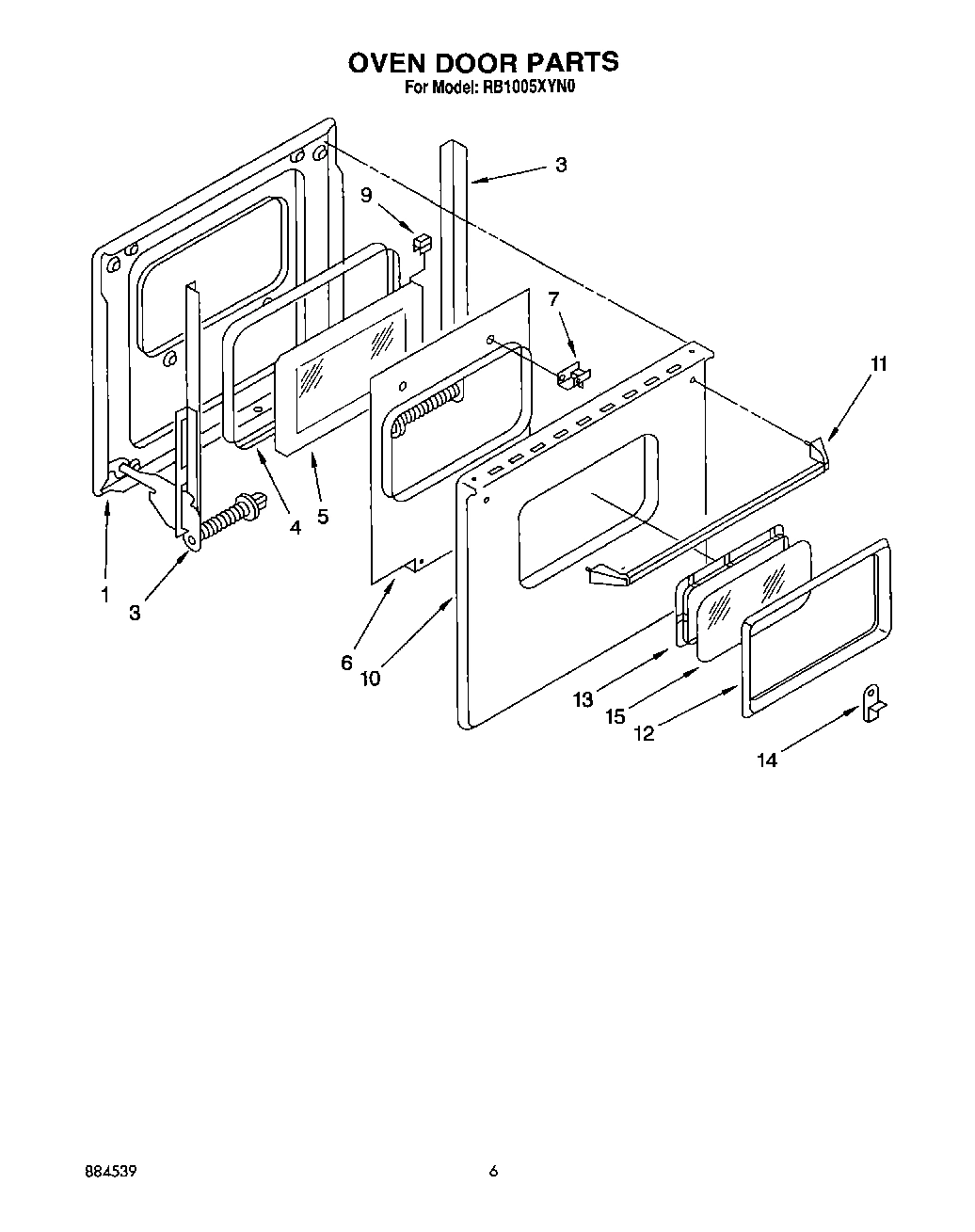

04 - OVEN DOOR
05 - WIRING HARNESS
03 - CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool RB1005XYN0 BUILT-IN ELECTRIC SINGLE OVEN
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
Coffee WPL 261886 Contact Us For Availability
New Avocado WPL 261888 Contact Us For Availability
Harvest Gold WPL 261890 Contact Us For Availability
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 285367 WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 72108 WPL 72108 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT311435 WPL LIT311435 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3183544 WPL LIT3183544 Contact Us For Availability
WPL LIT884539 WPL LIT884539 Contact Us For Availability
1
Washer, Fibre (2) WPL 229364 Contact Us For Availability
1
Liner, Door 24`` WPL 3172551 Contact Us For Availability
1
Harness, Wire (Main) WPL 3185190 Contact Us For Availability
1
End Cap (Right Side) WPL 311375 Contact Us For Availability
1
End Cap (Left Side) WPL 311376 Contact Us For Availability
1
End Cap (Screw, 8-18 x 5/8 (2)) WPL 312604 Contact Us For Availability
2
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
2
Receptacle, Housing WPL 307772 Contact Us For Availability
2
Trim, Center WPL 3148703 Contact Us For Availability
3
Seal, Oven WPL 309107 Contact Us For Availability
3
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
3
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
3
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
3
Trim, Bottom WPL 3181005 Contact Us For Availability
4
Seal, Window WPL 307852 Contact Us For Availability
4
Trim, Upper WPL 312002 Contact Us For Availability
5
Glass, Inner 24`` WPL 258989 Contact Us For Availability
5
Channel, Rubber WPL 310842 Contact Us For Availability
6
Baffle, Insulation WPL 307721 Contact Us For Availability
6
Glass, Control Panel WPL 3183969 Contact Us For Availability
7
Screw, 10A x 1/2 (4) WPL 307748 Contact Us For Availability
7
Spacer (4) WPL 3170094 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
8
Screw (4) WPL 254217 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
9
Channel, Rubber (4) WPL 312783 Contact Us For Availability
9
Control Bracket WPL 3184166 Contact Us For Availability
10
Panel, Oven Door (Almond) WPL 311658 Contact Us For Availability
10
Panel, Oven Door (White) WPL 311662 Contact Us For Availability
10
Thermostat WPL 3183723 Contact Us For Availability
10
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
11
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
11
Handle, Oven Door WPL 311567 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
12
Frame, Window WPL 3149276 Contact Us For Availability
12
Selector Switch (4 Position) WPL 3149887 Contact Us For Availability
13
Retainer, Glass WPL 307793 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
14
Clip, Frame (2) WPL 307731 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3183063 Contact Us For Availability
15
Glass, Outer WPL 307733 Contact Us For Availability
15
Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability
15
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
17
Plate, Service WPL 252978 Contact Us For Availability
18
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
18
Knob, Thermostat WPL 3183106 Contact Us For Availability
20
Knob, Selector WPL 3183112 Contact Us For Availability
20
Mounting Screws No.10 X 2`` (4) WPL 161463 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
20
Insulation, Wrap WPL 310284 Contact Us For Availability
20
Insulation, Top WPL 310285 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
× ![]()
