Model Whirlpool RA610 – Common Parts & Diagrams

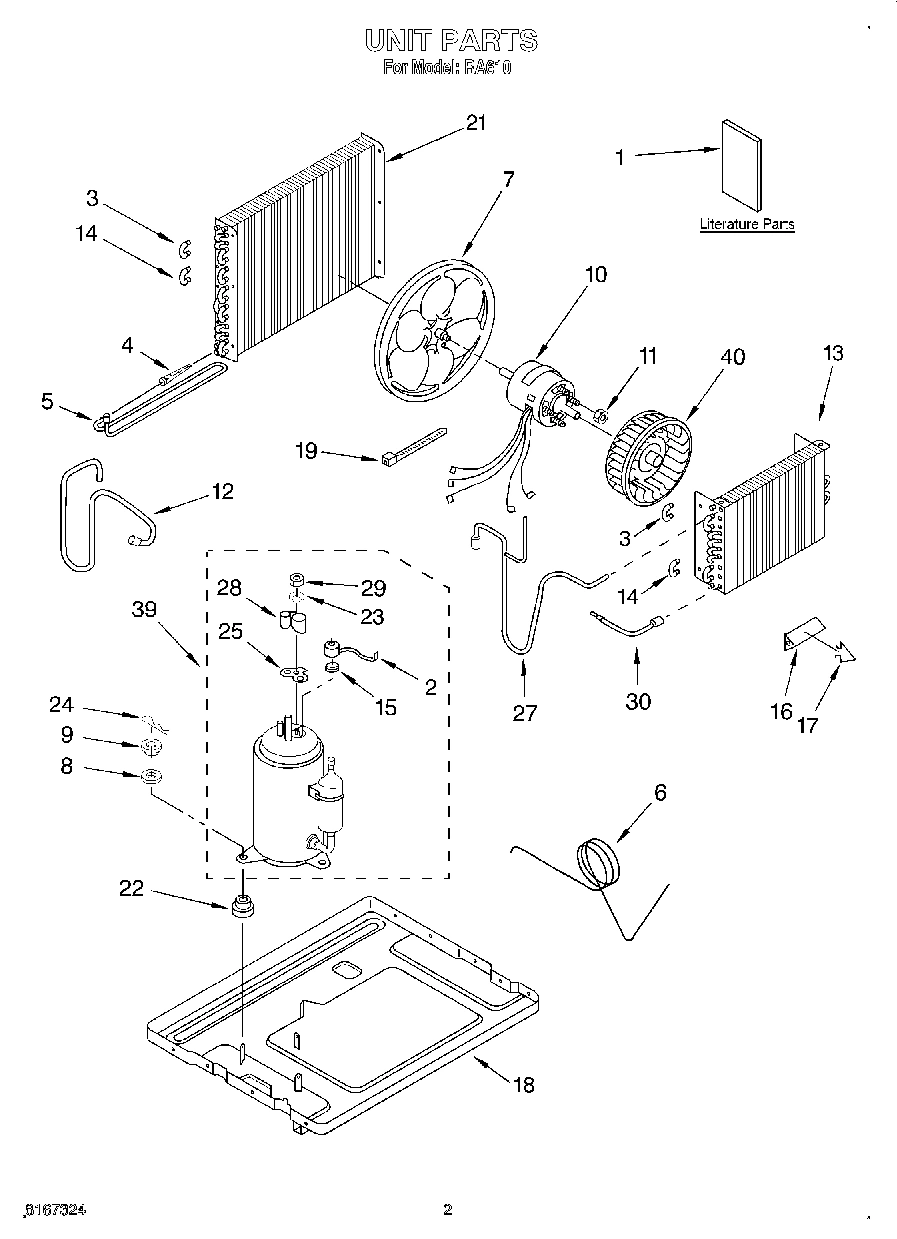

02 - UNIT, LITERATURE

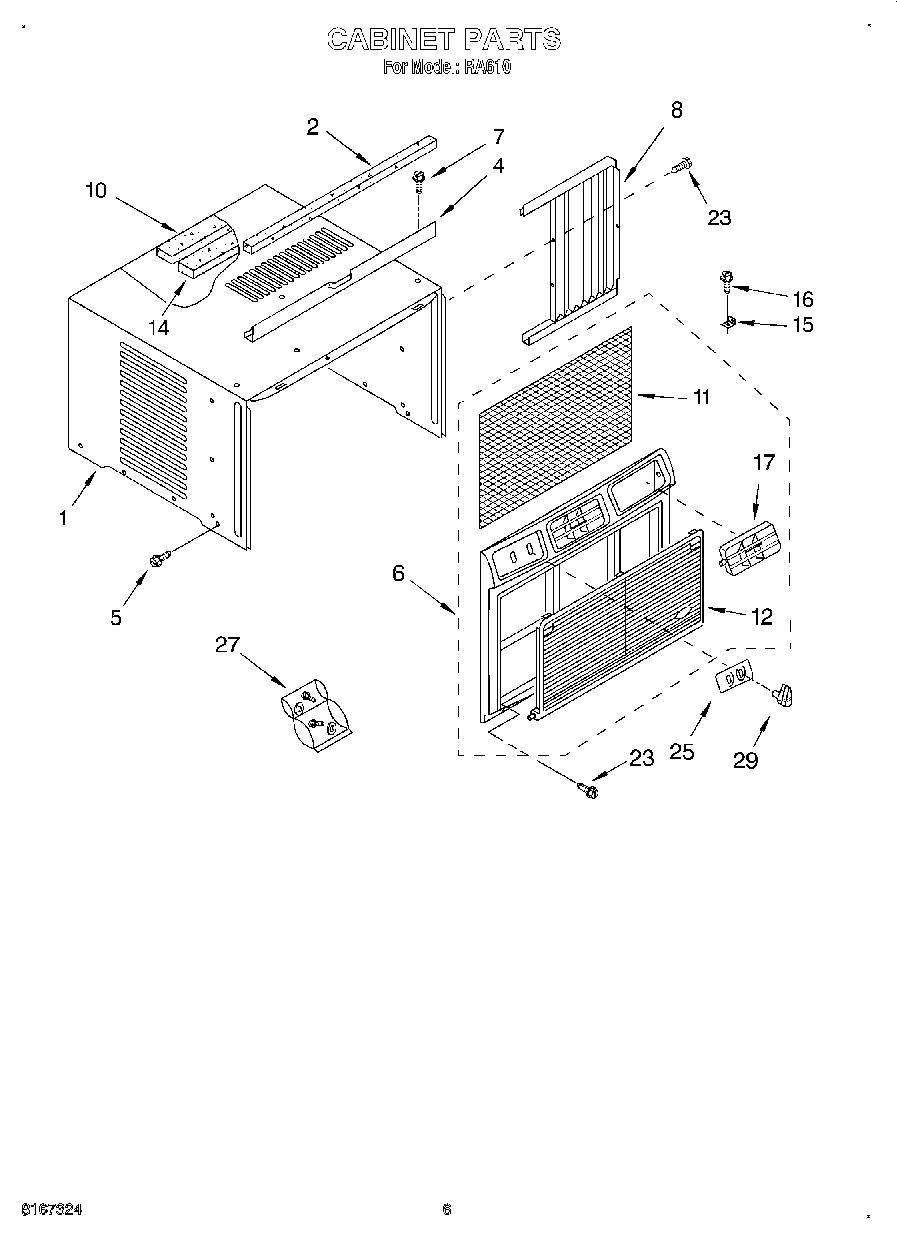

04 - CABINET

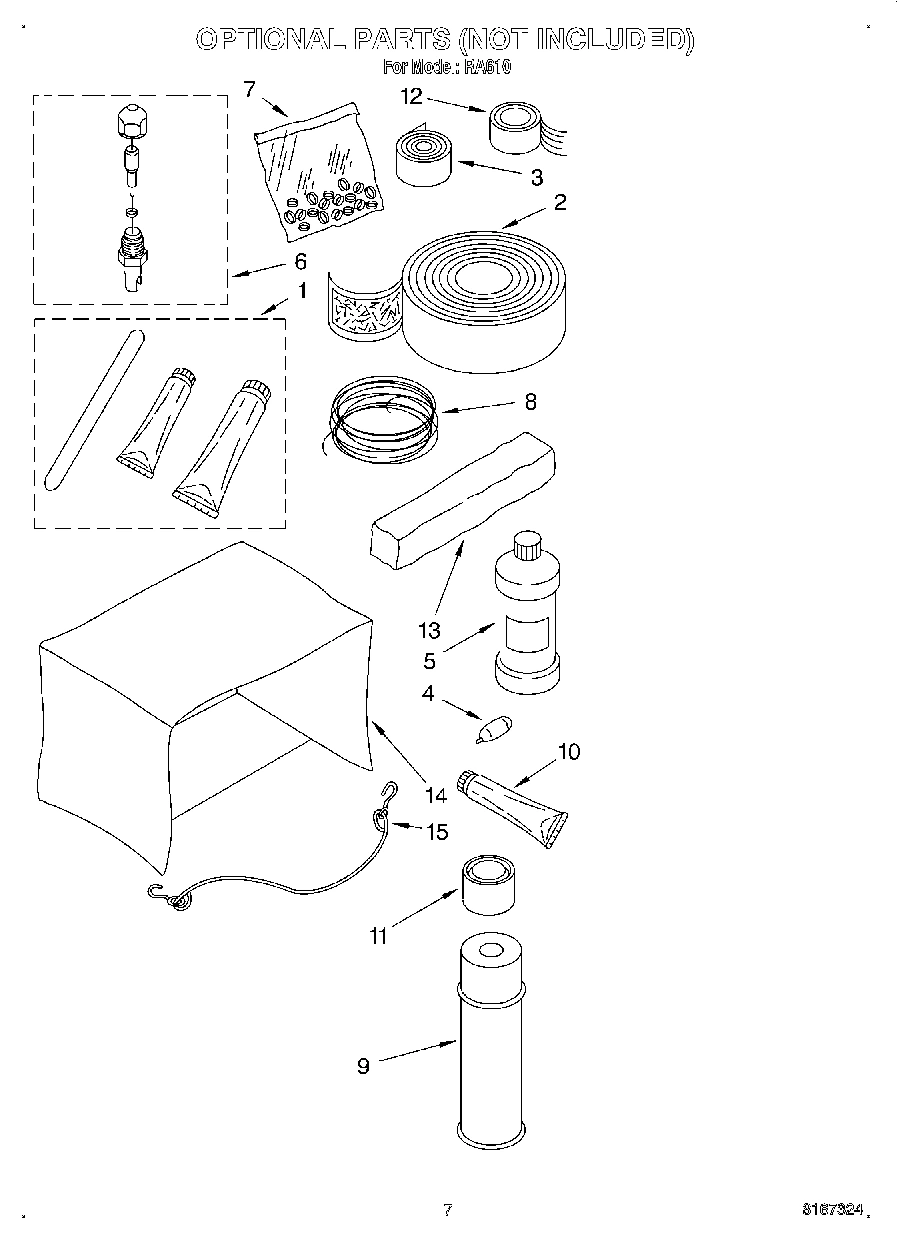

05 - OPTIONAL

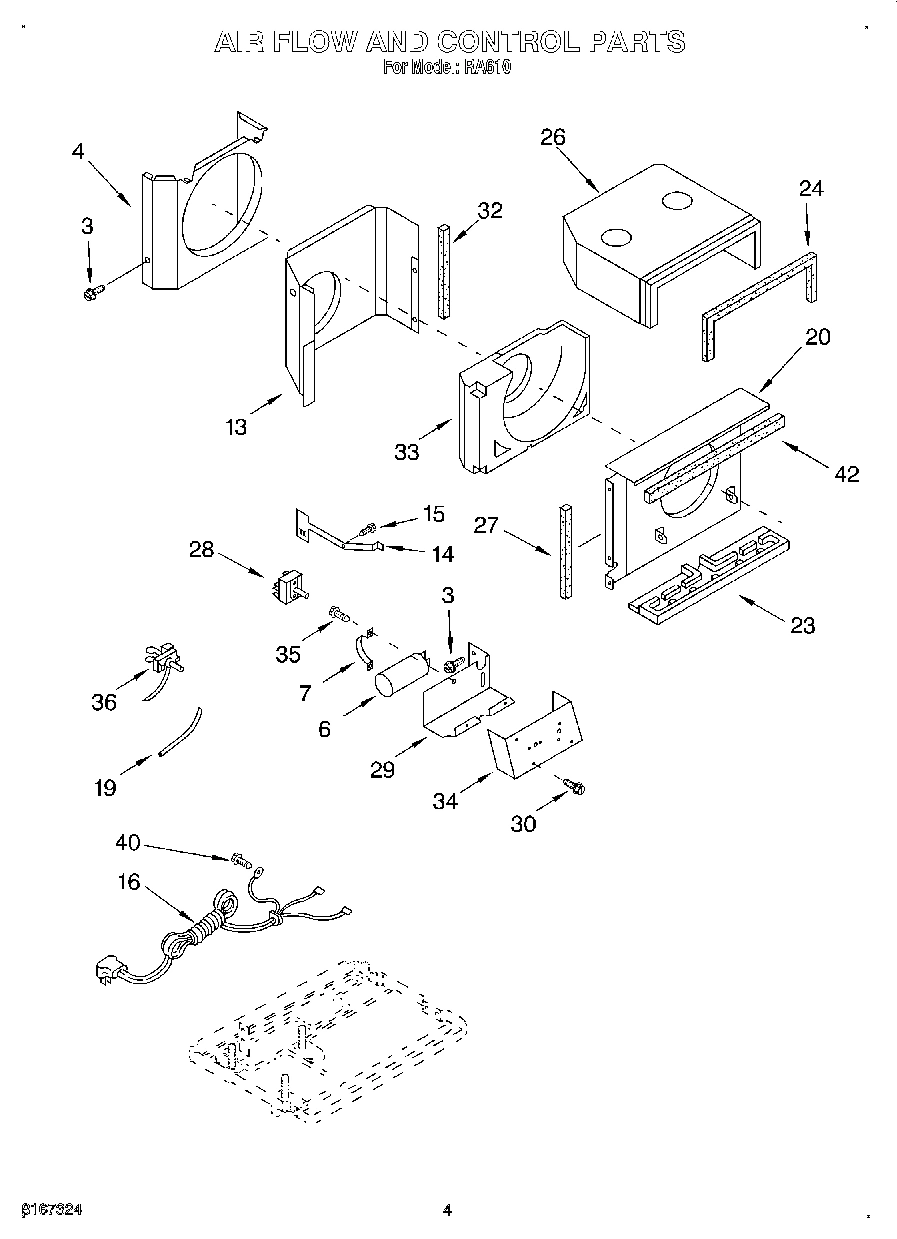

03 - AIRFLOW AND CONTROL
Common parts from model Whirlpool RA610
1
Cabinet WPL 8011107 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Channel, Top WPL 8011307 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 8011266 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet Assembly WPL 8011325 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
8
Curtain (R.S.) WPL 8011308 Contact Us For Availability
8
Curtain (L.S.) WPL 8011311 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Insulation, Top WPL 8011385 Contact Us For Availability
11
Filter WPL 8011102 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Grille, Front WPL 8011322 Contact Us For Availability
13
Wall, Dividing WPL 8011422 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Foam, Condenser WPL 8011386 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 8011139 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Cord, Appliance WPL 8011105 Contact Us For Availability
17
Louver, Assembly WPL 8011189 Contact Us For Availability
19
Sleeve, Insulating WPL 8011238 Contact Us For Availability
20
Shroud, Evaporator WPL 8011265 Contact Us For Availability
21
Condenser WPL 8011319 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Gasket, Nut WPL 950037 Contact Us For Availability
23
Screw, (2) WPL 1161561 Contact Us For Availability
23
Pan, Evaporator WPL 8011133 Contact Us For Availability
24
Clip, Compressor WPL 8011398 Contact Us For Availability
24
Seal Hood, Front WPL 1181735 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1168449 Contact Us For Availability
25
Escutcheon WPL 8031159 Contact Us For Availability
26
Hood, Air Housing WPL 8011401 Contact Us For Availability
27
Tube, Suction WPL 8011429 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
27
Seal, Left Side WPL 8011399 Contact Us For Availability
28
Switch, Rotary WPL 8031151 Contact Us For Availability
28
Cover, Terminal WPL 1182200 Contact Us For Availability
29
Nut, Hex WPL 1168451 Contact Us For Availability
29
Box, Control WPL 8011188 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8011208 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
33
Housing, Air WPL 8011400 Contact Us For Availability
34
Panel, Control WPL 8031113 Contact Us For Availability
36
Control, Temp. WPL 8031115 Contact Us For Availability
39
Compressor Assembly WPL 8011118 Contact Us For Availability
40
Wheel, Blower WPL 8011324 Contact Us For Availability
40
Screw WPL 1159222 Contact Us For Availability
42
Seal WPL 1158515 Contact Us For Availability
× ![]()
