Model Whirlpool RA243K0 – Common Parts & Diagrams
06 - INSTALLATION
02 - UNIT, LITERATURE

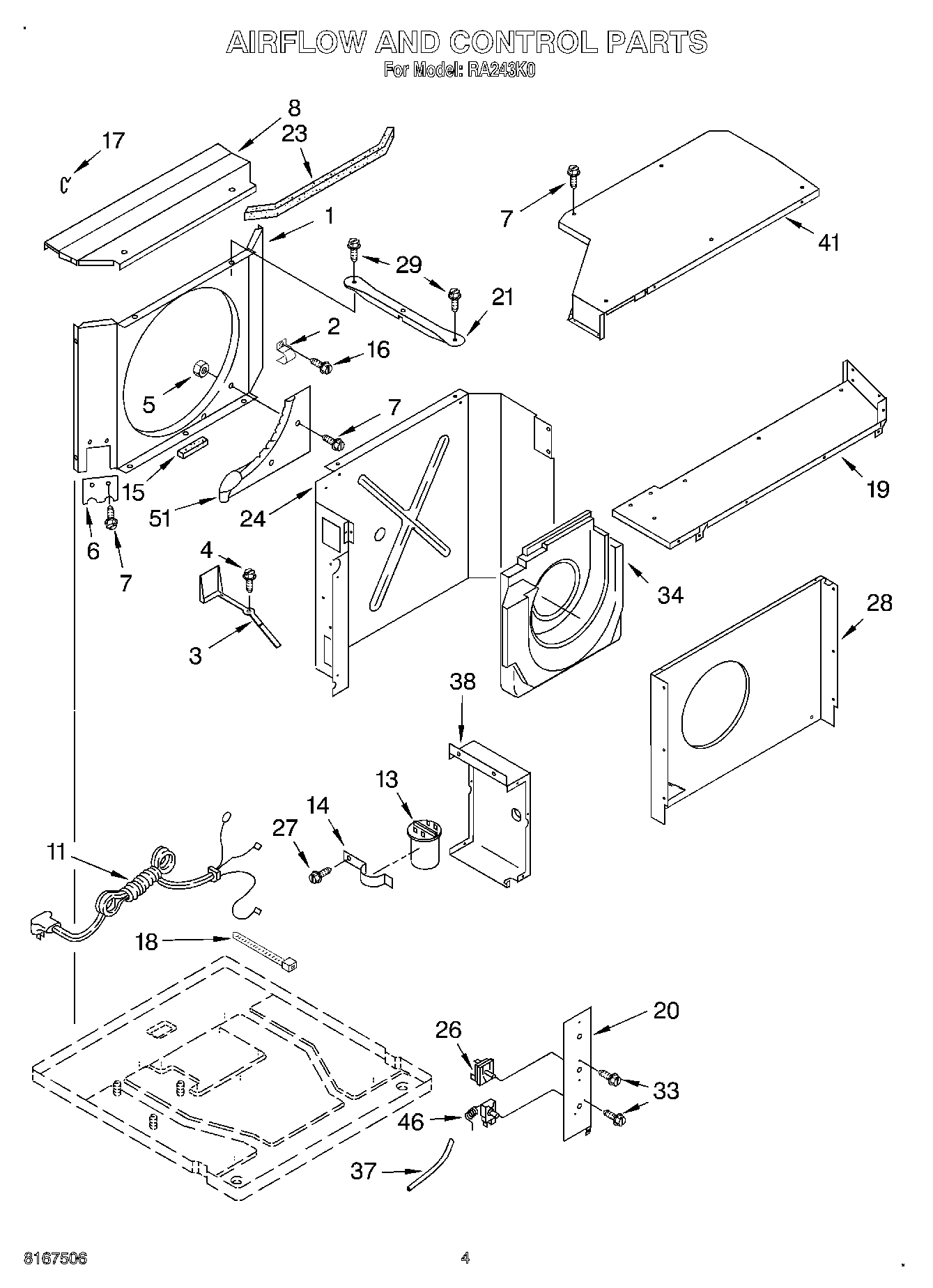

03 - AIR FLOW AND CONTROL

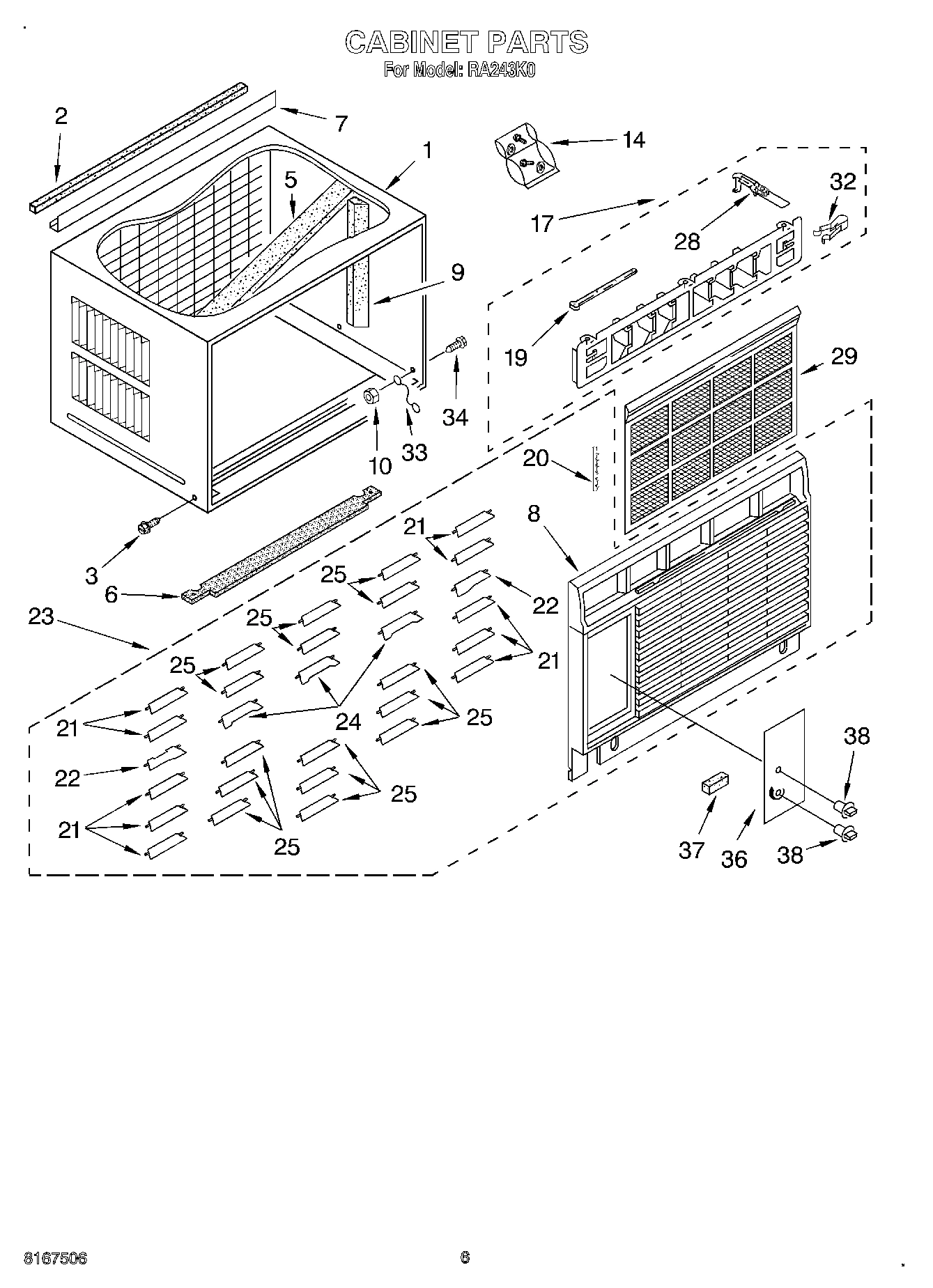

04 - CABINET

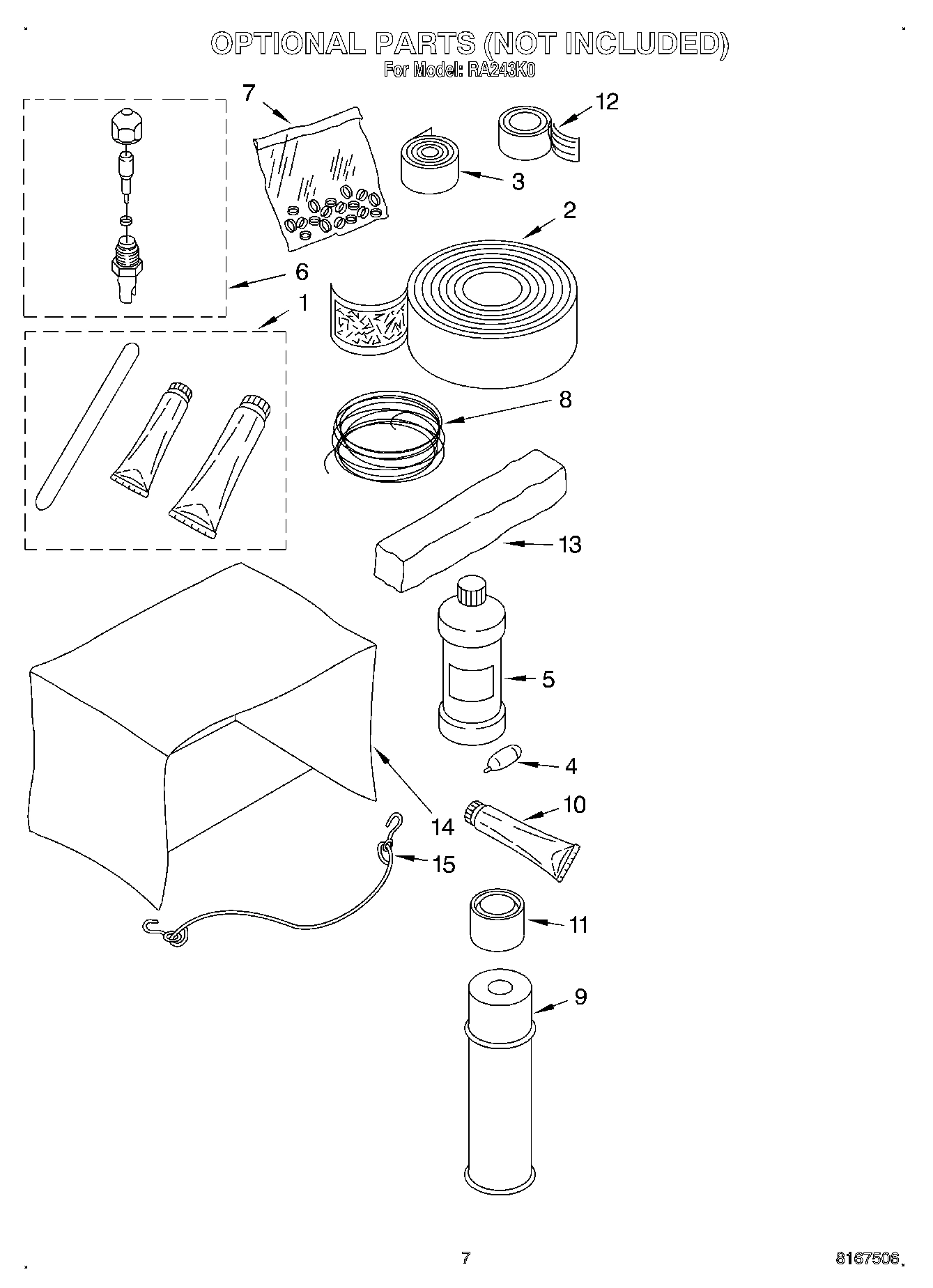

05 - OPTIONAL
Common parts from model Whirlpool RA243K0
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return (.80) (Condenser - 14) (Evaporat WPL 708532 Contact Us For Availability
2
Clip, Wet Loop WPL 1161248 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (1.00) (Condenser - 8) (Evaporat WPL 708531 Contact Us For Availability
3
Door, Exhaust WPL 1183344 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1184610 Contact Us For Availability
6
Clip, Nylon WPL 1161249 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Seal, Suction Tube WPL 1161240 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Front, Cabinet WPL 1168499 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1184410 Contact Us For Availability
11
Cord, Appliance WPL 1167648 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
13
Evaporator WPL 1184607 Contact Us For Availability
13
Capacitor WPL 1167533 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wetloop WPL 1183416 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1184611 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
18
Base WPL 1168480 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
20
Harness, Wiring Compressor WPL 1182962 Contact Us For Availability
20
Panel, Control WPL 1182954 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1168496 Contact Us For Availability
21
Compressor WPL 1184606 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch, Rotary WPL 1182964 Contact Us For Availability
26
Distributor WPL 1184612 Contact Us For Availability
27
Tube, Wetloop Connect WPL 1183830 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
28
Actuator, Louver WPL 1182348 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
29
Filter WPL 1168500 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
32
Manifold, Suction WPL 1184609 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Tube, Suction WPL 1166184 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1184594 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Sleeve, Insulating WPL 8011238 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
44
Bend, Return (1.60) (Evaporator - 1) WPL 1156329 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1166093 Contact Us For Availability
46
Control, Temperature WPL 1183372 Contact Us For Availability
47
Retainer, Cover WPL 1161083 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Spacer, Grommet WPL 1160654 Contact Us For Availability
50
Sleeve, Mounting WPL 1160655 Contact Us For Availability
51
Tube, Feeder WPL 1161217 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
52
Tube, Feeder WPL 1161216 Contact Us For Availability
53
Tube, Discharge Top Assembly (Includes 51 & 5 WPL 1167294 Contact Us For Availability
54
Bend, Return (1.63) (Condenser - 2) (Evaporat WPL 1158407 Contact Us For Availability
55
Bend, Return (Evaporator - 2) WPL 1184608 Contact Us For Availability
× ![]()
